Operation Manual for Teacher Tracking Camera

Line drawing of a cylindrical device with labeled components (no text or symbols beyond part numbers)

Precautions

This manual details functions, installation, operation principles and methods of teacher tracking camera. Please read this manual carefully before installation and use.

1. How to use

In order to prevent this product or products connected to it from being damaged, please use it within its prescribed scope of use.

1) Keep the device from rain or moisture;
2) To prevent electric shock, do not open the main case; only qualified technicians are allowed to install or maintain the device;
3) Do not use the device beyond scope of its temperature, humidity or power supply specification;
4) When cleaning the camera lens, swipe it with dry soft cloth. If dirt is hard to be removed, please swipe clean gently with mild detergent. Do not use strong or corrosive detergent, for it may scratch the lens and thus affect image result;

2. Electrical safety

Installation and use of this product shall be in strict accordance with safety standards for electricity.

3. Careful handing

Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.

4. Power supply polarity

This product applies DC 12V power supply. Power plug polarity is shown as follows:

6. Do not dismantle the product without permission

This product contains no parts which can be maintained by users. Any damage arising from dismantling the product by user without permission will not be included in warranty.

7. Magnetic field interference

Magnetic field under specific frequency may affect this product image; this is Class A product. Application in domestic environment may cause radio interference. Therefore, user should take corresponding measures.

注意

Line drawing of an electrical component with wires and connectors, labeled 1 and 2 (no text or symbols on the diagram itself)

If it is needed to extend power line of the camera, extend it from terminal 1 (220V/110V) rather than terminal 2 (DC12V), otherwise it will prevent the device from functioning!

Table of Contents

Precautions....2

1 System overview....5

1.1 System introduction....5
1.2 Product advantages....5
1.3 Product features....6

2 Port introduction....6
3 Dimensions....8
4 System connection....9

4.1 Installation layout....9
4.2 System wiring....10

5 Configuration tools....11

5.1 Set IP address of the tracking machine.... 11
5.2 Configure tracking parameters....11
5.3 Network update....17

6 Description of recording and broadcasting host 18

6.1 Auto tracking control.... 18
6.2 Action code docking....19

7 Description of remote control....21

7.1. Description of keys 21
7.2 Use remote control.... 22

8 Set menu....23

Teaching tracking camera system solution is a dedicated smart camera solution leading in international education information industry.

Teaching tracking camera products feature built-in high speed processor and advanced image processing and analytical algorithm, which allows it to track and detect teachers, students and blackboard-writing accurately and quickly. It fully satisfies all scenario demand by recorded broadcasting of teaching and remote interactive teaching.

Teaching tracking camera products adopt advanced ISP processing technique and algorithm, producing vivid images which feature balanced brightness, distinct layering, high definition and color reducibility.

Teaching tracking camera products are characterized by improved function, high performance, reliable operation, simple use and easy maintenance.

1.2 Product advantages

Full-scene solution: Different product combinations satisfy different scenario demands:
- Networked control Interface: Control information of all products will be transmitted via network, and it is suitable for product layout for all scenarios;
- Recognition algorithm unrelated to location: Status detection and recognition of teachers and students adopt unique smart partitioning algorithm to ensure that the result of detection and recognition is unrelated to location:
● Free installation: It supports both front installation and upside down installation;

1.3 Product features

Full HD image: With 1/2.8 inch high quality image sensor, its maximum resolution ratio reaches 1920x1080;
- Multiple optical zoom lens: 12X and 20X optical zoom lens are available. The lens features 72.5^ distortionless wide viewing angle;
- Advanced focusing technique: The advanced automatic focusing algorithm allows automatic focusing be done quickly, accurately and steadily;
- Low noise high signal to noise ratio: Low noise CMOS ensures super high signal to noise ratio of video taken by the camera. With advanced 2D and 3D noise reduction technology, noise is reduced and image resolution is guaranteed.
- Audio input port: It supports 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3 and G.711A audio coding;
- Super quiet holder: High precision stepping motor and precision motor driven controller ensure the holder operate at low and stable speed without noise;
● Multiple video compression standards: It supports II.265/II.264 video compression:
● Multiple networking protocol: It supports ONVIF, GB/T28181, RTSP, RTMP protocol and RTMP push mode;
- Sleep mode: It supports low-power consumption sleep/wake up mode. Power consumption in sleep mode is lower than 400mW;
- Multiple control protocol: It supports VISCA, PELCO-D, PELCO-P protocol, automatic recognition protocol and all command VISCA control protocol;

2 Port introduction

Front view

Rear view

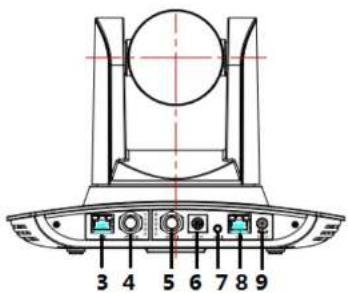

3 4 5 6 7 8 9

1. Close-up lens
2. Panorama lens
3. LAN network port for panorama lens
4. SDI output 1 (panorama lens output)
5. SDI output 2 (close-up lens output)
6. RS-232 control port
7. Audio input port
8. LAN network port for close-up lens
9. Power supply port (DC12V)

Pin definition:

No.	Port	Definition
1	DTR	Data Terminal Ready
2	DSR	Data Set Ready
3	TXD	Transmit Data
4	GND	Signal ground
5	RXD	Receive Data
6	GND	Signal ground
7	IR OUT	IR Commander Signal IR
8	NC	No Connection

3 Dimensions

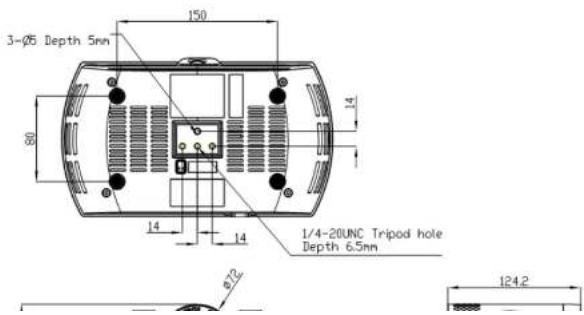

3-Ø5 Depth 5mm 150 80 14 14 1/4-20UNC Tripod hole Depth 6.5mm 8.2 124.2

4 System connection

4.1 Installation layout

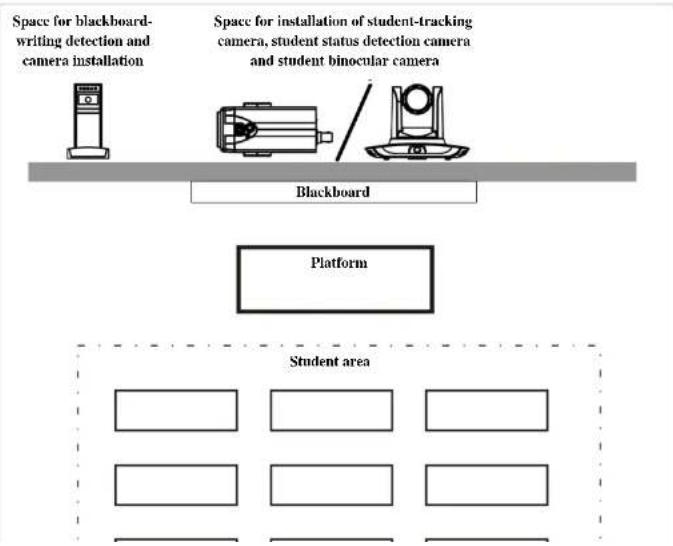

Space for blackboard-writing detection and camera installation Space for installation of student-tracking camera, student status detection camera and student binocular camera Blackboard Platform Student area

Teacher tracking camera is installed at place 1.8-2.5m from ground (distance from panoramic lens to ground), 5-15m from blackboard (when the distance is 5-9m, 4mm panoramic lens is recommended; when distance is 9-15m, 6mm panoramic lens is recommended). Teacher tracking camera should be installed near central axis of the classroom as much as possible to get the best result of tracking camera shooting.

4.2 System wiring

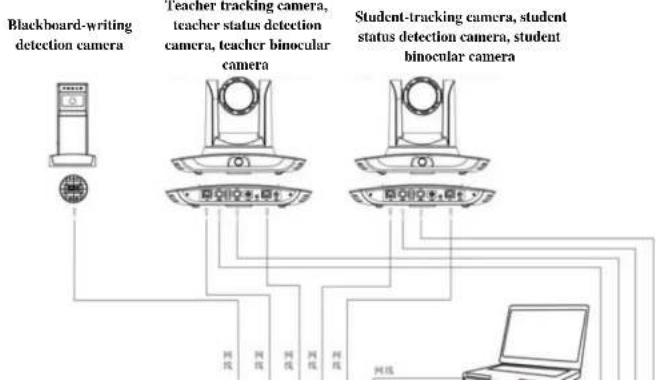

The teaching tracking camera products provide a smart camera solution for education information field, and customers can select all or some products as needed. Different combinations of products meet demand of customers' application scenarios.

5 Configuration tools

5.1 Set IP address of the tracking machine

Open IVESmart configuration tool, click Settings -> IP address -> Search successively (refer to Figure 5.1-1 for details), the configuration interface will display all valid devices in the LAN, check type of device to be configured and click Confirm. Note: Computer for operating IVESmart tool should be in the same LAN with camera configured.

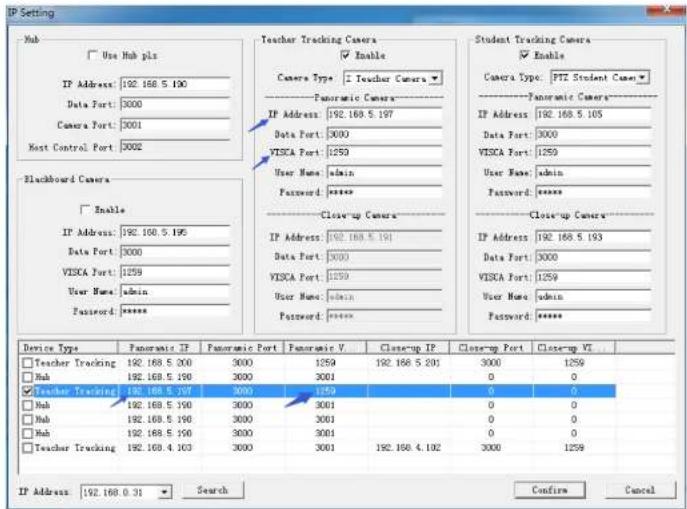

IP Setting Hub Use Hub plc IP Address: 192.168.5.190 Data Port: 3000 Camera Port: 3001 Host Control Port: 3002 Blackboard Camera Enable IP Address: 192.168.5.191 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Teacher Tracking Camera Enable Camera Type: PTL Search Camera Punemic Camera IP Address: 192.168.5.103 Data Port: 3000 VISCA Port: 3001 User Name: admin Password: ****** Close-up Camera IP Address: 192.168.5.102 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Student Tracking Camera Enable Camera Type: PTL Student Camera Punemic Camera IP Address: 192.168.5.105 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Close-up Camera IP Address: 192.168.5.193 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Device Type Panemic IP Panemic Port Panemic V. Close-up IP Close-up Port Close-up VI. Student Tracking 192.168.5.108 3000 1259 192.168.5.193 3000 1259 Hub 192.168.5.190 3000 3001 0 0 Hub 192.168.5.190 3000 3001 0 0 Hub 192.168.5.190 3000 3001 0 0

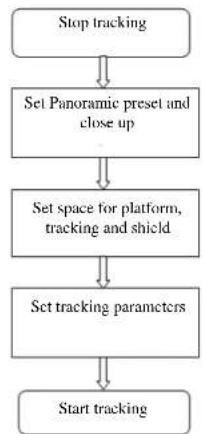


Here, the following is a description of settings according to the process. The main interface of configuration tool is shown in Figure 5.2-1.

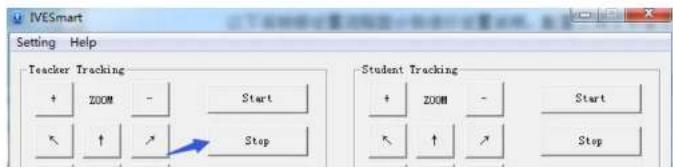

IVESmart Setting Help Teacher Tracking + ZOOM - Start ← ↑ ↑ Stop Student Tracking + ZOOM - Start ← ↑ ↑ Stop

1. Set preset position for close up

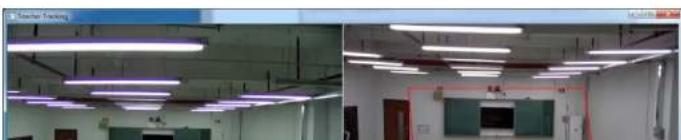

Operation interface of setting preset position for close up is shown in Figure 5.2-2. Box indicated by arrow has a holder control button. By controlling holder position and zoom value, it will adjust camera angle and position to preset position and save. Settings of panoramic preset position and platform preset position are as follows:

Training Tracking Input OK Cancel Sens Position Sens Position Sens Position Sens Position Sens Position Sens Position Sens Position Sens Position Target List Tolerance Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Quick Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Long Tracing Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance Short Event Tolerance ShortEvent

Figure 5.2-2 Operation interface

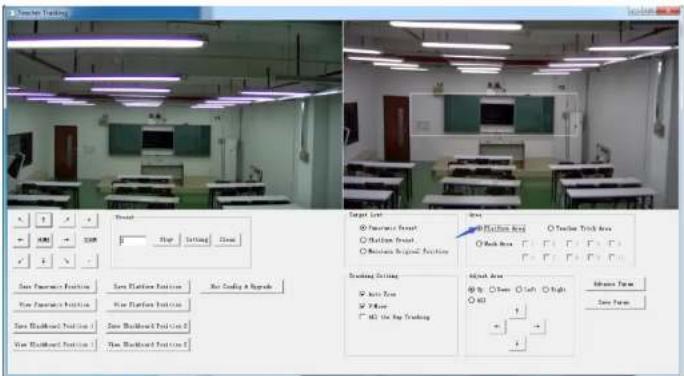

Platform preset: Control teacher tracking camera to make platform (we suggest that teachers stand in the middle of platform, if any) get desired visual result in camera image, then click and save Platform preset. During normal tracking, size of teacher's image in the picture uses Platform preset

Start Tracking Start Reset Run Setting Close Set Target @ Paramount Front @ Platform Front @ Paramount Original Position Show Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right Show Left Show Right

Figure 5.2-3 Operation interface

Tracking area: Tracking area means scope of tracking teacher. When the tracking target goes out of the tracking area, it will be considered tracking target losing. The tracking area can be set into polygon according to certain environment conditions, or set student area outside of tracking area. See Figure 5.2-4:

Interior view of a modern office with ceiling lights and a central room (no visible text or symbols)

Teacher Training Reset Run Setting Close Save Parameters Position Save Platform Position Not Coding & Upgrade Save Parameters Position Save Platform Position Save Blackboard Position Save Blackboard Position Save Platform Position Save Blackboard Position Target Unit Reset ○ Paramount Front ○ Platform Front ○ Remote Original Position Start Area ○ Platform Area ○ Target Track Area Black Area ○ 4 5 6 7 8 9 10 Starting Drilling ● Apply Over ● Remove ● All Use For Trading Block Area ● Up Shift Right ● Add Save From Save From

Figure 5.2-5 Operation interface

3. Set tracking parameters

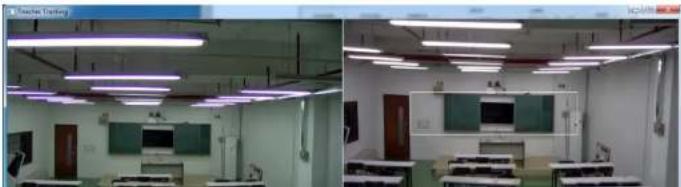

Target lost: when target loses, the close-up lens will return to designated preset position. This preset position can be panoramic preset, platform preset or maintain original position.

Interior view of a classroom with desks, chairs, and ceiling lights (no visible text or symbols)

tracking, angle of elevation remains the value set during platform preset. If a teacher will not step down platform in class, we suggest turning off auto zoom and v-move.

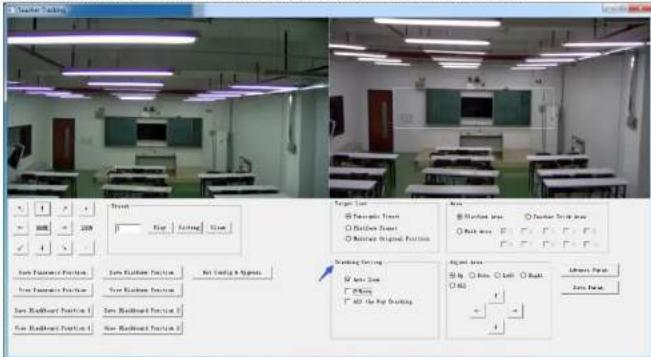

Teacher Tracking Start Reset Reset Setting Size Set Parental Focus Rackout Focus Rackout Original Focus Target Line Base Rackout Line Rackout Tree Line Back line Back to Top Texting Setting SF New Line " Right " Add up Top Tracking Output Line By: 0. Left: 0 Right: (40) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Figure 5.2-7 Operation interface

Advance parameters:

Action sensitivity: In teacher tracking mode, it is the action range required to trigger tracking camera when the tracking target changes from stationary state to motion state. The higher the action sensitivity, the smaller movement of tracking target that will trigger camera's tracking motion.

H-speed: It means speed of tracking camera for horizontal tracking.

V-speed: It means speed of tracking camera for vertical tracking.

Zoom range: The bigger the range, the higher zoom extent required for camera when tracking target steps down platform.

Active Frame Active Frame Active Sequence: Low High 0 High 1 Low 0 High 1 Low 2 High 2 High 3 High 4 High 5 High 6 High 7 High 8 High 9 High 10 High 11 High 12 High 13 High 14 High 15 High 16 High 17 High 18 High 19 High 20 High 21 High 22 High 23 High 24 High 25 High 26 High 27 High 28 High 29 High 30 High 31 High 32 High 33 High 34 High 35 High 36 High 37 High 38 High 39 High 40 High 41 High 42 High 43 High 44 High 45 High 46 High 47 High 48 High 49 High 50 High 51 High 52 High 53 High 54 High 55 High 56 High 57 High 58 High 59 High 60 High 61 High 62 High 63 High 64 High 65 High 66 High 67 High 68 High 69 High 70 High 71 High 72 High 73 High 74 High 75 High 76 High 77 High 78 High 79 High 80 High 81 High 82 High 83 High 84 High 85 High 86 High 87 High 88 High 89 High 90 High 91 High 92 High 93 High 94 High 95 High 96 High 97 High 98 High 99 High 100

Figure 5.2-5 Operation interface

For settings of action code, refer to “7 Description of connecting recording and broadcasting host”. After setting, click Save Parameter. It allows to entering advance parameter settings column to change configuration value to obtain the best result subject to specific scenes and customer demand.

5.3 Network update

When updating the version, it needs to update device via IVESmart configuration tools. Click Configuration -> Network configuration & update to enter update interface, as shown below:

Upgrading.... Upgrading ......

After upgrading is completed, the camera will perform self-inspection.

Note: After grading, you can restore factory settings by combination key [*] [#] [6] on remote control or by remote control menu.

6 Description of recording and broadcasting host

6.1 Auto tracking control

The recording and broadcasting host sends command by LAN network port or concentrator RS232 serial port and controls automatic tracking motion of teacher tracking camera. In auto tracking mode, it does not allow control camera holder rotation or zoom by IVESmart configuration tool or remote control; in stop auto tracking mode, it allows control camera holder rotation or zoom by IVESmart configuration tool or remote control.

1. Network receiving address

IP Setting Hub □ Use Hub pls IP Address: 192.168.5.190 Data Port: 3000 Camera Port: 3001 Host Control Port: 3002 Blackboard Camera □ Enable IP Address: 192.168.5.195 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Teacher Tracking Camera □ Enable Camera Type: □ Teacher Camera ▼ Panoramic Camera IP Address: 192.168.5.197 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Close-up Camera IP Address: 192.168.5.191 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Student Tracking Camera □ Enable Camera Type: PTZ Student Camera ▼ Panoramic Camera IP Address: 192.168.5.105 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Close-up Camera IP Address: 192.168.5.193 Data Port: 3000 VISCA Port: 1259 User Name: admin Password: ****** Device Type Panoramic IP Panoramic Port Panoramic V Close-up IP Close-up Port Close-up VI □ Teacher Tracking 192.168.5.200 3000 1259 192.168.5.201 3000 1259 □ Hub 192.168.5.190 3000 3001 0 0 ☑ Teacher Tracking 192.168.5.797 3000 1259 0 0 □ Hub 192.168.5.190 3000 3001 0 0 □ Hub 192.168.5.190 3000 3001 0 0 □ Hub 192.168.5.190 3000 3001 0 0 □ Teacher Tracking 192.168.4.163 3000 3001 192.168.4.192 3000 1259 IP Address: 192.168.0.31 Search Confirm Cancel

Figure 6.1-1 Operation interface

1. Command

Type	Command
Start teacher tracking	0x810x0A 0x08 0x01 0x020xFF

Net config &&Update Clearup Camera Camera Version: V2.3.1 2017-10-06 Force Version: V2.4.1 2018-12-28 JIM Version: V2.3.1 2017-10-05 IP Address: 196 199 5 201 Subset Mark: 255 256 256.0 Data Part: 2000 VSSA Part: 1159 Upgrade File: Upgrade Select File Automatic Camera Camera Version: V2.3.1 2017-10-01 IP Address: 192 193.5 200 Subset Mark: 255 256 256.0 Data Part: 5000 VSSA Part: 256 First IP: 192 193.5 190 Second IP: 5001 Upgrades File: Upgrades Select File

Figure 6.2-1 Operation interface

2. Configure action code

Edit action code as needed via IVESmart configuration tool. Click Configuration -> advance parameters successively;

After modification, click Confirm -> save parameters, as shown below:

Advance Params Advance Parce Action Sensitivity: Low High 5 B-Speed: Slow Part 4 P-Speed: Slow Part 4 Zoom Range: Small Big 5 Lost Element: 1.5 Zoom Feature Sensitivity: Low High 5 Action Code Target Lock: 100 Target Lost: 01 SA 09 01 01 FF Join From Features: 22.03 Up to Features: 01 SA 09 01 03 FF Teacher Move: 50 Teacher Stop: 01 SA 09 01 06 FF

7 Description of remote control

7.1. Description of keys

Long press standby key for 3s, camera enters standby mode, long press this key again for 3s, camera will perform self-inspection again and return to HOME position. When setting #0 as preset, when there is no action within 12s, the holder will return to #0 preset.

2. Select camera

Select address number of camera to be controlled.

3. Number key

Set or call #0-9 preset.

4. \*key and #key

1. Focusing control key: adjust focusing.

[Auto focusing]: Enter auto focusing mode

[Manual focusing]: shift camera focusing mode to manual; adjust focusing via [Focusing +] or [Focusing -]

6. Zoom key

[Zoom] +: zoom out lens; [Zoom -]: zoom in lens

7. Set and clear preset key

Set preset: Save a preset, set preset + number key (0-9), that is set preset of corresponding number key;

Cancel preset: Cancel a preset, cancel preset + number key (0-9), that is cancel preset of corresponding number key;

8. Holder control key

UDLR (Up, Down, Left, Right) arrow/l it controls UDLR movement of the holder.

7.2 Use remote control

After normal start of the camera, it receives infrared command and execute. Press down remote control key, receiving indicator of remote control flashes, release the key, the indicator stops flashing. User can set preset, read position, horizontal and vertical motion by infrared remote control. Description of keys:

1. Key press mentioned in this manual means press and release the key on remote control. For example, "press |HOME| key" means press down |HOME| key and release. If long press is needed, it will be specified specially.

2. Operation of combination keys mentioned in this manual means operating such keys in order. For example, "press [*] + [#] + [F1]" means press [*] first, then [#], and [F1] at last.

1) Select camera

Select address number of camera to be controlled.

2) Control holder

Rotate upward: Press [▲]; rotate downward: Press [▼]

Rotate to left: Press [ ]; rotate to right: Press [ ]

Center position: Press [HOME]

Long press UDLR key, it will rotate from low speed to high speed continuously, until it reaches the destination; release in the middle of the journey, it will stop movement.

3) Set, cancel, call preset

1. Save preset: Press [Set preset], then press any number key from 0 to 9, it will reset a preset corresponding to the number key.

Note: with remote control, it can set 10 presets at most.

1. Call preset: Press number key 0-9 directly, it will ca preset which has been saved.

Auto focusing: support Manual focusing: Support

7) Set infrared remote control address of camera

[^*] + [ ± ] + [F1]: Set up # 1 address

[^*] + [ ± ] + [F2]: Set up # 2 address

|^*| + | # | - |1^3| : Set # 3 address

[*] + [#] + [F4]: Set up #4 address

8 Set menu

8.1 Main menu

In normal image, press [MENU] key, the screen displays the menu content, use the arrow to point to the desired item.

MENU ==================== Language English (Setup) (Camera) (P/T/Z) (Video Format) (Version) (Restore Default)

8.2 System parameter settings

On the main menu, move the cursor to (Settings), press [HOME] key to enter Settings page, as shown below.

SETUP
Protocol	Auto
Visca Address	1
Visca Address Fix	OFF
PELCO-P Address	1
PELCO-D Address	1
Baudrate	9600
[↑↓]Select [←→]Change Value[Menu]Back

Protocol: Protocol type VISCA/PELCO-P/PELCO-D/auto

Baud rate: Set item: 2400/4800/9600/115200

Communication address: VISCA-1\~7;PELCO-P = 1\~64;PELCO-D = 1\~64

VISCA address fix: Set item: On/off

8.3 Camera parameter settings

On the main menu, move the cursor to (CAMERA), press [HOME] key to enter

1) Exposure

On CAMERA menu, move the cursor to (EXPOSURE), press [HOME] key to enter exposure page, as shown below.

EXPOSURE Mode Auto EV OFF BLC OFF Flicker 50Hz G.Limit 3 DRC 2 [↑↓]Select [←→]Change Value [Menu]Back

Mode: Options: Auto, manual, shutter priority, aperture priority, brightness priority

EV: Options: On/off (only valid in auto mode)

Compensation grade: Options: -7\~7 (only valid in auto mode when "EV" is on.)

BLC: Options: On/off (only valid in auto mode) DRC: Options: 1\~8, off

Flicker: Options: Off, 50Hz, 60Hz (valid in auto, shutter priority and brightness priority modes)

G. Limit: Options: 0\~15(valid in auto, shutter priority and brightness priority modes)

Shutter priority: Options: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1,000, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (valid in manual and shutter priority modes)

Aperture priority: Options: Off, F11.0, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.8 (valid in manual and aperture priority modes) Brightness: Options: 0\~23 (only valid in brightness priority

COLOR
WB Mode	Auto
RG Tuning	0
BG Tuning	0
Saturation	100%
Hue	7
AWB Sensitivity	Low
[↑↓]Select [←→]Change Value [Menu]Back

WB Mode: Options: auto, 3000K, 4000K, 5000K, 6500K, manual, one-key white balance.
RG Tuning: Options: -10\~10 (only valid in auto mode) BG Tuning: Options: -10\~10 (only valid in auto mode)
Red gain: Options: 0\~255 (only valid in manual mode) Blue gain: Options: 0\~255 (only valid in manual mode)
Saturation: Options: 60%, 70%, 80%, 90%, 100%, 110%, 120%, 130%, 140%, 150%, 160%, 170%,
180%, 190%, 200%
Hue: Options: 0\~14
AWB Sensitivity: Options: high, medium, low (only valid in auto mode)

3) Image

On CAMERA menu, move the cursor to (IMAGE), press [IHOME] to enter IMAGE page, as shown below.

Brightness	7

4) Focus

On CAMER menu, move the cursor to (FOCUS), press [HOME] key to enter FOCUS page, as shown below.

FOCUS

Focus Mode

Auto

AF-Area

Center

AF-Sensitivity

Low

[↑ ↓]Select [←→]Change Value

[Menu]Back

Focus mode: Options: auto/manual

AF-Area: Options: up/center/low

AF-Sensitivity: Options: high/medium/low

5) Noise reduction

On CAMERA menu, move the cursor to (Noise reduction), press [HOME] key to enter Noise reduction page, as shown below.

NOISE REDUCTION

NR-2D 3

NR-3D 3

Dynamic Hot Pixel OFF

[↑↓]Select [←→]Change Value

[Menu]Back

rotate at lower speed.

Zoom speed: Set speed for remote control camera Image freezing; Options: On/off zoom, 1\~8

Acc Curve: Options: Quick/slow

8.5 Video format

On the main menu, move the cursor to (VIDEO FORMAT), press [HOME] key to enter VIDEO FORMAT page, as shown below.

VIDEO FORMAT
1080P60	1080P50
1080I60		1080I50
1080P30	1080P25
720P60	720P50
720P30		720P25
1080P59.94		1080I59.94
1080P29.97		720P59.94
720P29.97
[↑↓]Select
[Menu]Back	[Home]OK

Note: only when rotation dial-up is at F will ST model menu show this item. S version: 1080P60 downward compatibility; M version: 1080P30 downward compatibility Change parameter value in the menu. To save value when power off, exit menu.

RESTORE DEFAULT

Restore Default? NO

[↑↓] Select [←→]Change Value

[Menu]Back [Home]OK

Restore default : Options : Yes/no (color style and video format can't be restored default).

Note: If remote address used before is not 1, but any one from 2, 3 and 4, after restoring all parameters or system parameters, device address corresponding to the remote control will be reset to 1. At this moment, it is needed to change remote control address to 1, that is, press Camera and select [1], control will function.

9 Technical parameters

Parameter/model	Model-12	Model-20
Tracking camera, lens parameters
Image sensor	1/2.8inch high quality CMOS sensor
Effective pixels	2,070,000 16:9
Video signal	1080P60/50/30/25/59.94/29.971080f60/50/59.94?20P60/50/30/25 /59.94/29.97
Lens optics zoom	12X optical zoom f-3.9~46.1mm	20X optical zoom f-4.7~94mm
Visual angle	6.3° (narrow angle) ~72.5° (wide angle)	2.9° (narrow angle) ~55.4° (wide angle)
Aperture coefficient	F1.8~F2.4	F1.6 ~ F3.5
Digit zoom	X10
Minimum illumination	0.5Lux(F1.8, AGC ON)
code stream
Video compression format	II.265, II.264
Control signal port	RS-232/485
Control protocol	VISCA/Pelco-D/Pelco-P; Band rate: 115,200/9,600/4,800/2,400bps
Audio input port	Dual track 3.5mm linear input
Audio compression format	AAC, MP3, PCM
Power port	IIEC3800 power socket (DC12V)

Holder parameters
Horizontal rotation	- 170^ + 170^
Vertical rotation	- 30^ + 90^
Horizontal control speed	0.1~100°/s
Vertical control speed	0.1~45°/s
Preset speed	Horizontal: 100^ /s ,vertical: 45^ /s
Preset quantity	User can set 255 presets at most (10 pes of mobile control)

Other parameters
Power adapter	Input AC110V-AC220V output DC12V/2.5A
Input voltage	DC12V+10%
Input current	1.5A (maximum)
Power consumption	18W (maximum)
Storage temperature	-10°C~+60°C
Storage humidity	20%-95%
Operating temperature	-10°C~+50°C
Operating humidity	20%-80%
Dimension (WxIIxD)	254mm X 144mm X 174mm
Weight (approx.)	1.50kg
Operating environment	Indoor
Remote maintenance (network port)	Remote upgrade, restart and reset
Standard accessories	12V/2.5A power, RS232 control line, remote control, operation manual, warranty card
Optional accessories	Installation support

Ack/Completion Message
	Command package	Notes
ACK	z0 41 FF	Returned when the command is accepted.
Comp letion	z0 51 FF	Returned when the command has been executed.

z camera address+8

Error Messages
	Command package	Notes
Syntax Error	z0 60 02 FF	Returned when the command format is different or when a command with illegal command parameters is accepted
Command Not Executable	z0 61 41 FF	Returned when a command cannot be executed due to current conditions. For example, when commands controlling the focus manually are received during auto focus.

Control command

Command	Function	Command package	Notes
AddressSet	Broadcast	88 30 01 FF	Address setting
IF_Clear	Broadcast	88 01 00 01 FF	I/F Clear
CommandCancel		8x 21 FF
CAM_Power	On	8x 01 04 00 02 FF	Power ON/OFF
	Off	8x 01 04 00 03 FF
CAM_Zoom	Stop	8x 01 04 07 00 FF
	Tele (Standard)	8x 01 04 07 02 FF
	Wide (Standard)	8x 01 04 07 03 FF
	Tele (Variable)	8x 01 04 07 2p FF	p = 0(low) - 7(high)
	Wide (Variable)	8x 01 04 07 3p FF
	Direct	8x 01 04 47 0p 0q 0r 0s FF	pqrs: Zoom Position
	Stop	8x 01 04 08 00 FF
	Far(Standard)	8x 01 04 08 02 FF
	Near(Standard)	8x 01 04 08 03 FF
	Up	8x 01 04 04 02 FF	Manual Control of B Gain
	Down	8x 01 04 04 03 FF
	Direct	8x 01 04 44 00 00 0p 0q FF	pq: B Gain
CAM_AE	Full Auto	8x 01 04 39 00 FF	Automatic Exposure mode
	Manual	8x 01 04 39 03 FF	Manual Control mode
	Shutter priority	8x 01 04 39 0A FF	Shutter Priority Automatic Exposure mode
	Iris priority	8x 01 04 39 0B FF	Iris Priority Automatic Exposure mode
	Bright	8x 01 04 39 0D FF	Bright mode
CAM_Shutter	Reset	8x 01 04 0A 00 FF	Shutter Setting
	Up	8x 01 04 0A 02 FF
	Down	8x 01 04 0A 03 FF
	Direct	8x 01 04 4A 00 00 0p 0q FF	pq: Shutter Position
CAM_Iris	Reset	8x 01 04 0B 00 FF	Iris Setting
	Up	8x 01 04 0B 02 FF
	Down	8x 01 04 0B 03 FF
	Direct	8x 01 04 4B 00 00 0p 0q FF	pq: Iris Position
CAM_Gain	Reset	8x 01 040C 00 FF	Gain Setting
	Up	8x 01 04 0C 02 FF
	Down	8x 01 04 0C 03 FF
	Direct	8x 01 04 0C 00 00 0p 0q FF	pq: Gain Position
CAM_Bright	Reset	8x 01 04 0D 00 FF	Bright Setting
	Up	8x 01 04 0D 02 FF
	Down	8x 01 04 0D 03 FF
	Direct	8x 01 04 4D 00 00 0p 0q FF	pq: Bright Position
	On	8x 01 04 3E 02 FF	Exposure Compensation ON/OFF
	Off	8x 01 04 3E 03 FF
CAM_Memory	Reset	8x 01 04 3F 00 pq FF	pq: Memory Number(=0 to 254) Corresponds to 0 to 9 on the Remote Commander
	Set	8x 01 04 3F 01 pq FF
	Rrecall	8x 01 04 3F 02 pq FF
CAM_LR_Reverse	On	8x 01 04 61 02 FF	Image Flip Horizontal ON/OFF
	Off	8x 01 04 61 03 FF
CAM_PictureFlip	On	8x 01 04 66 02 FF	Image Flip Vertical ON/OFF
	Off	8x 01 04 66 03 FF
CAM_ColorSaturation	Direct	8x 01 04 4900 00 00 0p FF	P=0-E 0:60% 1:70% 2:80% 3:90% 4:100% 5:110% 6:120% 7:130% 8:140% 9:150% 10:160% 11:160% 12:180% 13:190% 14:200%
CAM_IDWrite		8x 01 04 22 0p 0q 0r 0s 1F	purs: Camera ID (=0000 to FFFF)
SYS_Menu	ON	8x 01 04 06 06 02 FF	Turn on the menu screen
	OFF	8x 01 04 06 06 03 FF	Turn off the menu screen
IR_Receive	ON	8x 01 0608 02 FF	IR(remote commander)receive On/Off
	OFF	8x 01 0608 03 FF
IR_ReceiveReturn	On	8x 01 7D 01 03 00 00 FF	IR(remote commander)receive message via the VISCA communication ON/OFF
	Off	8x 01 7D 01 13 00 00 FF
Pan_tiltDrive	Up	8x 01 06 01 VV WW 03 01 FF	VV: Pan speed 0x01(low speed) to 0x18(high speed)WW: Tilt speed 0x01(low speed) to 0x14(high speed)YYYY: Pan PositionZZLL: Tilt Position
	Down	8x 01 06 01 VV WW 03 02 FF
	Left	8x 01 06 01 VV WW 01 03 FF
	Right	8x 01 06 01 VV WW 02 03 FF
	Upleft	8x 01 06 01 VV WW 01 01 FF
	Upright	8x 01 06 01 VV WW 02 01 FF
	DownLeft	8x 01 06 01 VV WW 01 02 FF
	DownRight	8x 01 06 01 VV WW 02 02 FF
	Stop	8x 01 06 01 VV WW 03 03 FF
	AbsolutePosition	8x 01 06 02 VV WW0Y 0Y 0Y 0Y 0Z.0Z.0Z.0F FF
	RelativePosition	8x 01 06 03 VV WW0Y 0Y 0Y 0Y 0Z.0Z.0Z.0F FF
	Home	8x 01 06 04 FT
	Reset	8x 01 06 05 FF
Pan-tiltLimitSet	Set	8x 01 06 07000W0Y 0Y 0Y 0Y 0Z.0Z.0Z.0F FF	W:1 UpRight0:DownLeftYYYY: Pan Limit Position(TBD)ZZLL: Tilt Limit Position(TBD)
	Clear	8x 01 06 07010W07 0F 0F 0F 0F 07 0F 0F 0F 0F FF

Search command

Command	Command package	Return package	Notes
CAM_PowerInq	8x 09 04 00 FF	y0 50 02 FF	On
		y0 50 03 FF	Otf(Standby)
CAM_ZoomPosInq	8x 09 04 47 FF	y0 50 0p 0q 0r 0s FF	pqrs: Zoom Position
CAM_FocusAFModelInq	8x 09 04 38 FF	y0 50 02 FF	Auto Focus
		y0 50 03 FF	Manual Focus
CAM_FocusPosInq	8x 09 04 48 FF	y0 50 0p 0q 0r 0s FF	pqrs: Focus Position
CAM_WBModelInq	8x 09 04 35 FF	y0 50 00 FF	Auto
		y0 50 01 FF	3000K
		y0 50 02 FF	4000K
		y0 50 03 FF	One Push Mode
		y0 50 04 FF	5000K
		y0 50 05 FF	Manual
		y0 50 00 FF	6500Klast operated.
SYS MenuModelInq	8x 09 0606 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_LR_Reverselnq	8x 09 04 61 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_PictureFlipInq	8x 09 04 66 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_ColorSaturationInq	8x 09 04 49 FF	y0 50 00 00 00 0p FF	p: Color Gain setting 0h (60%) to Eh (200%)
CAM_IDInq	8x 09 04 22 FF	y0 50 0p FF	p: Gamma ID
IR_ReceiveInq	8x 09 0608 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
IR_ReceiveReturn		y0 077D 01 04 00 FF	Power ON/OFF
		y0 077D 01 04 07 FF	Zoom tele/wide
		y0 077D 01 04 38 FF	AF ON/OFF
		y0 077D 01 04 33 FF	Camera Backlight
		y0 077D 01 04 3F FF	Camera _Memory
		y0 077D 01 06 01 FF	Pan_titleDriver
CAM_BrightnessInq	8x 09 04A1 FF	y0 50 00 00 0p 0q FF	pq: Brightness Position
CAM_ContrastInq	8x 09 04A2 FF	y0 50 00 00 0p 0q FF	pq: Contrast Position
CAM_FlipInq	8x 09 04A4 FF	y0 50 00 FF	Off
		y0 50 01 FF	Flip-II
		y0 50 02 FF	Flip-V
		y0 50 03 FF	Flip-IIV
CAM_GammaInq	8x 09 04 5B FF	y0 50 0p FF	p: Gamma setting
CAM_VersionInq	8x 09 00 02 FF	y0 50 ab cd mn pq rs tu vw FF	ab cd: vender ID (0220)mn pq : model ID ST (0951)U3 (3950)rs tu : ARMVersionvw : reserve
			P: 0-E Vidco format 0:1080P608:720P301:1080P509:720P252:1080h60

11 Pelco-D protocol command list

Function	Byte1	Byte2	Byte3	Byte4	Byte5	Byte6	Byte7
Up	0xFF	Address	0x00	0x08	Pan Speed	Tilt Speed	SUM
Down	0xFF	Address	0x00	0x10	Pan Speed	Tilt Speed	SUM
Left	0xFF	Address	0x00	0x04	Pan Speed	Tilt Speed	SUM
Right	0xFF	Address	0x00	0x02	Pan Speed	Tilt Speed	SUM
Uplcft	0xFF	Address	0x00	0x0C	Pan Speed	Tilt Speed	SUM
Upright	0xFF	Address	0x00	0x0A	Pan Speed	Tilt Speed	SUM
DownLeft	0xFF	Address	0x00	0x14	Pan Speed	Tilt Speed	SUM
DownRight	0xFF	Address	0x00	0x12	Pan Speed	Tilt Speed	SUM
Zoom In	0xFF	Address	0x00	0x20	0x00	0x00	SUM
Zoom Out	0xFF	Address	0x00	0x40	0x00	0x00	SUM
Focus Far	0xFF	Address	0x00	0x80	0x00	0x00	SUM
Focus Near	0xFF	Address	0x01	0x00	0x00	0x00	SUM
Stop	0xFF	Address	0x00	0x00	0x00	0x00	SUM
Set Preset	0xFF	Address	0x00	0x03	0x00	Preset ID	SUM
Clear Preset	0xFF	Address	0x00	0x05	0x00	Preset ID	SUM
Call Preset	0xFF	Address	0x00	0x07	0x00	Preset ID	SUM
Query Pan Position	0xFF	Address	0x00	0x51	0x00	0x00	SUM
Query Pan					Value High	Value Low

12 Pelco-P protocol command list

Function	Byte1	Byte2	Byte3	Byte4	Byte5	Byte6	Byte7	Byte8
Up	0xA0	Address	0x00	0x08	Pan Speed	Tilt Speed	0xAF	XOR
Down	0xA0	Address	0x00	0x10	Pan Speed	Tilt Speed	0xAF	XOR
Left	0xA0	Address	0x00	0x04	Pan Speed	Tilt Speed	0xAF	XOR
Right	0xA0	Address	0x00	0x02	Pan Speed	Tilt Speed	0xAF	XOR
Upleft	0xA0	Address	0x00	0x0C	Pan Speed	Tilt Speed	0xAF	XOR
Upright	0xA0	Address	0x00	0x0A	Pan Speed	Tilt Speed	0xAF	XOR
DownLeft	0xA0	Address	0x00	0x14	Pan Speed	Tilt Speed	0xAF	XOR
DownRight	0xA0	Address	0x00	0x12	Pan Speed	Tilt Speed	0xAF	XOR
Zoom In	0xA0	Address	0x00	0x20	0x00	0x00	0xAF	XOR
Zoom Out	0xA0	Address	0x00	0x40	0x00	0x00	0xAF	XOR
Stop	0xA0	Address	0x00	0x00	0x00	0x00	0xAF	XOR
Focus Far	0xA0	Address	0x01	0x00	0x00	0x00	0xAF	XOR
Focus Near	0xA0	Address	0x02	0x00	0x00	0x00	0xAF	XOR
Set Preset	0xA0	Address	0x00	0x03	0x00	Preset ID	0xAF	XOR
Clear Preset	0xA0	Address	0x00	0x05	0x00	Preset ID	0xAF	XOR
Call Preset	0xA0	Address	0x00	0x07	0x00	Preset ID	0xAF	XOR
Query Pan Position	0xA0	Address	0x00	0x51	0x00	0x00	0xAF	XOR
Query Pan					Value Right	Value Right

13 Maintenance and troubleshooting

13.1 Maintenance

1) Please disconnect power of camera if it is not in long-term use. Meanwhile, disconnect AC power adapter from AC socket.

2) To avoid scratch, use soft cloth or cotton to wipe off dust on camera case and

3) Please clean camera lens with dry soft cloth. If stain persists, use mild detergent to wipe gently.

Do not use strong or corrosive detergent which may scratch the lens and affect image result.

13.2 Troubleshooting

1) No image displayed by video output

Solution: a. Check camera power for connection, and check if power indicator is lit.

b. Power off, restart the device and check if it performs self inspection normally.

c. Check if dial switch at the bottom is in normal operating mode (refer to Table 2.2 and

Table 2.3).

d. Check if connection line of video output and video display functions.

2) Image is unstable

Solution: a. Check if connection line of video output and video display functions.

3) Lens zoom image dithering

Solution: a. Check if camera is installed securely.

b. Check if there is vibrating machine or object nearby the camera.

4) Remote control is out of service

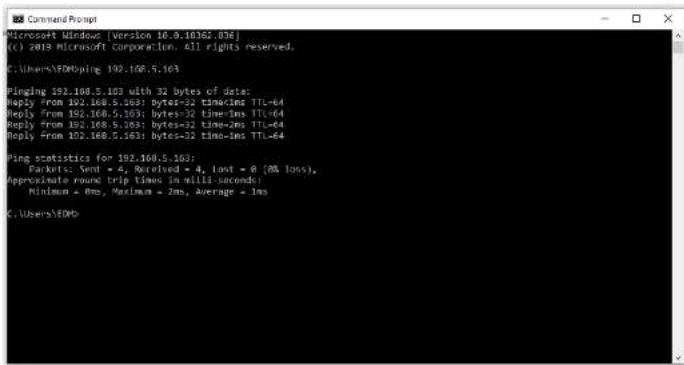

information below means network connection functions well.

Microsoft Windows [Version 16.9.1036.103E] (c) 2018 Microsoft Corporation: All rights reserved. C:\Users\EDMping 192.108.5.163 Pinging 192.108.5.103 with 32 bytes of data: Reply from 102.108.5.103: bytes=32 time=ms TTL=64 Reply from 102.108.5.103: bytes=32 time=ms TTL=64 Reply from 102.108.5.103: bytes=32 time=ms TTL=64 Reply from 102.108.5.103: bytes=32 time=ms TTL=64 Ping statistics for 192.108.5.103: Parkets: Sent = 4, Received = 4, Lost = 0 (%% loss). Approximate round trip times in milli-seconds! Minimum = 0ms, Maximum = 2ms, Average = 1ms C:\Users\EDM

14 Warranty

BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products we are offering a three-year warranty.

For complete warranty information, please visit BZBGEAR.com/warranty.

For questions, please call 1.888.499.9906 or email [e-mail].

15 Mission Statement

BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today's AV world without having to break the bank. BZBGEAR is the solution for small to medium-sized applications requiring the latest professional products in AV.

We live in a DIY era where resources are abundant on the internet. With that in mind, our team offers system design consultation and expert tech support seven days a week for the products in our BZBGEAR catalog. You'll notice comparably lower prices with BZBGEAR solutions, but the quality of the products is on par with the top brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our customers. Whether you're an integrator, home theater enthusiast, or a do-it-yourselfer, BZBGEAR offers the solutions to allow you to focus on your project and not your budget.
