USER MANUAL BG-PSC7X2 BZBGear

Front view of a black electronic device with indicator lights and ports (no readable text or symbols)

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged by electrical

Table of Content

Introduction 4

Features 4

Panel Descriptions ....5

Front Panel 5

Rear Panel 7

Remote Control Description 8

Application Diagram 9

Specifications 9

RS-232 Pin Assignment ....10

RS232 and Telnet Commands....11

Package Contents....12

Maintenance....13

Warranty Policy....13

Limitations of Warranty....13

Exclusive Remedies....14

RMA Policy 14

Standard Replacement....14

Introduction

The BG-PSC7X2 is a HDMI, VGA, Component and Composite presentation switcher. Embedded splitter and dual switcher modes, it can work as 7:1x2 multiple splitter and 4x1 &7x1 dual switcher. This presentation switcher also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced audio embedding and de-embedding, it can provide flexible audio signal integration. Each source can be switched to the HDMI output using the front-panel push buttons, IR remote control or RS-232 interface

Features

• 4K@30Hz 4:4:4, full 3D
- Switch & Scale 7 sources to 2 display
- 1x VGA,4x HDMI, 1xYPbPr, 1x AV for input, and 2x HDMI for output
- Splitter and Dual Switcher modes selectable
- Bypass and scaled formatted output selectable

Panel Descriptions

Front Panel

① LCD display---Show the status of input-output selection, EDID info and so on.
② IR receiver window----Receive the IR from the remote control of BG-PSC7X2.
③ Dual switcher LED indicator---When the LED is lit, dual switcher mode is on. Output HDMI 1 is selected by HDMI1/HDMI2/HDMI3/HDMI4 which works as 4K 4x1 switcher in by-pass mode; Output HDMI2 is selected by HDMI1/HDMI2/HDMI3/HDMI4/VGA/YPbPr/AV, it will always be scaled & formatted output regardless of by-pass ON/OFF, works as scaling 7x1 switcher.

IN2	1080P	5.1CH
IN3	3D	7.1CH
IN4	4K2K	NONE
IN5	D1024		D1024=DVI 1024 x 768
IN6	D1080		D1080=DVI 1920 x 1080
IN7	D1200		D1200=DVI 1920 x 1200
IN8	OUT1		OUT1=Copy OUTPUT1 EDID to INPUTx
ALL	OUT2		ALL=Set EDID to ALL INPUTsOUT2=Copy OUTPUT2 EDID to INPUTx
	OUT3		OUT3=Copy OUTPUT3 EDID to INPUTx
	OUT4		OUT4=Copy OUTPUT4 EDID to INPUTx
	OUT5		OUT5=Copy OUTPUT5 EDID to INPUTx
	OUT6		OUT6=Copy OUTPUT6 EDID to INPUTx
	OUT7		OUT7=Copy OUTPUT7 EDID to INPUTx
	OUT8		OUT8=Copy OUTPUT8 EDID to INPUTx

Note: Volume can be changed by UP and Down button. During F/W mode, press Enter button will show the current F/W information.
⑧ Up selection button--- Press to change segment's value.
⑨ Enter button--- Press to confirm the settings.
⑩ Power LED indicator---Indicate the status of power.
⑪ Embed LED indicator ---When the LED is lit, embed mode is on. When embed in on, the L/R in will be embedded in to the HDMI outputs (The two outputs will be embedded with

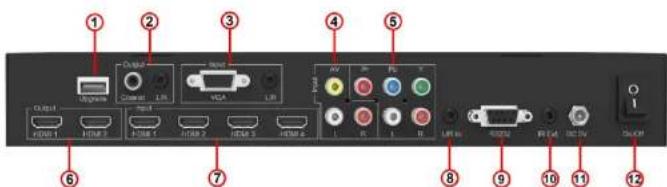

Rear Panel

① USB Upgrade port --- Used to upgrade the Scaler built-in BG-PSC7X2
② Audio output --- It has coaxial and L/R outputs, the audio outputs will always follow HDMI output 2.
③ VGA input--- VGA input with L/R audio input.
④ AV input--- AV input with L/R audio input.
⑤ YPbPr input--- YPbPr input with L/R audio input.
⑥ HDMI outputs--- 2x HDMI output,
⑦ HDMI input 1 to 4 ---Connect to HDMI sources
⑧ L/R In--- Connect to addition audio input to embed to HDMI output
⑨ RS232 port--- DB9 connector
⑩ IR Ext. --- Connect to IR receiver cable.
⑪ DC 5V---Connect to 5V/2A power supply.

Remote Control Description

    K["Setting"] --> L["ByPass"]
    L --> M["Mute"]
    M --> N["Mode"]
    N --> O["Embed"]
    O --> P["Up"]
    P --> Q["Down"]

    R["Video"] --> S["720p60"]
    S --> T["720p60"]

    U["Format"] --> V["1080p50"]
    V --> W["1920"]
    W --> X["1080p50"]

    style A fill:#f9f,stroke:#333
    style K fill:#f9f,stroke:#333
    style R fill:#f9f,stroke:#333

HDMI1 Out: Source selection for HDMI output 1 when in Matrix Switcher mode.

HDMI2/HDBT Out: Source selection for HDMI output 2 when in Matrix Switcher mode or when in Splitter mode

Format: Video output resolution selection. The BG-PSC7X2 includes built-in video scaler. Press the required resolution button on remote control to change the HDMI output video resolution.

Setting:

➢ Bypass: Audio on HDMI outputs is from HDMI input selected.
➢ Mute: Mutes the audio on all outputs (HDMI, Coaxial digital and Analogue audio)
➢ Mode: Switches between Matrix Switcher mode and Splitter mode
Embed: Audio on HDMI outputs is from L/R Analogue audio input (3.5mm Jack)

Volume: Adjust the audio Volume on all outputs (HDMI, Coaxial digital and Analogue

Application Diagram

Specifications

Bandwidth:	10.2Gbps
Video Input Connectors:	4x HDMI Type A, 1x VGA, 1xYPbPr,1x AV

RS-232 Pin Assignment

BG-PSC7X2		Remote Control Console
PIN	Assignment	PIN	Assignment
1	NC	1	NC
2	Tx	2	Rx
3	Rx	3	Tx
4	NC	4	NC
5	GND	5	GND
6	NC	6	NC
7	NC	7	NC
8	NC	8	NC
9	NC	9	NC

Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None

RS232 and Telnet Commands

No.	Command	Action
1	?	Print Help Information
2	HELP	Print Help Information
3	STATUS	Print System Status And Port Status
4	PON	Power On, System Run On Normal State
5	POFF	Power Off, System Run On Power Save State
6	IR ON/OFF	Set System IR Control On Or Off
7	KEY ON/OFF	Set System KEY Control On Or Off
8	DBG ON/OFF	Set Debug Mode On Or Off
9	BEEP ON/OFF	Set Onboard Beep On Or Off
10	RESET	Reset System To Default Setting(Should Type "Yes" To Confirm, "No" To Discard)
11	OUT xx FR yy	Set OUTPUT:xx From INPUT:yyxx=00: Select All OUTPUT Portxx=[01...02]: Select One OUTPUT Portyy=[01...04]: HDMI Input 01 ~ 04yy=AV: AV Input( Output 02 Only )yy=COMP: Component Input( Output 02 Only )yy=VGA: VGA Input( Output 02 Only )
12	OUT SP/MX	Set OUTPUT To Splitter or Matrix Mode
		Set Scaler Output Resolution
		zz=01: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBYzz=02: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HDzz=03: HDMI 1080i@60Hz, Audio 2CH PCMzz=04: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBYzz=05: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HDzz=06: HDMI 1080p@60Hz/3D, Audio 2CH PCMzz=07: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBYzz=08: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HDzz=09: HDMI 4K2K, Audio 2CH PCMzz=10: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBYzz=11: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HDzz=12: DVI 1280x1024@60Hz, Audio Nonezz=13: DVI 1920x1080@60Hz, Audio Nonezz=14: DVI 1920x1200@60Hz, Audio None
16	AUD SCA ORG	Scaler Audio Input Follow Port Selection
17	AUD SCA ANA	Scaler Audio Input From Analog L/R Signal
18	AUD xx	Set Scaler Audio Volumexx=[00...30]: Volume Value

Package Contents

• 1x BG-PSC7X2

• 1x 5V/2A power supply

• 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

Maintenance

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.

Warranty Policy

BZBGEAR products are warranted against defects in material and workmanship for one year from the date of shipment. During the warranty period, BZBGEAR will, at its option, repair or replace products that prove to be defective. Repairs are warranted for the remainder of the original warranty.

For equipment under warranty, the owner is responsible for freight to BZBGEAR and all related customs, taxes, tariffs, insurance, etc. BZBGEAR is responsible for the freight charges only for return of the equipment from the factory to the owner. BZBGEAR will return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to BZBGEAR.

All equipment returned for warranty repair must have a valid RMA number issued prior to return and be marked clearly on the return packaging. BZBGEAR strongly recommends all equipment be returned in its original packaging.

BZBGEAR's obligations under this warranty are limited to repair or replacement of failed parts,

The warranty does not cover replacement or repair necessitated by loss or damage from any cause beyond the control of BZBGEAR, such as lightning or other natural and weather-related events or wartime environments.

The warranty does not cover any labor involved in the removal and or reinstallation of warranted equipment or parts on site, or any labor required to diagnose the necessity for repair or replacement.

The warranty excludes any responsibility by BZBGEAR for incidental or consequential damages arising from the use of the equipment or products, or for any inability to use them either separate from or in combination with any other equipment or products.

A fixed charge established for each product will be imposed for all equipment returned for warranty repair where BZBGEAR cannot identify the cause of the reported failure.

Exclusive Remedies

BZBGEAR's warranty, as stated is in lieu of all other warranties, expressed, implied, or statutory, including those of merchantability and fitness for a particular purpose. The buyer shall pass on to any purchaser, lessee, or other user of BZBGEAR's products, the aforementioned warranty, and shall indemnify and hold harmless BZBGEAR from any claims or liability of such purchaser, lessee, or user based upon allegations that the buyer, its agents, or employees have made additional warranties or representations as to product preference or use.

An RMA number must first be issued by sales. This RMA number will need to be referenced on the outside of the return shipment.

Upon receipt of the defective product, BZBGEAR will, at its discretion, either repair or replace the product and ship it out in the most expeditious manner possible. Subject to availability, the replacement product will be shipped on the business day following receipt of the defective product.

In the event the product returned to BZBGEAR has been discontinued (i.e. the product is no longer being manufactured by BZBGEAR but is still under warranty), BZBGEAR will, at its discretion, either repair or replace with recertified product.

Once you have obtained an RMA number

After obtaining an RMA number from BZBGEAR, you must send the product - freight prepaid to BZBGEAR Technology Co., Ltd. The BZBGEAR RMA number must be prominently displayed on the outside of your package. If you send your product to BZBGEAR without the RMA number prominently displayed on the outside of the package, it will be returned to you unopened.

Please use a shipping company that can demonstrate proof of delivery. BZBGEAR does not accept responsibility for any lost shipments unless proof of delivery to BZBGEAR is provided.

Please note:

Product shipped to BZBGEAR must be properly packaged to prevent loss or damage in

Warranty Information (Second Year Assurance)

BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*!

Taking advantage of this program is simple, just follow the steps below:

1. Register your product within 90 days of purchase by visiting BZBGEAR.com/warranty.

2. Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt.

For questions, please call 1.888.660.2962 or email [e-mail].

For complete warranty information, please visit BZBGEAR.com/warranty or scan the QR code below.
