USER MANUAL VK76W01H LG

Model	VK761******/VC5320******
Language	English/Ukrainian/Russian/Kazakhstan/Uzbek
Page	48	Color(cover/body)	1/1
	Weight 80g	Size(W*H)Material	150*220(mm)
Date	2015.09.03	Designer	P.H.LONG
Part No. Des	MFp69844201		Owners Manual

Chage Record

No.	Date	Change content ECO No.			Designer	Confirm
1
2
3
4
5
6
7
8
9

OWNER'S MANUAL

Black and white barcode image with vertical lines and dots, no readable text or symbols

MFL69344201

001

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 5, 6-10 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

Important safety instructions 5,6,8-10

Qanday foydalanish kerak

Assembling vacuum cleaner 23-26

сборный пылесос

Як зібрати пилосос

Operating vacuum cleaner 27-29

Using carpet and floor nozzle / Hard Floor Nozzle.... 30-31

Cleaning all floor nozzle 36

Cleaning Turbine nozzle 38-39

Using accessory nozzles.... 40-43

Emptying dust tank 44-45

Cleaning dust tank 46-47

Очистка контейнера

Очищення контейнера

Cleaning filters and air guide tank 48-49

Cleaning exhaust filter 50

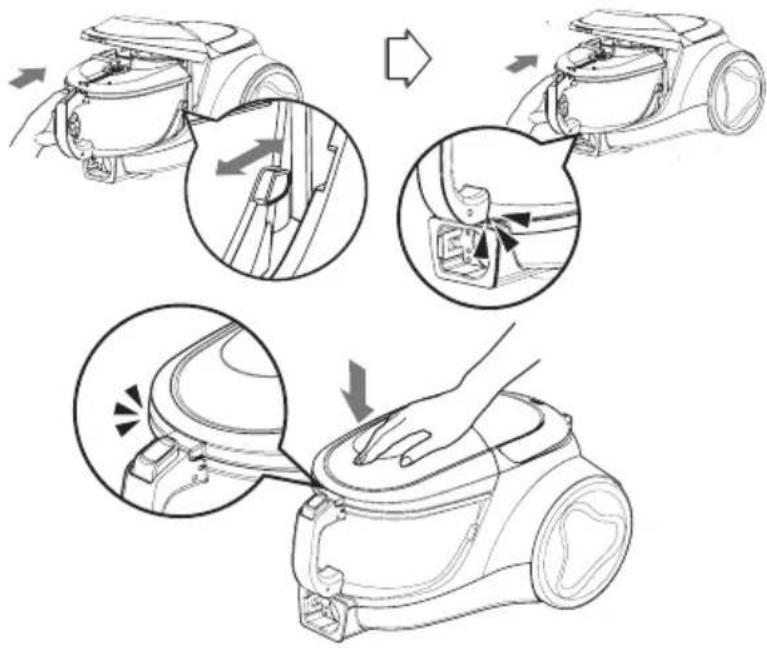

Assembling Tank Cover & Tank assembly 51-52

What to do if your vacuum cleaner does not work 53-54

What to do when suction power decreases 53-54

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives: 2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

This hose contains electrical connections:

• do not use to suck up water;
• do not immerse in water for cleaning;
• the hose should be checked regularly and must not be used if damaged.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING

• Do not plug in if control switch is not in OFF position.
  Personal injury or product damage could result.
• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury.
  The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.
  Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.
  Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane(liquids or gases).
  The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.
• Do not handle plug or vacuum cleaner with wet hands.
  Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
  Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
  Failure to do so could result in electrical shock or personal injury.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
  Failure to do so could result in electrical shock or personal injury or fire or product damage.
  • The hose contains electrical wires. Do not use it if it is damaged, cut or punctured.
  Failure to do so could result in death.or electrical shock.

• Do not allow to be used as toy. Close attention is necessary when used by or near children.
  Personal injury or product damage could result.

• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use vacuum cleaner if it has been under water.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing or damaged.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use an extension cord with this vacuum cleaner.
  Fire hazard or product damage could result.
  • Using proper voltage.
  Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.
• Turn off all controls before unplugging.
  Failure to do so could result in electrical shock or personal injury.
• Do not change the plug in any way.
  Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.
  • Repairs to electrical appliances may only be performed by qualified service engineers.
  Improper repairs may lead to serious hazards for the user.

CAUTION

• Do not put any objects into openings.
  Failure to do so could result in product damage.
  Do not use with any opening blocked: keep free of
• dust, lint, hair, and anything that may reduce air flow.
  Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/or filters in place.
  Failure to do so could result in product damage.
  • Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.
  These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.
  They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
  Put the vacuum cleaner away after use to prevent tripping over it.
• The vacuum cleaner is not intended to use by young children or infirm people without supervision.
  Failure to do so could result in personal injury or product damage.
• Only use parts produced or recommended by LG Electronics Service Agents.
  Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.
  Failure to do so could result in personal injury or product damage.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.
  Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in "MIN" mode.
  Failure to do so could result in product damage.

• Don't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating
  tank and body. Personal injury or product damage could result. You should grasp the carrier handle
  when you are moving the vacuum cleaner.
• If after emptying the dust tank the indicator light is on(red), clean the dust tank.
  Failure to do so could result in product damage.
  • Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.
  Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
  Failure to do so could result in fire hazard.
  • Do not dry the filter in a clothes dryer.
  Failure to do so could result in fire hazard.
  • Do not dry near an open flame.
  Failure to do so could result in fire hazard.
  • If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

Thermal protector:

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.

Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.

ВНИМАНИЕ

How to use Assembling vacuum cleaner

① Carpet and Floor nozzle (depending on model)

Push the nozzle into the telescopic pipe.

How to use Assembling vacuum cleaner

(depending on model)

① Carpet and Floor nozzle (depending on model)

Push the nozzle into the telescopic pipe.

• Push telescopic pipe firmly into hose handle.
• Grasp the spring latch to expand.
  • Pull out the pipe to desired length.

How to use Assembling vacuum cleaner

Push the nozzle into the telescopic pipe.

• Push telescopic pipe firmly into hose handle.
• Grasp the spring latch to expand.
• Pull out the pipe to desired length.

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

How to use Operating vacuum cleaner

• Pull out the power cord to the desired length and plug into the socket.
• Slide the rotary control knob to adjust the suction level.
• The flexible hose handle has a manual air flow regulator which allows you to briefly reduce the suction level.
• Press the cord reel button to rewind the power cord after use.

Diagram of a vacuum cleaner's internal structure with a downward arrow indicating motion (no text or symbols present)

3

Technical line drawing of a vacuum cleaner inside a circular frame, showing internal components and part alignment (no text or symbols)

② Park mode

- To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle. - Slide the hook on the nozzle into the slot on the rear side of vacuum cleaner.

How to use Using carpet and floor nozzle / Hard Floor Nozzle

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.
- Carpet or rug position

Press the pedal to lift the brush up.

• Hard floor position (tiles, parquets floor)
Press the pedal to lower brush.
- насадка с 2 позициями

Diagram of a hand gripping a small object on a grid-patterned surface, enclosed in a dashed circle (no text or symbols)

• Gilam yoki gilamcha holati

Cho'tkani ko'tarish uchun tepkini bosing.

• Qattiq pol holati (kafellar, parketli pollar uchun)

Cho'tkani pastlashtirish uchun tepkini bosing.

Diagram of a hand holding a vacuum cleaner against a grid background, enclosed in a dashed circle (no text or symbols)

Technical line drawing of a mechanical clamp or clamp device (no text or symbols)

Botton
Дно
Дно

• You can perform cleaning at any place like corner or crevice since revolution is free.

• Cleaning turbine brush nozzle.
• Press the button on the rear side of the nozzle to separate the air cover.
• Use the crevice tool to vacuum clean the brush and fan.

• Gilam yoki gilamcha holati Cho'tka aylanishi uchun ( △ ) tepkini bosing.
  • Qattiq pol holati Cho'tkani aylanishdan to'xtatish uchun ( △ ) tepkini bosing.

Personal injury hazard. Always unplug the vacuum cleaner before cleaning. Failure to do so could result in personal injury.

- Do not touch the brush when nozzle is overturned.

Technical illustration of mechanical components with no visible text or symbols

How to use Using Turbine Nozzle

- Frequently clean and remove hair, string, and lint build-up in the brush area. Failure to do so could damage to mini turbine nozzle.

Personal injury hazard. Always unplug the vacuum cleaner before cleaning. Failure to do so could result in personal injury.

Technical illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

Illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

How to use Using accessory nozzles

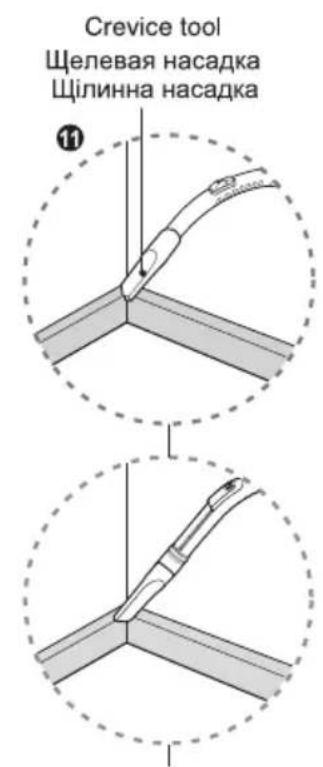

Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs or between the cushions of a sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Illustration of a hand holding a tool with a hose, showing a curved arrow indicating direction (no text or symbols present)

Illustration of a hand holding a tool with a coiled cable, showing motion direction (no text or symbols)

Technical diagram showing a tool interacting with a 3D structural joint, enclosed in a dashed circle (no text or symbols)

Diagram of a car seat with a lever and handle, enclosed in a dashed circle (no text or symbols)

Illustration of a desk lamp with a lampshade and a small paper on a stand, enclosed in a dashed circular border (no text or symbols)

Illustration of two hands holding a tool with coiled tubing, showing a change in movement (no text or symbols present)

Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs or between the cushions of a sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Illustration of two hands holding a tool, showing a curved motion with arrows indicating direction (no text or symbols)

Illustration of two hands using a tool to lift a mechanical component, showing motion direction (no text or symbols)

Illustration of two hands using a wrench to adjust the tool (no text or symbols present)

Technical diagram showing two mechanical assembly steps with labeled components and dashed circular annotations

Diagram illustrating a mechanical assembly process with labeled steps 1 and 2, showing tool positioning and mounting details.

Diagram showing two steps of a desk lamp setup with labeled components and a small object, likely illustrating a manual or instructional technique.

Illustration of two hands holding a tool, showing a change in movement (no text or symbols present)

Illustration of two hands using a tool to lift a mechanical component, showing motion (no text or symbols)

Illustration of two hands using a wrench to adjust the tool (no text or symbols present)

How to use Emptying dust tank

Cleaning the dust tank.

• Open the tank cap.
• Wash both parts with soft material.

Gently rinse both parts under a cold running tap.

Очистка контейнера

Moving the vacuum cleaner

- Don't grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum cleaner.

If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent.

ПРИМЕЧАНИЕ

How to use Cleaning dust tank

Push button and pull out dust tank.

Raise dust tank cap.

Dry fully in shade so that moisture is entirely removed.

If suction power decreases after cleaning dust tank, clean air filter and motor safety filter. ➔ Next page.

ПРИМЕЧАНИЕ

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing component positioning and cleaning process.

How to use Cleaning filters and air guide tank

If suction power is decreased after cleaning dust tank, clean air filter and motor safety filter.

Air filter and motor safety filter are located at the bottom of the dust tank as above.

Gently rinse both parts separately under a cold running tap until the water runs clear. Do not use detergent or a washing machine or dishwasher.

Wash filters at least once a month.

Dry fully for more than 24 hours in shade.

⚠️ ОПАСНО!

How to use Cleaning exhaust filter

• The exhaust filter is a reusable HEPA filter.

• To change the exhaust filter, remove the filter cover on the body by release hook.

- Pull out the exhaust filter.

- Dust off filter.

• The exhaust filter should be cleaned at least once a year.

How to use Assembling Tank Cover & Tank assembly

Diagram illustrating the step-by-step installation of a vacuum cleaner's internal structure, showing three stages from cleaning to assembly.

If suction power is decreased after re-assemble, check dust tank assembled correctly.

Liquid suction can cause defects.

ОПАСНО!

Qanday foydalanish kerak

Changto'plagich va uning qopqog'ini yig'ish

Төрт бұрышты саңылау To'rtburchak tirqish

Diagram illustrating the step-by-step installation of a vacuum cleaner's internal structure, showing three stages from mounting to cleaning.

Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working.

What to do when suction power decreases

• Turn off the vacuum cleaner and unplug it.
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
  Check that the dust tank is not full. Empty if necessary.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter and the motor safety filter are not clogged. Clean the them if necessary.
• Check the inside of the dust separator. Clean the inside of the dust separator if necessary.

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Disposal of your old appliance

1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
