Product Type	Canister Vacuum Cleaner
Brand	LG
Model	VK84070NCAQ
Dimensions (W x D x H)	400 mm x 250 mm x 300 mm
Weight	5.5 kg
Power Consumption	1600 W
Power Cord Length	6 m
Dust Capacity	1.5 L
Filtration System	HEPA 13 Filter
Suction Power	Adjustable, up to 400 Air Watts
Noise Level	78 dB(A)
Type of Dust Container	Bagless (Cyclonic) or Dust Bag
Filter Washable	Yes, washable HEPA filter
Automatic Cord Rewind	Yes
Accessories Included	Crevice Tool, Dusting Brush, Upholstery Nozzle, Floor Nozzle
Operating Radius	9 m (cord + hose)
Maintenance	Empty dust bin after each use; wash filter every 3 months
Safety Features	Overheat protection, automatic shut-off
Repairability Index	Spare parts available: filters, hose, nozzles

Frequently Asked Questions - VK84070NCAQ LG

How do I assemble the vacuum cleaner?

Connect the hose to the canister, attach the extension tube, and then click on the desired nozzle. Ensure all parts are firmly locked.

How often should I clean the HEPA filter?

The HEPA filter should be cleaned every 3 months. Remove it, tap gently to remove dust, or wash it with water and let it dry completely before reinstalling.

What should I do if the suction power decreases?

Check if the dust bin is full, the filter is clogged, or there is a blockage in the hose or nozzle. Clean or replace the filter and remove any obstructions.

How do I rewind the power cord?

Press the cord rewind button on the canister. Hold the plug while it rewinds to avoid whipping. Do not let it retract freely.

Can I use the vacuum cleaner on hardwood floors?

Yes, the included floor nozzle is designed for both carpets and hard floors. Ensure the brush setting is adjusted to avoid scratching.

What is the dust capacity?

The dust bin has a capacity of 1.5 liters. Empty it after each use to maintain optimal suction.

Is the vacuum bagless or does it use bags?

This model is bagless with a transparent dust bin for easy monitoring. It uses a cyclonic system to separate dust.

How do I store the vacuum cleaner?

Store it in a dry, cool place. You can wrap the cord around the clips on the canister and attach the nozzle to the holder if available.

What should I do if the vacuum overheats?

The vacuum has an overheat protection that shuts it off automatically. Unplug it, let it cool for at least 30 minutes, and check for blockages before restarting.

Where can I buy replacement filters?

Replacement HEPA filters are available on LG's official website or through authorized retailers. Use part number AQ73722847 or similar.

USER MANUAL VK84070NCAQ LG

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 3, 4, 5 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

VK84070NCAQ

Table of contents

Important safety instructions.... 3\~5

How to use 6\~15

Assembling vacuum cleaner 6\~7

Operating vacuum cleaner 8

Using carpet and floor nozzle / hard floor nozzle 9

Using accessory nozzles.... 10

Charging the Vacuum Cleaner.... 11

Emptying dust tank 12

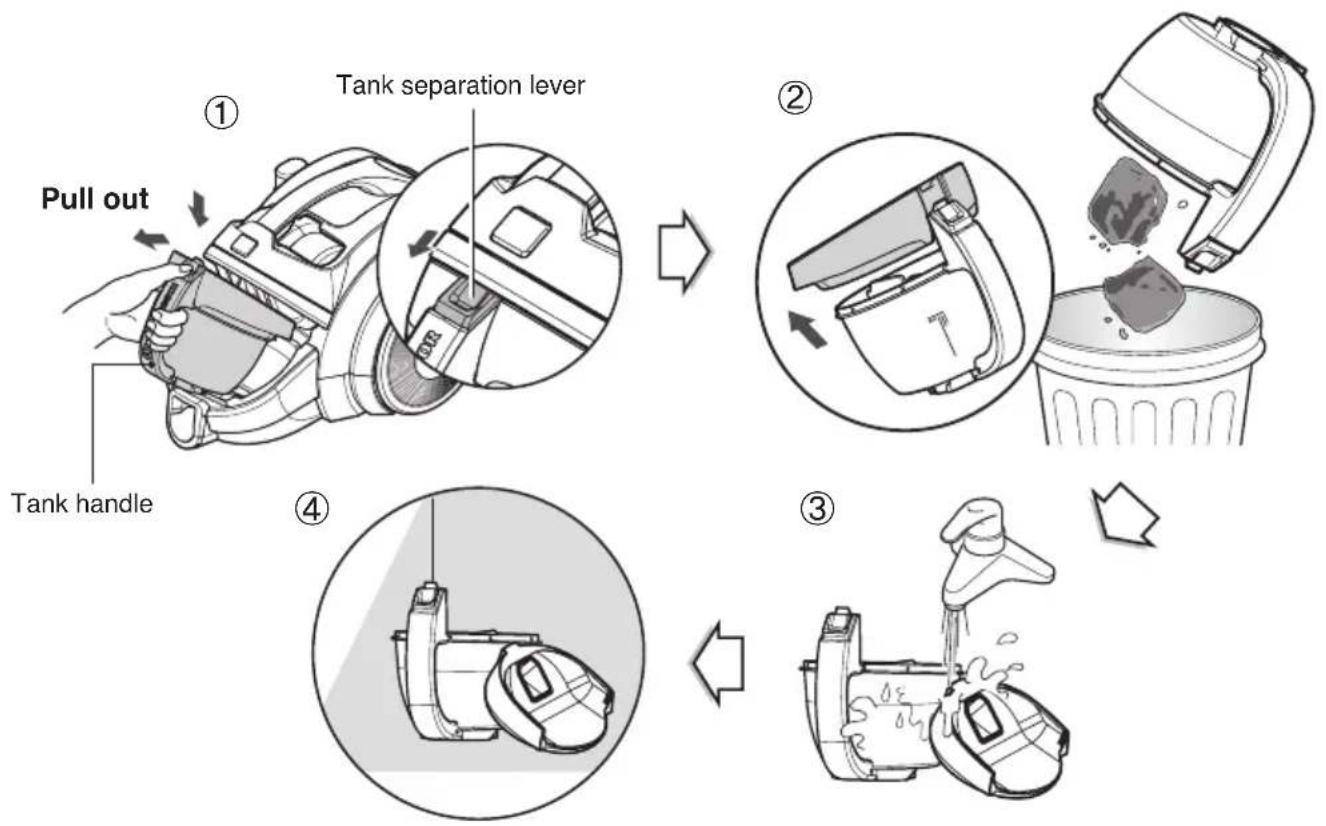

Cleaning dust tank 13

Cleaning air filter and motor safety filter 14

Cleaning exhaust filter 15

What to do if your vacuum cleaner does not work 16

What to do when the suction performance decreases 16

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING

5. CAUTION: This hose contains electrical connections:

• do not use to suck up water;
  – do not immerse in water for cleaning;
• the hose should be checked regularly and must not be used if damaged.

WARNING

• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.
  Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).
  The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.
• Do not handle plug or vacuum cleaner with wet hands. Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
  Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
  Failure to do so could result in electrical shock or personal injury.
• The hose contains electrical wires. Do not use it if it is damaged, cut punctured.
  Failure to do so could result in death, or electrical shock.
• Do not allow to be used as toy. Close attention is necessary when used by or near children.
  Personal injury or product damage could result.
• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use vacuum cleaner if it has been under water.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing or damaged.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

• Do not use an extension cord with this vacuum cleaner.
  Fire hazard or product damage could result.
  • Using proper voltage.
  Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

• Turn off all controls before unplugging.
  Failure to do so could result in electrical shock or personal injury.

• Do not change the plug in any way.
  Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Repairs to electrical appliances may only be performed by qualified service engineers.
  Improper repairs may lead to serious hazards for the user.
• Do not wash the body of the vacuum cleaner with water.
• Do not allow any metals to touch the charging terminal and the connecting joints of the body and hose.
• Before cleaning the body, unplug the power cord and turn off the main power. Always use a dry cloth to clean the body.
• Avoid placing the product, the battery in particular, near any heat source or direct sunlight.
  There is danger of an explosion or a fire.
• When disposing of batteries, please follow appropriate disposal methods.
  There is danger of an explosion.
• Do not use the product in bathrooms.
• When a problem occurs with the product, stop vacuuming and turn off the main power.
• Do not place the product near industrial oil fumes or metal particulates.
  Doing so could result in fire or damage to the product.
• If the battery has leaked, avoid contact with the skin or eyes. If the battery fluid gets on your skin or in your eyes, immediately rinse the affected part with plenty of water and seek medical attention.
  Battery fluid may cause a burn on your skin or loss of eyesight.
• Do not put fingers near the gear.
  Failure to do so could result in personal injury.

CAUTION

• Do not put any objects into openings.
  Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.
  Failure to do so could result in product damage.

- Do not use vacuum cleaner without the dust tank and/or filters in place.

Failure to do so could result in product damage.

• Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.

These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.

- Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

- Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent tripping over it.

- The vacuum cleaner is not intended to use by young children or infirm people without supervision.

Failure to do so could result in personal injury or product damage.

- Only use parts produced or recommended by LG Electronics Service Agents.

Failure to do so could result in product damage.

- Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

- To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

- Do not grasp the tank handle when you are moving the vacuum cleaner.

The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result.

You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 12)

- Make sure the filters (motor safety filter and air filter) are completely dry before replacing in the machine. Failure to do so could result in product damage.

- Do not dry the filter in an oven or microwave. Failure to do so could result in fire hazard.

- Do not dry the filter in a clothes dryer. Failure to do so could result in fire hazard.

- Do not dry near an open flame. Failure to do so could result in fire hazard.

- Do not use filters that is not dried.

- If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- The battery for the main body is designed for this vacuum cleaner only. Never use it for any other product.

Doing so could result in fire or damage to the product.

- Do not use the floor nozzle to clean high areas.

- When you dry the filter, do not use a heating device such as a dryer or heater. Leave it in an airy place and let it dry completely.

- Do not carry the vacuum cleaner with the nozzle head connected to the body.

- Empty the dustbin frequently to keep it clean.

- Always use the vacuum cleaner with the filter unit assembled in the dustbin.

- Never remove the hose or pipe when the main power is On.

- Use this vacuum cleaner for household use only.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn On the switch.

If the vacuum cleaner still does not run, contact a qualified electrician.

How to use Assembling vacuum cleaner

① Carpet and floor nozzle (depend on model)

Push the nozzle into the telescopic pipe.

② Telescopic pipe

• Push telescopic pipe firmly into hose handle.
• Grasp the spring latch to expand.
• Pull out the pipe to desired length.

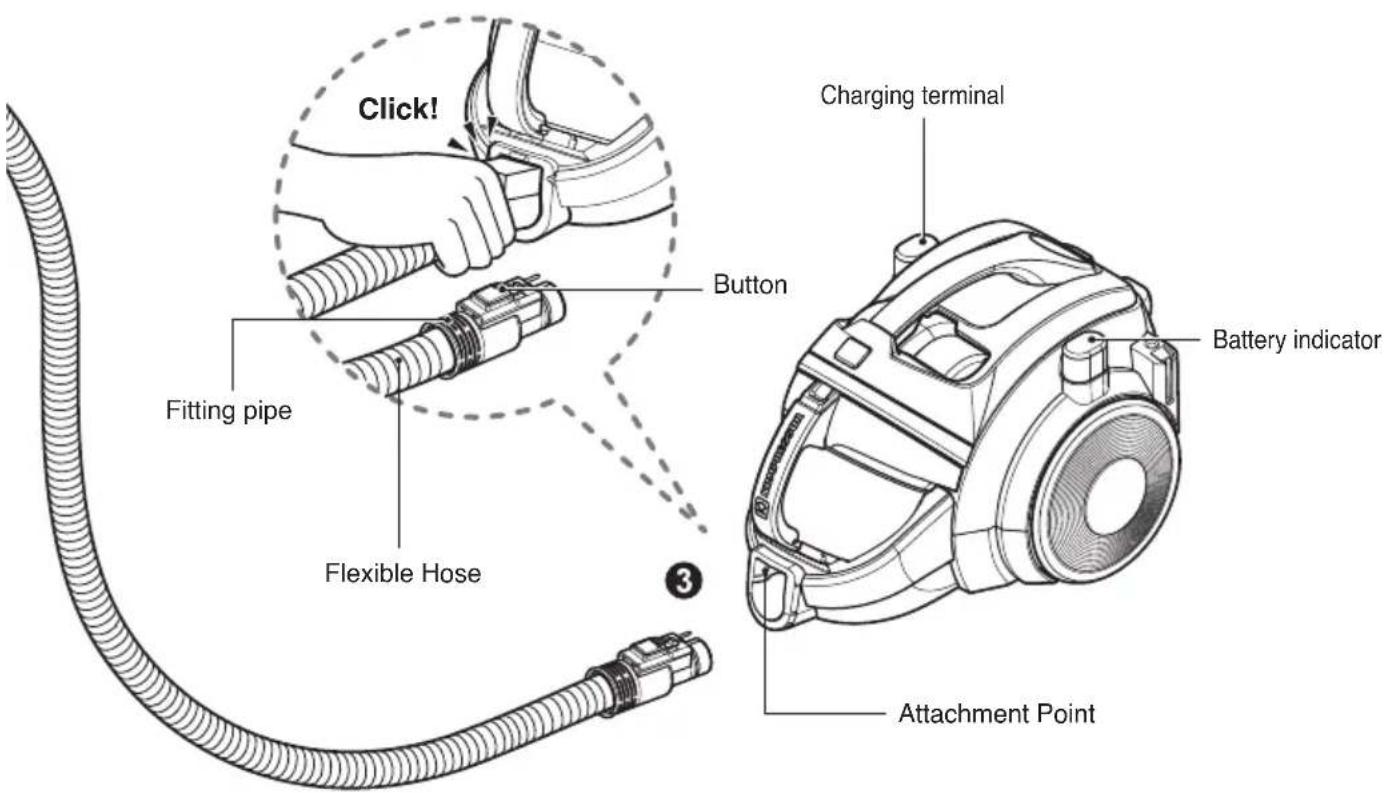

③ Connecting the hose to the vacuum cleaner

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

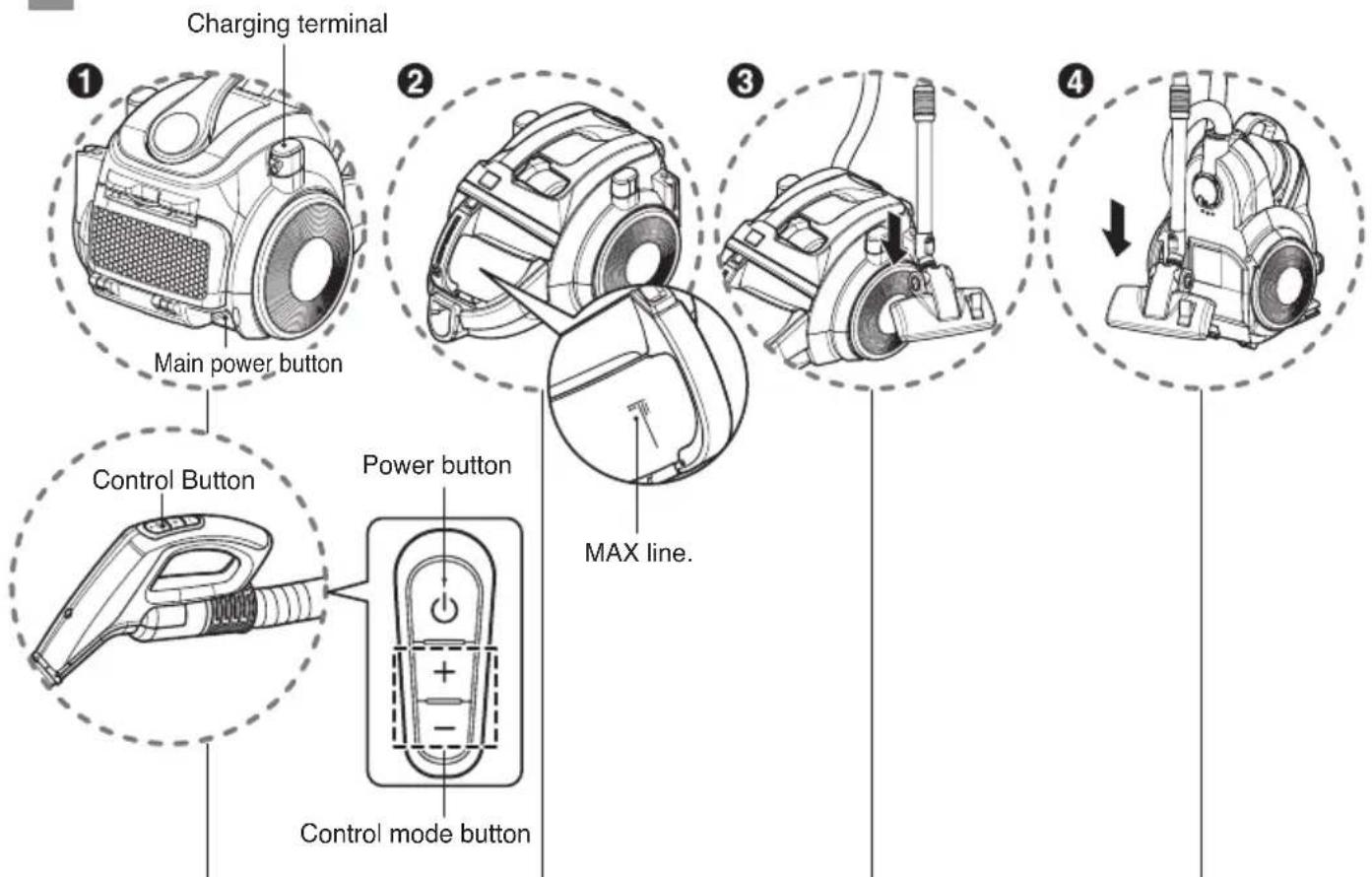

How to use Operating vacuum cleaner

① How to operate

• Please disconnect the charging cord from the product.
  • To operate the vacuum cleaner, press down the power button for about 1 second.
• When you turn it on, Mode is the Middle power.
• You can control Mode of the power using ‘+’, ‘−’ Button.
• To turn off, Push the power button.
  • After the used, Please connect the charging cord to the product.

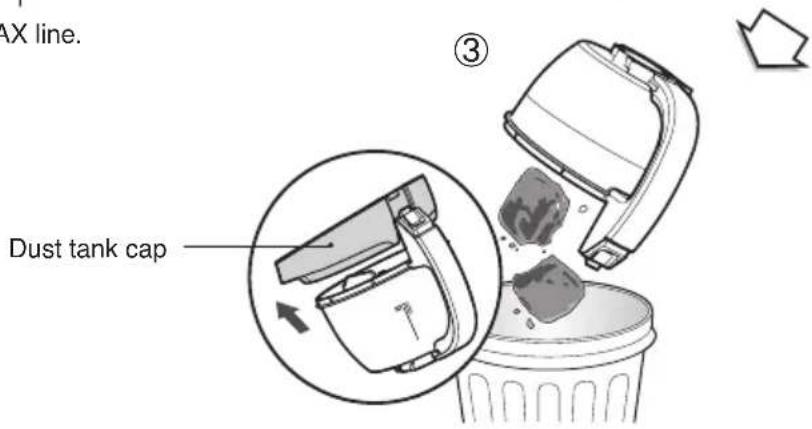

② Emptying the dust tank

• Always empty the dust tank when the dust tank level reaches the MAX line.

③ Park mode

• Slide the control knob to off position before park.
  • To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle.
• Slide the hook on the nozzle into the slot on the side of vacuum cleaner.

④ Storage

• After the used product, please connect the charging cord to the product.
- You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner.

WARNING

No liquid suction. Liquid suction can cause defects.

How to use Using carpet and floor nozzle / hard floor nozzle

Simple line drawing of a Y-shaped tool inside a dashed circular border (no text or symbols)

① Carpet and floor nozzle (depend on model)

• The 2 position nozzle This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.
• Carpet or rug position Press the pedal (💡) to lower brush.
• Hard floor position (tiles, parquets floor) Press the pedal ( TV ) to lift the brush up.

② Hard floor nozzle (depend on model)

• Efficient cleaning of hard floors (wood, linoleum, etc)

• Cleaning carpet and floor nozzle

Technical line drawing of a mechanical assembly with no visible text or symbols

- Clean the hole and brush of nozzle.

③ Crevice tool

Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs or between the cushions of a sofa.

④ Upholstery nozzle

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

⑤ Dusting brush

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Push the button

Illustration of hands using a handheld device to adjust a cable or cable connector (no text or symbols visible)

NOTICE

Be cautious to use the product on TV, LCD, Monitor or furniture, it can cause small scratch.

• Accessory nozzles are included in the "PE BAG" with owner's manual.

Battery level indicator

• When the battery is low, use the power cord to recharge the battery.
• Please insert the power cord all the way into the main charging terminal.
• When the battery is completely drained, the charging time is approximately 4 hours.

The battery indicator shows the following battery power levels.

① When the battery power level is low, the battery indicator shows one blinking light.
② When the battery is fully charged, the vacuum cleaner runs for 17 minutes on high-powered mode.
③ If the fully charged battery is completely drained during use, the temperature of the battery or product rises and the protection circuit can operate properly.
In such cases when the battery has been drained, the product may be charged and used approximately one hour later.

How to use Emptying dust tank

Technical line drawing of a vacuum cleaner with attached device (no text or symbols)

MAX line.

① Turn off the vacuum cleaner and unplug it.
② Grasp the handle of the tank and then press the tank separation lever.
Pull out the dust tank.
③ Empty the tank and then assemble the dust tank as below.

Moving the vacuum cleaner

• Don't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating tank and body.
  You should grasp the carrier handle when you are moving the vacuum cleaner.

How to use Cleaning dust tank

① Press tank separation lever and pull out dust tank.
② Raise dust tank cap.
③ Wash dust tank.
④ Dry fully in shade so that moisture is entirely removed.

NOTICE

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter. ➡ Next page

How to use Cleaning air filter and motor safety filter

① Open the vacuum cleaner cover by pushing the button.
② Grasp the handle of the dust separator and take out it.
③ Open the guide cover by pulling the guide cover lever and remove the dust.
④ Open the air filter cover by pushing the air filter cover lever and take out the air filter.
⑤ Separate the motor safety filter from the dust separator.
⑥ Wash the air filter and the motor safety filter. Do not wash filters with hot water.
⑦ Dry fully in shade so that moisture is entirely removed. The air filter and the motor safety filter should be cleaned as above the figure.

WARNING

Dry fully for more than 24 hours in shade.

NOTICE

If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent.

Wash filters at least once a month.

How to use Cleaning exhaust filter

• The exhaust filter is reusable.
① To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out.
② Separate the exhaust filter.
③ Dust off filter.(Do not wash filter with water.)
④ Insert the projection of exhaust filter into the grooves on the body and push the exhaust filter.

Exhaust filter cover assembling

• Fit exhaust filter cover lugs to the grooves of vacuum cleaner body.
• Join it the body.

NOTICE

The exhaust filter should be cleaned at least a year.

What to do if your vacuum cleaner does not work

Check the charging cord is disconnected in correctly and please make sure that the main switch is turned on.

What to do when the suction performance decreases

• Turn the main power off and then back on again.
• Select the "maximum" power setting using the suction power button located in the handle.
• The battery of the main body may be completely drained. Please use after charging it completely.
• Clean the dust separator.

Disposal of your old appliance

1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.

בַרְשָׁה בִרְשָׁה

Simple line drawing of a Y-shaped tool or bracket inside a dashed circular border (no text or symbols)

Technical illustration of a mechanical assembly with tool holders and housing (no text or symbols)

Illustration of a robotic arm interacting with a small device on a stand, enclosed in a dashed circle (no text or symbols)

Diagram of a robotic arm interacting with a car seat, enclosed in a dashed circle (no text or symbols)

Technical diagram of a mechanical assembly with a bracket and pin, enclosed in a dashed circle (no text or symbols)

Technical line drawing of a mechanical component with a circular inset view showing internal components (no text or symbols)

בַרְשָׁה בְּרִי

Technical line drawing of a mechanical device showing internal components and external housing (no text or symbols)

Diagram showing a handwashing device into a trash bin, with an inset illustrating the process (no text or symbols present)

Line drawing of a mechanical device with water spray and a handle (no text or symbols)

Technical line drawing of a mechanical device inside a circular frame (no text or symbols)

NYTIN

④

תַרְשָׁ

Symbol of a trash bin with crossed lines and a black rectangular block below (no text or labels)
