ARCHE - Wood stove DEVILLE - Free user manual and instructions

Product type	Wood stove
Brand	DEVILLE
Model	ARCHE (C07750, C07787, C07790, C07708, C07709, C077AA)
Nominal power output	9 kW
Recommended fuel	Logs of hardwood (oak, hornbeam, beech, chestnut) max length 56 cm, humidity < 20%
Prohibited fuels	Coal, derivatives, softwood, small wood, vine shoots, cardboard, liquids, waste
Overall dimensions - Width	698 to 830 mm depending on model
Overall dimensions - Height	751 to 1327 mm depending on model
Overall dimensions - Depth	333 to 404 mm depending on model
Net weight	78 to 101 kg depending on model
Firebox type	Semi-enclosed combustion chamber, grate
Operation	Intermittent (refuel every 3/4 h) or continuous (refuel every 3 h, autonomy > 10 h in slow mode)
Air adjustment	Air control slide + lighting damper
Secondary air intake	Integrated at the top of the glass for clean burn
Connection	Rear flue outlet, individual flue pipe
Local ventilation	Mandatory outside air supply, minimum section 50 cm²
Standard	NF EN 13240
Routine maintenance	Glass cleaning (damp ash), grate de-ashing, emptying ash pan every 2-3 days
Chimney sweeping	Mechanical sweeping mandatory, several times a year including one during heating season
Safety	Doors closed during operation, distance from flammable objects > 1.5 m, do not throw water
Warranty	2 years (5 years on heat body)
Wear parts	Seals, glass, grate
Repairability	Intervention by a professional recommended

Frequently Asked Questions - ARCHE DEVILLE

What fuel should I use with the ARCHE stove?

Use hardwood logs (oak, hornbeam, beech, chestnut) with a maximum length of 56 cm and humidity below 20%. Avoid softwood, coal, and waste.

How to perform the first lighting?

Make a moderate fire for the first few hours with a single log 15 cm in diameter, air slide half-open. A paint smell may appear: ventilate the room.

How to adjust the heating power?

Use the air control slide in open position (max power), half-open (intermediate) or closed (slow mode). For lighting, use the special damper position (max 30 minutes).

What is the autonomy in continuous operation?

In slow mode with a 9 kg wood load, autonomy can exceed 10 hours. Refuel every 3 hours in normal mode.

How to clean the glass?

Wait until the appliance is cold. Clean with a damp cloth and ash or a suitable product. Also regularly clean the secondary air intake at the top of the door.

How often should the flue be swept?

Mechanical sweeping is mandatory several times a year, including at least once during the heating season. A certificate must be provided by a professional.

What to do in case of a chimney fire?

Immediately close the air control slide to reduce oxygen supply. Call the fire department if necessary.

How to adjust the door closure?

Screws ① and ② under the door: tighten screw ② and loosen screw ① to stiffen the closure, vice versa to soften. Adjust in quarter turns.

What are the dimensions of the stove?

Dimensions vary by model: width 698-830 mm, height 751-1327 mm, depth 333-404 mm. Weight 78-101 kg.

What is the warranty of the appliance?

Contractual warranty of 2 years (5 years for the heat body) from the date of purchase, subject to the conditions in the manual.

USER MANUAL ARCHE DEVILLE

4.2.1 Fuel recommended 4.2.2 Forbidden fuel

4.3 USING THE HANDLING DEVICES AND THE ACCESSORIES 4.4 USE

4.4.1 Lighting 4.4.2 Operation

4.4.2.1 Periodic and continuous use 4.4.2.2 Fire duct 4.4.2.3 De-ashing

4.4.3 Safety instructions

5 - RECOMMENDATIONS RELATED WITH DUCT CLEANING, STOVE AND SMOKE DUCT MAINTENANCE 17 6 - GLOBAL TERMS OF WARRANTY 19

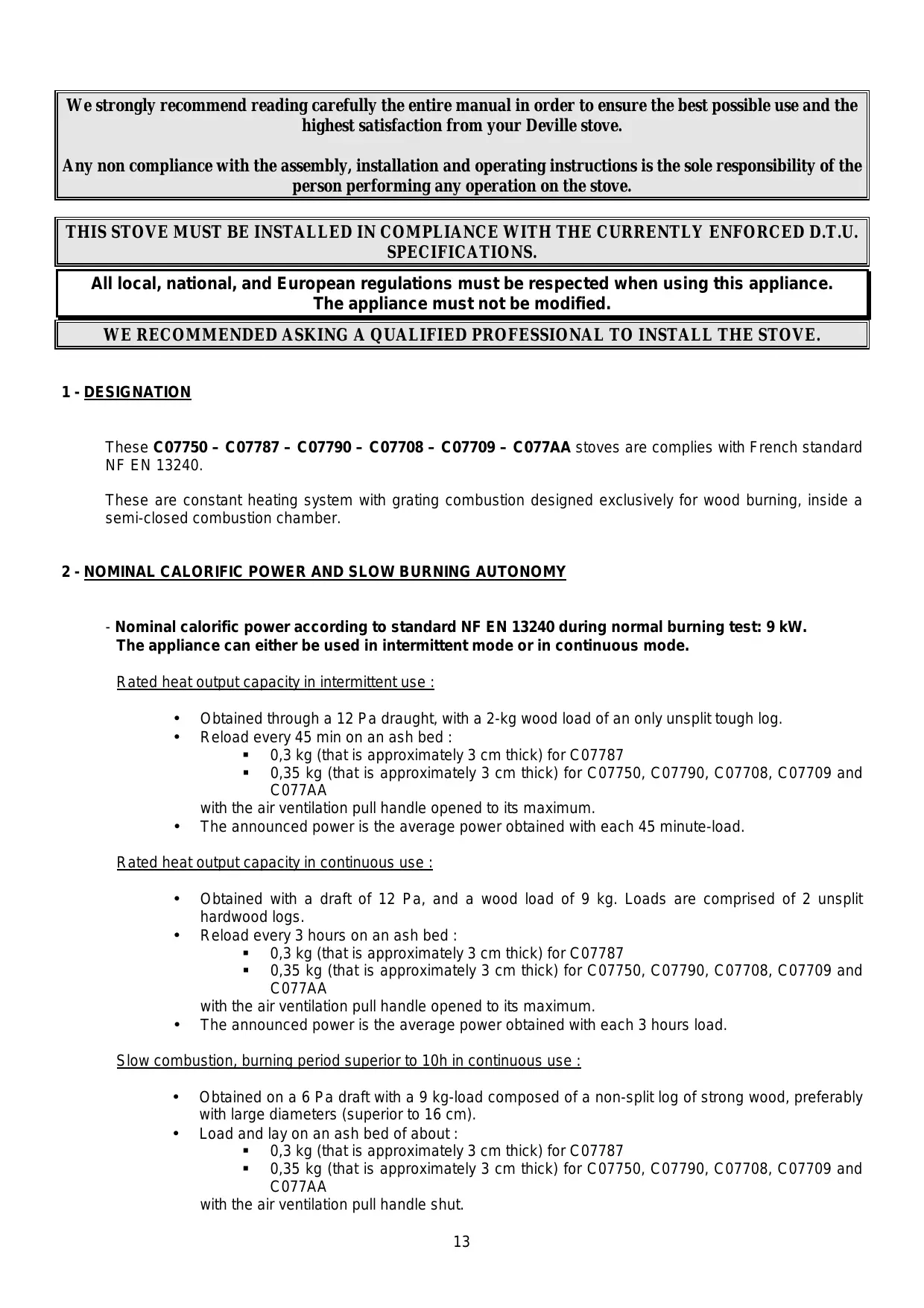

We strongly recommend reading carefully the entire manual in order to ensure the best possible use and the highest satisfaction from your Deville stove.

Any non compliance with the assembly, installation and operating instructions is the sole responsibility of the person performing any operation on the stove.

THIS STOVE MUST BE INSTALLED IN COMPLIANCE WITH THE CURRENTLY ENFORCED D.T.U. SPECIFICATIONS.

All local, national, and European regulations must be respected when using this appliance. The appliance must not be modified.

WE RECOMMENDED ASKING A QUALIFIED PROFESSIONAL TO INSTALL THE STOVE.

1 - DESIGNATION

These C07750 - C07787 - C07790 - C07708 - C07709 - C077AA stoves are complies with French standard NF EN 13240.

These are constant heating system with grating combustion designed exclusively for wood burning, inside a semi-closed combustion chamber.

2 - NOMINAL CALORIFIC POWER AND SLOW BURNING AUTONOMY

• Nominal calorific power according to standard NF EN 13240 during normal burning test: 9 kW. The appliance can either be used in intermittent mode or in continuous mode.

Rated heat output capacity in intermittent use:

• Obtained through a 12 Pa draught, with a 2-kg wood load of an only unsplit tough log.
• Reload every 45 min on an ash bed:
• 0.3 kg (that is approximately 3 cm thick) for C07787
• 0.35 kg (that is approximately 3 cm thick) for C07750, C07790, C07708, C07709 and C077AA

with the air ventilation pull handle opened to its maximum.

The announced power is the average power obtained with each 45 minute-load.

Rated heat output capacity in continuous use:

• Obtained with a draft of 12 Pa, and a wood load of 9 kg. Loads are comprised of 2 unsplit hardwood logs.
• Reload every 3 hours on an ash bed:
• 0.3 kg (that is approximately 3 cm thick) for C07787
• 0.35kg (that is approximately 3cm thick) for C07750, C07790, C07708, C07709 and C077AA

with the air ventilation pull handle opened to its maximum.

The announced power is the average power obtained with each 3 hours load.

Slow combustion, burning period superior to 10h in continuous use :

• Obtained on a 6 Pa draft with a 9 kg-load composed of a non-split log of strong wood, preferably with large diameters (superior to 16 cm).
• Load and lay on an ash bed of about :
• 0.3kg (that is approximately 3cm thick) for C07787
• 0.35 kg (that is approximately 3 cm thick) for C07750, C07790, C07708, C07709 and C077AA

with the air ventilation pull handle shut.

3.1 DESCRIPTION (Fig. 1)

The main elements of the stove are shown below :

(1) Handle (2) Loading door (3) Protection shield (4) Top (5) Duct (6) Panel or decoration (7) Air inlet damper

A secondary air inlet is integrated in the upper section of the door window to maintain it clean and ensure improved wood combustion.

The air inlet damper, located in the lower part of the door, allows the burn rate to be adjusted.

Stove net weight : C07750 Stove approx. 95 kg

C07787 Stove approx. 87 kg

C07790 Stove approx. 91 kg

C07708 Stove approx. 87 kg

C07709 Stove approx. 101 kg

C077AA Stove approx. 78 kg

3.2 SIZE (Fig. 2)

Outer dimensions (mm)

	Width	Height	Depth
C07750	830	765	333
C07787	800	832	404
C07790 / C077AA	698	751	354
C07708	738	1077	355
C07709	738	1327	355

3.3 - VENTILATION OF THE AREA IN WHICH THE APPLIANCE IS TO BE INSTALLED

• The appliance needs air in addition to the air required by the statutory air change rate. This is obligatory when the dwelling includes mechanical ventilation.
• The air intake should give directly to the outside or should be located in an area ventilated to the outside; it should also be protected by a grille.
• The air outlet should be as near as possible to the stove. The user should be able to close it off when it comes out directly into the room. While the appliance is being used, make sure that it is free of any obstructions.
• The air intake section should be at least equal to one-quarter of the section of the smoke flue with a minimum of : - 50 cm² for use with the door closed only
• It may be necessary to stop the extractor of the mechanical ventilation so as to avoid smoke coming back into the room when the door is opened.

4 - STOVE OPERATING CONDITIONS

4.1 FIRST LIGHTING

• Once the chimney is implemented and the stove set, observe the drying time of the materials used for the construction (2 to 3 weeks).
• Do not connect the stove to a pipe linked to several appliances.
• After first lighting (see paragraph 4.4.1), make a moderate fire for the first hours by limiting the stove's load (a 15cm diameter log) (air damper half-open).

Progressive heating of all the elements in the chimney and normal stove expansion.

• During the first hours of use, the stove may produce a smell of paint: ventilate the room to limit its effects.
• Preparation of the C07709 to increase the capacity of the chaffing dish (see Fig. 11):

In the case of a back connecting; it is possible to dismantle the pipe cache of the chaffing dish, in order to increase its volume, proceed as defined below:

Lift the A cover to remove it. Remove the 2 B back screws from the decoration of the C chaffing dish. Remove the decoration from the chaffing dish. Remove the D cache pipe. Reassemble the decoration to the chaffing dish. Reassemble the top.

4.2 FUEL

4.2.1 Fuel recommended

Hardwood logs with a maximum length of 56 cm: oak, hornbeam, beech, chestnut, etc.

Maximum loading height: 25 cm.

We recommend using very dry wood (maximum 20% humidity), i.e., 2 years dry storage following cutting, in order to obtain higher yields and avoid sooting the smoke duct and the windows.

Do not use resinous woods (pine, fir, spruce, etc.), which involve more frequent maintenance of the stove and the flue.

4.2.2 Forbidden fuel

Any other combustible than wood is forbidden, in particular coal and its by-products.

Burning kindling, canes, slats, straw, cardboard, liquid fuels is dangerous and should be avoided.

The appliance should not be used as a waste incinerator.

4.3 USING THE HANDLING DEVICES AND THE ACCESSORIES

• Air inlet damper (Fig. 3): move using the poker.
• Door handle: move using the poker (Fig. 5) or an oven glove.
• Scaper (Fig. 4): for ash removal and appliance cleaning.

Don't take the risk of burning your hands, use the fire irons.

LIGHTING REGISTER (Fig. 3)

Lighting position is obtained by moving the damper directly with your hand: this position must only be used when the stove is "cold". It cannot be maintained more than 30 minutes. You must keep a close eye on the stove during the lighting stage. To reach this position, you must follow the following steps:

Operation No. 1:

• Push the air inlet damper's operating knob ② to the end point corresponding to the locked "Lighting Position".

Operation No. 2:

• Lift the unlocking index ① located to the right of the adjustment damper.

Operation No. 3:

• Hold the index in high position with the right hand and push the operating knob ② to the right with the left hand: you are in "Lighting Position".

After lighting the appliance, to return to normal, intermediate or reduced burning position (see Fig. 3), use the poker to push the air damper operating knob as it may be hot.

4.4 USE

4.4.1 Lighting

• Open the air damper to lighting position (Fig. 3).
• Place crumpled paper on the grating and very dry kindling wood (twigs), then larger cross-section cut wood (diameter 3 to 5 cm).
• Light the paper and close the door (leave it partly open to accelerate lighting up).
• Once the "kindling wood" load is burning, open the door, load the appliance with the recommended fuel and use the regulation devices to obtain the burning required.

4.4.2 Operation

4.4.2.1 Periodic and continuous use

• The intermittent use of the appliance requires a reload every 45 minutes. This type of use is particularly recommended as it is environmentally friendly.
• The apparatus may also be used in continuous mode when periodic use is not possible or when reduced burning is required. In this case, maximum heat output can be maintained for 3 hours and with a slow combustion rate, and a low heat output, the burning period can extend to 10 hours with a 9 kg load.

4.4.2.2 Fireduct

• The burning required is obtained by using the control devices (see § 4.3) and selecting a load matching your needs, i.e.: . For maximum heating, load the appliance with 3 logs of approx. 10 cm diameter (air damper open) (Fig. 3).

Use this position only temporarily, to heat the rooms following prolonged absence.

. For intermediate heating, use a smaller load : one or two logs (air damper half-open) (Fig. 3). . For a long-lasting heat output with a slow combustion rate, use 1 or 2 non-split logs with a diameter superior to 15 cm (air damper closed) (Fig. 3). - To get a long-lasting combustion rate, reload on a merely burning bed of embers. - For rapid restarting of the fire, add some kindling wood, load the logs, and only if necessary keep the door partly open for several minutes, without leaving the appliance unattended. Thereafter, use the controls as per the instructions (paragraph 4.3). This method gets the fire going quickly again, especially if the wood is slightly damp. - Change the burning rate (switching from a slow combustion rate to a normal rate for example) before reloading, during the combustion stage of the embers, to enable the appliance and smoke duct to change progressively from one burning rate to another.

• To prevent smoke from driving back and the ash from entering the room, at the time of loading, opening the door requires a number of precautions:

. Open the door partly, waits for the open door suction to start, and open the door slowly.

• Using the stove in continuous mode and a slow combustion rate, especially in milder temperature conditions (bad draught) and with wet timber, leads to an incomplete combustion and the formation of tar and soot deposits :

Alternate the slow burning periods with returns to normal burning. o Burning small loads is recommended

• After the stove has been used in slow combustion mode, the front glass may darken because of a slight soot deposit, this deposit will burn off (by pyrolysis) with the next hot fire (higher combustion rate).

The fitting of a suction moderating flap in the connecting duct enables to control the burning, notably slow burning, enabling long lasting heating (see installation manual).

4.4.2.3 De-ashing

The air used for burning the wood comes in under the grate when the damper is open. This air also ensures the cooling of the grating. Therefore, it is vital, to ensure optimum performance and prevent the degradation of the grating due to overheating, to prevent any obstruction by performing regularly de-ashing operations and evacuating the ash :

• Use the scraper (1) to de-ash the grating (Fig. 4).
• The ash pan, located under the grille, can be easily removed using the poker (Fig. 5).
• The level of ash must never reach the stove's cast iron grating : de-ash every 2 to 3 days.
• Remove periodically any ash which spilled accidentally in the ash box compartment.

4.4.3 Safety instructions

• Never throw water on the fire to put it out.
• The front glass as well as other parts of the stove are very hot : beware the risk of burns.
• The stove produces a large quantity of heat by means of radiation through the window : do not place any materials or objects which are sensitive to heat within 1.5m of the windowed zone.
• It is imperative to maintain the loading closed at all times.
• Do not place any easily flammable materials near the appliance.
• Empty the ash pan into a special metal or otherwise inflammable receptacle used only for this purpose. Ashes that might appear cold can still be very hot, even if you think they have had enough time to get cold.
• It is especially important not to store wood under the appliance.
• If there is a fire in the chimney, shut the air ventilation pull handle (Fig. 3).

5 - RECOMMENDATIONS RELATED TO DUCT CLEANING, STOVE AND SMOKE DUCT MAINTENANCE

The mechanical cleaning of the smoke duct is compulsory, and must be performed several times per year, at least during the heating season. A certificate should be handed in by a qualified professional.

At the time of duct cleaning, the following operations must be carried out:

• Dismount the deflector (Fig. 6) and (Fig. 7):

Dismount the deflector (lift the deflector 1, move it forward 2, tilt the rear 3, lower it 4 and remove it 5 through the right-hand side).

• Dismount the rear plate of the hearth, the two lateral hearth plates, the hearth grid and the duct pipe.

(Assembling the deflector: perform the disassembly operation in the reverse order).

• Check thoroughly the state of the appliance and particularly the elements ensuring sealing: locking joints and devices, supporting parts (door, frame).
• Check the state of the smoke duct and connecting duct: all the connections must show proper mechanical resistance and sealing.
• Clean the appliance using a brush and a vacuum cleaner.

In the event of an anomaly: have the appliance repaired or the installation performed by a qualified professional.

After a long off-period:

• Check that nothing obstructs any pipes before using the stove again.

CURRENT MAINTENANCE

• Clean the window using a damp cloth and ash. If required, use an adapted household cleaning product by observing the instructions of the operation manuals. Wait for the appliance to be completely cooled before proceeding with this operation.
• Clean regularly the ventilation guides (Fig. 8):

Using the tip of a metallic object (②), scratch the inner edges of the cast iron to remove the soot which may have formed. Using a vacuum cleaner (①), remove the particles and dust trapped between the door and window (Fig. 9).

These particles prevent the forming of the secondary air layer which protects the window from direct contact with the smoke and completes the combustion of the wood (Fig. 9).

These operations must be performed whenever the window is dirty and systematically following the total extinction of the hearth.

For C07787:

• Check the efficiency of the door latch and, if required, make the following adjustments (Fig. 10):
• To harden door closure:

Successively loosen screw ① and tighten screw ②. Turn both screws 1/4 turn and repeat the operation as required.

NOTE: This operation increases pressure on the hearth door's sealing gasket.

• To soften door closure:

Successively loosen screw ② and tighten screw ①. Turn both screws 1/4 turn and repeat the operation as required.

NOTE: This operation reduces pressure on the hearth door's sealing gasket.

6 - GLOBAL TERMS OF WARRANTY

1. TERMS AND CONDITIONS

Apart from the legal warranty, particularly for latent defects, Deville guarantees to deliver the furniture in case of obvious defects or non-conformity to the ordered furniture.

Without prejudice to the provisions that are to be taken concerning the carrier, claims on delivery of furniture concerning the obvious defects or the non conformity, must be issued by the Buyer in writing a registered letter with confirmation of receipt to Deville company within 5 days after noticing the defect. It is up to the Buyer to prove the reality of the noticed defects and irregularities. The Buyer must let Deville every opportunity of noticing any of those defects and irregularities in order to salve then.

The Buyer must also keep the non standard supplies at the disposal of Deville, according to the instructions of the latter. All return of material, for any reasons, should be subject to a formal pre-agreement from Deville.

2. EXTENT

The warranty of Deville covers, except for any compensation or for damages, the free replacement or repairing of supplier the part acknowledged as being defected (except for wear and tear parts) by its services to the exclusion of the fees for the workplace, for the removal and for the shipping.

On enamelled equipments, appliances, crackles are never considered as a manufacturing defect. They are due to the difference of expansion of iron enamel or cast-iron enamel and don't alter the adherence.

Paid replacement parts are warranted for a six-month period from the invoicing date, any additional warranty agreed by a retailer from Deville doesn't commit Deville. Whenever claiming under a warranty, the guarantee with the stamp from the retailer Deville is strictly required. The above guarantee must be produced for any demand to repair the appliance under warranty, or a detachable slip or coupon of any such guarantee must, according to the own organisation of Deville, be returned to the latter within the required time. For lack of this, the date on the invoice issued by Deville can't be taken into account. The interventions under warranty can't have the effect of continuing the warranty.

3. WARRANTY PERIOD

The period of the agreed warranty ensured by Deville is for 2 years (5 years for the fireplace heating body) from the date when the appliance was purchased by the user, subject to the fact the claims -forecast by the above conditions- were done within the time allowed. The repairing, the replacement or the alteration of parts under the warranty period can neither have the effect of continuing the period of the latter, not get to any compensation for any fees, for late delivery, accidents or any such damages.

4. EXCLUSION

The warranty is unavailable for the following cases, without this list being exhaustive:

Fitting out, fitting out and assembling of appliances not due to Deville.

Consequently Deville cannot be considered as responsible for damages or supplies, or accidents to persons due to local laws and regulations (for example the fact that there is no linking to the earth ground connection or a wrong drought of a fitting out).

Fair wear and tear of the supplies or abnormal use of the supplies including the case of industrial or trading use or a use of the supplies in different conditions from the ones it was built for. It is, for example, of non respect of the conditions described in the directions issued by Deville: display to outside conditions damaging the appliance; such as excessive dampness or abnormal change of the electrical tension. Malfunction, damage or accident due to a shock, a drop, a carelessness, a failure of supervision or of service from the Buyer.

Any alteration, change or intervention made by a member of the staff or a company that is not approved by Deville, or manufactured with replacement parts that are not genuine or not approved by the manufacturer.

5. SPECIAL TERMS OF WARRANTY

These terms add and define the above general terms of warranty and come first to the former, refer to the enclosed leaf untitled: "special terms of sales Deville - warranty".

Stufa C07750: approximately 95 kg

Stufa C07787: approximately 87 kg

Stufa C07790: approximately 91 kg

Stove C07708: approximately 87 kg

Stove C07709: approximately 101 kg

Stove C077AA: approximately 78 kg

3.2 OVERALL DIMENSIONS (Fig. 2)

4.1 FIRST IGNITION
