USER MANUAL rDrive 6628AM Highpoint

Copyright © 2018 HighPoint Technologies, Inc. This document contains materials protected by International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed in any form and for any purpose without the express written permission of HighPoint Technologies, Inc.

Trademarks

Companies and products mentioned in this manual are for identification purpose only. Product names or brand names appearing in this manual may or may not be registered trademarks or copyrights of their respective owners. Backup your important data before using HighPoint's products and use at your own risk. In no event shall HighPoint be liable for any loss of profits, or for direct, indirect, special, incidental or consequential damages arising from any defect or error in HighPoint's products or manuals.

Information in this manual is subject to change without notice and does not represent a commitment on the part of HighPoint.

Notice

Reasonable effort has been made to ensure that the information in this manual is accurate. HighPoint assumes no liability for technical inaccuracies, typographical, or other errors contained herein.

FCC Part 15 Class B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

European Union Compliance Statement

This Information Technologies Equipment has been tested and found to comply with the following European directives:

• European Standard EN55022 (1998) Class B
• European Standard EN55024 (1998)

Table of Contents

Product Overview....5

Kit Content....5

Product Information....5

Section 1: Hardware Installation....6

Hardware Overview....6

Panel Layout-Front View 6

Panel Layout-Rear View 6

System Requirements ....7

Enclosure Setup....7

Section 2: Setting Up Software for Mac Platforms....8

Driver installation....8

Checking Driver Installation 9

Installing the HighPoint rDrive Manager....12

Formatting the RAID Volumes....13

Section 3: Using the HighPoint rDrive Manager....15

How to Login to the rDrive Manager....15

Navigating the rDrive Manager....15

Overview Tab....16

Enclosure Properties 16

Storage Properties....16

Array Config....17

Delete 17

Quick Config. 17

Advanced Config....17

Quick Config. 18

Advanced Config....20

Create Array 21

Spare Pool....24

Logical Device 25

Logical Device Information....25

Maintenance 25

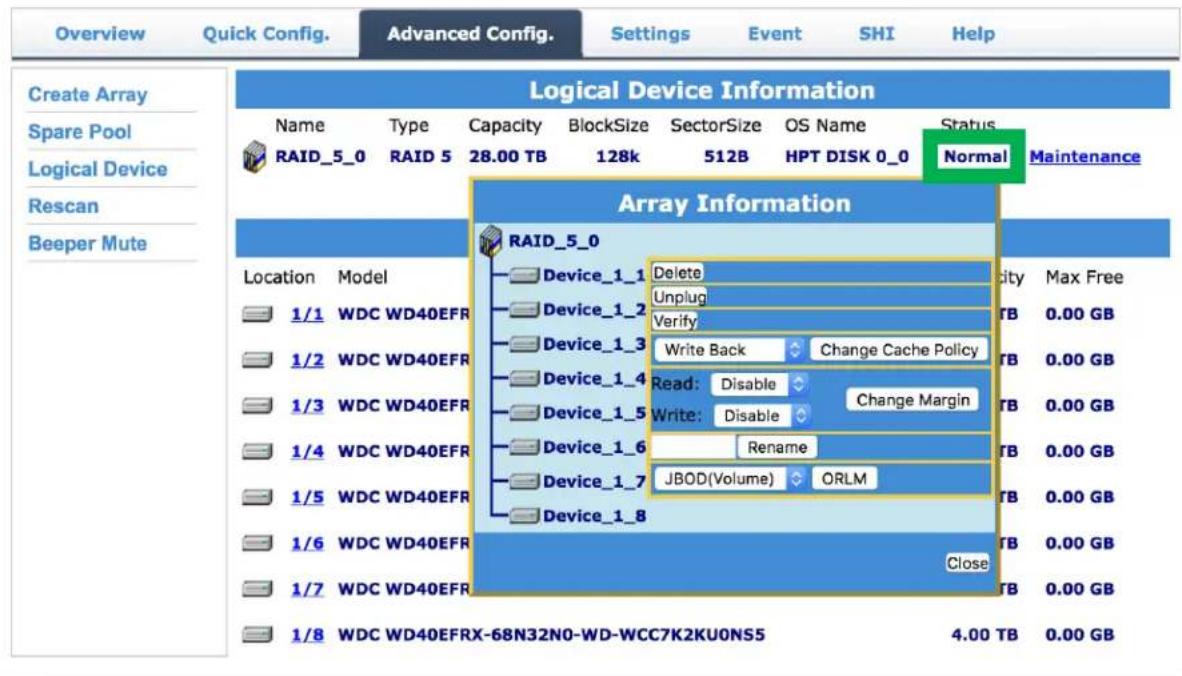

Array Information....25

Expanding an Existing Array 29

Physical Device Information....30

Rescan 31

Beeper Mute....31

Settings Tab 32

Enclosure 32

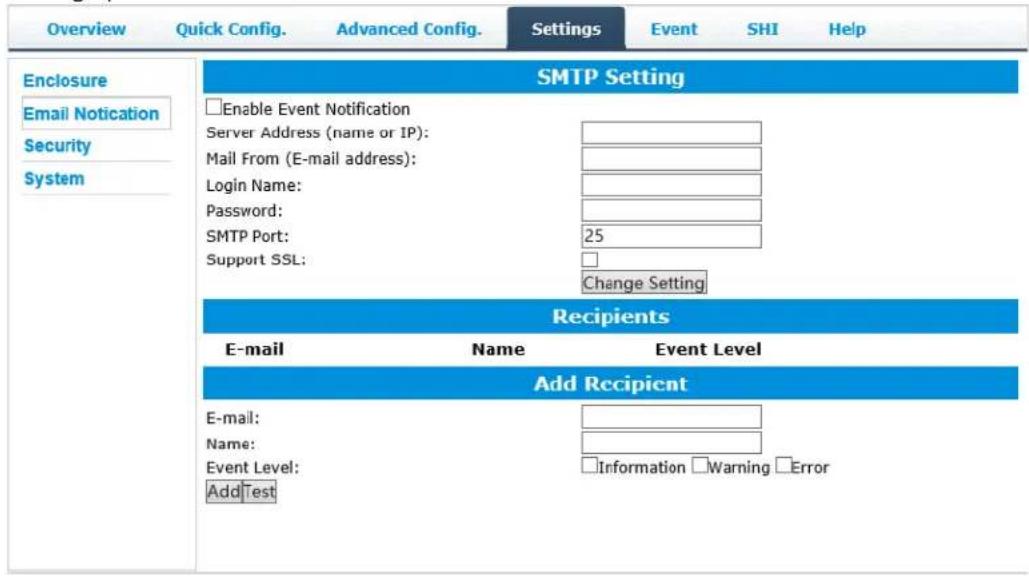

Email Notification....32

SMTP Setting 32

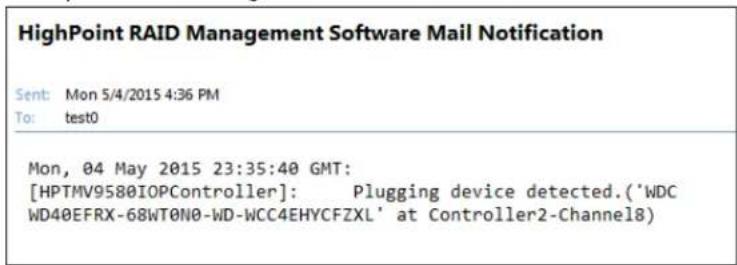

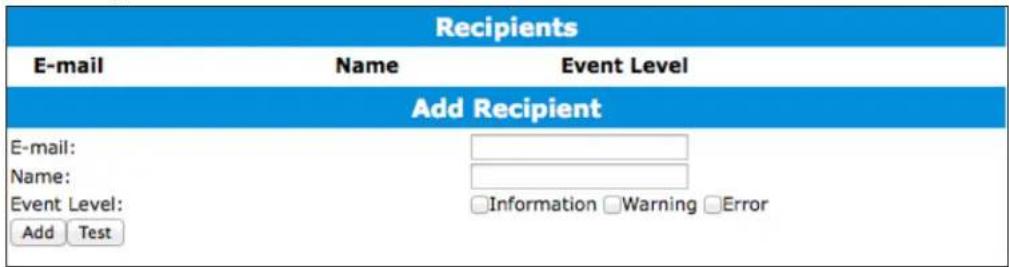

Add Recipient 33

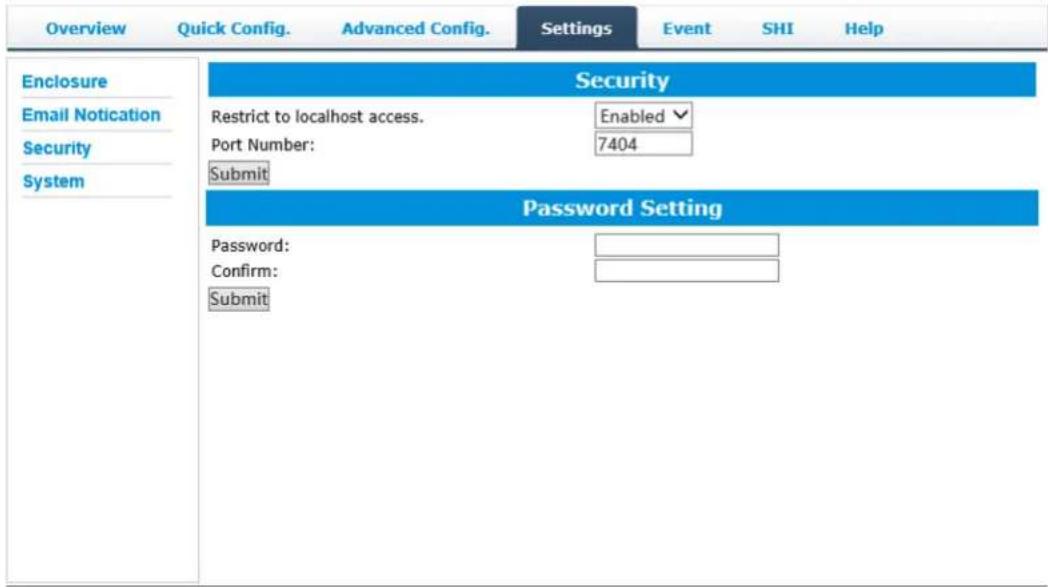

Security....34

Password Setting....34

System 35

Event....36

Storage Health Inspector (SHI) 36

Scheduler....37

How to Create a New Verify Task....37

Help 38

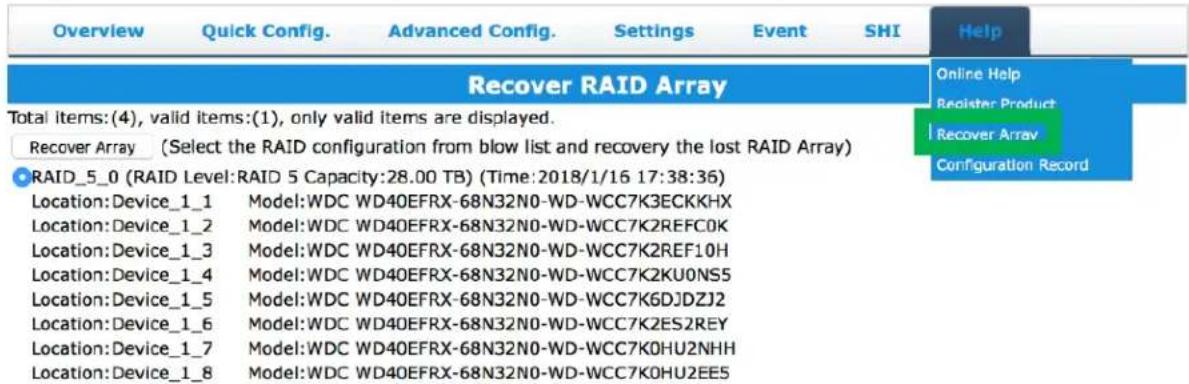

Recover Array 38

Configuration Record 38

Section 4: Troubleshooting ....39

Handling Critical Arrays 39

Rebuilding Stops Due to Bad Sectors 40

Critical Array Becomes Disabled When You Removed Faulty Disk 40

Online RAID Roaming 40

Appendix....41

Table 1: rDrive Manager Icon Guide ......41

Table 2: RAID Reference Level....43

HighPoint Recommended List of Hard Drives 43

Contacting Technical Support 43

Product Overview

The rDrive 6628AM Series employs our industry-proven Hardware RAID stack to deliver professional grade, pre-configured Thunderbolt™ 3 40Gb/s RAID storage for today's most demanding media applications, in an affordable, easy to install solution. HighPoint Hardware RAID Technology was designed specifically for I/O intensive work environments which require uncompromised transfer performance and superior data security. The integrated hardware RAID engines and dedicated RAM completely offload all RAID calculations from the host platform to maximize sustained data throughput and reliability of the hosted storage configurations. The robust, compact tower form factor is available with 32 to 96TB of storage capacity, and can be easily connected to any Mac OS X 10.10 or later platform with Thunderbolt™ 3 capability.

Kit Content

• 1x rDrive RAID Storage unit
• 8x Removable Disk Modules
• 1x 40Gb/s Thunderbolt™ 3 cable
- 1x UL Power Cord
• 1x Quick Installation Guide

Before getting started, check to see if any items are missing, damaged, or incorrect. If you discover any discrepancies, please contact your reseller, or our Support Department via our Online Web Support Portal.

Product Information

Product Information	rDrive 6628AM
Port Type	ThunderboltTM 3
Number of Ports	2
Interface Technology	Daisy Chain up to 6 devicesBi-directional, dual-protocol (PCI Express and DisplayPort)8 lanes of Display Port 1.2 – supports dual 4K displays or one 5K displayPower delivery: 15W to bus-powered devicesBackward compatible with ThunderboltTM 2 devicesUSB-C ports compatible with existing USB devices and cables, support up to USB 3.1 10Gb/s speed
RAID Level	Preconfigured RAID 5 / Optional RAID 0, 1, 6, 1/0 & JBODNote: RAID 1/0 is the equivalent of RAID 10
System Requirement	Computer with a ThunderboltTM 3 portMac OS X 10.10 & Later
Warranty	2 Years
Performance Benchmark	RAID 0:Read – 1,650 MB/sWrite – 1,580 MB/sRAID 5:Read – 1,450 MB/sWrite – 1100 MB/s
Kit Contents	1x rDrive RAID Storage unit8x Removable Disk Modules1x 40Gb/s ThunderboltTM 3 cable1x UL Power Cord1x Quick Installation Guide

Section 1: Hardware Installation

Hardware Overview

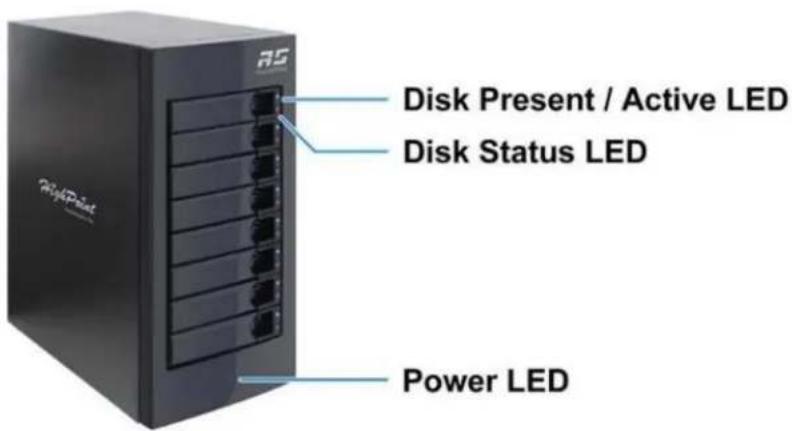

Panel Layout-Front View

HighPoint AS Disk Present / Active LED Disk Status LED Power LED

LED Indicators

Disk Present: Solid blue

Disk Active LED: Flashing blue

Disk Failure LED: Solid red

Disk rebuilding/identifying LED: Flashing red

Power LED: Solid blue

Panel Layout-Rear View

Dual Thunderbolt™ Type-C Ports AC Power IN Power Switch Kensington Slot

System Requirements

• Mac system with a Thunderbolt ^TM 3 (USB type-C) port

• Mac system with a Thunderbolt ^TM 2 port and Thunderbolt ^TM 2 to Thunderbolt ^TM 3 adapter

• Mac OS X 10.10 or later

Enclosure Setup

1. Connect the rDrive 6628AM to the host system with the Thunderbolt™ cable

Close-up of a black computer power supply unit with two connected USB ports and a fan blade (no visible text or symbols)

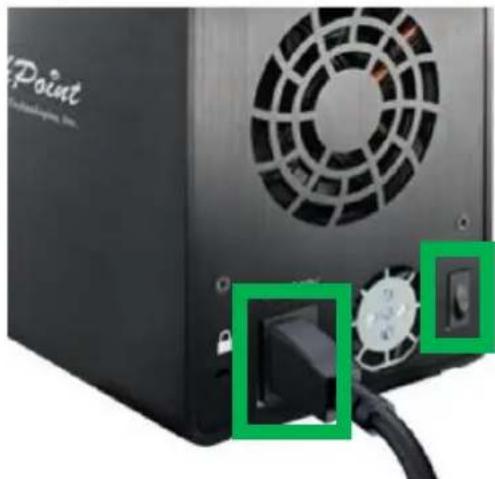

1. Connect the rDrive 6628AM to power and turn on the power switch

Close-up of a black power supply unit with fan and socket, showing internal components and a green bracket highlighting a connector (no readable text or symbols)

Section 2: Setting Up Software for Mac Platforms

Driver installation

1. Obtain the latest driver software for the rDrive 6628A from our website: http://www.highpoint-tech.com/USA_new/series-rd6628am-download.htm#nav_bottom
2. Mount and enter the downloaded folder

Icon of a HighPointRR server with a blue label (no text or symbols on the device itself)

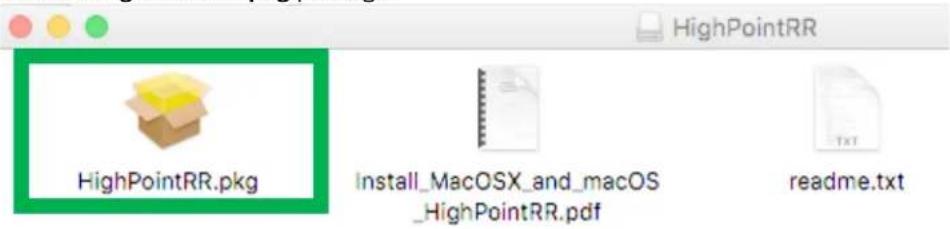

1. Run the HighPointRR.pkg package

HighPointRR.pkg Install_MacOSX_and_macOS _HighPointRR.pdf readme.txt

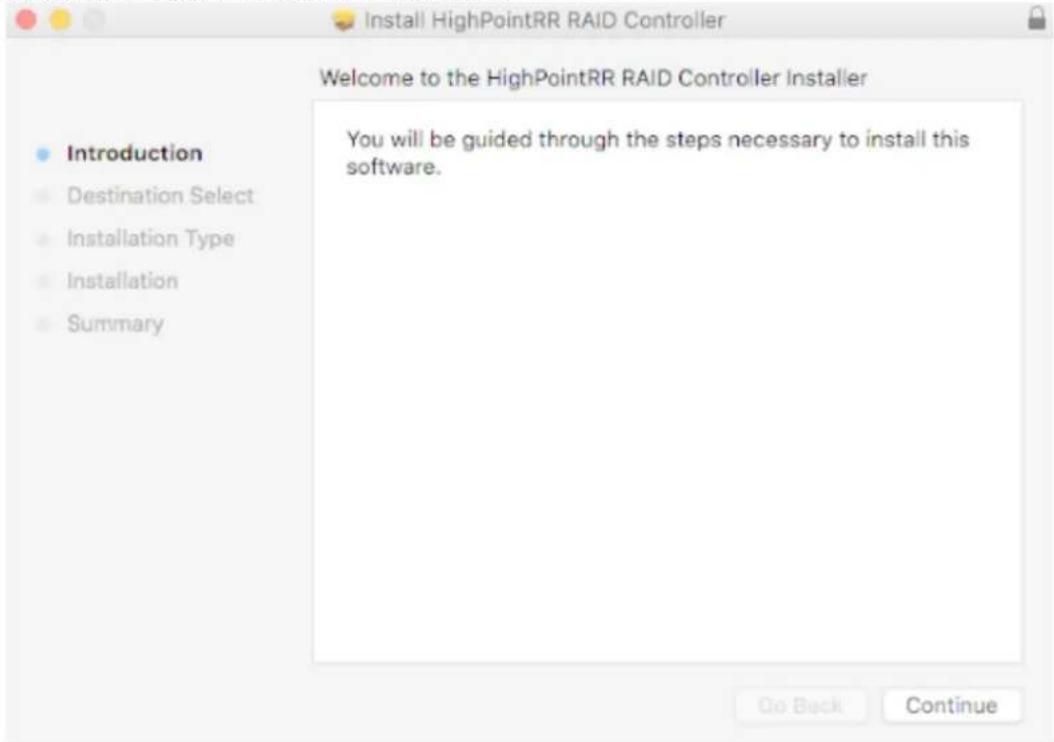

1. Follow the on screen installation instructions

Install HighPointRR RAID Controller Welcome to the HighPointRR RAID Controller Installer Introduction Destination Select Installation Type Installation Summary You will be guided through the steps necessary to install this software. Go Back Continue

1. Restart your computer

Checking Driver Installation

1. Select the Apple logo in the top left part of the screen
2. Select About this Mac

Finder File Edit View About This Mac System Preferences... App Store...

1. Select System Report

Overview Displays Storage Memory Support Service macOS High Sierra Version 10.13 Mac Pro (Late 2013) Processor 3.7 GHz Quad-Core Intel Xeon E5 Memory 12 GB 1866 MHz DDR3 Startup Disk 10.13 Graphics AMD FirePro D300 2 GB Serial Number F5KLW0LKF9VM System Report... Software Update... TM and © 1983-2017 Apple Inc. All Rights Reserved. License Agreement

1. Select the Thunderbolt tab on the left

SPI Storage Thunderbolt USB

1. Check that RocketStor 6628A is present

Hardware ATA Audio Bluetooth Camera Card Reader Diagnostics Disc Burning Ethernet Cards Fibre Channel FireWire Graphics/Displays Hardware RAID Memory NVMExpress PCI Parallel SCSI Power Printers SAS SATA/SATA Express SPI Storage Thunderbolt USB iBridge Network Firewall Locations Volumes WWAN Wi-Fi	Thunderbolt Device Tree Thunderbolt Bus RocketStor 6628A
	Vendor Name: HighPoint Technologies, Inc. Device Name: RocketStor 6628A Vendor ID: 0x43 Device ID: 0x6628 Device Revision: 0x1 UID: 0x00435F879CB25700 Route String: 1 Firmware Version: 25.1 Port (Upstream): Status: Device connected Link Status: 0x2 Speed: Up to 40 Gb/s x1 Current Link Width: 0x2 Cable Firmware Version: 0.9.0 Link Controller Firmware Version: 0.36.0 Port: Status: No device connected Link Status: 0x7 Speed: Up to 40 Gb/s x1 Current Link Width: 0x1 Link Controller Firmware Version: 0.36.0
iMac's iMac > Hardware > Thunderbolt > Thunderbolt Bus > RocketStor 6628A

1. Select the PCI tab on the left


Memory NVMExpress PCI Parallel SCSI Power

7. Check that the RocketRAID 4520 SAS Controller is present

Graphics/Displays Hardware RAID Memory NVMExpress PCI Parallel SCSI Power Printers SAS SATA/SATA Express SPI Storage Thunderbolt USB iBridge Network Firewall Locations Volumes WWAN WI-FI Software Accessibility Applications Components Developer Disabled Software Extensions Fonts Frameworks Installations Logs

pci110: 4520: Type: Driver Installed: Tunnel Compatible: Pause Compatible: MSI: Bus: Slot: Vendor ID: Device ID: Subsystem Vendor ID: Subsystem ID: Revision ID: Link Width: Link Speed:

RAID Controller Yes Yes Yes Yes Yes PCI Thunderbolt@134,0,0 0x1103 0x4520 0x1103 0x6628 0x00b3 x8 5.0 GT/s

1. Afterwards, check that rDrive-01 will be installed on the screen. rDrive-01 is configured as RAID 5 and its ready to use.

Yellow rectangular object with gray base, labeled 'rDrive-01' below (no other text or symbols)

Installing the HighPoint rDrive Manager

1. Download the rDrive Manager files from http://www.highpoint-tech.com/USA_new/series-rs6628a-download.htm
2. Mount and enter the downloaded folder

HighPointRDWebG UI

1. Run the HighPointRSWebGUI.pkg package

HighPointRDWebGUI.png Install_MacOSX_RDWebGUI. pdf readme.txt

1. Follow the on screen installation instructions

Install HighPoint rDrive Manager Welcome to the HighPoint rDrive Manager Installer Introduction Destination Select Installation Type Installation Summary You will be guided through the steps necessary to install this software. Go Back Continue

1. Log into the rDrive Manager by double clicking the desktop icon (see below)

Formatting the RAID Volumes

After creating a RAID array, your operating system will recognize that array as a logical disk. However, the array will not be accessible until it is formatted by the operating system.

Format the volume when you have finished the following procedures

1. Set up the Enclosure
2. Set up the RAID Controller
3. Installed Drivers
4. Create an Array

For Mac users

1. Shortly after creating the RAID array, a pop-out (shown below) appears. Select Initialize...

The disk you inserted was not readable by this computer. Initialize... Ignore Eject

1. Select your created RAID array on the left hand side of Disk Utility under External

Disk Utility View Volume First Aid Partition Erase Restore Mount Info Internal APPLE SSD SM0256... 10.11 disk0s3 disk0s4 Mac10.12 Container disk1 10.13 External HPT VDO-0 Media HPT VDO-0 Media Uninitialized 12 TB Location: External Capacity: 12 TB Connection: SAS Child count: 0 Partition Map: Not Supported Type: Disk S.M.A.R.T. status: Not Supported Device: disk3

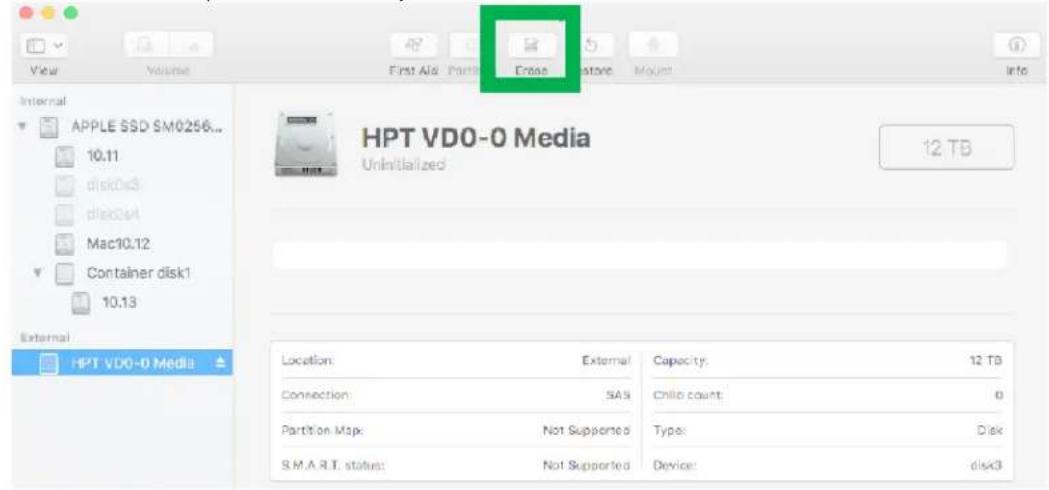

3. Select the Erase option near the top

HPT VDO-0 Media Uninitialized Location: External Capacity: 12 TB Connection: SAS Child count: 0 Partition Map: Not Supported Type: Disk S.M.A.R.T. status: Not Supported Device: disk3

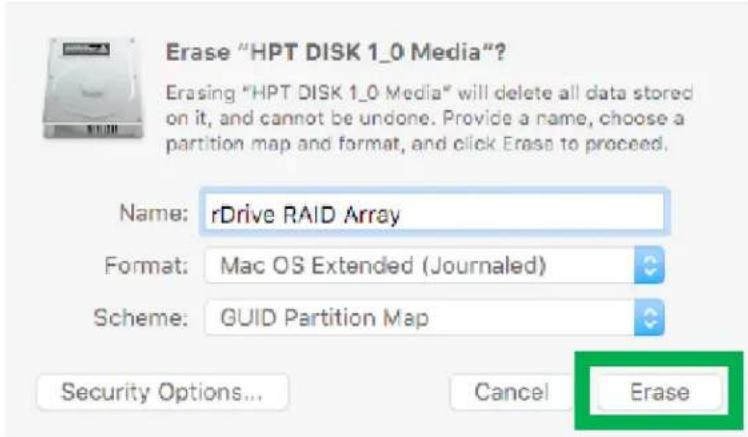

4. Type in the name you want to use for your RAID array and select the format and scheme. Then, select Erase.

Erase "HPT DISK 1.0 Media"? Erasing "HPT DISK 1.0 Media" will delete all data stored on it, and cannot be undone. Provide a name, choose a partition map and format, and click Erase to proceed. Name: rDrive RAID Array Format: Mac OS Extended (Journaled) Scheme: GUID Partition Map Security Options... Cancel Erase

5. After the erase process is complete, select Done

Erasing "HPT DISK 1_0 Media" and creating "rDrive RAID Array" Erase process is complete, click Done to continue. Show Details Done

6. Your RAID array is now mounted on the desktop

rDrive RAID Array

Section 3: Using the HighPoint rDrive Manager

How to Login to the rDrive Manager

You can reach the rDrive Manager log in page either by:

• Double clicking on the rDrive Manager icon created on your desktop
• Opening your preferred web browser and typing http://localhost:7406 in the address bar.

There is no password needed for the default log-in. The password can be changed under the Settings tab after log-in the rDrive Manager.

Navigating the rDrive Manager

The rDrive Manager allows you to do several key things:

• Create and remove arrays
  • Monitor disk health
• Update firmware and BIOS
• Change enclosure settings
• Troubleshoot faulty drives
  • View general system overview

Tab Name	Function
Overview	View Enclosure and Storage Properties
Quick Config	A quick configuration wizard to create a new RAID array
Advanced Config	Manage and create RAID arrays
Settings	Adjust rDrive Manager control settings
Event	Show rDrive Manager event log
Storage Health Inspector (SHI)	View and schedule S.M.A.R.T monitoring
Help	Online help, register product, configuration records

Overview Tab

Enclosure(1): rD6628A HighPoint Technologies, Inc. Overview Quick Config. Advanced Config. Settings Event SHI Help Enclosure Properties Model: rDrive 6628A Firmware: v1.8.15.0 Disk installed: 8 Detail Storage Properties Total : 96.00 TB Configured : 96.00 TB Free : 0 GB RAID Array: 0 Logical Device: 8 Background Task: 0 Advanced Config. ■ Configured Capacity □ Free Capacity

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

The Overview tab provides information regarding each HighPoint Enclosure connected to your computer detects. It is also the first page you see when logging in.

It also provides the following information

• Enclosure Properties
- Storage Properties

On the top left of the page is a drop down menu that allows you to select which controller you want to manage (if you have multiple HighPoint controllers connected).

Enclosure Properties

• Model: the model name of the controller
• Disk Installed: number of drives seen by the controller

Storage Properties

• Total: the combined capacity of the physical disks connected to the controller.
- Configured: the amount of space used for creating arrays
• Free: total amount of unused space
- RAID Array: total amount of configured RAID arrays
• Logical Device: total amount of logical devices
• Background Task: current running task

Array Config.

Setting up a new RAID configuration requires that the pre-configured RAID 5 array first be deleted. Make sure to backup any critical data sorted on this array before deleting. Once this has been resolved, click the Advanced Config. tab, then click the Maintenance button to the right of the array's Status column. In the pop-up window, click the Delete button, then confirm the on-screen prompt to continue.

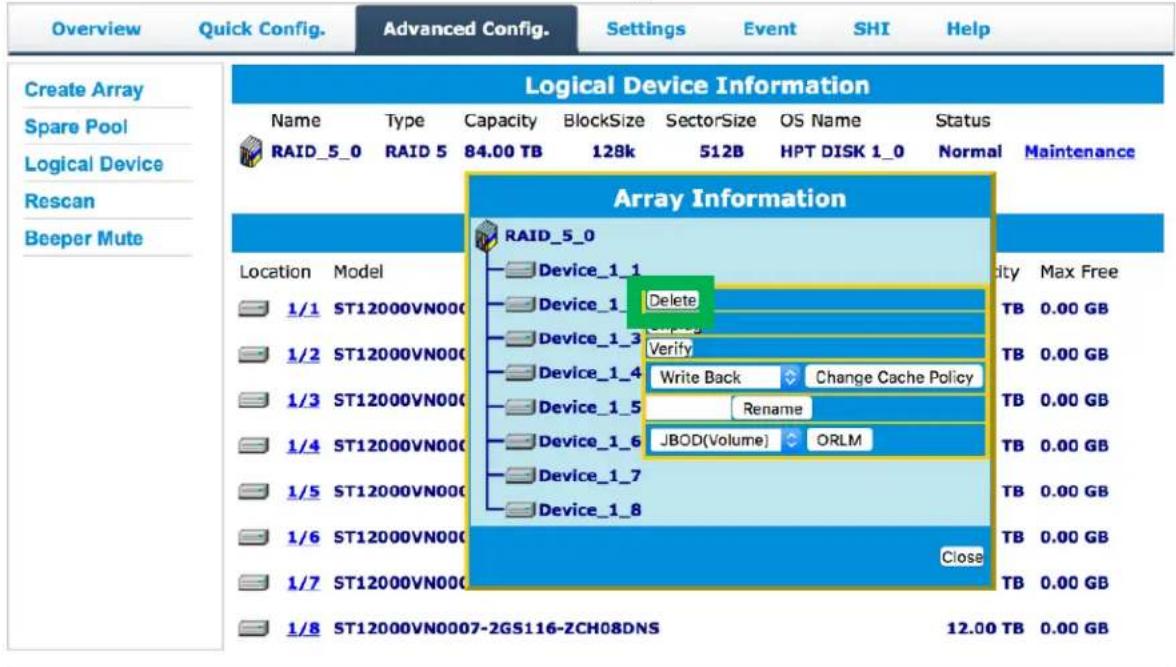

Delete

The delete function is used to delete the already existing arrays so that the user has free disks to create another array.

The delete function can be found in the Advanced Config. tab.

Overview Quick Config. Advanced Config. Settings Event SHI Help Create Array Spare Pool Logical Device Rescan Beeper Mute Logical Device Information Name Type Capacity BlockSize SectorSize OS Name Status RAID_5_0 RAID 5 84.00 TB 128k 512B HPT DISK 1_0 Normal Maintenance Array Information RAID_5_0 Location.Model Device_1_1 Delete Max Free 1/1 ST12000VN000 Device_1_3 Write Back Change Cache Policy TB 0.00 GB 1/2 ST12000VN000 Device_1_4 Rename TB 0.00 GB 1/3 ST12000VN000 Device_1_5/JBOD(Volume) ORLM TB 0.00 GB 1/4 ST12000VN000 Device_1_6 Device_1_7 Device_1_8 TB 0.00 GB 1/5 ST12000VN000 Device_1_7 1/6 ST12000VN000 Device_1_8 Close TB 0.00 GB 1/7 ST12000VN000 1/8 ST12000VN0007-2GS116-ZCH08DNS 12.00 TB 0.00 GB

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

Quick Config.

Quick Config. is the easiest and quickest way to configure RAID arrays. Back up all data before following the on-screen instructions to configure your array.

Advanced Config.

The Advanced Config. tab is where you can edit, delete, and maintain your RAID configurations, as well as review the Physical Device information.

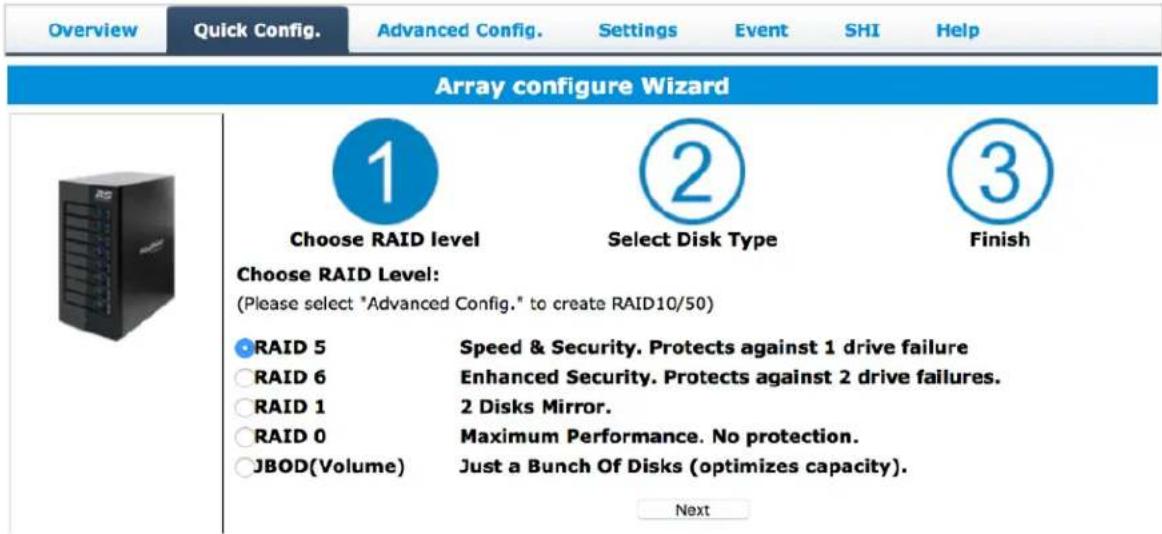

Quick Config.

1. Choose the Raid level you would like (Refer to Table 2; RAID Reference Level)(P.38)

Overview Quick Config. Advanced Config. Settings Event SHI Help Array configure Wizard Choose RAID level Select Disk Type Finish Choose RAID Level: (Please select "Advanced Config." to create RAID10/50) RAID 5 RAID 6 RAID 1 RAID 0 JBOD(Volume) Speed & Security. Protects against 1 drive failure Enhanced Security. Protects against 2 drive failures. 2 Disks Mirror. Maximum Performance. No protection. Just a Bunch Of Disks (optimizes capacity). Next

1. Select the disk type

a. New disk is used for disk with no data on them
b. Used disk is used for disks already having data

Overview Quick Config. Advanced Config. Settings Event SHI Help Array configure Wizard Choose RAID level Select Disk Type Finish Disk Type: New Disk: New, unused disk, not previously part of a RAID array. Used Disk already contains data or was previously part of a RAID array. Next

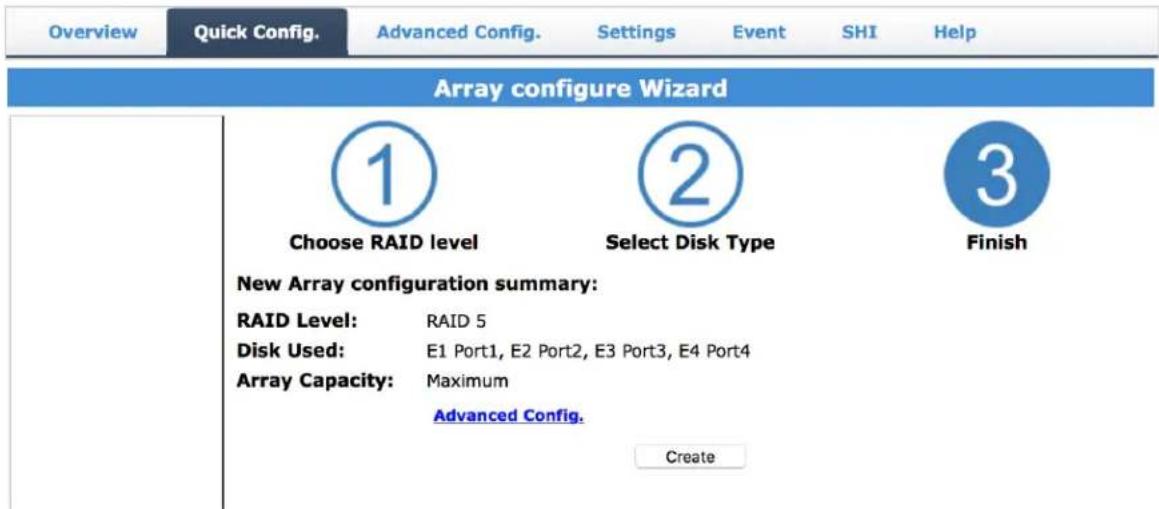

3. Click create on the bottom

Overview Quick Config. Advanced Config. Settings Event SHI Help Array configure Wizard Choose RAID level Select Disk Type Finish New Array configuration summary: RAID Level: RAID 5 Disk Used: E1 Port1, E2 Port2, E3 Port3, E4 Port4 Array Capacity: Maximum Advanced Config. Create

1. Next, you will need to format the RAID Volume. Please check page 11 for more information.

Advanced Config.

Overview Quick Config. Advanced Config. Settings Event SHI Help
Create Array Spare Pool Logical Device Rescan Beeper Mute	Logical Device Information
	Name Type Capacity BlockSize SectorSize OS Name Status RAID_5_0 RAID 5 84.00 TB 128k 512B HPT DISK 1_0 Normal Maintenance
	Physical Device Information
	Location Model					Capacity Max Free
	1/1 ST12000VN0007-2GS116-ZCH074PL					12.00 TB 0.00 GB
	Revision SC60				Read Ahead	Enabled Change
	Location 1/1				Write Cache	Enabled Change
	Max Free 0.00 GB
	Status Normal				NCQ	Enabled Change
	Serial Num ZCH074PL				Identify LED	[ON][OFF]
	1/2 ST12000VN0007-2GS116-ZCH07TEY					12.00 TB 0.00 GB
	1/3 ST12000VN0007-2GS116-ZCH05C83					12.00 TB 0.00 GB
	1/4 ST12000VN0007-2GS116-ZCH07VLV					12.00 TB 0.00 GB
	1/5 ST12000VN0007-2GS116-ZCH05HLN					12.00 TB 0.00 GB
	1/6 ST12000VN0007-2GS116-ZCH08FX3					12.00 TB 0.00 GB
	1/7 ST12000VN0007-2GS116-ZCH070PW					12.00 TB 0.00 GB
	1/8 ST12000VN0007-2GS116-ZCH08DNS					12.00 TB 0.00 GB

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

The Advanced Config. tab has the following functions:

• Create Array
• Spare Pool
• Logical Device
• Rescan
• Beeper Mute

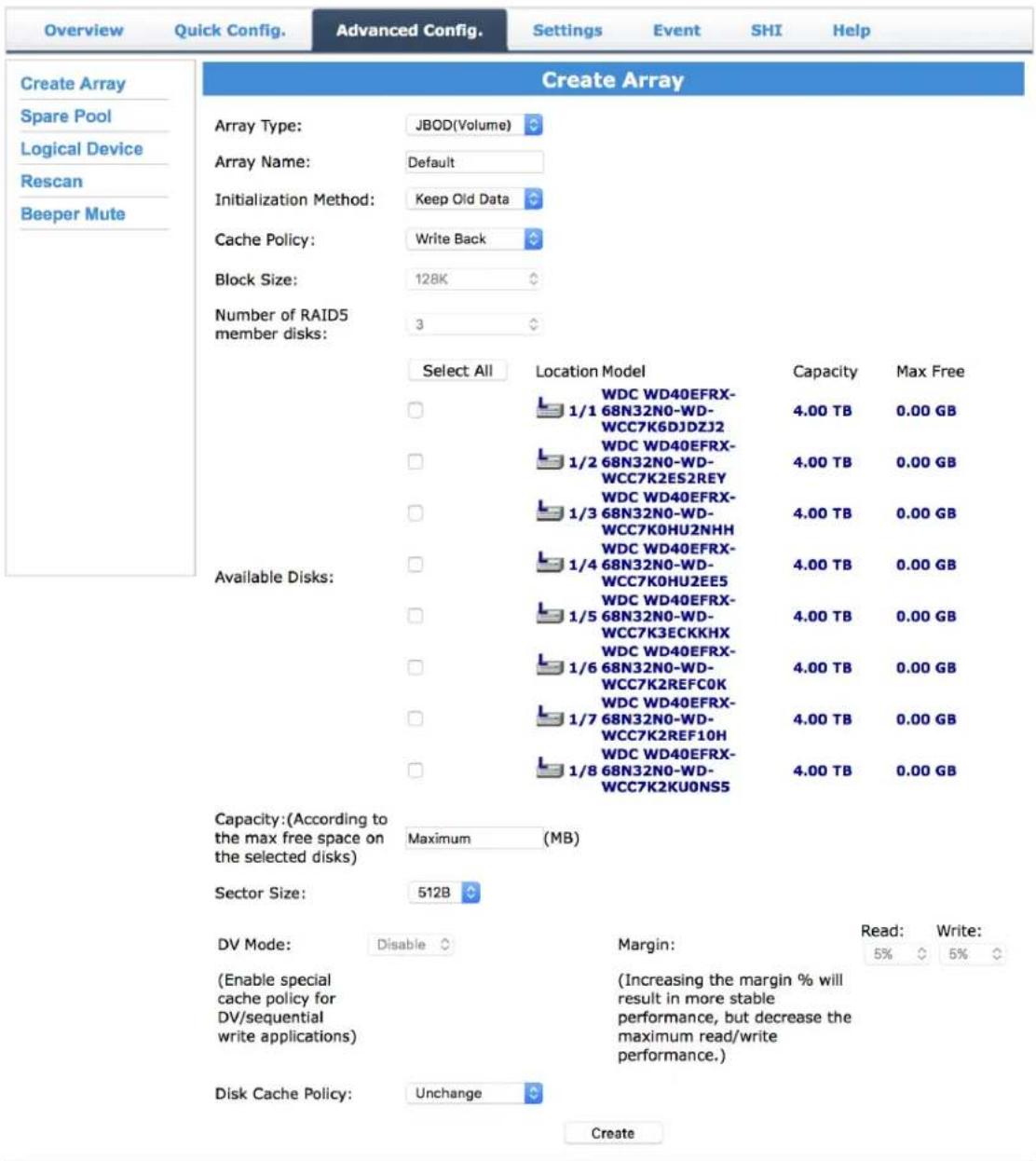

Create Array

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

Array Type

• JBOD: Just a Bunch of Disks
- RAID 0: Striping
- RAID 1: Mirroring
• RAID 5: Rotating Parity bit (Single parity)
• RAID 6: Rotating Parity bit (Dual parity)
• RAID 10: Striping Mirrored array
• RAID 50: Stripping RAID 5 array

Each RAID level has its pros and cons based on the application you use it for (Note: Refer to RAID level Quick Reference.)

Array Name

Name displayed in Logical Device Information (Default: RAID__)

Initialization Method

Initialization of a disk sets all data bits to 0, essentially clearing all the data on the drive. It is important to initialize disks as previous data physically stored on the drive may interfere with new data.

• Keep Old Data: This option skips the initialization process and all data on each physical disk of the array will be untouched.
• Quick Init: This option grants immediate access to the RAID array by skipping the initialization process, but it will delete all data. Note: Skipping initialization is generally not recommended as residual data on disks may interfere with new data in the future.
• Foreground: The array initialization process will be set at high priority. During this time array is not accessible, but the initialization process will complete much faster.
• Background: The array initialization process will have a lower priority. During this time the array will be accessible, but the initialization process will take much longer to complete.

Note:

• Initializing takes a significant amount of time (approximately 2 hours per one TB).
• Fully initializing the array will completely zero out the data on the disks, meaning the disk will be completely wiped and every bit on the disk will be set to 0. Foregoing initialization means the array will still be created, and you can still write new data onto the array. But when your array requires rebuilding, residual data left behind may interfere with the process.

Cache Policy (Default: Write Back)

Write Back:

- Any data written to the array will be stored as cache, resulting in better I/O performance at the risk of data failures due to power outages. Data will be stored as cache before it is physically written to the disk; when a power outage occurs, any data in the cache will be lost.

Write Through:

- Data written to an array is directly written onto the disk, meaning lower write performance for higher data availability. Without cache acting as a buffer, write performance will be noticeably slower but data loss due to power outages or other failures is significantly minimized.

Block Size (default: 512K)

Adjusting the block size towards your disk usage can result in some performance gain.

In a typical RAID configuration, data of the virtual drive is striped (or spread across) the physical drives. Having a smaller array block size will increase the likelihood of accessing all physical drives

when processing large I/O requests. Multiple physical drives working in parallel increases the throughput, meaning better performance.For smaller I/O requests (512 bytes to 4 kilobytes), it is better to have each individual disks handle their own I/O request, improving the IOPS (I/O per second), rather than having one tiny I/O request being handled by multiple disks.A block size of 64k is recommended because it strikes a balance between the two I/O usage scenarios.
Sector Size (Default: 512B)This option is irrelevant for Windows XP 64 and later. Current OS already support larger volumes, and introduce a partitioning method known as GPT (GUID partition table). This option, also known as VSS (Variable Sector Size) allows you to specify the sector size of the array, for use with older Windows Operating Systems.
DV ModeThis mode is specifically designed for video applications. The default firmware cache policy provides balanced performance for standard applications such as workstations, file servers, and web servers. But for DV mode, a special cache firmware is implemented specifically for large sequential writing (large I/O requests such as video files). Enabling DV mode will maintain the performance and consistency of transferring and processing video files.There are several factors concerning DV mode to take note:DV mode only available for RAID 0, 5, and 6Only 1 RAID array you created can enable DV modeDV mode only works when array status is normal
	Margin:(Increasing the margin % will result in more stable performance, but decrease the maximum write performance.)
Margin[5% - 25%]When DV mode is enabled, you have the option to set the margin.This percentage represents the amount of space the designated cache will hold before flushing the data onto the drive. Increasing the margin % will result in more stable performance, but decrease the maximum write performance.Alternatively, you can change the margin anytime in Logical > Maintenance for DV enabled array.
DV Mode: Enable Margin:(Enable special cache policy for DV/sequential write applications)	(Increasing the margin % will result in more stable performance, but decrease the maximum write performance.)

Margin [5% - 25%]

DV Mode:	Enable	Margin:	5%
(Enable special cache policy for DV/sequential write applications)		(Increasing the margin % will result in more stable performance, but decrease the maximum write performance.)	10%15%20%25%

Spare Pool

Spare disks are physical disks that will immediately replace critical disks in an array.

To add spare disks:

1. Click Advanced Config.

2. Click Spare Pool

Overview Quick Config. Advanced Config. Settings Event SHI Help Create Array Spare Pool Logical Device Rescan Beeper Mute Spare Pool Remove Spare Available Disks Device_1_1 ST12000VN0007-2GS116-ZCH074PL 12.00 TB Device_1_2 ST12000VN0007-2GS116-ZCH07TEY 12.00 TB Device_1_3 ST12000VN0007-2GS116-ZCH05C83 12.00 TB Device_1_4 ST12000VN0007-2GS116-ZCH07VLV 12.00 TB Device_1_5 ST12000VN0007-2GS116-ZCH05HLN 12.00 TB Device_1_6 ST12000VN0007-2GS116-ZCH08FX3 12.00 TB Device_1_7 ST12000VN0007-2GS116-ZCH070PW 12.00 TB Device_1_8 ST12000VN0007-2GS116-ZCH08DNS 12.00 TB Add Spare

1. Check the box for the disk you want as a spare under Available Disks.

2. Click Add Spare, and confirm by selecting OK from the pop-up window:

This site says... 1 disk(s) will be added to spare pool. Do you want to continue? OK Cancel

1. The disk has now been assigned as a spare. Click OK to confirm:

This site says... Disk 'Device_1.1' (Location: 1/1) has been put into spare pool successfully. Don't let this page create more messages OK

1. Disks added to the spare pool will be displayed under Spare Pool and can be removed by checking the box before the target drive, then clicking the Remove Spare button.

2. Physical drives marked as a spare will automatically be added to an array whenever there is a disk failure. This feature minimizes the chances of a data loss by reducing the time an array is in the critical status.

Logical Device

The Logical device including your RAID arrays and the individual disks your system detects.

Logical Device Information

Arrays you create and the properties associated with them will appear here.

Maintenance

Once an array has been created, the Maintenance menu provides options to maintain or edit it. To access the Maintenance menu, click the Maintenance button towards the right-hand side of the array name.

Array Information

Clicking on the maintenance button will show you the Array information box. Different array statuses (normal, critical, disabled) will have different maintenance options.

Normal

Overview Quick Config. Advanced Config. Settings Event SHI Help Create Array Spare Pool Logical Device Rescan Beeper Mute Logical Device Information Name Type Capacity BlockSize SectorSize OS Name Status RAID_5_0 RAID 5 28.00 TB 128k 512B HPT DISK 0_0 Normal Maintenance Array Information RAID_5_0 Location.Model Device_1_1 Delete Max Free 1/1 WDC WD40EFR Device_1_2 Unplug 1/2 WDC WD40EFR Device_1_3 Verify: RB 0.00 GB 1/3 WDC WD40EFR Device_1_4.Write Back Change Cache Policy RB 0.00 GB 1/4 WDC WD40EFR Device_1_5.Read: Disable Change Margin RB 0.00 GB 1/5 WDC WD40EFR Device_1_6.Write: Disable 1/6 WDC WD40EFR Device_1_7 Rename RB 0.00 GB 1/7 WDC WD40EFR Device_1_8(JBOD(Volume) ORLM RB 0.00 GB 1/8 WDC WD40EFRX-68N32N0-WD-WCC7K2KU0NS5 Close RB 0.00 GB 4.00 TB 0.00 GB

Arrays with the Normal status are healthy and functioning properly. Arrays with the Normal status will have the following options:

• Delete: deletes the selected RAID array
• Unplug: powers off the selected RAID array – once powered off, the physical disks can be safely removed from the RAID controller

To detect the disk again you can wait for the system to detect the disk or you can turn the power off and on for a quicker solution

• Verify: verifies the integrity of the RAID array
• Change Cache Policy: toggles between Write through and Write back cache
• Change Margin: Adjust margin when DV mode is enabled
• Rename: renames the RAID array.
• ORLM (Online Capacity Expansion / Online RAID Level Migration options): see Expanding a RAID array for more information.

Critical

Overview Quick Config. Advanced Config. Settings Event SHI Help Create Array Spare Pool Logical Device Rescan Beeper Mute Logical Device Information Name Type Capacity BlockSize SectorSize OS Name Status RAID_5_0 RAID 5 84.00 TB 128k 512B HPT DISK 1_0 Critical Maintenance Array Information RAID_5_0 Location.Model Device_1_1 City Max Free 1/1 ST12000VN00C Device_1_2 Delete TB 0.00 GB 1/2 ST12000VN00C Device_1_3 Unplug TB 0.00 GB 1/3 ST12000VN00C Device_1_4 Add Disk TB 0.00 GB 1/4 ST12000VN00C Device_1_5.Write Back Change Cache Policy TB 0.00 GB 1/5 ST12000VN00C Device_1_6 JBOD(Volume) ORLM TB 0.00 GB 1/6 ST12000VN00C Device_1_7 1/7 ST12000VN00C Offline Disk TB 0.00 GB Close TB 0.00 GB

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

Arrays in the Critical status can be accessed and utilized, but are no longer fault tolerant. A Critical array should be rebuilt as soon as possible to restore redundancy.

A critical status array has all the normal status options except the following:

• The Array can no longer be renamed
- Add Disk replaces the Verify Disk option

Once the array status changes to critical, the faulty disk will be taken offline and you can either:

• Reinsert the same disk
• Insert new disk

Reinserting the same disk should trigger the rebuilding status, since data on the disk would be recognized. If you insert a new disk, clicking Add Disk will give you the option to select that disk and add it to the array. If a spare disk is available, an array that has entered the critical state will begin rebuilding using the next available spare disk.

Disabled

Overview Quick Config. Advanced Config. Settings Event SHI Help Create Array Spare Pool Logical Device Rescan Beeper Mute Logical Device Information Name Type Capacity BlockSize SectorSize OS Name Status RAID_5_0 RAID 5 84.00 TB 128k 512B Disabled Maintenance Array Information RAID_5_0 Location.Model Device_1_1 Capacity Max Free 1/1_ST12000VN000: Device_1_2 12.00 TB 0.00 GB 1/2_ST12000VN000: Device_1_3 12.00 TB 0.00 GB 1/3_ST12000VN000: Device_1_4 12.00 TB 0.00 GB 1/4_ST12000VN000: Device_1_5 12.00 TB 0.00 GB 1/5_ST12000VN000: Device_1_6 12.00 TB 0.00 GB 1/6_ST12000VN000: Offline Disk 12.00 TB 0.00 GB Close 12.00 TB 0.00 GB

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

An array with the Disabled status means that the RAID level does not have enough disks to function.

• Your data will be inaccessible
• Rebuilding will not trigger, since the RAID array does not have enough parity data to rebuild.

Your options in Maintenance are:

• Delete: it will delete all the data in the disk in the array
• Unplug: take the array offline, making it safe to remove
• Verify: attempt to verify the RAID array integrity, only the RAID1, 5 and 10 support this feature.
• Recovery Array: able to recover the array you have deleted in rDrive Manager only.

Expanding an Existing Array

Important: It is recommended that the array be Verified/Rebuilt before Expanding or Migrating. Once you start an OCE/ORLM procedure, you can stop the process, but it must be resumed until completion.

To add more capacity to your current configuration follows these steps:

1. Click Advanced Config.

2. Click Maintenance for the array you want to change

a. Select a different RAID level to Migrate. For example, if you want to change a RAID 0 array, you will need to select a different RAID level, such as RAID 5 or 6.
b. Select the same RAID level to Expand. For example, if you want to expand the capacity of an existing RAID 5 array, you must select RAID 5 from the menu.

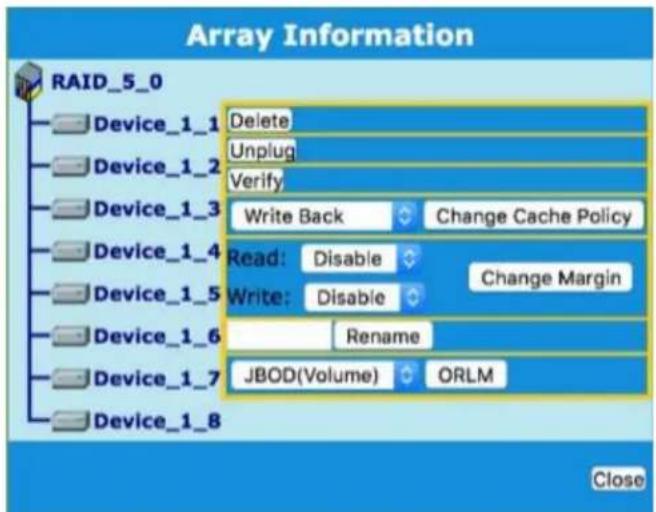

Array Information RAID_5_0 Device_1_1 Delete Device_1_2 Unplug Device_1_3 Verify Device_1_4 Write Back Change Cache Policy Device_1_5 Read: Disable Change Margin Device_1_6 Write: Disable Device_1_7 Rename Device_1_8 JBOD(Volume) ORLM Close

1. Important: make a note of all the physical drives currently in the target array.
2. Click ORLM
3. Select the physical drives you recorded earlier (step 5) and the drives you want to add
4. Click Submit

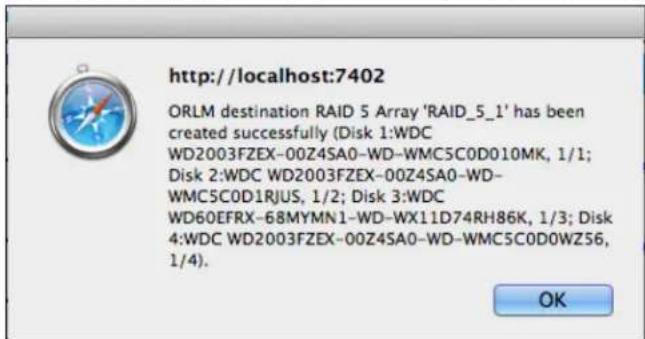

5. Upon submission, you will receive a prompt stating ORLM has been successfully configured.

http://localhost:7402 ORLM destination RAID 5 Array 'RAID_5_1' has been created successfully (Disk 1:WDC WD2003FZEX-00Z4SA0-WD-WMC5C0D010MK, 1/1; Disk 2:WDC WD2003FZEX-00Z4SA0-WD- WMC5C0D1RJUS, 1/2; Disk 3:WDC WD60EFRX-68MYMN1-WD-WX11D74RH86K, 1/3; Disk 4:WDC WD2003FZEX-00Z4SA0-WD-WMC5C0D0WZ56, 1/4).

The Logical Device Information will change the status to migrating.

Overview Quick Config. Advanced Config. Settings Event SHI Help
Create Array Spare Pool Logical Device Rescan Beeper Mute	Logical Device Information
	Name Type Capacity BlockSize SectorSize OS Name Status RAID_5_0 RAID 5 36.00 TB 128k 512B HPT DISK 1_0 Migrating 0% Maintenance RAID_5_1 RAID 5 36.00 TB 128k 512B Migrating 0% Maintenance
	Physical Device Information
	Location Model					Capacity Max Free
	1/1 ST12000VN0007-2GS116-ZCH074PL					12.00 TB	0.00 GB
	1/2 ST12000VN0007-2GS116-ZCH07TEY					12.00 TB	0.00 GB
	1/3 ST12000VN0007-2GS116-ZCH05C83					12.00 TB	0.00 GB
	1/4 ST12000VN0007-2GS116-ZCH07VLV					12.00 TB	0.00 GB
	1/5 ST12000VN0007-2GS116-ZCH05HLN					12.00 TB	0.00 GB
	1/6 ST12000VN0007-2GS116-ZCH08FX3					12.00 TB	0.00 GB
	1/7 ST12000VN0007-2GS116-ZCH070PW					12.00 TB	0.00 GB
	1/8 ST12000VN0007-2GS116-ZCH08DNS					12.00 TB	0.00 GB

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

Physical Device Information

• Location: which controller and port the drive is located in
  • Model: model number of the drive connected
  • Capacity: total capacity of the drive
  • Max Free: total capacity that is not configured

Overview Quick Config. Advanced Config. Settings Event SHI Help
Create Array Spare Pool Logical Device Rescan Beeper Mute	Logical Device Information
	Name Type Capacity BlockSize SectorSize OS Name Status RAID_5_0 RAID 5 84.00 TB 128k 512B HPT DISK 1_0 Normal Maintenance
	Physical Device Information
	Location Model					Capacity Max Free
	1/1 ST12000VN0007-2GS116-ZCH074PL					12.00 TB 0.00 GB
	Revision SC60				Read Ahead Enabled Change
	Location 1/1				Write Cache Enabled Change
	Max Free 0.00 GB
	Status Normal				NCQ Enabled Change
	Serial Num ZCH074PL				Identify LED [ON] [OFF]

The following properties are part of the Physical Devices Information

• Model: model number of the physical drive
  • Capacity: total capacity of the physical drive
• Revision: HDD device firmware revision number
• Read Ahead* (Enable/Disable): enabling disk read ahead will speed up read operations by prefetching data and loading it into RAM
• Location: device location (example: 1/2 states controller 1, channel 2)
• Write Cache* (Enable/Disable): enabling write cache will speed up write operations
• Max Free: space on the disk that is not configured in an array
• Status (Normal, Disabled, Critical): status of the disk
• Serial Number: serial number of the physical disk
• Unplug: safely ejects the selected disk, other methods of disk removal will trigger the alarm if enabled

* Disk properties that can be adjusted.

Rescan

Clicking rescan will force the drivers to report the array status. For any disk(s) you hot plug into the device; do not click rescan until all physical drives are detected and appear under Logical Device Information.

Beeper Mute

Click the beeper to mute/unmute the device

Settings Tab

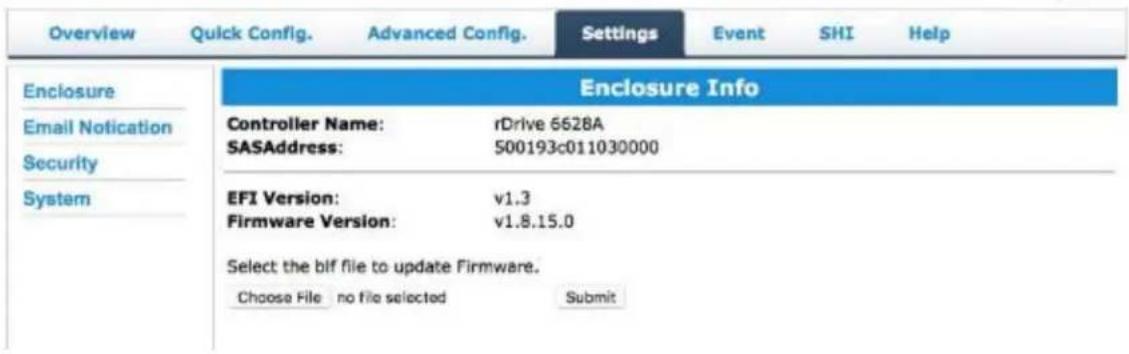

Enclosure

Review the rDrive unit information or update the BIOS/Firmware

Overview Quick Config. Advanced Config. Settings Event SHI Help Enclosure Email Notification Security System Enclosure Info Controller Name: rDrive 6628A SASAddress: 500193c011030000 EFI Version: v1.3 Firmware Version: v1.8.15.0 Select the blf file to update Firmware. Choose File no file selected Submit

Email Notification

Setting up the event notification via SMTP Email server

Overview Quick Config. Advanced Config. Settings Event SHI Help Enclosure Email Notification Security System SMTP Setting Enable Event Notification Server Address (name or IP): Mail From (E-mail address): Login Name: Password: SMTP Port: Support SSL: 25 Change Setting Recipients E-mail Name Event Level Add Recipient E-mail: Name: Event Level: Add Test Information Warning Error

You can instruct the controller to send an email out to the recipients of your choosing when certain events trigger (for more information, see Event Tab).

SMTP Setting

SMTP Setting ✓Enable Event Notification Server Address (name or IP): Mail From (E-mail address): Login Name: Password: SMTP Port: Support SSL: Change Setting

To set up email alerts:

1. Check the Enable Event Notification box.
2. Enter the ISP server address name or SMTP name
3. Type in the email address of the sender (email account that is going to send the alert)
4. Type in the account name and password of the sender
5. Type in the SMTP port (default: 25)
6. Check support SSL box if SSL is supported by your ISP (port value will change to 465).

Note: After you click Change Setting, the password box will become blank.

Add Recipient

Recipients E-mail Name Event Level Add Recipient E-mail: Name: Event Level: Add Test Information Warning Error

You can add multiple email addresses as receivers of a notice.

1. Type the email of the recipient in the E-mail text box
2. Type the name of the recipient in the Name text box
3. Check which type(s) of events will trigger an email using the respective Event Level check boxes.
4. (Optional) Click test to confirm the settings are correct by sending out a test email
5. Click add to add the recipient to recipient list
6. The added recipient will display in under Recipients

The email will include the output recorded in the event log. Example email message:

HighPoint RAID Management Software Mail Notification Sent: Mon 5/4/2015 4:36 PM To: test0 Mon, 04 May 2015 23:35:40 GMT: [HPTMV9580IOPController]: Plugging device detected.('WDC WD40EFRX-68WT0N0-WD-WCC4EHYCFZXL' at Controller2-Channel8)

Security

This section allows you to change the log-in password, Port Number and enable or disable localhost access.

Overview Quick Config. Advanced Config. Settings Event SHI Help Enclosure Email Notification Security System Security Restrict to localhost access. Enabled Port Number: 7404 Submit Password Setting Password: Confirm: Submit

Password Setting

To change your password type your new password, confirm it, and then click Submit.

Note: if you are locked out of the rDrive Manager and do not remember your password, do the following

• Mac: We recommend uninstalling rDrive Manager, then reinstalling. This will remove the password requirement and allow you create a new one under the Setting tab.
• Windows: In file explorer, go to \C\Windows\hptuser.dat and delete the file

System

Overview Quick Config. Advanced Config. Settings Event SHI Help Enclosure Email Notification Security System System Setting Enable auto rebuild. Enable Continue Rebuilding on error. Set Rebuild Priority: Submit Enabled ✓ Enabled ✓ Medium ✓

Enable auto rebuild (default: Enabled)

- When a physical drive fails, the controller will take the drive offline. Once you re-insert or replace the disk, the controller will not automatically rebuild the array unless this option is enabled.

Enable continue rebuilding on error (default: Enabled)

- When enabled, the rebuilding process will ignore bad disk sectors and continue rebuilding until completion. When the rebuild is finished, the data may be accessible but may also be inconsistent, due to any bad sectors that were ignored during the procedure. If this option is enabled, HighPoint recommends checking the event log periodically for bad sectors warnings.

Rebuild Priority (default: Medium)

- You can specify the amount of system resources you want to dedicate to rebuilding the array. There are 5 levels of priority [Lowest, Low, Medium, High, Highest].

Event

The event view is a basic error logging tool built into the rDrive Manager

Icon	Name	Definition
	Information	Includes general administrative tasks:Create/delete arraysConfiguring sparesRebuilding arraysConfiguring event notificationsConfiguring maintenance
	Warning	Alerts issued by the Host Adapter:High temperaturesSector errorsCommunication errorsVerification errors
	Error	Hardware related problemsHard disk failureBroken errorsMemory failure

Storage Health Inspector (SHI)

SHI outputs information collected using SMART (Self-Monitoring Analysis and Reporting Technology) Hard Drive Technology. The data provided on this tab helps you to anticipate any disk failures based on a variety of monitored hard disk properties.

Overview	Quick Config.	Advanced Config.	Settings	Event	SHI	Help
Storage Health Inspector(SHI)
Enclosure ID	Port#	Device Serial Number	RAID	Temperature	Bad Sectors Found & Repaired		S.M.A.R.T
1	1	ZCH074PL	RAID_5_0	Normal	None		Detail
1	2	ZCH07TEY	RAID_5_0	Normal	None		Detail
1	3	ZCH05C83	RAID_5_0	Normal	None		Detail
1	4	ZCH07VLV	RAID_5_0	Normal	None		Detail
1	5	ZCH05HLN	RAID_5_0	Normal	None		Detail
1	6	ZCH08FX3	RAID_5_0	Normal	None		Detail
1	7	ZCH070PW	RAID_5_0	Normal	None		Detail
1	8	ZCH08DNS	RAID_5_0	Normal	None		Detail
Schedule a task

rDrive Manager 2.18.2
Copyright (c) 2017 HighPoint Technologies, Inc. All Rights Reserved

To enable S.M.A.R.T monitoring, go to the S.M.A.R.T section in the middle of the SHI section and select Enable and vice versa

Note: Disabling SMART monitoring will disable all warnings related to SMART attributes.

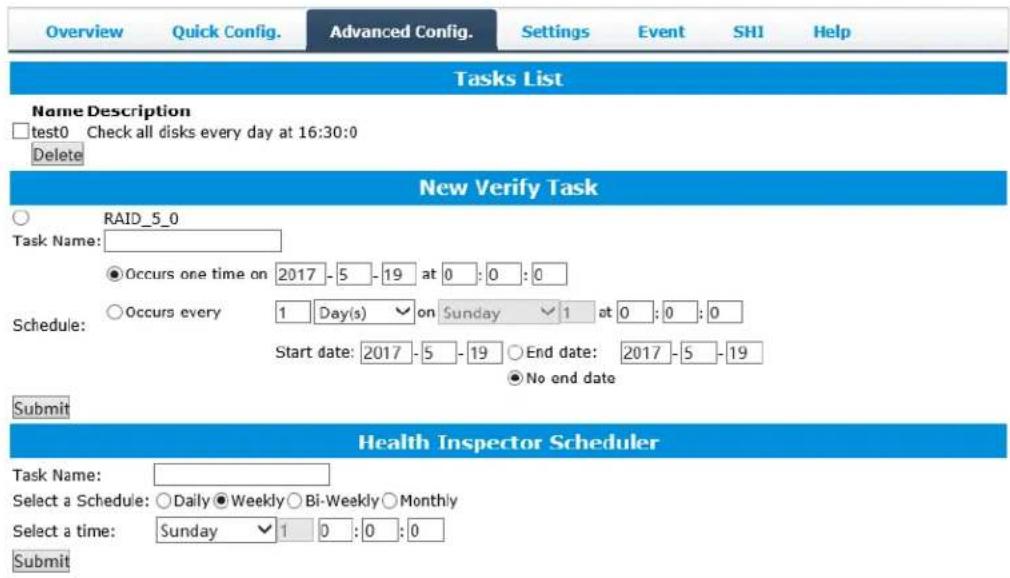

Scheduler

To enter the Scheduler, select Schedule a Task on the SHI page

Overview Quick Config. Advanced Config. Settings Event SHI Help Tasks List Name Description □test0 Check all disks every day at 16:30:0 Delete New Verify Task ○ RAID_5_0 Task Name: ●Occurs one time on 2017 - 5 - 19 at 0 : 0 : 0 Schedule: ○Occurs every 1 Day(s) ▼ on Sunday ▼ 1 at 0 : 0 : 0 Start date: 2017 - 5 - 19 ○ End date: 2017 - 5 - 19 ● No end date Submit Health Inspector Scheduler Task Name: Select a Schedule: ○Daily ●Weekly ○Bi-Weekly ○Monthly Select a time: Sunday ▼ 1 0 : 0 : 0 Submit

The Scheduler enables you to schedule disk/array checkups to ensure disks/array are functioning optimally.

How to Create a New Verify Task

All arrays will appear under New Verify Task

1. Log into the rDrive Manager
2. Select the proper controller from the top left drop down
3. Click SHI
4. Click Schedule a task
5. Select the array you want to schedule the verify task
6. Type the name in Task Name entry box
7. Choose how you want to schedule
8. One time verify task on specific date (YYYY-MM-DD) at (HH:MM:SS, 24-hr clock)
9. Or a specific schedule you can adjust based on Daily, Weekly, or Monthly options
10. Click Submit
11. Your entry will appear under Tasks List

Note: New Verify Task box only appears if you have normal status arrays. If you have a critical array, New Rebuild Task will replace New Verify Task.

Help

Online Help redirects you to additional documentation concerning the rDrive Manager.

Register Product takes you to the HighPoint Online Web Support Portal. On this page you can create a new customer profile where you can register your product, or post an online support ticket

Recover Array

The Recover Array allows you to rebuild your latest RAID array that you have deleted in rDrive Manager. You can only recover your RAID array with this feature if you did not change anything with the HDD configuration. This feature will only restore lost data if the RAID array is deleted in the rDrive Manager.

Overview Quick Config. Advanced Config. Settings Event SHI Recover RAID Array Total items:(4), valid items:(1), only valid items are displayed. Recover Array (Select the RAID configuration from blow list and recovery the lost RAID Array) RAID_5_0 (RAID Level:RAID 5 Capacity:28.00 TB) (Time:2018/1/16 17:38:36) Location:Device_1_1 Model:WDC WD40EFRX-68N32N0-WD-WCC7K3ECKKHX Location:Device_1_2 Model:WDC WD40EFRX-68N32N0-WD-WCC7K2REFCOK Location:Device_1_3 Model:WDC WD40EFRX-68N32N0-WD-WCC7K2REF10H Location:Device_1_4 Model:WDC WD40EFRX-68N32N0-WD-WCC7K2KU0NS5 Location:Device_1_5 Model:WDC WD40EFRX-68N32N0-WD-WCC7K6DJDZJ2 Location:Device_1_6 Model:WDC WD40EFRX-68N32N0-WD-WCC7K2ES2REY Location:Device_1_7 Model:WDC WD40EFRX-68N32N0-WD-WCC7K0HU2NHH Location:Device_1_8 Model:WDC WD40EFRX-68N32N0-WD-WCC7K0HU2EE5 Online Help Register Product Recover Array Configuration Record

Update Recover List Backup To File Clear All Select the rec file to update Recover List. This process may take some time. Choose File no file selected Submit

Configuration Record

The Configuration Record feature simplifies the process of gathering system and configuration information when submitting a technical support inquiry. Instead of manually entering all RAID related settings, simply type in the new Case ID assigned to the Online Support Ticket, and click submit – rDrive Manager will automatically send all required data to the corresponding Case ID.

Overview Quick Config Advance Config Settings Event SHI Help Configuration Record

Support Case ID:

Please enter your Support Case ID. Your configuration will be Emailed to HighPoint Support.

If you do not have a Case ID, please submit a Support Ticket, or Register an Account.

Http://www.highpoint-tech.com/websupport

Submit

Section 4: Troubleshooting

Handling Critical Arrays

When your disk status turns critical, your array as a whole is still accessible, but one or more disks are faulty (depending on your RAID level), and the array is in danger of failing.

Common scenarios for critical status

• Unplugging a disk that is part of an array
• Bad sector is detected on a disk that is part of an array
  • Unrecoverable data during rebuilding
  • Defective port or cable interrupts rebuilding process

To recover from this situation,

1. Backup your existing data.
2. Identify which disk is faulty.

a. You can refer to the LED lights on the enclosure
b. Refer to the rDrive Manager Logical tab and Event tab.

1. Re-insert the faulty disk or replace with a new disk.

a. The array will rebuild automatically if your auto-rebuild setting is enabled and you reseated the faulty disk. Note: Click Rescan if the array still does not rebuild automatically.

1. If the new disk is added and it does not automatically start rebuilding, you can manually add the disk in maintenance.

a. Log into the rDrive Manager
b. Click Advanced Config. Tab
c. Click Maintenance > Add Disk > select the appropriate disk

1. Rebuild should now start.

a. If rebuild does not start, click 'Rescan' on the left hand panel.

Note: Rebuilding an array takes on average 2 hours per 1 Terabyte of disk capacity. The process will scan through the entire disk, even if you have very little used disk space.

Rebuilding Stops Due to Bad Sectors

If rebuilding fails to complete due to bad disk sector errors (check in the Event Log), there is an option to continue rebuilding on error in the HighPoint rDrive Manager.

1. Log into the rDrive Manager
2. Click Settings tab
3. Change Enable Continue Rebuilding on Error to Enabled

This option will enable rebuilding to ignore bad sectors and attempt to make your data accessible. It is important to backup immediately after backup is complete and replace or repair the disks with bad sectors.

Critical Array Becomes Disabled When You Removed Faulty Disk

If this is the case, you may have removed the wrong disk. When you remove the wrong disk from a critical array, the array status may become disabled. Data is inaccessible for disabled arrays. Follow these steps to restore the array to the previous state.

1. Shut down your PC
2. Shut down the rDrive 6628AM Enclosure
3. Place all disks back to original configuration
4. Boot up PC

Your array should be back to Critical status. Identify the correct disk and rebuild from there.

Online RAID Roaming

One of the features of all HighPoint RAID controllers is online array roaming. Information about the RAID configuration is stored on the physical drives. So if a card fails or you wish to switch cards, the RAID configuration data can still be read by another HighPoint card.

Appendix

Table 1: rDrive Manager Icon Guide

	Critical: Missing DiskA disk is missing from the array bringing it to ‘critical’ status. The array is still accessible but another disk failure could result in data loss.
	VerifyingThe array is currently running a disk integrity check.
	RebuildingThe array is currently rebuilding meaning you replaced a failed disk or added a new disk to a ‘critical’ state array.
	Critical: Rebuild RequiredThe array has all disks, but one disk requires rebuilding.
	DisabledThe icon represents a disabled array, meaning more than one disk failed and the array is no longer accessible
	InitializingThe array is initializing. The two types of initialization are Foreground and Background. (See Initialization)
	UninitializedThe array initialization process has been interrupted, and the process is incomplete.
	Not InitializedDisk is not initialized yet, and needs to be initialized before use
	OCE/ORLMArray is performing a OCE/ORLM operation
	OCE/ORLM Has StoppedThe array expansion process has been stopped.
	LegacyAn existing file system has been detected on the disk. These disks are classified as legacy drives.
[4Y70]	SpareThe device is a spare drive, it will automatically replace any failed drive part of an array.
	NormalThe array status is normal
	InitializingThe array is initializing, either foreground or background initialization
[D7H5]	Initialization StoppedThe initialization has been stopped. Current status is uninitialized.
[03H2]	Critical: InconsistencyData in the array is inconsistent and needs to be rebuilt.
[4ZZZ]	Critical: Missing DiskA disk has been removed or experienced failure, and user needs to reinsert disk or add a new disk.
[400K]	RebuildingThe array is currently rebuilding.
	VerifyingThe array is performing a data consistency check. Array status will show ‘verifying’.
[20Y2]	DisabledThe array does not have enough disks to maintain the RAID level. A disabled array is not accessible.
	OCE/ORLMArray is expanding its capacity or migrating to a different raid level. Status will display ‘Expanding/Migrating’
	OCE/ORLM StoppedThe ‘Expansion/Migrating’ process has been stopped. The status will display ‘Need Expanding/Migrating’
[6W00]	Critical: OCE/ORLMA disk member is lost during the OCE/ORLM process.

Critical: OCE/ORLM Rebuild

The expanding/migrating array requires a rebuild.

Table 2: RAID Reference Level

Type	Description	Min. Disks	Usable Space	Advantage	Disadvantage	Application
JBOD	Just a bunch of disk	1	100%	Each drive can be accessed as a single volume	No fault tolerance - failure of one drive results in complete data loss	Backup
RAID 0	Disk Striping	2	100%	Offers the highest performance	No fault tolerance - failure of one drive results in complete data loss	Temporary file, performance driven application.
RAID 1	Disk Mirroring	2	50%	Provides convenient low-cost data redundancy for smaller systems and servers	Useable storage space is 50% of total available capacity. Can handle 1 disk failure.	Operating system, backup, and transaction database.
RAID 10	Disk Mirroring followed by stripe	4	50%	High read performance and medium write performance with data protection for up to 2-drive failures	Useable storage capacity equals total capacity of all drives in the array minus two	Fast database and application servers which need performance and data protection
RAID 5	Disk Striping with Rotating parity	3	67-87%	High read performance, and medium write performance with data protection with a single drive failure	Not recommended for database applications that require frequent/heavy write sessions. Can handle 1 disk failure.	Data archives, and ideal for application that require data protection
RAID 50	Disk Mirroring followed by RAID5	6	67-75%	High read performance, and medium write performance with data protection in case of up to two drives failure	Not recommended for applications that require frequent/heavy write sessions.	Data archives and ideal for application that requires data protection
RAID 6	Disk Striping with dual rotating parity	4	50-75%	High read performance, and medium write performance with data protection in case of up to two drives failure	Not recommended for applications that require frequent/heavy write sessions.	Data archives and ideal for application that requires data protection

HighPoint Recommended List of Hard Drives

HighPoint maintains a list of tested hard drives suitable for RAID applications. Since not every hard drive in the market can be tested, this list is meant to be a general guideline for selecting hard drives operating in a RAID environment. Regular, desktop grade drives are highly not recommended for RAID use.

http://www.highpoint-

tech.com/PDF/Compatibility_List/HighPoint%20RAID%20Storage%20and%20HBA%20Hard%20Drive%20

Compatibility%20List.pdf

Contacting Technical Support

For any help and support, please submit the following

• Support ticket online at http://www.highpoint-tech.com/websupport/
- Configuration record (details shown here)
