USER MANUAL VDA-106-3GS MARSHALL

The VDA-106-3GS 1x6 3G/HD/SD-SDI Distribution Amplifier with Reclocking has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the VDA-106-3GS should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep away the objects that might damage the device and assure that the placement of this unit is on a stable surface.
• Use only the power adapter, power cords and connection cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

INTRODUCTION

The VDA-106-3GS is a compact and reliable distribution amplifier which accepts a single SDI input and provides six identical outputs. All embedded data is passed transparently. Signals are reclocked and cable equalization is provided to support long cable runs. The VDA-106-3GS is useful for providing video to multiple destinations (recorders, displays, encoders) from a single video source.

FEATURES

• 3G/HD/SD serial digital distribution
- Six separately buffered and reclocked outputs
- Cable equalization and signal retiming
- Dual color LED indication of input lock and rate
• Passes all ancillary data
- Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD/3G

PACKAGE CONTENTS

• 1 x VDA-106-3GS
• 1 x 5V power adapter
• 1 x User Manual

SPECIFICATIONS

Model Name VDA-106-3GS
Technical
SDI standards 3G/HD/ SD -SDI
Auto 3G/HD/SD detection Yes
Supported protocols DVB-ASI at	270Mbps,SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M
Video bandwidth [2.97Gpbs & 2.97/1.001Gbps]
Data rates 270 / 1483 / 1485 / 2970 Mbps
Output impedance 75Ω
Reclocking function Yes
Cable equalization [3G] up to 90m (300ft) / [HD] up to 150m (500ft)[SD] up to 300m (1000ft)
Audio support Yes
RP-198 pathological patterns Immune
Input 1x BNC [SDI]
Output 6x BNC [SDI]
Eye pattern characteristics [HD]	Amplitude: Within 800mV (<10%)Rise overshoot: Less than 2% (<10%)Fall overshoot: Less than 2% (<10%)Long time jitter: 0.195 UI (<1.0 UI)Timing jitter: 0.8 UI (<1.0 UI)Alignment jitter: 0.13 UI (<0.2 UI)
Mechanical
Housing	Metal enclosure
Dimensions [L x W x H]	Model	105 x 78 x 27mm [4.1" x 3" x 1"]
	Package	270 x 175 x 80mm [10.6" x 6.9" x 3.2"]
	Carton	450 x 370x 300mm [1'5.7" x 1'2.6" x 11.8"]
Weight	Model: 310g [ 10.9oz] / Package: 785g [1.7lbs]
Power supply	5VDC 4A with locking connector
Power consumption 5 Watts [max]
Operation temperature	0~40°C [32~104°F]
Storage temperature	-20~60°C [-4~140°F]
Relative humidity	20~90% RH [no condensation]

PANEL DESCRIPTIONS

Front Panel

Technical diagram of a four-pin connector with hexagonal pins and a numbered label (7) at the base, no text or symbols present.

1. 3G/HD/SD-SDI input
2. LED - Orange: SD, Green: 3G/HD
3. 3G/HD/SD-SDI output
4. LED - Orange: Power indicator, Green: signal detected
5. 3G/HD/SD-SDI output
6. 5V DC power jack
7. 3G/HD/SD-SDI output

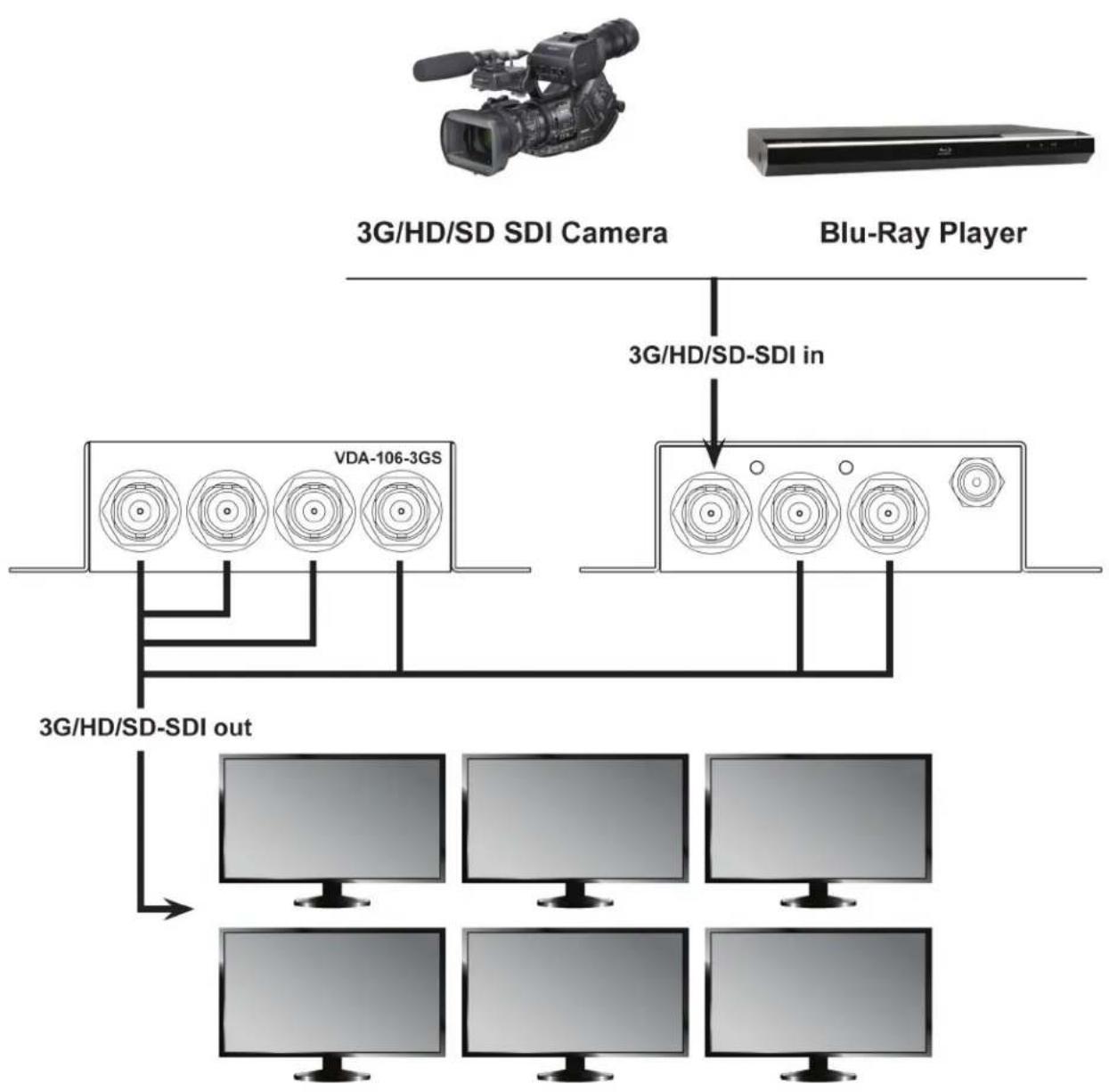

HArDWArE INSTALLATION

1. Connect a camera or other device equipped with 3G/HD/SD-SDI outputs to VDA-106-3GS 3G/HD/SD-SDI input.
2. Connect devices equipped with 3G/HD/SD-SDI inputs (e.g. monitors or video processors) to SP-3016 3G/HD/SD-SDI outputs.
3. Plug power adapter cable into 5V DC power jack.

SIGNAL MEASUREMENT

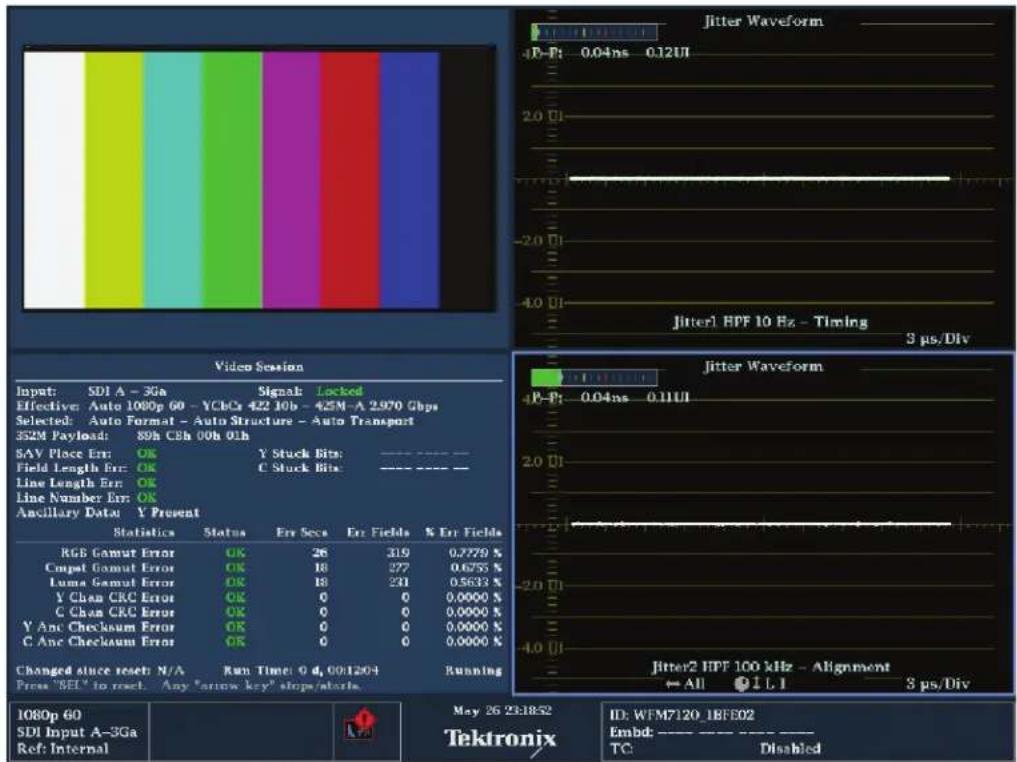

Figure 1

Jitter Waveform 4P-P: 0.04ns 0.12UI Jitter1 HPF 10 Hz - Timing 3 ps/Div Video Session Input: SDI A - 3Ga Signak Locked Effective: Auto 1080p 60 - YCbCr 422 10b - 425M-A 2.970 Gbps Selected: Auto Format - Auto Structure - Auto Transport 352M Payload: 89h CBh 00h 01h SAV Place Err: OK Y Stuck Bits : ———— Field Length Err: OK C Stuck Bits : ———— Line Length Err: OK Line Number Err: OK Ancillary Data: Y Present Statistics Status Err Sees Err Fields % Err Fields RGB Gamut Error OK 26 319 0.7779 $ Coupat Gamut Error OK 18 277 0.6755 $ Luma Gamut Error OK 18 231 0.5633 $ Y Chan CRC Error OK 0 0 0.0000 $ C Chan CRC Error OK 0 0 0.0000 $ Y Ant Checkaum Error OK 0 0 0.0000 $ C Ant Checkaum Error OK 0 0 0.0000 $ Changed stuce reset: N/A Run Time: 9 d, 00:12:04 Running Press "SET" to reset. Any "arrow key" stops/sales. Jitter Waveform 4P-P: 0.04ns 0.11UI Jitter2 HPF 100 kHz - Alignment ← All Q L L 3 ps/Div 1080p 60 SDI Input A-3Ga Ref: Internal May 26 23:18:52 ID: WFM7120_1BFE02 Tektronix Embd: ———————— TC Disabled

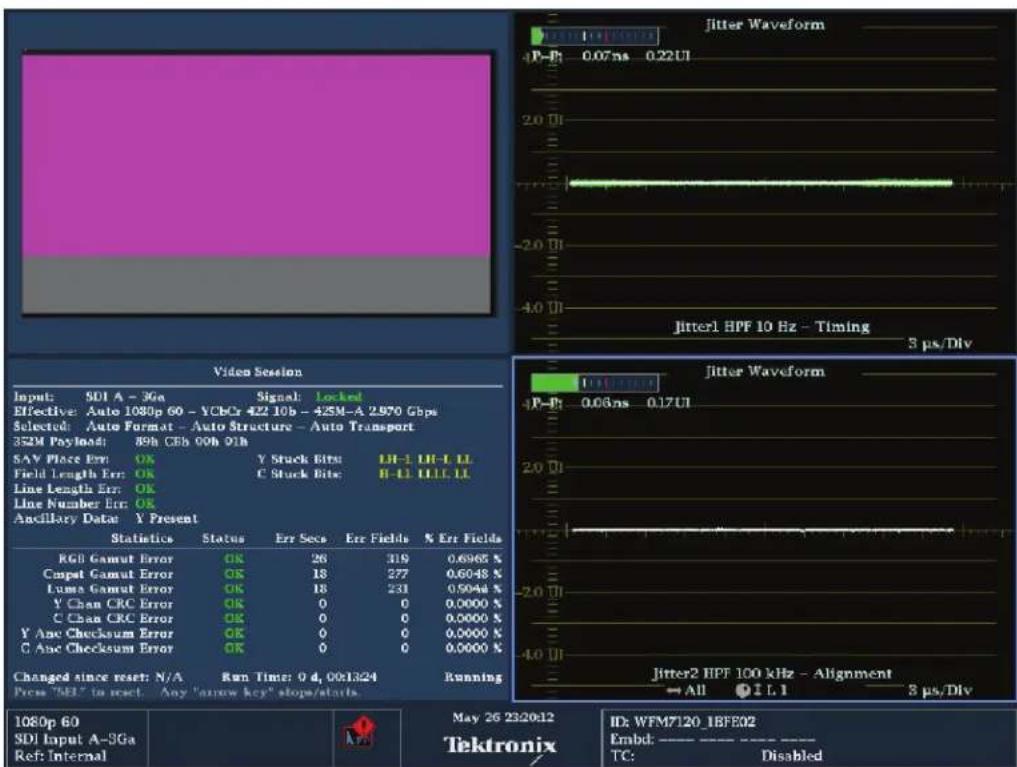

Figure 2

Jitter Waveform 4P-1h 0.07ns 0.22UI Jitter1 HPF 10 Hz - Timing 3 ps/Div Video Session Input: S01 A - 3Ga Signal: Locked Effective: Auto 1080p 60 - YCbCr 422 10b - 425M-A 2.970 Gbps Selected: Auto Format - Auto Structure - Auto Transport 352M Payload: 89h C6h 00h 01h SAV Place Err: OK Y Stuck Bits LH-1 LH-L LL Field Length Err: OK C Stuck Bits B-L LLL LL Line Length Err: OK Line Number Err: OK Ancillary Data: Y Present Statistics Status Err Secs Err Fields % Err Fields RGB Gamut Error OK 26 319 0.6965 % Capat Gamut Error OK 18 277 0.6048 % Luma Gamut Error OK 18 231 0.5044 % Y Chan CRC Error OK 0 0 0.0000 % C Chan CRC Error OK 0 0 0.0000 % Y Auc Checksum Error OK 0 0 0.0000 % C Auc Checksum Error OK 0 0 0.0000 % Changed since reset: N/A Run Time: 0 d, 001324 Running Press "SEL" to reset: Any "arrow key" stops/starts. Jitter Waveform 4P-1h 0.06ns 0.17UI Jitter2 HPF 100 kHz - Alignment → All ⬆ I L I 3 ps/Div 1080p 60 SDI Input A-3Ga Ref: Internal May 26 23/2012 ID: WFM7120_1BFE02 Emb: ---- ---- ---- TC: Disabled

Figures 1 and 2 show actual test results demonstrating extremely low jitter and proper performance with standard pathological test signals. All tests performed using Belden 1694A coaxial cable.

Marshall Electronics warranties to the first consumer that this VDA-106-3GS, 1x6 3G/HD/SD-SDI Splitter will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer.

This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty.

No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.

Due to constant effort to improve products and product features, specifications may change without notice.

Marshall Electronics, Inc.

1910 East Maple Ave. El Segundo, CA 90245
