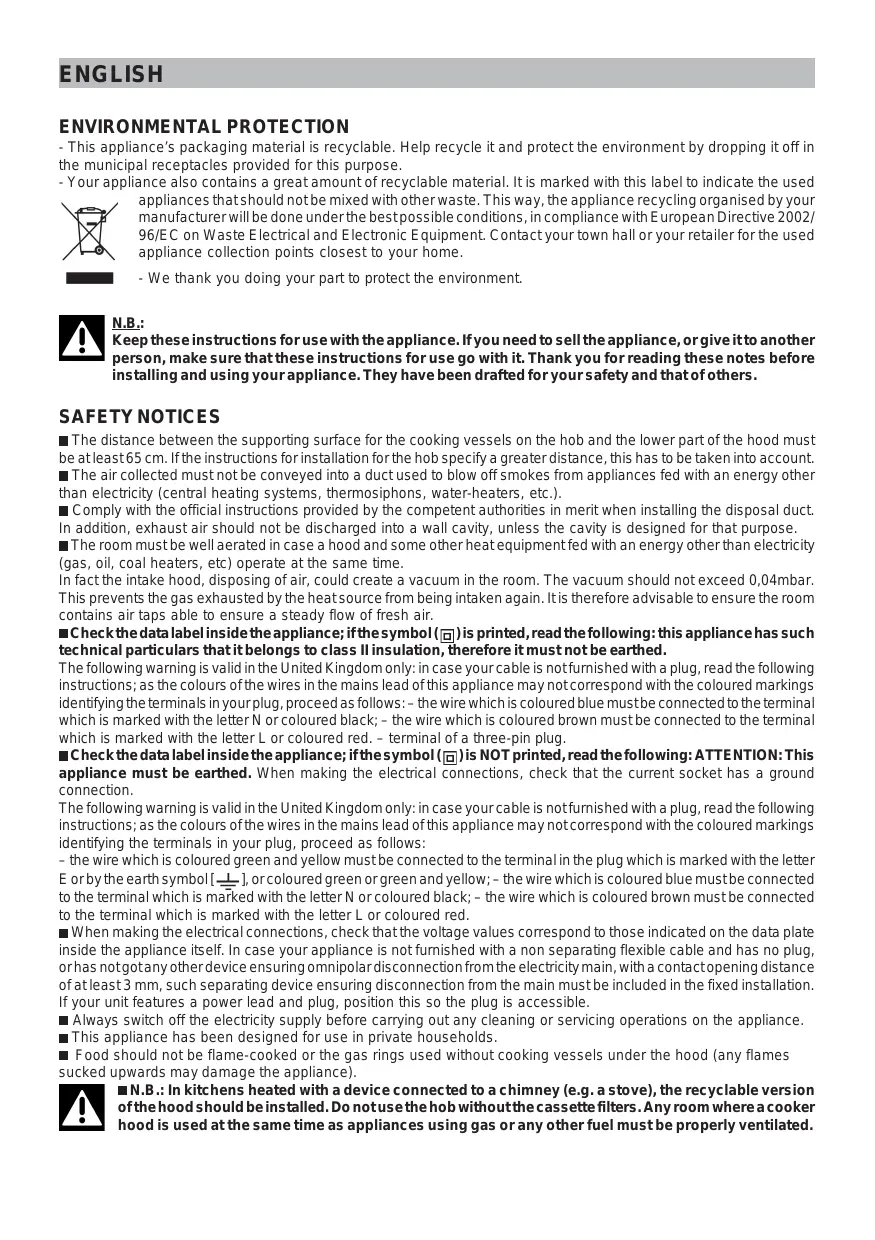

• This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

• Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

• We thank you doing your part to protect the environment.

N.B.:

Keep these instructions for use with the appliance. If you need to sell the appliance, or give it to another person, make sure that these instructions for use go with it. Thank you for reading these notes before installing and using your appliance. They have been drafted for your safety and that of others.

SAFETYNOTICES

The distance between the supporting surface for the cooking vessels on the hob and the lower part of the hood must be at least 65~cm . If the instructions for installation for the hob specify a greater distance, this has to be taken into account.
The air collected must not be conveyed into a duct used to blow off smokes from appliances fed with an energy other than electricity (central heating systems, thermosiphons, water-heaters, etc.).
Comply with the official instructions provided by the competent authorities in merit when installing the disposal duct. In addition, exhaust air should not be discharged into a wall cavity, unless the cavity is designed for that purpose.
The room must be well aerated in case a hood and some other heat equipment fed with an energy other than electricity (gas, oil, coal heaters, etc) operate at the same time.

In fact the intake hood, disposing of air, could create a vacuum in the room. The vacuum should not exceed 0,04mbar. This prevents the gas exhausted by the heat source from being intaken again. It is therefore advisable to ensure the room contains air taps able to ensure a steady flow of fresh air.

■Check the data label inside the appliance; if the symbol (回) is printed, read the following: this appliance has such technical particulars that it belongs to class II insulation, therefore it must not be earthed.

The following warning is valid in the United Kingdom only: in case your cable is not furnished with a plug, read the following instructions; as the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: – the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black; – the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. – terminal of a three-pin plug.

Check the data label inside the appliance; if the symbol () is NOT printed, read the following: ATTENTION: This appliance must be earthed. When making the electrical connections, check that the current socket has a ground connection.

The following warning is valid in the United Kingdom only: in case your cable is not furnished with a plug, read the following instructions; as the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• the wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol [12] , or coloured green or green and yellow; - the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black; - the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

■ When making the electrical connections, check that the voltage values correspond to those indicated on the data plate inside the appliance itself. In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a contact opening distance of at least 3mm , such separating device ensuring disconnection from the main must be included in the fixed installation. If your unit features a power lead and plug, position this so the plug is accessible.
Always switch off the electricity supply before carrying out any cleaning or servicing operations on the appliance.
This appliance has been designed for use in private households.
■ Food should not be flame-cooked or the gas rings used without cooking vessels under the hood (any flames sucked upwards may damage the appliance).

■N.B.: In kitchens heated with a device connected to a chimney (e.g. a stove), the recyclable version of the hood should be installed. Do not use the hob without the cassette filters. Any room where a cooker hood is used at the same time as appliances using gas or any other fuel must be properly ventilated.

USE

Avoid using materials which could cause spurts of flame (flambées) near the appliance.
■ When frying, take particular care to prevent oil and grease from catching fire. Already used oil is especially dangerous in this respect. Do not use uncovered electric grates.
■ To avoid possible risks of fire always comply with the indicated instructions when cleaning anti-grease filters and when removing grease deposits from the appliance.

DESCRIPTION

The unit can be found in filtering hoods or in exhaust hoods.

In the Filtering hoods (Fig.1) the air and steam taken up by the unit are purified with charcoal filters and returned to the environment through the aeration grids on the side of the flue. WARNING: When using filtering hoods, both charcoal filters and an air deflector (A) must be used. Located in the lower part of the flue, this deflector recycles the air to the environment.

The charcoal filters are not supplied. In the Exhaust hoods (Fig.2) an exhaust duct conveys the steam and cooking odors directly outside through the wall/ceiling. Therefore they do not require charcoal filters.

Your apparatus is supplied in the filtering version so that if you want to install the apparatus in the suction version you must remove the charcoal filters.

INSTALLATION

To facilitate installation, before starting remove the grease filters:

To remove the metal filter/s (Fig.3 or 4), in line with the handle, push the stop inwards and pull the filter down.

Wall fitting (Fig.5): making use of the appropriate drilling jig (Fig.6), apply the supplied blocks into the wall, and remember the distance between the hood and the cooktop must be at least 65~cm . Insert two of the supplied screws so that the apparatus can be hooked onto these ones by means of the holes provided on the appliance (A). Once the apparatus is hooked, fix it definitively to the wall using the two other screws and the holes made at its bottom (B). To avoid damage make exclusive use of the holes already prepared on the hood.

Securing the telescopic flue: Basic installation requirements:

• Set the electrical power supply within the space covered by the decorative flue.

• If your unit is installed in an Exhaust hood, prepare the air exhaust hole.

Place bracket (W) 50~mm from the ceiling and position this on the vertical of your hood, with the aid of the notches on the centre of the bracket (Fig.7); using a pen, mark the 2 holes on the wall and then make the holes and fit the screw anchors provided and proceed to secure the bracket using the 2 screws (provided).

Exhaust hoods: connect the disposal duct to the air evacuation pipe of the hood; use a flexible pipe and lock it to the air evacuation pipe of the hood with a metal hose clamp (pipe and clamp are not provided). Make all power connections to the hood by means of the power cable. Take 2 assembled flues and place these on the upper surface of the hood. Raise the upper flue as far as the ceiling and secure it to the bracket using the 2 screws (Fig.8).

Filtering hood: make all power connections to the hood using the power cable. Fasten the air baffle to the lower flue as shown in Figure 9, using the 2 screws. Take 2 assembled flues and place these on the upper surface of the hood. Raise the upper flue as far as the ceiling and secure it to the bracket using the 2 screws (Fig.8). Also remember that charcoal filters must be used in the case of the filtering version; check to see whether such filters are already fitted; if necessary, proceed to fit as follows (Fig.10): fit the charcoal filter by turning anti-clockwise.

OPERATION

Controls shown in Fig.11:

A = Light switch; position 0: light off; position 1: light on.
B = Motor switch; position 0: motor off; position 1-2-3: motor on at speed I, II and III.
C = Motor pilot lamp.

CLEANING AND UPKEEP OF YOUR APPLIANCE

Thorough servicing guarantees correct and long-lasting operation.

Any fat deposits should be removed from the appliance periodically depending on amount of use (at least every 2 months). Avoid using abrasive or corrosive products. To clean painted appliances on the outside, use a cloth dipped in lukewarm water and neutral detergent. To clean steel, copper or brass appliances on the outside, it is always best to use specific products, following the instructions on the products themselves. To clean the inside of the appliance, use a cloth (or brush) dipped in denatured ethyl alcohol.

To keep your appliance in good working order, we recommend that you use Clearit household products.

Clearit offers you professional products and adapted solutions for the daily upkeep of your household and kitchen appliances.

You may find them in conventional retail outlets, along with a complete line of by-products and consumables.

Grease filters:

These are metal filters and must be periodically cleaned, depending on extent of operation (at least every two months). Wash the filters with neutral detergent.

To remove the filters (Fig.3 or 4), adjust the retainer and push these towards the back of the unit, turning them downwards until they are disengaged from the supports.

Charcoal filters: if using the hood in the filtering hood, the charcoal filters must be replaced periodically on the average once every 6 months. To remove the charcoal filters, proceed as follows, remove the charcoal filter by turning clockwise (Fig. 12). The charcoal filters must be replaced according to use: on the average once every 6 months.

Lighting:

To gain access to the incandescence bulbs, remove the grease filters as described above and remove the bulbs. Replace with lamps of the same type.

TROUBLESHOOTING

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that: • The power is not cut off. • A speed has been selected.
The hood is not operating effectively...	Ensure that: • The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared. • The kitchen is sufficiently ventilated to allow une for fresh air intake. • The charcoal filter is not worn (hood operating in filtering mode).
The hood stopped working	Ensure that: • The power is not cut off. • The double-pole cut-off device was not activated.
