USER MANUAL EWH 15 VR1.5 TEKA

White water heater with a dial indicator and 'Ieka' logo, no visible text or symbols on the body.

Modelo	A	B	C	D	E	F	G	H	I
EWH 15 VR1.5	100	86.5	384	330.5	198	104.5	115	340	360
EWH 30 VR1.5	100	86.5	594	568.5	198	141	257	340	360
EWH 50 VR1.5	100	141.5	567	524.5	198	141	176	450	470
EWH 80 VR1.5	100	141.5	796	746.5	198	141	297	450	470
EWH 100 VR1.5	100	141.5	961	911.5	198	141	447	450	470

Modelo	A B	C D E F	G H I
EWH 15 VR1.5	100	86.5	384	330.5	198	104.5	115	340	360
EWH 30 VR1.5	100	86.5	594	568.5	198	141	257	340	360
EWH 50 VR1.5	100	141.5	567	524.5	198	141	176	450	470
EWH 80 VR1.5	100	141.5	796	746.5	198	141	297	450	470
EWH 100 VR1.5	100	141.5	961	911.5	198	141	447	450	470

Sealed Storage Electric Water Heater

EWH 15 VR1.5

EWH 30 VR1.5

EWH 50 VR1.5

EWH 80 VR1.5

EWH 100 VR1.5

Read the Manual

before using and installing

We would like to sincerely thank you for selecting our electric water heater. Please read this manual carefully before use and the methods for the installation and use of this electric water heater, to make full use of its excellent performances.

WARNING

● Before installing this water heater, check and confirm the earth electrode on the socket is reliably grounded, without electricity. Otherwise, the electric water heater can not be installed or used.
- Do not use mobile sockets.
- Incorrect installation and use of this electric water heater may result in serious injuries to human bodies and losses of property.

Contents

● Performance characteristics.... (1)
- Specifications.... (2)
- Brief introduction of product structure....(2)
● Methods of installation.... (3)
● Methods of use.... (5)
● Cautions.... (5)
● Maintenance.... (7)
● Failures and treatment.... (7)
● Wiring diagram.... (8)

Performance characteristics

1. Total automatic control: automatic addition of cold water, automatic heating.
2. Three-fold safety protection: multiple safety protection devices, such as dry heating protection, extra-temperature protection, high hydraulic pressure protection, etc., safe and reliable.
3. Sapphire enamel inner container: manufactured by using advanced electrostatic dry method enamel technique, antirust, corrosion-proof, incrustation-resistant, leak-prevention, with longer lifetime.
4. Heating pipes designed with low thermal load: safe and reliable, with longer lifetime.
5. Equipped with corrosion-proof and incrustation-retardant equipment: durable products.
6. Thickened urethane integral foaming: good thermal insulation effect, energy efficient and electricity saving.
7. Imported temperature controller: accurate and reliable control of temperature.
8. Adjustable range of water temperature from 30 to 75°C.
9. Simple operation and easy use.

Specifications

Model	Volume (L)	Rated power (W)	Rated voltage (ACV)	Rated pressure (MPa)	Max of water temperature (°C)	Electric type	Waterproof grade
EWH 15 VR1.5		150015	220	0.75	75	Type I	IPX4
EWH 30 VR1.5	30	1500	220~240	0.75	75	Type I	IPX4
EWH 50 VR1.5	50	1500	220~240	0.75	75	Type I	IPX4
EWH 80 VR1.5	80	1500	220~240	0.75	75	Type I	IPX4
EWH 100 VR1.5	100	1500	220~240	0.75	75	Type I	IPX4

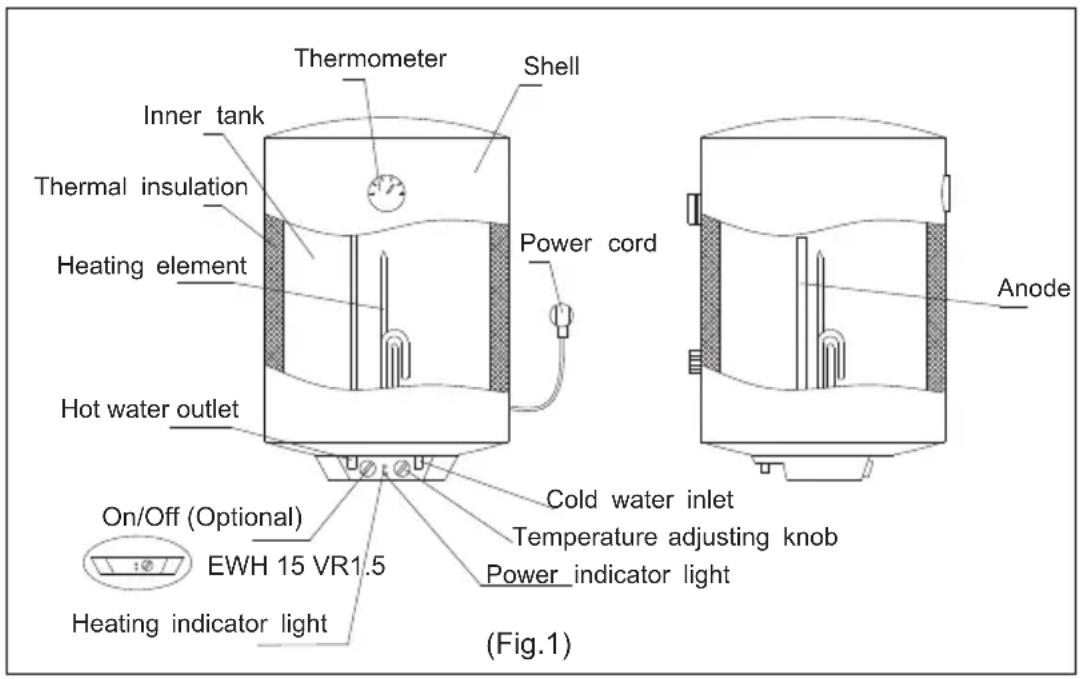

Brief introduction of product structure

Methods of installation

Note: Please make sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been checked that it is firm and reliable. Otherwise, the electric water heater may face from the wall, resulting in damage of the heater, even serious accidents or injuries to people. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater, to facilitate the maintenance of the heater, if necessary.

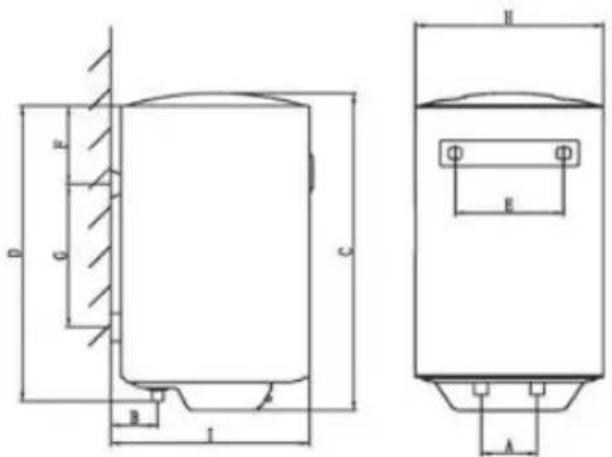

1. Installation of the main machine

Model	A B C D E F G H I
EWH 15 VR1.5	100	86.5	384	330.5	198	104.5	115	340	360
EWH 30 VR1.5	100	86.5	594	568.5	198	141	257	340	360
EWH 50 VR1.5	100	141.5	567	524.5	198	141	176	450	470
EWH 80 VR1.5	100	141.5	796	746.5	198	141	297	450	470
EWH 100 VR1.5	100	141.5	961	911.5	198	141	447	450	470

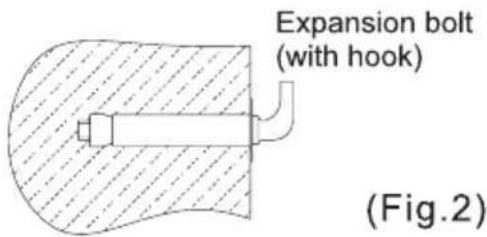

1. This electric water heater should be installed in a solid wall. If the strength of the wall can't bear theweight equalling twice. The total weight of the heater fully filled with water, it will be necessary to install a special support.
2. After selecting a proper location, determine the positions of the two installation holes used for expansion bolts with hook (determined according to the specification of the product you select). Make two holes in the wall with the right depth by drilling the correct size matching the expansion bolts attached, insert the screws, place the hook upwards, tighten the nuts so that they are firmly fixed, and then hang the electric water heater on it (see Fig.2). Expansion bolt

1. Install the supply socket in the wall. The requirements for the socket are as follows: 250V/10A, single phase, three electrodes. It is recommended to place the socket on the right above the heater. The height from the socket to the ground shall not be less than 1.8m (see Fig.3).

The heater can be installed, anywhere in the house not exposed to direct sunlight or rain. However, in order to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location for use of water as near as possible.

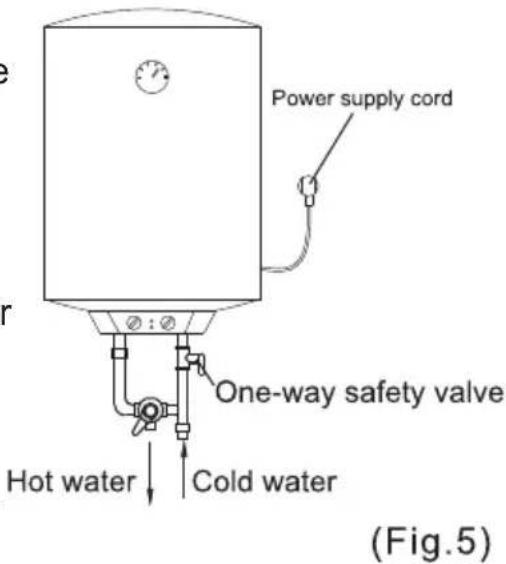

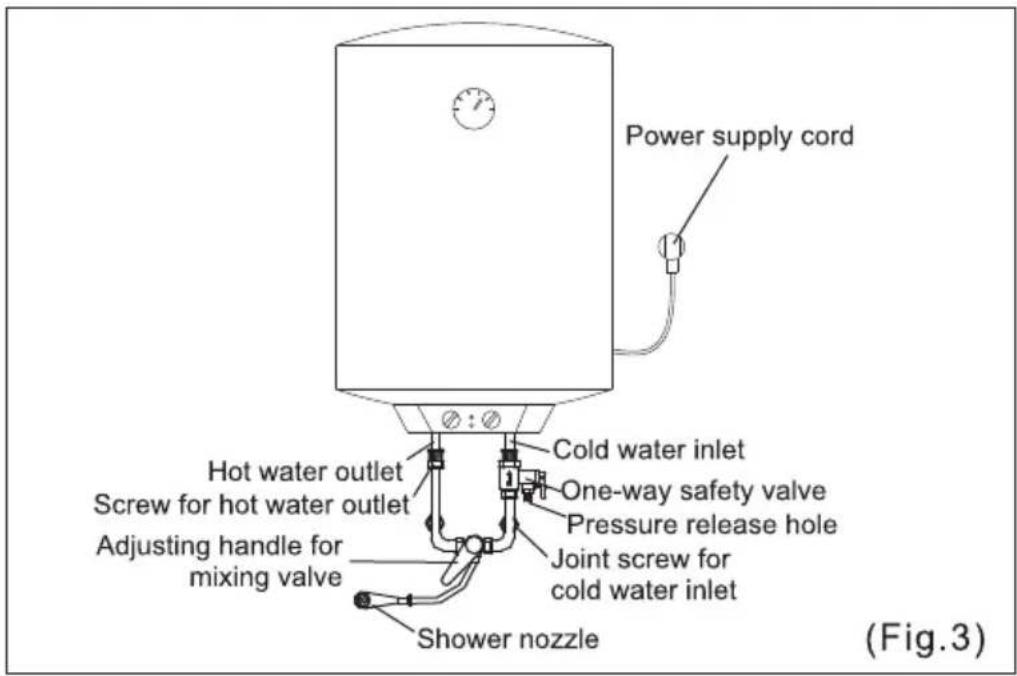

2. Connection of pipelines

1. The dimension of each pipe part is G1/2.

2. Connection of one-way safety valve: install the one-way safety valve attached with the machine at the water inlet of the main machine.(Pay attention to keep the installed drainage flexible pipes of the safety valve sloping downwards and connected with the atmosphere.)

3. In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the machine must be added at the end of the threads (see Fig.3).

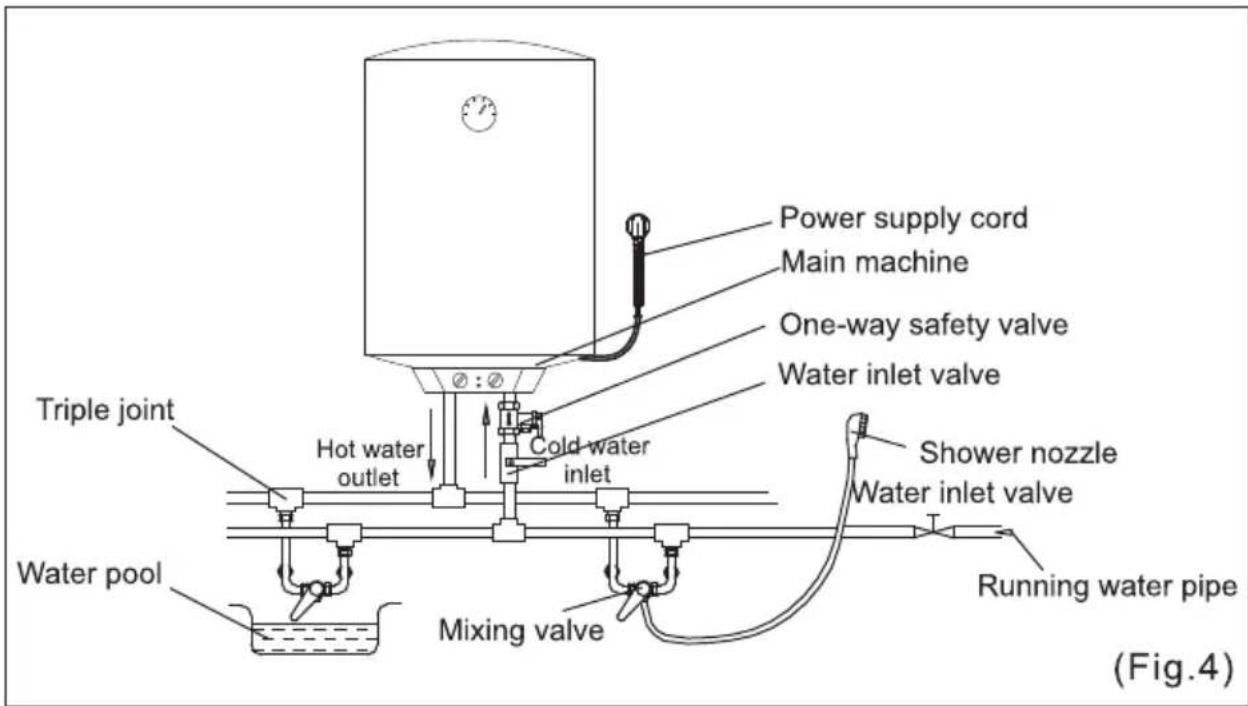

1. If the users want to make a multi-way supply system, refer to the method shown in Fig.4 for connection of the pipelines.

Methods of use

1. First, open any of the outlet valves at the outlet of the water heater, then, open the inlet valve. The electric water heater begins to be filled with water. When there is water coming out of the outlet valve normally, it implies that the heater has been fully filled with water, and the outlet valve can be closed.

Note: During normal operation, the inlet valve shall be set in the status of "open".

1. Insert the supply plug into the socket, the two indicator lights will be on at the same time..
2. This machine can automatically control the temperature. When the water temperature inside the machine has reached the set temperature (It is set to 75^ ), it will be turned off automatically, and step into the status of thermal insulation; when the water temperature is decreased to a certain point, it will be turned on automatically to restore the heating, and the use of hot water will not be interrupted. When the heater is switched off automatically, the heating indicator will turn off.

Cautions

1. The supply socket must be earthed reliably. The rated current of the socket shall not be lower than 10A. The socket and plug shall be kept dry to prevent electric leakage. Inspect frequently whether the plugs are well plugged in the socket. Inspect method is as follows: insert the power supply plug into the socket, after using for half an hour, shut down the unit and pull the plug out, and inspect the plug in case it scalds your hand. If tempeature is over 50^ , please plug in another socket. to avoid the plug being damaged, fire or other personnel accidents result from badcontact.

2. For the places or the wall where the water may splash, the installation height of the socket shall not be lower than 1.8m.

3. The wall in which the electric water heater is installed shall be able to bear the weight equalling twice the weight of the heater fully filled with water without distortion or cracks. Otherwise, other strengthening measures should be adopted.

4. The one-way safety valve attached to the machine must be installed to the cold water inlet of this machine (see Fig.5).

1. For the first use (or the first use after maintenance or cleaning), the heater can not be switched on until it has been (fully) filled with water. When filling with water, at least one of the outlet valves at the outlet of the heater must be opened to release the air. This valve can be closed after the heater has been (fully) filled with water.
2. During the heating, there may be drops of water dripping from the pressure release hole of the one-way safety valve. This is a normal phenomenon. If there is a large amount of water leaking, please contact the professional maintenance personnel for repair. This pressure release hole shall, under no circumstances, be blocked; otherwise, the heater may be damaged, even resulting in safety accidents.
3. The drainage pipe connected to the pressure release hole must be kept sloping downwards.
4. Since the water temperature inside the heater can reach up to 75^ C, the hot water must not be exposed to people when it is initially used. Adjust the water to a reasonable temperature to avoid scalding..

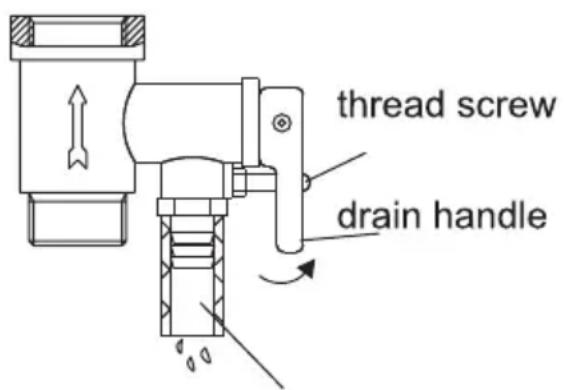

5. In order to drain off the water inside the inner container, it can be drained off from the exit port (Twist the thread screw of the exit port), and it can also be drained off from the one-way safety valve (Twist the thread screw off the one-way safety valve, and lift the drain handle upwards).
6. If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be used, and replaced by the professional maintenance personnel.
7. If any parts or components of this electric water heater are damaged, please contact the professional maintenance personnel for repair, and use the special spare parts and components provided by our company.

pressure release hole
(Fig.6)

Maintenance

1. Check the power supply plug and socket frequently to make sure that they have good, reliable contact and are well grounded without overheating.

2. If the heater is not going to be used for a long time, especially in the regions with low temperatures (lower than 0^ ), in order to prevent the heater being damaged due to the freezing of water in the inner container, the water inside the heater shall be drained away (refer to Item 9, Cautions of this manual for the method to drain away the water inside the inner container).

3. The recommended water hardness for an optimum working performance of the water heater should not exceed 120 mg/l of CaCo3 (Calcium Carbonate). In case of exceeding this quantity, it is recommended to use alternative decalcifying systems (You can check your local water hardness in the Water Board of you local Town Hall.) Should there be any failures due to the deposits originated by the water quality, will not be covered by the guarantee.

4. To guarantee the long-term durability and efficiency of your water heater, it is recommended to clean its inner tank and the deposits in the heating components on a regular basis.

5. It is also recommended to check the magnesium anode periodically (minimum once a year or every six months depending on the water hardness).

6. If the magnesium anode of your water tank is worn out due to the deposits originated by the water quality, the After Sales Service will have to replace it by a new one. The cost of the materials of the replacement of the magnesium anode will be covered within the guarantee period, however, the cost of the workforce or services for this replacement will not be included.

7. It is recommended to clean the surface of the water heater with soapy water, never use abrasive products or solvents.

8. During the guarantee period, the maintenance will be done by Teka's Official After Sales Service. Any services undertaken by non-Teka Official After Sales services will be excluded from the guarantee.

Types of water	mg/l	^ fH	^ dH	^ eH
Soft water	≤17	≤1.7	≤0.95	≤1.19
Slightly hard water	≤60	≤6.0	≤3.35	≤4.20
Moderately hard water	≤120	≤12.0	≤6.70	≤8.39
Hard water	≤180	≤18.0	≤10.05	≤12.59
Very hard water	>180	>18.0	>10.05	>12.59

Failures and treatment

Failures	Reasons	Treatment
The heating indicator light is off.	Failures of the temperature controller.	Contact with professional staff for repair.
No water coming out of the hot water outlet.	1. The running water supply is cut off.2. The hydraulic pressure is too low.3. The inlet valve running water is not open.	1. Wait for restoration of running water supply.2. Use the heater again when the hydraulic pressure is increased.3. Open the inlet valve running water.
The water temperature is too high.	Failures of the temperature control system.	Contact with professional staff for repair.
Water leak	Seal problem of the joint of each pipe.	Seal up the joints.

Wiring diagram

Produce information with EU regulation

he electrical storage water heater EWH 15 VR1.5 of the company TEKA Industrial, S.A. was tested with a declared load profile of the size "XXS"

The product fulfills and corresponds to the requirements of the commission regulatory standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of 1wh=34%

that correspond to the water heating efficiency class\$”

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.27	2 kWh
Referenct energy	Q_ref	2.1	kWh
Useful energy content	Q_H2O	2.297	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O	0.914	kWh
Daily electricity consumption (measured)	Q_test\_elec	2.807	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	77.7	°C
Water temperature at the end of the 24h measurement cycle	T5	77.3	°C
Storage volume	M_act	15.2	kg
Storage volume	C_act	15.2 L
Daily electricity consumption (corrected)	Q_elec	2.573	kWh
Water heating energy efficiency	n_wh	34.1
Annual Electricity Consumption	AEC	541	kWh
Water heating energy efficiency class		B
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	79.1	°C
Average water temperature of outlet warm water	_p'	65.8	°C
Average water temperature of inlet cold water	_c	10.8	°C
Normalised value of the average temperature	_p	65.6	°C
Volume that delivered water of at least 40°C	V_40exp	14	L
Calculated volume that delivered hot water of at least 40°C	V_40	26	L

he electrical storage water heater EWH 30 VR1.5 of the company TEKA Industrial, S.A. was tested with a declared load profile of the size "S"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of f_wh = 33%

that correspond to the water heating efficiency class"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_dec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.342 kWh
Referenct energy	Q_ref	2.1	kWh
Useful energy content	Q_H2O	2.266	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O 0.927		kWh
Daily electricity consumption (measured)	Q_test\_elec	2.960 kWh
Water temperature at the beginning of the 24h measurement cycle	T3	75.9	°C
Water temperature at the end of the 24h measurement cycle	T5 77.4		°C
Storage volume	M_act	29.6	kg
Storage volume	C_act	29.6 L
Daily electricity consumption (corrected)	Q_elec	2.695 kWh
Water heating energy efficiency	n_wh	32.8
Annual Electricity Consumption	AEC	562	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	76.4	°C
Average water temperature of outlet warm water	_p'	67.4	°C
Average water temperature of inlet cold water	_c	10.4	°C
Normalised value of the average temperature	_p	67.4	°C
Volume that delivered water of at least 40°C	V_40exp	25.6	L
Calculated volume that delivered hot water of at least 40°C	V_40	49	L

he electrical storage water heater EWH 50 VR1.5 of the company TEKA Industrial, S.A. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of f_wh=37%

that correspond to the water heating efficiency class"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_dec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.357 kWh
Referent energy	Q_ref	5.845	kWh
Useful energy content	Q_H2O	6.234	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O 0.938		kWh
Daily electricity consumption (measured)	Q_test\_elec	6.944 kWh
Water temperature at the beginning of the 24h measurement cycle	T3	75.3	°C
Water temperature at the end of the 24h measurement cycle	T5 76.1		°C
Storage volume	M_act	50.8	kg
Storage volume	C_act	50.8 L
Daily electricity consumption (corrected)	Q_elec	6.466 kWh
Water heating energy efficiency	n_wh	37.0
Annual Electricity Consumption	AEC	1389	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	76.5	°C
Average water temperature of outlet warm water	_p'	69.5	°C
Average water temperature of inlet cold water	_c	10.2	°C
Normalised value of the average temperature	_p	69.4	°C
Volume that delivered water of at least 40°C	V_40exp	40.4	L
Calculated volume that delivered hot water of at least 40°C	V_40	80	L

he electrical storage water heater EWH 80 VR1.5 of the company TEKA Industrial, S.A. was tested with a declared load profile of the size "M"

The product fulfills and corresponds to the requirements of the commission regulatory standards (No 814/2013) for electrical storage water heater and achieved a wa heating energy efficiency of 1wh=35%

that correspond to the water heating efficiency class”

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_ec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description	Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor -0.624 kWh
Referenct energy	Q_ref	5.845 kWh
Useful energy content	Q_H2O	6.182 kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O 0.945		kWh
Daily electricity consumption (measured)	Q_test\_elec	7.366 kWh
Water temperature at the beginning of the 24h measurement cycle	T3	75	°C
Water temperature at the end of the 24h measurement cycle	T5	75.6	°C
Storage volume	M_act	80.3	kg
Storage volume	C_act	80.3	L
Daily electricity consumption (corrected)	Q_elec	6.930	kWh
Water heating energy efficiency	n_wh	35.0
Annual Electricity Consumption	AEC	1467	kWh
Water heating energy efficiency class		D
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	75	°C
Average water temperature of outlet warm water	'_p	71	°C
Average water temperature of inlet cold water	_c	10.2	°C
Normalised value of the average temperature	_p	71	°C
Volume that delivered water of at least 40°C	V_40exp	68.8	L
Calculated volume that delivered hot water of at least 40°C	V_40	140	L

he electrical storage water heater EWH 100 VR1.5 of the company TEKA Industrial, S.A. was tested with a declared load profile of the size "L"

The product fulfills and corresponds to the requirements of the commission regulatory standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of 1wh=36%

that correspond to the water heating efficiency class\$”

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report in respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Qec, water heating energy efficiency _wh and mixed water at 40^ (V40)

Description Parameter Value Unit
k-Value	k 0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term Q	cor -0.861 kWh
Referenct energy	Q_ref	11.655 kWh
Useful energy content	Q_H2O	12.088 kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O 0.964		kWh
Daily electricity consumption (measured)	Q_test\_elec	13.653 kWh
Water temperature at the beginning of the 24h measurement cycle	T3	74.4	°C
Water temperature at the end of the 24h measurement cycle	T5 74.5		°C
Storage volume	M_act	100.1	kg
Storage volume	C_act	100.1 L
Daily electricity consumption (corrected)	Q_elec	13.153	kWh
Water heating energy efficiency	n_wh	36.4
Annual Electricity Consumption	AEC	2813	kWh
Water heating energy efficiency class		D
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	75.1	°C
Average water temperature of outlet warm water	_p'	69.5	°C
Average water temperature of inlet cold water	_c	10.1	°C
Normalised value of the average temperature	_p	69.5	°C
Volume that delivered water of at least 40°C	V_40exp	82.1	L
Calculated volume that delivered hot water of at least 40°C	V_40	163	L

DESCRIPTION TO ANNEX I

(1)supplier's name or trade mark
(2) supplier's model identifier
(3) the declared load profile, expressed by the appropriate letter and typical usage in accordance with Table 3 of Annex VII
(4) the water heating energy efficiency class of the model, determined in accordance with point 1 of Annex II
(5) the water heating energy efficiency in %, rounded to the nearest integer
(6) the annual electricity consumption in KWh in terms of final energy and/or the annual fuel consumption in GJ in terms of GCV, rounded to the nearest integer and calculated in accordance with point 4 of Annex VIII
(7) the thermostat temperature settings of the water heater, as placed on the market
(8) the daily electricity consumption Q elec in KWh, rounded to three decimal places
(9) the declared load profile, expressed by the appropriate letter in accordance with Table 1 of this Annex
(10) the mixed water at 40°C V40 in litres, rounded to the nearest integer
(11) maximum temperature of the thermostat
(12) 'out of the box-mode' is the standard operating condition, setting or mode set by the manufacturer at factory level, to be active immediately after the appliance installation, suitable for normal use by the end-user according to the water tapping pattern for which the product has been designed and placed on the market
(13) the water heating energy efficiency in %, rounded to one decimal place
(14) All specific precautions for assembly, installation and maintenance are described in the operating and installation instructions. Read and follow the operating and installation instructions.
(15) All of the data that is included in the product information was determined by applying the specifications of the relevant European directives. Differences to product information listed elsewhere may result in different test conditions. Only the data that is contained in this product information is applicable and valid.

Teka Subsidiaries

Country Subsidiary	Address	City	Phone
AustriaKüppersbusch Austria	Eitnergasse, 13	1231 Wien	[phone]
BelgiumKüppersbusch Belgium S.P.R.L.	Doomveld Industrie, Asse 3, No. 11 - Boite 7	1731 Zellik	[phone]
BulgariaTeka Bulgaria EOOD	Blvd. "Tsarigradsko Shosse" 135	1784 Sofia	[phone]
ChileTeka Chile S.A.	Avd El Retiro Parque los Maitenes, 1237. Parque Enea	Pudahuel, Santiago de Chile	+ 56 24 386 000
ChinaTeka International Trading (Shanghai) Co. Ltd.	6/F. Datong Business Center, No. 369 Fuxing Middle Rd.	200025 Shanghai	[phone]
Czech RepublicTeka CZ S.R.O.	V Holesovickách, 593	182 00 Praha 8 - Liben	[phone]
EcuadorTeka Ecuador S.A.	Parque Ind. California 2, Via a Daule Km 12	Guayaquil	[phone]
Great BritainTeka Products Ltd.	177 Milton Park	OX14 4SE Milton, Abingdon	[phone]
GreeceTeka Hellas A.E.	Thesi Roupaki - Aspropyrgos	193 00 Athens	[phone]
HungaryTeka Hungary Kft.	Bajcsy Zsilinszky u. 53	1065 Budapest	[phone]
IndonesiaPT Teka Buana	Jalan Menteng Raya, Kantor Taman A9 Unit A3	12950 Jakarta	[phone]
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd	10 Jalan Kartunis U1/47, Tomasya Park, Off Glenmarie	40150 Shah Alam, Selangor Darul Ehsan	[phone]
MexicoTeka Mexicana S.A. de C.V.	Ferrocarril 200, Esquina Norte 29, Col. Moctezuma	15500 Mexico D.F.	[phone]
MoroccoTeka Maroc S.A.	73, Bd. Slimane, Depôt 33, Route de Ain Sebaa	Casablanca	[phone]
PolandTeka Polska Sp. ZO.O.	ul. 3-go Maja 8 / A2	05-800 Pruszków	[phone]
PortugalTeka Portugal S.A.	Estrada da Mota - Apdo 533	3834-909 Ilhavo, Aveiro	[phone]
RomaniaS.C. Teka Küchentechnik Romania S.R.L.	Sevastopol str., no 24, 5th floor, of. 15	010992 Bucharest Sector 1	[phone]
Russia/PоссияTeka Rus LLC/OOO "Teka Pyc"	ул.Баркляя, д.6, стр.3, оф.402	121087 Россия, Москва	[phone]
SingaporeTeka Singapore PTE Ltd	Clemenceau Avenue, 83, 01-33/34 UE Square	239920 Singapore	[phone]
SpainTeka Industrial, S.A.	C/ Cajo,17	39011 Santander	[phone]
ThailandTeka (Thailand) Co. Ltd.	364/8 Sn-Ayuttaya Road, Phayathai, Ratchatavee	10400 Bangkok	[phone]
TurkeyTeka Teknik Mutfak Aletleri Sanayi Vo	Büyükdere Cad. 24/13	80290 Mecidiyeköy, Istanbul	[phone]
UkraineTeka Ukranie LLC	86-e, Bozhenko Str .2nd floor,4th entrance	03150 Kyiv	[phone]
United Arab EmiratesTeka Middle East Fze	Building LOB 16, Office 417	P.O. Box 18251 Dubai	[phone]
United Arab EmiratesTeka Küchentechnik U.A.E LLC	Bin Khedia Centre	P.O. Box 35142 Dubai	[phone]
VenezuelaTeka Andina S.A.	Ctra. Petare-Santa Lucia, km 3 (El Limoncito)	1070 Caracas	[phone]
VietnamTEKA Vietnam Co., Ltd.	803 Dai Minn Convention Tower, 8th Floor	77 Hoang Van Thai, District 7, Ho Chi Minh	[phone]
