USER MANUAL HDBT112 Projecta

Tray Fitting Instructions to suit Auxiliary battery for TOYOTA Landcrusier Prado 150 Series

Years: 2010 onwards

Models: 1KD-FTV, 3.0 Litre Turbo Diesel

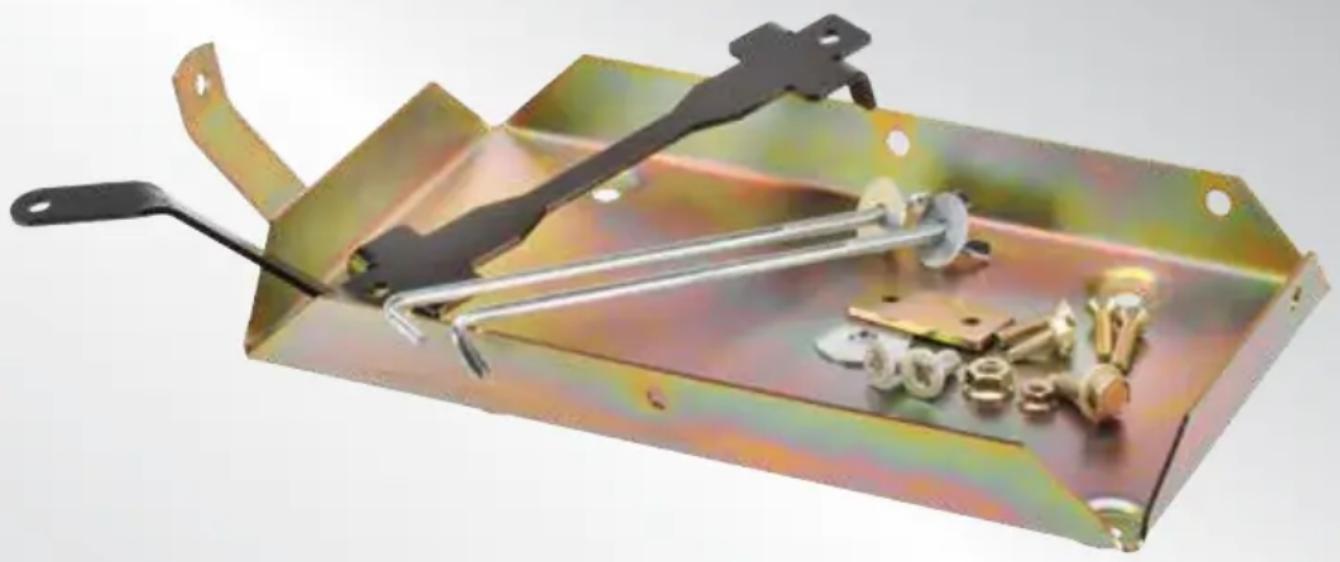

Metallic metal bracket with tools and bolts, no visible text or symbols

Front view of a white SUV with black grille and roof (no visible text or symbols)

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

SPECIFICATIONS

Max Battery Size (mm) L300 x W174 x H220

Max Battery Weight 23Kg

Recommended batteries Exide LCS 27-97 & Century N70TMF

Approximate fitting time 1 hour

Special tools None required

Recommended Dual P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)Battery System

Tray Location Engine Bay, Driver side next to radiator support

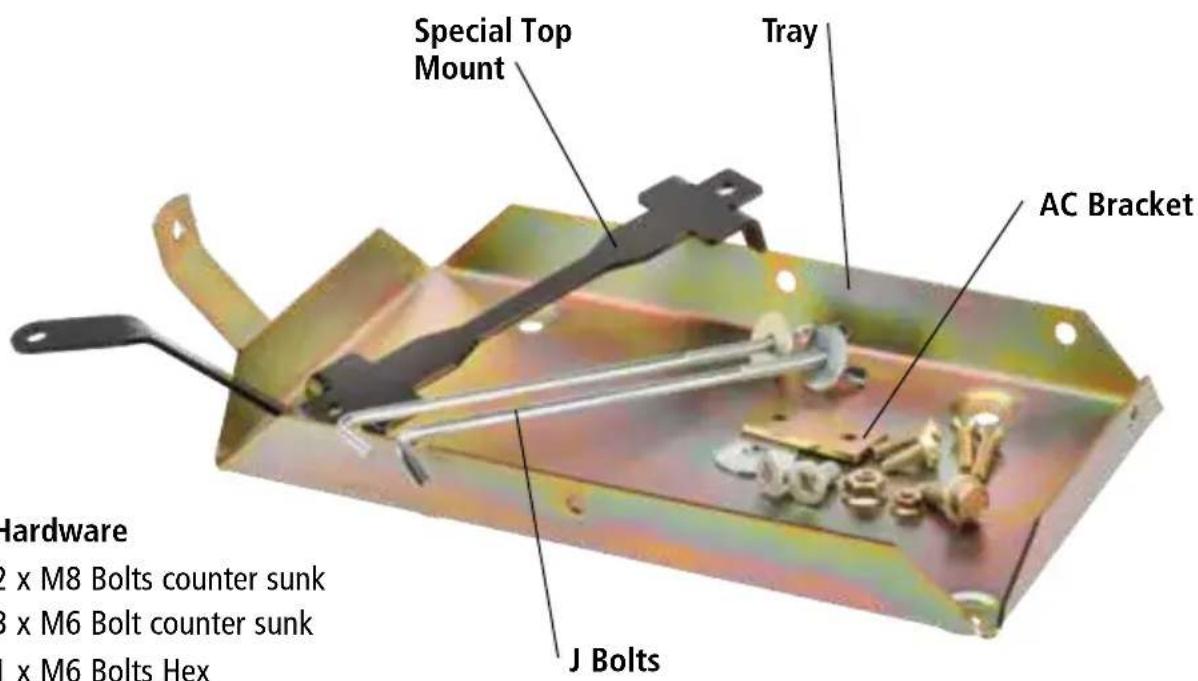

KIT INCLUDES

Hardware

2 x M8 Bolts counter sunk
3 x M6 Bolt counter sunk
1 x M6 Bolts Hex
1 x M6 Whizlock Nut
1 x M8 Bolt Long
1 x M8 Body Washer
1 x M8 Whizlock Nut

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.

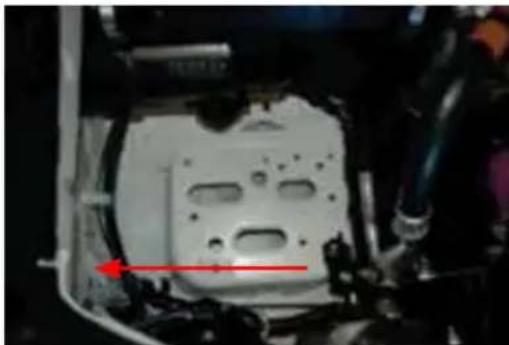

2. Locate the area where the tray will be fitted. Remove bolt from the earth on inner guard and discard.

Close-up of a mechanical component with visible internal features and red arrows indicating direction (no text or symbols)

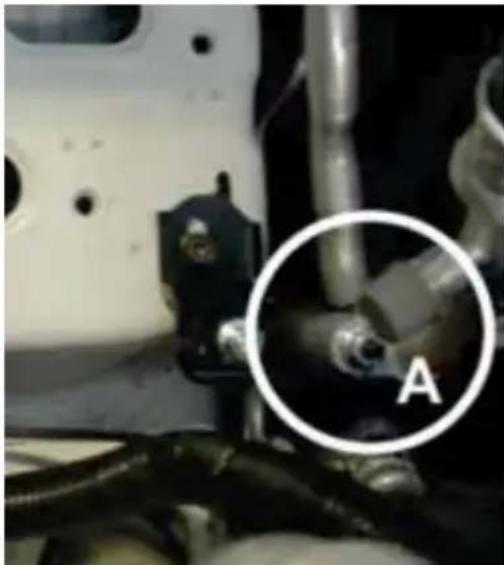

1. Remove A/C pipe bracket from inner guard.DO NOT LOOSEN TOP NUT IN CIRCLE A.

Close-up of mechanical components with a circled area labeled 'A' (no readable text or symbols beyond label)

1. Remove A/C bracket from rubber mount on A/C pipe DISCARD.

Black metal bracket component with two holes, labeled 'B' in the corner (no other text or symbols visible)

1. Bolt provided A/C Bracket to AC pipe. Use original nuts & bolts.

Rectangular metal plate with two circular holes, no text or markings visible

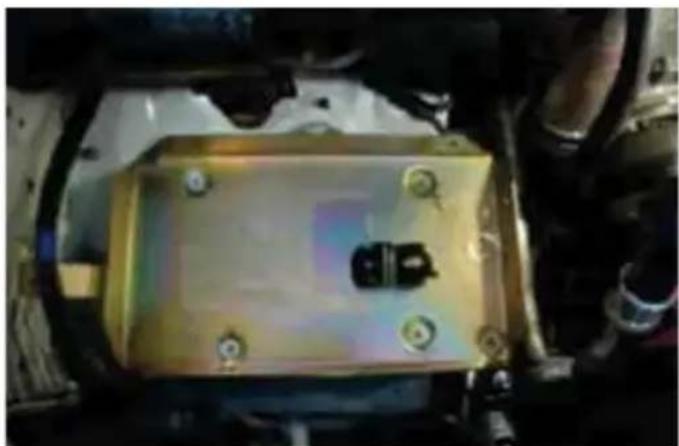

1. Place tray into position and loosely put in all bolts. 2 x M8 counter-sunk, 2 x M6 counter-sunk into base of tray. Refit earth wires between the inner guard and battery tray arm. Use provided M6 bolt to secure.

Close-up of a metallic mechanical component with mounting holes and internal components (no visible text or symbols)

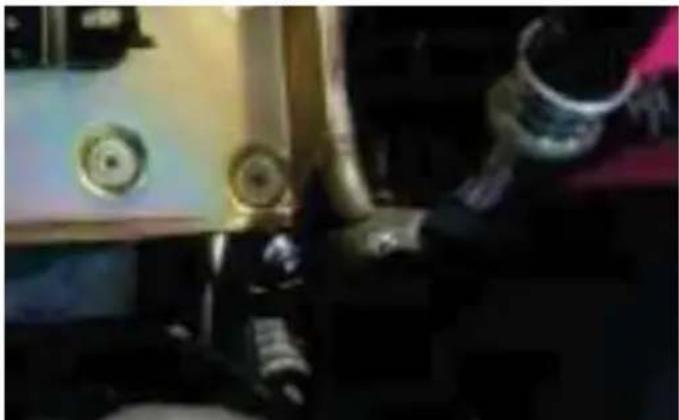

1. Bolt A/C bracket to tray. Use 1xM6 counter-sunk with nut.

Close-up of a mechanical device with circular components and a blurred background (no visible text or symbols)

1. Tighten all bolts to secure the tray.

2. Ensure adequate clearance on all A/C pipes, radiator support panel and rear of engine bay.

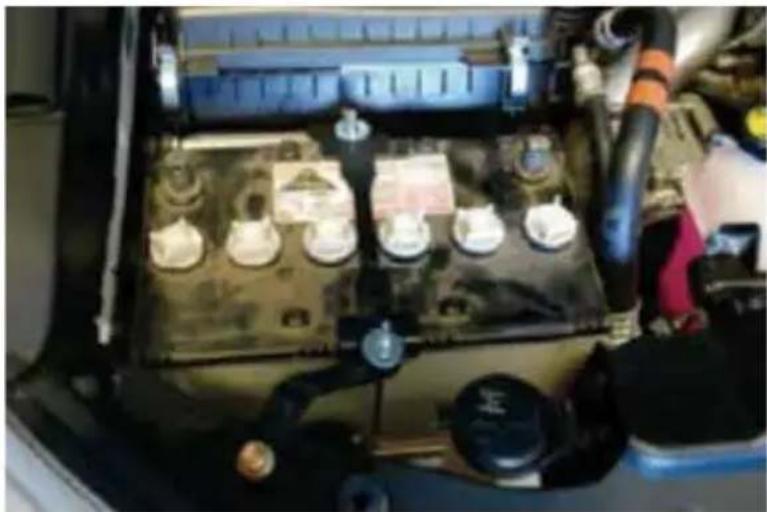

3. Place battery into position and fit special top mount. Support will align to hole in radiator support, drill plastic to clear hole and secure with M8 bolt use washer and M8 nut underneath. Fit and tighten J bolts.

Interior view of a car engine bay with visible battery, valve, and wiring (no text or symbols)

1. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
