USER MANUAL HDBT100 Projecta

Tray Fitting Instructions to suit Auxiliary battery for TOYOTA 70 SERIES – V8 TURBO DIESEL – with ABS

Model: All 70 Series from Aug 2012 onwards with factory fitted ABS

Cutaway view of a mechanical assembly with metal brackets and internal components (no text or symbols visible)

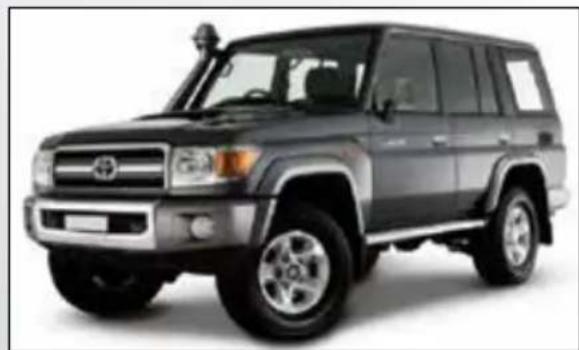

Exterior view of a black Toyota SUV (no visible text or symbols)

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

SPECIFICATIONS

Max Battery Size (mm) L300 x W175 x H220

Max Battery Weight 24Kg

Recommended batteries Optima D27M & Optima D31A

Approximate fitting time 1.5 hours

Special tools None required

Recommended Dual DC to DC Charger (P/n: IDC25)Battery System

Tray Location Engine Bay, Passenger side near firewall

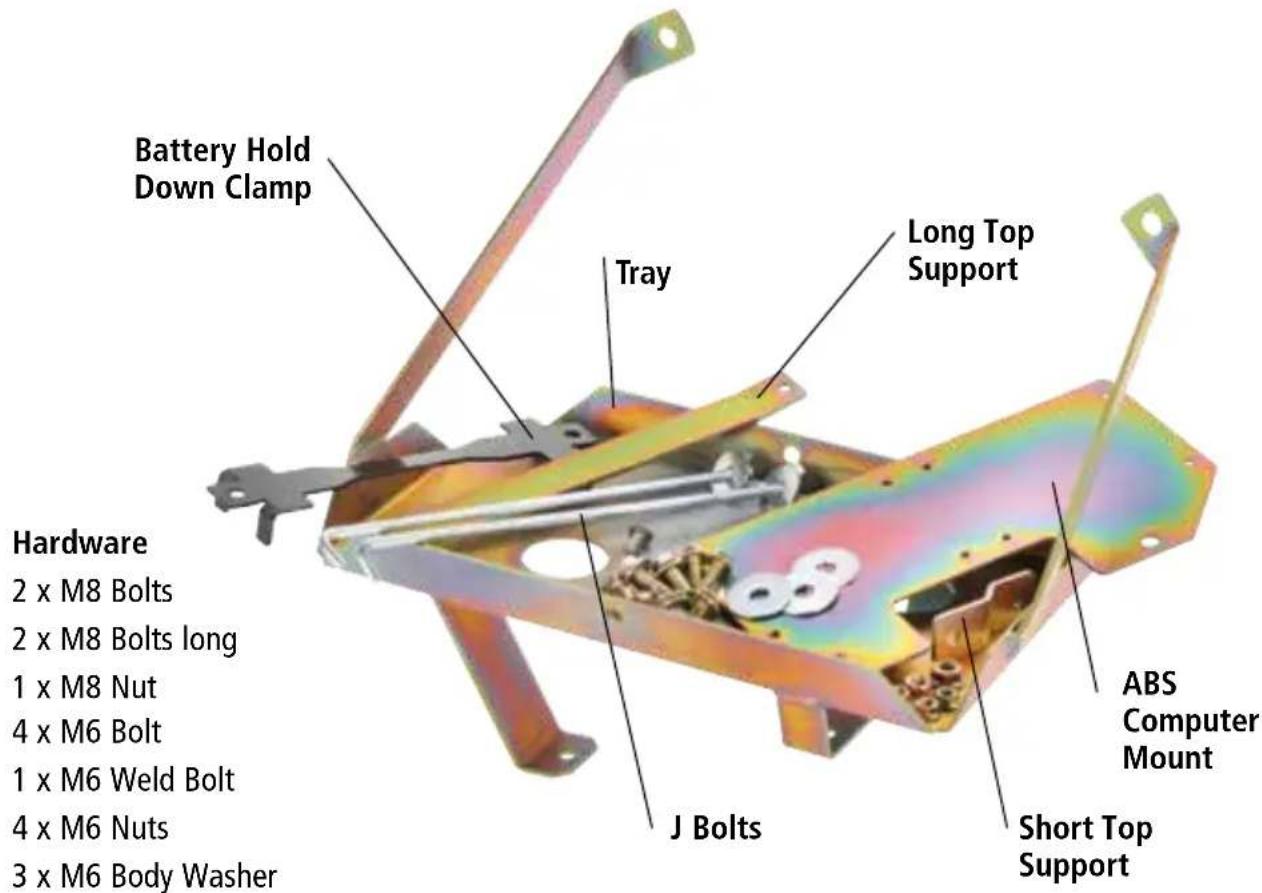

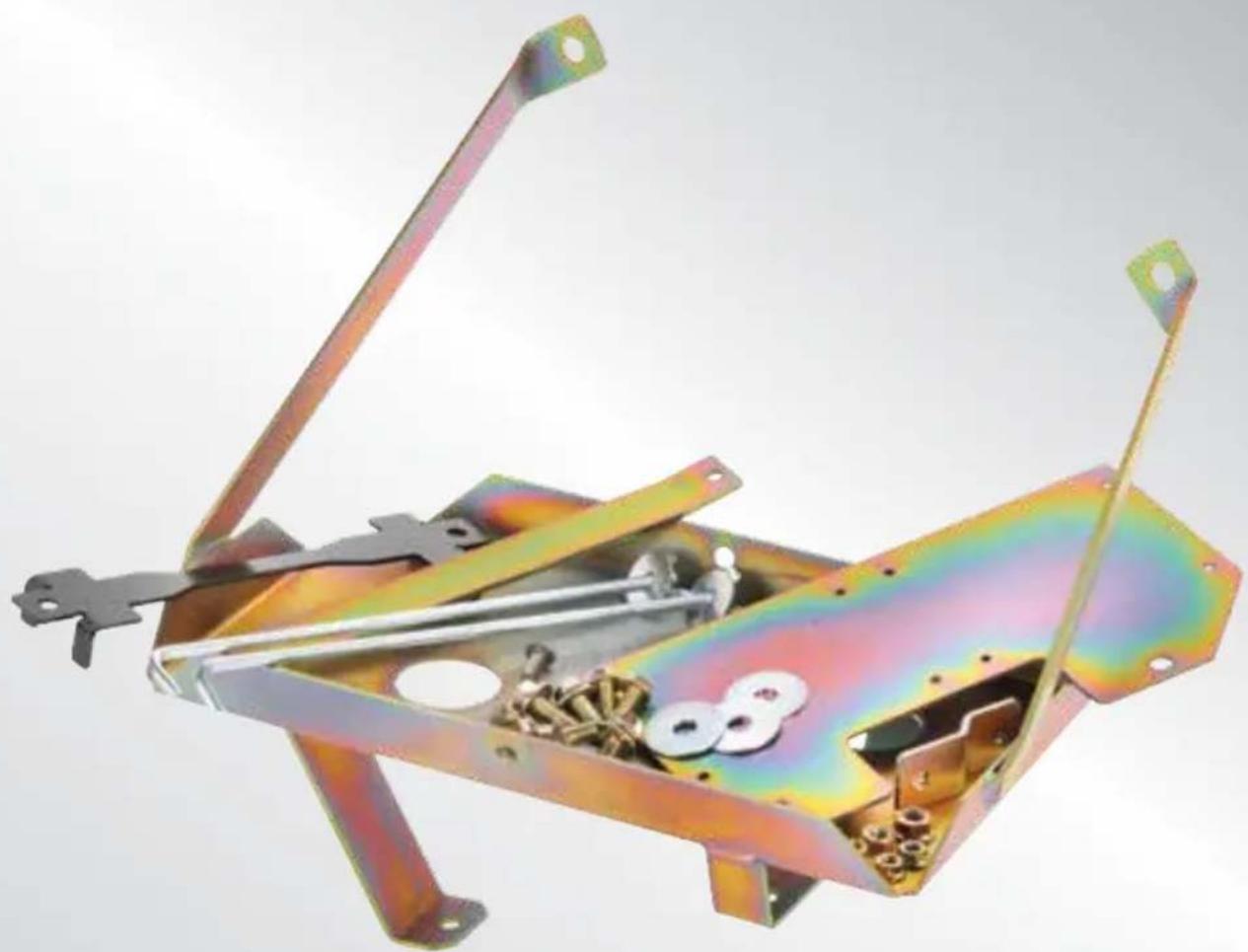

KIT INCLUDES

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.

2. Disconnect and remove the two computers located on wheel arch on passenger side rear of engine bay taking note of which plug goes to which computer.

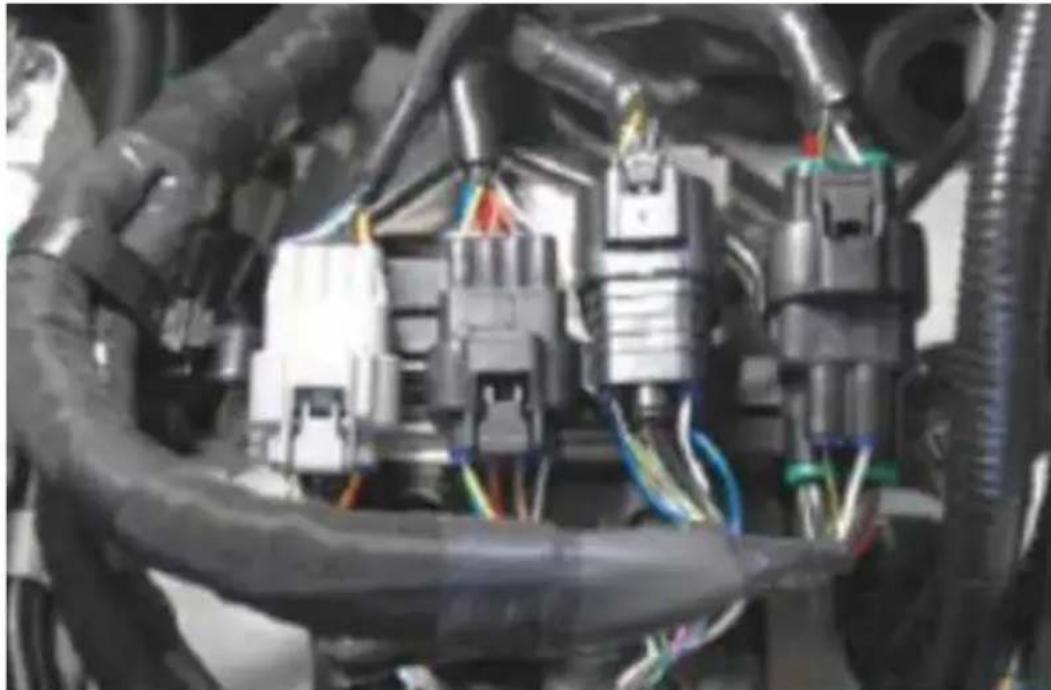

Close-up of automotive electrical connectors and wiring (no visible text or symbols)

1. Remove mounts for the computers (these are no longer required).

2. Secure the wiring joiners against the firewall under multi-pin connector on firewall.

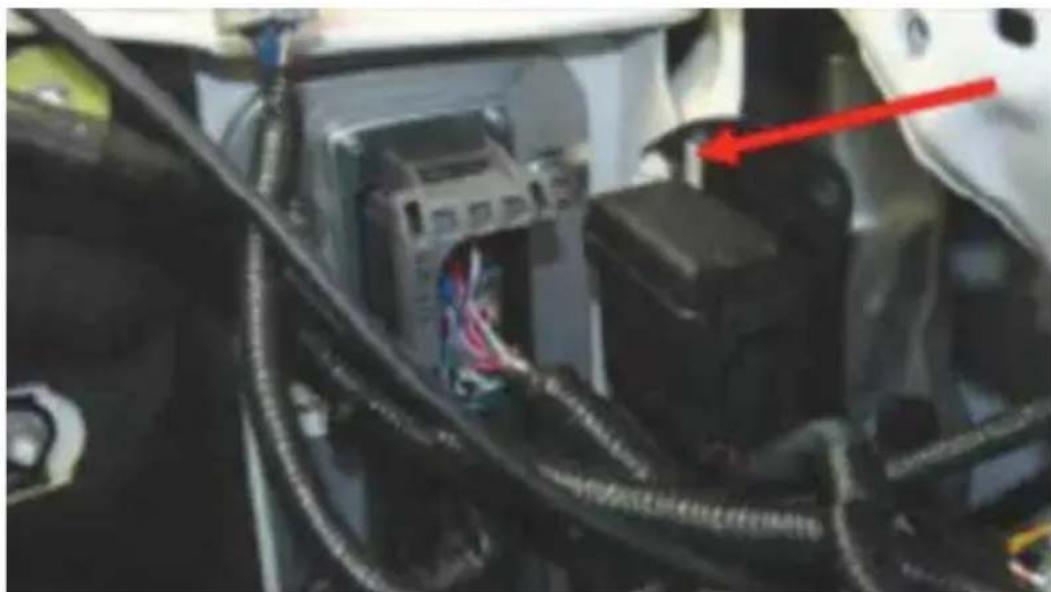

3. Unbolt and relocate trailer plug fuse/relay box to inner guard using 1 x original bolt into existing threaded hole.

Close-up of a car electrical connector with visible wiring and a red arrow pointing to a component (no text or symbols)

1. Ensure windscreen washer bottle tube is not tangled when moving computers.

2. It is the fitters responsibility to ensure there is sufficient clearance between tray, looms, fuel lines and air-con pipes.

3. Place tray into position and bolt in upper arms with 2 x M8 short bolts into existing threaded holes. The tray can be flexed slightly forward or back to aid clearance.

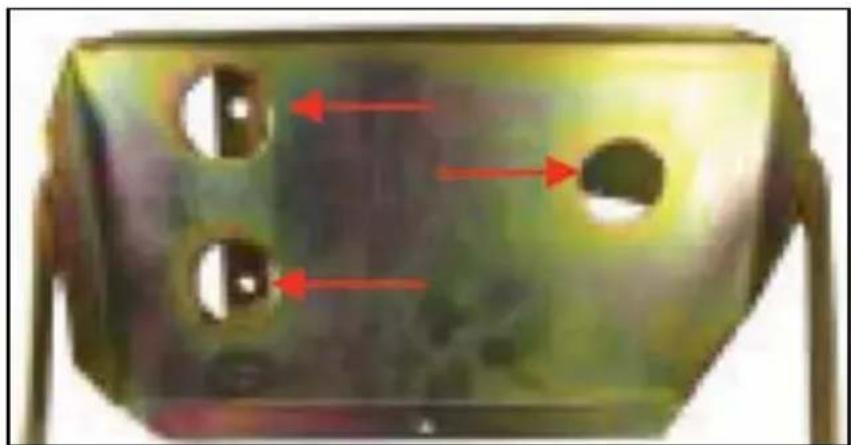

4. When you have found the best position, drill 3 x 6mm holes through lower mounting point and fasten with 3 x M6 bolts, body Washers and Nuts (Washers are fitted under the guard).

Close-up of a metallic mechanical component with two circular holes and red arrows indicating features (no text or symbols)

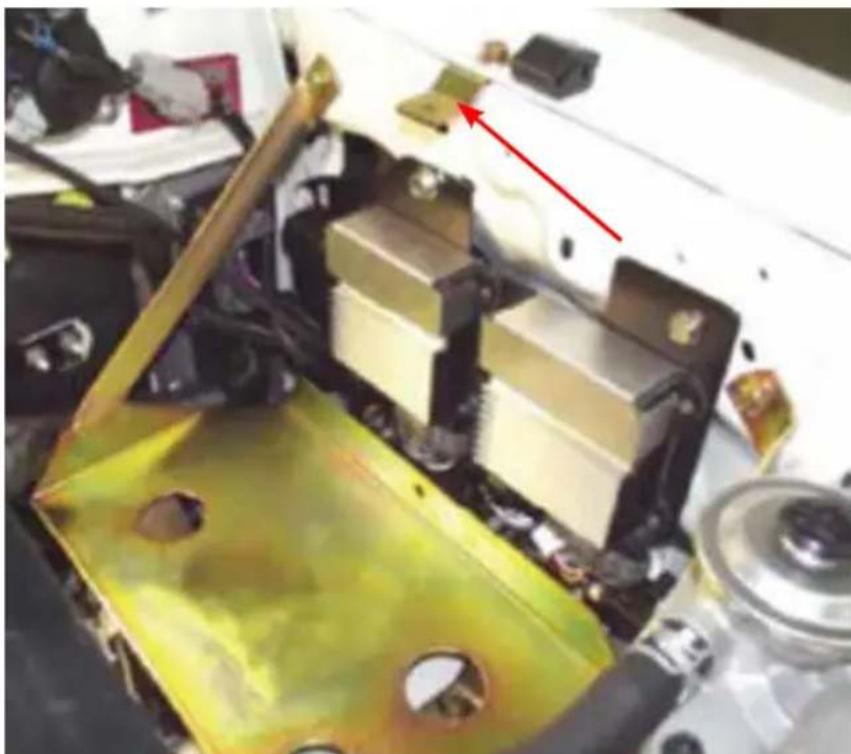

1. The short top support bracket (supplied) bolts in existing hole between inner and outer guard using 1 x M8 long bolt and nut.

Close-up of a mechanical assembly with yellow metal casing and red directional arrows indicating components (no visible text or symbols)

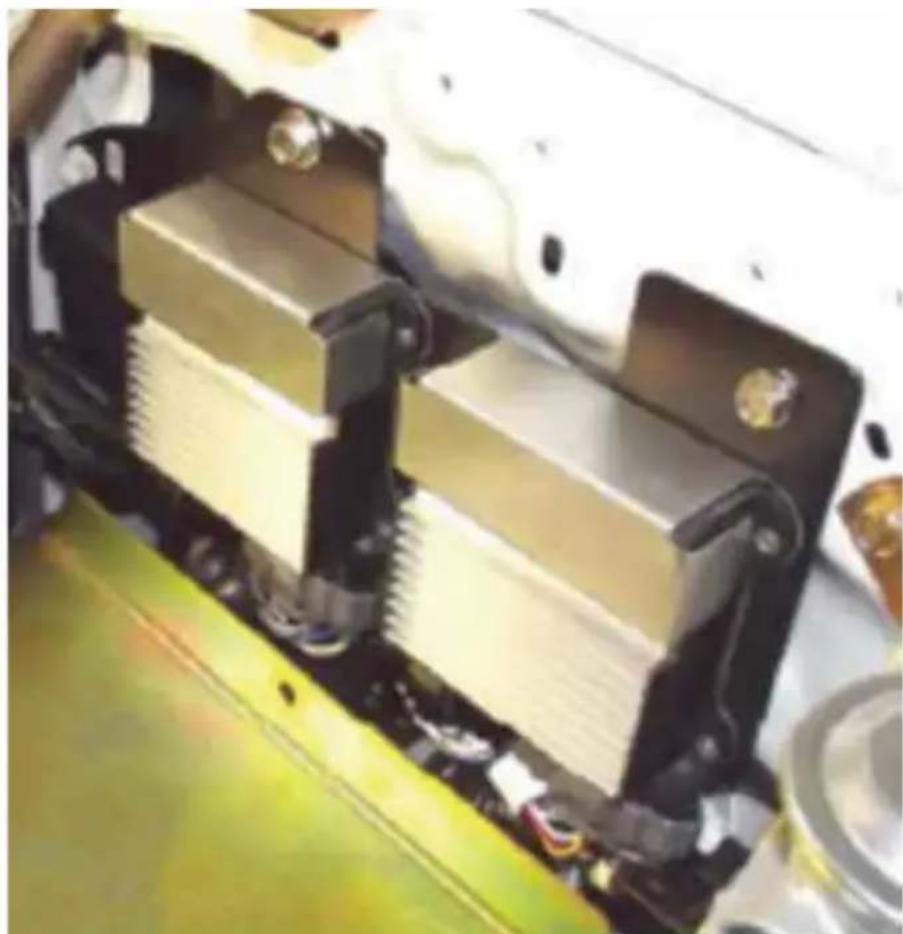

1. Bolt vehicle computers to ABS computer mount (supplied) using original bolt hardware and reconnect wiring plugs as they were removed in point 1.

Close-up of a metallic electronic device casing with wiring and connectors (no visible text or symbols)

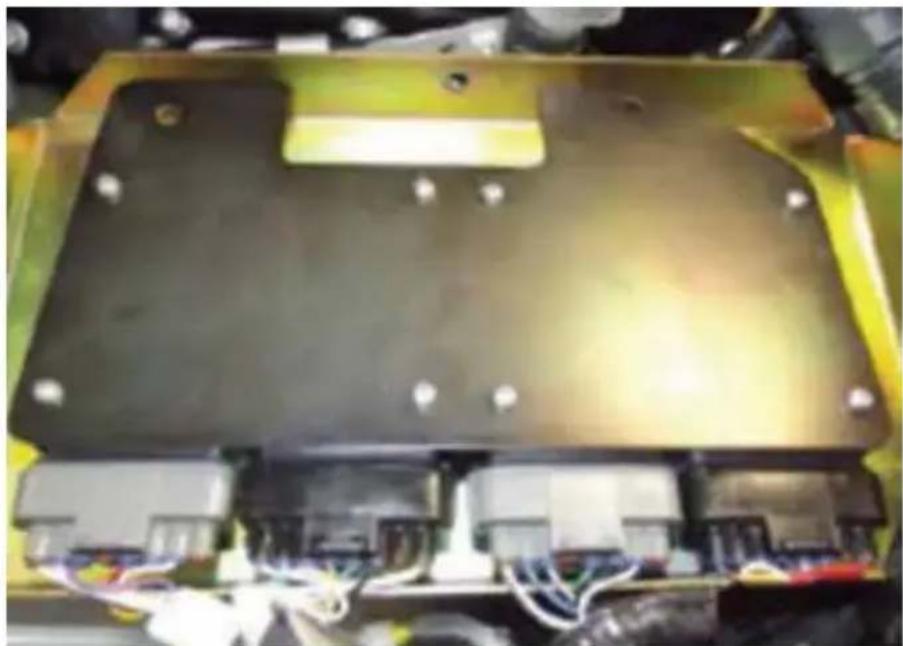

1. Bolt ABS computer mount to inner guard using 1 x M6 bolt (front) and 1 x M8 long bolt (closest to firewall).

Close-up of a mechanical assembly with metallic components and mounting brackets (no visible text or symbols)

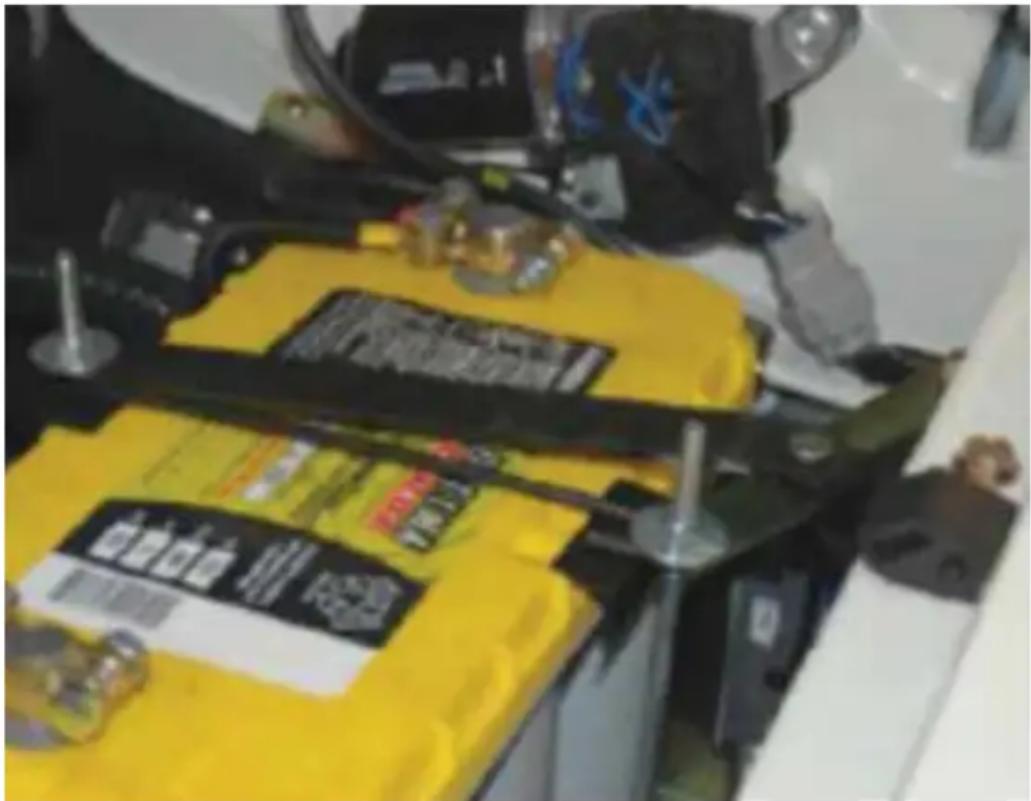

1. Place battery into tray. Secure battery hold down clamp (supplied) with J bolts and fit Long top support mount (supplied). Failure to fit the top mount support brackets may result in your vehicles metal fatiguing and this will void your warranty.

Close-up of a car battery pack with yellow and black compartments, no visible text or symbols

1. Bolt the short and long support brackets (supplied) together using M6 weld bolt and nut.
2. Ensure bonnet can close without hitting the newly installed battery tray.
3. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
