USER MANUAL HDBT108 Projecta

Tray Fitting Instructions to suit Auxiliary battery for TOYOTA 200 Series

Years: 2007 onwards

Models: 1VD-FTV V8 TDI

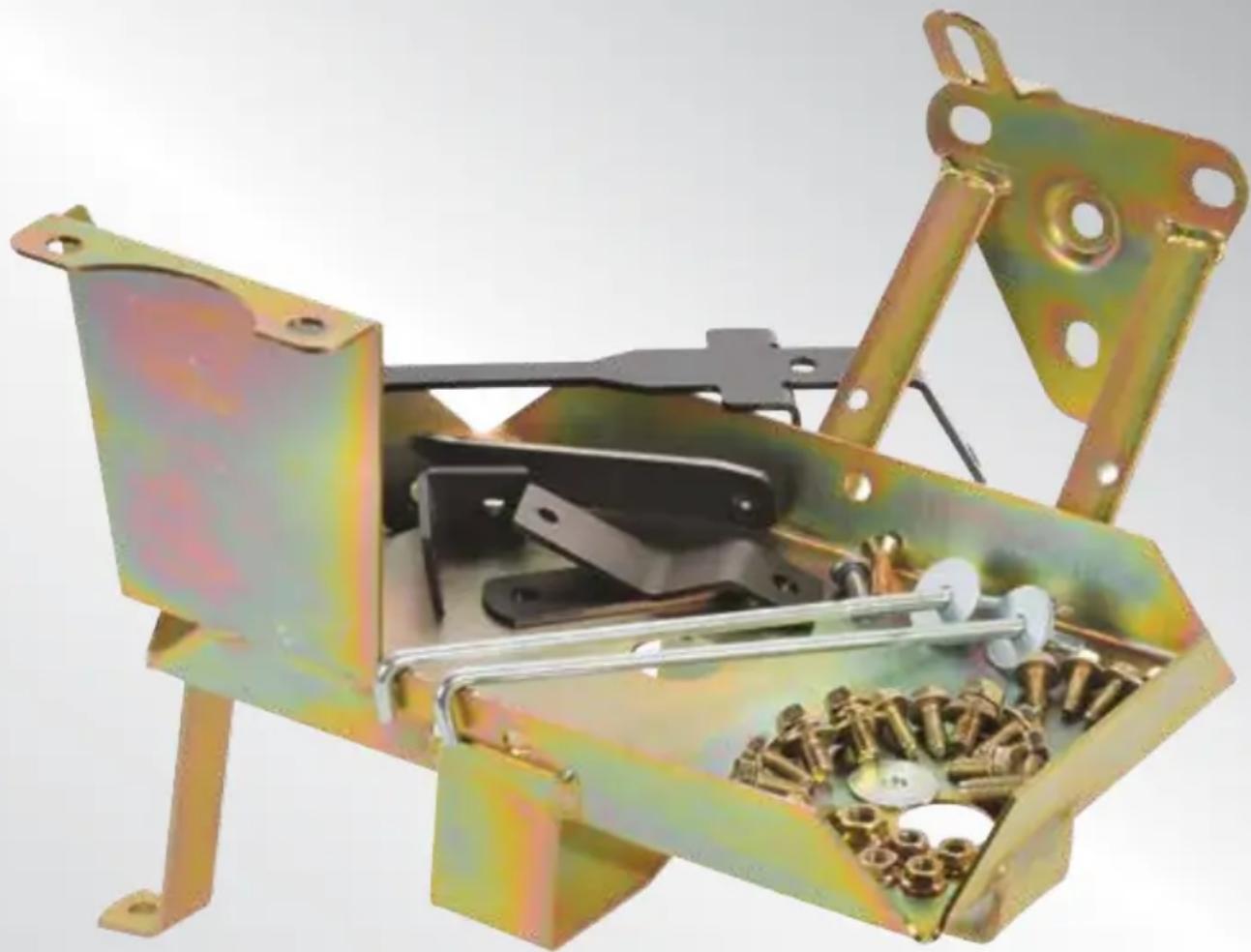

Cutaway view of a metal mechanical device with internal components and screws (no text or symbols visible)

Exterior view of a black Toyota SUV (no visible text or symbols)

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

SPECIFICATIONS

Max Battery Size (mm) L265x W175 x H220

Max Battery Weight 19Kg

Recommended batteries Optima D34 & Exide Orbital

Approximate fitting time 2 hours

Special tools None required

Recommended Dual P/n: IDC25, DBC150, VSR200Battery System

Tray Location Engine Bay, Passenger side near firewall

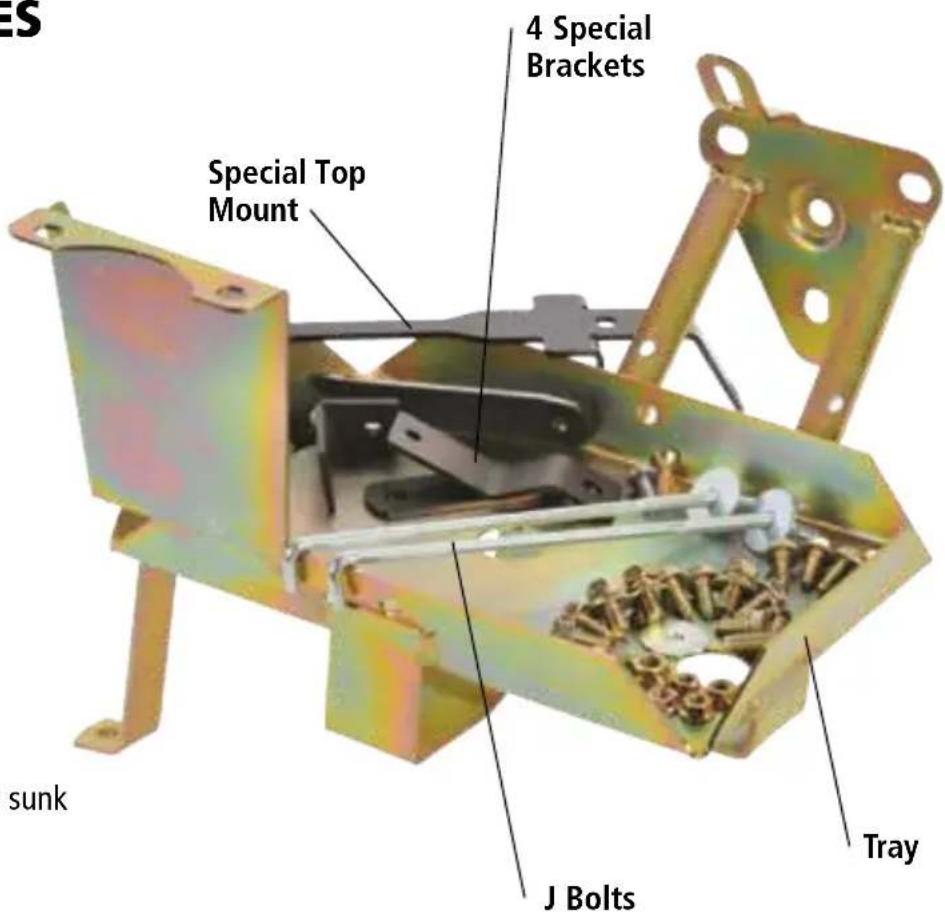

KIT INCLUDES

Hardware

2 x M8 Long

3 x M8 Short

2 x M8 Nut

11 x M6 Bolt Hex

1 x M6 Bolts counter sunk

1 x M6 Weld Nut

5 x M6 Nut

1 x M6 Washer

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.

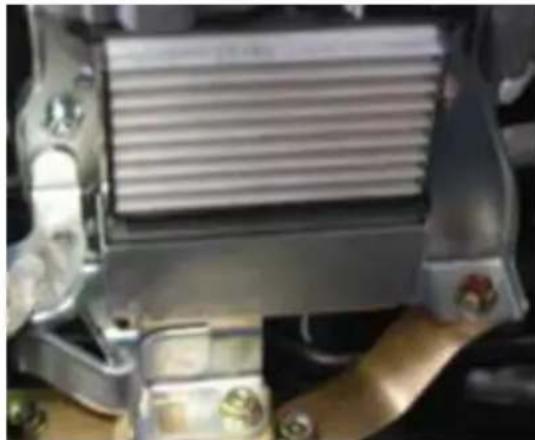

2. Remove fuel canister mount, terminal box and computers.

Close-up of a metallic industrial component with ribbed texture and metal fittings (no visible text or symbols)

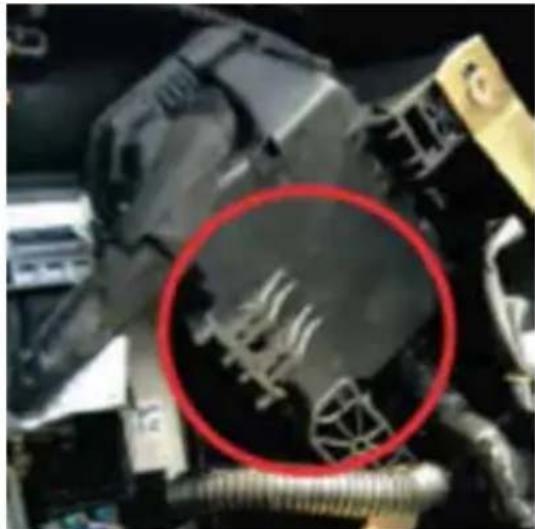

1. The longest leg on the terminal box needs to be cut off.

Close-up of mechanical components with a red circle highlighting a specific part (no visible text or symbols)

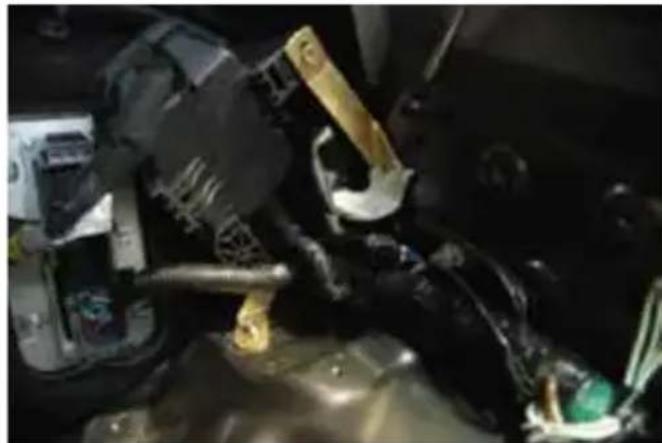

1. Back corner of the computer mount needs to be trimmed to fit around A/C pipe.

2. Remove relay from inner guard.

3. Place conduit over fuel line from canister.

4. Bolt computer mounts onto the inner guard, then bolt computer to mounts and move into position and tighten all bolts.

Close-up of a mechanical component with heat exchanger and mounting bracket (no visible text or symbols)

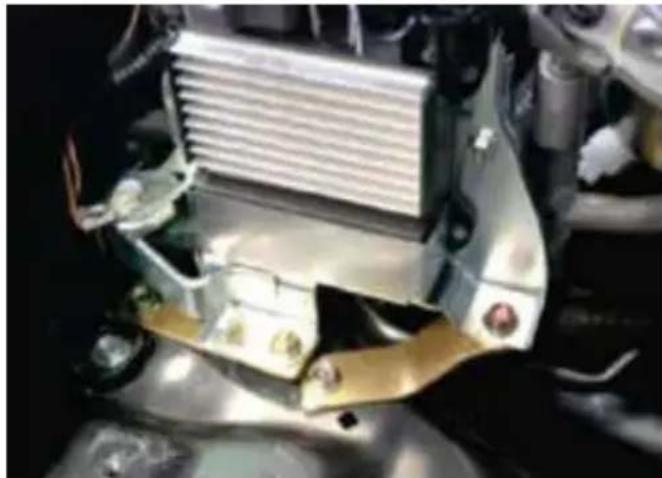

1. Bolt lower bracket on terminal box and bolt into position.

Close-up of mechanical components and tools in a dark environment (no visible text or symbols)

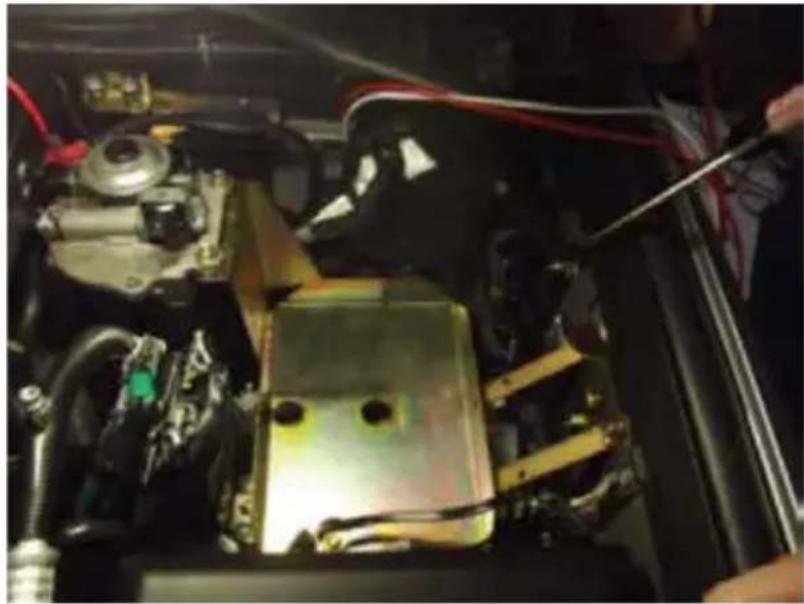

1. Modify relay mounts and bolt onto inner guard with terminal mount using the M6 bolt.

2. Place tray into position and bolt base mounts with 4 x M6 Hex bolts.

3. Bolt tray mounts to inner guard using M8 bolts.

4. Bolt fuel filter Canister to mounts on tray using 2 x M8 long bolts and nuts.

Close-up of a car engine bay with visible components and wiring (no text or symbols)

1. Lengthen wiring to fuel filter canister (2 x Plugs). Wire will need to be added to lengthen the cable.

2. Once the battery is in place secure top mount using J bolts and bolt to the brace using M6 bolt, nut & washer.

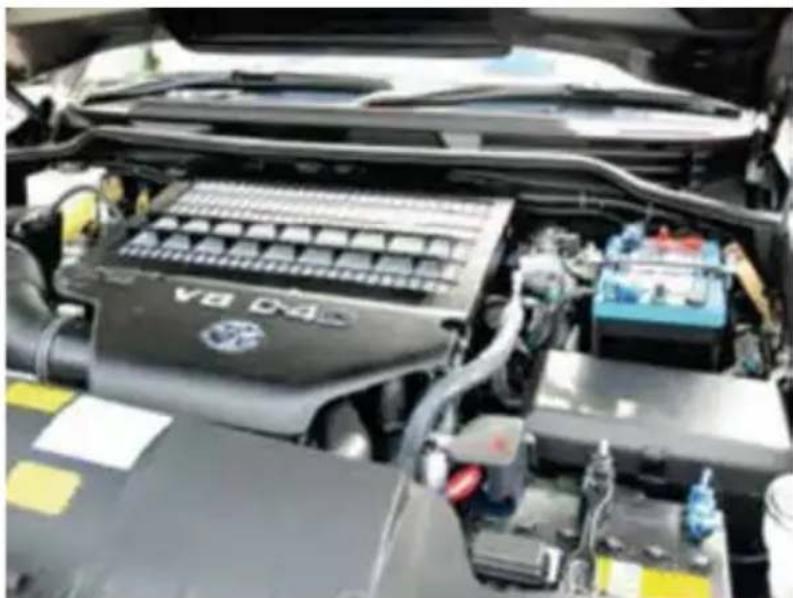

Close-up of a car's engine bay with visible battery, intake manifold, and fuel tank (no text or symbols)

1. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery and tray do not hit the bonnet.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
