USER MANUAL HDBT400 Projecta

Tray Fitting Instructions to suit Auxiliary battery for ISUZU D-MAX & MU-X (2nd Generation)

Years: 2012 onwards

Models: 3.0 Litre 4JJ1-TC Turbo Diesel

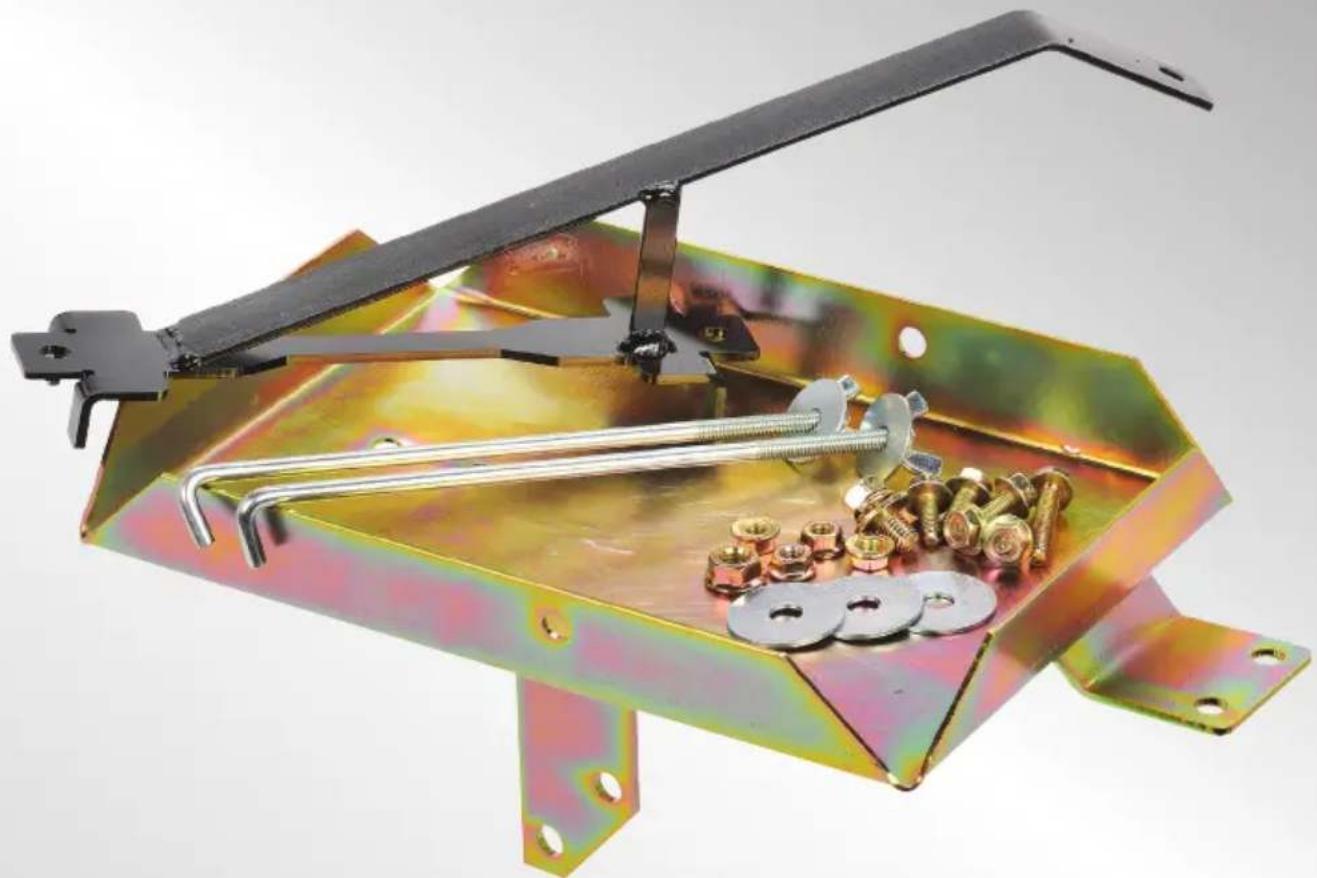

Metallic electrical switch device with bolts and metal frame (no text or symbols visible)

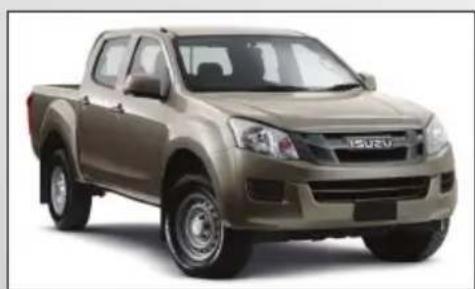

Exterior view of a beige Isuzu pickup truck (no signage or text visible)

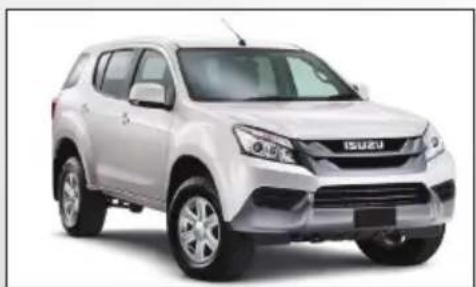

Exterior view of a white SUV (no visible text or symbols)

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

SPECIFICATIONS

Max Battery Size (mm) L265 x W174 x H200

Max Battery Weight 19.6Kg

Recommended batteries Optima D34 & Exide Orbital(Fully Sealed AGM type due to close proximity to wiring and computer)

Approximate fitting time 1.5 hours

Special tools Right Angle Drill

Recommended Dual P/n: IDC25, DBC100, DBC150, VSR100, VSR200Battery System

Tray Location Engine Bay, Passenger side near firewall

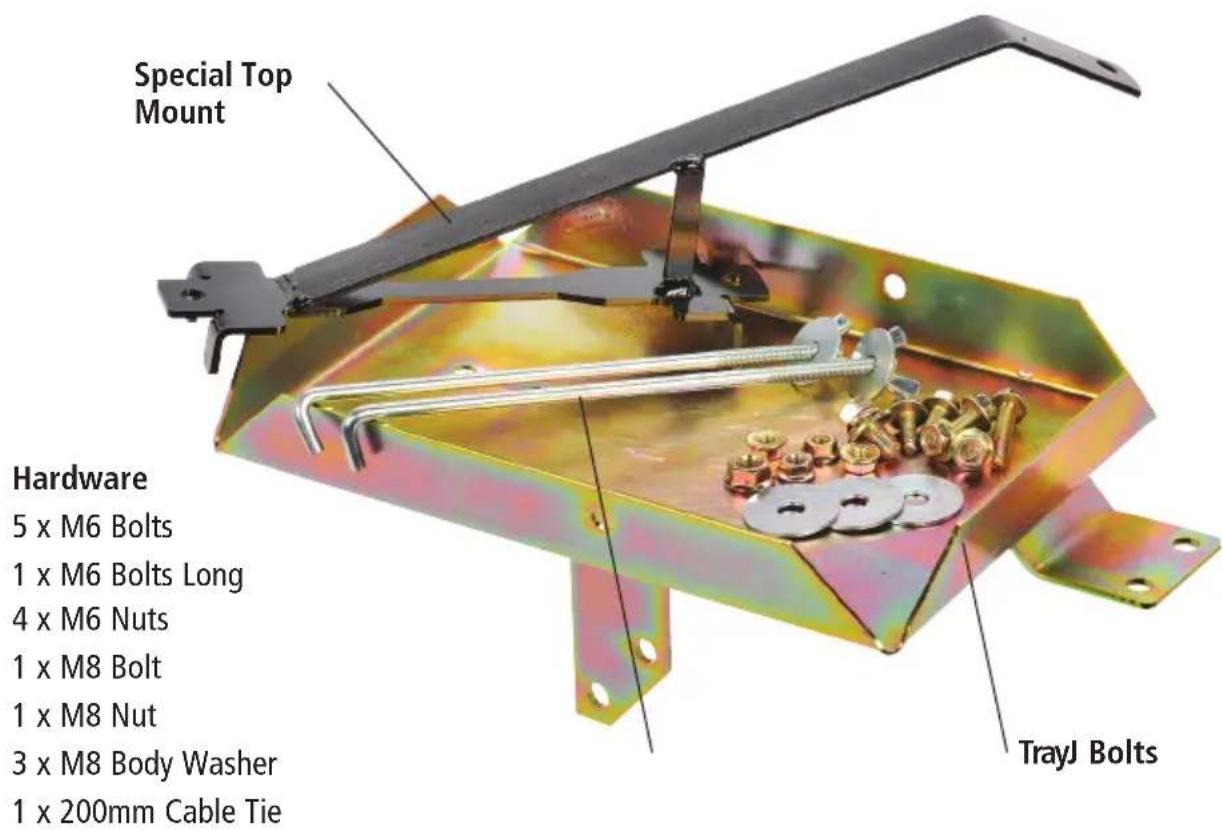

KIT INCLUDES

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the positive and negative battery terminal from the main battery.

2. Remove original starting battery

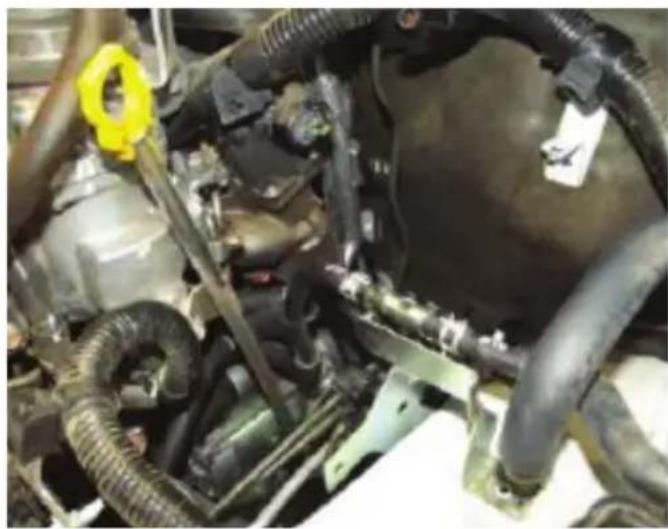

3. Unclip the wiring looms from around the battery and firewall.

Close-up of an automotive engine bay with hoses and components, no visible text or symbols

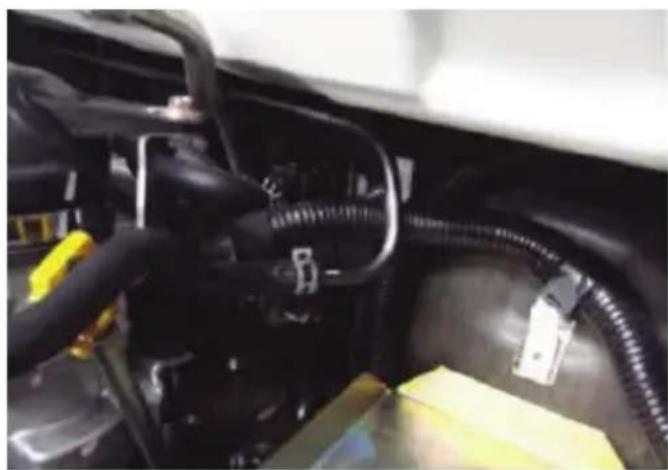

1. The white loom bracket on the firewall will need to be bent up for fitting of the battery.

Close-up of a car engine bay with hoses and connectors (no visible text or symbols)

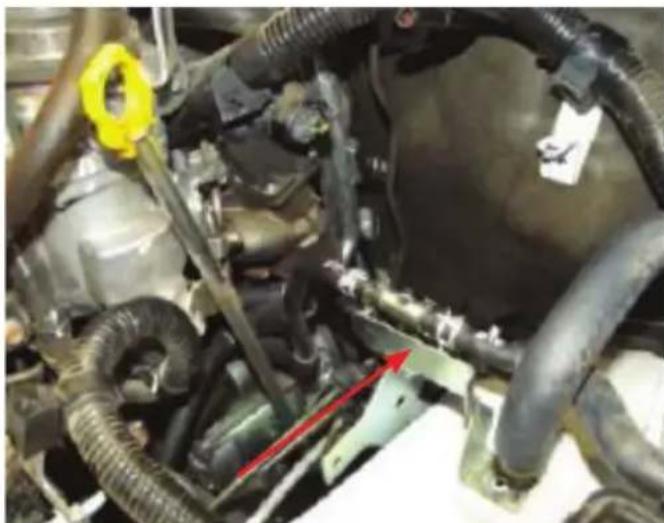

1. The metal pipe that runs under the scuttle panel will require manipulating to fit battery.

2. Unbolt and cut off mounting bracket for fuel lines leaving the fuel line connected to each other and re-route fuel lines behind fuel filter and filter mount.

Close-up of an engine bay with visible hoses and components, no text or symbols present

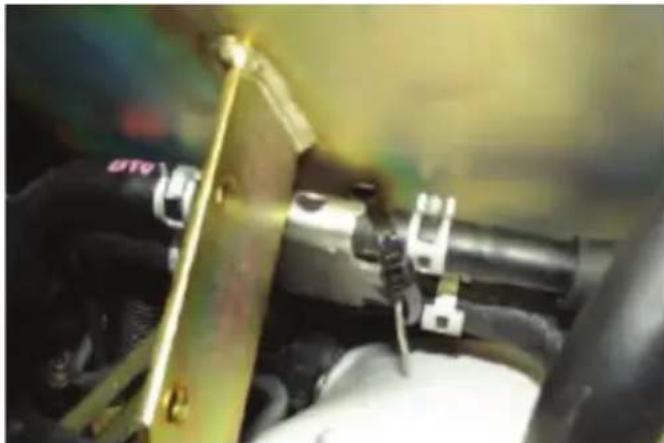

1. Place tray in position cable tie the fuel lines to the bracket indent in the tray.

Close-up of mechanical components with no visible text or symbols

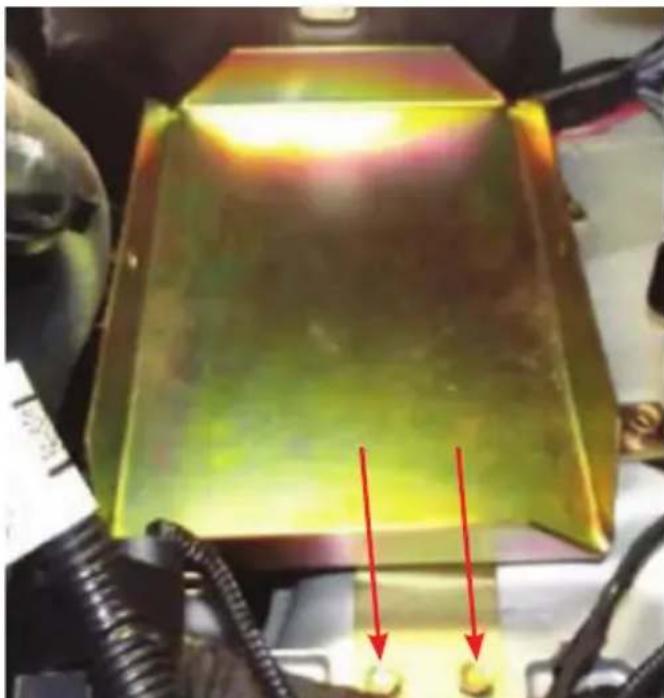

1. Manoeuvre tray into the correct position by lining up the 2 x M6 bolt holes directly behind the original battery tray. Do not tighten bolts.

Close-up of a golden rectangular electronic device with red arrows pointing to its base (no visible text or symbols)

1. Locate and hand tighten 1 x M6 Bolt, Nut and Washer through the hole next to fuel filter.

Golden rectangular object with reflective surface, possibly a container or mold, placed on a workbench with mechanical components nearby (no visible text or symbols)

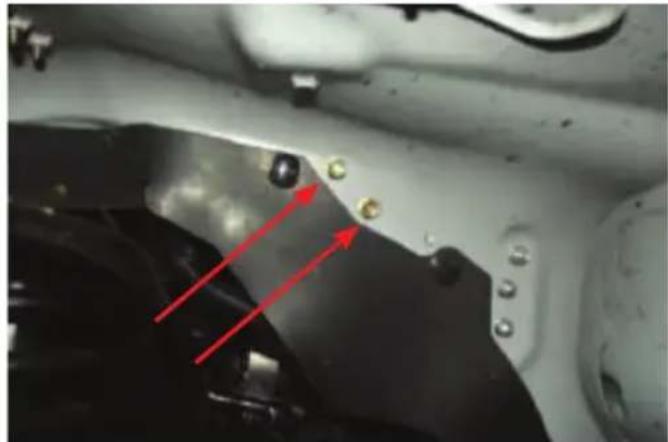

1. Locate and tighten 2 x M6 Bolts and nuts through inner guard and lower tray arm.

Close-up of a mechanical component with red arrows pointing to features, no visible text or symbols

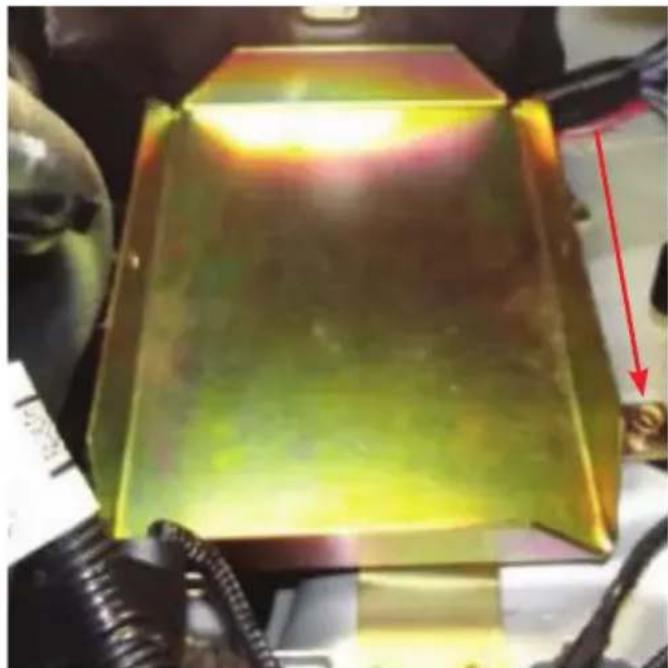

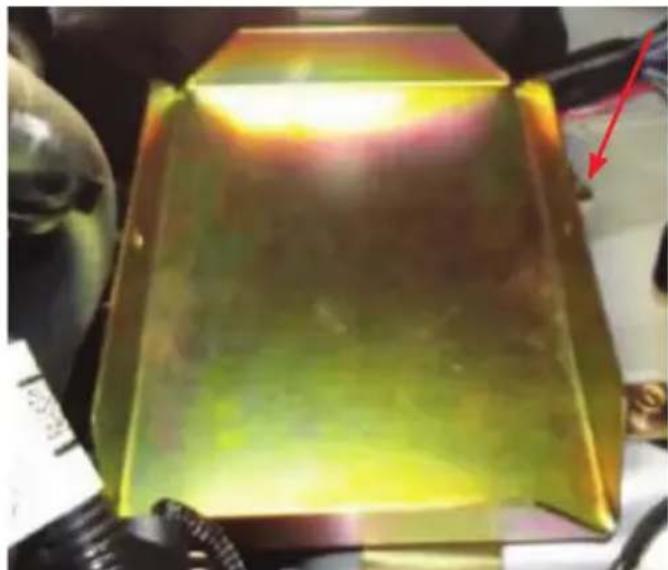

1. Using a right angle drill, and an 8mm drill bit. Drill through the rear tab on the tray behind the fuel filter into the inner guard. BE CAREFUL NOT DAMAGE FUEL LINES OR WIRING LOOMS

Close-up of a golden rectangular object with glossy surface and red arrow pointing to a small object (no text or symbols visible)

1. Using M8 Bolt push through the drilled hole through tray and inner guard tighten the underside using M8 body washer and M8 nut.

2. Tighten all bolts and nuts connecting the tray to the car.

3. Fit the negative terminal and cable to the battery, then install the battery with the negative terminal to rear of tray. DO NOT INSTALL BATTERY WITH POSITIVE TERMINAL TO REAR

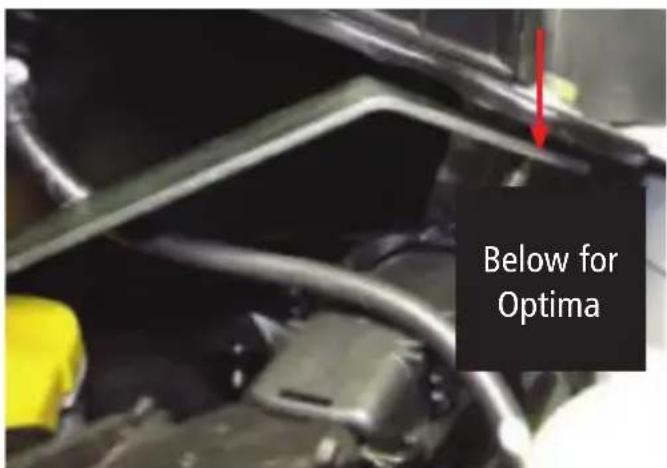

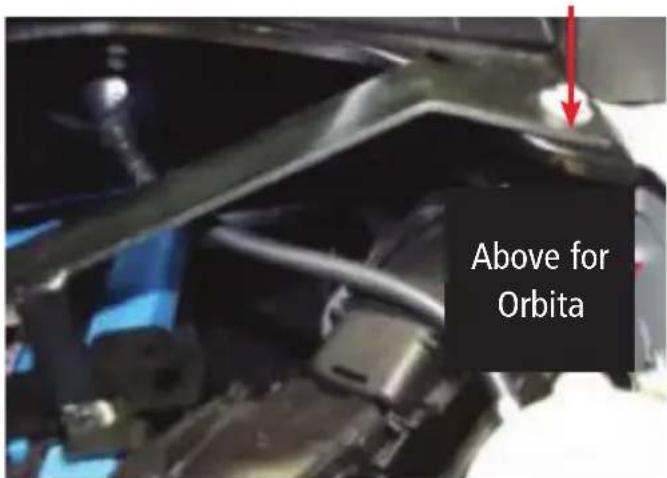

4. Unbolt scuttle panel bolt and use 1 x M6 Bolt long and nut in the following ways: a. Exide Orbital – Top mount sits above the scuttle panel use bolt and washer. b. Optima D34 – Top mount sits under scuttle panel.

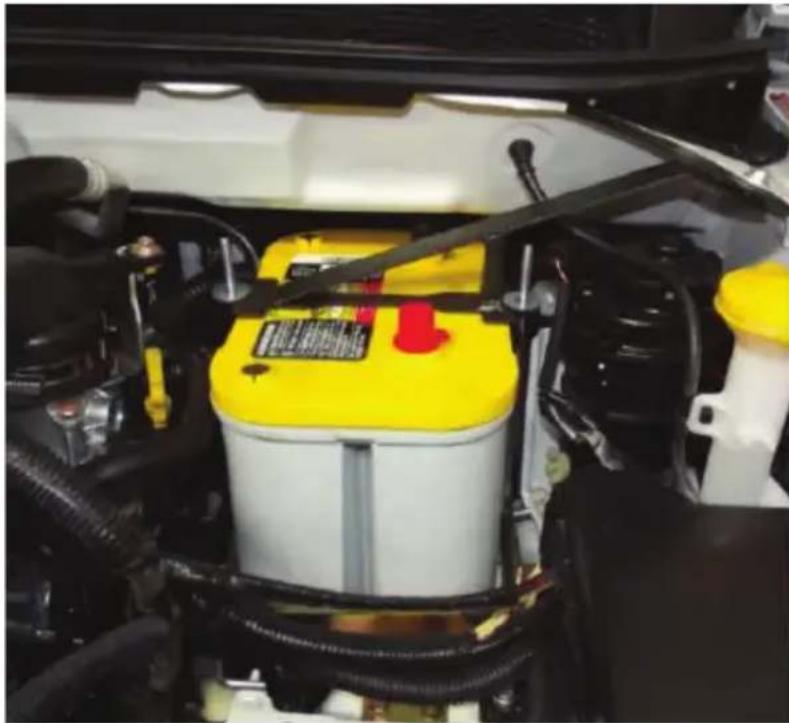

1. Fit J bolts and tighten the wing nuts.

Close-up of a car's battery assembly with yellow top and red valve (no visible text or symbols)

1. Refit factory battery.

2. Reconnect the positive then the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray do not hit the bonnet.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
