USER MANUAL HDBT350 Projecta

Tray Fitting Instructions to suit Auxiliary battery for Holden Colorado & Colorado 7

Years: 2011 onwards

Models: RGD 2.8 Litre Diesel

Metallic mechanical bracket assembly with bolts and metal brackets (no visible text or symbols)

Red SUV parked side by side, no visible text or symbols

Red pickup truck with silver alloy wheels and front grille (no visible text or symbols)

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

SPECIFICATIONS

Max Battery Size (mm) L265 x W174 X H200

Max Battery Weight 19.6Kg

Recommended batteries Optima D34 & Exide Orbital(Fully Sealed AGM type due to close proximity to wiring and computer)

Approximate fitting time 2 hours

Special tools Right Angle Drill

Recommended Dual P/n: IDC25, DBC150, VSR200Battery System

Tray Location Engine Bay, Passenger side near firewall

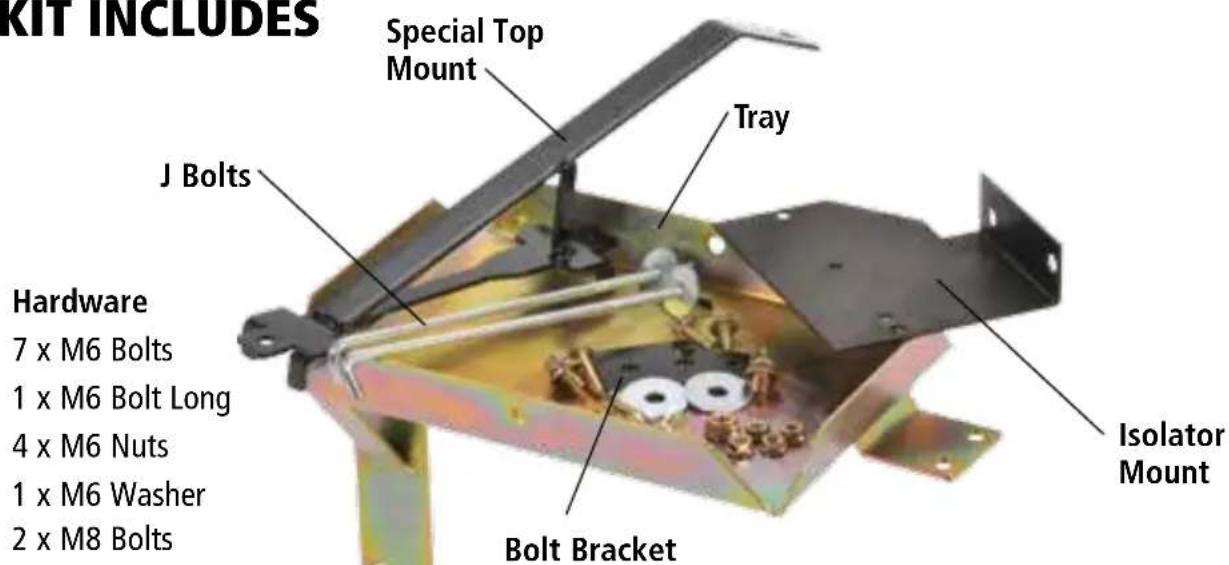

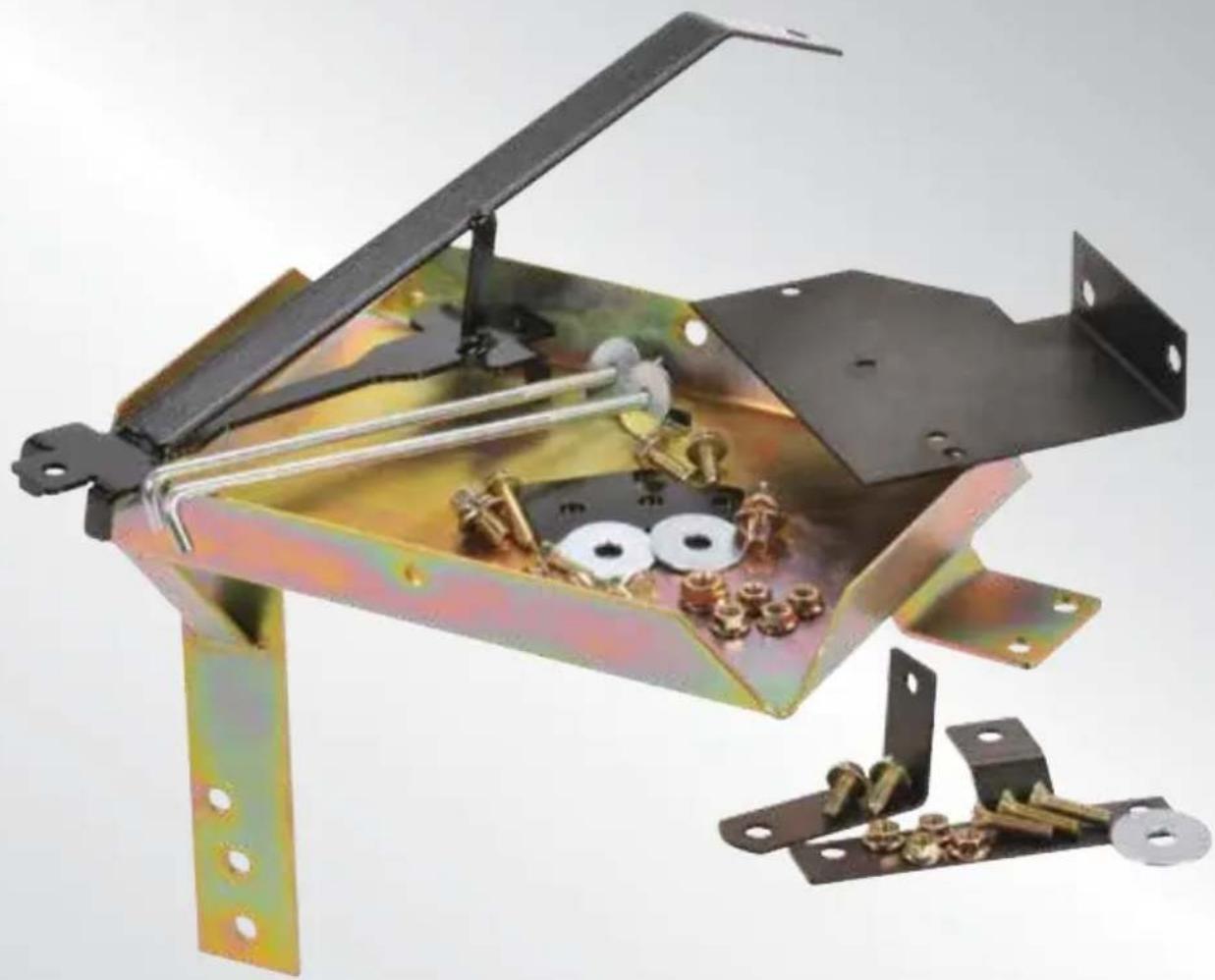

KIT INCLUDES

Computer Mount Bracket for late 2013 models

Hardware

7 x M6 Bolts

1 x M6 Bolt Long

4 x M6 Nuts

1 x M6 Washer

2 x M8 Bolts

1 x M8 Nut

1 x M8 Body Washer

*Need to supply

1 x Cushion Clamp

2 x M6 RIVNUTS are for isolator mount

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative and positive battery terminal from the main battery.

2. Remove the original battery & battery tray and 1 bolt only from the computer mount closest to the tray.

3. Disconnect multi-pin plug behind computer and move to fit along firewall and secure (Temporarily).

4. To allow clearance of the new battery tray.

a. You may need to bend L bracket on firewall.

b. Manipulate air-con pipe.

c. Unclip the loom behind factory tray.

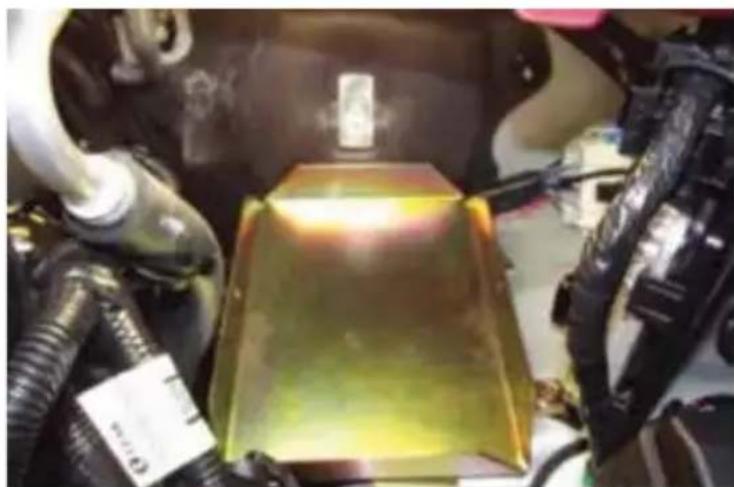

1. Fit Tray with lower arm between brake lines and inner guard.

2. Place 3 x M6 Bolts through special bolt bracket then into the existing holes on the inner guard, now push the bolts through the lower arm of the tray and hand tighten M6 Nuts.

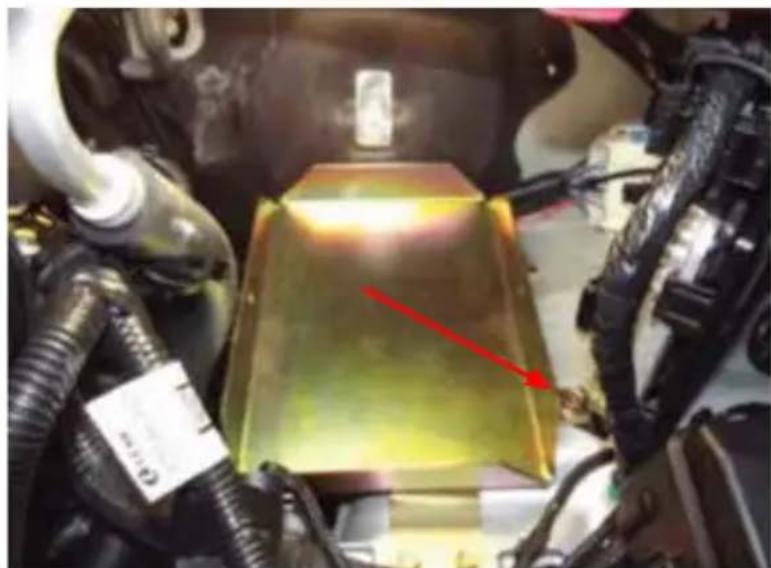

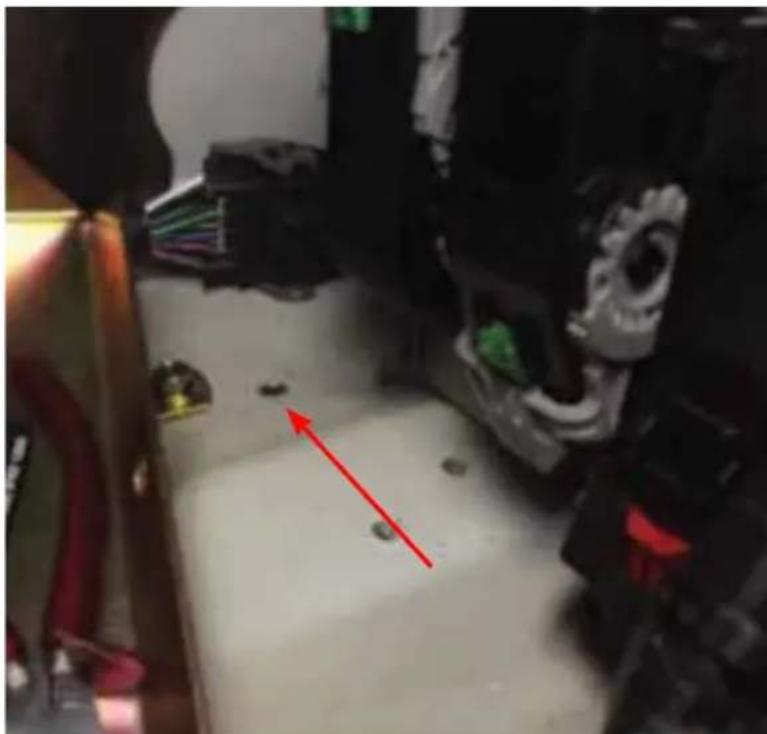

Close-up of a mechanical component with a red arrow pointing to a bolt detail (no visible text or symbols)

1. Place 2 x M6 Bolts into plate on the front of tray. Do not tighten yet. If fitting this to a July 2012 or older Colorado go to step 12. Follow these steps for August 2012 onwards.

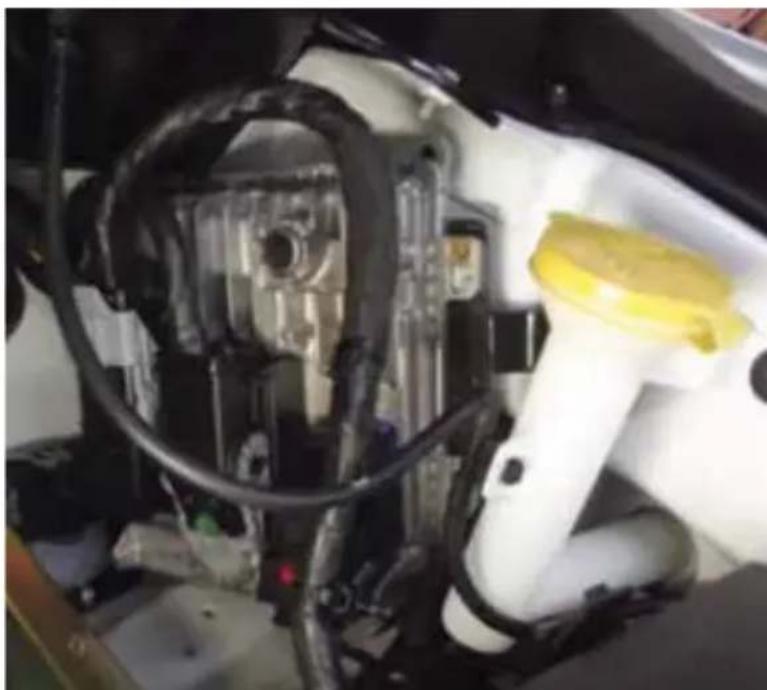

Close-up of a metallic mechanical component with attached wiring and connectors (no visible text or symbols)

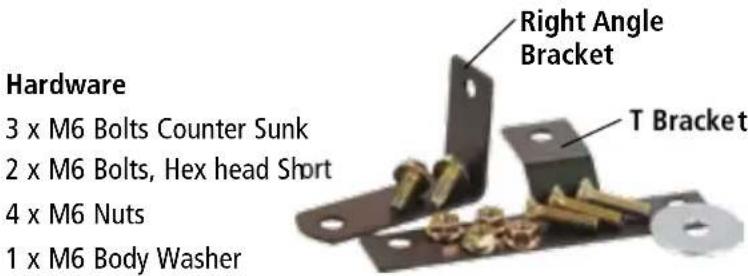

1. Remove existing computer with plastic bracket. Discard the plastic bracket.

a. Use M6 Countersunk bolt to long side of right. angle bracket and attach to computer while face down use lower hole.

b. Using 2 x M6 bolt countersunk attach T-bracket to the computer.

1. Drill 6mm hole through guard using the right angle Computer bracket as a template.

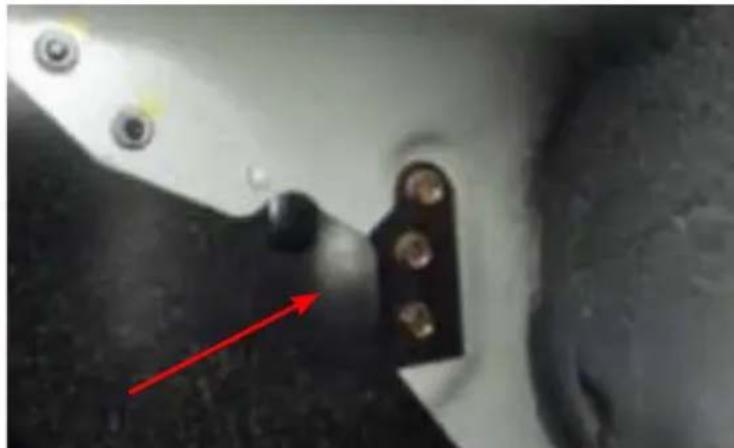

Close-up of mechanical components with red arrows pointing to specific parts (no visible text or symbols)

1. Using 1 x M6 Bolt Hex head, attach the right angle bracket to the guard with body washer and M6 nut on the underside and tighten.

2. Using M6 bolt Hex head attach one end of the T bracket to the captive nut behind washer bottle spout.

Close-up of a mechanical assembly with visible wiring and components (no text or symbols)

1. Place 1 x M8 bolts into front corner tab and also through the computer mount (bolt computer mount only for models older than 2013) and into the existing captured nut.

Close-up of a metallic mechanical component with red arrows pointing to a specific area, surrounded by hoses and connectors (no visible text or symbols)

1. Using an M8 drill bit, drill a hole in the inner guard through the pre-drilled hole in rear of tab of the tray.

Close-up of a car engine compartment with visible wiring and a highlighted gold component (no text or symbols)

1. Place M8 Bolt through the tab and inner guard. Place the body washer on the underside and tighten M8 Nut.

2. Tighten all other bolts and nuts.

3. Secure loom between tray and firewall with cushion clamp (P Clip).

4. Fit negative terminal and cable to the battery first, then install battery with negative terminal to rear of tray. DO NOT INSTALL BATTERY WITH POSTIVE TERMINAL TO REAR.

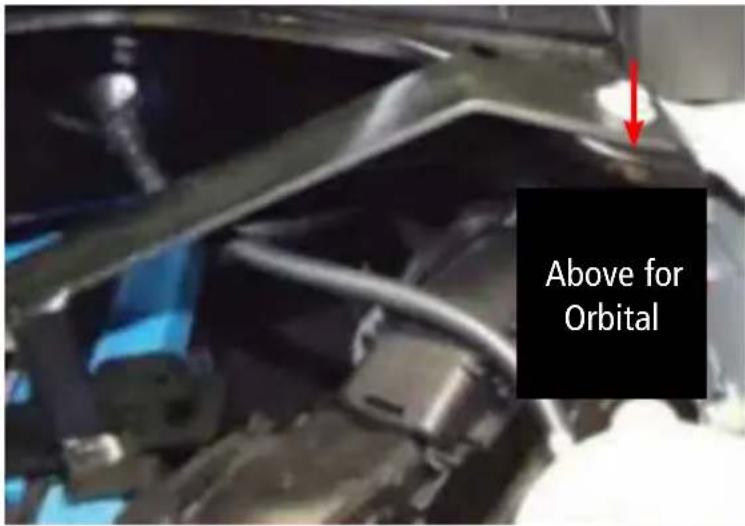

5. Unbolt scuttle panel bolt and use 1 x M6 long bolt in the following ways: a. Exide Orbital – Top mount sits above scuttle panel, use bolt washer.

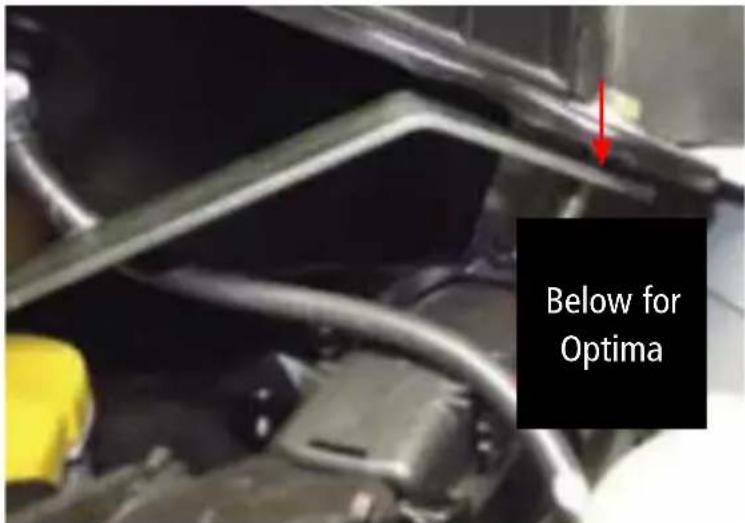

b. Optima D34 – Top mount sits under scuttle panel.

1. Fit J bolts and tighten the wing nuts.

2. Fit Dual Battery system to mounting bracket and bolt to the existing holes on the radiator support using 2 x M6 bolts.

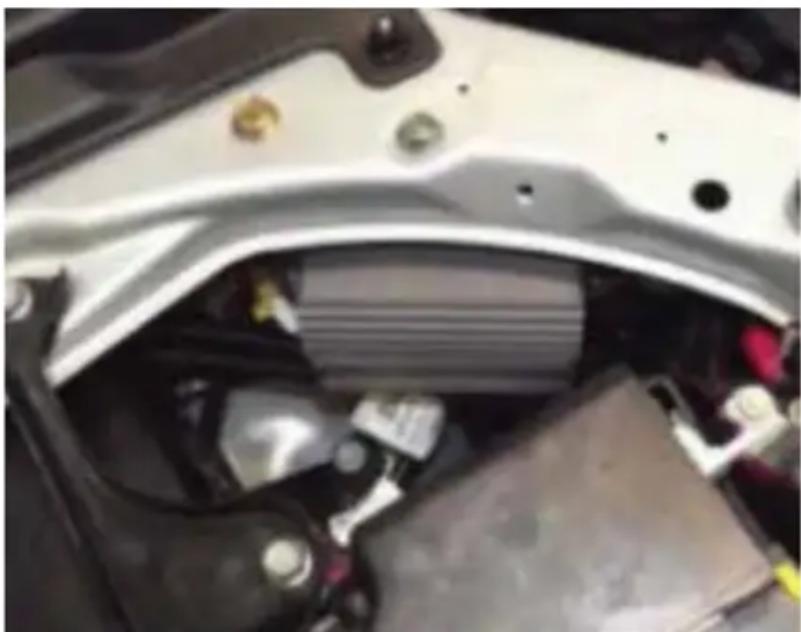

Close-up of a car's internal engine compartment showing structural components and wiring (no visible text or symbols)

1. Refit factory tray and battery

2. Reconnect the positive then the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray do not hit the bonnet.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
