USER MANUAL HDBT252 Projecta

Tray Fitting Instructions to suit Auxiliary battery for Mazda BT50 B3000 Automatic/Ford Ranger PJ-PK Automatic

Years: Jan 2007 – Oct 2011

Models: WLT – 2.5 Litre Turbo Diesel & 3.0 Litre Diesel

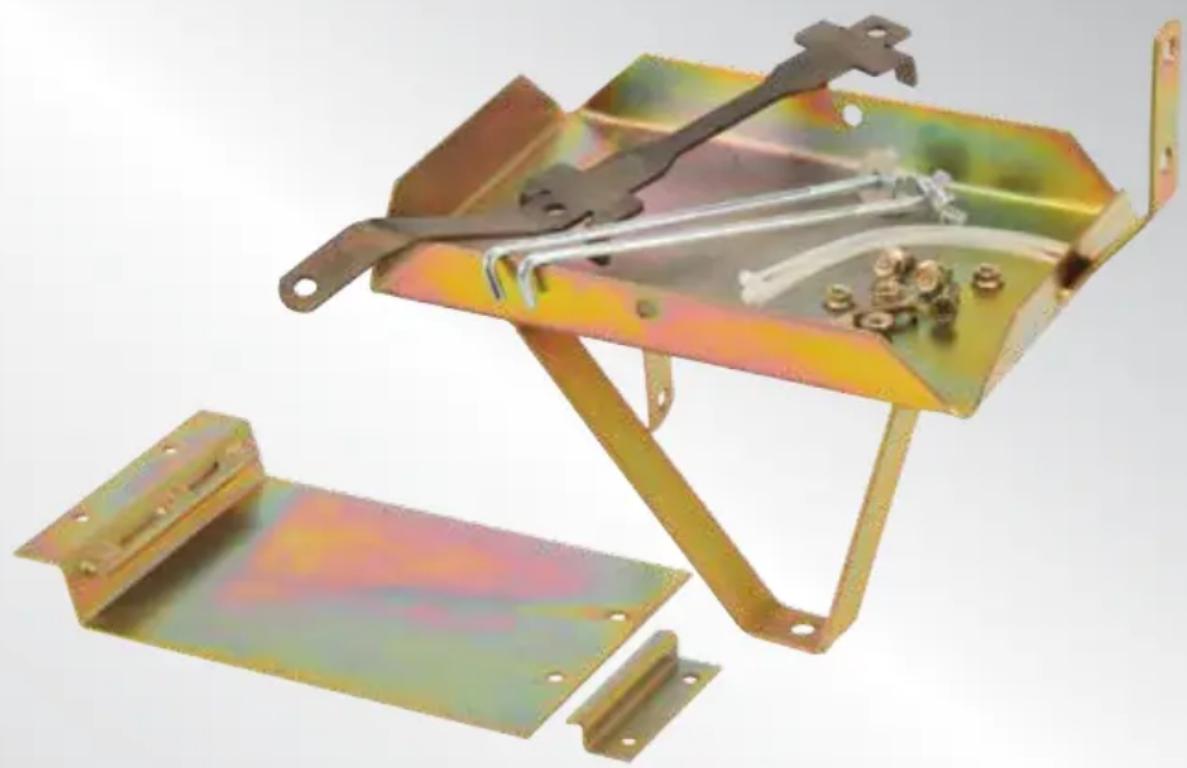

Metallic metal frame with attached clamps and bolts, shown from two angles (no text or symbols visible)

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.

SPECIFICATIONS

Max Battery Size (mm) L265 x W174 x H220

Max Battery Weight 18Kg

Recommended batteries Exide LCS 24-86, Exide ORBITAL ORB34DC & Century NS70T

Approximate fitting time 1.5 hours

Special tools None required

Recommended Dual IDC25, DBC100, DBC150, VSR100 or VSR200Battery System

Tray Location Engine Bay, Passenger Side near radiator support

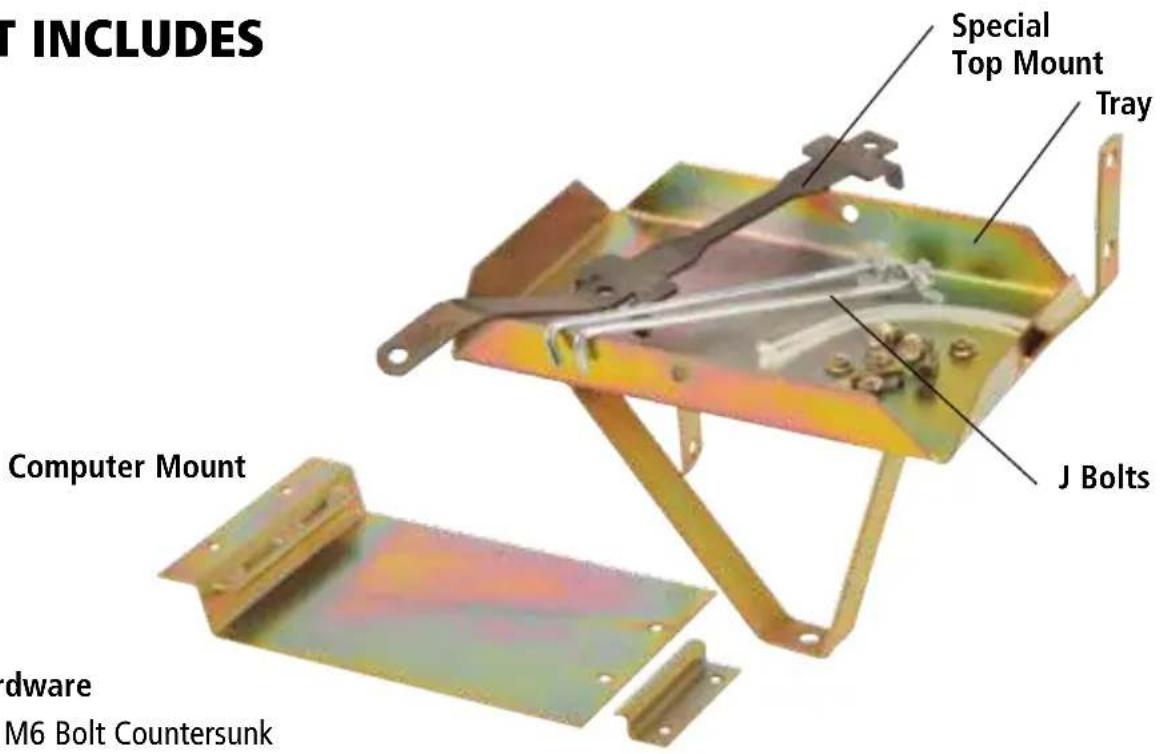

KIT INCLUDES

Hardware

2 x M6 Bolt Countersunk
5 x M6 Nut
5 x M6 Bolts Hex
1 X M8 Bolt
5 x 150mm Cable tie

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminals from the main battery.
2. Your Auxiliary tray will be located between the passenger side headlight and air cleaner. Remove the rear M8 bolt with large flange located on inner guard where you will locate tray, in between the headlight and air cleaner and retain.
3. Move wiring loom from the same position.
4. Remove Computer mounting bracket from inner guard.
5. Remove wiring and relay from bracket.
6. Remove computer from bracket by removing 2 x M6 nuts and removing hold down bracket.
7. Bolt computer to new computer mount, using top clamp.

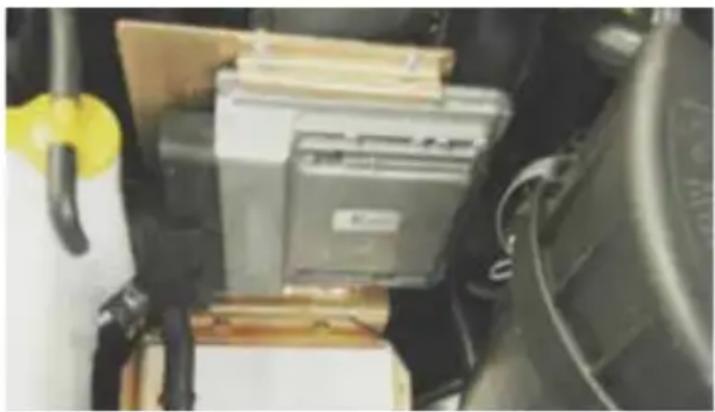

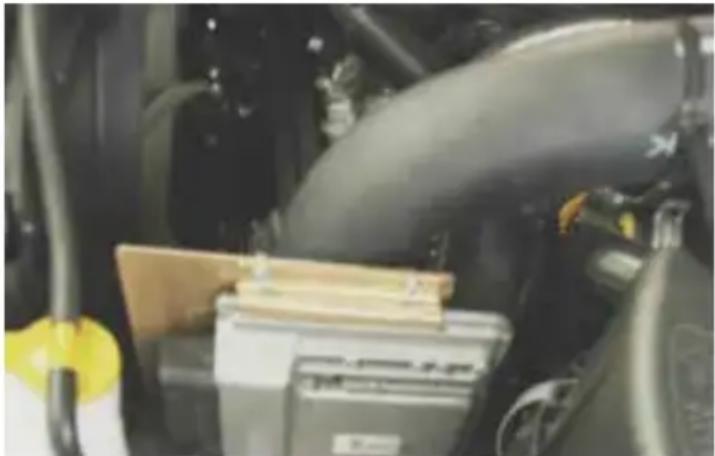

Interior view of a car showing dashboard, seatbelt, and battery pack (no visible text or symbols)

1. Bolt computer mount to side of tray using 2 x M6 bolts Countersunk and M6 Whizlocks.

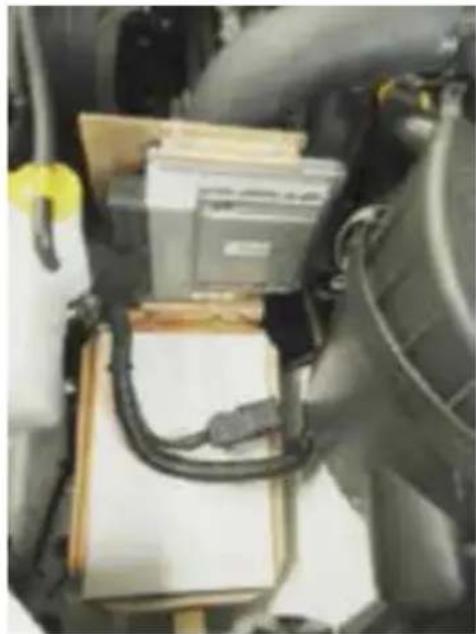

Close-up of a mechanical device with attached components and a yellow tag, no visible text or symbols

1. Install battery tray into position. Bolt the tray in.

Close-up of a car engine bay with visible wiring and components (no text or symbols)

1. Replace M8 bolt from step 2 through bottom bracket into guard.
2. Place two M6 Hex bolts in upper bracket into the exiting captive nuts.
3. Cable tie relay securely to wiring loom.
4. Cable tie wiring to tray.
5. Place battery in tray.

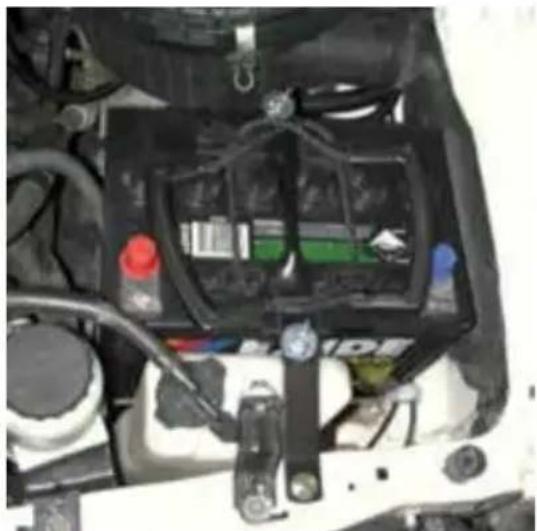

Close-up of a car's internal battery compartment showing red, green, and blue components (no visible text or symbols)

1. Fit the J bolts and line up the Special top mount with the radiator support. Mark and drill 6mm hole through the support.
2. Fit and tighten M6 Hex Bolt and Whizlock underneath. Tighten Nuts on the J bolts.
3. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
