Product type	Active monitoring speaker
Model	S-DJ80X
Brand	PIONEER
Speaker type	Active bi-amplified 2-way speaker
Woofer	20 cm (aramid fiber cone)
Tweeter	2.5 cm (soft dome)
Frequency response	40 Hz - 20 kHz
LF amplifier power	70 W
HF amplifier power	20 W
Input impedance	10 kΩ
Balanced input connectors	XLR × 1, TRS (6.35 mm jack) × 1
Unbalanced input connector	RCA × 1
Enclosure type	Bass-reflex
Enclosure material	MDF
Mains voltage	100-120 V / 220-240 V (selectable)
Power consumption	160 W
Standby power consumption	≤ 0.5 W
Dimensions (W × H × D)	276 mm × 401 mm × 315 mm
Weight	11.8 kg
Special features	Level adjustment, HF adjustment, auto standby
Supplied accessories	Power cord, instruction manual, warranty card
Safety	Grounded plug, do not block ventilation, minimum 30 cm clearance
Maintenance and cleaning	Clean with a dry cloth, do not use solvents
Repairability	No user-serviceable parts, contact authorized service center

Frequently Asked Questions - S-DJ80X PIONEER

How to power on the S-DJ80X speaker?

Connect the supplied power cord to the AC IN socket on the rear, then plug it into a wall outlet. First set the VOLTAGE SELECTOR switch to the appropriate voltage, then set the POWER switch to ON. The POWER indicator lights up on the front.

What to do if no sound comes out of the speaker?

Check that the power cord is plugged in, the POWER switch is ON, and the volume (LEVEL knob) is high enough. Make sure the audio source is properly connected (XLR, TRS or RCA) and its volume is set. If the auto standby function is enabled, disable it or increase the input signal.

How does auto standby work?

The AUTO STANDBY switch enables or disables auto standby. When enabled, the speaker enters standby mode after approximately 25 minutes without input signal to save energy. It wakes up automatically when a signal is detected. If the signal is too weak, disable this function for normal use.

What to do if the POWER indicator stays off?

Check that the POWER switch is in the ON position. If auto standby is enabled, the indicator turns off in standby mode. To turn it back on, turn the POWER switch off, wait a few seconds, then turn it on again. Also make sure the power cord is properly connected.

How to adjust the treble on the speaker?

Use the HF LEVEL ADJ knob on the rear. You can select between -2 dB, -1 dB, 0 dB and +1 dB to adjust the high-frequency response according to your acoustic preferences.

Can I use XLR and TRS inputs at the same time?

No, do not connect the XLR INPUT and TRS INPUT connectors simultaneously. Use one or the other, but not both at the same time. The RCA inputs can be used separately.

What clearance is needed around the speaker?

Leave at least 30 cm above, behind and on each side of the speaker to ensure adequate ventilation. Do not place objects blocking the ventilation openings to avoid overheating.

How to clean the S-DJ80X speaker?

Unplug the speaker before cleaning. Use a soft, dry cloth. Do not use solvents, chemicals or wet cloths. Avoid getting water into the openings.

What to do in case of sound distortion?

Reduce the volume with the LEVEL knob on the rear or lower the output level of the audio source. Also check that the cables are properly connected and that the inputs are not overloaded.

Where can I find spare parts or have the speaker repaired?

No user-serviceable parts are inside. For any repair or replacement, contact a Pioneer-authorized service center or your dealer. Non-domestic use may void the warranty.

USER MANUAL S-DJ80X PIONEER

The Pioneer DJ support site shown above offers FAQs, information on software and various other types of information and services to allow you to use your product in greater comfort.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

CAUTION

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

D3-4-2-1-1_B1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

CAUTION

The POWER switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

For Finland customers

For Norway customers

For Sweden customers

Apparaten skall anslutas till jordat uttag

D3-4-2-1-6b_A1_En

Do not attach these speakers to the wall or ceiling, as they may cause injury in the event of a fall.

SGK007*_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*_A1_En

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 30 cm at top, 30 cm at rear, and 30 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058b_A1_En

Introduction

Main Features

Diffuser on the waveguide improves sound directivity and provides spacious sound.

Aramid fiber woofer cone is light and extremely rigid, which provides the best bass response.

Grooves on the bass-reflex duct improve the airflow and provide loss-less bass performance.

Confirm All Accessories

• Power cord (1)
• Operating Instructions (this document)

- Warranty card

Names and Functions of Parts

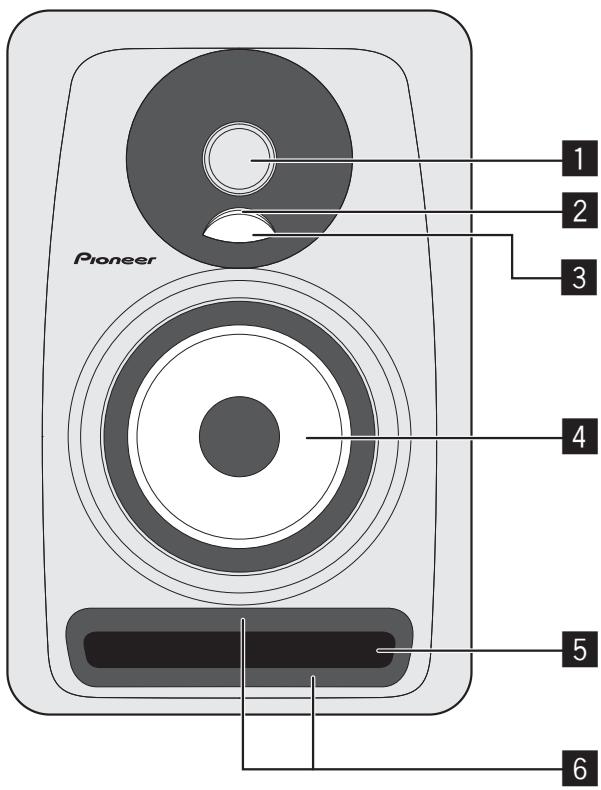

Front Panel Facilities

Pioneer 1 2 3 4 5 6

1 inch high-resolution soft dome tweeter
2 Illumination (POWER indicator)

Lights up according to whether the power is on or off. The indicator does not light up when the speakers are in standby mode.

3 Diffuser

Improves the directionality and diffusion of high-frequency sounds.

4 Aramid fiber woofer

Light and extremely rigid cones provides the best bass response.

5 Bass-reflex duct
6 Groove

Regulates the flow of air in the bass-reflex duct to enable powerful low-frequency sounds with little loss in sound.

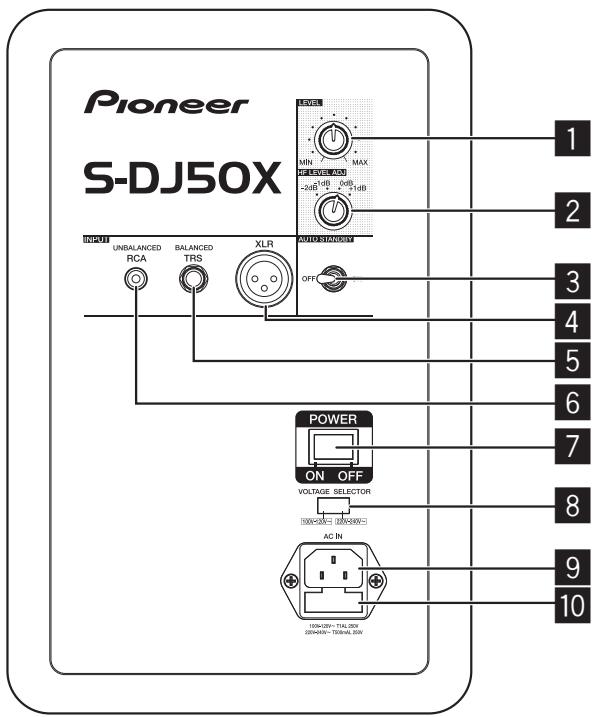

Rear Panel Facilities

Pioneer S-DJ50X INLOT UNIBALANCED BALANCED TRS XLR MIN MAX -2dB dB OUT STANDARD OFF POWER ON OFF VOLTAGE SELECTOR AC IN 100kΩF~T14.22W 220kΩF~T38kA.22W 1 2 3 4 5 6 7 8 9 10

* The S-DJ50X is shown in the illustration.

1 LEVEL dial

Use to adjust the sound level (volume).

2 HF LEVEL ADJ dial

Use to adjust high-frequency sounds.

You can select from -2 dB, -1 dB, 0 dB, and 1 dB.

3 AUTO STANDBY switch

Use to turn the auto standby function on or off. When the auto standby function is turned on, the speakers automatically enter standby mode if no input signal is received for a certain period of time (approximately 25 minutes) and power consumption can be reduced. When an input signal is received while the speakers are in standby mode, the speakers will automatically resume from standby mode.

• The illumination (POWER indicator) on the front panel turns off when the speakers enter standby mode.
• When the input signal is weaker than a certain level, the speakers may not automatically resume from standby mode. In such cases, turn off the [AUTO STANDBY] switch to use the speakers.
• To force the speakers to resume from standby mode, turn off the [POWER] switch on the rear panel once, and turn it back on after a few seconds.

4 XLR INPUT connector

XLR type balanced input connector. The connector's pin array is as follows: No. 1 Ground, No. 2 Hot, and No. 3 Cold.

5 TRS INPUT jack

Balanced-input phone jack.

CAUTION

Do not connect to both the XLR INPUT connector and the TRS INPUT jack at the same time.

6 RCA INPUT jack

RCA pin-type unbalanced input jacks.

7 POWER switch

Use to turn the power on and off.

CAUTION

Before turning on the power, make sure to check that the [VOLTAGE SELECTOR] switch is set to the appropriate voltage for the country or region where the speakers will be used. If the [VOLTAGE SELECTOR] switch is not correctly set, contact a Pioneer service center and request that the set voltage be changed and the fuse be replaced. At the time of shipment, a fuse with the appropriate voltage setting is set in the product. When it becomes necessary to change the voltage setting, the fuse must be replaced.

8 VOLTAGE SELECTOR switch

This switch is used to select the appropriate voltage settings for the country/region of use. It is not to be used by the customer directly.

9 AC IN

Connect the accessory power cord here and to an AC power outlet. Do not plug in the power cord until all other connections have been completed. Use only the furnished accessory power cord.

10 Fuse holder

Installation and Connections

How to Install

A speaker's playback sound is delicately influenced by conditions in the listening room. To produce optimum listening conditions, take due consideration of the conditions of your installation location before beginning actual installation.

- Place the speakers at ear level.

Simple line drawing of a human head facing two speakers (no text or symbols)

- For a natural stereo effect, the right and left speakers should be installed in symmetrical and equidistant positions from the listening position.

- Speakers should ideally be located at 30^ angles from the listening position (together forming a total 60^ angle), and rotated inward to face the listening position.

50° ~ 60°

CAUTION

To promote proper cooling, please assure that sufficient space is preserved between the speakers and nearby walls or other components (minimum 30 cm or more above, behind, and to right and left sides of each speaker). Leaving insufficient space between the speaker and walls or other components may lead to rising interior temperatures, leading to malfunction or damage.

Connections

• When making or changing connections, always turn off the power and disconnect the power cord from its outlet.
• Also, be sure to read the operating instructions for the other components to which you are connecting these speakers.
• Do not plug in the power cord until all other connections have been completed.

• Use only the furnished accessory power cord.

• Do not connect to both the XLR INPUT connector and the TRS INPUT jack at the same time.

• Make sure to set the sound level at an appropriate level as the input signals to the XLR INPUT connector (or TRS INPUT jack) and RCA INPUT jack will be mixed together, affecting the sound level.

Additional Information

Troubleshooting

• If you think you are experiencing a malfunction with this unit, check the following items. Also check other devices connected to the unit. If the problem persists, consult your dealer for service.
• On occasion, the unit may fail to operate properly due to static electricity or other external conditions. In this event, disconnect the power cord and wait for five minutes or more, then reconnect the power cord and check for proper operation.

Symptom	Items to Check	Remedy
No power	Is power cord connected properly?	Connect power cord to outlet.
No sound from connected audio devices, or sound is very small.	Has connected audio device been set properly?	Set device's external input and sound volume properly.
	Is connection cable connected properly?	Connect cables properly.
	Are connectors or plugs dirty?	Clean connectors and plugs before connecting.
	Is the sound volume set properly?	Turn the [LEVEL] dial on the rear panel clockwise and turn up the volume.
	Is the power turned on?	Turn on the [POWER] switch on the rear panel.
	Is the auto standby function on?	Turn off the [POWER] switch on the rear panel once, wait a few seconds, and then turn it back on.
Illumination (POWER indicator) remains turned off.	Is the power turned on?	Turn on the [POWER] switch on the rear panel.
	Is the auto standby function on?	Turn off the [POWER] switch on the rear panel once, wait a few seconds, and then turn it back on.
Speakers do not resume (turn on) from standby mode.	Is the level of the input signal low?	Increase the level of the input signal.
		Turn off the [AUTO STANDBY] switch to turn off the auto standby function.
Sound is distorted.	Is the sound level set properly?	Slowly turn the [LEVEL] dial on the rear panel counterclockwise and turn down the volume.
	Is the output level of the connected audio device set properly?	Adjust the output level of the connected audio device properly.
Feedback (continuous howling sound)	Is the sound volume set properly?	Slowly turn the [LEVEL] dial on the rear panel counterclockwise and turn down the volume.

Trademarks

• Pioneer is a registered trademark of PIONEER CORPORATION.
• Other listed company names and a product name are the registered trademark of the companies or trademarks.

Specifications

	S-DJ50X/S-DJ50X-W	S-DJ60X	S-DJ80X
Type	Bi-amp 2-way active speaker
Amplifier
LF amp	30 W	50 W	70 W
HF amp	15 W	20 W	20 W
Input connectors (balanced input)	XLR × 1, TRS (1/4 inch Phone) × 1
Input connectors (unbalanced input)	RCA × 1
Impedance	10 kΩ
Speaker
Enclosure	Bass reflex
Enclosure material	MDF
Woofer (LF driver)	13 cm cone	15 cm cone	20 cm cone
Tweeter (HF driver)	2.5 cm soft dome
Playback response	50 Hz to 20 kHz	45 Hz to 20 kHz	40 Hz to 20 kHz
Power unit/other
Supported voltages	100 V to 120 V (50 Hz to 60 Hz) / 220 V to 240 V (50 Hz to 60 Hz) conversion
Power consumption	100 W	140 W	160 W
Power consumption during standby mode	0.5 W or less
External dimensions W × H × D	197 mm × 301 mm × 262 mm	228 mm × 342 mm × 295 mm	276 mm × 401 mm × 315 mm
Weight	6.5 kg	8.5 kg	11.8 kg

Specifications and design subject to possible modification without notice, due to improvements. © 2013 PIONEER CORPORATION. All rights reserved.
