USER MANUAL X-HM50-S PIONEER
Discover the benefits of registering your product online at
http://www.pioneer.co.uk (or http://www.pioneer.eu).
Operating Instructions
Mode d'emploi
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
D3-4-2-1-1_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.
D3-4-2-1-3_A1_En
WARNING
Before plugging in for the first time, read the following section carefully.
The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.
D3-4-2-1-4*_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
VENTILATION CAUTION
When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).
WARNING
Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.
D3-4-2-1-7b*_A1_En
Operating Environment
Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)
D3-4-2-1-7c*_A1_En
If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal.
The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).
D3-4-2-2-1a_A1_En
CAUTION
The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).
D3-4-2-2-2a*_A1_En
This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.
K041_A1_En
(Symbol for equipment)
(Symbol examples for batteries)
Pb
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
These symbols are only valid in the European Union.
For countries outside the European Union:
If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
K058a_A1_En
CAUTION
This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product.
Refer all servicing to qualified personnel.
The following caution label appears on your unit.
Location: Inside of the unit
CLASS 1 LASER PRODUCT
CAUTION
CLASS 3B INVISIBLE LASER RADIATION WHEN OPEN, AVOID EXPOSURE TO THE BEAM.
ATTENTION
RADIATIONS LASER INVISIBLES DE CLASSE 3B QUAND OUVERT. ÉVITEZ TOUT EXPOSITION AU FAISCEAU.
ADVARSEL
KLASSE 3B USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSÆTTELSE FOR STRÅLING.
WARNING
KLASS 3B OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. UNDVIK ATT UTSÄTTA DIG FÖR STRÅLEN.
VORSICHT
BEI GEÖFFNETER ABDECKUNG IST UNSICHTBARE LASERSTRAHLUNG DER KLASSE 3B IM GERÄTEINNEREN VORHANDEN. NICHT DEM LASERSTRAHLAUSSETZEN!
PRECAUCIÓN
If the player is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which the player is installed rises suddenly due to a heater, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, the player will not operate properly and playback is not possible. Let the player stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if the player is exposed to the direct wind from an air-conditioner. If this happens, move the player to a different place.
S005_A1_En
Laser Diode Properties
Material: AlGaAs
Wavelength: 790 nm
Emission Duration: continuous
Laser Output: max. 0.7 mW
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
iPod and iPhone are a trademarks of Apple Inc., registered in the U.S. and other countries.
● X-HM50 CD Receiver System consisting of main unit and speaker system.
Introduction
Thank you for purchasing this PIONEER product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your PIONEER product.
Special Note
Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Accessories
Please confirm that the following accessories are included.
 iPhone adaptors x 3 |  Remote control x 1 |  “AAA” size battery(UM/SUM-4, R3, HP-16or similar) x 2 |  AM loop aerial x 1 |
 FM aerial x 1 |  Speaker wires x 2 | Warranty cardThese operating instructions |
CONTENTS
Page
Precautions 5
Controls and indicators 5 - 6
Preparation for Use
System connections 7 - 8
Remote control 8
Basic Operation
General control 9
Setting the clock (Remote control only)....9 - 10
iPod and iPhone
Listening to the iPod or iPhone 10 - 11
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc .....12
Advanced CD or MP3/WMA disc playback ..... 13 - 14
MP3/WMA folder mode
(only for MP3/WMA files)....14 - 15
Page
USB
Listening to USB mass storage
device/MP3 player 15 - 16
Advanced USB playback 16
Radio
Listening to the radio 17
Advanced Features
Using the Radio Data System (RDS) 18-20
Timer and sleep operation
(Remote control only) 21 - 22
Enhancing your system 23
References
Troubleshooting chart 23 - 24
Maintenance 24
Specifications 25
General
● Use the unit on a firm, level surface free from vibration.
- Place the speakers at least 30 cm away from any CRT TV to avoid colour variations across the TV screen. If the variations persist, move the speakers further away from the TV. LCD TV is not prone to such variation.
- Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise.
● Do not place anything on top of the unit.
- Do not expose the unit to moisture, to temperatures higher than 60^ (140°F) or to extremely low temperatures.
- If your system does not work properly, disconnect the AC power lead from the wall socket. Plug the AC power lead back in, and then turn on your system.
● In case of an electrical storm, unplug the unit for safety.
- Hold the AC power plug by the head when removing it from the wall socket, as pulling the lead can damage internal wires.
● The AC power plug is used as a disconnect device and shall always remain readily operable.
- Do not remove the outer cover, as this may result in electric shock. Refer internal service to your local PIONEER service facility.
● The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.
- No naked flame sources, such as lighted candles, should be placed on the apparatus.
- Attention should be drawn to the environmental aspects of battery disposal.
● The apparatus is designed for use in moderate climates.
Warning:
The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. PIONEER will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.
Volume control
The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.
Controls and indicators

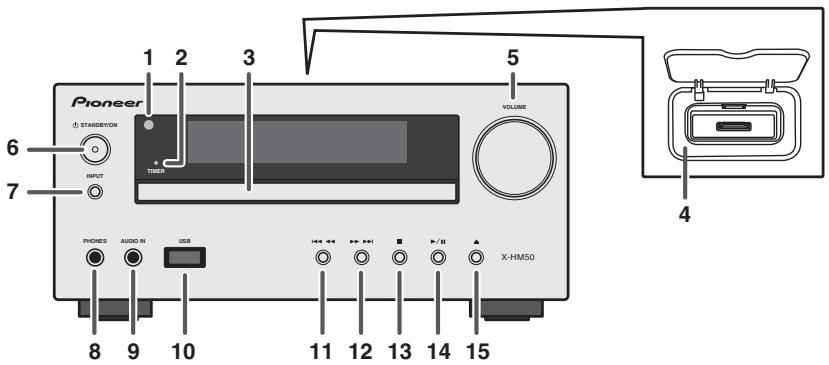

Front panel
Page

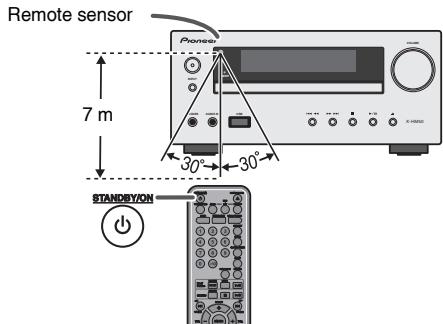

- Remote sensor....8
- Timer indicator.... 21
- Disc Tray.... 12
- iPod or iPhone Docking Station.... 10
- Volume Control 9
- STANDBY/ON Button....9, 11, 12, 17
- INPUT Button.... 11, 12, 15, 17
- Headphone Socket 23
- Audio In Socket 23
Page
- USB Terminal ..... 15
- Tuner Preset Down, CD/USB Track Down, iPod/iPhone Skip Down....11, 12
- Tuner Preset Up, CD/USB Track Up,
iPod/iPhone Skip Up .... 11, 12
- Disc/USB Stop Button ..... 12
- Disc/USB/iPod/iPhone Play or Pause Button 11, 12
- Disc Tray Open/Close Button ..... 12
Speaker system
- Dome-Tweeter
- Woofer
- Bass Reflex Duct
- Speaker Terminal
Speaker grilles are removable
Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.


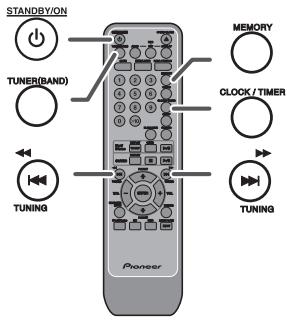

Remote control
Page
- Remote Control Transmitter 8
- STANDBY/ON Button....9, 11, 12, 21
- Tuner (Band) Button 17, 18
- RDS ASPM Button 18
- Mute Button 9
- Direct Search Buttons 13
- iPod/iPhone DISPLAY TV OUT Button ..... 11
- Disc/USB Display Button.... 15
- Tuning Down, Skip Down, Fast Reverse,
Time Down Button.... 9, 11, 12, 15, 17, 21
- Tuner Preset Up Button, iPod Cursor Up.... 11, 15, 17
- Volume Down Button....9
- Tuner Preset Down Button, iPod Cursor Down 11, 15, 17
- Equalizer Mode Button 9
- iPod/iPhone Button 11
- CD Button 12
- Open/Close Button 12
- RDS Display Button 18
- RDS PTY Button.... 18
- EXTRA BASS Button 9
- Bass/Treble Button 9
- Memory Button.... 13, 17
- Clear Button 13
- Clock/Timer Button 9, 21
- Sleep Button.... 22
- Folder Button 15
- Play Mode Button.... 13
- iPod/iPhone Play/Pause Button 11
- iPod/iPhone Menu Button 11
- Disc/USB Play/Pause Button 12, 13, 15
- Disc/USB Stop Button 12, 15, 16
- Tuning Up, Skip Up, Fast Forward,
Time Up Button ..... 9, 11, 12, 15, 17, 21
- Volume Up Button 9
- Enter Button 11, 21
- Dimmer Button....7,9
- Audio/Line (INPUT) Button 8, 23
- USB Button 15

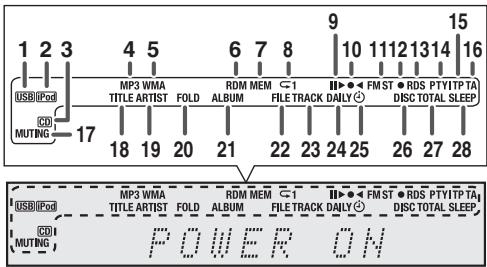

Display
Page
- USB Indicator 16
- iPod Indicators 11
- CD Indicator 13
- MP3 Indicator 14
- WMA Indicator 14
- RDM (Random) Indicator.... 13
- MEM (Memory) Indicator 13
- Repeat Indicator.... 13
- Play/Pause Indicator 12
- Tuning FM/AM Indicator 17
- FM Stereo Mode Indicator.... 17
- Stereo Station Indicator 17
- RDS Indicator 18
- PTY Indicator 18
- TP Indicator 18
- TA Indicator 18
- Muting Indicator....9
- Title Indicator 15
- Artist Indicator 15
- Folder Indicator 15
- Album Indicator 15
- File Indicator.... 15
- Track Indicator 15
- Daily Timer Indicator 21
- Once Timer Indicator 21
- Disc Indicator 13
- Total Indicator.... 15
- Sleep Indicator 22
Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.
Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 ohms socket and position the FM aerial wire in the direction where the strongest signal can be received.
External FM aerial:
Use an external FM aerial (75 ohms coaxial cable) for better reception. When an external FM aerial is used, disconnect the supplied FM aerial wire.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM terminal. Position the AM loop aerial for optimum reception. Place the AM loop aerial on a shelf, etc., or attach it to a stand or a wall with screws (not supplied).
Note:
Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.
Speaker connection
● Twist exposed wire strands together.
- Connect the red wire to the plus (+) terminal, and other wire to the minus (−) terminal.
- Use speakers with an impedance of 4 ohms - 16 ohms, as lower impedance speakers can damage the unit.
- These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
- Do not attach these speakers to the wall or ceiling, as they may cause injury in the event of a fall.
- Do not mistake the right and the left channels. The right speaker is the one on the right side when you face the unit.
- Do not let the bare speaker wires touch each other.
- Do not allow any objects to fall into or to be placed in the bass reflex ducts.
- Do not stand or sit on the speakers. You may be injured.
- Do not connect the supplied speakers with any other amplifier. This may result in malfunction or fire.
Incorrect
■ Connecting iPod or iPhone to TV
Photo and video files from iPod or iPhone can be viewed by connecting the system to TV/monitor.
If the TV/monitor has a video input, connect it to the VIDEO OUT socket at the back of the unit and set the TV Out on the iPod or iPhone unit to "ON" position.
Note:
Please make sure to set iPod unit to either NTSC or PAL to match your TV signal. Please visit Apple's homepage for further information.
■ AC power connection
After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket.
Note:
Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time.
CAUTION
Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.
Using other subwoofer
You can connect a subwoofer with an amplifier to the SUBWOOFER PRE OUT socket.
Notes:
- No sound is heard from the subwoofer without a built-in amplifier.
● Subwoofer Pre-out (audio signal): 350 mV / 10 k ohms at 70 Hz.
Connecting a TV, etc.

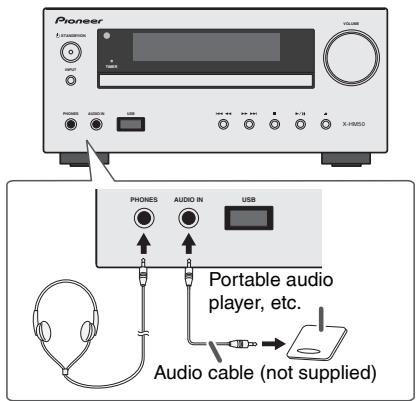

Connect to the TV using an audio cable.
To select Line In function:
- On main unit: Press INPUT button repeatedly until Line In is displayed.
- On remote control: Press AUDIO/LINE (INPUT) button repeatedly until Line In is displayed.
Battery installation
1 Open the battery cover.
2 Insert the supplied batteries according to the direction indicated in the battery compartment.
When inserting or removing the batteries, push them towards the (−) battery terminals.
3 Close the cover.
WARNIG:
- Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.
Caution:
- When inserting the batteries, make sure not to damage the springs on the battery's (−) terminals.
- Replace all old batteries with new ones at the same time.
- Do not mix old and new batteries.
- Remove the batteries if the unit will not be used for a long period of time. This will prevent potential damage due to battery leakage.
- Do not use rechargeable batteries (nickel-cadmium battery, etc.).
- Installing the batteries incorrectly may cause the unit to malfunction.
Notes concerning use:
- Replace the batteries if the operating distance is reduced or if the operation becomes erratic. Purchase 2 “AAA” size batteries (UM/SUM-4, R3, HP-16 or similar).
- Periodically clean the transmitter on the remote control and the sensor on the unit with a soft cloth.
- Exposing the sensor on the unit to strong light may interfere with operation. Change the lighting or the direction of the unit if this occurs.
- Keep the remote control away from moisture, heat, shock, and vibrations.
- When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
Test of the remote control
Check the remote control after checking all the connections. Point the remote control directly at the remote sensor on the unit. The remote control can be used within the range shown below:
■ To turn the power on
Press the STANDBY/ON button to turn the power on.
After use:
Press the STANDBY/ON button to enter the power stand-by mode.
Note:
However, if iPod/iPhone is docked, the unit will begin charging. "iPod charge" will be displayed.
■ Display brightness control
To dim the display brightness, press the DIMMER button on the remote control.
Volume auto fade-in
If you turn off and on the main unit with the volume set to 27 or higher, the volume starts at 16 and fades in to the last set level.
Volume control
Turn the volume knob towards VOLUME (on main unit) or press VOL +/- (on remote control) to increase or decrease the volume.
■ Auto power on function
When you press any of the following buttons, the unit turns on.
- iPod / iPhone, CD, USB, AUDIO / LINE (INPUT), TUNER (BAND) on the remote control: Selected function is activated.
- ▶/Ⅱ button on the main unit: The unit turns on and playback of the last function will start (CD, TUNER, USB, iPod, AUDIO IN, LINE IN)
■ Auto power off function
The main unit will enter the stand-by mode (when iPod/iPhone is not docked) after 15 minutes of inactivity during:
iPod/iPhone: No connection or in the pause mode.
CD / USB: In the stop mode.
Muting
The volume is muted temporarily when pressing the MUTE button on the remote control. Press again to restore the volume.
When the power is first turned on, the unit will enter the extra bass mode which emphasises the bass frequencies. To cancel the extra bass mode, press the EXTRA BASS button on the remote control.
Bass control
1 Press the BASS/TREBLE button to select "Bass".
2 Within 5 seconds, press the VOL (+ or −) button to adjust the bass.
Treble control
1 Press the BASS/TREBLE button to select "Treble".
2 Within 5 seconds, press the VOL (+ or -) button to adjust the treble.
Equaliser
When the EQUALIZER MODE button is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER MODE button repeatedly until the desired sound mode appears.
Function
When the INPUT button on main unit is pressed, the current function will change to different mode. Press the INPUT button repeatedly to select desired function.
Note:
The backup function will protect the memorised function mode for a few hours should there be a power failure or the AC power lead becomes disconnected.
Setting the clock (Remote control only)
In this example, the clock is set for the 24-hour (00:00) display.
1 Press the STANDBY/ON button to turn the power on.
2 Press the CLOCK/TIMER button.
3 Within 10 seconds, press the ENTER button. To adjust the day, press the ◀◀ or ▶▶I button and then press the ENTER button.
4 Press the ◀◀◀ or ▶▶◀ button to select 24-hour or 12-hour display and then press the ENTER button.
Setting the clock (Remote control only) (continued)
5 To adjust the hour, press the ◀◀ or ▶▶ button and then press the ENTER button. Press the ◀◀ or ▶▶ button once to advance the time by 1 hour. Hold it down to advance continuously.
6 To adjust the minutes, press the ◀◀ or ▶▶ button and then press the ENTER button. Press the ◀◀ or ▶▶ button once to advance the time by 1 minute.
To confirm the time display:
Press the CLOCK/TIMER button. The time display will appear for about 5 seconds.
Note:
When power supply is restored after unit is plugged in again or after a power failure, reset the clock (pages 9 - 10).
To readjust the clock:
Perform "Setting the clock" from step 1. If the "Clock" does not appear in step 2, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1 Clear all the programmed contents. [Refer to “Factory reset, clearing all memory” on page 24 for details.]
2 Perform "Setting the clock" from step 1 onwards.
Listening to the iPod or iPhone
Supported iPod and iPhone models:
- iPod touch (1 ^st /2 ^nd /3 ^rd /4 ^th generation)
- iPod classic
- iPod nano ( 2^nd/3^rd/4^th/5^th/6^th generation)
- iPhone 4
- iPhone 3GS
- iPhone 3G
- iPhone
Notes:
● Audio from the iPod/iPhone cannot be heard via the headphones connected to the unit.
- Once the iPod or iPhone is connected to the unit it will begin charging.
- Error message “This accessory is not made to work with iPhone” may appear on the iPhone screen when iPhone battery is low.
- The message “This accessory is not made to work with iPhone” or “This accessory is not supported by iPhone” may appear on the iPhone screen when the iPhone is not properly docked (eg. slanting) on this product. If this occurs, please remove and re-dock the iPhone.
● To prevent random interference when iPod/iPhone function is selected, the headphone output is disabled.
You may also experience brief audio interference during incoming calls.
■ iPod and iPhone adaptor connection
Notes:
| iPhone Adaptor No. | iPhone Description | Capacity |
| 12 | iPhone | 4GB & 8GB & 16GB |
| 15 | iPhone 3G,iPhone 3GS | 8GB & 16GB & 32GB& 64GB |
| 19 | iPhone 4 | 16GB & 32GB |
■ To insert iPod or iPhone adaptor
1 Open the iPod cover by pulling up.
2 Insert the iPod or iPhone adaptor into unit and connect your iPod or iPhone.
Caution:
Unplug all accessories from the iPod or iPhone before inserting it into the dock.
■ To remove iPod or iPhone adaptor
Insert the tip of a screwdriver (“—” type, small) into the adaptor hole as shown and lift upward to remove.
■ iPod or iPhone playback
1 Press the STANDBY/ON button to turn the power on.
2 Press the iPod/iPhone button on the remote control or INPUT button repeatedly on the main unit to select iPod function.
3 Insert iPod or iPhone unit in iPod dock of main unit.
4 Press the ▶/Ⅱ (iPod/iPhone ▶/Ⅲ) button to start playback.
iPhone playback
● Sound will only switch from iPhone to the main unit after authentication process is completed in approximately 10 seconds.
- Incoming calls will pause the playback and iPhone ringtones will be heard from the main unit speakers only.
- Once the calls are answered, the conversation can only be heard through the built-in iPhone speaker. Turn on the iPhone speaker or undock the iPhone to start conversation.
■ To disconnect iPod or iPhone
Simply remove the iPod or iPhone from the iPod dock. It is safe to do so even during playback.
■ Navigating the iPod and iPhone menus
1 Press the MENU button to view the menu on iPod or iPhone unit. Press it again to go back to previous menu.
2 Use the PRESET (↓ or ↑) button to select an item on the menu and then press ENTER button.
Note:
When navigating the iPod or iPhone menu with remote control, do not operate any of the buttons on the iPod or iPhone unit. The volume level is adjusted by pressing the VOL (+ or −) button on the main unit or the remote control. Adjusting the volume on the iPod and iPhone units give no effect.
iPod and iPhone operations:
The operations described below depend on the generation iPod and iPhone you are using.
System on operation:
When the main unit is powered on, the iPod and iPhone units will automatically power on when docked in the unit.
System off (stand-by operation):
When the main unit is turned to stand-by mode, the docked iPod and iPhone unit will automatically turn to stand-by mode.
- Watching videos on a TV connected to iPod or iPhone
1 Press the DISPLAY TV OUT button for more than 2 seconds. "TV Display" will appear on display.
2 Press the ENTER button to start playback.
Notes:
- If the TV Out setting is already turned on at video menu, the video is automatically displayed on the TV screen when ENTER key is pressed.
- To return to watching video on iPod or iPhone screen, press the MENU button to enter video menu. Then press the DISPLAY TV OUT button for more than 2 seconds until “iPod Display” appears.
● During iPod or iPhone video playback, pressing the DISPLAY TV OUT button will not toggle video out display between iPod and TV.
Caution:
● Unplug all accessories for the iPod or iPhone before inserting it into the iPod dock.
■ Various iPod functions
| Function | Main unit | Remote control | Operation |
| Play |  |  | Press in the pause mode. |
| Pause | [8Y5Y] |  | Press in the playback mode. |
| Track up/down |  |  | Press in the playback or pause mode.If you press the button in the pause mode, press the ▶/II button to start the desired track. |
| Fast forward/reverse |  | | Press and hold down in the playback mode.Release the button to resume playback. |
| Display | | [00HZ] | iPod back light ON.Press for more than 2 seconds to toggle the video out display between iPod or TV. |
| Repeat | |  | Press to toggle repeat mode. |
| Shuffle | | [20YW] | Press and hold down to toggle shuffle mode. |
| iPod Menu | |  | Press to view the iPod menu during iPod function. |
| iPod Enter | | | Press to confirm the selection. |
| iPod Cursor Up/Down | |  [DGWZ] | Press to select the iPod menu. |
This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.
MP3:
MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.
● This system supports MPEG 1 Layer 3 and VBR files.
● During VBR file playback, time counter in the display may differ from its actual playback time.
● Bitrate which is supported by MP3 is 32 kbps to 320 kbps.
WMA:
WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

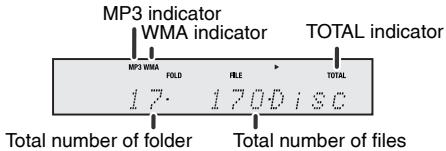

● “MP3” and “WMA” indicator will light up after the unit reads information on an MP3 or WMA disc.
● Bitrate which is supported by WMA is 64 kbps to 160 kbps.
Disc playback
1 Press the STANDBY/ON button to turn the power on.
2 Press the CD button on the remote control or INPUT button repeatedly on the main unit to select CD function.
3 Press the ▲ button to open the disc tray.
4 Place the disc on the disc tray, label side up.
5 Press the ▲ button to close the disc tray.
6 Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button to start playback. After the last track is played, the unit will stop automatically.
Caution:
● Do not place two discs in one disc tray.
- Do not play discs of special shapes (heart, octagon, etc). It may cause malfunctions.
- Do not push the disc tray whilst it is moving.
- If the power fails whilst the tray is open, wait until the power is restored.
- If TV or radio interference occurs during CD operation, move the unit away from the TV or radio.
● Be sure to place 8 cm disc in the middle of the disc tray.
- Due to the structure of the disc information, it takes longer to read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).
Various disc functions
| Function | Main unit | Remote control | Operation |
Plav | [XH2B] | [BZDH] | Press in the stop mode. |
Stop |  |  | Press in the playback mode. |
Pause | | | Press in the playback mode. Press the ▶/∥ button to resume playback from the paused point. |
| [6HCD] | [DBA8] |  | Press in the playback or stop mode.If you press the button in the stop mode, press the ▶/∥ button to start the desired track. |
| Fast forward/reverse | [XDOT] |  | Press and hold down in the playback mode.Release the button to resume playback. |
Direct track search
By using the Direct Search buttons, the desired tracks on the current disc can be played.
Use the Direct Search buttons on the remote control to select the desired track whilst playing the selected disc.
● The Direct Search buttons allow you to select up to number 9.
- When selecting number 10 or higher, use the “>10” button.
A. For example, to choose 13
1 Press the ">10" button once.
2 Press the "1" button.
3 Press the "3" button.
Selected track number
B. For example, to choose 130
1 Press the ">10" button twice.
2 Press the "1" button.
3 Press the "3" button.
4 Press the "0" button.
Notes:
● A track number higher than the number of tracks on the disc cannot be selected.
● During random play, direct search is not possible.
To stop playback:
Press the ■ (CD/USB ■) button.
Repeat play
Repeat play can play one track, all tracks or a programmed sequence continuously.
To repeat one track:
Press the PLAY MODE button repeatedly until "Repeat One" appears. Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button.
To repeat all tracks:
Press the PLAY MODE button repeatedly until "Repeat All" appears. Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button.
To repeat desired tracks:
Perform steps 1 - 5 in "Programmed play" section on this page and then press the PLAY MODE button repeatedly until "Repeat All" appears.
To cancel repeat play:
Press the PLAY MODE button repeatedly until "Normal" appears and "→" disappears.
Random play
The tracks on the disc can be played in random order automatically.
To random play all tracks:
Whilst in the stop mode, press and hold down PLAY MODE button on the remote control until “Random” appears. Press the ▶/Ⅱ (CD/USB ▶/Ⅲ) button.
To cancel random play:
Press the ■ (CD/USB ■) button.
Notes:
- If you press the ▶▶I button during random play, you can move to the track selected next by the random operation. On the other hand, the button does not allow you to move to the previous track. The beginning of the track being played will be located.
- In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
Caution:
After performing repeat play, be sure to press the ■ (CD/USB
■) button. Otherwise, the disc will play continuously.
Programmed play (CD)
You can choose up to 32 selections for playback in the order you like.
1 Whilst in the stop mode, press the MEMORY button on the remote control to enter the programming save mode.
2 Press the ◀◀◀ or ▶▶◀ buttons on the remote control to select the desired track.
3 Press the MEMORY button to save the track number.
4 Repeat steps 2 - 3 for other tracks. Up to 32 tracks can be programmed. If you want to check the programmed tracks, press the MEMORY button repeatedly. If you make a mistake, the programmed tracks can be cleared by pressing the CLEAR button.
5 Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button to start playback.
Programmed play (MP3/WMA)
1 Whilst in the stop mode, press the MEMORY button to enter the programming save mode.
2 Press the PRESET (↓ or ↑) button on the remote control to select the desired folder.
Then press the ◀◀ or ▶▶1 button on the remote control to select the desired tracks.
3 Press the MEMORY button to save the folder and track number.
4 Repeat steps 2 - 3 for other folder/tracks. Up to 32 tracks can be programmed.
5 Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button to start playback.
To cancel the programmed play mode:
Press the ■ (CD/USB ■) button. The display will show "Memory Clear" and all the programmed contents will be cleared.
Adding tracks to the programme:
If a programme has been previously stored, the "MEM" indicator will be displayed. Press the MEMORY button repeatedly to go to the last programme memory. Then follow steps 2 - 3 to add tracks. The new tracks will be stored after the last track of the previous programme.
Notes:
- When a disc is ejected, the programme is automatically cancelled.
- If you press the STANDBY/ON button to enter the stand-by mode or change the function from CD to another, the programmed selections will be cleared.
● During the programme operation, random play is not possible.
MP3/WMA folder mode (only for MP3/WMA files)
There are many music sites on the internet that you can download MP3/WMA (Windows Media Audio) music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc.
- Your downloaded song/files are for personal use only. Any other usage of the song without owner's permission, is against the law.
■ About folder playback order
If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically.
These folders can be selected by the FOLDER button on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected.
Example: How to set folder number if MP3/WMA format files are recorded as below figure.
1 ROOT folder is set as folder 1.
2 As for folders inside ROOT folder (Folder A and Folder B), the folder which is recorded earlier on the disc will be set as folder 2 and folder 3.
3 As for folder inside Folder A (Folder C and Folder D), the folder which is recorded earlier on the disc will be set as folder 4 and folder 5.
4 Folder E that is inside Folder D will be set as folder 6.
● The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.
- For CD MP3/WMA, 255 numbers of folders and files inclusive of the folders which have non playable files can be read.
Folder mode on/off can be operated by the FOLDER button on the remote control. Files that are played when folder mode is set to the on position, may differ from those played back when folder mode is turned off.
MP3/WMA folder mode (only for MP3/WMA files) (continued)
■ Procedure to playback MP3/WMA disc with folder mode on
To play back CD-R/RW.
1 Press the CD button, and load an MP3/WMA disc. Press the FOLDER button and disc info will be displayed.
2 Press the PRESET (↓ or ↑) button to select desired playback folder. (Folder mode on)
3 Select desired file to be played back by pressing the ◀◀◀ or ▶▶◀ button.
4 Press the ▶/Ⅱ (CD/USB ▶/Ⅲ) button. Playback will start and file name will be displayed.
● Title, Artist and Album name are displayed if they are recorded on the disc.
● Display content can be changed by pressing the DISPLAY button.
G["Arrow left to C"]
H["Arrow right to G"]
Note:
If “Not Support” is displayed, it means “Copyright protected WMA file” or “Not supported playback file” is selected.
Listening to USB mass storage device/MP3 player
Notes:
● This USB mass storage device or MP3 player is not compatible with MTP and AAC file systems.
- Some external storage devices may not operate with this system.
● Operation of external storage devices (USB memory devices, external hard disks, etc.) is not guaranteed.
■ To play back USB/MP3 player with folder mode off
1 Press the USB button on the remote control or INPUT button repeatedly on main unit to select USB function. Connect the USB memory device that has MP3/WMA format files on the unit. When the USB memory is connected to the main unit, the device information will be displayed.
2 Select desired file to be played back by pressing the ◀◀◀ or ▶▶▶ button.
3 Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button. Playback will start and the file name will be displayed.
● Title, Artist and Album name are displayed if they are recorded in the USB memory device.
● Display content can be changed by pressing the DISPLAY button.
Note:
To pause playback:
Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button.
■ To play back USB/MP3 player with folder mode on
1 Press the USB button on the remote control or INPUT button repeatedly on main unit to select USB function. Connect the USB memory device that has MP3/WMA format files on the unit. When the USB memory is connected to the main unit, the device information will be displayed.
2 Press the FOLDER button, and press the PRESET (↓ or ↑) button to select desired playback folder. To start playback with folder mode on, go to step 4. To change the playback folder, press the PRESET (↓ or ↑) button to select another folder.
3 Select desired file to be played back by pressing the ◀◀◀ or ▶▶◀ button.
4 Press the ▶/Ⅱ (CD/USB ▶/Ⅱ) button. Playback will start and the file name will be displayed.
● Title, Artist and Album name are displayed if they are recorded in the USB memory device.
● Display content can be changed by pressing the DISPLAY button.
■ To remove USB memory device
1 Press the ■ (CD/USB ■) button to stop playback.
2 Disconnect USB memory device from the USB terminal.
Notes:
- PIONEER will not be held liable for the loss of data whilst the USB memory device is connected to the audio system.
- Files compressed in MP3 and/or WMA format can be played back when connected to the USB terminal.
- This USB memory’s format supports FAT 16 or FAT 32.
● PIONEER cannot guarantee that all USB memory devices will work on this audio system.
- USB cable is not recommended for use in this audio system to connect to USB memory device. Use of the USB cable will affect the performance of this audio system.
● This USB memory cannot be operated via USB hub.
● The USB terminal in this unit is not intended for a PC connection but is used for music streaming with a USB memory device.
● External HDD-storage cannot be played back via USB terminal.
-
If the data inside the USB memory is large, it may take longer time for the data to be read.
-
This product can play WMA and MP3 files. It will automatically detect the file type being played. If unplayable file is played on this product, "Not Support" is indicated and the file will be automatically skipped. This will take a few seconds. If abnormal indications appear on the display due to the unspecified file, turn off the unit and then turn it on again.
- This product relates to USB mass storage devices and MP3 players. It may however face some irregularities due to various unforeseen reasons from some devices. Should this happen, turn off the unit and then turn it on again.
● The USB port is only intended for direct connection to a USB memory device without any cable.
● During CD function, MP3 player will not be charging.
- “Not support” will be displayed if you connect an iPod to USB terminal when the USB function is selected.
Advanced USB playback
The following functions are the same as CD operations:
Page
Direct track search 13
Repeat play 13
Random play.... 13
Programmed play 14
Note:
If USB memory device is not connected, "No USB" will be shown on the display.
Notes:
- This unit only supports “MPEG-1 Audio Layer-3” format. (Sampling Frequency is 32 kHz, 44.1 kHz, 48 kHz)
- Playback order for MP3 files may differ depending on the writing software used during file download.
- Bitrate which is supported by MP3 is 32 kbps to 320 kbps, WMA is 64 kbps to 160 kbps.
- For MP3/WMA files, please put “.MP3” “.WMA” extension. Files cannot be played back if there is no MP3/WMA extension.
● Playlists are not supported on this unit.
● This unit can display Folder Name or File Name up to 32 characters.
● Maximum total number of MP3/WMA files is 1024. Maximum total number of folders is 255 inclusive of root directory.
● The display playback time may not be displayed correctly when playing back a variable bitrate file.
- The ID3TAG information supported are TITLE, ARTIST and ALBUM only. Title name, artist name and album name can be displayed by pressing the DISPLAY button during file playback or pause mode.
● WMA meta tag also supports title, artist and album name which are recorded in WMA files. Copyright protected WMA files cannot be played back.
Tuning
1 Press the STANDBY/ON button to turn the power on.
2 Press the TUNER (BAND) button repeatedly to select the desired frequency band (FM or AM).
3 Press the TUNING (◀◀ or ▶▶) button on the remote control to tune in to the desired station.
● Manual tuning:
Press the TUNING (◄◄ or ►►) button repeatedly to tune in to the desired station.
● Auto tuning:
When the TUNING (◀◀ or ▶▶) button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.
Notes:
- When radio interference occurs, auto scan tuning may stop automatically at that point.
● Auto scan tuning will skip weak signal stations.
- To stop the auto tuning, press the TUNING (◄◄ or ►►) button again.
- When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first, and then the RDS indicator will light up. Finally, the station name will appear.
● Full auto tuning can be achieved for RDS stations "ASPM", see page 18.
To receive an FM stereo transmission:
- Press the TUNER (BAND) button to select stereo mode and "ST" indicator will be displayed. "▶◀◀" and "●" will appear when an FM broadcast is in stereo.
- If the FM reception is weak, press the TUNER (BAND) button to extinguish the "ST" indicator. The reception changes to monaural, and the sound becomes clearer.
Memorising a station
You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)
1 Perform steps 1 - 3 in "Tuning".
2 Press the MEMORY button.
3 Within 30 seconds, press the PRESET (↓ or ↑) button to select the preset channel number. Store the stations in memory, in order, starting with preset channel 1.
4 Within 30 seconds, press the MEMORY button to store that station in memory. If the "MEMORY" and preset number indicators disappear before the station is memorised, repeat the operation from step 2.
5 Repeat steps 1 - 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.
Note:
The backup function protects the memorised stations for a few hours should there be a power failure or the AC power lead become disconnected.
To recall a memorised station
1 Press the PRESET (↓ or ↑) button for less than 0.5 seconds to select the desired station.
To scan the preset stations
The stations saved in the memory can be scanned automatically. (Preset memory scan)
1 Press the PRESET (↓ or ↑) button for more than 0.5 seconds. The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.
2 Press the PRESET (↓ or ↑) button again when the desired station is located.
To erase entire preset memory
1 Press the STANDBY/ON button to enter the stand-by mode.
2 Whilst pressing down the ◀◀ button, press the STANDBY/ON button until “Tuner Clear” appears.
RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals along with their regular programme signals. They send their station names, and information about the type of programme such as sport, music, etc.
When tuned to an RDS station, "RDS" and the station name will be displayed.
“TP” (Traffic Programme) will appear on the display when the received broadcast carries traffic information, and “TA” (Traffic Announcement) will appear whilst a traffic information is on air.
“PTYI” (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.
You can control the RDS by using the buttons on the remote control only.
Each time the RDS DISPLAY button is pressed, the display will switch as follows:
When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:
■ Using the Auto Station Programme Memory (ASPM)
Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored.
If you have already stored some stations in memory, the number of new stations you can store will be less.
1 Press the TUNER (BAND) button on the remote control or INPUT button repeatedly on the main unit to select TUNER function.
2 Press and hold down the RDS ASPM button on the remote control.
1 After "ASPM" has flashed for about 4 seconds, scanning will start (87.50 - 108.00 MHz).
2 When an RDS station is found, "RDS" will appear for a short time and the station will be stored in memory.
3 After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then "END" will appear for 4 seconds.
To stop the ASPM operation before it is complete:
Press the RDS ASPM button whilst it is scanning for stations.
The stations which are already stored in memory will be kept there.
Notes:
- If the same station is broadcasting on different frequencies, the strongest frequency will be stored in memory.
● Any station which has the same frequency as the one stored in memory will not be stored.
- If 40 stations have already been stored in memory, the scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.
- If no station have been stored in memory, "END" will appear for about 4 seconds.
- If the RDS signals are very weak, station names may not be stored in memory.
● The same station name can be stored in different channels.
- In a certain area or during certain time periods, the station names may temporarily be different.
Notes for RDS operation
If any of the following events occur, it does not mean that the unit is faulty:
- “PS”, “No PS” and a station name appear alternately, and the unit does not operate properly.
- If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.
- When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.
- “No PS”, “No PTY” or “No RT” will flash for about 5 seconds, and then the frequency will be displayed.
Notes for radio text:
● The first 14 characters of the radio text will appear for 4 seconds and then they will scroll across the display.
- If you tune in to an RDS station which is not broadcasting any radio text, "No RT" will be displayed when you switch to the radio text position.
- Whilst radio text data is received or when the text contents change, "RT" will be displayed.
■ To recall stations in memory
To specify programmed types and select stations (PTY search):
You can search a station by specifying the programme type (news, sports, traffic programme, etc. ... see page 20) from the stations in memory.
1 Press the TUNER (BAND) button on the remote control or INPUT button repeatedly on the main unit to select TUNER function.
2 Press the RDS PTY button on the remote control.
"SELECT" and "PTY TI" will appear alternately for about 6 seconds.
3 Within 6 seconds, press the ◀◀ or ▶▶I button to select the programme type.
Each time the button is pressed, the programme type will appear. If the button is held down for more than 0.5 seconds, the programme type will appear continuously.
4 Whilst the selected programme type is flashing (within 6 seconds), press the RDS PTY button again.
After the selected programme type has been lit for 2 seconds, “SEARCH” will appear, and the search operation will start.
Notes:
- If the display has stopped flashing, start again from step 2. If the unit finds a desired programme type, the corresponding channel number will lit for about 8 seconds, and then the station name will remain it.
- If you want to listen to the same programme type of another station, press the RDS PTY button whilst the channel number or station name is flashing. The unit will look for the next station.
- If no station can be found, "NOT FOUND" will appear for 4 seconds.
If you select the traffic programme:
If you select the traffic programme (TP) in step 3, "TP" will appear.
(This does not mean that you can listen to the traffic information at that time.)
When the traffic information is broadcast, "TA" will appear.
Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement)
You can search for and receive the following PTY, TP and TA signals.
| NEWS | Short accounts of facts, events and publicly expressed views, reportage and actuality. |
| AFFAIRS | Topical programme expanding or enlarging upon the news, generally in different presentation style or concept, including debate, or analysis. |
| INFO | Programmes whose purpose is to impart advice in the widest sense. |
| SPORT | Programme concerned with any aspect of sport. |
| EDUCATE | Programme intended primarily to educate, of which the formal element is fundamental. |
| DRAMA | All radio plays and serials. |
| CULTURE | Programmes concerned with any aspect of national or regional culture, including language, theatre, etc. |
| SCIENCE | Programmes about the natural sciences and technology. |
| VARIED | Used for mainly speech-based programmes usually of light-entertainment nature, not covered by other categories. Examples include: quizzes, panel games, personality interviews. |
| POP M | Commercial music, which would generally be considered to be of current popular appeal, often featuring in current or recent record sales charts. |
| ROCK M | Contemporary modern music, usually written and performed by young musicians. |
| EASY M | Current contemporary music considered to be “easy-listening”, as opposed to Pop, Rock or Classical, or one of the specialised music styles, Jazz, Folk or Country. Music in this category is often but not always, vocal, and usually of short duration. |
| LIGHT M | Classical music for general, rather than specialist appreciation. Examples of music in this category are instrumental music, and vocal or choral works. |
| CLASSICS | Performances of major orchestral works, symphonies, chamber music, etc., and including Grand Opera. |
| OTHER M | Musical styles not fitting into any of the other categories. Particularly used for specialist music of which Rhythm & Blues and Reggae are examples. |
| WEATHER | Weather reports and forecasts and meteorological information. |
| FINANCE | Stock Market reports, commerce, trading, etc. |
| CHILDREN | For programmes targeted at a young audience, primarily for entertainment and interest, rather than where the objective is to educate. |
| SOCIAL | Programmes about people and things that influence them individually or in groups. Includes: sociology, history, geography, psychology and society. |
| RELIGION | Any aspect of beliefs and faiths, involving a God or Gods, the nature of existence and ethics. |
| PHONE IN | Involving members of the public expressing their views either by phone or at a public forum. |
| TRAVEL | Features and programmes concerned with travel to near and far destinations, package tours and travel ideas and opportunities. Not for use for announcements about problems, delays, or roadworks affecting immediate travel where TP/TA should be used. |
| LEISURE | Programmes concerned with recreational activities in which the listener might participate. Examples include, Gardening, Fishing, Antique collecting, Cooking, Food & Wine, etc. |
| JAZZ | Polyphonic, syncopated music characterised by improvisation. |
| COUNTRY | Songs which originate from, or continue the musical tradition of the American Southern States. Characterised by a straightforward melody and narrative story line. |
| NATION M | Current Popular Music of the Nation or Region in that country's language, as opposed to International “Pop” which is usually US or UK inspired and in English. |
| OLDIES | Music from the so-called “golden age” of popular music. |
| FOLK M | Music which has its roots in the musical culture of a particular nation, usually played on acoustic instruments. The narrative or story may be based on historical events or people. |
| DOCUMENT | Programme concerned with factual matters, presented in an investigative style. |
| TEST | Broadcast when testing emergency broadcast equipment or receivers. |
| ALARM | Emergency announcement made under exceptional circumstances to give warning of events causing danger of a general nature. |
| NONE | No programme type (receive only). |
| TP | Broadcasts which carry traffic announcements. |
| TA | Traffic announcements are being broadcast. |
Timer playback:
The unit turns on and plays the desired source (CD, TUNER, USB, iPod, AUDIO IN, LINE IN) at a preset time.
This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.
Once timer:
Once timer play works for one time only at a preset time. ("💡" indicator).
Daily timer:
Daily timer play works at the same preset time every day that we set. For example, set the timer as a wake-up call every morning.
("DAILY" indicator).
Using the once timer and daily timer in combination:
For example, use the once timer to listen a radio programme, and use the daily timer to wake up.
1 Set the daily timer (pages 21 - 22).
2 Set the once timer (pages 21 - 22).
Timer playback
Before setting timer:
- Check that the clock is set to the correct time (refer to page 9). If it is not set, you cannot use the timer function.
- For timer playback: Plug in USB or load discs or dock iPod to be played.
1 Press the STANDBY/ON button to turn the power on.
2 Press and hold the CLOCK/TIMER button.
3 Within 10 seconds, press the ◀◀ or ▶▶ button to select "Once" or "Daily", and press the ENTER button.
4 Within 10 seconds, press the ◀◀ or ▶▶ button to select "Timer Set", and press the ENTER button.
5 To select the timer playback source (CD, TUNER, USB, iPod, AUDIO IN, LINE IN), press the ◀◀ or ▶▶ button. Press the ENTER button.
When you select the tuner, select a station by pressing the ◄◀ or ▶▶ button, and then press the ENTER button. If a station has not been programmed, "No Preset" will be displayed and timer setting will be cancelled.
6 To adjust the day, press the ◀◀ or ▶▶I button and then press the ENTER button.
7 To adjust the hour, press the ◀◀ or ▶▶ button and then press the ENTER button.
8 To adjust the minutes, press the ◀◀ or ▶▶ button and then press the ENTER button.
9 Set the time to finish as in steps 7 and 8 above.
10 Adjust the volume using the ◀◀ or ▶▶I button, and then press the ENTER button. Do not turn the volume up too high.
11 Press the STANDBY/ON button to enter the power stand-by mode. The "TIMER" indicator lights up and the unit is ready for timer playback.
12 When the preset time is reached, playback will start. The volume will increase gradually until it reaches the preset volume. The timer indicator will blink during timer playback.
13 When the timer end time is reached, the system will enter the power stand-by mode automatically.
Once timer:
The timer will be cancelled.
Daily timer:
The timer operates at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use.
Notes:
- When performing timer playback using another unit connected to the USB terminal or AUDIO IN jack, select "USB" or "AUDIO IN" or "LINE IN" in step 5.
- This unit will turn on or enter the power stand-by mode automatically. However, the connected unit will not turn on or off. To stop the timer playback, follow step "Cancelling the timer setting" of this page.
Checking the timer setting:
1 Turn the power on and press and hold down the CLOCK/TIMER button.
2 Within 10 seconds, press the ◀◀ or ▶▶I button to select "Once" or "Daily", and press the ENTER button.
3 Within 10 seconds, press the ◀◀ or ▶▶I button to select "Timer Call", and press the ENTER button.
Cancelling the timer setting:
1 Turn the power on and press and hold down the CLOCK/TIMER button.
2 Within 10 seconds, press the ◀◀ or ▶▶ button to select "Once" or "Daily", and press the ENTER button.
3 Within 10 seconds, press the ◀◀ or ▶▶ button to select "Timer Off", and press the ENTER button. Timer will be cancelled (the setting will not be cancelled).
Reusing the memorised timer setting:
The timer setting will be memorised once it is entered. To reuse the same setting, perform the following operations.
1 Turn the power on and press and hold down the CLOCK/TIMER button.
2 Within 10 seconds, press the ◀◀ or ▶▶ button to select "Once" or "Daily", and press the ENTER button.
3 Within 10 seconds, press the ◀◀ or ▶▶ button to select "Timer On", and press the ENTER button.
4 Press the STANDBY/ON button to enter the power stand-by mode.
Sleep operation
The radio, compact disc, iPod, USB, Audio In and Line In can all be turned off automatically.
1 Play back the desired sound source.
2 Press the SLEEP button.
3 Within 5 seconds, press the direct search button to set the time (1 minute - 99 minutes)
4 Press the ENTER button. "SLEEP" will appear.
5 The unit will enter the power stand-by mode automatically after the preset time has elapsed. The volume will be turned down 1 minute before the sleep operation finishes.
To confirm the remaining sleep time:
1 Whilst "SLEEP" is indicated, press the SLEEP button.
To cancel the sleep operation:
Press the STANDBY/ON button whilst “SLEEP” is indicated. To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows.
1 Whilst "SLEEP" is indicated, press the SLEEP button.
2 Within 5 seconds, press the "0" button twice until "SLEEP 00" appears.
3 Press the ENTER button.
■ To use timer and sleep operation together
Sleep and timer playback:
For example, you can fall asleep listening to the radio and wake up to CD in the next morning.
1 Set the sleep time (see above, steps 1 - 5).
2 Whilst the sleep timer is set, set the timer playback (steps 2 - 9, page 21).

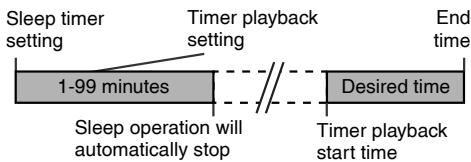

The connection lead is not included. Purchase a commercially available lead as shown below.
- Listening to the playback sounds of portable audio player, etc.
1 Use a connection lead to connect the portable audio player etc. to the AUDIO IN socket. When using video equipment, connect the audio output to this unit and the video output to a television.
2 Press the STANDBY/ON button to turn the power on.
3 Press the AUDIO/LINE (INPUT) button on the remote control or INPUT button repeatedly on main unit to select AUDIO IN function.
4 Play the connected equipment. If volume level of the connected device is too high, sound distortion may occur. Should this happen, lower the volume of the connected device. If volume level is too low, increase the volume of the connected device.
Note:
To prevent noise interference, place the unit away from the television.
Headphones
- Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.
● Before plugging in or unplugging the headphone, reduce the volume.
- Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.
- Plugging in the headphone disconnects the speakers automatically. Adjust the volume using the VOLUME control.
- Audio from the iPod/iPhone cannot be heard via the headphones connected to the unit. "Not Support HP" will be displayed if you connect the headphones when the iPod/iPhone function is selected.
Troubleshooting chart
Many potential problems can be resolved by the owner without calling a service technician.
If something is wrong with this product, check the following before calling your authorized PIONEER dealer or service centre.
General
| Symptom | Possible cause |
| ● The clock is not set to the correct time. | ● Did a power failure occur? Reset the clock. (Refer page 9) |
| ● When a button is pressed, the unit does not respond. | ● Set the unit to the power stand-by mode and then turn it back on. ● If the unit still malfunctions, reset it. (Refer page 23) |
| ● No sound is heard. | ● Is the volume level set to “Min”? ● Are the headphones connected? ● Are the speaker wires disconnected? |
CD player
| Symptom | Possible cause |
| ● Playback does not start. ● Playback stops in the middle or is not performed properly. | ● Is the disc loaded upside down? ● Does the disc satisfy the standards? ● Is the disc distorted or scratched? |
| ● Playback sounds are skipped, or stopped in the middle of a track. | ● Is the unit located near excessive vibrations? ● Is the disc very dirty? ● Has condensation formed inside the unit? |
Remote control
| Symptom | Possible cause |
| ● The remote control does not operate. | ● Is the AC power lead of the unit plugged in? ● Is the battery polarity correct? ● Are the batteries dead? ● Is the distance or angle incorrect? ● Does the remote control sensor receive strong light? |
Tuner
| Symptom | Possible cause |
| ● The radio makes unusual noises continuously. | ● Is the unit placed near the TV or computer? ● Is the FM aerial or AM loop aerial placed properly? Move the aerial away from the AC power lead if it is located nearby. |
USB
| Symptom | Possible cause |
| ● Device cannot be detected. | ● Is there any MP3/WMA file available? ● Is the device properly connected? ● Is it an MTP device? ● Does the device contain AAC file only? |
| ● Playback does not start. | ● Is it a copyright protected WMA file? ● Is it a false MP3 file? |
| ● Wrong time display. ● Wrong file name display. | ● Is Variable Bitrate file being played back? ● Is the File Name written in Chinese or Japanese characters? |
iPod and iPhone
| Symptom | Possible cause |
| ● No sound is produced.No image appears on the TV/monitor. | ● The iPod or iPhone is not playing.● The iPod or iPhone is not properly connected to the unit.● Is the AC power lead of the unit plugged in?● The video cable is not properly connected.● The TV/monitor's input selection is not properly set.● The iPod TV out feature has not been set to output video.● Audio from the iPod/iPhone cannot be heard via the headphones connected to the unit. |
| ● iPod or iPhone will not charge. | ● The iPod or iPhone is not making full contact with the connector.● The main unit is using batteries as power supply.● Using iPod ( 3^rd generation).● The iPod or iPhone is not supported. Refer to page 10 for compatible models.● The iPod or iPhone unit cannot be charged whilst the main unit is in USB mode. |
| ● “This accessory is not made to work with iPhone” or “This accessory is not supported by iPhone” appears on iPhone screen. | ● The iPhone battery is low. Please charge the iPhone.● iPhone is not properly docked. |
Condensation
Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.
If problem occurs
When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit again, and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by resetting it.
■ Factory reset, clearing all memory
1 Press the STANDBY/ON button to enter the power stand-by mode.
2 Disconnect the power plug from the outlet.
3 Press and hold the STANDBY/ON button, then connect the power plug again.
"Clear all" appears.
Caution:
This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.
Before transporting the unit
Remove the iPod, USB memory device and disc from the unit. Then, set the unit to the power stand-by mode. Carrying the unit with iPod or USB memory device left docked or discs left inside might damage the unit.
■ Care of compact discs
Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player.
- Do not write on either side of the disc, particularly the non-label side from which signals are read. Do not mark this surface.
- Keep your discs away from direct sunlight, heat, and excessive moisture.
● Always hold the CDs by the edges. Fingerprints, dirt, or water on the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.
Maintenance
Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.
Caution:
- Do not use chemicals for cleaning (petrol, paint thinner, etc.). It may damage the cabinet.
- Do not apply oil to the inside of the unit. It may cause malfunctions.
As part of our policy of continuous improvement, PIONEER reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.
General
| Power source | AC 220 V to 230 V, 50 Hz/60 Hz |
| Power consumption | Power on: 45 WPower stand-by: 0.3 W |
| Dimensions | Width: 215 mmHeight: 99 mmDepth: 300 mm |
| Weight | 4.4 kg |
Amplifier
| Output power | PMPO: 200 WMPO: 100 W (50 W + 50 W)(10% T.H.D.)RMS: 100 W (50 W + 50 W)(10% T.H.D.)RMS: 66 W (33 W + 33 W)(1% T.H.D.) |
| Output terminals | Speakers: 4 ohms20 Hz to 20 kHzSubwoofer Pre-out (audio signal):350 mV/10 k ohms at 70 HzVideo output: 1 Vp-pHeadphones: 16 ohms(recommended: 32 ohms) |
| Input terminals | Audio In (audio signal):500 mV/47 k ohmsLine in (Analog input):500 mV/47 k ohms |
CD player
| Type | Single disc multi-play compact disc player |
| Signal readout | Non-contact, 3-beam semiconductor laser pickup |
| D/A converter | Multi bit D/A converter |
| Frequency response | 20 Hz to 20 000 Hz |
| Dynamic range | 90 dB (1 kHz) |
USB
| USB host interface | ● Complies with USB 1.1 (Full Speed)/2.0 Mass Storage Class. ● Support Bulk only and CBI protocol. |
| Support file | ● MPEG 1 Layer 3 ● WMA (Non DRM) |
| Bitrate support | ● MP3 (32 kbps to 320 kbps) ● WMA (64 kbps to 160 kbps) |
| Other | ● Maximum total number of MP3/WMA files is 1024. ● Maximum total number of folders is 255 INCLUSIVE of root directory. ● The ID3TAG information supported are TITLE, ARTIST and ALBUM only. ● Supports ID3TAG version 1 and version 2. |
| File system support | ● Support USB devices with Microsoft Windows/DOS/FAT 12/FAT 16/ FAT 32. ● 2 kbyte block length for sector. |
Tuner
| Frequency range | FM: 87.5 MHz to 108 MHzAM: 522 kHz to 1,620 kHz |
| Preset | 40 (FM and AM station) |
Speaker
| Type | 2-way type speaker system2.5 cm Dome-Tweeter12 cm woofer |
| Maximum input power | 100 W |
| Impedance | 4 ohms |
| Dimensions | Width: 148 mmHeight: 260 mmDepth: 191 mm |
| Weight | 2.5 kg/each |
IMPORTANT
Télécommande
Page
Note :
Notes :
Notes :
CLASS 3B INVISIBLE LASER RADIATION WHEN OPEN, AVOID EXPOSURE TO THE BEAM.
ATTENTION
RADIATIONS LASER INVISIBLES DE CLASSE 3B QUAND OUVERT. ÉVITEZ TOUT EXPOSITION AU FAISCEAU.
ADVARSEL
KLASSE 3B USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSÆTTELSE FOR STRÅLING.
WARNING
KLASS 3B OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. UNDVIK ATT UTSÄTTA DIG FÖR STRÅLEN.
VORSICHT
BEI GEÖFFNETER ABDECKUNG IST UNSICHTBARE LASERSTRAHLUNG DER KLASSE 3B IM GERÄTEINNEREN VORHANDEN. NICHT DEM LASERSTRAHLAUSSETZEN!
PRECAUCIÓN
almacenamiento USB/ player MP3....15 - 16
Controlador remoto
Página
ADVERTENCIA:
Nota:
Notas:
Copyright © 2010 Pioneer Corporation.
http://www.pioneer.co.uk
http://www.pioneer.fr
http://www.pioneer.es
http://www.pioneer.eu
Published by Pioneer Corporation.
Copyright © 2010 Pioneer Corporation.
All rights reserved.
Publication de Pioneer Corporation.
© 2010 Pioneer Corporation.
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404
PIONEER ELECTRONICS OF CANADA, INC.
340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: 1-877-283-5901, 905-479-4411
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: (03) 9586-6300
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.
Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270
K002_B3_En
