USER MANUAL DEH-3300UB PIONEER
REPRODUCTOR DE CD CON RECEPTOR RDS
CD RDS-EMPFÄNGER
CD RDS-ONTVANGER
CD RDS ПРИЕМНИК
DEH-3300UB
DEH-4300UB
Owner's Manual
Mode d'emploi
Manuale d'istruzioni
Manual de instrucciones
Bedienungsanleitung
Handleiding
Руководство пользователя
Made for
iPod
iPhone

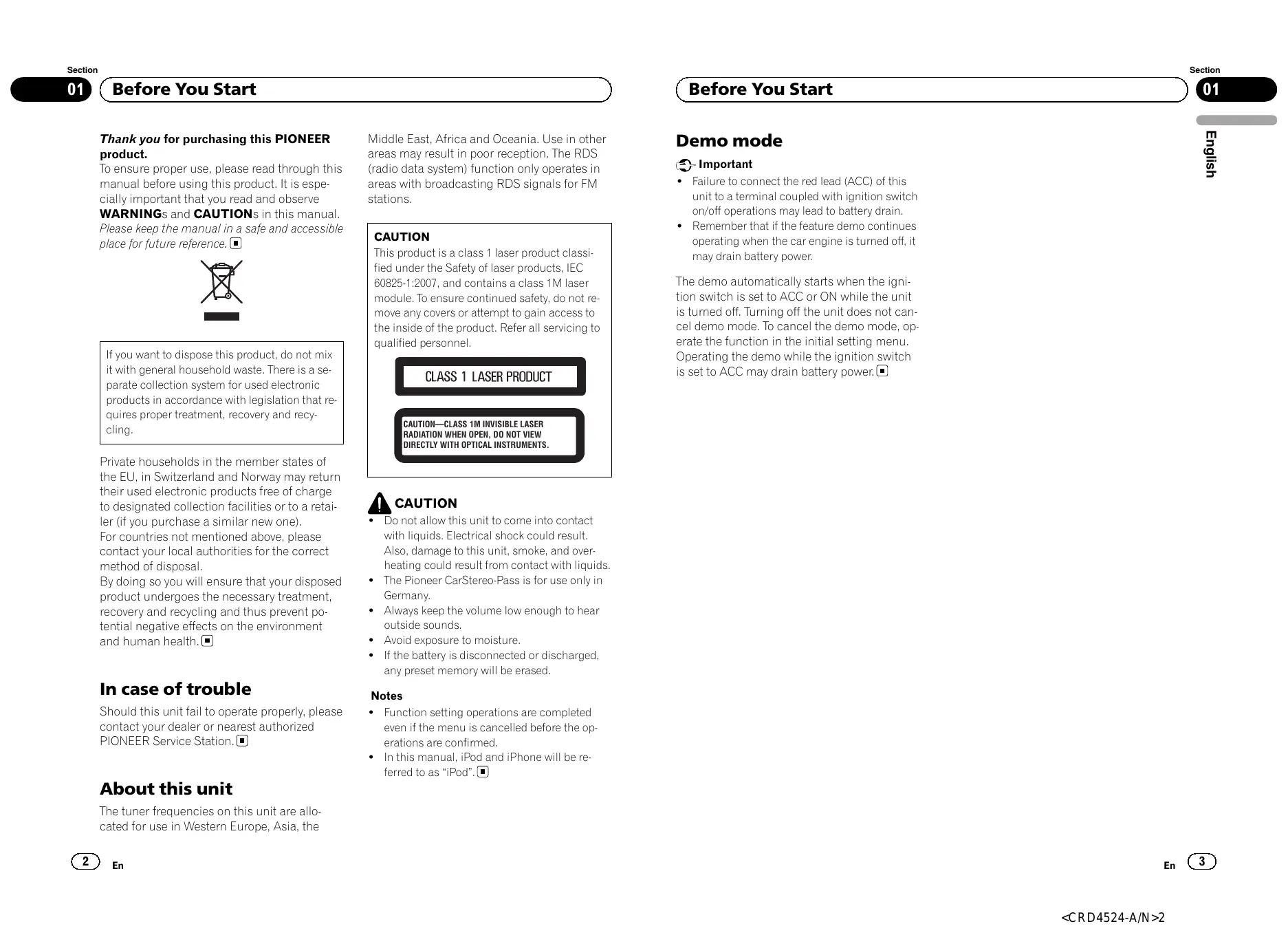

Thank you for purchasing this PIONEER product.
To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe
WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference.
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.
In case of trouble
Should this unit fail to operate properly, please contact your dealer or nearest authorized PIONEER Service Station.
About this unit
The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the
Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only operates in areas with broadcasting RDS signals for FM stations.
CAUTION
This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007, and contains a class 1M laser module. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.
CLASS 1 LASER PRODUCT
CAUTION—CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN, DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
CAUTION
- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.
- The Pioneer CarStereo-Pass is for use only in Germany.
- Always keep the volume low enough to hear outside sounds.
- Avoid exposure to moisture.
- If the battery is disconnected or discharged, any preset memory will be erased.
Notes
- Function setting operations are completed even if the menu is cancelled before the operations are confirmed.
- In this manual, iPod and iPhone will be referred to as "iPod".
Demo mode
Important
- Failure to connect the red lead (ACC) of this unit to a terminal coupled with ignition switch on/off operations may lead to battery drain.
- Remember that if the feature demo continues operating when the car engine is turned off, it may drain battery power.
The demo automatically starts when the ignition switch is set to ACC or ON while the unit is turned off. Turning off the unit does not cancel demo mode. To cancel the demo mode, operate the function in the initial setting menu. Operating the demo while the ignition switch is set to ACC may drain battery power.

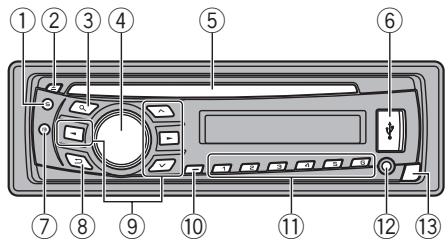

Head unit
| Part | Part |
| 1 | S (SRC/OFF) | 8 | (Back/display/scroll) |
| 2 | ▲ (eject) | 9 | ▲/▼/◄/► |
| 3 | Q (list) | 10 | TA/NEWS |
| 4 | MULTI-CONTROL(M.C.) | 11 | 1 to 6 |
| 5 | Disc loading slot | 12 | AUX input jack (3.5 mm stereo jack) |
| 6 | USB port | 13 | Detach button |
| 7 | B (BAND/ESC) | | |
CAUTION
- Use an optional Pioneer USB cable (CD-U50E) to connect the USB audio player/USB memory as any device connected directly to the unit will protrude out from the unit and may be dangerous.
- Do not use unauthorized products.

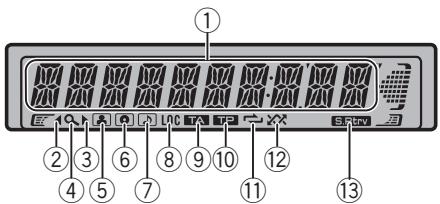

Display indication
Indicator State
| 1 | Main display section | Tuner: band and frequencyRDS: program service name, PTY information and other literal informationBuilt-in CD, USB storage device and iPod: elapsed playback time and text information |
| 2 | | An upper tier of the folder or menu exists. |
| 3 | | A lower tier of the folder or menu exists.It flashes when a song/album related to the song currently playing is selected from iPod. |
| 4 | Q (list) | The list function is operated. |
| 5 | | The disc (track) artist name is displayed.Artist search refinement of the iPod browsing function is in use. |
| 6 | | The disc (album) name is displayed.Album search refinement of the iPod browsing function is in use. |
| 7 | | The track (song) name is displayed.A playable audio file has been selected while operating the list.Song search refinement of the iPod browsing function is in use. |
| 8 | LOC | Local seek tuning is on. |
| 9 | TA (TA) | TA function is on. |
| 10 | TP (TP) | A TP station is tuned in. |
| 11 | | Track or folder repeat is on. |
| 12 | | Random play is on.The iPod source is selected and the shuffle or shuffle all function is on. |
| 13 | S.Rtrv(sound retriever) | The sound retriever function is on. |
□
Operating this unit
Basic Operations
Important
- Handle gently when removing or attaching the front panel.
- Avoid subjecting the front panel to excessive shock.
- Keep the front panel out of direct sunlight and high temperatures.
- To avoid damaging the device or vehicle interior, remove any cables and devices attached to the front panel before detaching it.
Removing the front panel to protect your unit from theft
1 Press the detach button to release the front panel.
2 Push the front panel upward and pull it toward you.
3 Always keep the detached front panel in a protection device such as a protection case.
Re-attaching the front panel
1 Slide the front panel to the left.
Make sure to insert the tabs on the left side of the head unit into the slots on the front panel.
2 Press the right side of the front panel until it is firmly seated.
If you cannot attach the front panel to the head unit successfully, make sure that you are placing the front panel onto the head unit correctly. Forcing the front panel into place may result in damage to the front panel or head unit.
Turning the unit on
1 Press S (SRC/OFF) to turn the unit on.
Turning the unit off
1 Press and hold S (SRC/OFF) until the unit turns off.
Selecting a source
1 Press S (SRC/OFF) to cycle between: TUNER (tuner)—CD (built-in CD player)—USB (USB)/iPod (iPod)—AUX (AUX)
Adjusting the volume
1 Turn M.C. to adjust the volume.
CAUTION
For safety reasons, park your vehicle when removing the front panel.
Note
When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.
Returning to the previous display
Returning to the previous list (the folder one level higher)
1 Press
Returning to the main menu
Returning to the top tier of list
1 Press and hold
Returning to the ordinary display Canceling the initial setting menu
1 Press B (BAND/ESC).
Returning to the ordinary display from the list
1 Press B (BAND/ESC).
□
Tuner
Basic Operations
Selecting a band
1 Press B (BAND/ESC) until the desired band (F1, F2, F3 for FM or MW/LW) is displayed.
Manual tuning (step by step)
1 Press ◀ or ▶.
Seeking
1 Press and hold ◀ or ▶, and then release.
You can cancel seek tuning by briefly pressing ◀ or ▶.
While pressing and holding ◀ or ▶, you can skip stations. Seek tuning starts as soon as you release ◀ or ▶.
Note
This unit's AF (alternative frequencies search) function can be turned on and off. AF should be off for normal tuning operation (refer to the next page).
Storing and recalling stations for each band
1 When you find a station that you want to store in memory, press one of the preset tuning buttons (1 to 6) and hold until the preset number stops flashing.
2 Press one of the preset tuning buttons (1 to 6) to select the desired station.
■ You can also recall stored radio stations by pressing ▲ or ▼ during the frequency display.
Switching the RDS display
RDS (radio data system) contains digital information that helps search for the radio stations.
- Press ⇌.
Program service name—PTY information—Frequency
■ PTY information and the frequency appear on the display for eight seconds.
PTY list
NEWS/INFO
NEWS (News), AFFAIRS (Current affairs), INFO (Information), SPORT (Sports), WEATHER (Weather), FINANCE (Finance)
POPULAR
POP MUS (Popular music), ROCK MUS (Rock music), EASY MUS (Easy listening), OTH MUS (Other music), JAZZ (Jazz), COUNTRY (Country music), NAT MUS (National music), OLDIES (Oldies music), FOLK MUS (Folk music)
CLASSICS
L. CLASS (Light classical), CLASSIC (Classical)
OTHERS
EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), CHILDREN (Children's), SOCIAL (Social affairs), RELIGION (Religion), PHONE IN (Phone in), TOURING (Travel), LEISURE (Leisure), DOCUMENT (Documentaries)
Receiving traffic announcements
Regardless of the source you are listening to, you can receive traffic announcements automatically with TA (traffic announcement standby).
1 Tune in to a TP or enhanced other network's TP station.
2 Press TA/NEWS to turn traffic announcement standby on or off.
3 Use M.C. to adjust the TA volume when a traffic announcement begins.
The newly set volume is stored in the memory and will be recalled for subsequent traffic announcements.
4 Press TA/NEWS while a traffic announcement is being received to cancel the announcement.
The tuner returns to the original source but remains in the standby mode until TA/NEWS is pressed again.
Using news program interruption
When a news program is broadcast from a PTY code news station, the unit automatically switches to the news broadcast station. When the news program ends, reception of the previous program resumes.
1 Press and hold TA/NEWS to turn news program interruption on or off.
A news program can be canceled by pressing TA/NEWS.
Function settings
1 Press M.C. to display the main menu.
2 Turn M.C. to change the menu option and press to select FUNCTION.
3 Turn M.C. to select the function.
After selecting, perform the following procedures to set the function.
■ If MW/LW band is selected, only BSM or LOCAL is available.
BSM (best stations memory)
BSM (best stations memory) automatically stores the six strongest stations in the order of their signal strength.
1 Press M.C. to turn BSM on.
To cancel, press M.C. again.
REGION (regional)
When AF is used, the regional function limits the selection of stations to those broadcasting regional programs.
1 Press M.C. to turn the regional function on or off.
LOCAL (local seek tuning)
Local seek tuning lets you tune in to only those radio stations with sufficiently strong signals for good reception.
1 Press M.C. to display the setting mode.
② Turn M.C. to select the desired setting.
FM: OFF—LEVEL 1—LEVEL 2—LEVEL 3—LEVEL 4
MW/LW: OFF—LEVEL 1—LEVEL 2
The highest level setting allows reception of only the strongest stations, while lower levels allow the reception of weaker stations.
3 Press M.C. to confirm the selection.
PTY SEARCH (program type selection)
You can tune in to a station using PTY (program type) information.
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the desired setting.
NEWS/INFO—POPULAR—CLASSICS—OTHERS
3 Press M.C. to begin the search.
The unit searches for a station broadcasting that type of program. When a station is found, its program service name is displayed.
For PTY (program type ID code) information, refer to the previous page.
The program of some stations may differ from that indicated by the transmitted PTY.
If no station is broadcasting the type of program you searched for, NOT FOUND is displayed for about two seconds and then the tuner returns to the original station.
TA (traffic announcement standby)
1 Press M.C. to turn traffic announcement standby on or off.
AF (alternative frequencies search)
1 Press M.C. to turn AF on or off.
NEWS (news program interruption)
1 Press M.C. to turn the NEWS function on or off.
□
CD/CD-R/CD-RW and USB storage devices
Basic Operations
Playing a CD/CD-R/CD-RW
1 Insert the disc into the disc loading slot with the label side up.
Ejecting a CD/CD-R/CD-RW
1 Press ▲.
Playing songs on a USB storage device
① Open the USB connector cover and plug in the USB storage device using a USB cable.
Stopping playback of files on a USB storage device
1 You may disconnect the USB storage device at anytime.
Selecting a folder
1 Press ▲ or ▼
Selecting a track
1 Press ◀ or ▶
Fast forwarding or reversing
1 Press and hold ◀ or ▶.
- When playing compressed audio, there is no sound during fast forward or reverse.
Returning to root folder
1 Press and hold B (BAND/ESC).
Switching between compressed audio and CD-DA
1 Press B (BAND/ESC).
Note
Disconnect USB storage devices from the unit when not in use.
Displaying text information
Selecting the desired text information
1 Press
Scrolling the text information to the left
1 Press and hold ↩.
Notes
- Depending on the version of iTunes used to write MP3 files to a disc or media file types, incompatible text stored within an audio file may be displayed incorrectly.
- Text information items that can be changed depend on the media.
Selecting and playing files/tracks from the name list
1 Press 🔒 to switch to the file/track name list mode.
2 Use M.C. to select the desired file name (or folder name).
Changing the file or folder name
1 Turn M.C.
Playing
1 When a file or track is selected, press M.C.
Viewing a list of the files (or folders) in the selected folder
1 When a folder is selected, press M.C.
Playing a song in the selected folder
1 When a folder is selected, press and hold M.C.
Selecting a repeat play range
1 Press 6/↔ to cycle between the following:
CD/CD-R/CD-RW
• DISC – Repeat all tracks
- TRACK – Repeat the current track
• FOLDER – Repeat the current folder
USB audio player/USB memory
- ALL – Repeat all files
- TRACK – Repeat the current file
• FOLDER – Repeat the current folder
Playing tracks in random order
1 Press 5/XX to turn random play on or off. Tracks in a selected repeat range are played in random order.
Pausing playback
1 Press 2/PAUSE to pause or resume.
Enhancing compressed audio and restoring rich sound (sound retriever)
1 Press 1/S.Rtrv to cycle between:
OFF (off)—1—2
1 is effective for low compression rates, and 2 is effective for high compression rates.
Function settings
1 Press M.C. to display the main menu.
Operating this unit
2 Turn M.C. to change the menu option and press to select FUNCTION.
3 Turn M.C. to select the function.
After selecting, perform the following procedures to set the function.
REPEAT (repeat play)
1 Press M.C. to display the setting mode.
2 Turn M.C. to select a repeat play range.
For details, refer to Selecting a repeat play range on the previous page.
3 Press M.C. to confirm the selection.
RANDOM (random play)
1 Press M.C. to turn random play on or off.
PAUSE (pause)
1 Press M.C. to pause or resume.
S.RTRV (sound retriever)
Automatically enhances compressed audio and restores rich sound.
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the desired setting.
For details, refer to Enhancing compressed audio and restoring rich sound (sound retriever) on the previous page.
3 Press M.C. to confirm the selection.
iPod
Basic Operations
Playing songs on an iPod
1 Open the USB connector cover.
2 Connect an iPod to the USB cable using an iPod Dock Connector.
Selecting a track (chapter)
1 Press ◀ or ▶
Fast forwarding or reversing
1 Press and hold ◀ or ▶.
Notes
- The iPod cannot be turned on or off when the control mode is set to CTRL AUDIO.
- Disconnect headphones from the iPod before connecting it to this unit.
- The iPod will turn off about two minutes after the ignition switch is set to OFF.
Displaying text information
Selecting the desired text information
1 Press
Scrolling the text information to the left
1 Press and hold ↩.
Browsing for a song
1 Press 🔒 to switch to the top menu of list search.
2 Use M.C. to select a category/song.
Changing the name of the song or category
1 Turn M.C.
Playlists—artists—albums—songs—podcasts—genres—composers—audiobooks
Playing
1 When a song is selected, press M.C.
Viewing a list of songs in the selected category
1 When a category is selected, press M.C.
Playing a song in the selected category
1 When a category is selected, press and hold M.C.
Searching the list by alphabet
When a list for the selected category is displayed, press 🔒 to switch to alphabet search mode.
2 Turn M.C. to select a letter.
3 Press M.C. to display the alphabetical list.
Selecting a repeat play range
1 Press 6/↔ to cycle between the following:
• ONE – Repeat the current song
- ALL – Repeat all songs in the selected list
Playing all songs in random order (shuffle all)
1 Press 5/XX to turn shuffle all on.
- When the control mode is set to CTRL iPod/CTRL APP, shuffle play is on.
Pausing playback
1 Press 2/PAUSE to pause or resume.
Playing songs related to the currently playing song You can play songs from the following lists.
• Album list of the currently playing artist
- Song list of the currently playing album
- Album list of the currently playing genre
1 Press and hold M.C. to switch to link play mode.
2 Turn M.C. to change the mode; press to select.
- ARTIST – Plays an album of the artist currently being played.
- ALBUM – Plays a song from the album currently being played.
- GENRE – Plays an album from the genre currently being played.
The selected song/album will be played after the currently playing song.
The selected song/album may be canceled if you operate functions other than link search (e.g. fast forward and reverse).
Depending on the song selected to play, the end of the currently playing song and the beginning of the selected song/album may be cut off.
Operating this unit's iPod function from your iPod You can listen to the sound from your iPod applications using your car's speakers, when CTRL APP is selected.
This function is not compatible with the following iPod models.
- iPod nano 1st generation
- iPod 5th generation
APP mode is compatible with the following iPod models.
- iPod touch 3rd generation (software version 3.0 or later)
- iPod touch 2nd generation (software version 3.0 or later)
- iPod touch 1st generation (software version 3.0 or later)
• iPhone 3GS (software version 3.0 or later)
- iPhone 3G (software version 3.0 or later)
- iPhone (software version 3.0 or later)
1 Press 4/iPod to switch the control mode.
- CTRL iPod – This unit's iPod function can be operated from the connected iPod.
- CTRL APP – Play back the sound from your iPod applications.
- CTRL AUDIO – This unit's iPod function can be operated from this unit.
Enhancing compressed audio and restoring rich sound (sound retriever)
1 Press 1/S.Rtrv to cycle between:
OFF (off)—1—2
1 is effective for low compression rates, and 2 is effective for high compression rates.
Function settings
1 Press M.C. to display the main menu.
2 Turn M.C. to change the menu option and press to select FUNCTION.
3 Turn M.C. to select the function.
After selecting, perform the following procedures to set the function.
REPEAT (repeat play)
1 Press M.C. to display the setting mode.
2 Turn M.C. to select a repeat play range.
For details, refer to Selecting a repeat play range on the previous page.
3 Press M.C. to confirm the selection.
SHUFFLE (shuffle)
1 Press M.C. to display the setting mode.
2 Turn M.C. to select your favorite setting.
- SONGS – Play back songs in the selected list in random order.
- ALBUMS – Play back songs from a randomly selected album in order.
• OFF – Cancel random play.
3 Press M.C. to confirm the selection.
SHUFFLE ALL (shuffle all)
1 Press M.C. to turn shuffle all on.
To turn off, set SHUFFLE in the FUNCTION menu to off.
LINK PLAY (link play)
1 Press M.C. to display the setting mode.
2 Turn M.C. to change the mode; press to select. For details about the settings, refer to Playing songs related to the currently playing song on this page.
PAUSE (pause)
1 Press M.C. to pause or resume.
AUDIO BOOK (audiobook speed)
1 Press M.C. to display the setting mode.
2 Turn M.C. to select your favorite setting.
- FASTER – Playback at a speed faster than normal
• NORMAL – Playback at normal speed
- SLOWER – Playback at a speed slower than normal
3 Press M.C. to confirm the selection.
Operating this unit
S.RTRV (sound retriever)
Automatically enhances compressed audio and restores rich sound.
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the desired setting. For details, refer to Enhancing compressed audio and restoring rich sound (sound retriever) on the previous page.
3 Press M.C. to confirm the selection.
Notes
- Switching the control mode to CTRL iPod pauses song playback. Operate the iPod to resume playback.
- The following functions are still accessible from the unit even if the control mode is set to CTRL iPod/CTRL APP.
— Pausing
— Fast forward/reverse
— Track up/down
— Repeat play (ONE/ALL/OFF)
— Random play (shuffle)
— ⚫ (list) to use iPod menu
— ▲ to turn the iPod click wheel to the left
— ▼ to turn the iPod click wheel to the right
- When the control mode is set to CTRL iPod, operations are limited as follows:
— The function settings are not available.
— The browse function cannot be operated from this unit.
Audio Adjustments
1 Press M.C. to display the main menu.
2 Turn M.C. to change the menu option and press to select AUDIO.
3 Turn M.C. to select the audio function.
After selecting, perform the following procedures to set the audio function.
FAD/BAL (fader/balance adjustment)
1 Press M.C. to display the setting mode.
2 Press M.C. to cycle between fader (front/rear) and balance (left/right).
3 Turn M.C. to adjust speaker balance.
- When the rear output and RCA output setting are SW, you cannot adjust front/rear speaker balance. Refer to SW CONTROL (rear output and subwoofer setting) on the next page.
EQUALIZER (equalizer recall)
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the equalizer.
DYNAMIC—VOCAL—NATURAL—CUSTOM—FLAT—POWERFUL
3 Press M.C. to confirm the selection.
TONE CTRL (equalizer adjustment)
- Adjusted equalizer curve settings are stored in CUSTOM.
1 Press M.C. to display the setting mode.
2 Press M.C. to select BASS (bass)/MID (mid)/TRE-BLE (treble).
3 Turn M.C. to adjust the level.
Adjustment range: +6 to -6
LOUDNESS (loudness)
Loudness compensates for deficiencies in the low- and high-frequency ranges at low volume.
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the desired setting.
OFF (off)—LOW(low)—HIGH (high)
3 Press M.C. to confirm the selection.
SUBWOOFER1 (subwoofer on/off setting)
This unit is equipped with a subwoofer output which can be turned on or off.
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the desired setting.
NORMAL (normal phase)—REVERSE (reverse phase)—OFF (subwoofer off)
3 Press M.C. to confirm the selection.
SUBWOOFER2 (subwoofer adjustment)
Operating this unit
The cut-off frequency and output level can be adjusted when the subwoofer output is on.
Only frequencies lower than those in the selected range are outputted from the subwoofer.
1 Press M.C. to display the setting mode.
2 Press M.C. to cycle between the cut-off frequency and output level of the subwoofer.
Cut-off frequency (Cut-off frequency display flashes.)—Output level (Output level display flashes.)
3 Turn M.C. to select the desired setting.
Cut-off frequency: 50HZ—63HZ—80HZ—100HZ—125HZ
Output level: -24 to +6
SLA (source level adjustment)
SLA (Source Level Adjustment) lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources.
- Settings are based on the FM volume level, which remains unchanged.
- The MW/LW volume level can also be adjusted with this function.
- When selecting FM as the source, you cannot switch to SLA.
1 Press M.C. to display the setting mode.
2 Turn M.C. to adjust the source volume.
Adjustment range: +4 to -4
3 Press M.C. to confirm the selection.
Initial Settings
Important
PW SAVE (power saving) is cancelled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When PW SAVE (power saving) is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle's ignition switch doesn't have an ACC (accessory position).
1 Press and hold S (SRC/OFF) until the unit turns off.
2 Press S (SRC/OFF) and hold until function name appears in the display.
3 Turn M.C. to select the initial setting.
After selecting, perform the following procedures to set the initial setting.
FM STEP (FM tuning step)
Normally, the FM tuning step employed by seek tuning is 50 kHz. When AF or TA is on, the tuning step automatically changes to 100 kHz. It may be preferable to set the tuning step to 50 kHz when AF is on.
- The tuning step remains at 50 kHz during manual tuning.
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the FM tuning step. 50 KHZ (50 kHz)—100 KHZ (100 kHz)
3 Press M.C. to confirm the selection.
AUTO-PI (auto PI seek)
The unit can automatically search for a different station with the same programming, even during preset recall.
1 Press M.C. to turn Auto PI seek on or off.
Activate this setting when using an auxiliary device connected to this unit.
1 Press M.C. to turn AUX on or off.
USB (plug and play)
This setting allows you to switch your source to USB/iPod automatically.
1 Press M.C. to turn the plug and play function on or off.
ON – When a USB storage device/iPod is connected, depending on the type of device, the source is automatically switched to USB/iPod when you turn on the engine. If you disconnect your USB storage device/iPod, this unit's source is turned off.
OFF – When a USB storage device/iPod is connected, the source is not switched to USB/iPod automatically. Please change the source to USB/iPod manually.
SW CONTROL (rear output and subwoofer setting)
Operating this unit
The rear speaker leads output and RCA output can be used for full-range speaker or subwoofer connection. If you switch to REAR-SP:SW, you can connect a rear speaker lead directly to a subwoofer without using an auxiliary amp.
Initially, REAR-SP is set for rear full-range speaker connection (FUL).
1 Press M.C. to display the setting mode.
2 Turn M.C. to change the output and press to select.
REAR-SP—PREOUT
3 Turn M.C. to change the setting.
REAR-SP: FUL—SW
PREOUT: SW—REA
- Even if you change this setting, there is no output unless you turn the subwoofer output on (refer to SUBWOOFER1 (subwoofer on/off setting) on page 11).
- If you change this setting, subwoofer output in the audio menu will return to the factory settings.
DEMO (demo display setting)
1 Press M.C. to turn the demo display on or off.
When ever scroll is set to ON, recorded text information scrolls continuously in the display. Set to OFF if you prefer the information to scroll just once.
1 Press M.C. to turn the ever scroll on or off.
TITLE (multi-language)
This unit can display the text information of a compressed audio file even if they are embedded in a Western European or Russian language.
- If the embedded language and the selected language setting are not the same, text information may not be displayed properly.
• Some characters may not be displayed properly.
1 Press M.C. to display the setting mode.
2 Turn M.C. to select the desired setting.
EUROPEAN (European)—RUSSIAN (Russian)
3 Press M.C. to confirm the selection.
PW SAVE (power saving)
Switching this function on enables you to reduce the consumption of battery power.
- Turning on the source is the only operation allowed when this function is on.
1 Press M.C. to turn the power save on or off.
Selecting the illumination color
(Function of DEH-4300UB)
This unit is equipped with multiple-color illumination. You can select a desired color from the color list.
Direct selection from the illumination color list
1 Press M.C. to display the main menu.
2 Turn M.C. to change the menu option and press to select ILLUMI.
3 Turn M.C. to select the illumination color.
You can select one option from the following list.
• 30 preset colors (WHITE to ROSE)
• SCAN (cycle through all colors)
- CUSTOM (customized illumination color)
4 Press M.C. to confirm the selection.
Notes
- When SCAN is selected, the illuminated color automatically cycles through the 30 preset colors.
- When CUSTOM is selected, the customized color saved is selected.
Customizing the illumination color
1 Press M.C. to display the main menu.
2 Turn M.C. to change the menu option and press to select ILLUMI.
3 Turn M.C. to select the preset color or CUSTOM illumination color.
- You cannot create a custom illumination color when SCAN is selected.
4 Press M.C. and hold until the customizing illumination color setting appears in the display.
Operating this unit
5 Press M.C. to select the primary color.
R (red)—G (green)—B (blue)
6 Turn M.C. to adjust the brightness level.
Adjustment range: 0 to 60
■ You cannot select a level below 10 for all three of R (red), G (green), and B (blue) at the same time.
- You can also perform the same operation on other colors.
7 Press M.C. and hold until CUSTOM appears.
Using an AUX source
1 Insert the stereo mini plug into the AUX input jack.
2 Press S (SRC/OFF) to select AUX as the source.
Note
AUX cannot be selected unless the auxiliary setting is turned on. For more details, refer to AUX (auxiliary input) on page 12.
Sound muting
Sound is muted automatically when:
- A call is made or received using a cell phone connected to this unit.
- Voice guidance is output from a connected Pioneer navigation unit.
The sound is turned off, MUTE is displayed and no audio adjustments, except volume control, are possible. Operation returns to normal when the phone connection or the voice guidance is ended.
Installation
Connections
Important
- When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.
ACC position
No ACC position
- Use of this unit in conditions other than the following could result in fire or malfunction.
— Vehicles with a 12-volt battery and negative grounding.
— Speakers with 50 W (output value) and 4 ohm to 8 ohm (impedance value).
- To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.
— Disconnect the negative terminal of the battery before installation.
— Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.
— Place all cables away from moving parts, such as the gear shift and seat rails.
— Place all cables away from hot places, such as near the heater outlet.
— Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.
— Cover any disconnected cable connectors with insulating tape.
— Do not shorten any cables.
— Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.
— Use a fuse of the rating prescribed.
— Never wire the negative speaker cable directly to ground.
— Never band together negative cables of multiple speakers.
- When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.
- Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.
- The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.
This unit
① Power cord input
② Rear output or subwoofer output
③ Antenna input
④ Fuse (10 A)
⑤ Wired remote input
Hard-wired remote control adaptor can be connected (sold separately).
Power cord


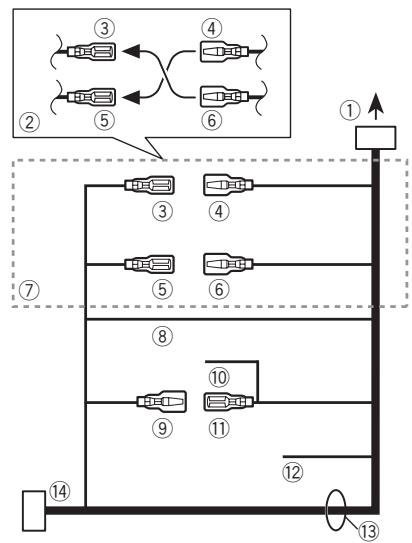

① To power cord input
② Depending on the kind of vehicle, the function of ③ and ⑤ may be different. In this case, be sure to connect ④ to ⑤ and ⑥ to ③.
③ Yellow
Back-up (or accessory)
④ Yellow
Connect to the constant 12 V supply terminal.
⑤ Red
Accessory (or back-up)
⑥ Red
Connect to terminal controlled by ignition switch (12 V DC).
⑦ Connect leads of the same color to each other.
⑧ Black (chassis ground)
⑨ Blue/white
The pin position of the ISO connector will differ depending on the type of vehicle. Connect
⑨ and ⑪ when Pin 5 is an antenna control type. In another type of vehicle, never connect ⑨ and ⑪.
⑩ Blue/white
Connect to system control terminal of the power amp (max. 300 mA 12 V DC).
⑪ Blue/white
Connect to auto-antenna relay control terminal (max. 300 mA 12 V DC).
⑫ Yellow/black
If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.
⑬ Speaker leads
White: Front left ⊕
White/black: Front left ⊖
Gray: Front right ⊕
Gray/black: Front right ⊖
Green: Rear left ⊕ or subwoofer ⊕
Green/black: Rear left ⊖ or subwoofer ⊖
Violet: Rear right ⊕ or subwoofer ⊕
Violet/black: Rear right ⊖ or subwoofer ⊖
⑭ ISO connector
In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.
Notes
- Change the initial setting of this unit. Refer to SW CONTROL (rear output and subwoofer setting) on page 12.
The subwoofer output of this unit is monaural.
- When using a subwoofer of 70 W (2 Ω), be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.
Power amp (sold separately)
Perform these connections when using the optional amplifier.
① System remote control
Connect to Blue/white cable.
② Power amp (sold separately)
③ Connect with RCA cable (sold separately)
④ To Rear output or subwoofer output
⑤ Rear speaker or subwoofer
Installation
Important
- Check all connections and systems before final installation.
- Do not use unauthorized parts as this may cause malfunctions.
- Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.
- Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result of a sudden stop.
- The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.
- Optimum performance is obtained when the unit is installed at an angle of less than 60^ .
DIN front/rear mount
This unit can be properly installed using either front-mount or rear-mount installation.
Use commercially available parts when installing.
DIN Front-mount
1 Insert the mounting sleeve into the dashboard.
For installation in shallow spaces, use the supplied mounting sleeve. If there is enough space, use the mounting sleeve that came with the vehicle.
2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.
① Dashboard
② Mounting sleeve

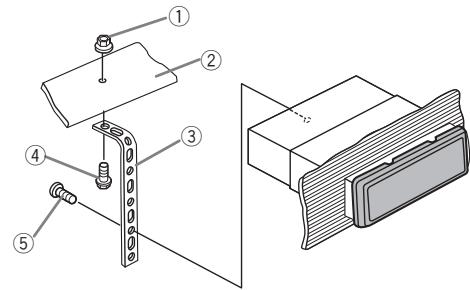

3 Install the unit as illustrated.
① Nut
② Firewall or metal support
③ Metal strap
④ Screw
⑤ Screw (M4 × 8)
■ Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.
DIN Rear-mount
1 Determine the appropriate position where the holes on the bracket and the side of the unit match.
03 (Installation
2 Tighten two screws on each side.
① Tapping screw (5 mm × 8 mm)
② Mounting bracket
③ Dashboard or console
Removing the unit
1 Remove the trim ring.
① Trim ring
② Notched tab
- Releasing the front panel allows easier access to the trim ring.
- When reattaching the trim ring, point the side with the notched tab down.

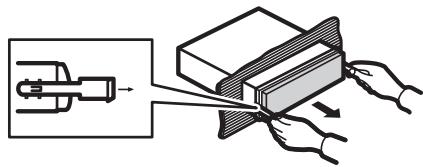

3 Pull the unit out of the dashboard.
Removing and re-attaching the front panel
You can remove the front panel to protect your unit from theft.
Press the detach button and push the front panel upward and pull it toward you.
For details, refer to Removing the front panel to protect your unit from theft and Re-attaching the front panel on page 5.
Troubleshooting
| Symptom | Cause | Action |
| The display automatically returns to the ordinary dis-play. | You did not perform any operation within about 30 seconds. | Perform operation again. |
| The repeat play range changes unexpectedly. | Depending on the repeat play range, the selected range may change when selecting another folder or track, or when fast forwarding/reversing. | Select the repeat play range again. |
| A subfolder is not played back. | Subfolders cannot be played when FOLDER (folder repeat) is selected. | Select another repeat play range. |
| NO XXXX appears when a display is changed (NO TITLE, for example). | There is no text information embedded. | Switch the display or play another track/file. |
| The display is illuminated when the unit is turned off. | Demo mode is on. | • Press → to cancel demo mode.• Turn off the demo display setting. |
| The unit is malfunctioning. There is interference. | You are using a device, such as a cellular phone, that transmits electric waves near the unit. | Move electrical devices that may be causing the interference away from the unit. |
Error messages
When you contact your dealer or your nearest Pioneer Service Center, be sure to note the error message.
Built-in CD Player
| Message | Cause | Action |
| ERROR-11, 12, 17, 30 | The disc is dirty. | Clean the disc. |
| The disc is scratched. | Replace the disc. |
| ERROR-10, 11, 12, 15, 17, 30, A0 | There is an electrical or mechanical error. | Turn the ignition switch OFF and back ON, or switch to a different source, then back to the CD player. |
| ERROR-15 | The inserted disc is blank | Replace the disc. |
| ERROR-23 | Unsupported CD format | Replace the disc. |
| FRMT READ | Sometimes there is a delay between the start of playback and when you start to hear any sound. | Wait until the message disappears and you hear sound. |
| NO AUDIO | The inserted disc does not contain any playable files. | Replace the disc. |
| SKIPPED | The inserted disc contains DRM protected WMA files. | Replace the disc. |
| PROTECT | All the files on the inserted disc are embedded with DRM. | Replace the disc. |
USB storage device/iPod
| Message | Cause | Action |
| NO DEVICE | When plug and play is off, no USB storage device or iPod is connected. | Turn the plug and play on.Connect a compatible USB storage device/iPod. |
| FRMT READ | Sometimes there is a delay between the start of playback and when you start to hear any sound. | Wait until the message disappears and you hear sound. |
| Message | Cause | Action |
| NO AUDIO | There are no songs. | Transfer the audio files to the USB storage device and connect. |
| The connected USB storage device has security enabled | Follow the USB storage device instructions to disable the security. |
| SKIPPED | The connected USB storage device contains WMA files embedded with Windows MediaTM DRM 9/10 | Play an audio file not embedded with Windows Media DRM 9/10. |
| PROTECT | All the files in the USB storage device are embedded with Windows Media DRM 9/10 | Transfer audio files not embedded with Windows Media DRM 9/10 to the USB storage device and connect. |
| N/A USB | The connected USB storage device is not supported by this unit. | Connect a USB Mass Storage Class compliant device.Disconnect your device and replace it with a compatible USB storage device. |
| Message | Cause | Action |
| CHECK USB | The USB connector or USB cable has short-circuited. | Check that the USB connector or USB cable is not caught in something or damaged. |
| The connected USB storage device consumes more than 500 mA (maximum allowable current). | Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect only compliant USB storage devices. |
| The iPod operates correctly but does not charge | Make sure the connection cable for the iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back ON, or disconnect the iPod and reconnect. |
| ERROR-19 | Communication failed. | Perform one of the following operations.-Turn the ignition switch OFF and back ON.-Disconnect the USB storage device.-Change to a different source. Then, return to the USB source.Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it. |
| iPod failure | Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it. |
| Message | Cause | Action |
| ERROR-23 | USB storage device is not formatted with FAT12, FAT16 or FAT32 | USB storage device should be formatted with FAT12, FAT16 or FAT32. |
| ERROR-16 | The iPod firmware version is old | Update the iPod version. |
| iPod failure | Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it. |
| STOP | There are no songs in the current list. | Select a list that contains songs. |
| NOT FOUND | No related songs | Transfer songs to the iPod. |
| Unfinalized CD-R/CD-RW disc playback is not possible. |
| Do not touch the recorded surface of the discs. |
| Store discs in their cases when not in use. |
| Do not attach labels, write on or apply chemicals to the surface of the discs. |
| To clean a CD, wipe the disc with a soft cloth outward from the center. |
| Condensation may temporarily impair the player's performance. Leave it to adjust to the warmer temperature for about one hour. Also, wipe any damp discs with a soft cloth. |
| Playback of discs may not be possible because of disc characteristics, disc format, recorded application, playback environment, storage conditions, and so on. |
| Road shocks may interrupt disc playback. |
Handling guidelines
Discs and player
Use only discs that feature either of the following two logos.
Use 12-cm discs. Do not use 8-cm discs or an adapter for 8-cm discs.
Use only conventional, fully circular discs. Do not use shaped discs.
Do not insert anything other than a CD into the CD loading slot.
Do not use cracked, chipped, warped, or otherwise damaged discs as they may damage the player.
USB storage device
Connections via USB hub are not supported.
Do not connect anything other than a USB storage device.
Firmly secure the USB storage device when driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
Depending on the USB storage device, the following problems may occur.
• Operations may vary.
• The storage device may not be recognized.
- Files may not be played back properly.
• The device may generate noise in the radio.
iPod
Do not leave the iPod in places with high temperatures.
To ensure proper operation, connect the dock connector cable from the iPod directly to this unit.
Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.
About iPod settings
- When an iPod is connected, this unit changes the EQ (equalizer) setting of the iPod to off in order to optimize the acoustics. When you disconnect the iPod, the EQ returns to the original setting.
- You cannot set Repeat to off on the iPod when using this unit. Repeat is automatically changed to All when the iPod is connected to this unit.
Incompatible text saved on the iPod will not be displayed by the unit.
DualDiscs
DualDiscs are two-sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other.
Since the CD side of DualDiscs is not physically compatible with the general CD standard, it may not be possible to play the CD side with this unit.
Frequent loading and ejecting of a DualDisc may result in scratches on the disc. Serious scratches can lead to playback problems on this unit. In some cases, a DualDisc may become stuck in the disc loading slot and will not eject. To prevent this, we recommend you refrain from using DualDisc with this unit. Please refer to the information from the disc manufacturer for more detailed information about DualDiscs.
Compressed audio compatibility (disc, USB)
WMA
File extension: .wma
Bit rate: 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)
Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
Windows Media Audio Professional, Lossless, Voice/DRM Stream/Stream with video: Not compatible
MP3
File extension: .mp3
Bit rate: 8 kbps to 320 kbps (CBR), VBR
Sampling frequency: 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version: 1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist: Not compatible
MP3i (MP3 interactive), mp3 PRO: Not compatible
WAV
File extension: .wav
Quantization bits: 8 and 16 (LPCM), 4 (MS ADPCM)
Sampling frequency: 16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)
Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
Russian text to be displayed on this unit should be encoded with the following character sets:
• Unicode (UTF-8, UTF-16)
- A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting
This unit may not operate correctly depending on the application used to encode WMA files.
There may be a slight delay at the start of playback of audio files embedded with image data or audio files stored on a USB storage device that has numerous folder hierarchies.
Disc
playable folder hierarchy: up to eight tiers (A practical hierarchy is less than two tiers.)
playable folders: up to 99
playable files: up to 999
File system: ISO 9660 Level 1 and 2, Romeo, Joliet
Multi-session playback: Compatible
Packet write data transfer: Not compatible
Regardless of the length of blank sections between the songs from the original recording, compressed audio discs play with a short pause between songs.
USB storage device
playable folder hierarchy: up to eight tiers (A practical hierarchy is less than two tiers.)
playable folders: up to 500
playable files: up to 15 000
Playback of copyright-protected files: Not compatible
Partitioned USB storage device: Only the first partition can be played.
There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.
CAUTION
Do not leave discs or a USB storage device in any place that is subject to high temperatures.
iPod compatibility
This unit supports only the following iPod models. Supported iPod software versions are shown below. Older versions may not be supported.
- iPod nano 5th generation (software version 1.0.1)
- iPod nano 4th generation (software version 1.0.4)
- iPod nano 3rd generation (software version 1.1.3)
- iPod nano 2nd generation (software version 1.1.3)
- iPod nano 1st generation (software version 1.3.1)
- iPod touch 3rd generation (software version 3.1.2)
- iPod touch 2nd generation (software version 3.1.2)
- iPod touch 1st generation (software version 3.1.2)
- iPod classic 160GB (software version 2.0.3)
- iPod classic 120GB (software version 2.0.1)
- iPod classic (software version 1.1.2)
- iPod 5th generation (software version 1.3)
• iPhone 3GS (software version 3.1.2)
• iPhone 3G (software version 3.1.2)
• iPhone (software version 3.1.2)
Depending on the generation or version of the iPod, some functions may not be available.
Operations may vary depending on the software version of iPod.
When using an iPod, an iPod Dock Connector to USB Cable is required.
A Pioneer CD-IU50 interface cable is also available. For details, consult your dealer.
About the file/format compatibility, refer to the iPod manuals.
Audio Book, Podcast: Compatible
CAUTION
Pioneer accepts no responsibility for data lost on the iPod even if that data is lost while using this unit.
Sequence of audio files
The user cannot assign folder numbers and specify playback sequences with this unit.
Example of a hierarchy
Level 1 Level 2 Level 3 Level 4
Folder
Compressed
audio file
01 to 05: Folder
number
① to ⑥: Playback
sequence
Disc
Folder selection sequence or other operation may differ depending on the encoding or writing software.
USB storage device
Playback sequence is the same as recorded sequence in the USB storage device.
To specify the playback sequence, the following method is recommended.
1 Create a file name that includes numbers that specify the playback sequence (e.g., 001xxx.mp3 and 099yyy.mp3).
2 Put those files into a folder.
3 Save the folder containing files on the USB storage device.
However, depending on the system environment, you may not be able to specify the play-back sequence.
For USB portable audio players, the sequence is different and depends on the player.
Russian character chart
D: Display C: Character
Copyright and trademark
iTunes
Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
MP3
Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue-generating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit
http://www.mp3licensing.com.
WMA
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.
iPod & iPhone
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Specifications
General
Power source .... 14.4 V DC (10.8 V to 15.1 V allowable)
Grounding system ...... Negative type
Maximum current consumption 10.0 A
Dimensions (W × H × D):
DIN
Chassis .... 178 mm × 50 mm × 165 mm
Nose 188 mm × 58 mm × 17 mm
D
Chassis .... 178 mm × 50 mm × 165 mm
Nose 170 mm × 46 mm × 17 mm
Weight 1.2 kg
Audio
Maximum power output ..... 50 W × 4
Continuous power output ...22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 Ω load, both channels driven)
Load impedance .... 4 Ω (4 Ω to 8 Ω allowable)
Preout maximum output level 2.0 V
Tone controls:
Bass
Frequency 100 Hz
Gain ±12 dB
Mid
Frequency 1 kHz
Gain ±12 dB
Treble
Frequency 10 kHz
Gain ....±12 dB
Subwoofer (mono):
Frequency 50/63/80/100/125 Hz
Slope ......-18 dB/oct
Gain ....+6 dB to -24 dB
Phase ...... Normal/Reverse
CD player
System .... Compact disc audio system
Usable discs .... Compact disc
Signal-to-noise ratio ....94 dB (1 kHz) (IEC-A network)
Number of channels ...... 2 (stereo)
WMA decoding format ...... Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio)
(Windows Media Player)
MP3 decoding format ...... MPEG-1 & 2 Audio Layer 3
WAV signal format ....Linear PCM & MS ADPCM (Non-compressed)
USB
USB standard specification
.... USB 2.0 full speed
Maximum current supply .... 500 mA
USB Class .... MSC (Mass Storage Class)
File system ...... FAT12, FAT16, FAT32
WMA decoding format ...... Ver. 7, 7.1, 8, 9, 10, 11, 12 (2ch audio)
(Windows Media Player)
MP3 decoding format ...... MPEG-1 & 2 Audio Layer 3
WAV signal format ....Linear PCM & MS ADPCM (Non-compressed)
FM tuner
Frequency range 87.5 MHz to 108.0 MHz
Usable sensitivity .... 9 dBf (0.8 μV/75 Ω, mono, S/N: 30 dB)
Signal-to-noise ratio .... 72 dB (IEC-A network)
MW tuner
Frequency range 531 kHz to 1602 kHz
Usable sensitivity .... 25 μV (S/N: 20 dB)
Signal-to-noise ratio ...... 62 dB (IEC-A network)
LW tuner
Frequency range 153 kHz to 281 kHz
Usable sensitivity .... 28 μV (S/N: 20 dB)
Signal-to-noise ratio ...... 62 dB (IEC-A network)
Note
Specifications and the design are subject to modifications without notice.
Indicateur État
MW/LW (PO/GO) : OFF—LEVEL 1—LEVEL 2
S.RTRV (sound retriever)
S.RTRV (sound retriever)
Lecture multi-session: compatible
Livre audio, Podcast: compatible
PRÉCAUTION
Dimensions (L × H × P):
DIN
Châssis .... 178 mm × 50 mm × 165 mm
Panneau avant ..... 188 mm × 58 mm × 17 mm
D
Châssis .... 178 mm × 50 mm × 165 mm
Panneau avant ..... 170 mm × 46 mm × 17 mm
Poids 1,2 kg
Audio
Phase ...... Normale/Inverse
Lecteur de CD
Système .... Compact Disc Digital Audio
Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 canaux audio)
(Windows Media Player)
Indicatore Stato
FM: OFF—LEVEL 1—LEVEL 2—LEVEL 3—LEVEL 4
MW/LW: OFF—LEVEL 1—LEVEL 2
NEWS/INFO—POPULAR—CLASSICS—OTHERS
① Dado
② Paratia antifuoco o supporto in metallo
③ Staffa metallica
④ Vite
⑤ Vite (M4 × 8)
Estensione file: .wma
Velocità in bit: da 48 kbps a 320 kbps (CBR), da 48 kbps a 384 kbps (VBR)
Consumo massimo 10,0 A
Dimensioni (L × A × P):
DIN
Telaio ....178 mm × 50 mm × 165 mm
Pannello anteriore
188 mm × 58 mm × 17 mm
D
Telaio ....178 mm × 50 mm × 165 mm
Pannello anteriore
170 mm × 46 mm × 17 mm
Peso 1,2 kg
Audio
Ver. 7, 7.1, 8, 9, 10, 11, 12 (2)
canali audio)
(Windows Media Player)
Ver. 7, 7.1, 8, 9, 10, 11, 12 (2)
canali audio)
(Windows Media Player)
Indicador
Estado
1 Pulse B (BAND/ESC)
Sintonizador
Funciones básicas
MW/LW: OFF—LEVEL 1—LEVEL 2
DYNAMIC—VOCAL—NATURAL—CUSTOM—FLAT—POWERFUL
Ver. 7, 7.1, 8, 9, 10, 11, 12
(audio 2 canales)
(Windows Media Player)
Ver. 7, 7.1, 8, 9, 10, 11, 12
(audio 2 canales)
(Windows Media Player)
MW/LW: OFF—LEVEL 1—LEVEL 2
NEWS/INFO—POPULAR—CLASSICS—OTHERS
(Windows Media Player)
(Windows Media Player)
KLASSE 1 LASERPRODUCT
VOORZICHTIG—ONZICHTBARE LASERSTRALING
KLASSE 1M. INDIEN OPEN NIET RECHTSTREEKS
BEKIJKEN MET OPTISCHE INSTRUMENTEN.
LET OP
Indicator Status
FM: OFF—LEVEL 1—LEVEL 2—LEVEL 3—LEVEL 4
MW/LW: OFF—LEVEL 1—LEVEL 2
NEWS/INFO—POPULAR—CLASSICS—OTHERS
S.RTRV (sound retriever)
SHUFFLE ALL (shuffle all)
S.RTRV (sound retriever)
① Moer
② Brandmuur of metalen steunvlak
③ Metalen band
④ Schroef
⑤ Schroef (M4 × 8)
① Zelftappende schroef (5 mm × 8 mm)
② Bevestigingsklem
③ Dashboard of console
Afval ......-18 dB/oct
Gain ....+6 dB tot -24 dB
Fase ...... Normaal/tegengesteld
Cd-speler
Systeem .... Compact Disc Audio
Bruikbare discs .... Compact Discs
Versie 7, 7.1, 8, 9, 10, 11, 12
(2 kan. audio)
(Windows Media Player)
MP3-decoderingsformaat ... MPEG-1 & 2 Audio Layer 3
WAV-signaalformaat ....Lineaire PCM & MS ADPCM
Versie 7, 7.1, 8, 9, 10, 11, 12
(2 kan. audio)
(Windows Media Player)
MP3-decoderingsformaat ... MPEG-1 & 2 Audio Layer 3
WAV-signaalformaat ....Lineaire PCM & MS ADPCM
MW/LW: OFF—LEVEL 1—LEVEL 2
① Гайка
(Windows Media Player)
Pioneer CarStereo-Pass
Please fill out immediately after purchase.
PIONEER ELECTRONICS (USA) INC.
P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.
TEL: (800) 421-1404
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique
TEL: (0) 3/570.05.11
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936
TEL: 65-6472-7555
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Australia
TEL: (03) 9586-6300
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada
TEL: 1-877-283-5901
TEL: 905-479-4411
PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.
Blvd.Manuel Avila Camacho 138 10 piso
Col.Lomas de Chapultepec, Mexico, D.F. 11000
TEL: 55-9178-4270
先鋒股份有限公司
總公司：台北市內湖區瑞光路407號8樓
電話：(02) 2657-3588
先鋒電子（香港）有限公司
香港九龍尖沙咀海港城世界商業中心
9 樓 901-6 室
電話：(0852) 2848-6488
