Product type	Wall mount for plasma screen
Brand	PIONEER
Model	PDK-5013
Material	Robust steel
Maximum load	50 kg
Screen compatibility	Pioneer plasma screens from 42 to 60 inches
Dimensions (L x H x D)	800 x 600 x 100 mm
Net weight	5.2 kg
Wall mounting	Screws provided for concrete or wood frame walls
Distance from wall	100 mm
Tilt angle	Non-tilting (fixed)
Rotation	Non-rotating
Installation	Professional recommended
Maintenance	Clean with a soft dry cloth; do not use chemicals
Repairability	Spare parts available via Pioneer after-sales service
Warranty	2 years
Certifications	CE, RoHS
Box contents	Wall mount, screws, installation manual
Safety standards	Compliant with European standards for wall mounts

Frequently Asked Questions - PDK-5013 PIONEER

What is the maximum weight the PDK-5013 wall mount can support?

The PIONEER PDK-5013 wall mount can support a load up to 50 kg. Ensure your screen does not exceed this weight.

Is this mount compatible with all plasma screens?

It is specially designed for Pioneer plasma screens from 42 to 60 inches. Check the dimensions and weight of your device before installation.

Can I install this mount myself?

Installation by a professional is strongly recommended. Improper installation may cause falls or damage.

What tools are needed for installation?

You will need a drill, a spirit level, an adjustable wrench or screwdriver suited for the provided screws. Refer to the manual for precise diameters.

How do I clean the wall mount?

Use a soft dry cloth to remove dust. Never use abrasive products or solvents.

Is periodic maintenance required?

It is recommended to check every 5 years the tightness of the fixings and the metal frame, especially if the environment is humid or variable.

Can the mount pivot or tilt?

No, the PDK-5013 is a fixed mount with no tilt or rotation capability. It holds the screen flat against the wall.

What if screws are missing from the kit?

Contact Pioneer after-sales service or your retailer for spare parts. Do not use non-compliant screws.

Is this mount suitable for installation on a plasterboard wall?

Installation on drywall requires special plugs suited for the weight. Consult a professional to assess wall strength.

Can I use this mount for an LCD or LED screen?

This model is designed only for plasma screens. For other technologies, choose a suitable mount.

USER MANUAL PDK-5013 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

Six identical screwdrivers arranged in a row (no text or symbols visible)

Simple line drawing of a folded paper or document (no text or symbols)

■ サービスパーツ部品表

Pure technical diagram of a rectangular panel with internal slots and circular features, no text or symbols present.

Technical line drawing of a mounted panel assembly with mounting holes and wiring (no text or symbols)

8 【PDP-433HD-U の場合】

アンダースピーカーを取り付ける。

● Thank you for purchasing this Pioneer product.
- To ensure safe and proper usage, please read the accompanying Operating Instructions carefully before using the product.
- Keep the Operating Instructions stored in an accessible place.

Installation Work

• This product is sold on the premise that it will be installed by a professional with sufficient technique and skills. Make sure to request installation and mounting from a professional construction company or your sales agent.
• Pioneer shall not be liable in any way for any accidents or damage resulting from improper installation or mounting, incorrect usage, remodeling, natural disasters or the like.

Note to Construction Companies

Prior to installing this product, please read Pioneer's technical manual thoroughly and heed its content.

Pioneer shall not be liable in any way for any accidents or damage resulting from other than the specified assembly, mounting and usage, from remodeling, or from natural disasters or the like.

Usage Precautions

1. This product is exclusively for use with the plasma display.
2. It should not be used for any other purpose, such as for holding a plasma display, or remodeled in any way.
3. The installation site should

(a) be strong enough to support the weight of the plasma display,
(b) not allow people to easily hang from or bump into the setup,
(c) not be outdoors or in proximity to hot springs or the ocean, and
(d) not be subjected to vibration or shock.
(e) In addition, a professional construction company should be consulted in the event that the walls are not structurally sound enough to permit installation.
(f) Make sure to thoroughly read the Operating Instructions for the plasma display and heed all other cautions pertaining to the installation site.

1. Assembly and Installation

(a) Follow the assembly procedure and tighten screws in all of the specified places.
Failure to do so could cause an unexpected accident, such as the display breaking or falling down after it has been installed.
(b) For safety reasons, have two or more people perform the work.
(c) Prior to starting the work, make sure to turn OFF the plasma display's main power switch and to unplug the power plug from its outlet.

1. Do not loosen any of the screws, as doing so could cause the display to fall down or a similar accident.

2. If you detect any abnormalities or poor performance, immediately contact a professional construction company for repairs.

3. As damage that is not readily visible, such as to the interior of the display's metal fixtures or the parts mounted against walls, could cause the display to fall down, make sure to contact a professional construction company for related inspection when having the display inspected or repaired or when having interior finishing done.
   We recommend having a professional construction company make periodic inspections, when possible.

4. With long-term use, the display's metal fixtures could lose their strength, depending on the environment. To promote problem-free use, we thus recommend having a professional construction company inspect the installation every five years, as a rule.

■ Confirming the parts provided

Before assembly, check to make sure that none of the parts provided are missing.

* Screws to be used for wall installation are not included. Obtain them separately.

Prepare a Phillips head (+) screw driver.

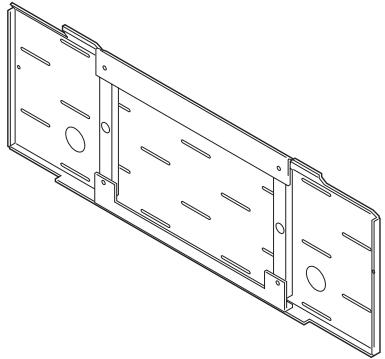

① Hung on wall unit

Technical line drawing of a rectangular metal frame with internal slots and mounting holes (no text or symbols)

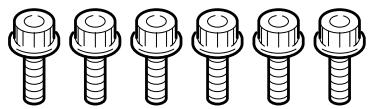

② Bolts M8 (6)

Six identical screw illustrations arranged in a row (no text or symbols)

③ Hexagon wrench (1)

(Opposite side 6 mm for M8 use)

④ Stencil

Simple line drawing of a folded paper or document (no text or symbols)

■ Service Parts List

Mark No. Description Parts No.

BOLT M8	AZB1435-
SCREW M6	AZB1438-
PACKING SET	AZH1143-
INSTRUCTION MANUAL	AZR1051-

■ Installation procedure

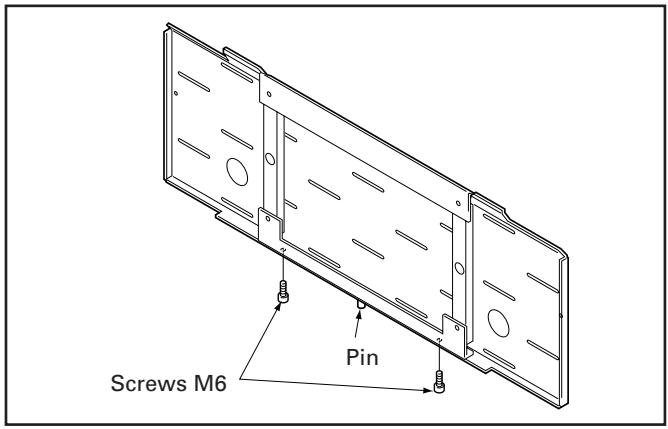

1 Remove the screws (2 locations) from the bottom of the hung on wall unit with a Phillips head (+) screw driver.

Screws M6 Pin

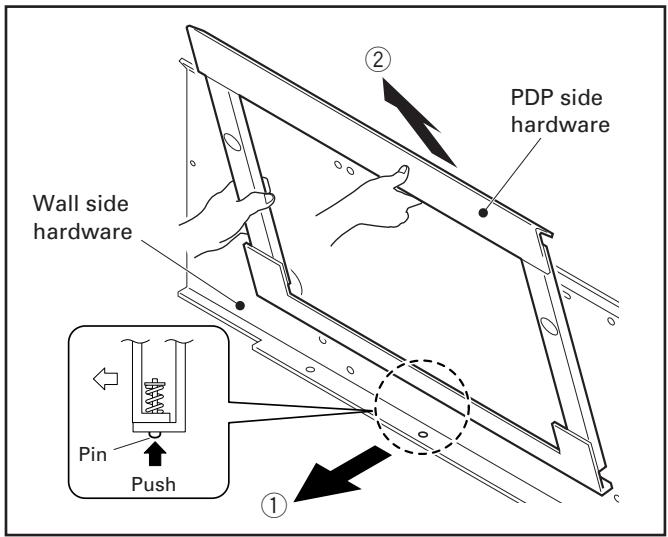

2 Remove the hardware on the wall side and the hardware on the PDP side.

① Push the pin on the bottom side and pull out the bottom side of the PDP side hardware.
② Lift up and remove the PDP side hardware.

PDP side hardware Wall side hardware Pin Push ① ②

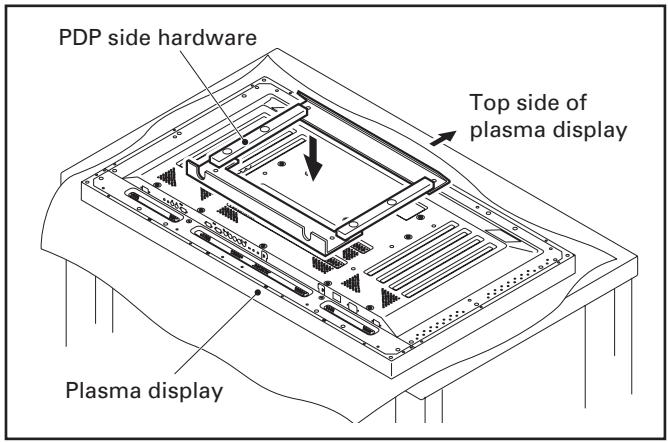

3 Attach the PDP side hardware to the plasma display.

Warning

• Cover the display with a sheet or similar protective material to protect it from scratches or other damage.
• Be sure to attach it on top of a flat table or similar surface.

PDP side hardware Top side of plasma display Plasma display

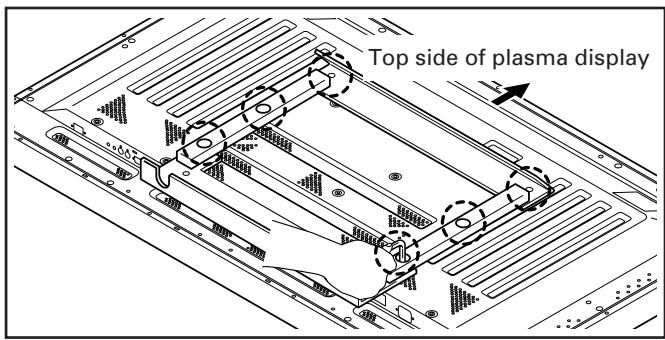

4 Fix the plasma display to the PDP side hardware with bolt M8 (6 locations).

Top side of plasma display

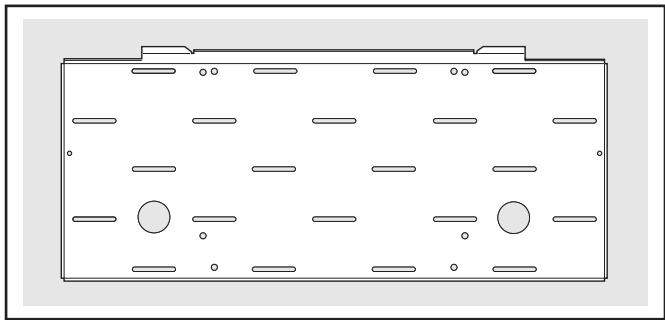

5 Attach the wall side hardware to the wall. Fix the unit with screws (at 4 or more locations) symmetrically on the left and right side. Because the screws and bolts used to do this are different according to the wall strength and wall material, purchase suitable screws and bolts separately.

Warning

Check the strength of the wall and beams before installing the display.

Pure electrical circuit lines without any symbols

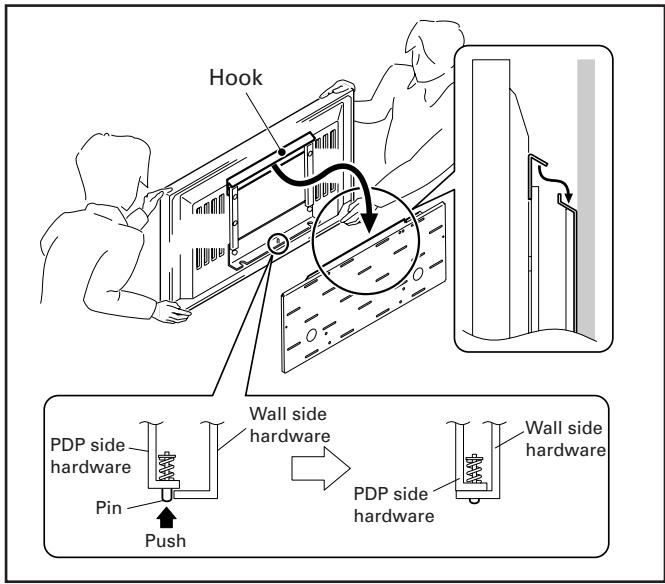

6 Attach the hook on the PDP side hardware to the wall side hardware.

While it is hooked, the pin on the bottom side does not go in, so push the pin in.

Warning

Do not hold the speakers during the installation work. To install the under speaker in particular, first attach hang the plasma display on the wall with only the speaker installation hardware and the speaker cord attached, then attach the speaker. Refer to the speaker operating instructions for the method of attaching the speaker installation hardware and the speaker cord. See step 8 for the speaker installation method.

Hook PDP side hardware Pin Push Wall side hardware PDP side hardware Wall side hardware

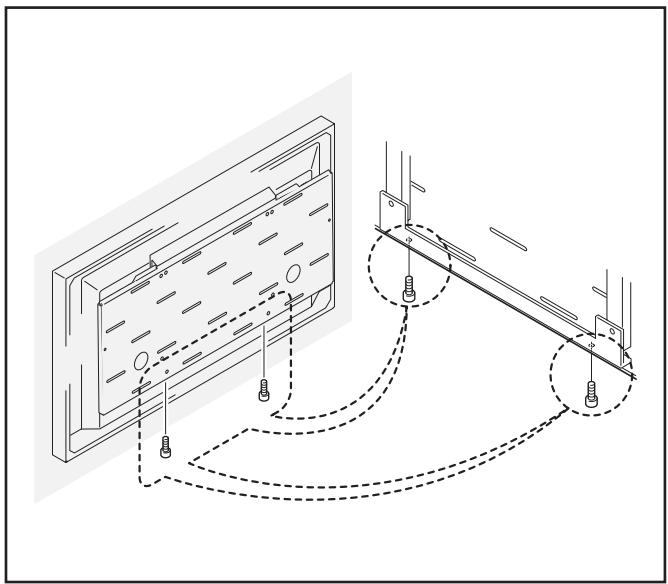

7 Fix the bottom of the hardware with the screws removed at step 1 (one on the left and one on the right).

Technical line drawing of a solar panel installation with mounting hardware and wiring (no text or symbols)

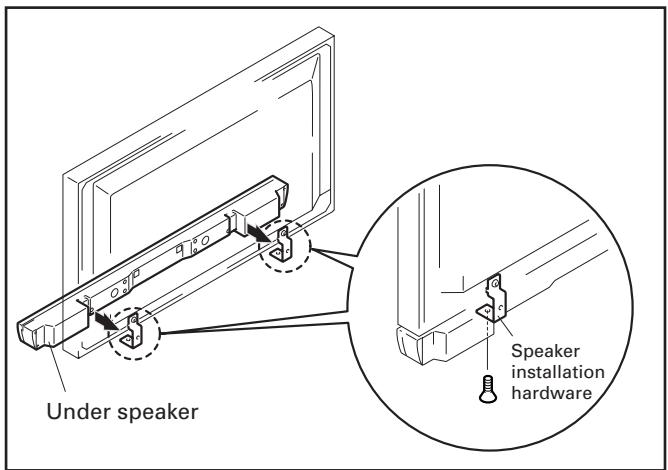

8 [When installing the PDP-S08 on the PDP-433HDE or the PDP-433HDG] Install the under speaker.

① Connect the speaker cord to the terminal on the speaker.
② Place the speaker installation hardware on the speaker and using the screws that come with the speaker, anchor both from the bottom (2 locations on the left and right).

Under speaker Speaker installation hardware

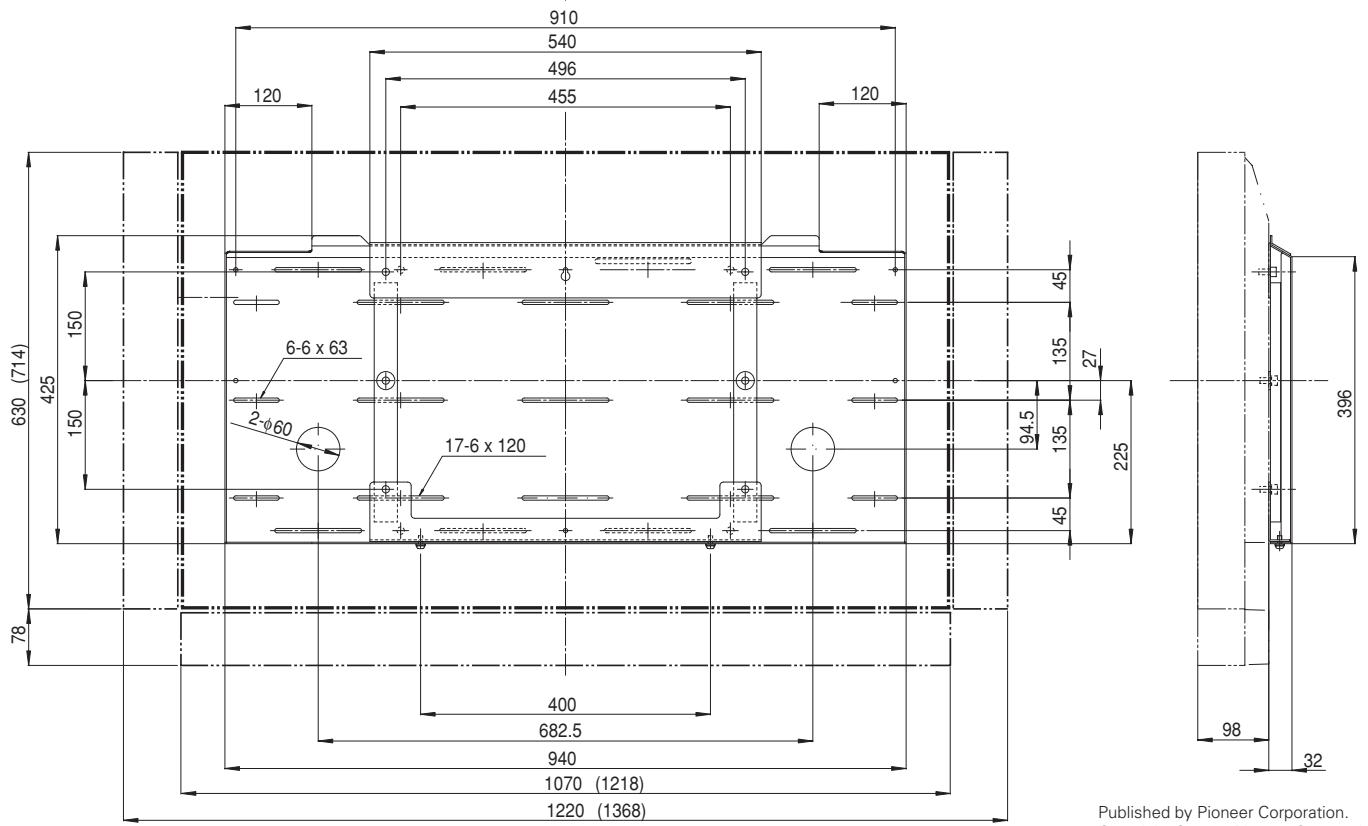

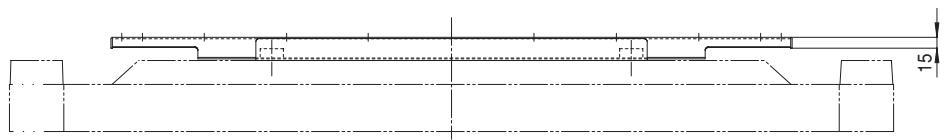

Dimensions

Weight..... 8.9 kg (19.6 lbs) (Hung on wall unit only)

43.6 kg (96.1 lbs) (Hung on wall unit + Plasma Display )
43.1 kg (95.0 lbs) (Hung on wall unit + Plasma Display )
51.1 kg (112.7 lbs) (Hung on wall unit + Plasma Display )
40.4 kg (88.2 lbs) (Hung on wall unit + Plasma Display )
47.8 kg (105.4 lbs) (Hung on wall unit + Plasma Display )

Technical drawing of a mechanical assembly with dimension标注 (no text or symbols)

(Unit: mm)
Dimensions in ( ) are the dimensions for the 50" display

910 540 496 455 120 120 630 (714) 425 150 150 78 400 682.5 940 1070 (1218) 1220 (1368) 6-6 x 63 2-φ60 17-6 x 120 45 135 27 94.5 135 225 45 396 98 32 Published by Pioneer Corporation.
