USER MANUAL PDK-5012 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

• Thank you for purchasing this Pioneer product.
• To ensure safe and proper usage, please read the accompanying Operating Instructions carefully before using the product.
• Keep the Operating Instructions stored in an accessible place.

Installation Work

• This product is sold on the premise that it will be installed by a professional with sufficient technique and skills. Make sure to request installation and mounting from a professional construction company or your sales agent.
• Pioneer shall not be liable in any way for any accidents or damage resulting from improper installation or mounting, incorrect usage, remodeling, natural disasters or the like.

Note to Construction Companies

Prior to installing this product, please read Pioneer's technical manual thoroughly and heed its content.

Pioneer shall not be liable in any way for any accidents or damage resulting from other than the specified assembly, mounting and usage, from remodeling, or from natural disasters or the like.

Usage Precautions

1. This product is exclusively for use with the plasma display.
2. It should not be used for any other purpose, such as for holding a plasma display, or remodeled in any way.
3. The installation site should

(a) be strong enough to support the weight of the plasma display,
(b) not allow people to easily hang from or bump into the setup,
(c) not be outdoors or in proximity to hot springs or the ocean, and
(d) not be subjected to vibration or shock.
(e) In addition, a professional construction company should be consulted in the event that the ceiling is not structurally sound enough to permit installation.
(f) Make sure to thoroughly read the Operating Instructions for the plasma display and heed all other cautions pertaining to the installation site.

1. Assembly and Installation

(a) Follow the assembly procedure and tighten screws in all of the specified places. Failure to do so could cause an unexpected accident, such as the display breaking or falling down after it has been installed.
(b) For safety reasons, have two or more people perform the work.
(c) Prior to starting the work, make sure to turn OFF the plasma display's main power switch and to unplug the power plug from its outlet.

1. Do not loosen any of the screws, as doing so could cause the display to fall down or a similar accident.
2. If you detect any abnormalities or poor performance, immediately contact a professional construction company for repairs.
3. As damage that is not readily visible, such as to the interior of the display's metal fixtures or the parts mounted against ceiling, could cause the display to fall down, make sure to contact a professional construction company for related inspection when having the display inspected or repaired or when having interior finishing done.

We recommend having a professional construction company make periodic inspections, when possible.
8. With long-term use, the display's metal fixtures could lose their strength, depending on the environment. To promote problem-free use, we thus recommend having a professional construction company inspect the installation every five years, as a rule.

Service Parts List

Mark No. Description Parts No.

BOLT M8

AZB1435-

SPECIAL SCREW

AZB1441-

PACKING SET

AZH1142-

INSTRUCTION MANUAL

AZR1050-

HOLE COVER

AZA2047-

Dimensions

Weight 14.5 kg (32.0 lbs) (Ceiling mount unit only)

53.4 kg (117.7 lbs) (Ceiling mount unit + Plasma Display )

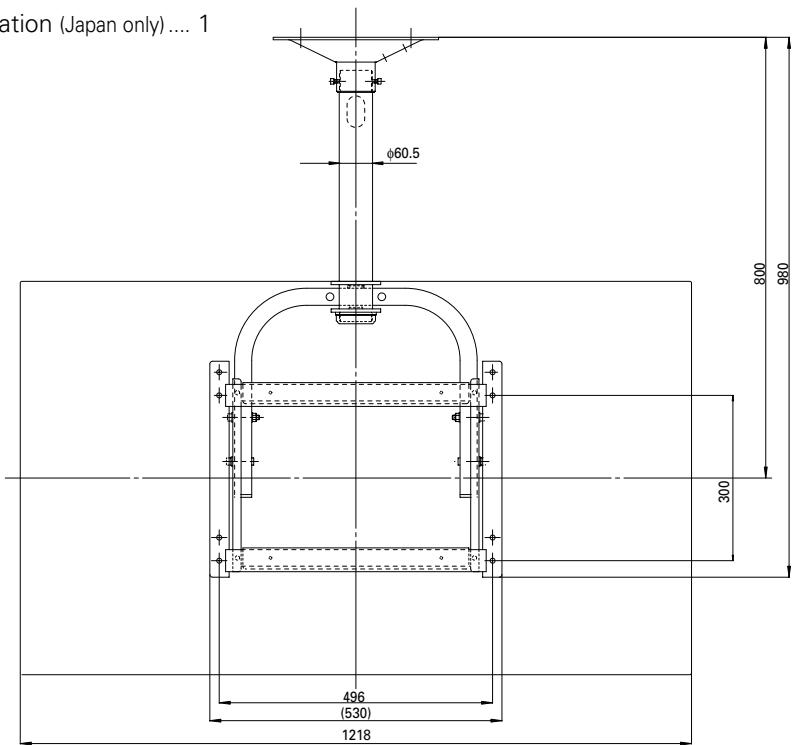

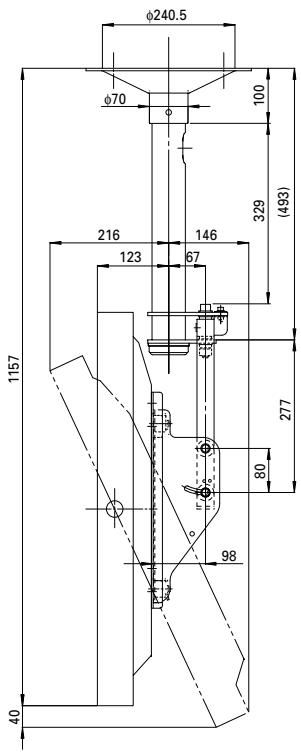

This diagram indicates the dimensions of the PDP-503CMX or PDP-503MXE plasma display after installation.

Components and Quantities

PDP bracket 1

Bolt M8 6

Special screw (M5) 4

Stencil (printed on the wrapping material that is inside) ... 1

Instruction manual 1

Installer's contact information (Japan only).... 1

(Unit: mm)
4-013.5X22

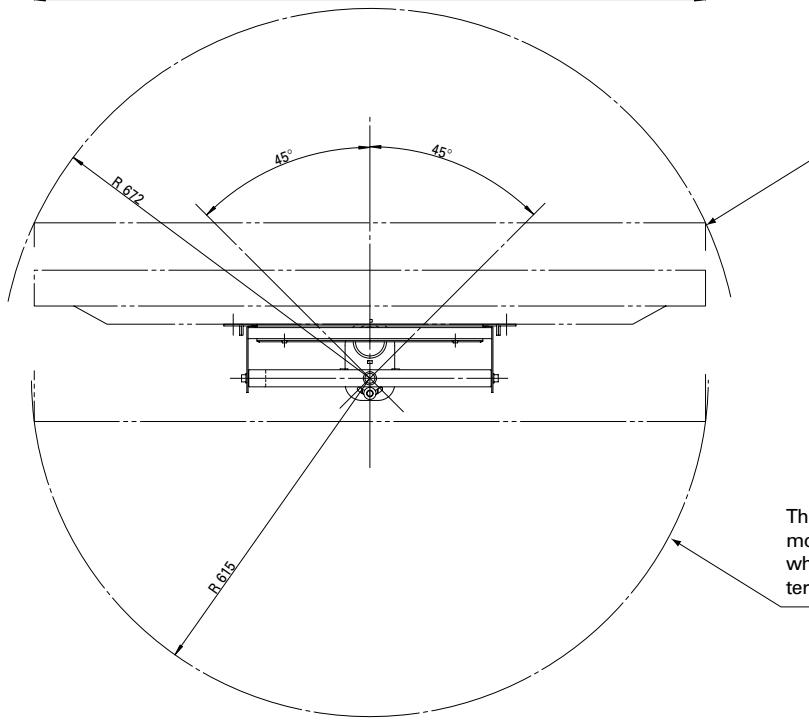

This circle shows the path that the outermost part of the plasma display follows when it is rotated about a vertical axis after having been tilted sideways by 25^ .
This circle shows the path that the outermost part of the plasma display follows when it is rotated about a vertical axis after having been tilted sideways by 25^ .
