MACBOOK PRO 13 POUCES - Laptop APPLE - Free user manual and instructions

Product Type	Laptop
Brand	Apple
Model	MacBook Pro 13-inch
Dimensions (approx.)	32.5 x 22.7 x 2.41 cm
Weight (approx.)	2.04 kg
Power Supply	60 W MagSafe Power Adapter
Battery	Built-in lithium-polymer, not user-removable
Display	13.3-inch (diagonal) LED-backlit
Processor	Intel Core i5 or i7 (depending on configuration)
Memory	Up to 8 GB of 1066 MHz DDR3 SDRAM (2 slots)
Storage	2.5-inch SATA hard drive (user-replaceable)
Connectivity	AirPort Extreme 802.11n, Bluetooth 2.1+EDR, Gigabit Ethernet
Ports	1 MagSafe, 1 Gigabit Ethernet, 1 FireWire 800, 1 Mini DisplayPort, 2 USB 2.0, SD card slot, audio output
Keyboard	Backlit with multimedia function keys
Trackpad	Multi-Touch with gesture support (click, scroll, pinch, rotate, etc.)
Camera	Built-in iSight with microphone
Optical Drive	Slot-loading SuperDrive (CD/DVD)
Operating System	Mac OS X Snow Leopard
Included Software	iLife '11 (iPhoto, iMovie, GarageBand), Safari, Time Machine, Spotlight
Care and Cleaning	Turn off and unplug before cleaning. Use a soft, damp cloth for the enclosure. Screen: use the provided cloth dampened with water only.
Safety	Do not expose to water or temperatures above 100°C. Use only the provided power adapter. Do not remove the battery.
Parts and Repairability	Hard drive and memory are user-replaceable (follow instructions). Battery, screen, and other components: only by an Apple authorized service provider.
General Information	Serial number engraved on the underside. 90 days of technical support included. Extensions possible with AppleCare Protection Plan.

Frequently Asked Questions - MACBOOK PRO 13 POUCES APPLE

How do I turn on my MacBook Pro for the first time?

Plug in the MagSafe power adapter, then briefly press the power button (Ø). The Setup Assistant will guide you through network configuration, user account setup, and data transfer from an old Mac.

What should I do if my MacBook Pro does not turn on?

Check the power adapter and outlet. Press the battery button to see if it is charged. If necessary, reset the System Management Controller (Shift+Option+Control+left side + power button for 5 seconds) or reset the PRAM (Command+Option+P+R at startup).

How do I use the Multi-Touch trackpad?

The trackpad allows clicking anywhere and supports gestures like two-finger scrolling, secondary click (with two fingers or by setting a corner), pinch to zoom, and four-finger swipe to switch applications. Customize gestures in System Preferences > Trackpad.

How do I install additional memory?

Turn off the MacBook Pro and disconnect all cables. Turn it over and remove the 10 screws on the bottom. Touch a metal surface to discharge static. Insert DDR3 SO-DIMM modules at 1066 MHz up to 8 GB total (2 slots). Press firmly until they click. Replace the bottom cover and verify recognition in 'About This Mac'.

Can I replace the hard drive myself?

Yes, the hard drive is accessible by removing the bottom case. Use a 2.5-inch SATA drive. Disconnect the connector, insert the new drive using the mounting screws from the old one, then reinstall Mac OS X from the provided DVD. Caution: back up your data first.

How can I save battery on my MacBook Pro?

Reduce screen brightness (F1/F2 keys), turn off AirPort and Bluetooth if not used, close unnecessary applications, and use Energy Saver in System Preferences. Battery life varies depending on usage.

What should I do if a disc gets stuck in the SuperDrive?

Close all applications that are using the disc. If that does not work, restart the computer while holding down the trackpad. If the problem persists, contact an Apple authorized service provider.

How do I reset my administrator password?

Insert the Mac OS X installation DVD, restart while holding down the C key. Choose the language, then from the Utilities menu select 'Reset Password'. Follow the on-screen instructions.

My MacBook Pro freezes, what should I do?

Try to force quit the application with Command+Option+Esc. If the entire system becomes unresponsive, press and hold the power button for 8 to 10 seconds to turn it off, then restart. If the problem recurs, use Disk Utility to repair the disk.

How do I clean the screen and the enclosure?

Turn off the MacBook Pro and unplug the power adapter. For the enclosure, use a soft, slightly damp cloth (no abrasive products). For the screen, use only the provided cloth dampened with water. Never spray liquid directly.

USER MANUAL MACBOOK PRO 13 POUCES APPLE

Informations, services et assistance

Service et assistance AppleCare

www.apple.com/support/contact/phoneContacts.html

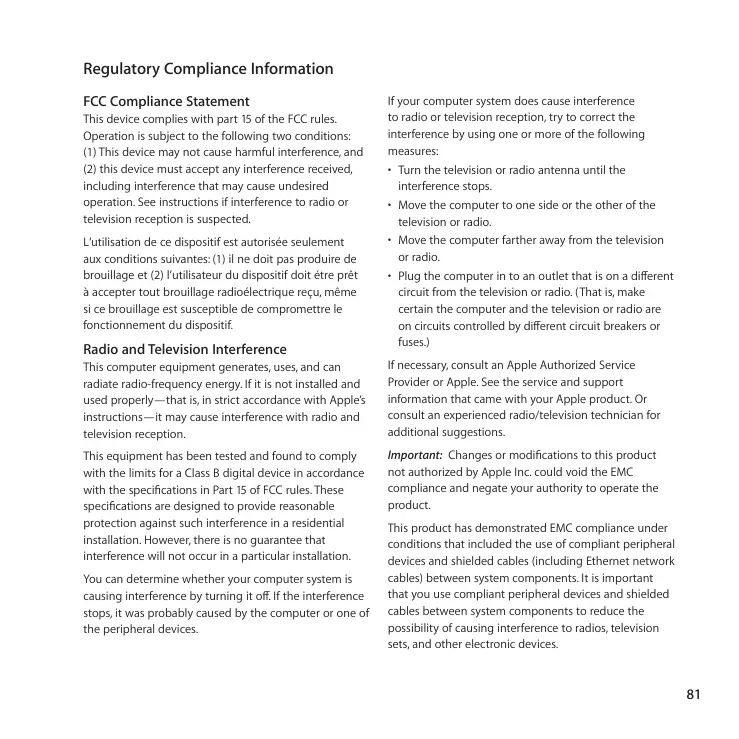

Regulatory Compliance Information

FCC Compliance Statement

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See instructions if interference to radio or television reception is suspected.

Radio and Television Interference

This computer equipment generates, uses, and can radiate radio-frequency energy. If it is not installed and used properly—that is, in strict accordance with Apple's instructions—it may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

You can determine whether your computer system is causing interference by turning it off. If the interference stops, it was probably caused by the computer or one of the peripheral devices.

If your computer system does cause interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.
• Move the computer to one side or the other of the television or radio.
• Move the computer farther away from the television or radio.
• Plug the computer in to an outlet that is on a different circuit from the television or radio. (That is, make certain the computer and the television or radio are on circuits controlled by different circuit breakers or fuses.)

If necessary, consult an Apple Authorized Service Provider or Apple. See the service and support information that came with your Apple product. Or consult an experienced radio/television technician for additional suggestions.

Important: Changes or modifications to this product not authorized by Apple Inc. could void the EMC compliance and negate your authority to operate the product.

This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables (including Ethernet network cables) between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, television sets, and other electronic devices.

Responsible party (contact for FCC matters only):

Apple Inc. Corporate Compliance

1 Infinite Loop, MS 26-A

Cupertino, CA 95014

Wireless Radio Use

This device is restricted to indoor use when operating in the 5.15 to 5.25GHz frequency band.

Exposure to Radio Frequency Energy

The radiated output power of the AirPort Extreme technology is below the FCC radio frequency exposure limits. Nevertheless, it is advised to use the wireless equipment in such a manner that the potential for human contact during normal operation is minimized.

FCC Bluetooth Wireless Compliance

The antenna used with this transmitter must not be colocated or operated in conjunction with any other antenna or transmitter subject to the conditions of the FCC Grant.

Bluetooth Industry Canada Statement

This Class B device meets all requirements of the Canadian interference-causing equipment regulations.

Industry Canada Statement

Complies with the Canadian ICES-003 Class B specifications. Cet appeil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada.

Bluetooth Europe—EU Declaration of Conformity

This wireless device complies with the R&TTE Directive.

Europe-EU Declaration of Conformity

The equipment complies with the RF Exposure Requirement 1999/S19/EC, Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz).

Hereby, Apple Inc. declares that this 802.11a/b/g/n Mini-PCIe card is in compliance with the R&TTE Directive.

Complies with European Low Voltage and EMC Directives. See: www.apple.com/euro/compliance

Korea Warning Statements

Singapore Wireless Certification

Complies with IDA Standards DB00063

Taiwan Wireless Statements

無線設備的警告聲明

Taiwan Class B Statement

Class B 設備的警告聲明

NIL

VCCI Class B Statement

情報處理裝置等電波障害自主規制にて

When connecting your MacBook Pro to the phone line using an external USB modem, refer to the telecommunications agency information in the documentation that came with your modem.

ENERGY STAR® Compliance

As an ENERGY STAR® partner, Apple has determined that standard configurations of this product meet the ENERGY STAR® guidelines for energy efficiency. The ENERGY STAR® program is a partnership with electronic equipment manufacturers to promote energy-efficient products. Reducing energy consumption of products saves money and helps conserve valuable resources.

This computer is shipped with power management enabled with the computer set to sleep after 10 minutes of user inactivity. To wake your computer, click the mouse or trackpad button or press any key on the keyboard.

For more information about ENERGY STAR*, visit: www.energystar.gov

Türkiye

Brazil—Disposal Information:

California: The coin cell battery in the optional Apple Remote contains perchlorates. Special handling and disposal may apply. Refer to: www.dtsc.ca.gov/hazardouswaste/perchlorate
