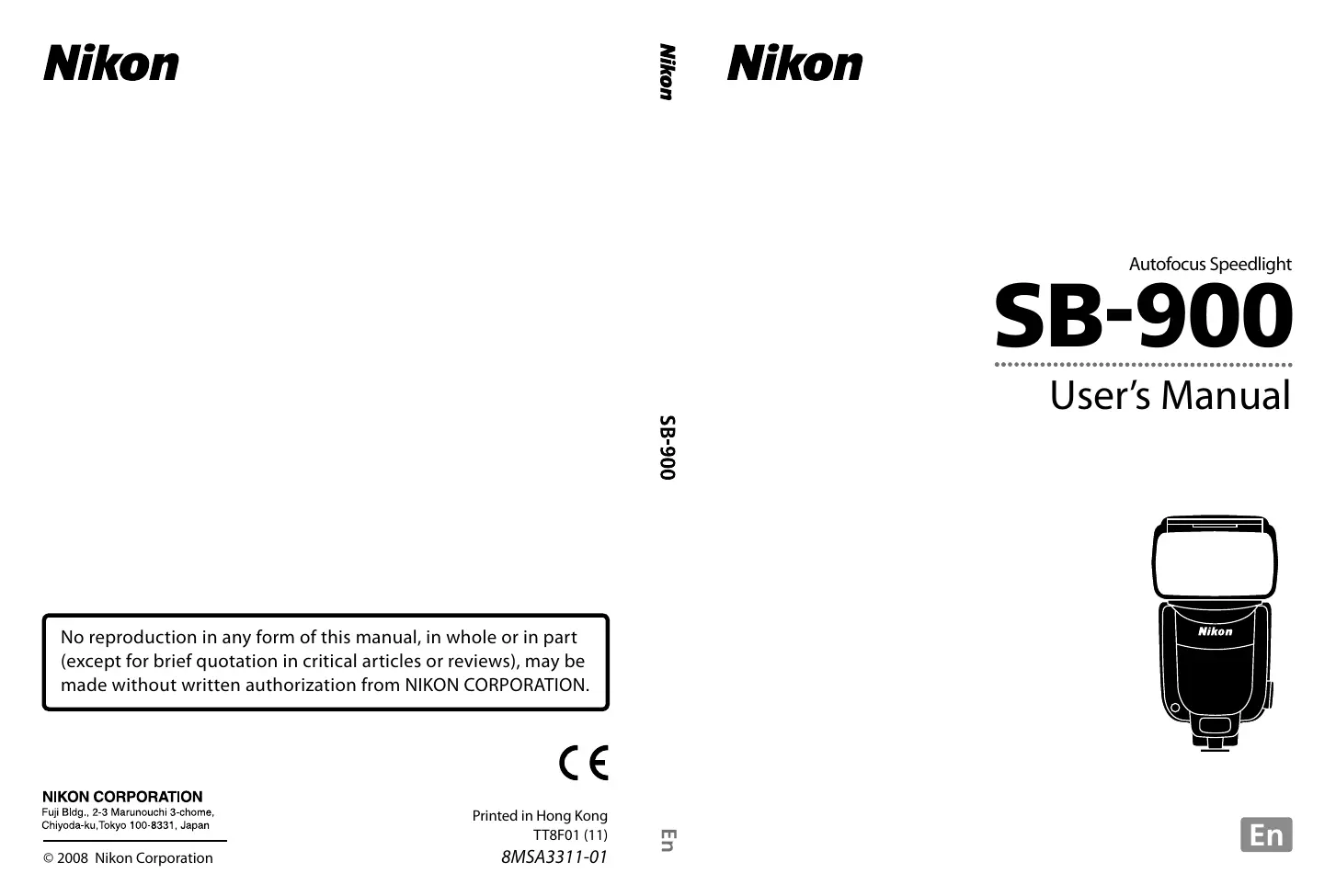

USER MANUAL SB-900 NIKON

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

NIKON CORPORATION Fu Bldg, 2-3 Marunouchi 3-chome, Printed in Hong Kong Chiyoda-ku Tokyo 100-8331, Japan TT8FON (11)

© 2008 Nikon Corporation 8MSA3311-01

# Nikon CO] Autofocus Speedlight SB-900 : User's Manual |

About this user's manual

@Hov to find what you are looking for

You can search for relevant page references using the following methods.

L& Table of contents … (1 A-6)

You can search by item, such as operation method, flash mode or function

1 Simple search by objective [CU] You can search according to your objective without knowing the specific name or term of the item you are looking for.

1 Speedlight functions (t5B-4) You can search for a particular SB-900 function. This is handy when you know the name of a function and want more information.

You can search using the alphabetical index:

1& Troubleshooting (ES F-2)

You can determine the cause if there is a problem with your Speedlight

@ Camera and lens combinations

This manual has been compiled with the assumption that the SB-900 will be used in combination with a camera compatible with CLS (Nikon Creative Lighting System) and a CPU lens

ips on identifying CPU Nikkor lenses

CPU lenses have CPU contacts.

CPU contacts The SB-900 cannot be used with IX-Nikkor lenses.

Terms used in this user's manual

Default settings: the function and mode settings at the time of purchase are referred to as the “default settings."

CLS (Nikon Creative Lighting System): the Nikon Creative Lighting System is often referred to as "CLS."

ISO sensitivity: "ISO sensitivity” is à generic term that covers both the imaging sensitivity of digital SLR cameras and the film sensitivity of 35mm film based cameras.

Marks used in this manual

P% Describes a point to which you should pay particular attention in order to avoid Speedlight malfunction or mistakes during shooting

includes information or tips to make Speedlight use easier

Simple search by objective

You can search for specific explanations according to your objective. BAbout Speedlight parts and indications

1 want to know about Key words page The name of each part Speedlight parts C2 The meaning of each icon (displayed) LCD panel c-10 The meaning of the warning symbols Warning indications F3 BaAbout settings and opera 1 want to know about Key words page The functions and usage of control buttons Control buttons C8 The types of batteries that can be used Suitable batteries C4 T ing ü The minimum recycling time and the number of ne minimum recycling time and the number of flashes per | F-20 flashes per recycling time per type of battery recycling time When to replace the batteries Replacing/recharging batteries | C-27 How to change settings using ‘Custom settings” Custom settings C-20 How to perform test firings Test firing D-59 How to ti or rotate the flash head Adjusting the flash head D-26 How to reset various settings Tivo-button reset C9 How to illuminate the LCD panel Using the 58-900 in dim light_| C-24 How 10 enhance the readability of the LCD panel |Enhancng the LCD panels readebiity | C-25 How 10 change the standby lead time Standby function c23 How to monitor the remote flash units by sound [Sound monitor C2 How to lock the control buttons to avoid mistakes —_|[Keylock co BaAbout flash photography 1 want to know about Key words page About the flash modes Flash modes and functions | D-1 How to take pictures in the simplest way Basic operation ca Illumination pattern: Center- How take portrait photos emphasiing the main subject | eg D-24 How to take formal group shots Illumination pattern: Even D-24 How 10 take more naturaHlooking shots of flows | class multiple flash shooting | D-3 and dolls How to take pictures with soft shadow cast on a wall | Bounce flash operation D-26 How to take pictures of both the subject and Siowrsync flash Dss

1 want to know about Key words page How 10 take pictures using multiple flash units Wireless multiple flash shooting | D-39 How 10 confirm lighting conditions. Modeling ilumination D:61 How 10 take brighter (or darker) pictures of both the _ subject and background Exposure compensation D-38 How to take brighter (or darker) pictures of the subject | Flash output level compensation | D-37 How 10 take pictures without the subjects eyes Red-eye reduction 5:56 appearing red How to shoot à moving subject with stroboscopie multiple-exposure effects Repeating flash D-17 How to take pictures under fluorescent light and Flash photography with 53 incandescent light and balance the lights” color effects | color fiers

Flash photography with

How to take pictures adding specific color to the scene [Far PRene D-33 How to perform autofocus flash photography in dim ighüing | AF-assist Iluminator D-58 How 10 shoot à fast moving subject using wireless |SU-A type wireless multiple | 5.50 multiple flash shooting flash operation BaAbout accessories

1 want to know about Key words page About cameras compatible with the SB-900 Compatible cameras B-2 How to use the 58-900 with cameras not compatible |Using the SB-900 with non- e2 with Nikon Creative Lighting System CLS-compatible SLR cameras

: For usage with i-TTL-compatible | =.

How to use the SB-900 with Nikon COOLPIX cameras COOLPIX cameras E3 About optional accessories that are available Optional accessories Fu Bothers

1 want to know about Key words page Tips on Speedlight care Tips on Speedlight care F7 SB-900 specifications Specifications F-14 The latest Nikon product information Life-long learning A6 How to update the firmware Firmware update F-10

Preparation About this user's manual A2 How to find what you are looking for A2 Simple search by objective A4 For our safety A8 Check before Use A-14 About the SB-900

[8 | SB-900 features 8-2 Main functions. B-4 Operation

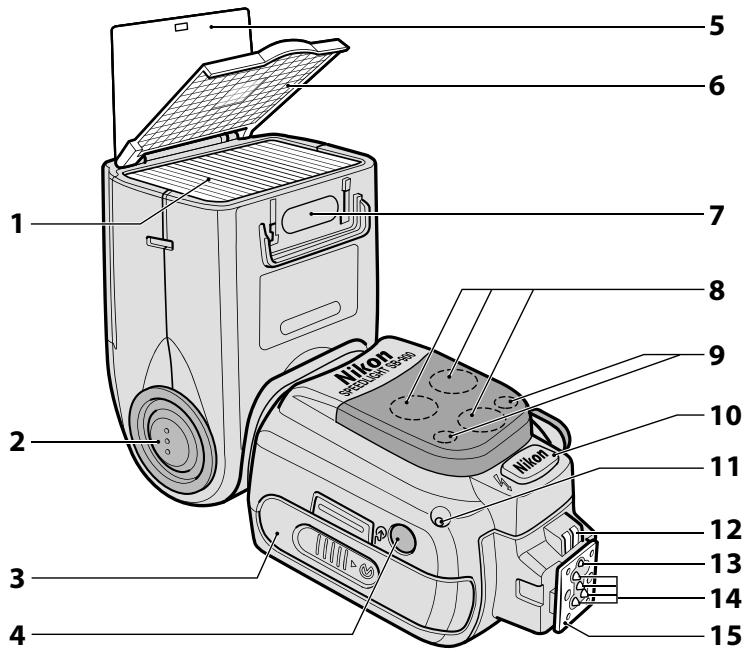

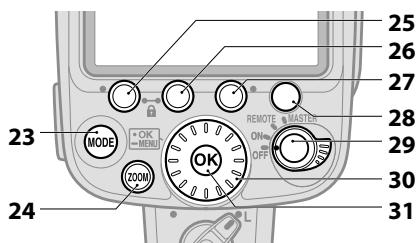

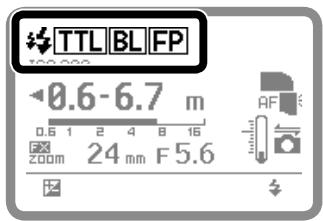

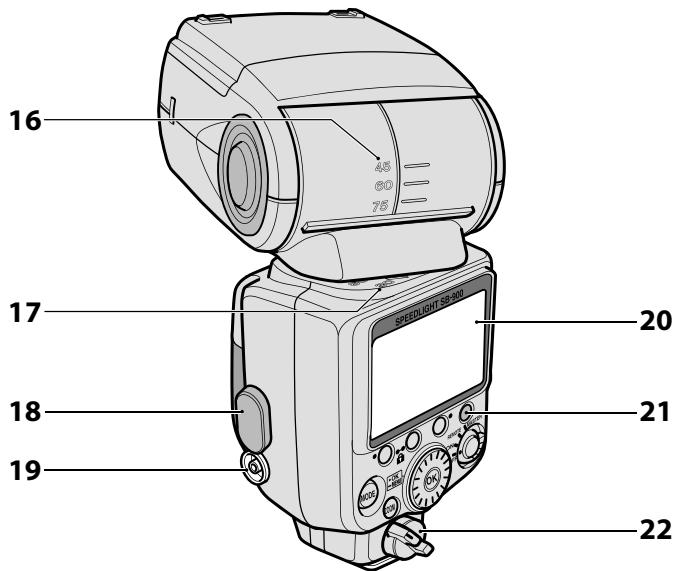

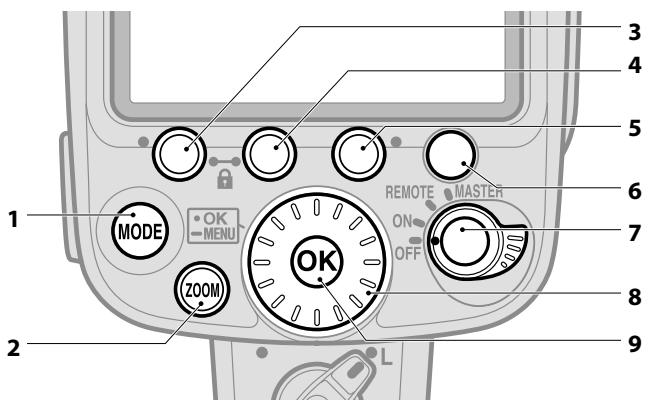

G Speedlight parts c2 Basic operations c4 Control buttons c8 LCD c-10 Custom functions and settings. c-20 Batteries C-27 Flash modes and functions

[| i-TTL mode D-2 Auto aperture flash D-5 Non-TTL auto flash D-8 Distance-priority manual flash D-11 Manual mode D-14 Repeating flash D-17 Determining the aperture, flash output level and shooting distance in the Distance priority, Manual and Repeating flash mode. D-22 Switching illumination pattern D-24 Bounce flash operation D-26 Taking close-up photographs with bounce-down flash D-30 Flash photography with color filters D-33 Flash output level compensation and exposure compensation D-37 Wireless multiple flash shooting D-39

+ Flash shooting in Advanced Wireless Lighting

+ SU-4 type wireless multiple flash shooting Available functions to be set on the camera

+ Auto FP High-Speed Sync mode

+ Flash Value Lock (FV Lock)

+ Red-eye reduction/Red-eye reduction with slow-sync flash

+ Rear-curtain sync Flash shooting support functions

+ Power zoom function

For use with cameras other than CLS compatible SLR cameras

Using the SB-900 with non-CLS-compatible SLR cameras

For usage with i-TTL-compatible COOLPIX cameras

Tips on Speedlight care and reference information Troubleshooting

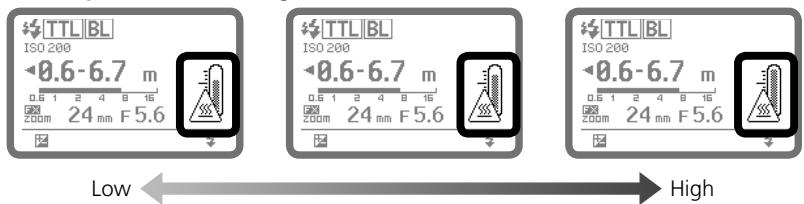

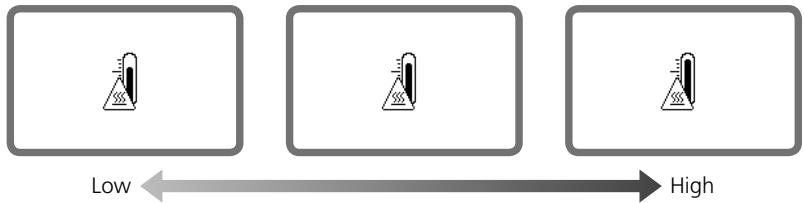

Notes on continuous flash shooting Thermal Cut-out

Tips on Speedlight care

Optional accessories.

Before using your product, please read the following safety precautions carefully and thoroughly to ensure correct and safe use and to help prevent damage to your Nikon product or injury to yourself or others

For quick reference by those who use the product, please keep these safety instructions near the product.

In this manual, safety instructions are indicated with these symbols:

WARNING Disregarding instructions marked with this symbol could result in personal injury, or death and property damage

CAUTION Disregarding instructions marked with this symbol could result in property damage

WARNINGS for Speedlights

1. If corrosive liquids seep from the batteries and get in your eyes, immediately wash your eyes with running water and consult with a doctor. Your eyes could be seriously damaged if they are not treated quickly.

2. If corrosive liquids seep from the batteries and come in contact with your skin or clothes, wash immediately with running water. Prolonged contact could injure your skin:

3. Never attempt to disassemble or repair the flash unit by yourself, as this could result in you receiving an electric shock and could also cause the unit to malfunction; such malfunction could lead to personal injury.

4. the flash unit is dropped and damaged, do not touch any exposed

nterior metal parts. Such parts, especially the Speedlights capacitor and associated parts, could be in a high-charge state and if touched could cause an electric shock. Disconnect the power or remove the batteries and be sure that you do not touch any of the products electrical components, and then bring the flash unit to your local Nikon dealer or authorized service center for repair.

5. If you detect heat, smoke or notice a burning smell, immediately stop operation and remove the batteries to prevent the unit from catching on fire or melting. Allow the flash unit to cool down so that you can safely touch it and remove the batteries. Then bring the unit to your local Nikon dealer or authorized service center for repair.

6. The flash unit should never be submerged in liquid or exposed to r: saltwater or moisture unless it is properly protected from the liquids and moisture. Underwater use requires a certified underwater housing. If water or moisture gets inside the unit, this could cause the unit to catch on fire or cause an electric shock. In such instances you should immediately remove the batteries from the Speedlight and then bring the unit to your local Nikon dealer or authorized service center for repair.

Note: electronic devices that are penetrated by water or moisture are often not economically repairable.

Do not use the unit in the presence of flammable or explosive gas. If the flash unit is operated in areas where there is a flammable gas, including propane, gasoline and dust, it could cause an explosion or fire.

Do not fire the flash unit directly at the driver of a moving car, as this could temporarily impair the drivers vision and cause an accident.

Do not fire the flash unit directly into the eyes of someone that is at close range, as it could damage the retinas of their eyes. Never fire the flash unit closer than 1 meter from infants.

Do not fire the unit while the flash head is touching a person or object. Such use can result in the person being burned, and/or their clothes igniting from the heat of the flash firing

. Keep small accessories out of the reach of children to avoid the possibility

of the accessory being swallowed. If an accessory is accidentally swallowed, immediately consult with a doctor.

Use only the batteries specified in this user's manual. Batteries other than those specified could leak corrosive liquids, explode or catch on fire or otherwise not perform satisfactorily.

Do not mix battery types, brands or old and new batteries, as the batteries could leak corrosive liquids, explode or catch on fire. When using more than one battery in a product, always use identical batteries that were purchased at the same time.

Non-rechargeable batteries such as manganese, alkaline-manganese and lithium batteries should never be charged in a battery charger because they could leak corrosive liquids, explode or catch on fire

When using standard size (AA, AAA, C, D) or other common rechargeable batteries such as NiCd and Ni-MH battery types, or when recharging them, be sure to use only the battery charger specified by the battery maker and read the instructions thoroughly. Do not recharge these batteries with their terminals reversed in the charger or before the batteries have cooled off sufficiently because they could leak corrosive liquids, explode or catch on fire. The same caution also applies to using the rechargeable batteries that may be supplied by the photo products manufacturer.

CAUTIONS for Speedlights

1. Do not touch the flash unit with wet hands, as this could cause an electric shock:

2. Keep the flash unit away from children to prevent them from putting the unit in or near their mouth, or otherwise touching a dangerous part of the product; as such contact could cause an electric shock

3. Do not apply strong physical shocks to the unit, as this could cause a malfunction that could cause the unit to explode or catch on fire.

4. Never use active agents that contain flammable substances such as paint thinner, benzene or paint remover to clean the unit, and never store the unit in locations containing chemicals such as camphor and naphthalene, as this could damage the plastic case, cause a fire or cause an electric shock:

5._ Remove any batteries from the unit before storing the unit for a long time to prevent the unit from catching on fire or leaking corrosive liquids.

WARNINGS for Batteries

1. Never heat or throw batteries into a fire, as this could cause the batteries to leak corrosive liquids, generate heat or explode.

2. Do not short-circuit or disassemble the batteries because this could cause the batteries to leak corrosive liquids, generate heat or explode

3. Do not mix battery types, brands or old and new batteries, as this could cause the batteries to leak corrosive liquids, generate heat or explode

4. Do not install batteries in the reverse direction as this could cause the batteries to leak corrosive liquids, generate heat or explode. Even if only one battery is installed in reverse it will cause the Speedlight to malfunction.

5._ Be sure to use the battery charger specified by the battery maker to avoid the possibility of batteries leaking corrosive liquids, generating heat or exploding.

6. Do not carry or store batteries along with metallic materials such as necklaces and hair pins because such materials could cause the batteries to short-circuit, leading to battery leakage, heat generation or an explosion In addition, specially when carrying a quantity of batteries, place them carefully in a storage case that prevents the battery terminals from touching another battery's terminals because if they touch in reverse order it could also cause the batteries to short-circuit, leading to battery leakage, heat generation or an explosion

7. If corrosive liquids seep from the batteries and get in your eyes,

immediately wash your eyes with running water and consult with a

doctor. Your eyes could be seriously damaged if they are not treated quickly.

H corrosive liquids seep from the batteries and come in contact with your skin or clothes, wash immediately with running water. Prolonged

contact could injure your skin

Always follow the warnings and instructions printed on the batteries to avoid activities that could cause the batteries to leak corrosive liquids, generate

heat or catch on fire.

possibility of batteries leaking corrosive liquids, generating heat or explodi

Be sure to use only batteries specified in this user's manual, to avoid the

. Never open the casing surrounding batteries or use batteries whose

casing has been breached as such batteries could leak corrosive liquids, generate heat or explode.

Keep batteries out of the reach of children to help avoid the possibility

of them being swallowed. If a battery is accidentally swallowed, immediately

consult with a doctor.

Batteries should not be submerged in water, exposed to rain, moisture or saltwater unless they are properly protected from the environment. |f water or moisture gets inside the batteries, this could cai them to leak corrosive liquid or generate heat.

Do not use any battery that appears abnormal in any way, including

à change in color or shape. Such batteries could leak corrosive liquids or

not completed within the specified time to help prevent the possibilit the battery leaking corrosive liquids or generating heat

When recycling or disposing of batteries, be sure to insulate their terminals with tape. If the battery positive and negative terminals shortcircuit after coming into contact with metallic objects, it could cause heat generation or an explosion. Dispose of used batteries in accordance local government regulations

Non-rechargeable batteries should never be charged in a battery charger because they could leak corrosive liquids or generate heat

Stop recharging rechargeable batteries if you notice that recharging is

. Remove dead batteries from your equipment immediately, as they could

CAUTION for Batteries Do not throw or apply strong physical shocks to the batteries as this could cause batteries to leak corrosive liquids, generate heat or explode.

Symbol for separate collection applicable in European countries This symbol indicates that this product is to be collected separately. The following apply only to users in European countries. < This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste + For more information, contact the retailer or the local authorities

MN à chance of waste management

Thank you for purchasing the Nikon Speedlight SB-900. To get the most out of your Speedlight, please read this user manual and the separate booklet A collection of example photos” thoroughly before use

This users manual explains 58-900 functions, operation methods, specifications, etc., and the separate "A collection of example photos” provides an overview of the 58-9005 flash-shooting capabilities with example photos.

In addition, keep your camera users manual handy for quick reference.

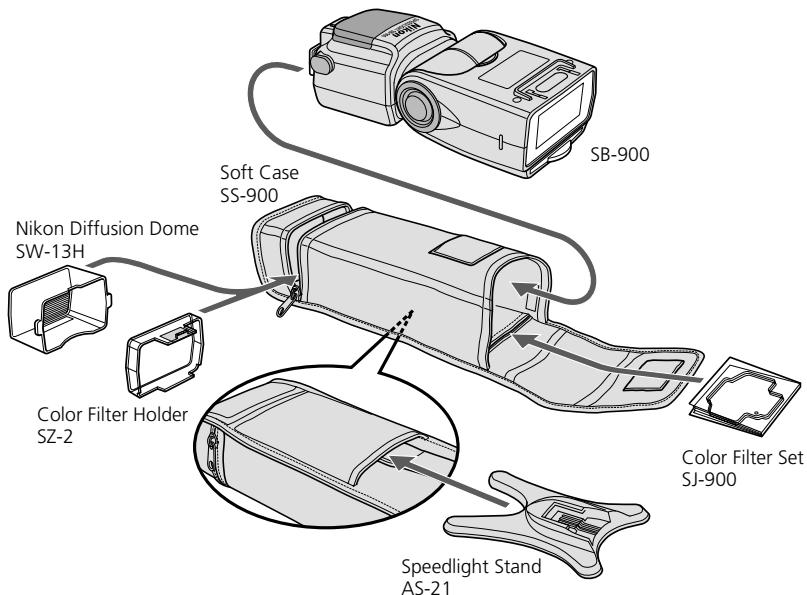

The SB-900 comes with the following accessories. Check that all items are included before use.

@rips on using the Speedlight

Take trial shots Make trial shots before photographing important occasions like weddings or graduations

Have Nikon spot-check your Speedlight regularly Nikon recommends that you have your Speedlight serviced by an authorized dealer or service center at least once every two years.

Use your Speedlight with Nikon equipment

The Nikon Speedlight SB-900's performance has been optimized for use with Nikon brand cameras/accessories including lenses.

Camera/accessories made by other manufacturers may not meet Nikon‘ criteria for specifications, and nonconforming cameras/accessories could damage the SB-900' components. Nikon cannot guarantee the SB-900' performance when used with non-Nikon products.

As part of Nikon's “’Life-long learning" commitment to ongoing product support and education, continually-updated information is available on-line at the following sites: + For users in the U.S.A.

http:/www.nikonusa.com/

+ For users in Europe http:/www.europe-nikon.com/support

+ For users in Asia, Oceania, the Middle East, and Africa: http/www.nikon-asia.com/

Visit these sites to keep up-to-date with the latest product information, tips, answers to frequentiy-asked questions (FAQs), and general advice on digital imaging and photography. Additional information may be available from the Nikon representative in your area. See the URL below for contact information:

http:/nikonimaging.com/

This section explains the features and key functions of the SB-900.

+ SB-900 features. B-2 + Main functions B-4

About the SB-900 ER About the SB-900

Features of the SB-900

The SB-900 is a high-performance CLS-compatible Speedlight with a large guide number of 34/48 (ISO 100/200, m) (111.5/157.5, ft.) (at the 35 mm zoom position in Nikon FX format with standard illumination pattern, 20°C/68°F.)

+Combined with a CLS-compatible camera, the SB-900 can easily perform various types of flash operations, such as i-TTL auto flash and wireless multiple flash (5 D-39)

Three types of illumination patterns (standard, center-weighted and even) are available to match different shooting preferences.

*FX/DX selection enables the setting of the light distribution angle in accordance with the camera's image area between FX- and DX-formats, and provides effective and high-quality lighting

+Power zoom function automatically adjusts the zoom position to match the lens focal length from 17 mm to 200 mm (in FX format}/12 mm to 200 mm (in DX format). When the built-in wide-flash adapter is used or the Nikon Diffusion Dome is attached, the zoom position is automatically set to match a wideangle lens with much shorter focal length

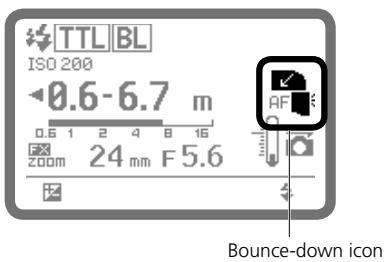

+Bounce flash (#5 D-26) or close-up flash photography can be easily performed (5 D-30)

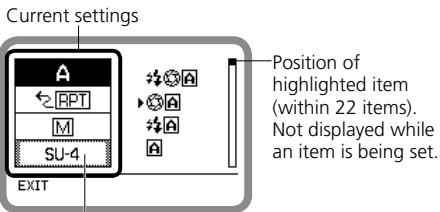

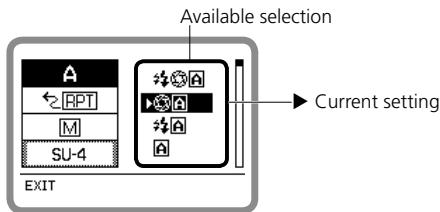

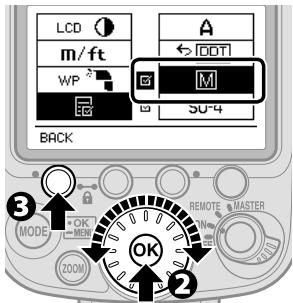

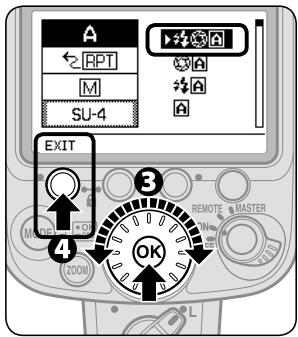

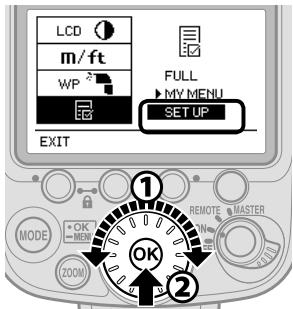

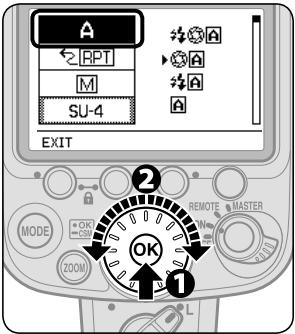

+ Custom functions are provided to allow for various settings (FF C-20)

B Compatible cameras

The SB-900 has been optimized for use with CLS-compatible SLR cameras *For usage with non-CLs-compatible SLR cameras and with i-TTL-compatible COOLPIX cameras, see “Using the SB-900 with non-CLs-compatible SLR cameras." (EF E-1)

@what is the Nikon Creative Lighting System (CLS)?

The $B-900 features the Nikon Creative Lighting System (CLS). This system offers additional flash shooting possibilities with digital cameras by taking advantage of your camera‘ digital communication capabilities. CLS is available when the SB-900 is used with compatible Nikon cameras

The $B-900 offers these major features:

This is a Nikon Creative Lighting System TTL auto flash mode. Monitor pre-flashes are fired at all times. The subject is correctly exposed by the light from the flash lighting and the exposure is less affected by ambient light (8 D-2).

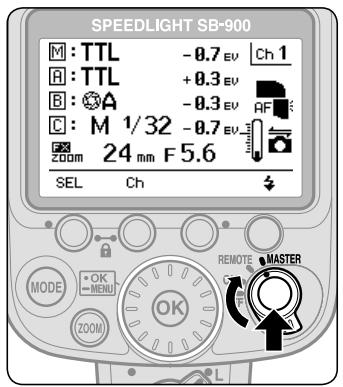

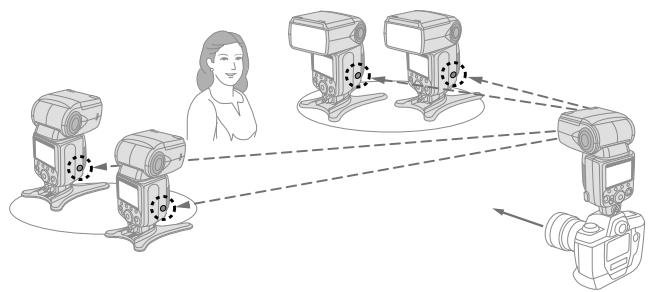

M Advanced Wireless Lighting

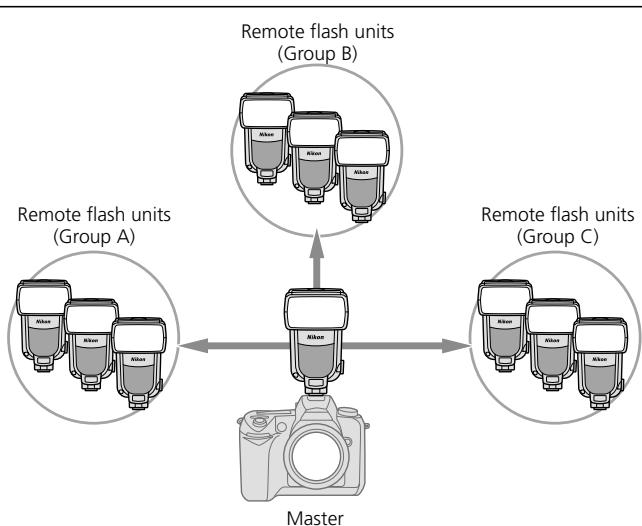

With Advanced Wireless Lighting, wireless multiple flash operation in the TTL (i-TTL) mode can be accomplished with CLS-compatible digital SLRs. In this mode, you

can divide the remote flash units into three groups and control the flash output independently for each group, expanding your range of creative multiple-flash shooting techniques (5 D-43).

H FV Lock (Flash Value Lock)

Flash Value, or “PV,” is the amount of flash exposure for the subject. Using FV Lock with compatible cameras, you can lock in the appropriate flash exposure for the main subject. This flash exposure is locked in, even if you change the aperture or composition, or zoom the lens in and out. (5 D-55).

M Flash Color Information Communication

When the SB-900 is used with compatible digital SLRs, color temperature information is automatically transmitted to the camera. In this way, the camera's white balance is automatically adjusted to give you the correct color temperature when taking photographs with the SB-900

H Auto FP High-Speed Sync

High-Speed flash synchronization at a compatible cameras highest shutter speed is possible. This is useful when you want to use a wider aperture to achieve shallow depth of field to blur the background (5 D-55).

M AF-Assist illuminator

In autofocus operation, the SB-900 emits AF-Assist illumination, which matches the wider AF area of CLS-compatible cameras. With cameras supporting this function, autofocus photography in dim lighting is possible even when the camera‘s focus point (focus area) is changed (#3 D-58) 83

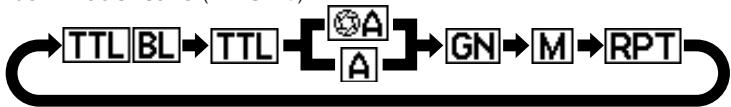

@Fiash modes and functions on the SB-900

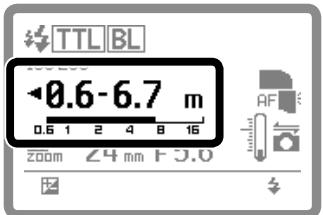

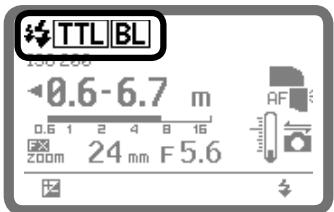

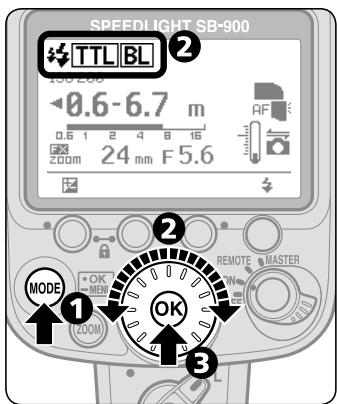

(5-2) The camera controls the 58 SB-900% flash output level by measuring the light

reflected from the subject when the $B-900 fires a series of monitor pre-flashes.

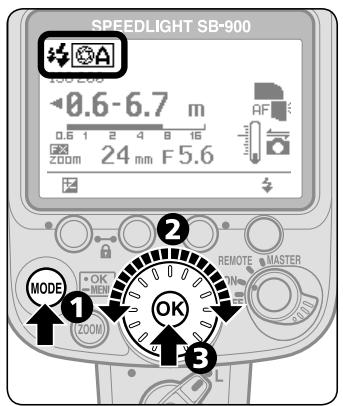

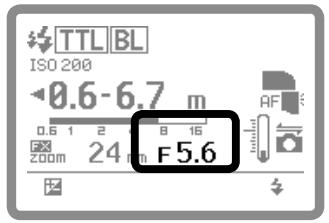

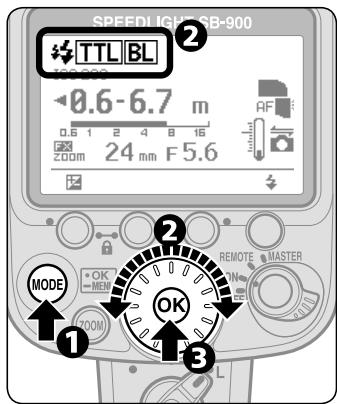

E Auto-Aperture flash mode [CEE]

The 58-900 controls the flash output level by measuring the flash illumination reflected back from the subject using the sensor for Non-TTL auto flash and combining this with information from îhe camera, such as the ISO sensitivity and the aperture setting.

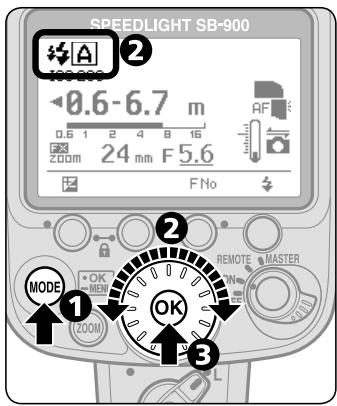

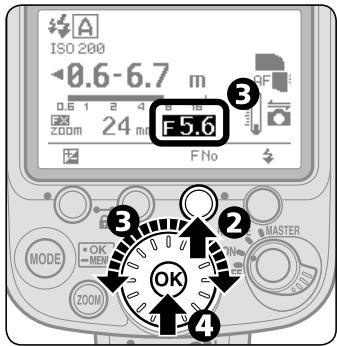

Non-TTL Auto flash mode [C=h)]

The $B-900 controls the flash output level by measuring the flash illumination reflected back from the subject using the sensor for Non-TTL auto flash

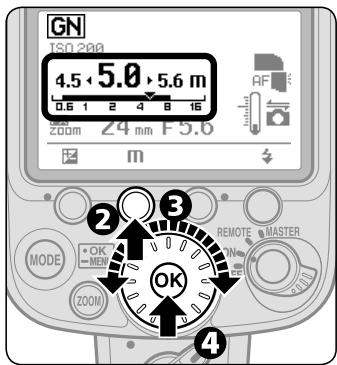

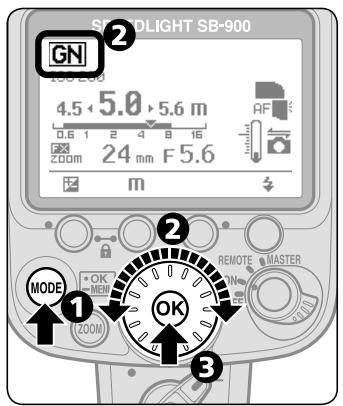

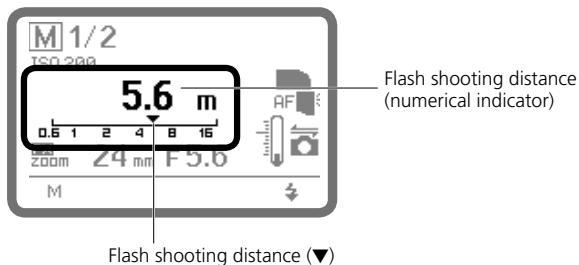

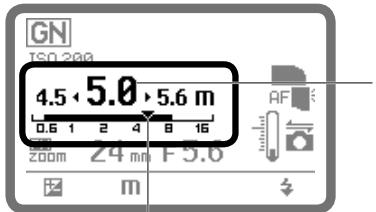

EN] Distance Priority manual flash mode [CHA If you preset the aperture and the distance to the subject, the SB 58-900 will automatically take control of correct light output.

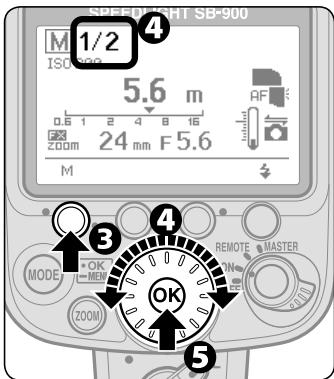

MIEMEREETT (15 0-14)

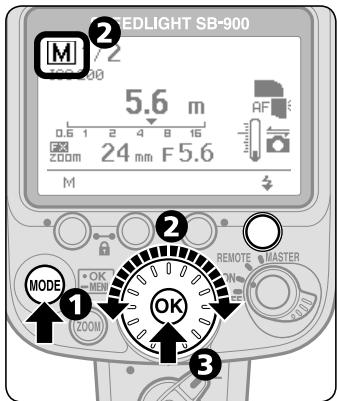

By setting the aperture and the flash output level, you can manually set the exposure and the distance to the subject.

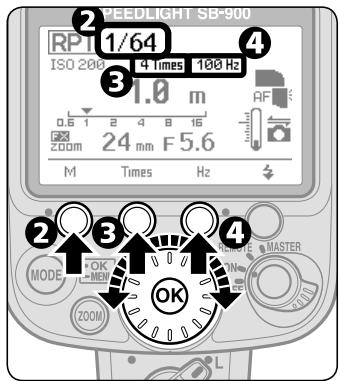

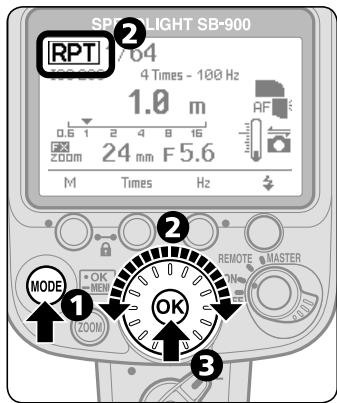

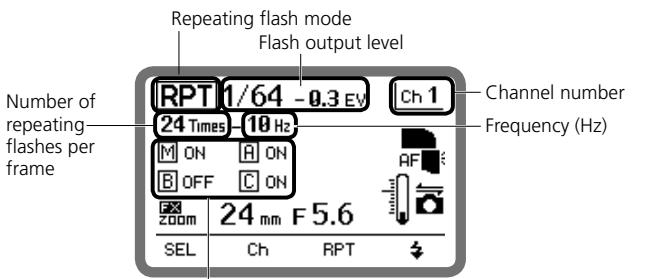

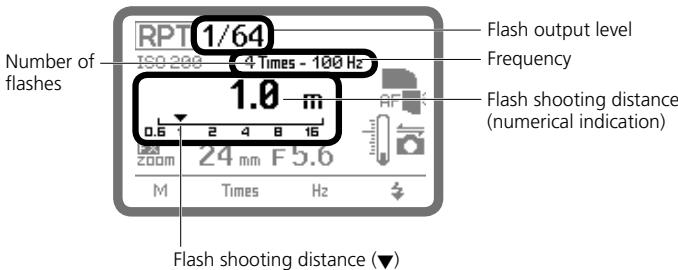

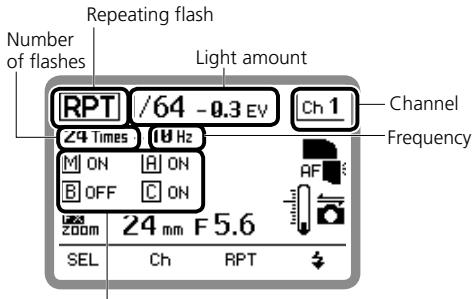

Repeating flash mode [CSA] The 5B-900 fires repeatedly to create stroboscopic multiple-exposure effects. This operation is useful when shooting fast-moving subjects.

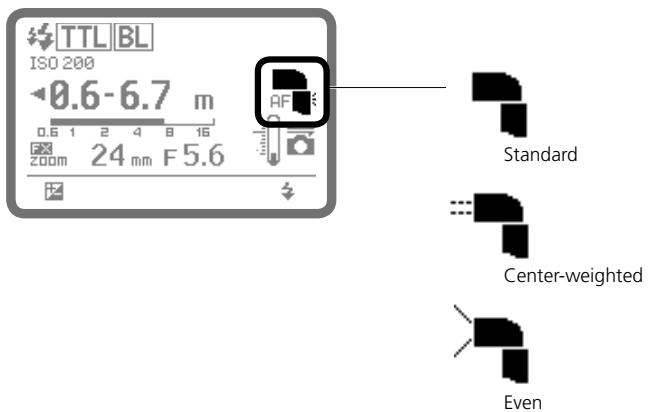

Switching illumination pattern [CSh}Z7} You can select one of three types of illumination pattern (standard, center-weighted and even) in accordance with your objective.

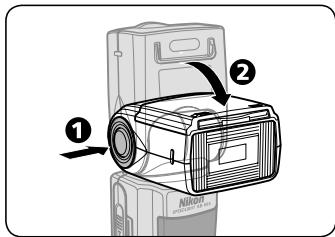

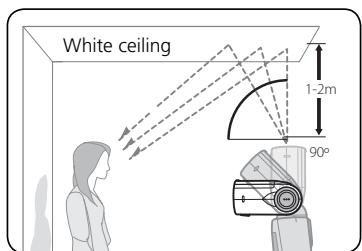

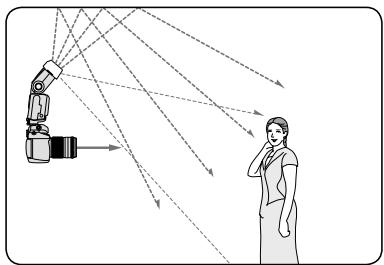

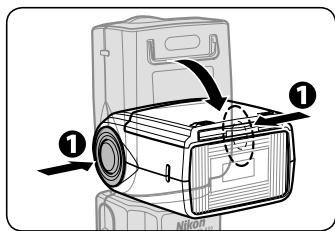

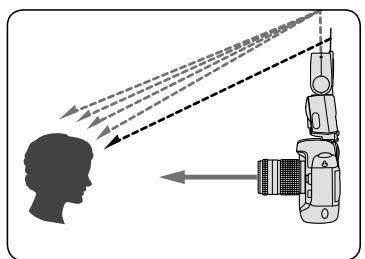

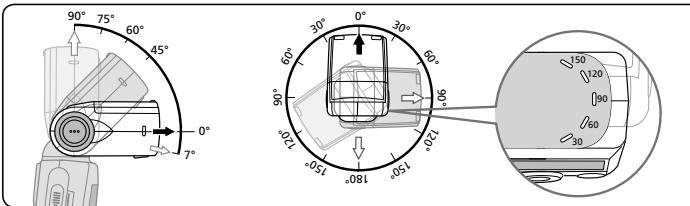

By tiling or rotating the flash head, you can bounce the light off a ceiling or wall to make use of reflected light.

Close-up flash photography [So] Close up flash photography can be achieved with use of the built-in wide-flash adapter and the flash head tilted down.

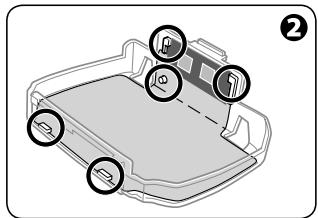

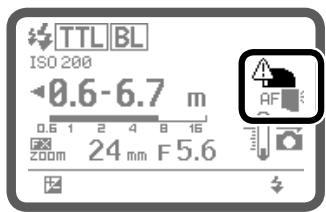

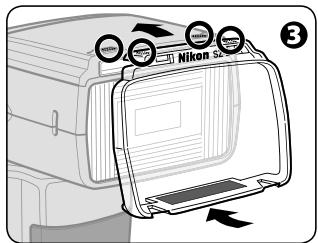

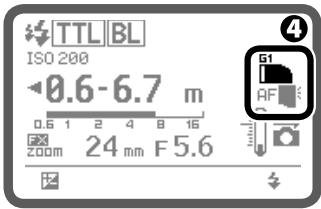

Using color filters [CSHÆE)] You can compensate for the color of a light source or create interesting effects by

changing the light from the filters to a different color

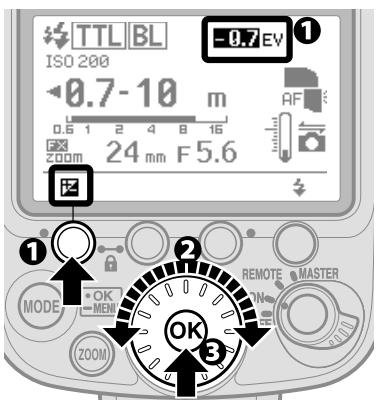

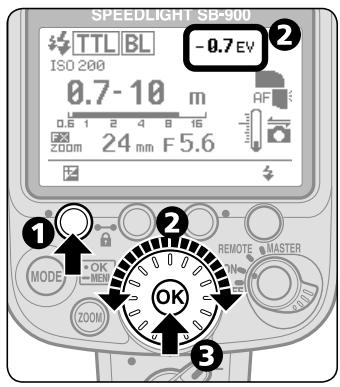

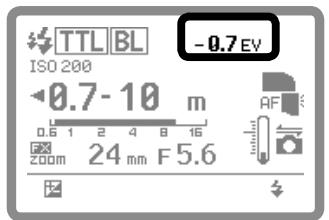

Flash output level compensation/Exposure compensation [CSip£e})]

Flash output level compensation is performed by modifying the flash output level for the flash Iluminated subject only. Exposure compensation is performed by intentionally modifying the correct exposure to modify both the subject and background exposure

Wireless multiple flash [CShEr)]

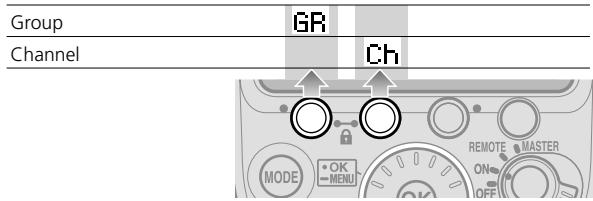

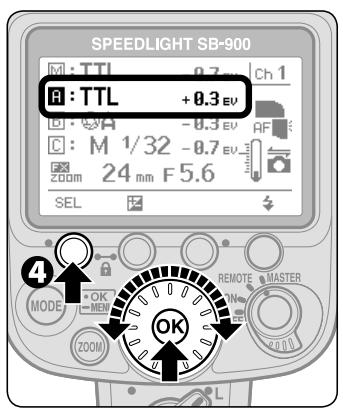

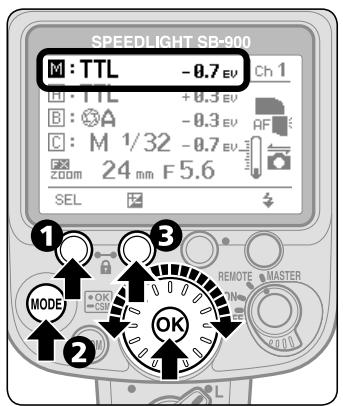

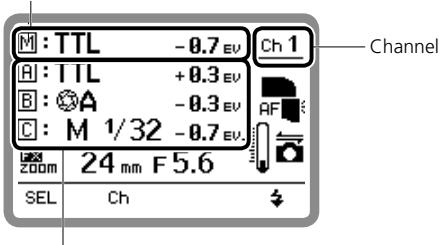

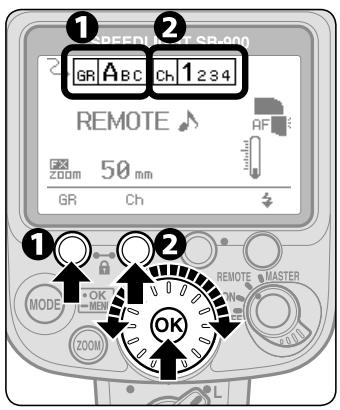

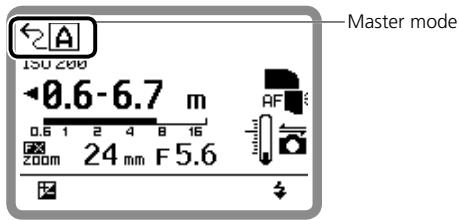

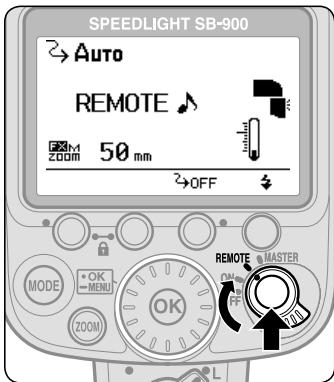

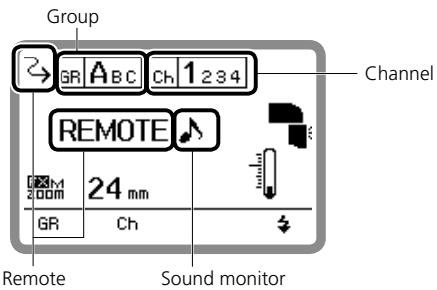

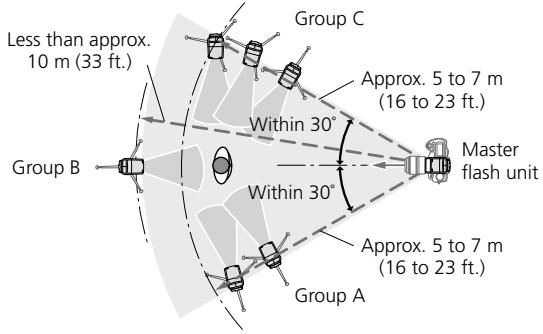

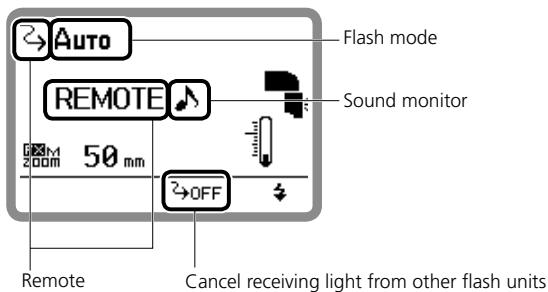

+ Advanced Wireless Lighting (#5 D-43) In this mode, you can divide the remote flash units into three groups and set the flash mode and flash output level compensation values separately for each group as well as the master flash unit.

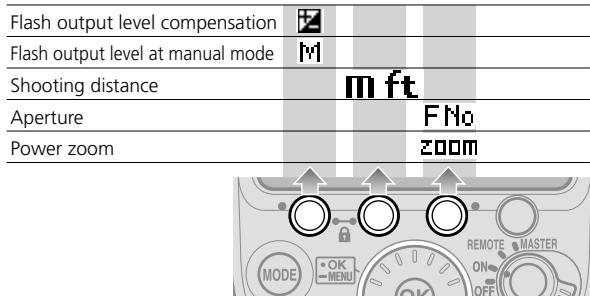

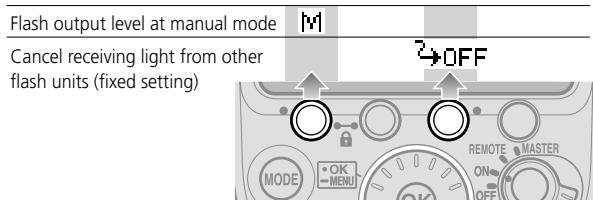

+ SU-4-type wireless multiple flash (5 D-50) You can perform SU-4 type wireless multiple flash in two ways: in which the wireless remote flash units start and stop firing in sync with the master flash unit, and in which the remote flash units only start firing in sync with the master.

@runctions that are set on the camera

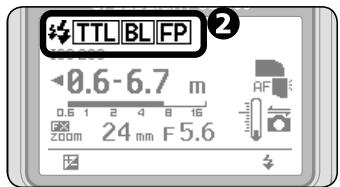

Auto FP High-Speed Sync [CHEN]

The SB-900 automatically fires at faster shutter speeds than the camera's sync shutter speed

A'ACTAGENA'ENOE (65 D-55) Since 1t is possible to lock in the flash exposure level for the subject, you can alter

picture composition while keeping the brightness of the subject constant.

SOUMET (5 D-55) The flash Is controlled at a slow shutter speed to obtain the correct exposure for both the main subject and background in low-light situations.

Red-Eye Reduction flash mode/Red-Eye Reduction Slow-Sync ILE]

Red-eye effect, which causes the subjects eyes to appear red in color photographs, is reduced

Rear-Curtain flash sync [CS]

Rear-curtain flash sync creates a picture in which the blur of a moving subject appears behind the subject and not in front, In this mode, the flash fires just before the rear curtain starts to close

[Power zoom function [sy

Automatically adjusts the zoom position to match the lens focal length:

Setting the ISO sensitivity [CSA )]

The ISO sensitivity is automatically set based on information from the camera

El AF-Assist illuminator [CEE]

This enables you to perform autofocus flash photography when there is not enough light for normal autofocus operation

You can verify whether the subject will receive the correct exposure by test firing the SB-900.

FA Modeling illuminator [Cha] Before actually shooting you can check the illumination and the shadows cast on the subject

FX/DX selection [(SgEr)]

The $B-900 automatically selects the suitable light distribution angle, in accordance with the camera image area (between FX-format (36 x 24) and DX-format (24 x 16).

58-900 status and settings functions

[ Custom setting [et]

Various settings can be made while checking the status on the LCD panel

Two-button reset Ile") This function resets various settings to their default values

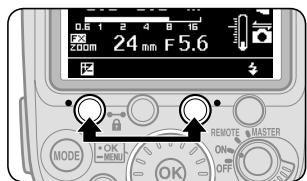

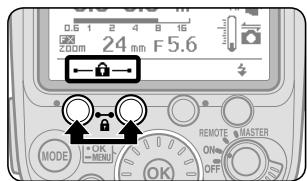

Key lock [Sr] The control buttons can be locked to prevent them from being pressed accidentall

(LE C-24) This function sets the LCD panel illumination to on or off.

LCD panel contrast setting LEE)

This function adjusts the contrast of the LCD panel

Standby function ICE)

This function automatically puts the SB-900 in standby mode to conserve battery power.

Continuous flash [CSS] The SB-900 flres continuously in syne with continuous shooting.

Thermal Cut-out [CS]

This function protects the SB-900 from high operating temperatures. If the temperature of the unit rises to a certain level, the SB-900 will switch to protective shutdown mode

Self firmware update [CSS]

Speedlight firmware can be updated through the camera

This section explains the Speedlight parts, meaning of each display, and also covers basic procedures for flash

+ Custom functions and settings + Batteries

Light sensor window for wireless 12

remote flash (17 D-40)

5 Built-in bounce card (1# D-28) 13

6 Built-in wide-flash adapter 14 (5 D-31) 15

7 Filter detector (85 D-35)

8 AF-assist illuminator (15 D-58)

9 Ready-light (at remote setting)

External power source terminal (supplied with cover) (55 F-12) Light sensor for Non-TTL auto flash (#5 D-5, D-8)

External AF-assist illuminator contacts

18 Sync terminal cover

Control buttons (15 C-8)

20 LCD panel (5 C-10)

Selector dial [OK] button

This section covers basic procedures in -TTL mode in combination with à CLS- compatible camera. i-TTL mode enables you to easily take flash photography with well balanced lighting

Inserting the batteries

OSlide the battery chamber lid open.

@insert the batteries following the [+] and [-] marks as shown.

© Close the battery chamber lid.

Insert four AA-type penlight batteries of any of the following types {Alkaline-manganese (1.5 V) | {Lithium (1.5 V) ]

1[Oxyrider" (1.5 V) ] NI-MH (Nickel Metal Hydride) (1.2) ]

+ When replacing batteries, use fresh batteries of the same brand.

+ For more on batteries, refer to “Batteries” and “Notes on batteries." (& C-27, 15 F-8)

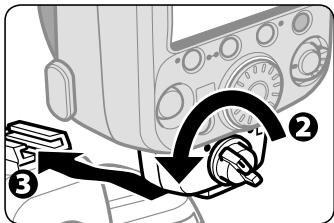

Gi] Attaching the SB-900 to the camera

Oo OMake sure the SB-900 and Le the camera body are turned

#5; 0._| @Rotate the mounting foot (| lock lever to the left.

© Slide the SB-900's mounting foot into the camera's accessory shoe.

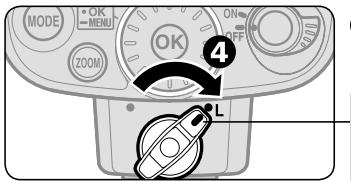

4O) © Turn the lock lever to

2 | [3 To lock the Speedlight in

place, turn the lock lever clockwise until it stops at the mounting foot lock index.

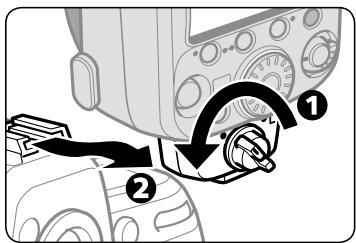

e Detaching the SB-900 from the camera

O Turn the lock lever 90° to the left.

slide the SB-900's mounting foot from the camera's accessory shoe.

TZ 1f the SB-900's mounting foot cannot be removed from the camera's accessory shoe:

+ The mount pin remains inserted in the camera's accessory shoe. Turn the lock lever 90° to the left again, and slide the 5B-900 slowly out.

+ Never forcibly remove the SB-900.

Operation ER Operation

GITE] Adjusting the flash head

OHold down the flash head tilting/rotating lock release button to adjust the flash head to the horizontal/ front position.

+ The flash head is locked at horizontal/ front and 90°

a + Flash head is set at angle other than

m0 horizontal/front. (Flash head is tilted up or “0.6-6.7 m rotated to the right or left.) CAVE + Flash head is set at -7°. (Flash head is ET M ited doun)

+ Flash head is set at horizontal/front.

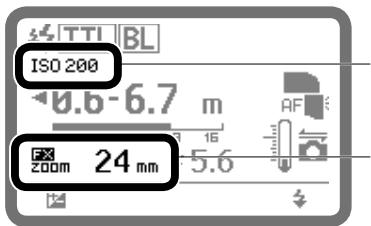

Turning the SB-900 and camera on

O Turn the SB-900 and the camera body on.

+ To turn the SB-900 on, turn the

[Power ON-OFF] switch to [ON]

When using i-TTL mode SEC BL]

+ IS sensitivity is set automatically.

Æn 24 nn = - + Angle of coverage is automatically set according to lens in use

GTX] selecting the flash mode

OPress the [MODE] button.

@Rotate the selector dial to indicate [T on the LCD.

@Press the [OK] button.

Changing the flash mode Rotate the selector dial to display available flash mode icons on the LCD.

+ Only flash modes that are available are displayed onon the LCD: + The flash mode can also be selected by pressing the [MODE] button.

@Make sure that the ready- light on the SB-900 or in the camera's viewfinder is on before shooting.

+ When no ready-light indicator appears, lightly press the shutter release button to activate the ready-light.

Operation ER Operation

@Names and functions of control buttons

Press to select flash mode. (FF C-10) [ZOOMI] button:

Press to adjust zoom position.

Function button 2: Function button 3:

ePress to select which item to change.

+Functions differ according to selected mode and status of the SB-900. (8 C-17)

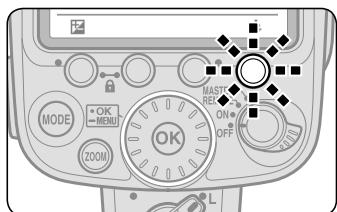

6 Test firing button:

+Controls test firing (£# D-60) and modeling illuminator. (£#D-61)

7 Power ON-OFF/wireless setting switch: +Rotate to turn power on and off. *Controls the master and/or remote flashes when using wireless multiple flash shooting. (8 D-39) +To control master and/or remote flashes, rotate the switch while holding down the button in the center of the switch 8 Selector dial: Rotate to change selected item. The selected item is highlighted on the LCD. (EF C-9) 9 [OK] button: eLightly pressing the [OK] button confirms selected setting, *Hold the [OK] button down for one second to display custom function. (8 C-21)

@ Control button operation

The basic control of SB-900 functions is as follows:

© Select function to be changed and press the button that controls the function.

+ The selected function is highlighted

@ Change the setting by rotating the selector dial.

+ Rotating the dial clockwise increases the value of the setting, and counterclockwise, decreases the value.

| OPress the [OK] button to

+ Once confirmed, the highlighted item returns to normal display.

+ If the [OK] button is not pressed, the highlighted item is confirmed and returns to normal display after 8 seconds.

BETA BTwo-button operation

Two-button reset Pressing the “Function buttons” 1 and 3 (indicated with a green dot) simultaneously for two seconds resets all settings (except custom setting) to default settings +After reset settings, the LCD is highlighted once and then returns to normal display. Key lock function Pressing the “Function buttons” 1 and 2 (indicated with a key mark) simultaneously locks control buttons <The POWER ON-OFF/wireless setting switch and the test firing buttons remain unlocked +A key icon is displayed on the LCD while buttons are locked: +To cancel the key lock function, press the two buttons again for two seconds.

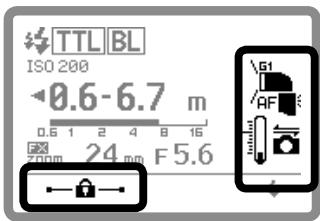

Icons on the LCD show the status of settings. + Displayed icons vary according to selected flash modes and settings. + Settings that can be changed are highlighted

Auto FP High-Speed Sync

+ For more information about manual mode, see D-16.

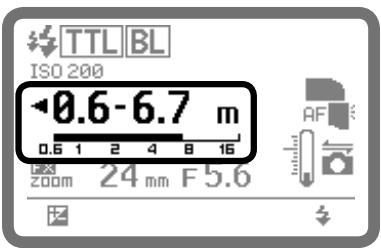

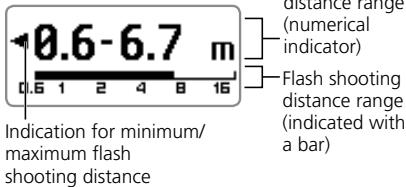

Flash shooting distance range

{numerical indicator) Flash shooting

distance range Indication for minimur/ {indicated with

+ Distance priority manual flash

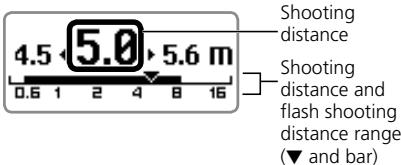

Shooting T— distance

Shooting distance and flash shooting distance range (# and bar)

Flash shooting distance {numerical indicaton

+ The measuring distance unit can be changed to “ft” in custom setting. (# C-25)

#ITTLEU 07e zoom |Powerzoom 150 208 <0.6-8.2 m

zac | Manual setting of angle of coverage

Power zoom is not possible (manual = on

me À > ‘Angle of coverage at the maximum LES À 170n | Miderngie poste 200% [79 of coverage at the maximum

‘Angle of coverage with manual setting when the built-in wide-flash adapter is not working

= jo) É Lioht distribution angle 2 Le] Lx] Light distribution for DX-format image Z0UM _| area with power zoom on Light distribution for FX-format image Z00m | area with power zoom on Light distribution for DX-format image Em | area when the angle of coverage is Z00m manually set Light distribution for FX-format image Bim | area when the angle of coverage is Z00mMm manually set Œ% | Light distribution for DX-format image ZO0M _| area with power zoom off | Light distribution for FX-format image

area with power zoom off

GX/ŒX indication with power zoom on LCD icon varies according to the camera in use.

. icon appears: D3, D700

+ Πicon appears: D300, D60, D40 series

+ Neither FX nor DX icon appears: Camera not equipped with FX/DX image area selection

Selected aperture value is out of SB-900 flash output control range (camera setting)

Flash output level compensation

[ “07e I Flash output level compensation

Type of attached color fier

Ilumination pattern: Standard

Ilumination pattern: Center-weighted

Ilumination pattern: Even

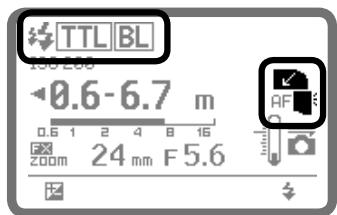

Bounce flash operation

AF-assist illumination

Modeling illumination

@Examples of LCD displays in wireless multiple flash shooting

Displayed icons vary according to selected flash mode and settings

Æ Master mode (with Advanced Wireless Lighting) (55 D-43)

Flash mode, flash output level compensation

Flash mode, flash output level compensation, amount of light at manual setting from À, B or C group

H Remote mode (with Nikon Advanced Wireless Lighting) (#5 D-43)

Remote Sound monitor

ΠMaster flash unit at repeating flash (with Nikon Advanced Wireless Lighting) (55 D-49)

Repeating flash Number of flashes Light amount

Master and group A, B or C unit fires (ON)/does not fire (OFF)

ΠMaster mode (with SU-4 type wireless multiple flash shooting) (EF D-50)

(&FD-50) — Flash mode

Remote Cancel receiving light from other flash units

@runctions controlled by Function buttons

Functions controlled by each button vary according to selected mode and settings.

+ The assigned function for each button is indicated by the following icons.

+ When no function is assigned to a button, no icon appears above the switch on

Flash output level at manual mode [4

‘Aperture FHo Shooting distance mft

Value of underexposure at TTL A Number of flashes Times Frequency Hz Power zoom zoom Change aperture/frequency REZENR

Æ When using a SB-900 as master flash unit (with Nikon Advanced

Change the selected group SEL Channel

Flash output level compensation Ed Flash output level at manual mode M

Value of underexposure at TTL y

Æ When using a SB-900 as master flash unit (with SU-4 type wireless multiple flash shooting) (5 D-50)

Flash output level compensation HA Flash output level at manual mode LM Shooting distance Aperture

Æ When using the SB-900 as a remote flash unit (with Nikon Advanced Wireless Lighting) (55 D-43)

Group GR Channel Ch 7x

Æ When using the SB-900 as a remote flash unit (with SU-4 type wireless multiple flash shooting) (5 D-50)

Flash output level at manual mode = M Cancel receiving light from other OFF flash units (fixed setting) 4 "

ΠMaster flash unit at repeating flash (with Nikon Advanced Wireless Lighting) (15 D-49)

Change the selected group SEL Channel Ch

Select item in the 2nd tree RPT Light emit/not emit ON/OFF Flash output level M Number of flashes Times Frequency Hz Power zoom ÊTES

| Custom functions and settings

Various operations for the SB-900 can be easily set using the LCD. + Displayed icons vary according to the combination of camera and status of SB-900. + Items that cannot be changed or set are indicated with grid squares. + In the “My menu” display, only selected “My menu” items appear on the LCD To show all items, select “Full menu." (8 C-25)

@ Custom functions and icons

A Non-TTL auto flash mode (5 C-22)

Repeating flash setting of master flash unit (#57 C-22)

Flash output level at manual mode (#& C-22)

SU-4 type wireless multiple flash shooting (#5 C-22)

Test fiing button (#3 C-22)

Flash output level of test fring in -TTL mode (8 C-23)

PUDX selection (13 C-23)

Power zoom off (#5 C-23)

AF-assist illuminator/flash firing off (8° C-23)

Standby function (#5 C-23)

ISO sensitivity (83 C-24)

Ready-light setting of remote flash units (537 C-24)

LCD panel iluminator (557 C-24)

Thermal Cut-out (#57 C-24)

Sound monitor (tr C-24)

LCD panel contrast (#3 C-25)

Unit of measuring distance (#5 C-25)

Zoom position setting if the buit-in wide-flash adapter is broken (23 C-25)

“My menu” setting (8 C-25)

Version of firmware (#& C-25)

Reset custom setting (#3 C-25)

OPress the [OK] button for approx.

ve one second to display the custom

@Rotate the selector dial to choose the desired custom functions to be set, and press the [OK] button. + Highlighted item can be set.

}-Position of highlighted item {within 22 items). Not displayed while an item is being set

Items that cannot be changed or set are indicated with grid squares

@Rotate the selector dial to highlight the chosen setting, then

press the [OK] button to set. + Highlighted while setting

+ Options are displayed

+ Press the [OK] button to return display for item selection. Available selection

@ Press the Function button 1 [EXIT] to return to the normal display.

Custom functions and settings

available Custom functions and settings

A Auto aperture flash (with modeling illumination) Auto aperture flash (without modeling illumination) Non-TTL auto flash (with modeling illumination) Non-TTL auto flash (without modeling illumination)

Repeating flash setting of master flash unit (15 D-49) The master flash units repeating flash setting for multiple flash shooting

TONI: Repeating flash on IOFFI: Repeating flash off

Flash output level at manual mode (15 D-16) Setting flash output level compensation step between M1/1 and M1/2 in manual mode

ON ION 1: Compensation with 1/3 EV step is available LOFF ]: Compensation with 1 EV step is not available

SU-4 type wireless multiple flash shooting (5 D-50) Set SU:4 type wireless multiple flash shooting

TONI: SU-4 type wireless multiple flash on LOFFI: SU-4 type wireless multiple flash off

Flash output level of test firing in i-TTL mode (15 D-60) Set flash output level of test firing in i-TTL mode

M1/128: Approx. 1/128 M1/32: Approx. 1/32 MA/1: Ful

EXDX selection (15 D-62) Select the light distribution angle in accordance with the camera's image area between FX- and DX-format

FXé=DX: Automatically set according to the camera FX Nikon FX format (36 x 24) DX: Nikon DX format (24 x 16)

Power zoom off (5 D-57) Select Power zoom on/off

ON: Power zoom off (only for manual setting) OFF: Power zoom on (manual setting is not available)

AF-assist illuminator/flash firing off (15 D-58) Set AF-assist illumination on/off and flash onvoff

ON: Activate AF-assist illumination OFF: Cancel AF-assist illumination AF ONLY: Restrct flash firing (only AF-assist illumination fires)

Standby function (55 C-28) Adjusting the time before the standby function is activated

AUTO: the SB-900 turns off when the cameras exposure meter turns off

Custom functions and settings

ISO sensitivity (t5 D-60)

= Setting ISO sensitivity. ISO sensitivity range is ISO 3 to 8000 64 100: ISO 100 88 L 160 125 168

Ready-light setting on remote flash units (15 D-42) Select the setting of ready-light on remote flash unit/s in multiple flash shooting for low battery power consumption

D RERR.FRONT FERR FRONT REAR, FRONT: Front (at remote setting) and rear ready-lights on REAR: Rear ready-light on FRONT: Front ready-light on (at remote setting)

LCD panel illuminator (15 F-9) Setting the LCD panel illuminator to turn on or off

ON: Turn on OFF: Turn off

Thermal Cut-out (1 F-6) Setting the Thermal Cut-out function on or off

ON: Thermal Cut-out on OFF: Thermal Cut-out off

Sound monitor (15 D-42, F-6)

When the SB-900 is used as a wireless remote flash unit, or the overheat detection is on, the sound monitor function can be activated or cancelled

ON: Sound on OFF: Sound off

LCD panel contrast (5 F-9) Adjust the brightness of the LCD panel. Contrast levels are displayed on the LCD in a nine-step graph:

Unit of measuring distance Set the unit of measuring distance

Zoom position setting if the built-in wide-flash adapter is broken (15 F-4)

Select whether the zoom position is manually set or fixed if the built-in wide flash adapter is broken:

ON: Available OFF: Not available

“My menu” setting (15 C-26) Select items displayed on the LCD in custom setting

FULL: Display all items MY MENU: Display items only selected as “My menu” SET UP: Set up the “My menu'” items

Version of firmware (5% F-10) Show firmware version:

Reset custom setting Reset custom setting except unit of measuring distance and “My menu” items to default setting.

YES: Reset to default NO: Do not reset

Custom functions and settings

When frequentiy used custom setting items are set as “My menu,” only the selected items are displayed on the LCD in the custom setting + “My menu” items can be changed at any time

+ To display all items, select “Full.”

How to set “My menu”

©OSelect “SET UP" in “My menu,” and press the [OK] button.

@ Select items to be set as “My menu” items, and press the [OK] button.

+ Pressing the [OK] button displays Ex in the check box of the selected item

+ For items that cannot be selected, no check box appears.

+ To cancel the EF; mark, press the [OK] button again

@Repeat Step @ to select all desired items, then press Function button 1 [BACK] to return to set-up mode.

@Press [EXIT] to exit custom setting.

+ The LCD returns to normal display.

Refer to the following table to determine when to replace or recharge batteries according to how long the ready-light takes to come on.

Alkaline 20 seconds or more Lithium 10 seconds or more Oxyride 10 seconds or more Ni-MH 10 seconds or more

+ lfbatteries are weak, the flash head zooms back and forth even when the SB-900 is turned on, making a distinctive sound. In this case, replace the batteries even if an external power source is used

Low battery power indicator

When battery power is low, the icon shown at the left appears on the LCD and the 58-900 stops working, [ Replece or recharge batteries.

Minimum recycling time and number of flashes for each type of batteries

For minimum recydiing time and number of flashes for each battery type, refer to “Specifications”. (8 F-21)

External power sources (optional)

Using an optional external power source increases the number of flash firings and provides faster recycling times. (##F-12)

@Standby function to conserve battery power

If the SB-900 and the camera are not used for more than a specified time, the Standby function is automatically activated to conserve battery power. + The Standby function activates when the cameras exposure meter is turned off (default setting).

+ Turn the [Power ON-OFF/wireless setting] switch to [ONI, [REMOTE] or [MASTER]. + Press the [Test firing] button. + Press the camera's shutter release button halfway.

Adjusting the lead time before the Standby function is activated

+ The lead time before the Standby function is activated can be adjusted by custom setting (E# C-23).

D Flash modes and functions

Explanation of the SB-900's flash modes and functions + This section explains SB-900 flash modes and functions in combination with CLS compatible cameras and CPU lenses. Functions and LCD displays vary when other types of cameras are used. + For camera functions and settings, refer to the camera's user's manual

* TTL mode D-2 + Auto aperture flash D-5 + Non-TTL auto flash D8 Distance priority manual flash D-11 + Manual mode D-14 + Repeating flash D-17

+ Determining the aperture, flash output level and shooting distance in the Distance-priority, Manual

and Repeating flash mode D-22 + Switching illumination pattern D-24 + Bounce flash operation D-26 « Taking close-up photographs with

bounce-down flash D-30 + Flash photography with color filters D-33 Flash output level compensation and exposure

compensation D-37 + Wireless multiple flash shooting D-39 + Available functions to be set on the camera …… D-55 + Flash shooting support functions D-57

Flash modes and functions

Flash modes and functions

Information obtained by monitor pre-flashes and exposure control information is integrated by the camera to automatically adjust flash output levels.

+ TTL is recommended for standard shooting situations.

+ To take pictures using SB-900 set in i-TTL mode, see “Basic operation” (EF C-4) TTL Automatic Balanced Fill-Flash mode and Standard i-TTL mode are available

i-TTL Automatic Balanced Flash

Adjust the flash output level automatically for a well-balanced exposure of the

main subject and background. [TTLIBL] appears on the LCD Standard i-TTL The main subject is correctiy exposed regardless of background brightness. This is useful when you want to highlight the main subject. [TTL] appears on the LCD:

Setting the i-TTL mode

OPress the [MODE] button.

@Rotate selector dial to

indicated [T OPress the [OK] button to confirm.

Display for i-TTL mode

# : Monitor pre-flashes MIE TTL BL: Automatic Balanced Fill Flash

FP : Auto FP High-Speed Sync is set on the camera

+ Ini-TTL mode, immediately before the flash fires, the SB-900 fires a series of imperceptible pre-flashes to analyze the information of the subject

SB-900 flash shooting distance range

The flash shooting distance range is indicated by numbers and a bar chart on the LCD + Setthe shooting distance within this range. + The range varies depending on ISO sensitivity, camera's image area setting, illumination pattern, angle of coverage and aperture. For more information, see "Specifications." (SF-16)

Auto setting of ISO sensitivity, aperture and focal length When using with a CLS-compatible camera and à CPU lens, SB-900's ISO sensitivity, aperture and focal length are automatically set according to camera setting + For more information about the 10 sensitivity range, see the cameras user's manual

Flash modes and functions

Flash modes and functions

[% When insufficient light for correct exposure is indicated

+ When the SB-900 fires at full flash output level, ready-lights on the SB-900 and in the camera's viewfinder blink for approx. three seconds after shooting.

+ In this case, underexposure may occur. To compensate the exposure, use a wider aperture or move closer to the subject and reshoot.

+ The underexposure value (-0.3 to -3.0 EV) is displayed on the SB-900's LCD panel for approx. three seconds while the above ready-lights blink.

+ Pressing Function button 2 recalls display of underexposure value in TTLmode.

Changing camera's metering mode + When camera's metering mode is changed to spot metering while i-TTL Automatic Balanced Fill-Flash is selected, the TTL mode automatically changes to the standard i-TTL mode. + In such case, the TTL mode automatically changes to the i-TTL Automatic Balanced Fill-Flash, after changing camera's metering mode to Multi-pattern or Center-weighted

The SB-900% built-in sensor measures the flash illumination reflected from the subject and controls the flash output in combination with data automatically transmitted from the camera and lens to the SB-900, including the ISO sensitivity value, the exposure compensation value, the aperture and focal length of the lens

Setting the Auto aperture flash mode

Auto aperture flash can be changed to Non-TTL auto flash (#5 D-8) by using the custom setting. (8 C-22) + The default setting is Auto aperture flash (with monitor pre-flashes). + When no aperture information is transmitted from camera to the SB-900, flash mode is automatically set to Non-TTL auto flash:

OPress the [MODE] button.

@Rotate selector dial to indicate [SA] or [A].

@Press the [OK] button to confirm the setting.

Monitor pre-flashes on Auto aperture flash on

Flash modes and functions

Flash modes and functions

+ Monitor pre-flashes on or off can be set by using the custom setting. (#5 C-22)

+ The SB-900 fires à series of imperceptible monitor pre-flashes immediately before the flash fires to obtain information on the subject

+ To perform the Auto FP-High Speed Sync (EF D-55) or FV Lock (EF D-55), activate the monitor pre-flashes.

Flash shooting distance range in Auto aperture flash mode

The flash shooting distance range is indicated by numbers and à bar chart in the LCD: + Set the shooting distance within this range + The range varies depending on ISO sensitivity, cameras image area setting, illumination pattern, angle of coverage and aperture. For more information, see “Specifications.” (EF F-16)

[% Notes on using a telephoto lens in the Auto aperture flash mode

+ When shooting a distant subject using a telephoto lens in “Auto aperture flash” mode, underexposure may occur even though the subject is within the flash shooting distance range.

+ Use of the i-TTL mode is recommended.

Taking a picture in Auto aperture flash mode

© cameras control panel

© Set the camera's exposure mode to “P” (Programmed Auto) or “A” (Aperture- Priority Auto).

While using a CPU lens which has an aperture ring

While using a CPU lens which has an aperture ring, lock the lens aperture at minimum. For details, see lens’ users manual @ With the camera's exposure mode set to “A", set the aperture on the camera while reading the flash shooting distance range on the SB-900's LCD. + Decide the aperture value by referring to the chart © Compose the picture, confirm that the ready-light is on, then shoot.

TZ insufficient light for correct exposure

+ When the B-900 fires at full flash output level, ready- lights on the SB-900 and in the camera's viewfinder blink for approx. three seconds after shooting.

+ In this case, underexposure may occur. To compensate the exposure, use a wider aperture or move closer to the subject and reshoot.

Checking the correct exposure before shooting

© confirm the test firing indicator appears on the LCD. © Make the necessary settings on the SB-900 and camera and press the test firing button to fire the flash. + Ready-lights blinking after shooting may indicate insufficient light for correct exposure. In this case, set a wider aperture on the camera or lens, or move closer to the subject.

Flash modes and functions

Flash modes and functions

The $B-900' built-in sensor measures the flash illumination reflected from the subject, automatically controlling the SB-9005 light output to give the correct exposure. This allows you to make exposure compensation easily by varying the aperture set on the camera or lens.

Setting the Non-TTL auto mode Non-TTL auto flash can be changed to Auto aperture flash (8 D-5) by using the custom setting. (EF C-22) + Default setting is “Auto aperture flash" (with monitor pre-flashes).

OPress the [MODE] button. @ Rotate selector dial to indicate [A].

@Press the [OK] button to confirm the setting.

4: Monitor pre-flashes on Œ: Non-TTL auto flash on

Monitor pre-flashes + Monitor pre-flashes on or off can be set by using the custom setting. (t# C-22) + When the monitor pre-flashes are activated, the SB-900 fires a series of imperceptible monitor pre-flashes immediately before the flash fires to obtain information on the subject + To perform the Auto FP-High Speed Sync (#5 D-55) or FV Lock (85 D-55), activate the monitor pre-flashes.

Flash shooting distance range in Non-TTL auto flash mode

The flash shooting distance range is indicated by numbers and a bar chart on the LCD. + Set the shooting distance within this range + The range varies depending on ISO sensitivity, camera image area setting, illumination pattern, angle of coverage and aperture. For more information, see “Specifications.” (8 F-16)

[3 When using a telephoto lens in the Non-TTL auto flash mode

+ When shooting using a telephoto lens in Non-TTL auto flash mode, underexposure may occur even though the subject is within flash shooting distance range.

+ Use of the i-TTL mode is recommended.

Flash modes and functions

Flash modes and functions

Taking a picture in Non-TTL auto flash mode Camera‘ control panel © Set the camera's exposure mode

to “A" (Aperture-Priority Auto) or “M” (Manual).

@Press the Function button 3.

Set the aperture by rotating the selector dial while reading the flash shooting distance range on the SB-900's LCD.

@Press the [OK] button.

© set the aperture value decided in step 3 on the camera or lens.

O@Set the camera to its highest flash sync shutter speed.

that the ready-light is on, then shoot.

% insufficient light for correct exposure

+ When the SB-900 fires at full flash output level, ready-lights on the 5B-900 and in the camera's viewfinder blink for approx. three seconds after shooting.

« In this case, underexposure may occur. To compensate the exposure, use a wider aperture or move closer to the subject and reshoot.

Checking the correct exposure before shooting

A © Confirm the test firing indicator appears on the LCD.

86-67 m © Make the necessary settings on the SB-900 and camera

and press the test firing button to fire the flash.

+ Ready-lights blinking after shooting may indicate insufficient light for correct exposure. In this case, set a Wider aperture on the camera or lens, or move closer to the subject.

ÉRE Distance priority manual flash

In this flash mode, when you enter the shooting distance value, the SB-900 automatically controls the light output according to the aperture set. You can take pictures that have the same exposure even when shooting at different apertures + Flash output level is automatically compensated by changing the flash output level compensation value + Underexposure is not indicated in Distance-priority manual flash mode.

Setting the Distance-priority manual flash

Distance-priority manual flash is not available when the 58-9005 flash head is adjusted to other than the horizontal/front or bounce-down flash position

OPress the [MODE] button. @ Rotate selector dial to indicate [GN].

Press [OK] button to confirm the setting.

Shooting distance and flash shooting distance range (w and bar) When (w) appears on the shooting distance range indication (bar), the SB-900 fires with appropriate flash output.

Flash modes and functions

Flash modes and functions

Distance priority manual flash

Shooting in Distance priority manual flash mode

Camera control panel

© Set the camera's exposure mode to “A” (Aperture-Priority Auto) or “M” (Manual).

@Press the Function button 2.

6 Set the shooting distance by

rotating the selector dial.

+ The shooting distance varies depending on ISO sensitivity within a range between 0.3 m and 20m

@Press the [OK] button.

@ Set the aperture on the camera. + Aperture should be calculated using the calculation formula. (#5 D-22) + The aperture on the SB-900 cannot be set directly. @ Compose the picture, confirm that the ready-light is on, then shoot.

Flash shooting distance range in “Distance-priority manual flash” mode 03 [04 [05 | 06 | 07 | 08 [oo [10 11 | 13 | 14 [16 1.8 |20|22 [25 |28 | 32 | 36 | 40 | 45 | 50 | 56 | 63 71 | 80 | 90 | 10 | 11 | 13 | 14 | 16 | 18 | 20

+ See charts for flash shooting distance range + Ifthe desired shooting distance is not on the chart, select a shorter shooting distance (e.g. when your desired shooting distance is 2.7 m, select 2.5 m.)

When the flash head is rotated in Distance-priority manual flash mode

+ When the flash head is rotated to other than the horizontal/front or bounce- down flash position in Distance-priority manual flash, the flash mode is automatically changed to Auto aperture flash mode or Non-TTL auto flash mode

+ In this case, when the flash head is adjusted to horizontal/front or bounce-down flash position again, the flash mode is automatically changed to Distance-priority manual flash mode

[% insufficient light for correct exposure

+ When the SB-900 fires at full flash output level, ready-lights on the SB-900 and in the camera's viewfinder blink for approximately three seconds after shooting.

+ In this case, underexposure may occur. To compensate, use a wider aperture or move closer to the subject and reshoot.

Flash modes and functions

Flash modes and functions

In Manual flash mode, you select the aperture and flash output level. In this way, you can control the exposure and flash shooting distance when shooting subjects where the correct exposure is difficult to obtain in the TTL or Non-TTL auto flash mode. + The flash output level can be set from M1/1 (full output) to M1/128 to match your creative preferences. + Underexposure is not indicated in Manual mode

OPress the [MODE] button. @Rotate selector dial to indicate [M].

OPress the [OK] button to confirm the setting.

Flash shooting distance {numerical indicator)

Flash Shooting distance (w)

Taking a picture in Manual mode

Camera‘ control panel © Set the camera's exposure mode to "A" (Aperture-Priority Auto) or “M" (Manual).

@ Determine the flash output level and aperture to match the flash shooting distance. + Flash output level and aperture should be

caleulated using the calculation formula (x D-23)

Press the Function button 1.

@Set the flash output level by rotating the selector dial.

OPress the [OK] button.

O@ Set the aperture on the camera. + The aperture on the SB-900 cannot be set direct + The shooting distance indicated matches the selected flash output level and aperture

© Compose the picture, confirm that the ready-light is on, then shoot.

Flash modes and functions FE Flash modes and functions

ΠSetting the flash output level Press the Function button 1, and then rotate the selector dial to change the flash output level. + When you rotate the selector dial clockwise, the indicated denominator decreases (flash output level increases).

Ce > 1/128(+0.3) > 1/128(+0.7) ->1/64 1/16 1/2. 1/64(+0.7) € 1/64(+ 0.3)

+ When you rotate the selector dial counterclockwise, the indicated denominator increases (flash output level decreases).

C" 1/128 +. 1/4(-0.7) < 1/4(-03) « "e C2 > 1/2(+03) > 1/2(-07) + The flash output level changes in +1/3 steps except between 1/1 and 1/2. 1/32 (-0.3) and 1/64 (+0.7) represent the same flash output level. + In default setting, flash output level compensation between 1/1 and 1/2 is #1 step. This step can be changed to +1/3 using custom setting (t# C-22). With

some cameras, and when using faster shutter speeds with a flash output level greater than M1/2, actual flash output may decrease to M1/2 level

1/13 1/2 coco. ++... 1/64 1/128 + (large) <——— flash output level —; (small) —

444 distant <— shooting distance — near Ù

In Repeating flash mode, the 58-900 fires repeatedly during a single exposure, creating stroboscopic multiple-exposure effects. This operation is useful when shooting fast-moving subjects. + Be sure to use fresh or fully charged batteries and allow enough time for the flash to recycle between each repeating flash session + Use of a tripod is recommended to prevent camera/flash shake, because slower shutter speeds are used + Underexposure is not indicated in Repeating flash mode:

Setting the Repeating flash OPress the [MODE] button.

@Rotate selector dial to indicate

@Press the [OK] button to confirm the setting.

À — flash output level

Number of — Frequency

flashes — Flash shooting distance

{numerical indication)

Flash shooting distance (w)

Flash modes and functions

Flash modes and functions

EH Setting the flash output level, the number of repeating flashes, and the frequency (Hz) per frame

+ The number of flashes (Times) represents the number of times the flash fires per frame:

+ The frequency (Hz) represents the number of times the flash fires per second.

+ The number of flashes is the maximum flash firing number. Because the Speedlight fires during a single exposure, the actual number of repeating flashes per frame falls below the one set as the shutter speed increases or the number of flashes per second decreases.

+ Referring to the table below, set the flash output level, the frequency, and the number of repeating flashes separately for each picture

Maximum number of repeating flashes per frame

FHSSR QuRpuE lever FRE ve [BH [one [as june [et ae mes Met ue uns 1Hz 14 16 22 30 36 46 60 68 78 90 90 90 90

2H meule fols ss oies ww) |x LP PC LE D EE CO NP D EC sms [7 Liofzofzs sofa fao(s ss [se EC EP OS D ms otefiofwiulafaæfwolwlx|sx| ms otetuoteriu zur |+|+|+ PE EC EC 7 202 oz 202 SoHz om) 4 | 5 | 6e lo lion ue | 2 | 2 | 2 Toz 202 s0z 100mz

Shooting with Repeating

Camera control panel

© Set the camera's exposure mode to “M" (Manual).

@Press the Function button 1, rotate the selector dial to set flash output level, and press the [OK] button to confirm.

+ Available flash output level is 1/8 - 1/128.

OPress the Function button 2, rotate the selector dial to set number of flashes, and press the [OK] button to confirm.

rotate the selector dial to set

frequency, and press the [OK]

@ Determine the guide number according to the set flash output level and focal length, then calculate the correct aperture from the guide number and shooting distance. Finally, set this aperture on the camera.

+ The guide number and aperture should be caleulated using the calculation formula (5 D-22)

+ The aperture on the SB-900 cannot be set direct

+ The shooting distance indicated matches the selected flash output level and aperture

Flash modes and functions FE Flash modes and functions

Camera control panel Get the shutter speed.

(6] + Use the following equation to determine the shutter speed and use a shutter speed one or more steps slower than the calculated shutter speed Shutter speed = Number of flashes per frame + Frequency of flashes (Hz)

+ For example, if the number of flashes per frame is 10 and the frequency is 5 Hz, divide 10 by 5 to get a shutter speed of 2 seconds or slower. (Set shutter speeds of slower than 2 seconds.)

+ B (ul can be used for the shutter speed

@ Compose the picture, confirm that the ready-light is on, then shoot.

Making sure the flash fires correctly before shooting

RPT1/64 © Confirm the test firing indicator

159880 186 = appears on the LCD.

He @ Confirm all shooting settings on the

En 24% F5.6 SB-900 and the camera are the same

as for actual shooting, and then press

the test firing button.

+ Pressing the test firing button fires the flash for the selected frequency and number of flashes.

m Exposure compensation in Repeating flash mode

+ The flash shooting distance calculated in Step @ is the correct exposure for the first flash in the sequence. Therefore, repeating flash at this flash output level will result in overexposure of any overlapping images.

+ To prevent this, set a smaller aperture on the camera as needed.

When the aperture value is not displayed in the SB-900's LCD + Cameras aperture data is not transmitted to the SB-900

+ Press the Function button 3 for one second to highlight f-number and set appropriate aperture value on the SB-900.

Flash modes and functions

Flash modes and functions

Determining the aperture, flash output level and shooting distance

In Distance-priority, Manual and Repeating flash modes, use the guide number table and the following equation to calculate the aperture, flash output level, and shooting distance to obtain the correct exposure.

+ The guide number (GN at ISO 100; m/f) indicates the amount of light generated by the flash

+ The larger the number, the greater the flash output.

ISO sensitivity factors For sensitivities, multiply the guide number by the factors shown in the table below

ISO | 25 50 100 | 200 | 400 | 800 | 1600 | 3200 | 6400 Factors | 0.5 | 0.71 1 1.4 2 2.8 4 5.6 8

Guide number (GN at ISO 100; m/ft)

The table below shows the guide numbers while using the standard illumination pattern when the $B-900 is mounted on à Nikon FX format camera + For others, see "Specifications" (8-18)

Fish a Zoom position (mm) output lus

+ BA: With the Nikon Diffusion Dome attached + WP: With the wide-flash adapter in place

in the Distance-priority, Manual and Repeating flash modes

M Calculating the correct aperture

Determine the guide number by referring to the guide number table. The correct guide number depends on the flash output level and zoom position. Next, calculate the correct aperture by using the equation below. The correct aperture depends on ISO sensitivity and shooting distance (m/ft.).

fistop (aperture) = Guide number (GN at 150 100; m/f x ISO sensitivity factor + Shooting distance (mft)

For example, for an ISO sensitivity of 400 (or ISO sensitivity factor: 2), with the zoom position adjusted to 28 mm, and the flash output level set to M1/1 Referring to the guide number table, determine the guide number as 30/98.4 (m/ft.) When the shooting distance is 4 m (13.1 ft.), the correct aperture value is 30/98.4 (GN at ISO 100, m/ft) x 2 (ISO sensitivity factor for ISO 400 (shooting distance; m/ft.) = 15 (aperture)

+ Set the smaller aperture value (larger f-number) than calculated above on the camera H Obtaining the correct flash output level When the shooting distance and aperture are fixed, calculate the guide number (GN at ISO 100; m/ft.) by using the equation below, based on shooting distance and aperture

Guide number (GN at ISO 100; m/ft.

hooting distance (m/f) x Aperture (f) + ISO sensitivity factor

Referring to the guide number table, determine an appropriate flash output level corresponding to the guide number obtained above, then set the same value on the SB-900 For example, for the shooting distance of 6 m (19.7 ft) with an aperture of f/8 and the ISO sensitivity of 400 (ISO sensitivity factor: 2) 6/19.7 (shooting distance; m/ft.) x 8 (aperture value) + 2 (ISO sensitivity factor of ISO 400) = 24/79 (GN at ISO 100; m/ft.)

+ When the zoom position is adjusted to 35 mm, set M1/2 flash output level on the SB-900, which can be obtained from GN 24/79 (m/ft.) corresponding to the zoom position of 35 mm referring to the guide number table:

+ In Distance-priority manual flash operation, the correct flash output level is automatically determined by the SB-900 according to the shooting distance, aperture and ISO sensitivity that are set

H Calculating the shooting distance

Determine the guide number by referring to the guide number table. The correct guide number depends on the flash output level and zoom position. Next, calculate the shooting distance by using the equation below. The shooting distance (m/ft.) depends on ISO sensitivity and aperture

Shooting distance (m/ft.) = Guide number (GN at ISO 100; m/f.) x ISO sensitivity factor + Aperture (f/)

Flash modes and functions

Flash modes and functions

Switching illumination pattern

In flash photography, the center of the image is most illuminated, while the edges are darker. The SB-900 provides three types of illumination patterns with different light falloff at edges. Select suitable type according to the shooting environment. « For sample images of three types of illumination patterns, see the separate volume "A collection of example photos.” Pp. 2-3

+ The basic illumination pattern

type for common flash shooting environment

To match the image circle of digital cameras, light falloff at the edge of image is less than shooting with existing external flash unit

The center-weighted pattern provides larger guide numbers at the center of the image than other illumination patterns at the same focal length (the light falloff at the edge will be greater than other illumination patterns)

Suitable for shots, such as portraits, in which the light falloff at the edge of an image can be ignored

The light falloff at the edge of the image is less than with the standard illumination pattern

Suitable for shooting group photographs indoors, in which sufficient light is required without light falloff at the edges.

ro set/confirm illumination pattern

The illumination pattern can be set using custom setting. (8 C-22) + Standard is the default setting + The selected illumination pattern is indicated with an icon on the LCD.

Flash modes and functions

Flash modes and functions

Bounce flash operation

You can tilt or rotate the SB-900% flash head to bounce the light off the ceiling or wall, providing more natural-looking pictures of people with softer shadows. Also, you can soften the shadows even more by using the Nikon Diffusion Dome: + For more details and comparative example photos, see the separate booklet, “A collection of example photos” Pp. 4-9

Setting the flash head

Tilt or rotate the SB-900's flash head

by holding down the flash head

tilting/rotating lock release button.

+ The SB-900% flash head tilts up 90° and down -7°, and rotates horizontally 180° to the left and right

+ Set the flash head at a click stop at the angles shown

ng/rotating angles, and choosing the reflecting surface

+ Good results are generally obtained most simply when the flash head is tilted up and you use the ceiling as a reflecting surface

+ Rotate the flash head horizontal to get the same effect when you hold the camera in the vertical position:

+ Take care not to let light from the flash unit illuminate the subject directly.

+ The effective distance between the flash head and the reflecting surface is approx. 1 m (3.3 ft.) to 2 m (6.6 ft.) depending on the shooting conditions.

+ In color photography, select white or highly reflective surfaces to bounce the light off of. Otherwise, your pictures will come out with an unnatural color cast similar to that of the reflecting surface.

Bounce flash operation

Camera‘ control panel ©Osetting the camera's exposure

oO mode and metering system.

+ Set the exposure mode to Aperture-Priority Auto (A) or Manual (M).

Set the metering system to Matrix Metering

"or Center-Weighted Metering “[#)”

@ setting the SB-900's flash mode.

+ Set the flash mode to i-TTL, Auto Aperture, or Non-TTL auto.

© Setting the camera's aperture.

+ In bounce flash, use an aperture 2 to 3 stops wider than with normal flash photography, and adjust it according to the results.

+ In Non-TTL auto flash, set the same aperture on the SB-900 as is set on the camera.

+ In Manual exposure mode, set the shutter speed

© Adjust the flash head and shoot.

Setting the aperture in bounce flash operation

+ In bounce flash, there is a light loss of 2 to 3 stops when compared with normal flash photography (with flash head adjusted to horizontal/front). Therefore, you should use à two- or three-step wider aperture (small f-number), and adjust it according to the results

+ When the flash head is adjusted to other than the horizontal/front position, the flash shooting distance range indicator on the SB-900 disappears. To ensure correct exposure, first confirm the flash shooting distance range and aperture with the flash head in the normal position. Next, set this aperture on the camera

Flash modes and functions

Flash modes and functions

Bounce flash operation

Using the built-in bounce card + In bounce flash photography, use the SB-900'5 built-in bounce card to create à highlight in the subjects eyes, making the eyes look more vibrant and avoiding illuminating the front of the subject. < Tilt the flash head up 90° to use this feature most effectively.

Pull out the bounce card and

the wide-flash adapter and,

while holding the bounce card,

slide the wide-flash adapter

back into place inside the

+ To insert the bounce card,

pull out the wide-flash card again and slide both cards together back into place.

Shooting with the Nikon Diffusion Dome

+ By attaching the provided Nikon Diffusion Dome over the flash head, you can diffuse the light even more when doing bounce flash, creating extremely soft light with virtually no shadows.

+ With the camera in either the horizontal or vertical position, you get the same effect.

+ Good results are generally obtained when the flash head is tilted up 60°.

+ When the Nikon Diffusion Dome is attached and when the camera's image area is set to FX format, the zoom position is automatically set at 12 mm, 14 mm or 17 mm, and 8 mm, 10 mm or 11 mm while setting the camera's image area to DX format.

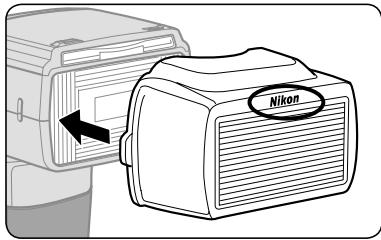

Attaching the Nikon Diffusion Dome

— Attach the Nikon Diffusion Dome as shown in the illustration with the Nikon logo facing up.

[3 Notes when using the Nikon Diffusion Dome

+ The distance between the camera and subject differs from the center of the frame to the periphery, so the peripheral area might not be sufficiently lit in some cases.

Flash modes and functions

Flash modes and functions

| Taking close-up photographs with bounce-down flash

When the distance between the camera and subject is less than approx. 2 m (6.6 ft), you can take more natural-looking close-up pictures using the wide-#lash adapter.

+ Be careful when using a long lens that the light from the flash is not obstructed by the lens barrel

+ Vignetting may occur in close-up flash photography due to the illumination pattern, lens in use, focal length setting, etc. Therefore, make test shots before shooting an important assignment.

+ When the SB-900 is attached to the camera and used as the only flash unit, tilting down the flash head is recommended to ensure sufficient ilumination of the lower portion of the subject in close-up photography.

+ A bounce-down icon appears when the flash head is tilted down

setting the built-in wide-flash adapter

OSlowly pull out the wide-flash adapter all the way, and position it over the flash head.

© Then slide the bounce card back into place inside the flash head.

+ When the built-in wide-flash adapter is attached and when the camera's image area is set to FX format, the zoom position is automatically set at 12 mm,

14 mm or 17 mm, and 8 mm, 10 mm or 11 mm while setting the cameras image area to DX format.

+ To set the Zoom position manually, go to custom setting and set “Zoom position setting if the built-in wide-flash adapter is broken off accidentally” to [ON] (manual setting is available). (8& C-25)

+ To put the built-in wide-flash adapter back into place, lift it and push it into the flash head as far as it will go:

Taking close-ups with bounce-down flash

Camera’ control panel OSetting the camera's exposure 0 mode and metering mode.

7 + Set the exposure mode to Aperture-Priority 125 F6 Auto (A) or Manual (M)

+ Set the metering mode to Matrix Metering “ or Center-Weighted Metering “C" @Set the SB-900's flash mode.

@ Position the built-in wide-

flash adapter. <0.6-6.7 m Orilt the flash head down. BE 2dun F5 6 © Confirm the ready-light is on = ——— then shoot.

Flash modes and functions

Flash modes and functions

Taking close-up photographs with bounce-down flash

When shooting subjects closer than 0.6 m (2 ft.)

+ With the SB-900 attached to the camera, sufficient illumination of the subject cannot be obtained + In this case, use the SB-900 off-camera by attaching the optional TTL Remote Cord as shown below + When monitor pre-flashes are fired, distance information from the lens is used to determine the correct exposure. In this case, position the camera (A) and the S8-900 (B) at equal distances from the subject.

Use TTL Remote Code SC-29, SC-28 or SC-17.

Setting the aperture in off-camera close-up flash operation

+ Calculate the aperture by using this equation and table + To ensure the correct exposure, use an aperture smaller (larger f-number) than

the one obtained from the equation

fistop > Factor + Flash-to-subject distance

+ For example, at an ISO sensitivity of 100 with a subject 0.5 m (1.6 ft.) away and the wide-flash adapter in place, the suggested aperture is: fistop > 2 + 0.5 = 4 (in meters)

fstop z 6.6 + 1.6 = approx. 4 (in feet)

L% Notes on using a wideangle lens

+ Generally, when using a wideangle lens, the distance between the

camera and subject differs from the center of the frame to the periphery, so the peripheral area might not be sufficiently lit in some cases.

Flash photography with color filters

Two types of color filters are supplied with the SB-900 for taking flash pictures under fluorescent lighting and for use with incandescent/tungsten lighting. + The optional Color Filter Set 5J-3 is available. (E#F-11) + Four types of color filters for changing the color of the light from the flash are optionally available + For more details on photo examples with color balanced using color filters, see the separate booklet, "A collection of example photos” P. 10.

BUsing color filters

Balance the color of light from the flash to

Feel EE, KE) match that of fluorescent lighting

Balance the color of light from the flash to

rent (OA USD) match that of incandescent or tungsten lighting

Create interesting effects by changing the color

Certes (Gite) of the light from the filters

+ Corresponding light source for each type of color compensation filter differs slightiy. FL-G1 provides a greater compensation effect than FL-G2, and TN-A1, greater than TN-A2. Select the appropriate filter according to the results.

TZ Notes on using color filters

+ These filters are consumable items. When they fade in color or deteriorate, replace them with the backup filters provided.

+ Do not use these filters when taking pictures with repeating flash, as the heat can damage them.

+ The heat generated from the flash head can deform color filters. However, this will not affect their performance.

+ Scratches on the filters will have no effect on performance unless the filters fade in color.

+ To remove dust or dirt, wipe the filter lightly with a soft, clean cloth.

Flash modes and functions

Flash photography with color filters

How to use color filters

©Fold along the line marked on the color filter.

@Attach the filter to the filter holder as shown in the diagram. + Align the identification codes (silver marks)

on the filter with the black portion on the holder

+ Insert the tip of the filter into the sit on the holder, then align the positioning hole on the filter with the projection on the holder.

[% Attach the filter securely to the filter holder without creasing the filter or leaving

OPlace the filter holder on the flash head with the Nikon logo facing up, as shown in the diagram, and insert into the slit at the top.

#8ITTLIBL) [a) © Confirm the color filter indicator I

EH LCD indication while attaching an FL-G1 filter

+ Filter mounted and filter type indicators will

+ Do not block the filter detector window.

+ Ifthe warning shown in the figure in the left below appears on the LCD, the filter is not properly attached. Remove and

Flash modes and functions

Flash modes and functions

Flash photography with color filters

BBalancing light from the flash using color filters

Æ When using SB-900 with a camera equipped with filter detection (such as D3, D700) + When a color filter is attached to the SB-900 while the cameras white balance is set to AUTO or FLASH, filter information is automatically transmitted to the camera, and the camera's optimum white balance is automatically adjusted to give the correct color temperature = When using SB-900 with a camera not equipped with filter detection (such as D2 series, D300, D200, F6) + Set the cameras white balance according to the filter in use.

= White balance/exposure compensation value depends on camera in use

Camera D2 series, D300, D200, d D100, D80, D70 5

Filter D3',D700 D60, D40 series, DIX, | 1: D50

(RED, BLUE, | auto, Flash, Direct | Auto, Flash, Direct suniight | AUD: es with

YELLOW, |sunlight (40.77 EV with AMBER) AM AMBER)

*1 D3 camera with either firmware A or firmware B version 2.00 or later. (#3 F-10) *2 Set the camera's white balance and exposure compensation value. + For more details on the white balance, see your camera users manual

Flash output level compensation and exposure compensation

Making flash output level compensation

You can make exposure compensation for the flash illuminated subject only without affecting the background exposure by modifying the SB-900 flash output level + As a basic guide, some plus compensation may be necessary to make the main subject brighter, and some minus compensation to make it darker.

+ Flash output level compensation is possible in i-TTL auto flash, Auto Aperture flash, Non-TTL auto flash and Distance-priority manual flash modes.

OPress the Function button 1 to highlight the Flash output level compensation value.

@Turn the selector dial to set desired flash output level compensation value.

+ The compensation value can be set in 1/3 steps from +3.0 to -3.0 EV.

@Press the [OK] button.

m Canceling flash output level compensation

+ To cancel, turn the selector dial to return the compensation value to “0”.

* The flash output level compensation cannot be canceled by turning the SB-900 off.

For cameras with a built-in flash featuring the exposure

compensation function

+ You can also set the flash output level on the camera. For details, see your camera user's manual

+ If you compensate the flash output level on both the camera and the SB-900, the exposure is modified by the sum total of both compensation values.

+ In this case, the SB-900's LCD panel shows only the compensation value set on the SB-900.

Flash modes and functions

Flash modes and functions

Flash output level compensation and exposure compensation

BMaking exposure compensation

Exposure compensation allows you to make both the subject and background brighter or darker by intentionally modifying the correct flash exposure, This is useful when a subject of extremely high or low reflectiity is included in the scene or when you want to create flash photographs to match your creative references. + Some plus compensation may be necessary when the background includes a highly reflective surface. Likewise, some minus compensation may be required when the background is dark or includes subjects of low reflectivity

ΠIni-TTL and Auto Aperture flash mode

+ Make exposure compensation on the camera. For more details, see your camera

user's manual MH in Non-TTL auto flash and Manual flash mode

+ In the Non-TTL auto flash mode, the correct exposure can be obtained when the same aperture is set on the camera as that set on the SB-900. Therefore, to make exposure compensation, vary the aperture set on the camera while retaining the aperture set on the SB-900 or vice versa

+ In the Manual flash mode, calculate the proper aperture for the correct exposure from the guide number and the shooting distance (8 D-22). Then, use a larger or smaller aperture on the camera to make exposure compensation

+ A5 a basic guide, set a wider aperture on the camera or lens to make the main subject brighter or a smaller aperture to make it darker.

Wireless multiple flash shooting

With the SB-900, the “Advanced” and “SU-4 type" wireless flash operations are available. + The Advanced Wireless Lighting mode is automatically set as the default Advanced Wireless Lighting is recommended for standard multiple flash photography. + SU-4 type wireless multiple flash, set the wireless flash mode to “SU-4" in the custom setting. (8 C-22)

Flash shooting with Advanced Wireless Lighting

+ Available when the SB-900 is used with CLS-compatible cameras.

+ Compatible with i-TTL flash mode.

+ In this mode, you can divide the remote flash units into three groups and set the flash mode and flash output level compensation values separately for each group.

SU-4 type wireless multiple flash shooting

+ SU-4 type wireless multiple flash is particularly suitable for shooting fast moving subjects as both the master flash unit and remote flash units fire simultaneously

+ There are no restrictions as to which cameras can be used.

+ Speedlight featuring wireless multiple flash capability can be used either as the master or remote flash unit.

+ Speedlights compatible with TTL auto flash can be used as the master flash unit. The optional Wireless Slave Flash Controller SU-4 is necessary when you want to use these Speedlights as remote flash units

+ The cameras built-in flash can also be used as a master flash unit

Master flash unit and remote flash unit(s)

In this user's manual, a flash unit mounted on the camera, the camera's built-in flash, or the one directly connected to the camera via a TTL Remote Cord is called the master flash unit. All other flash units are called remote flash units.

Flash modes and functions

Wireless multiple flash shooting

[% Notes on performing wireless multiple flash photography

+ To avoid accidental firing, turn off the camera and all flash units before mounting the master flash unit on or connecting it to the camera.

+ The master flash unit cannot be test-fired.

+ The brightness of the flash illumination is inversely proportional to the square of the distance between the flash unit and the subject. For example, if the distance between Speedlight A and the subject is 1 m (33 ft), and Speedlight B is 2 m (6.6 ft.) and both A and B have the same guide numbers, the combined brightness of the two Speedlights will be:

+ A:B=1:4 (in meters) or approx. 11 : 44 (in feet)

+ See the instruction manuals of your cameras and Speedlights.

D Biotes on remote flash

Flash modes and functions

Take care of the following

[2% Notes on setting a remote flash unit

+ When using a Speedlight that has a standby function as a remote flash unit, make sure that the standby function is set to "OFF," or select a standby duration that is long enough in the custom setting.

+ The standby function of the SB-900, SB-800, SB-600 and SB-80DX is canceled when wireless remote flash mode is set. Make sure that there is sufficient battery power.

+ The SB-50DX' standby duration is automatically extended to approx. one hour when it is set to wireless remote flash mode.

+ Set the angle of coverage of the remote flash units wider than the picture angle, so that the subject will receive sufficient illumination even when the angle of the flash head is off axis from the subject. When the flash-to-subject distance is very short, set the angle of coverage wide enough to achieve sufficient light.

[% Notes on se: g up the remote flash units

+ In most cases, position the remote flash unit(s) closer to the subject than the camera, so that light from the master flash unit can reach the light sensor of the remote flash unit(s). This is particularly important when holding a remote flash unit in your hand.

+ Data communication cannot be performed properly if there is an obstacle between the master unit and remote flash units.

+ Take care not to let light from the remote flash unit enter the camera lens directly or indirectly in i-TTL auto flash mode. Also, prevent light from entering the master flash unit's light sensor window for Non-TTL auto flash (in Auto Aperture or Non-TTL auto flash mode). Otherwise, the correct exposure cannot be obtained.

«There is no limit to the number of remote flash units that can be used together. However, when using many remote flash units, light may be unintentionally picked up by the light sensor of the master flash unit and interfere with correct operation. The practical number of remote flash units for wireless multiple flash shooting are three. In Advanced Wireless Lighting, for practical purposes, the number of remote flash units should be limited to three for one group.

+ Use the provided Speedlight Stand AS-21 for stable placement of the remote flash units.

«Be sure to perform test firing after setting up all flash units.

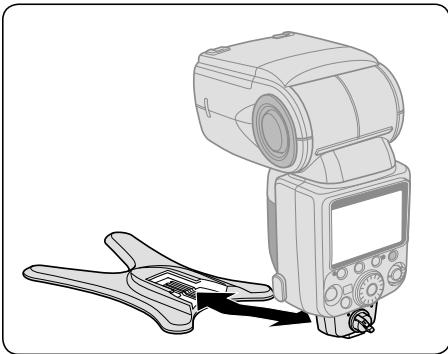

EH Using the Speedlight Stand Use the provided Speedlight Stand AS-21 for stable placement of the remote flash units.

+ Attach the $B-900 to the Speedlight Stand in the same way that you attach it to the camera's accessory shoe. The same is true when detaching it from the camera

+ Speedlights SB-15 and SB-27 cannot be used with the AS-21

Flash modes and functions

2 El 3 2 # 8 3 8 El $ A rs

Wireless multiple flash shooting

@ Confirming shooting ns in wireless mul

You can confirm wireless multiple flash operation by checking the ready-light on the SB-900 or the sound monitor during and after shooting,

+ When the SB-900 is used as a wireless remote flash unit, you can monitor its operation by listening to the sound monitor. This function can be activated or canceled using custom setting (E& C-24). This function is set to activate as the default

+ To save battery power, the ready-lights on the remote flash units can be turned off in the custom setting. The rear ready-light is set to light up and the front ready-light is set to blink as the default. (5 C-24)

Confirming flash operation using the ready-light or sound monitor

Ready-lightof | Ready-light of

master flash unit |remote flash unit | S°UNd monitor Sri errition The rear ready light lights up and Lights up tort [One beep Ready to fire light blinks. The rear ready Lights up or does | light lights up, not come on (not | andthe front |Twoshort beeps | Fired properiy biinking) ready-light links or goes out

Both the master and remote flash units have Blinks for approx. | Quickly blinks for | Three long beeps _ | fred at ful output but light may have been 3 sec. approx. 3 sec. | for approx. 3 sec. | insufficint for correct exposure. Use a wider aperture and reshoot

The light sensor of remote flash could not receive correct} the command light from master flash, The light sensor could not detect véhen to stop fig in sync with the master flash unit, because à strong reflection from the remote flash unit itsef or ight from another remote flash unit may have entered the light sensor window. Change the direction or position of the remote flash unit and reshoot.

Lights up or does: not come on (not linking)

Quickly blinks for | Three long beeps approx. 3 sec. | for approx. 3 sec.

Warning chime rings twice (uen the Normal operation | Normal operation | $8-900 detects high temperature), or once for each flash fing)

The $B-9005 temperature has risen as a resuit of the flash being fired multiple times in quick succession. Wait until the $8-900 cools down

The S8-9005 temperature has rsen to a certain level and the SB-900 enters protectve shutdown mode. Wat untl the 58-900 cos dou.

Goes out Goes out rings twice.

Flash shooting in Advanced Wireless Lighting

When the SB-900 is used with Nikon CLS-compatible cameras, Advanced Wireless Lighting is possible. In this mode, you can divide the remote flash units into three groups and set the flash mode and flash output level compensation values separately for each group as well as the master flash unit. This is defined as Flash Shooting in the Advanced Wireless Lighting

+ To take photos with repeating flash, see custom setting. (E3 C-22)

+ For more details on the example photos in Advanced Wireless Lighting, see the

separate booklet, “A collection of example photos” Pp. 16-19.

B Mechanism of the Advanced Wireless Lighting

Remote flash units (Group B)

Remote flash units (Group C)

Remote flash units (Group A)

+ Remote flash units can be set up to a maximum of three groups (A, B, C).

+ Single or several remote flash units can be allocated for one group.

+ For a total of four groups including the master and other remote flash units in three groups, you can set the flash mode and flash output level compensation values separately for each group.

+ Select one of the four available channels through which the master and remote flash units exchange data

+ If another photographer uses the same type of wireless remote flash setup close by, your remote flash units may accidentally fire in sync with that photographers master flash unit. To avoid this, use a different channel number.

Flash modes and functions

Flash modes and functions

Flash shooting in Advanced Wireless Lighting

@riash set-up in the Advanced Wireless Lighting

Arrange the master and remote flash units within the range as instructed in the illustration below.

Less than approx 10m(33ft) x

{l 2 Within <, LU 3 À Master

Group 8 -6 | = US flash unit \ 9 Within 30° F \ Approx. 5 to 7 m (6to23ft) \Group A

+ Direct the light sensor window of the remote flash units toward the master flash

+ A5 a basic guide, the effective shooting distance between the master and remote flash units is approx. 10 m (33 ft.) or less in the front position, and approx. 7 m (23 ft.) at both sides. These ranges vary slightly depending on the ambient light.

+ Be sure to place all remote flash units that are set in the same group close together.

+ See “Notes on the remote flash". (5 D-40)

Setting the SB-900 to Advanced Wireless Lighting

You can set the SB-900 to Advanced Wireless Lighting using the Power ON-OFF

switchwireless setting switch + Turn the switch while holding down the button on the center. Setting the SB-900 as Setting the SB-900 as the master flash unit the remote flash unit

=B7e [ont SfelAec](or]1 234

+ Align the index on the Power + Align the index on the Power ON-OFF switchAwireless setting ON-OFF switchAnireless setting

switch to MASTER switch to REMOTE D-45

Flash modes and functions

Flash shooting in Advanced Wireless Lighting

In this mode, set the following items on either the master flash unit or the remote

flash units Speedlight Item Te pe se Remarks + The following five flash modes are available i-TTL mode Auto Aperture flash" Non-TTL auto flash" ah mode [Master sh Manual flash unit Flash canceled

+ Setthe flash mode of the remote flash units on the master flash unit.

+ The flash mode can be set independentiy on the master flash unit and for each group of remote flash units.

+ Flash output level compensation values of the

a Flash remote flash units can also be set on the master 5 Master flash flash unit. SG [ospurieel Lun + The flash out £ compensation put level compensation values can be s set independentiy on the master flash unit and for £ each group of remote flash units. ê Master and | + Select one of the four available channels. £ |Channer? remote flash | + Be sure to set the same channel number for both #8 units the master flash unit and remote flash units. = Remote flash

Group unit + A maximum of 3 groups (A, B, C)

#1 Auto Aperture flash is automatically set. When the 58-900 cannot receive lens information such as focal length and aperture, the flash mode automatically switches to Non-TTL auto flash

+2 If another photographer uses the same type of wireless remote flash setup close by, your remote flash units may accidentall fire in sync with that photographers master flash unit. To avoid this, use a different channel number.

Flash shooting in Advanced Wireless Lighting

1. Setting the flash mode, flash output level compensation values, and channel number on the master flash unit

OPress the Function button 1 on the master flash unit to highlight “F1”.

@Press the [MODE] button, then turn the selector dial to choose the desired flash mode, and press the [OK] button.

@Press the Function button 2, then turn the selector dial to choose the desired flash output level compensation value, and press the [OK] button.

@Press the Function button 1 to highlight Group “[A]", and press the [OK] button.

+ Turn the selector dial to choose à group other than “A”

GRepeat procedures @, @ above to set the flash mode and flash output level compensation values of the remote flash units in Group “A".

Gin the same way with Group À, set S= the flash mode and flash output level ee } compensation values of the remote flash units in Groups “B"and “C". @Press the Function button 2, then turn the selector dial to set a channel number, and press the [OK] button.

Flash modes and functions FE Flash modes and functions

Flash shooting in Advanced Wireless Lighting

2. Setting a group and channel number on the remote flash units

7) OPress the Function button 1, then turn the selector dial to choose a desired group name, and press the [OK] button.

+ Group name and channel number being set appears larger.

æ u + + For remote flash units where the flash

mode and flash output level compensation

values are to be set identically, place these

VIN ve N\ flash units into the same group. Q ©) @ Press the Function button 2, then

) à turn the selector dial to choose the 5 L desired channel number, and press the [OK] button.

+ Be sure to choose the same channel number as set on the master flash unit.

+ The “Commander function" enables the SB-900 to trigger remote flash units without firing itself. To activate the “Commander function," set the SB-900 as the master flash unit and set its flash mode to “Flash canceled."

+ This operation will normally not affect the correct exposure of the subject, although the exposure might be affected if the subject is close and a high ISO sensitivity has been set. To limit this effect as much as possible, bounce the light by tilting or rotating the SB-900' flash head

+ Refer to “Commander mode” in your camera user's manual when using à cameras built-in flash as a master flash unit to trigger the remote flash unit {SB-900) in the commander mode.

@BRrepeating flash shooting

In the Advanced Wireless Lighting, the repeating flash operation is possible + The Repeating flash mode can be activated or canceled using the custom setting. (EF C-22)

LCD display in the repeating flash mode

Repeating flash mode Flash output level

Number of Channel number

repeating flashes per frame

Flash firing of master flash unit and remote flash units (ON/OFF) in Group À (B, C) activated/canceled

+ In the repeating flash mode, the flash mode can be set to either the Repeating flash activated or Repeating flash canceled only.

+ In the repeating flash mode, all settings of flash output level, frequency and the number of repeating flashes per frame are common to both the master flash unit and remote flash units,

+ Referring to “’Repeating flash shooting”, set the flash output level, frequency, and the number of repeating flashes per frame. (EF D-17)

Flash modes and functions

Flash modes and functions

SU-4 type wireless multiple flash shooting

SU-4 type wireless multiple flash is particularly suitable for shooting fast moving subjects as both the master flash unit and remote flash units fire simultaneous|y.

+ SU-4 type wireless multiple flash can be performed in two ways: (1) In the AUTO (auto) mode, in which the wireless remote flash units start and stop firing in sync with the master flash unit, and (2) in the M (manual) mode, in which the wireless remote flash units only start firing in sync with the master flash unit

Suitable cameras and Speedlights

Suitable master Speedlight

Suitable remote Speedlights

+ Speedights compatible with Non- TTL auto, Distance-priority manual flash and manual flash and monitor pre-lashes that can be canceled in those modes

+ Cameras buit-in flash with monitor pre-lashes that can be canceled.

+ Speedlights compatible with SU-4 type wireless flash operation

+ Speedights connected to the optional Wireless Slave Flash Controller SU-4.

Setting the SB-900 to SU-4 type wireless multiple flash To perform SU-4 type wireless multiple flash, set the wireless flash mode to “SU-4" in the custom setting. (ë# C-22)

+ Use the Wireless setting switch to switch over the SB-900 to the master or remote flash unit.

+ Hold down the button on the center to turn the Wireless setting switch.

Setting the SB-900 as the master flash unit

Setting the SB-900 as the remote flash unit

+ Align the index on the Wireless setting switch with [MASTER]

+ Align the index on the Wireless setting switch with [REMOTE]

@ Master and remote flash units’ available flash modes in the SU-4 type wireless multiple flash operation

+ Non-TTL auto, Distance-priority manual flash and manual flash modes can be set.

+ Press the [MODE] button, then turn the selector dial to choose the desired flash mode.

+ When the SB-900 is set as the master flash unit, monitor pre-flashes will not fire:

+ AUTO (auto) and M (manual) modes are available + Press the [MODE] button, then turn the selector dial to choose AUTO or M mode.

+ In the A mode, the remote flash units start and stop firing in sync with the master flash unit

+ The maximum distance the SB-900' light sensor can detect is approximately 7 m(23 ft.) or less in the front position of the master unit.

+ In the M mode, the remote flash units only start firing in sync with the master flash unit

+ The maximum detectable distance of the SB-900' light sensor can detect is approx. 40 m (131 ft.) in the front position of the master unit.

+ The flash output level can be set from M1/1 to M1/128.

Flash modes and functions

Flash modes and functions

SU-4 type wireless multiple flash shooting

m Canceling monitor pre-flashes

In SU-4 type wireless multiple flash, cancel the monitor pre-flashes of the

master flash unit, since monitor pre-flashes cause incorrect exposure.

+ When the SB-900 is set as the master flash unit, monitor pre-flashes will not fire.

+ For other Speedlights, be sure to cancel the master flash units monitor pre-flashes. For how to cancel the master flash units monitor pre- flashes, refer to the user's manual of each Nikon Speedlight.

Procedures for SU-4 type wireless multiple flash shooting

Camera's control panel Pi OSet the camera's exposure mode

to A (Aperture-Priority Auto) or M (Manual). @ set up all Speedlights (both master and remote flash units) as Remote flash unit LCD panel the SU-4 type wireless multiple flash mode.

REMOTE À © Set the flash mode of the remote BE SO en l flash units to AUTO (auto) or * 4 M (manual). @Set the flash mode of the master

Master flash units LCD panel à flash unit.

+ Set it to Non-TTL auto, Distance-priority manual or Manual flash mode, when the remote flash units are set to AUTO (auto).

+ Set it to Manual flash mode, when the remote

E E flash units are set to M (manual)

@ Confirm the aperture, flash output level and flash shooting distance, then shoot.

MT prevent the remote flash units from firing accidentally

With the SU-4 type wireless multiple flash, note the following:

+ Do not leave the power of the remote flash units on. Otherwise, ambient electric noise due to a discharge of static electricity, or other electromagnetic wave, etc. may trigger them accidentally. Be sure to turn the power off.

Flash modes and functions

Flash modes and functions

SU-4 type wireless multiple flash shooting

Adjusting the flash output level of the remote flash units in the M (manual) mode

= Adjusting the flash output level manually

+ Use the following equation to determine the proper manual flash output level of the remote flash unit, depending on your creative preferences.

GN = F x D, where GN is the guide number of the remote flash unit (in meters/feet), F is the lens aperture in use, and D is the distance between the remote flash unit and the subject (in meters/feet).

For example, with the SB-900' zoom position adjusted to 18 mm, using an ISO sensitivity of 100, standard illumination pattern, in FX-format, shooting à subject at a distance of 2 m (6.6 ft.) with a lens aperture of f/5.6, then GN (in meters)= 5.6 x 2 = 11.2, or GN (in feet)= 5.6 x 6.6 = approx. 37. Therefore, to get the correct exposure, refer to the Guide Number table (##F-19) and adjust the flash output level to M1/4.

+ Refer to “Determining the aperture, flash output level and flash shooting distance in the Distance-priority manual and Manual flash mode” (55 D-22)

= Adjusting the flash output level in Non-TTL auto flash (A); applicable when using a Speedlight compatible with Non-TTL auto flash mounted on the SU-4 (optional)

+ Non-TTL auto flash (A) can also be selected on the remote flash unit. In this case, the remote flash unit controls the flash output based on the aperture and ISO sensitivity set on the remote flash unit, and automatically stops firing in sync with the master flash unit (85 D-8)

© Set the same ISO sensitivity on the remote flash unit as set on your camera:

© Set the same aperture on both the lens and the remote flash unit to obtain the correct exposure

+ Depending on your creative preferences, you can intentionally overexpose or underexpose the picture by modifying the aperture

+ The above setting is applicable only when both the master and remote flash units face the same direction.

+ Refer to “Flash shooting distance range” (E#F-16) for more details

Available functions to be set on the camera

The following functions are available when used with cameras so equipped. Set these functions on the camera. They cannot be set on the SB-900 directly. + For detailed information regarding camera functions and settings, refer to your camera users manual

H Auto FP High-Speed Sync mode High-Speed flash synchronization at a compatible camera's highest shutter speed is possible. + The Auto FP High-Speed Sync mode is automatically set when the shutter speed exceeds the camera‘ sync shutter speed + This is useful when you want to use a wider aperture to achieve shallow depth of field to blur the background without worrying about sync shutter speed + Auto FP High-Speed sync also operates in the Advanced Wireless Lighting mode. + Available flash modes are i-TTL, Auto Aperture flash with monitor pre-flashes, Non-TTL auto flash with monitor pre-flashes, Distance-priority manual flash, and Manual flash when using a single flash unit + For flash shooting distance range in the TTL auto flash mode and the guide numbers in the Auto FP High-Speed Sync mode, refer to "Specifications."

ΠFlash Value Lock (FV Lock) Using FV Lock, you can lock in the appropriate flash exposure, while keeping the subject illumination constant even if you change the composition. + The flash exposure (brightness) remains the same even when you change the aperture or zoom the lens in and out, because the flash output level automatically follows + Itis possible to take up to a several number of frames during FV Lock operation. + Available flash modes are i-TTL, Auto Aperture flash with monitor pre-flashes and Non-TTL auto flash with monitor pre-flashes. + FV stands for Flash Value, meaning flash illuminated subject exposure

Æ Slow-sync flash The flash is controlled at a slow shutter speed to obtain the correct exposure for both the main subject and background in low-light situations. + Since slow shutter speeds are normally used, use of a tripod is recommended to prevent camera shake + For more details on the example photos, see the separate booklet, “A collection of example photos” Pp. 12-15

Flash modes and functions

Flash modes and functions

Available functions to be set on the camera

M Red-eye reduction/Red-eye reduction with slow-sync flash To prevent your subjects eyes from appearing red in color pictures shot in dim light, the SB-900 fires three flashes at reduced output just before the picture is taken + In the Red-eye reduction with slow sync flash, red-eye reduction is combined with slow-sync flash + Since slow shutter speeds are normally used in red-eye reduction with slow-sync flash, use of a tripod is recommended to prevent camera shake

In normal flash photography, when shooting fast-moving subjects at slow shutter speeds, unnatural-looking pictures can occur, because the subject frozen by the flash appears behind or within the blurred movement (see photo below right) Rear-curtain flash sync creates a picture in which the blur of a moving subject (for example, the taillights of a car) appears behind the subject and not in front.

«In front-curtain sync, the flash fires immediately after the front curtain opens completely; in rear-curtain sync, the flash fires just before the rear curtain starts to close

+ Since slow shutter speeds are usually used, use a tripod to prevent camera shake

< This function does not operate in Repeating flash operation.

+ In multiple flash, the master flash unit can be set to either front-curtain or rear- curtain sync flash. However, the remote units cannot be set to rear-curtain sync flash. (5 D-39)

Front-curtain sync Rear-curtain sync

Flash shooting support functions

@ Power zoom function

The power zoom function automatically adjusts the zoom position to match the lens focal length + Zoom positions to be automatically adjusted differ depending on lillumination pattern. For more details, refer to “Specifications.” (&&F-17) + The available zoom positions to be automatically adjusted at standard illumination pattern intensity are between 17 mm and 200 mm in FX format, and 12 mm and 200 mm in DX format, without steps.

A Power zoom function activated

EH Setting the zoom position manually When you want to change the zoom position to one that does not match the focal length, you should adjust the zoom position manual} + A small “h4” above the "ZOOM" indication appears on the LCD panel while manually setting the zoom position.

+ Press the [ZOOM] button, then turn the selector dial to set the zoom position. + Turn the selector dial clockwise to increase the value, and counter-clockwise to decrease the value + You can also adjust the zoom position by pressing the [ZOOM] button. In this case, the value increases every time you press the [ZOOMI] button. Note that the zoom position changes to the widest position next to the most telephoto position. H Canceling the power zoom function The power zoom function can be canceled in the custom setting. (5 C-23) When the power zoom function is canceled + The zoom-head can be manually adjusted, but the zoom position indicator does not change even if the lens is zoomed, a lens is changed, or the power turned on or off. + An “fJ'appears on the LCD panel + See "Setting the zoom position manually" above for setting the zoom position

Flash modes and functions

Flash modes and functions

Flash shooting support functions

BAF-Assist Illuminator

When the light is too dim for normal autofocus operation, the SB-900' AF-Assist illuminator enables you to perform autofocus photography. + The SB-900' AF-Assist IIluminator supports the dynamic-area AF system + You can set the SB-900's AF-Assist Iluminator to activate or cancel in the custom setting mode. (5 C-23) + The AF-Assist Illuminator cannot be used with cameras not compatible with CLS and COOLPIX cameras.

Æ Notes on using the AF-Assist Illuminator

+ The AF-Assist Illuminator is available, if an AF lens is mounted and the camera's focus mode is set to S (Single Servo AF with focus priority), AF-A, or AF.

+ The effective shooting distance with the AF-Assist Illuminator is approx. 1 m to 10 m (3.3 to 33 ft.) from the center of the image with à 50mm f/1.8 lens. The shooting distance varies depending on the lens in use

+ With a D3 camera, for example:

Suitable lens focal length is between 17 mm and 135 mm. Focus areas for each focal length, in which autofocusing is available, are as follows:

17 mm = 19 mm 20 mm - 105 mm 106 mm - 135 mm

+ The AF-Assist illuminator will not light up, if the cameras autofocus is locked or the SB-900% ready-light does not come on: + Refer to your camera users manual for more information

M AF-assist illuminator/flash firing off You can set the SB-900's AF-Assist Illuminator and flash firing to activate or cancel in the custom setting. (F5 C-23)

AF-Assist Illuminator is activated. (Default)

= M AF-Assist lluminator is canceled. No “AF" appears.

The SB-900' actual flash firing is canceled. The AF-Assist IIluminator only comes on

TZ 1f autofocus is impossible while using the AF-Assist illuminator, focus manually.

If the focus indicator does not appear in the camera's viewfinder even though

the AF-Assist illuminator turns on, focus manually.

Using the SB-900 off-camera

When using the SB-900 off-camera with the TTL Remote Cord SC-29, autofocus flash photography in dim light is possible, because the SC-29 features an AF-Assist iluminator function. (8 F-11)

For cameras having a built-in Speedlight + Even when the camera's AF-assist illuminator is set to activate, the SB-900' AF-Assist illuminator is given priority and the camera's AF-Assist illuminator does not light up + The camera‘ AF-assist illuminator lights up only when the SB-900' AF-Assist illuminator is canceled.

Flash modes and functions

Flash modes and functions

Flash shooting support functions

setting the ISO sensitivity

The ISO sensitivity is automatically set based on the information transmitted from the camera to the Speedlight.

HΠSetting the ISO sensitivity manually You can set the ISO sensitivity manually using the custom setting. (85 C-24)

+ The available ISO sensitivity range is ISO 3 to 8000. Note that the ISO sensitivity set on the camera is given priority.

Brest firing function

You can determine whether the subject will receive the correct exposure by test firing the SB-900 before actually taking the picture by pressing the [Test firing] button + The SB-900 fires at M1/128 flash output in the i-TTL flash mode. The amount of flash output can be modified in the custom setting. (5 C-23) + In Auto Aperture/Non-TTL auto flash operations, the SB-900 fires at a flash output controlled by the aperture set. + In the Manual mode, the SB-900 fires at the flash output value set. + In wireless multiple flash photography, the SB-900 does not perform test firing if itis set as a master flash unit. M Setting the test firing

Set to activate the test firing in the custom setting. (8 C-22) + When the test firing is activated, the test firing icon appears on the LCD panel

@ Modeling illuminator function

Press the [Test firing] button and the flash fires repeatedly at a reduced flash output level. This is useful for checking the illumination and the shadows cast on the subject before actually taking the picture

+ The flash fires as a Modeling illuminator for a maximum of approx. 1.5 seconds.

+ This function operates only after the ready-light comes on

E Setting the modeling illuminator using the [Test firing] button Set to activate the Modeling illuminator in the custom setting. (8 C-22) + When the Modeling illuminator is activated, the modeling illuminator icon appears on the LCD panel.

H Modeling illumination using camera's depth-of-preview button When the depth-of-preview button on a camera compatible with the modeling illumination is pressed, the Modeling illuminator fires. For details, see your camera user's manual + This function can be performed without activating the SB-900's Modeling illuminator in the custom setting,

H Modeling illuminator in the Advanced Wireless Lighting (15 D-43) When the [Test firing] button on the master flash unit is pressed, the Modeling illuminator of the highlighted master unit or the remote flash unit group fires at the set flash output value

+ Ifthe master flash unit and grouped remote flash units are not highlighted, the Modeling illuminator on the master flash unit only fires (except when the master flash unit's flash firing is set to cancel.)

+ When the camera‘ depth-of-preview button is pressed, the Modeling illuminators of the master and all other remote flash units fire at the set flash output value at the selected mode.

H Modeling illuminator in SU-4 type wireless multiple flash operation (15 D-50) Only the Modeling illuminator on the master flash unit fires.

+ SU-4 remote flash units also fire according to the modeling illumination of the

master flash unit, but these are not Modeling illuminators.

2 Do not release the shutter while the Modeling illuminator is firing If you release the shutter while the master flash unit's Modeling illuminator is firing, correct exposure cannot be obtained.

Flash modes and functions

Flash modes and functions

Flash shooting support functions

When mounted on à camera that can select an image area between FX-format (36 x 24) and DX-format (24 x 16), the SB-900 automatically selects the suitable light distribution angle, in accordance with the cameras image area setting. For details, see your camera users manual

ΠAutomatic switching between FX-/DX-format Based on information from the camera, the light distribution angle is automatically switched according to the FX-format (36 x 24) and DX-format (24 x 16).

+ Icon on the LCD panel shows the status of the format set.

BGY/CX indication with power zoom on

LCD icon varies according to the camera in use . icon appears: D3, D700 + ŒX icon appears: D300, D60, D4O series + Neither BEA nor ŒEX icons appear: Cameras not equipped with image area selection

ΠManual switching of light distribution angle When manual zoom position setting is activated, the light distribution angle can be switched manually in the custom setting. (& C-23) + Icon on the LCD panel shows the format set. ERA : X-formet

mr M: Power zoom function is canceled in the custom setting

E BAM : Power zoom function is canceled in the custom setting

For use with cameras other than CLS compatible SLR cameras

Refer to this chapter when using the SB-900 with cameras other than CLS-compatible SLR cameras.

+_ Using the SB-900 with non-CLS-compatible

SLR cameras E2 + For use with i-TTL-compatible

For use with cameras other than CLS-compatible SLR cameras

For use with cameras other than CLS-compatible SLR cameras

Using the SB-900 with non-CLS-compatible SLR cameras

Using the SB-900 with non-CLs-compatible SLR cameras is possible with the exception of some functions. + The SB-9005 available functions vary depending on cameras in use + See your camera users manual as well

@ifferences between CLS-compatible cameras and

those not compatible with CLS CLS-compatible cameras

Non-CLS-compatible cameras

+ Advanced Wireless Lighting

multiple flash ! + SU: type shooting SU-4 type Possible Fiash shooting using | possible (Filter information not color fiers transferred) FV Lock flash Possible Not possible Auto FP High-Speed | ne Not possible sync Rear-curtain SYNC | possible Depends on the camera in use

AF-Assist illuminator

Possible {with compatible cameras only)

For usage with i-TTL-compatible COOLPIX cameras

Using the 58-900 with -TTL compatible COOLPIX cameras is possible, with the exception of some functions.

+ The $B-9005 available functions vary depending on cameras in use

+ See your camera users manual together.

@ For use with i-TTL compatible COOLPIX cameras:

i-TTL compatible COOLPIX cameras

Fimware update Not possible

*1 Note that wireless multiple flash using the COOLPIXS built-in flash as à master flash unit

and the $B-900 as a remote flash unit cannot be performed.

Adjusting the zoom position when used with i-TTL compatible

+ The power zoom function automatically adjusts the zoom position to match the lens focal length. In this case, za AUT O appears on the LCD panel, but the

zoom position does not appear on the LCD panel

For use with cameras other than CLS-compatible SLR cameras

Tips on Speedlight care and reference information

Optional accessories, troubleshooting, Speedlight care,

specifications, etc. are presented here.

Troubleshooting Notes on continuous flash shooting Thermal Cut-out

Tips on Speedlight care

Optional accessories

Tips on Speedlight care and reference information

Tips on Speediight care and reference information

If a warning indicator appears, use the following chart to determine the cause of the problem before you take your Speedlight to a retailer or Nikon representative for repair.

BProblems with the SB-900

Problem Cause Solution Les page The batteries are not Te omer mette [onecy naiss Insert the batteries correct. | es C-4 med on Battery power is weak. Replace the batteries. Er C-27 The ready-ight does not [The standby function 5 actvated. | Turn on the power. Kc2s light up. Battery power is weak. Replace the batteries. Er C-27 A strange sound can be heard caused by the flash head zooming back | Battery power is weak. Replace the batteries ur C27 and forth even when the S8-900 is turned on. The flash headis notsetiote [Setinelæshheadtoie [ex cé horizontalfront position horizontalfront position Aperture information has not |, Confim tn ñ The flash shooting been received from the camera. |". Confirm the camera setting + Mount the 58-900 to a _ distance range does not |ISO sensitviy information has not |” Mount appear. been received from the camera The 58-200 cannot receive the | nu of 1e 000 and came, focal length information from | TU " _ palengee and turn on them again + Remore the wide- flash adapter or the The buil-in wide-flash adapter |, Diffusion Dome 15°D-29 + Setthe following custom is in use or the Nikon Diffusion sD-31 Zoom position does not |pur use 0 the MA setting to manual setting Set automaticalh. “Zoom position setting the | 227 C-25 buit-in wide-lash adapter is broken off accidentaly." Power z00m function Activate the auto power 07 is canceled 200m function: The 58-900 does not work even when any [Control buttons are locked. |Cancel key lock co button is pressed Canceling flash finng u 3 is actvated in the custom | Cancel “Canceling fish fing” |us-c23 Sins in custom setting Master and remote flash units The $8-900 does not Place the master and remote | s2> 0-44 ire canot ans in command fé uns a an appropriate y are distance from each other. rs Dest 00 near. The SB-9006 temperature (WaunilinesES00cos liste

“Filter detection failure" indicator appears.

Warning indicator Cause Solution Re page Ceri All operations have stopped “Battery Power Weak ue Do battery pour. Replace the batteries. ur C-27 indicator appears. Warning beeps sound and warning icon appears when the cameras shutter release | The 589005 temperature Wait until the SB-900 cook button is pressed. es and the SB-900 may be doun natural. cooks |xr6 Â lmaged À All operations have stopped because the SB-9005 temperature has risen ne 0 os |isp6 Thermal Cut-out” indicator | and'the $8-900 may be appears damaged. All functions other than the | Turn off the power, remove power switch are inoperable | the batteries, and contact . Safety circuit activation” |because of power your retaller or Nikon abnormalities representative indicator appears. 5D4 ; Underexposure may have Use a wider aperture or |r3:D-7 The ready-ight blinks occurred even with the flash | move closer to the subject | 15 D-10 after firing, firing at maximum output. | and reshoot. 15 D-13 ns D-42 Use a wider aperture, Warning beeps sound for | Underexposure may have | move closer to the subject approx. three seconds in the | occurred even with the flash | or change the position 1-42 remote flash unit firing at maximum output. | of the remote flash unit and reshoot. ET The attached color fiter has | Confirm whether the color | 30.34

filter is correctly attached

The lens aperture 5 beyond flash distance range

FEE The lens aperture is not set at minimum

Set the aperture 20 minimum:

F The camera is turned off.

@r the built-in wide-flash adapter is broken off accidentally

+ The wide-flash adapter may break if subjected to a strong shock while on the flash head

+ In this case, contact your retailer or Nikon representative

+ When the wide-flash adapter is broken off, it is no longer possible to set the zoom position to the desired position. To adjust the zoom position, go to the custom setting “Zoom position setting if the built-in wide-flash adapter is broken off accidentally" (#5 C-25)

BMicrocomputer characteristics

The $B-900 incorporates à microcomputer to control flash operations. In rare cases, the 58-900 may not work properlÿ even after fresh batteries are properly installed If this happens, replace the batteries while the SB-900 is turned on.

Notes on continuous flash shooting

To prevent the SB-900 from overheating, allow the SB-900 to cool down for at least 10 minutes after the maximum number of continuous firings have been performed

as shown in the table below.

+ Setting the “Thermal Cut-out" function is recommended. (5 F-6)

WARNING Do not exceed the maximum number of continuous firings, as this may cause the SB-900 to overheat or degrade.

Maximum number of continuous firings

Max. number of continuous

EDR firings (at 6 frames/sec.) ei-TIL + Non-TTL auto 15 or less + Manual flash mode (flash output level: M1/1, M1/2) + Manual flash mode (flash output level: M1/4 to M1/128) | 40 or less

[Z Notes for battery temperature

While operating continuous flash shooting, batteries may also generate heat. When replacing batteries after continuous flash shooting, note not to get burned.

The S8-900 features thermal cut-out, which offers protection against raised operating temperature. + This feature is controlled from the Custom Settings menu. (8 C-24) + The selected setting is shown by an icon.

+ The temperature of the SB-900 is shown in three stages.

+ Ifthe temperature of the unit rises as a result of the flash being fired multiple times in quick succession, a warning will be displayed and the SB-900 will enter protective shutdown mode.

ΠTemperature warning indicators

Low em High + Wait until the SB-900 cools down. + Operation can be resumed once the warning is no longer displayed.

Thermal Cut-out: Off

+ The temperature of the SB-900 is shown in three stages.

+ Ifthe temperature of the unit rises as a result of the flash being fired multiple times in quick succession, a warning icon will be displayed. If sound is turned on, a warning beep will sound each time the camera shutter- release button is pressed

ΠTemperature warning indicators

EI EI Low Es di + Stop firing and wait until the SB-900 cools down + Operation can be resumed once the warning is no longer displayed.

Tips on Speedlight care

AN WARNING (A Never use thinner, benzene, or other active agents when cleaning the Speedlight,

as this may damage the Speedlight or cause it to catch

on fire. Using these agents may also impair your health.

+ Use à blower brush to remove dirt and dust from the SB-900 and clean it with à soft, clean cloth. After using the SB-900 near saltwater, wipe the flash unit with à soft, clean cloth moistened slightly with plain water to remove the salt, then dry it using à dry cloth

+ On rare occasions, the LCD may turn on or go dark, due to static electricity. This is not à malfunction. The display will soon return to normal

+ Do not drop the SB-900 or hit it against a hard surface, as this may damage its precision mechanisms. Do not apply strong pressure to the LCD panel

+ Store the SB-900 in a cool, dry place to prevent malfunctions due to high humidity, as well as the growth of mold or mildewr.

+ Keep the SB-900 away from chemicals such as camphor or naphthalene. Avoid exposing the SB-900 to magnetic waves from TV or radios

+ Do not use or leave the $B-900 in locations subject to high temperatures such as those encountered near a heater or stove, as this may cause damage.

+ When not using the $B-900 for more than two weeks, be sure to remove the batteries to prevent malfunctions due to battery leakage.

+ Take the SB-900 out once a month, insert the batteries, and fire the unit several times to reform the capacitor.

@ Operating location

+ An extreme temperature change can cause condensation to form inside the SB-900. When subjecting the $B-900 to sudden and extreme temperature changes, place it inside an airtight container such as plastic bag. Leave it inside the container for a while before exposing it gradually to the outside temperature

+ Avoid exposing the $B-900 to strong magnetism or radio waves from Ts or high-voltage power transmission towers, as this may cause it to malfunction

BSsuitable batteries

Use four AA-type batteries of any of the following types:

+ Alkaline-manganese (1.5V) batteries + Lithium (1.5V) batteries + OxyrideT" (1.5V) batteries + Ni-MH (1.2V) batteries

+ High-power manganese batteries are not recommended

+ Depending on battery specifications, when batteries become hot, the SB-900's safety circuits are activated, cutting off power. This often occurs when the flash unit is operated in the repeating flash mode. Battery power will recover when the temperature returns to normal

+ Be sure to read the users manuals for your rechargeable batteries and battery charger for detailed information on how to handle and recharge the batteries.

+ Never attempt to charge batteries that are not rechargeable batteries, as they could explode

Biotes on handling batteries

+ Because flash consumes a large amount of battery power, batteries may not operate properly before reaching the end of their stated lifespan or the number of charges/discharges as specified by the battery manufacturer.

+ When replacing batteries, replace all four batteries at the same time. Do not mix battery types or brands or use old with new batteries.

+ When installing batteries, turn off the power of the Speedlight and never reverse the polarity of the batteries.

+ Ifthe battery terminals become soiled, remove dirt and smudges before use, as this may cause malfunction

+ Battery power tends to weaken as the temperature drops. It also gradually decreases when batteries are not used for à long time and recovers after à short break following intensive use. Be sure to check battery power and replace the batteries with fresh ones if you notice any delays in the recycling time.

+ Do not store batteries in locations subject to high temperatures and high humidity.

| To protect the environment, do not dispose Les Recyclingrechargeable | of used rechargeable batteries yourself. batteries Instead, take these batteries to your nearest

NH \ recycling center.

@ Characteristics of the LCD panel

+ Due to the directional characteristics of LCDs, the LCD panel is difficult to read when viewed from above. However, it can be seen clearly from a somewhat lower angle.

+ The LCD panel becomes darker at high temperatures (approx. 60°C/140°F), but returns to normal at normal temperatures (20°C/68°F).

+ The LCD response time slows down at low temperatures (approx. 5°C/41°F and below), but returns to normal at normal temperatures (20°C/68°F).

®LCD panel illuminator ON/OFF Press any button on the SB-900 to turn the illuminator on (when the $B-900 power is on) and make the LCD panel easier to read. + The illuminator goes off if the SB-900 is not operated for 16 seconds:

+ To cancel the LCD panel illumination, go to the custom setting (## C-24) and turn it off

+ Even if the LCD panel illuminator is set to OFF, the SB-900's LCD panel iluminator turns on when the cameras control panel illuminator is turned on The LCD panel iluminator also lights up when the custom setting is displayed.

BaAdjusting the LCD panel's contrast

The contrast of the LCD panel can be adjusted in the custom setting (HF C-25). + There are nine contrast levels.

Tips on Speediight care and reference information

The latest Nikon firmware can be downloaded from Nikon's website. Firmware is updated through the camera + For users in the U.S.A.

http:/www.nikonusa.com/

+ For users in Europe http:/www.europe-nikon.com/support

+ For users in Asia, Oceania, the Middle East, and Africa http/www.nikon-asia.com/

+ Additional information may be available from the Nikon representative in your area. See the URL below for contact information: http//nikonimaging.com/

Cameras compatible with SB-900 firmware update

#1 D3 camera with either firmware A or firmware B version 2.00 or later.

+ See the custom setting section to determine which version of firmware you are using (EF C-25).

+ If your camera is not compatible with firmware updates, please contact à Nikon representative in your area

Tips on Speediight care and reference information

Optional accessories

HE Speedlight Stand AS-21 Same as that provided with this SB-900

M Color Filter Set SJ-3

A total of 20 filters in 8 models are provided.

FL-G1 (for fluorescent lighting) FL-G2 (for fluorescent lighting) TN-A1 (for incandescent lighting) TN-A2 (for incandescent lighting)

BLUE YELLOW RED AMBER Color filters are consumable items and subject to a gradual deterioration in color due to the heat generated when the flash fires. Therefore, it is recommended to check and replace these filters when necessary.

H Water Guard WG-AS1, WG-AS2, WG-AS3

Useful to protect the camera's hot shoe

contact when S8-900 is mounted on à Nikon

H Wireless Slave Flash Controller SU-4 Useful for wireless multiple flash photography, the SU-4 features a built-in, movable light sensor and an accessory shoe for attachment of a remote flash unit. The SU-4' light sensor triggers the remote unit to fire in sync with the master unit

M TTL Remote Cord SC-28/17 (approx. 1.5m/4.9 ft)

The SC-28/17 provides i-TTL auto flash

operation when the SB-900 is used

off-camera. Flash shoes come with one

tripod socket and two TTL multiple

M TTL Remote Cord SC-29 (approx. 1.5m/4.9 ft) The SC-29 provides i-TTL auto flash operation when the SB-900 is used off-camera. The SC-29 features an AF-assist illuminator function. (The SC-29 is not equipped with a TTL multiple flash terminal.)

Optional accessories

BExternal power source

Use of an optional external power source provides a stable power supply, increases the number of flash firings and shortens recycling time.

Nikon DC Nikon High-Performance Nikon High-Performance Power Bracket Unit Unit SD-7 Battery Pack SD-BA Battery Pack SD-9 sk-6

+ Use of other external power source brands may cause accidents, or could damage the SB-900' components. Nikon cannot guarantee the SB-900 performance when used with non-Nikon products.

Connecting to an external power source

To use an external power source, remove the cover and connect its power cord to the SB-900' external power source terminal. + Do not use the power cord SC-16 when connecting the SB-900 to the Nikon DC Unit SD-7; use the SC-16A instead

External power source

recycling time (approx.)"

Min. number of flashes"1/ recycling time”

C-type Alkaline-manganese x 6 2.0 sec 320/2.0 - 30 sec Nikon Dc type N-MH (Nickel Metal Hydride) x 6° | 1.5 sec. 280/1.5 — 30 sec. C:ype N-MH (Nickel Metal Hyde) x 6* | 1.5 sec 260/1.5 - 30 sec AA-type Akalne-manganese x 20 sec 300/2.0 - 30 sec Nikon High-_ [AA-type Lithium x6 225ec 550722 — 120 sec Eten Pa AActype Oxpride® x 6 1.8 sec. 320/1.8 — 30 sec. SD-8A AActype N-MH (2600 mAh) x 6 1.5 sec 260/1.5 - 30 sec. AAttype NEMH (eneloop) x 6 55e 250/.5 - 30 sec. AAtiype AKaline-manganese x 4 T85ec 280/1.8 - 30 sec. Actype Lithium x 4 245ec 50024 — 120 sec AAttype Oxride” x 4 rase 280/1.4 - 30 sec. Nikon High- Performance [AA-ype N-MH (eneloop) x4 Tisec 350/1.1 - 30 sec pate Pack AA-type Alkaline-manganese x 8 1.1 sec. 450/1.1 — 30 sec. AActype Lithium x 8 rase 840/1.4 — 120 sec. AAttype Oxride” x 8 10 5ec 440/.0 - 30 sec. AAttype N-MH (eneloop) x & 05e 520/1.0 - 30 sec AAttype Akalne-manganese x 4 225ec 190/2.2 - 30 sec. AActype Lithium x 4 325ec 420/3.2 - 120 sec. ponerératket [an type Oxpride” x 4 2.0 sec. 240/2.0 30 sec. AAttype NEMH (2600 mAh) x 4 19e 240.9 - 30 sec. AAttype NEMH (eneloop) x 4 19e 230.9 - 30 sec.

*1: When fiing the Speedight at full output once every 30 seconds (120 seconds with lithium batteries). +2: Use AA-type alkaline-manganese batteries with SB-900 *3: Use AA-type Ni-MH (2600 mAh) batteries with SB-900 *4: Use AA-type Ni-MH (eneloop) batteries with SB-900

*5: Use the same type batteries with both $8-900 and external power source.

+ With fresh batteries. Performance may vary depending on battery freshness or battery specifications. + With modeling illumination using the SD-8A or SK-6, the SD-8A or SK-6 may not work for flash output operation. In this case, the power is provided only by the batteries in the SB-900. This is not a malfunction.

Tips on Speedlight care and reference information

Tips on Speedlight care and reference information

Electronic construction

Automatic Insulated Gate Bipolar Transistor (IGBT) and series circuitry

Guide number (at 35 mm zoom position, in FX-format, standard ilumination pattern, 20°C/68°F)

34/111.5 (ISO 100, m/f), 48/157.5 (ISO 200, myft)

0.6 m to 20 m (2 to 66 ft.) (varies depending on camera's image area setting, illumination pattern, ISO sensitivity, zoom position, and lens aperture in use)

Illumination pattern

There are three types of Ilumination pattern: standard, even and centerweighted

The light distribution angle is automatically adjusted to the cameras image area in both FX and DX formats

Available flash mode

Other available functions

Test fiing, monitor pre-flashes, AF-assist iluminator, and Modeling illuminator

Nikon Creative Lighting System

A variety of flash operations are available with compatible cameras: i-TTL mode, Advanced Wireless Lighting, FV Lock flash, Flash color information communication, Auto FP High- Speed sync, and Wide-area AF-Assist Iluminator

Muttple flash operation

+ Advanced Wireless Lighting + SU-4 type wireless multiple flash

Flash exposure control set on the camera

Camera sync. modes: Slow-sync, Red-eye reduction in slow- sync, Front-curtain sync, Rear-curtain sync, Rear-curtail slow- sync

Shooting functions: Auto FP High-Speed sync, FV Lock flash

Flash head tits down to -7° or up to 90° with click-stops at 7°, 0°, 45°, 60°, 75°, 90°

Power ON/OFF Rotate the Power ON-OFF switch to turn the SB-900 on or off Standby function can be set

Use four AA-type batteries of any of the following types: + Akaline-manganese (1.5V) batteries

+ Oxyride"* (1.5V) batteries

For minimum number of flashes and recycling time of each battery, see F-21

The S8-900 is fully recycled: Rear ready-light lights up and the front light blinks

Insufficient light for correct exposure (in i-TTIL, Auto Aperture flash, Non-TTL Auto flash, or Distance-priority manual flash operations) both rear and front (in remote setting) ready-lights blink.

Flash duration (approx)

1/880 sec. at M1/1 (full) output 1/1100 sec. at M1/2 output 12550 sec. at M1/4 output 1/5000 sec. at M1/8 output 110,000 sec. at M1/16 output 120,000 sec. at M1/32 output 1/35,700 sec. at M1/64 output 1/38,500 sec. at M1/128 output

Mounting foot lock lever

Provides secure attachment of SB-900 to camera's accessory shoe using locking plate and mount pin to prevent accidental detachment.

Flash output level compensation

-3.0 to +3.0 EV in increments of 1/3 steps in the i-TTL auto flash, Auto Aperture flash, Non-TTL auto flash and Distance-priority manual flash

ISO sensitivity setting, Recalling the underexposure value in the TTL auto flash mode, Resetting the settings, Key lock, Thermal Cut-out, firmware update

Dimensions (W x H x D)

Approx 78.0 x 146.0 x 118.5 mm (3.0 x 5.7x47in)

Weight (ndthout batteries)

Approx. 415 g (14.6 02.)

Accessories supplied

Speedlight Stand AS-21, Nikon Diffusion Dome SW-13H, Color Filter Set 51-900, Color Filter Holder SZ-2, Soft Case $$-900

These performance specifications are applicable when fresh batteries are used at normal

temperatures (20 °C/68 °F)

respective companies,

Specifications and design are subject to change without notice. Oxyride battery is a registered trademark of Matsushita Electric Industrial Co, Ltd. Other products and brand names are trademarks or registered trademarks of their

Tips on Speedlight care and reference information

Tips on Speedlight care and reference information

e Flash shooting distance range (for i-TTL auto flash, Auto Aperture flash and Non-TTL auto flash mode)

The flash shooting distance range of the SB-900 is between 0.6 m and 20 m (2.0 ft. and 65.6 ft). The flash shooting distance range differs depending on the cameras image area, illumination pattern, ISO sensitivity, zoom position and flash output level + The following table is for FX-format and standard illumination pattern + The flash shooting distance range for each setting can be seen in the LCD display (E&C-11)

Min FX-format, standard illumination pattern

+ BA: With the Nikon Diffusion Dome attached + WP: With the wide-flash adapter in place F-16

Angle of coverage (in FX-format)

Angle of coverage (in DX-format)

Angle of coverage () Angle of coverage () Zoom position set Zoom position set Vertical Horizontal Vertical Horizontal 2 (BA/WP)* 120 130 8 (BA/WP)* 120 130 14 (BAAWP)*2 110 120 10 (BAAWP)*2 110 120 17 (BAAWP)*3 100 110 11 (BAAWP)*3 100 110 LE ASS 77 6 12*4 74 93 18*4 74 93 144 66 85 20** 69 87 16 60 78 24 60 78 17 57 75 28 53 70 18 55 72 35 45 60 20 50 67 50 34 46 24 44 58 70 26 36 28 39 52 85 23 31 35 32 44 105 20 27 50 25 34 120 18 25 70 20 27 135 17 24 85 17 24 180*$ 15 21 105*$ 16 22 200*$ 14 20 120*S 15 21 BA: With the Nikon Diffusion Dome attached | 135"? 14 20 WP:With the wide-flash adapter in place 1805 13 19 *1_ In centerweighted illumination pattern 200% 13 18

*2 In standard illumination pattern

*3 In even illumination pattern

*& In standard or centerweighted ilumination pattern

*5 In standard or even illumination pattern

BA: With the Nikon Diffusion Dome attached

WP:With the wide-flash adapter in place

+1. In centerweighted illumination pattern

*2 In standard illumination pattern

*3 In even illumination pattern

*& In standard or centerweighted illumination pattern

*5 In standard or even illumination pattern

Tips on Speedlight care and reference information

Tips on Speedlight care and reference information

@ Guide number table

The $8-900 quide numbers differ depending on the cameras image area, illumination pattern, ISO sensitivity, zoom position and flash output level

ISO 100-m Format Dformat 200m potion (nm) nd | Gmerwek endard [Center | amsn | en [een] son | rpg [ee ninien 8 BA+WP) = = = = El = SEA = = = = 16 = EU] = = = = 7 = 10 GARWP) = = = IE = = 10 EA) = = = 16 = = 0 WP) = = = 17 = = TT GARWP) = = = = = E TEA = = = = = 16 TT) = = = = = 7 12 GARWP) = E = = = = 12 @A = 16 = = = = 12 WP) = 17 = = = = El = = = 3 26 = 14 GARWP) IE = = = = = 14 BA) 16 = = = = = Ta WP) 17 = = = = = va = = = 25 25 = 16 = = = 27 El 2 17 GARWP) = = E = = = 17 EA = = 16 = = = 17 WP) = = 7 = = = 7 7 3 = 2 El 3 E 23 26 = 30 EI 24 20 za 77 = El 36 25 24 27 En z ET 40 El 28 30 36 24 35 23 E 35 ET 20 EU 40 a7 37 50 20 25 36 45 51 33 70 a 505 a 295 5 ET] EH 47 5 a 51 58 505 105 495 ŒE a 525 = 51 120 si 56 50 54 = 515 135 515 58 505 56 = 525 180 54 = 515 565 = 5 200 56 = 5 57 = 54

+ BA: With the Nikon Diffusion Dome attached + WP: With the wide-flash adapter in place

Guide number table (in FX-format)

HE Standardillumination pattern, at ISO 100; m/ft

flash ouput | TOmm let De galwel 2114116) 17/18 20 | 24 | 28 | 35 | 50 | 70 | 85 |105|120/135 | 180 |200 +A PT DEA RCA RU EE CA EU EX EU EU A ELA KA KA 2 EVA EE I EU EI EU a21|s25/s5e [25220 /886 95.1 [sa hror.rrrns] 18 rat 2hrsoahréz.afrér.al172.2/e.a 84.2 frasal 1e7 PU EVA LE REA LE LU M PE 1 PE A EX 2 EP EE EPA EAU 1 EN EI EE 299 | 27 [s0s/s|srr|eafer2[ee[rro|7e7|222[92s lioséhralafiai 7/574 ss fraoofr222| PP LCA REA EC LE DZ LEE] VE BEA EE ELA RCA EUR ESA 2 22 PP EX LP PP PE] 213/262/2r|s7|atolasfare|ao2|sos|sselseolese/755/a1o|s7[aso|aor|a20/s2s [ss me etat ferfss store 2 ferpauteauel fente] # |ieafou nsfiesarfrés/2no/s12[sas[2aeasa|202 air a6a|sa1[s74/so0|6o7 [2.5 [295 [65 [650 PPS EPA RU EPA EU EPA EUX LE HA WA EE DES EC LUE D V2 DES A PA DE EE os fran fizafrar/202/219/226[26[252 270205 |228[217[aoalarrfazof202[2v0|462 lacs EP EE ER ELA EC EU EVA EE EC REA CEA OA EUI EVA REA EPA EI EE ER EU 182 92 [02/08 [ranfraalisaliérfiralirrfisrfzorf220/266/285[205[a02[ 41 [ae 225 [228 PV LCA DE PA PE EX EE EC EI A EE FA FA EX EU CEA CEA EU EE RAA 52/66/69 [92/1o2/osfmelizrfisfiamlrasfiéalier|200f7f213f102[105/220 [232 DA CA LCA DA E22 PE PE EE EU DER EUI EE KA LEA EE ET EAU EPA LCA ET 1928 | 26 [as [a [6672 [25 [82/2 [as] os fiozfirsfizafaifrasfisa] 60 | 72 [er [164

+ BA: With the Nikon Diffusion Dome attached + WP: With the wide-flash adapter in place

Tips on Speedlight care and reference information

Tips on Speedlight care and reference information

Guide number table (with Auto FP High-Speed Sync)

ΠStandard illumination pattern, at ISO 100; m/ft (in FX-format)

ΠStandard illumination pattern, at ISO 100; m/ft (in DX-format)

+ Guide numbers in tables above are for when the $B-900 is mounted to the D3 camera and with 1/500 sec. shutter speed

+ Guide number with Auto FP High-Speed Sync varies depending on the cameras shutter speed. For example, when the shutter speed is changed from 1/500 sec. to 1/1000 sec. the guide number decreases 1 EV. The faster the shutter speed, the smaller the guide number.

+ BA: With the Nikon Diffusion Dome attached

+ WP: With the wide-flash adapter in place

Min. number of flashes/recycling time of each battery

Min. recycling time (approx.)*

Min. number of flashes*/ recycling time*

Akaline-manganese (1.5V)

* When fing the Speediight at full output once every 30 seconds (120 seconds with lithium batteries) + While AF-assit iluminator, power zoom and LCD panel illumination re off. + With fresh batteries. Performance may vary depending on battery freshness or battery

Tips on Speedlight care and reference information

Tips on Speedlight care and reference information

+ Refer to the “Speedlight parts” (8 C-2) and “LCD panel” (#& C-10) for each

part name and display indications.

i-TTL Automatic Balanced Fil-Flash D2 i-TTL-compatible COOLPIX cameras … B-2, E-3 i-TTL mode D2 Accessories F1 A collection of example photos …… Separate AF-Assist illuminator 8-3, D-58 AF-ILL ONLY. D-59 Aperture. D-23 Aperture value c-13 Auto aperture flash. DS AUTO (auto) mode. D-51 Auto FP High-Speed Sync: D-55 Batteries C-4, C-27,F8 Bounce-down flash D-30 Bounce flash operation D-26 Built-in bounce card D-28 Built-in wide-flash adapter D-31 Canceling monitor pre-flashes. D-52 Cancel receiving light from

other flash units. c-18 Center-weighted illumination pattern …D-24 Channel D-46 Close-up photography D-30 cis. A3 CLS-compatible SLR cameras. 82 Color filters D-33

Color filter holder D-34 Color filter set FA Commander function. D-48 Continuous firing F5 Control buttons c8 COOLPIX cameras 8-2,E3 CPU Nikkor lenses A3 Custom functions and settings c-20 Default settings. A3 Distance information: cit Distance priority manual flash D-11 DX-format C-23, D-62 Even illumination pattern D-24 Exposure compensation D-38 External power source F-12 Filter detector c2 Flash color information communication. B-3 Flash firing off. C-23,D-59 Flash head C-6,D-26 Flash head tilting/rotating lock

release button C-6,D-26 Flash mode D Flash mode icons c-10 Flash shooting distance range cit Flash shooting in Advanced

Wireless Lighting D-43 Flash output level D-18, D-23 Flash output level compensation … C-13, D-37

Flash output level compensation value … D-37 Fluorescent filters D33 Front-curtain sync D-56 Function button c-17 FUDX selection C-23, D-62 EX-format C-23, D-62 FV Lock D-55 Group D-43 Groups of remote flash units. D-43 Guide number D-22 Guide number table F-18 Highlight. c-10 Highlight in the subject's eyes D-28 Icons c-10 Illumination pattern C-22,D-24 Incandescent filters D33 included items A-14

Indication for insufficient light for correct exposure

D-4, D-7, D-10, D-13

ISO sensitivity A3, C-11 ISO sensitivity factors D-22 Key lock c9 LCD panel C-10,F-9 LCD panel illuminator C-24,F-9 Light distribution angle c-12 Light sensor for Non-TTL

Light sensor window for

wireless remote flash D-40 Low battery power indicator C-27 Manual mode D-14 MASTER. D-45, D-50 Master flash unit D-39 Metering mode D4 Min. number of flashes. D-18, F-21 Min. recycling time F-13, F-21 M (manual) mode D-51

Modeling illuminator. D-61 Monitor pre-flashes. D-3, D-6, D-9 Mount pin cs Mounting foot lock lever. cs Multiple flash shooting D-39 My menu c26

Tips on Speedlight care and reference information

Tips on Speediight care and reference information

Rear-curtain sync D-56 Recycling time. D-18, F-21 Red-eye reduction D-56 Red-eye reduction with slow-sync flash …D-56 REMOTE D-45, D-50 Remote flash units D-39 Repeating flash C-22, D-17, D-49 Replacing batteries. c-27 Reset C25 SB-900 condition c-14 Selector dial C8, C-9 Setting the ISO sensitivity C-24, D-60 Shooting distance C-11,D-23 Slow-sync flash D-55 Soft case A4 Sound monitor. C-24, D-42 Speediight stand D-41 Speedlight parts. c2 Standard illumination pattern D-24 Standard i-TTL. D2 Standby function C-23, C-28 SU-4 type wireless multiple

flash shooting C-22,D-50

Table of flash shooting distance ranges...F-16

Table of zoom positions F-17 Test firing D-60 Thermal Cut-out C-24,F-6 TTL Remote Cord FA Two-butoon reset c9 Updating firmware. F-10

Value of underexposure at TTL Version of firmware

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

CE NIKON CORPORATION Fu Bldg, 2-3 Marunouchi 3-chome, Printed in Europe Chiyoda-ku Tokyo 100-8331, Japan TT8FON (11)

© 2008 Nikon Corporation 8MSA3211-01
