Product Type	Video Projector
Brand	Hitachi
Model	CP-WU8440GF
Display Technology	3LCD
Native Resolution	1920 x 1200 (W-UXGA)
Brightness (ANSI Lumens)	5500
Contrast Ratio	3000:1
Lamp Type	UHP
Lamp Power	330 W
Lamp Life (Normal Mode)	3000 hours
Zoom	Powered, 1.7x
Lens Shift	Vertical & Horizontal (powered)
Projection Screen Size	30 - 500 inches
Keystone Correction	Vertical & Horizontal, Perfect Fit
Inputs	2x HDMI, 2x D-sub 15, 5x BNC, Component, S-Video, Composite, USB Type A (x2), USB Type B, LAN (RJ-45), RS-232C
Outputs	D-sub 15 (Monitor Out), Audio Out (RCA)
Audio	16 W mono speaker
Network	Wired (RJ-45) & Wireless (via USB adapter)
Dimensions (W x H x D)	470 x 140 x 380 mm (18.5 x 5.5 x 15.0 in)
Weight	8.5 kg (18.7 lb)
Power Consumption	550 W (max), <0.5 W (standby)
Noise Level	32 dB (normal mode)
OSD Languages	Multilingual (includes English, French, German, etc.)
Maintenance	Replaceable lamp & air filter
Safety	High voltage, high temperature, high pressure warnings

Frequently Asked Questions - CP-WU8440GF HITACHI

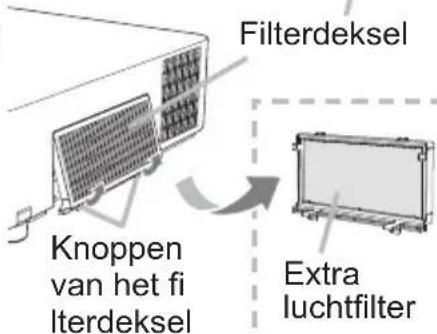

How do I clean the air filter on the Hitachi CP-WU8440GF?

Turn off the projector and unplug it. Locate the air filter cover on the side or bottom (refer to manual). Remove the cover and gently vacuum the filter or wash it with mild detergent if washable. Ensure it is completely dry before reinstalling. Reset the filter timer via the menu: OPTION > SERVICE > FILTER TIME RESET.

How do I replace the lamp?

Replace only with a certified Hitachi lamp (e.g., DT01551). Turn off and unplug the projector. Allow lamp to cool for at least 1 hour. Open the lamp cover (usually on top), loosen screws, remove old lamp, insert new one, tighten screws, close cover. Reset lamp time via menu: OPTION > SERVICE > LAMP TIME RESET.

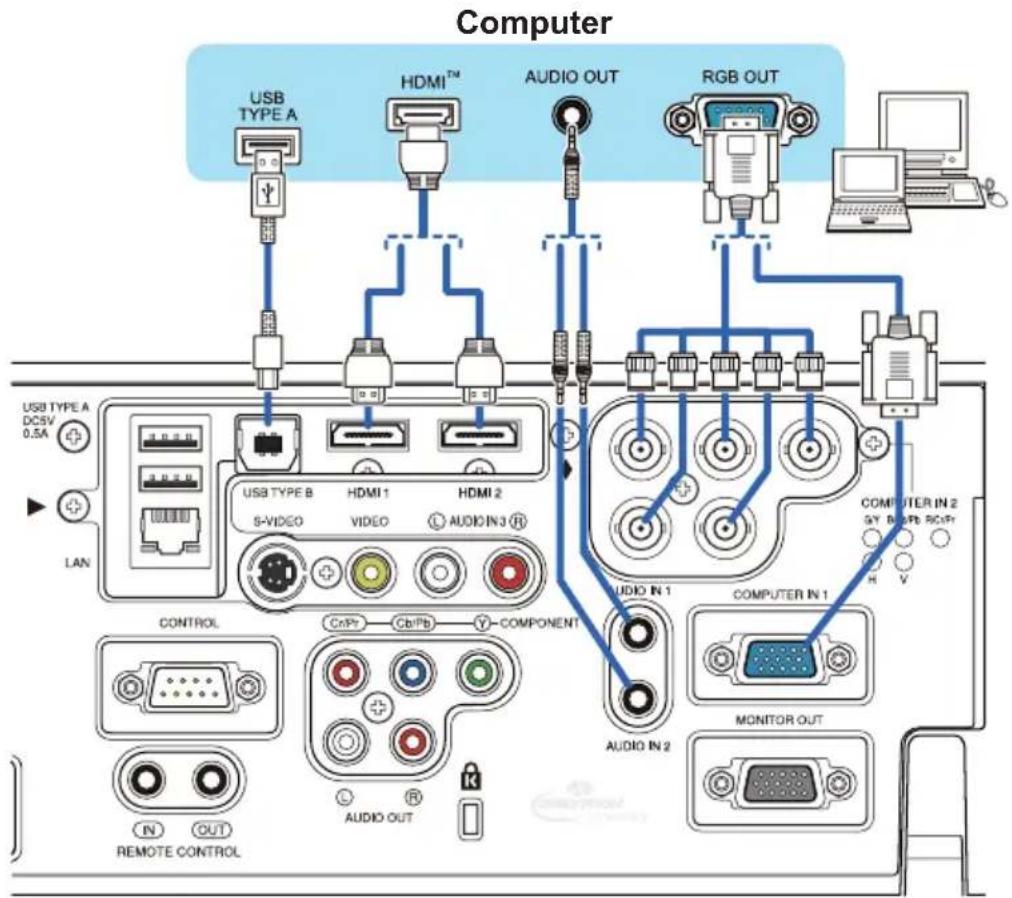

How do I connect a computer to the projector?

Use a VGA cable to connect your computer's VGA output to the projector's COMPUTER IN1 or IN2 port (D-sub 15). Alternatively, use an HDMI cable for digital video. For audio, connect your computer's audio out to the projector's AUDIO IN (RCA) using appropriate adapter. Select the correct input source via remote or menu.

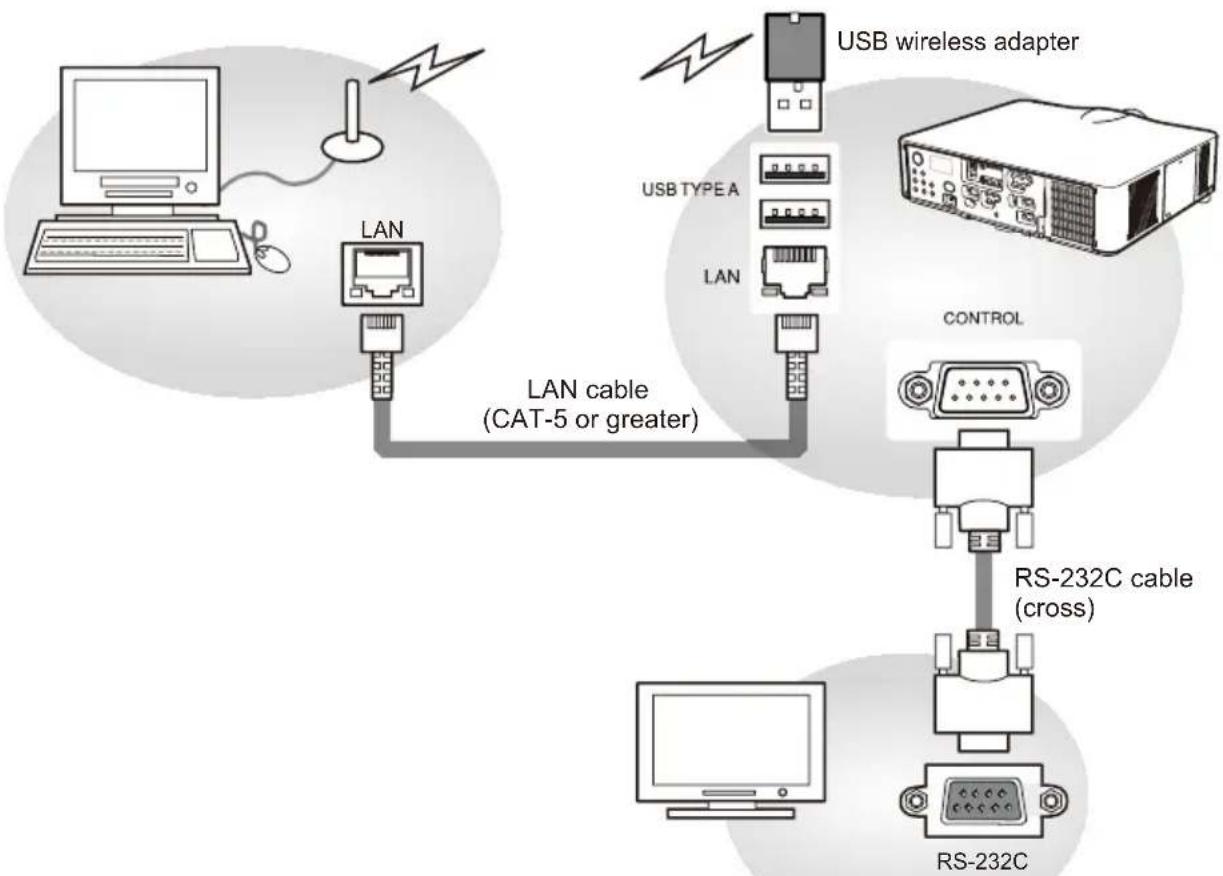

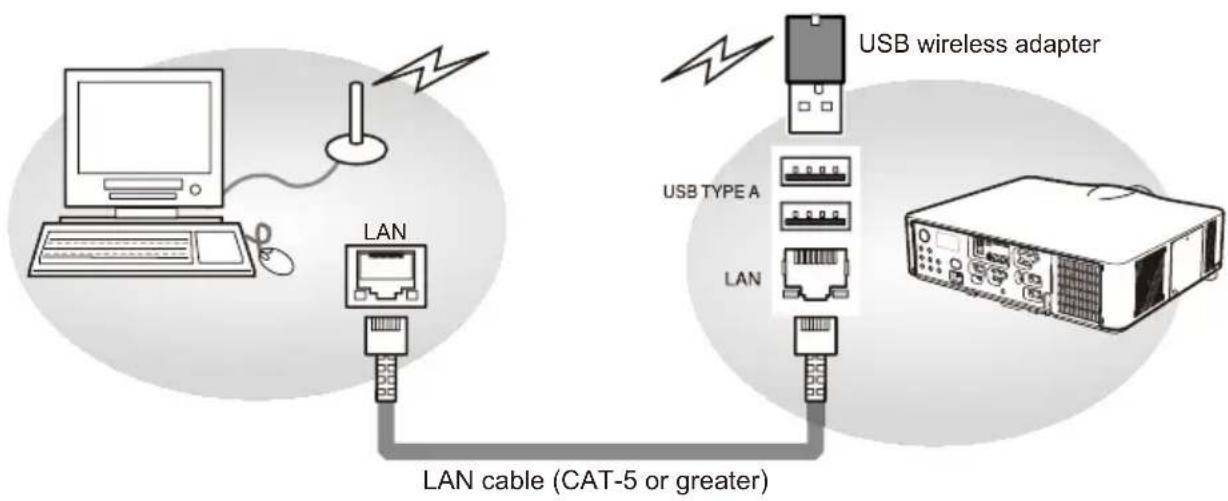

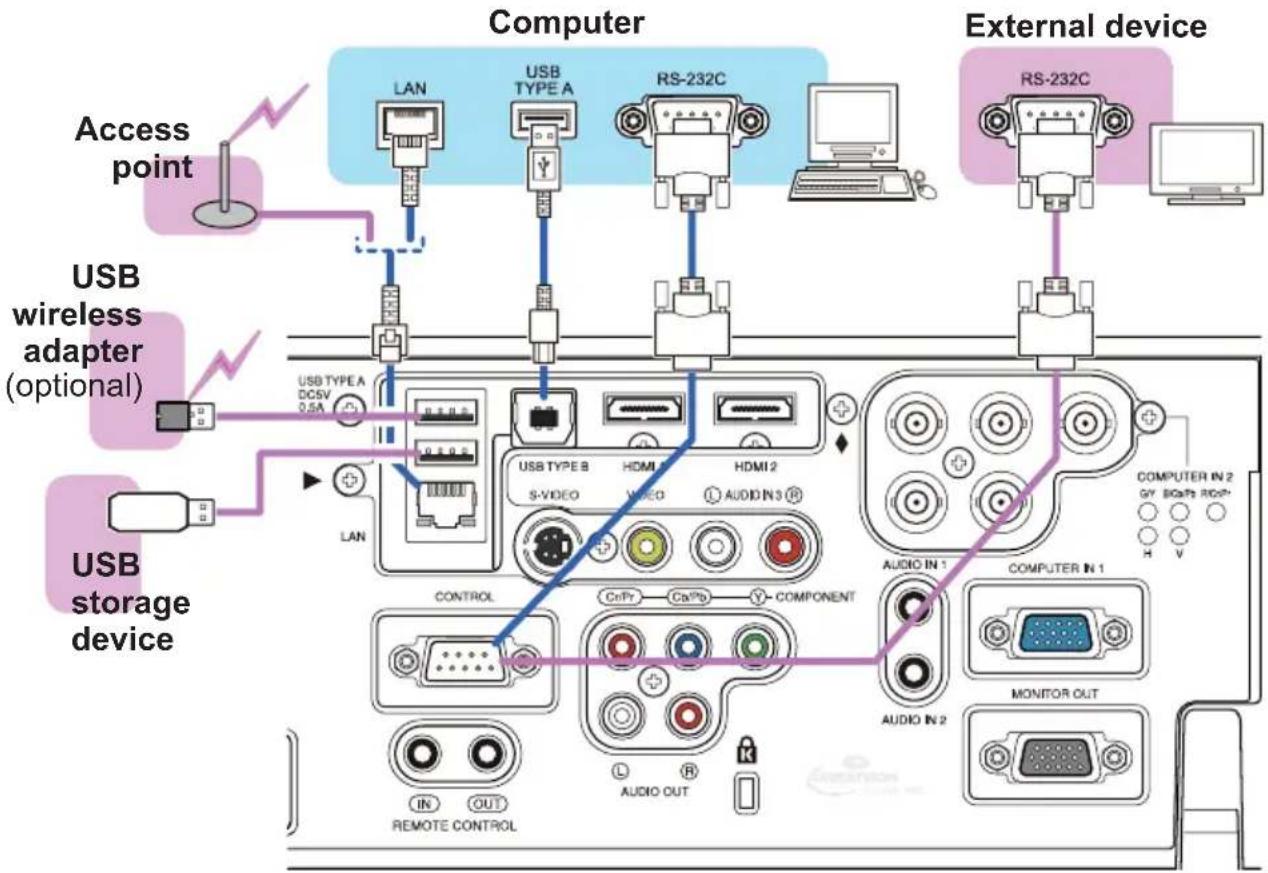

How do I use the network functions?

Connect the projector to your network via wired LAN (RJ-45) or insert a USB wireless adapter into USB TYPE A port. Access the projector's web interface by entering its IP address in a browser. You can control RS-232C commands over TCP, monitor status, and adjust settings. Refer to Network Guide in the manual.

How do I adjust lens shift?

Use the remote control or on-screen menu. Press the LENS SHIFT button on remote, then use arrow keys to move the image vertically or horizontally. The projector has powered lens shift; use the LENS SHIFT H and V settings in OPTION menu.

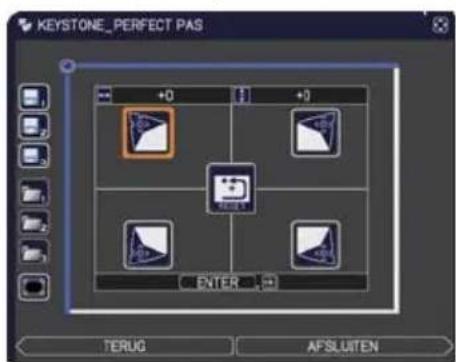

How do I correct a trapezoid image (keystone)?

Go to the IMAGE menu and select KEYSTONE. Use the on-screen sliders or arrow keys to adjust vertical and horizontal keystone. For advanced correction, enable PERFECT FIT in the OPTION menu to adjust each corner independently.

What picture modes are available?

Available modes include NORMAL, CINEMA, DYNAMIC, DAYTIME, DICOM SIM, BOARD (Black/Green/White), and CUSTOM. You can also adjust BRIGHTNESS, CONTRAST, GAMMA, COLOR TEMP, etc., in the IMAGE menu.

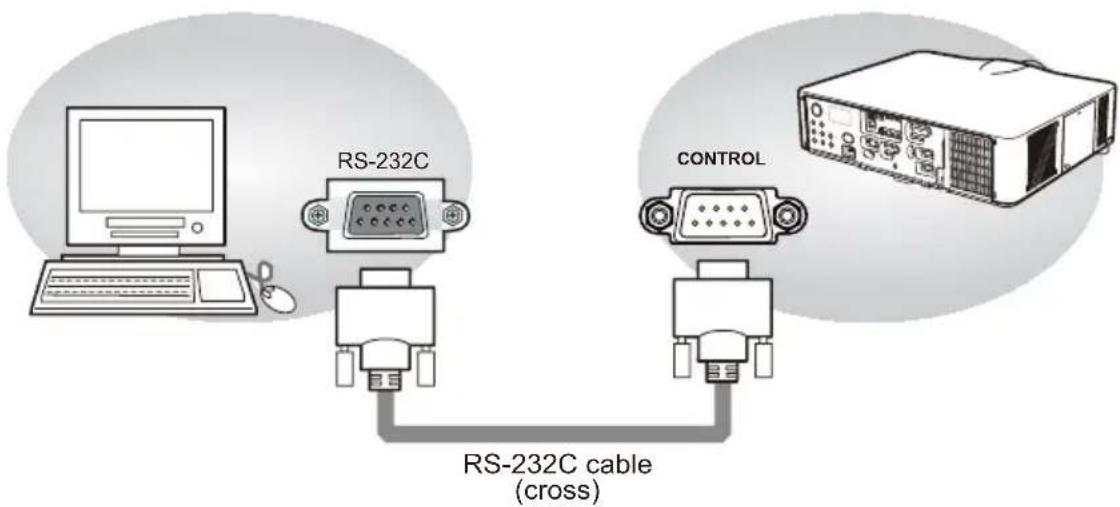

Can I control the projector remotely via RS-232C?

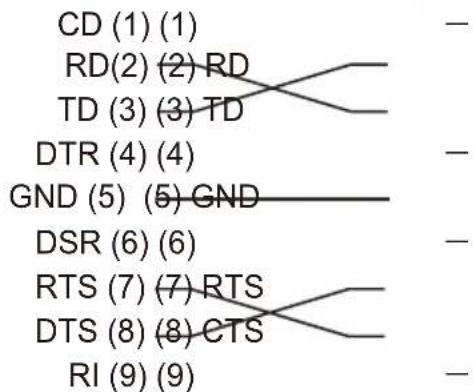

Yes. Use a cross RS-232C cable to connect the projector's CONTROL (D-sub 9) port to your computer. Set COMMUNICATION TYPE to OFF in OPTION > SERVICE menu. Use commands like Power ON/OFF, Input Select, etc., with format specified in the manual. Baud rate 19200 bps, 8N1.

What do the error indicators mean?

Common error codes: 00 = Normal, 01 = Cover error, 02 = Fan error, 03 = Lamp error, 04 = Temp error, 05 = Air flow error, 07 = Cold error, 08 = Filter error. For detailed troubleshooting, refer to the manual's error status section.

How long does the lamp last?

Lamp life is approximately 3000 hours in normal mode. These estimates vary based on usage and environment. You can monitor lamp time via the menu: OPTION > SERVICE > LAMP TIME. Replace it when the lamp indicator turns red or image becomes dim.

USER MANUAL CP-WU8440GF HITACHI

CP-X8150/CP-X8160/CP-WX8240/

CP-WX8255/CP-SX8350/CP-WU8440/

CP-WU8450

Gebruiksaanwijzing

(gedetailleerd)

Line drawing of a projector with lens and screen (no text or symbols)

Technical diagram of a mechanical device with no visible text or symbols

Interior view of a room with two lighting equipment, one mounted on a cabinet and the other standing upright (no text or symbols visible)

Opstellen

Front view of a portable electronic device with ports, cables, and a ventilation grille (no visible text or labels)

CP-WX8240, CP-WX8255, CP-SX8350, CP-WU8440, CP-WU8450:

NORMAAL → 4:3 → 16:9 → 16:10 → EIGEN

CP-WX8240, CP-WX8255, CP-SX8350, CP-WU8440, CP-WU8450:

NORMAAL → 4:3 → 16:9 → 16:10 → 14:9 → EIGEN

CP-WX8240, CP-WX8255, CP-WU8440, CP-WU8450:

4:3 → 16:9 → 16:10 → 14:9 → EIGEN

CP-WX8240, CP-WX8255, CP-WU8440, CP-WU8450: 16:10 (fixed)

Diagram of a heat exchanger or air duct system with a 9° angle indicator and cooling unit (no text or symbols)

OPENEN:

CP-X8150, CP-X8160, CP-WX8240, CP-WX8255

CP-SX8350, CP-WU8440, CP-WU8450

PbyP (Picture-by-Picture)

Bedient de projector.

Transmission speed (Overbrengingsnelheid)

Diagram of a device with a plus button and directional arrow, no text or symbols present

lampbehuizing

Diagram of an air conditioner unit with cooling fan and ventilation grilles (no text or labels)

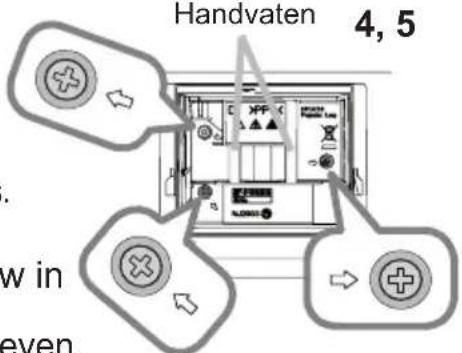

Handvaten

Diagram of a computer monitor with ventilation grilles and a paper clip, no text or symbols present

Line drawing of a projector with lens and control panel (no text or symbols)

3

Two diagrams showing hand positioning of a rectangular panel with internal structure, no text or symbols present

CP-X8150/CP-X8160/CP-WX8240/

CP-WX8255/CP-SX8350/CP-WU8440/

CP-WU8450

Line drawing of a projector with lens and control panel (no text or symbols)

Illustration of a laptop and a projector with a lightning bolt symbol (no text or labels)

3) Selecteer "Internet Protocol version 4 (TCP/IPv4)" en klik op [Eigenschappen].

(Network address: 192.168.10 in dit geval)

(Network address: 192.168.10 in dit geval)

N.B. • Internet Explorer® 6.0 of later is vereist.

Reset de netwerkverbinding van de projector.

IP Address <Projector

MAC Address <Projector

IP-adres>

MAC-ad

7.2 Projectorbeheer m.b.v. SNMP

CP-X8150/CP-X8160/CP-WX8240/

CP-WX8255/CP-SX8350/CP-WU8440/

CP-WU8450

Line drawing of a projector with lens and control panel (no text or symbols)

Pure black background with white geometric border and a blue speech bubble icon (no text or symbols)

Overlappend beelds

Dekselfout: Lampenkap is geopend.

CP-WX8240/CP-WX8255/

CP-SX8350/CP-WU8440/CP-WU8450

User's Manual (detailed)

Operating Guide – Technical

Example of computer signal

Resolution (H x V)	H. frequency (kHz)	V. frequency (Hz)	Rating Signal mode
720 x 400	37.9 85.0 VESA TEXT
640 x 480 31.5	59.9 VESA VGA (60Hz)
640 x 480 37.9	72.8 VESA VGA (72Hz)
640 x 480 37.5	75.0 VESA VGA (75Hz)
640 x 480 43.3	85.0 VESA VGA (85Hz)
800 x 600 35.2	56.3 VESA SVGA (56Hz)
800 x 600 37.9	60.3 VESA SVGA (60Hz)
800 x 600 48.1	72.2 VESA SVGA (72Hz)
800 x 600 46.9	75.0 VESA SVGA (75Hz)
800 x 600 53.7	85.1 VESA SVGA (85Hz)
832 x 624 49.7	74.5 Mac 16" mode
1024 x 768 48.4	60.0 VESA XGA (60Hz)
1024 x 768 56.5	70.1 VESA XGA (70Hz)
1024 x 768 60.0	75.0 VESA XGA (75Hz)
1024 x 768 68.7	85.0 VESA XGA (85Hz)
1152 x 864 67.5	75.0 VESA		1152 x 864 (75Hz)
1280 x 768 47.7	60.0 VESA W-XGA (60Hz)
1280 x 800 49.7	60.0 VESA		1280 x 800 (60Hz)
1280 x 960 60.0	60.0 VESA		1280 x 960 (60Hz)
1280 x 1024	64.0 60.0 VESA SXGA (60Hz)
1280 x 1024	80.0 75.0 VESA SXGA (75Hz)
1440 x 900 55.9	59.9 VESA WXGA+ (60Hz)

(continued on next page)

Resolution (H x V)	H. frequency (kHz) V.	frequency (Hz) Rating Signal mode
*1 1280 x 1024 91.1	85.0 VESA SXGA (85Hz)
*2 1400 x 1050 65.2	60.0 VESA SXGA+ (60Hz)
*3 1680 x 1050 65.3	60.0 VESA WSXGA+ (60Hz)
*1 1600 x 1200 75.0	60.0 VESA UXGA (60Hz)
*4 1920 x 1200 74.0	60.0 VESA		W-UXGA (60Hz)Reduced Blanking

*1) Supported except for HDMI™ input.
*2) Only for CP-X8150, CP-X8160 and CP-SX8350.
*3) Only for CP-WX8240, CP-WX8255, CP-WU8440 and CP-WU8450.
*4) Only for CP-WU8440 and CP-WU8450, but except for HDMI™ input.

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a computer.

• Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
• Although the projector can display signals with a resolution up to UXGA (1600x1200) or up to W-UXGA (1920x1200) for CP-WU8440 and CP-WU8450, the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

Resolution (H x V)	Horizontal signal timing (μs)				Vertical signal timing (lines)				Signal mode
	(A)	(B)	(C)	(D)	(a)	(b)	(c)	(d)
720 x 400	2.0	3.0	20.3	1.0	3	4	0	1	TEXT
640 x 480	3.8		1.9	25.4		0.6	2	33	480
640 x 480	1.3		4.1	20.3		0.8	3	28	480
640 x 480	2.0		3.8	20.3		0.5	3	16	480
640 x 480	1.6		2.2	17.8		1.6	3	25	480
800 x 600	2.0		3.6	22.2		0.7	2	22	600
800 x 600	3.2		2.2	20.0		1.0	4	23	600
800 x 600	2.4		1.3	16.0		1.1	6	23	600
800 x 600	1.6		3.2	16.2		0.3	3	21	600
800 x 600	1.1		2.7	14.2		0.6	3	27	600
832 x 624	1.1		3.9	14.5		0.6	3	39	624
1024 x 768	2.1		2.5	15.8		0.4	6	29	768
1024 x 768	1.8		1.9	13.7		0.3	6	29	768
1024 x 768	1.2		2.2	13.0		0.2	3	28	768
1024 x 768	1.0		2.2	10.8		0.5	3	36	768
1152 x 864	1.2	2.4	10.7	0.6	3	3	864	1
1280 x 768	1.7		2.5	16.0		0.8	3	23	768
1280 x 800	1.6	2.4	15.3	0.8	3	24	800	1
1280 x 960	1.0		2.9	11.9		0.9	3	36	960
1280 x 1024	1.0		2.3	11.9		0.4	3	38	1024
1280 x 1024	1.1		1.8	9.5		0.1	3	38	1024
1280 x 1024	1.0		1.4	8.1		0.4	3	44	1024
1400 x 1050	1.2		2.0	11.4		0.7	3	33	1050
1440 x 900	1.4		2.2	13.5		0.8	6	25	900
1680 x 1050	1.2		1.9	11.5		0.7	6	30	1050
1600 x 1200	1.2		1.9	9.9		0.4	3	46	1200
1920 x 1200	0.208		0.519	12.47		0.312	6	26	1200

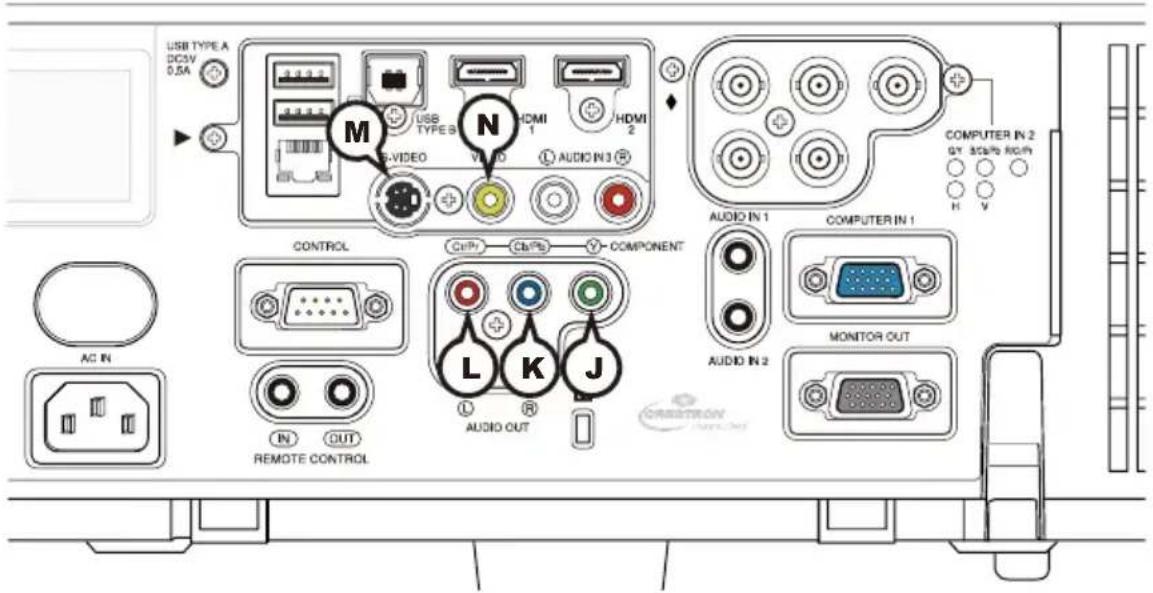

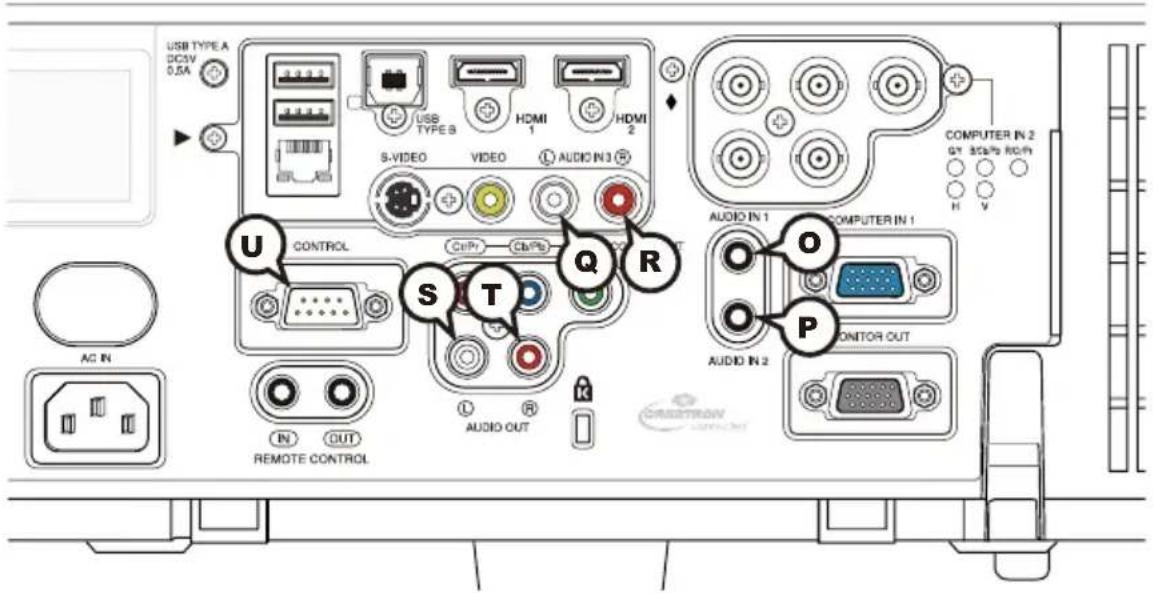

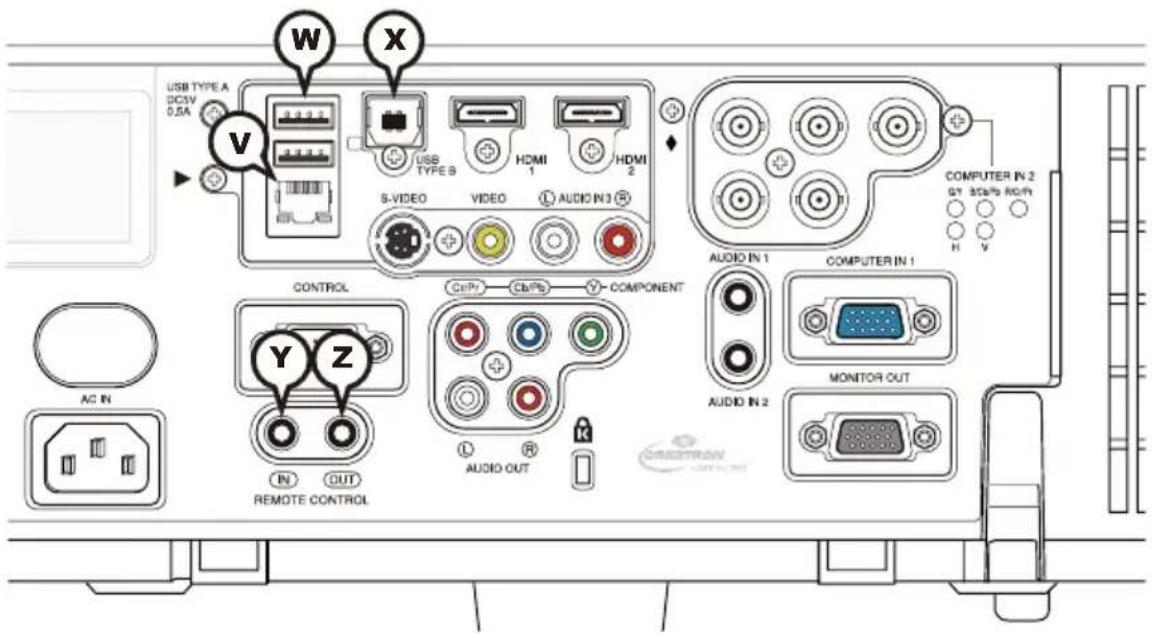

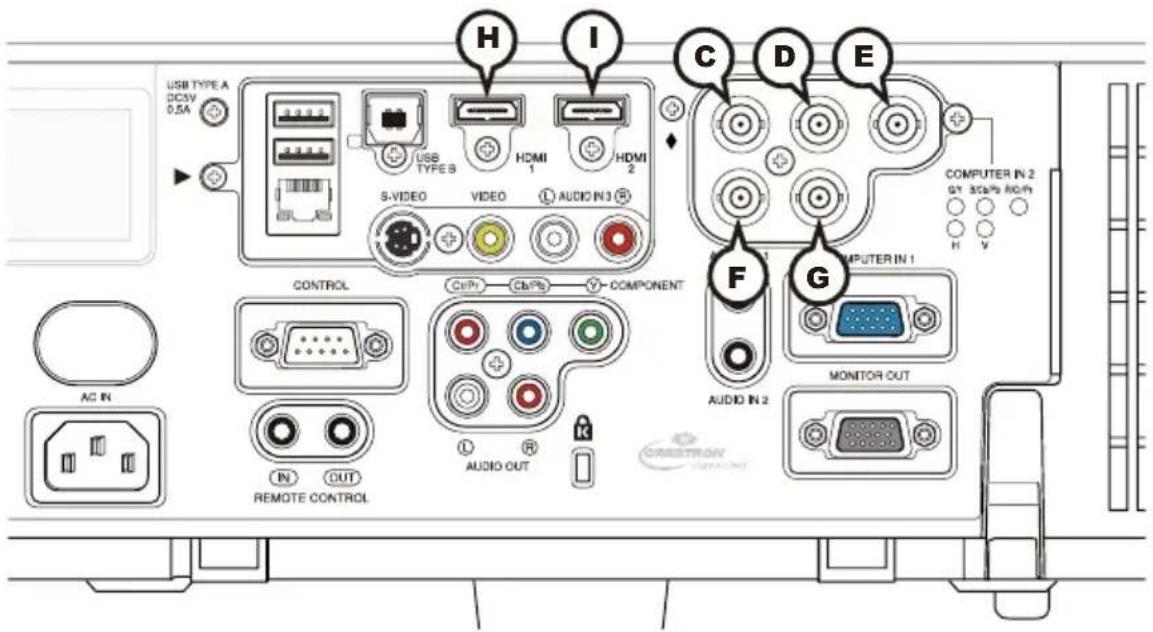

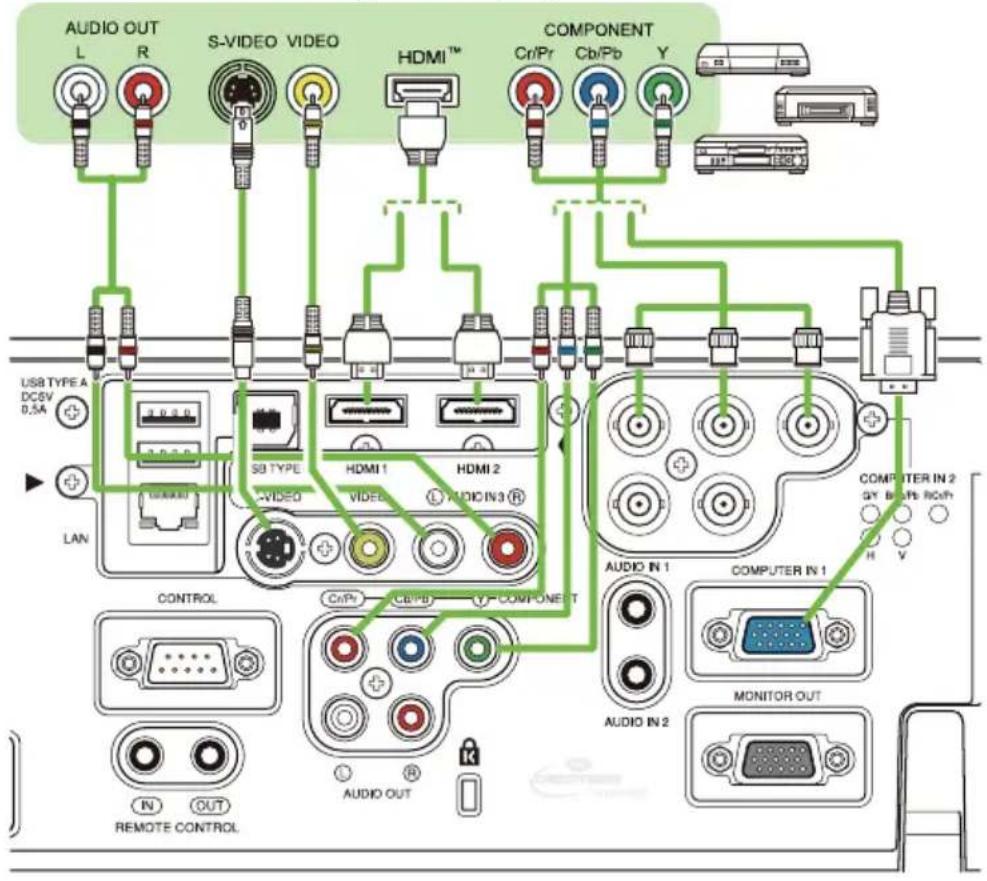

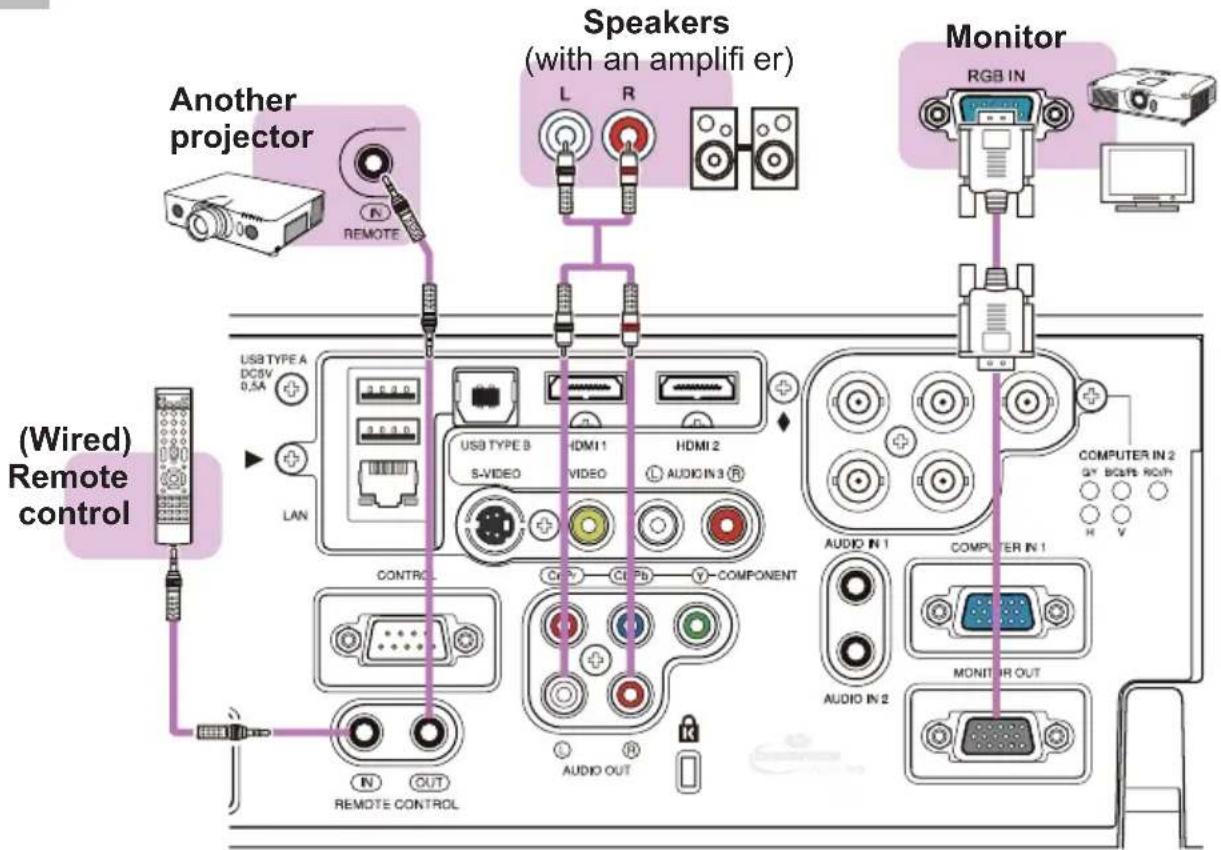

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

▶ Only the signal that is input from the COMPUTER IN1 or IN2 can be output from the MONITOR OUT port.

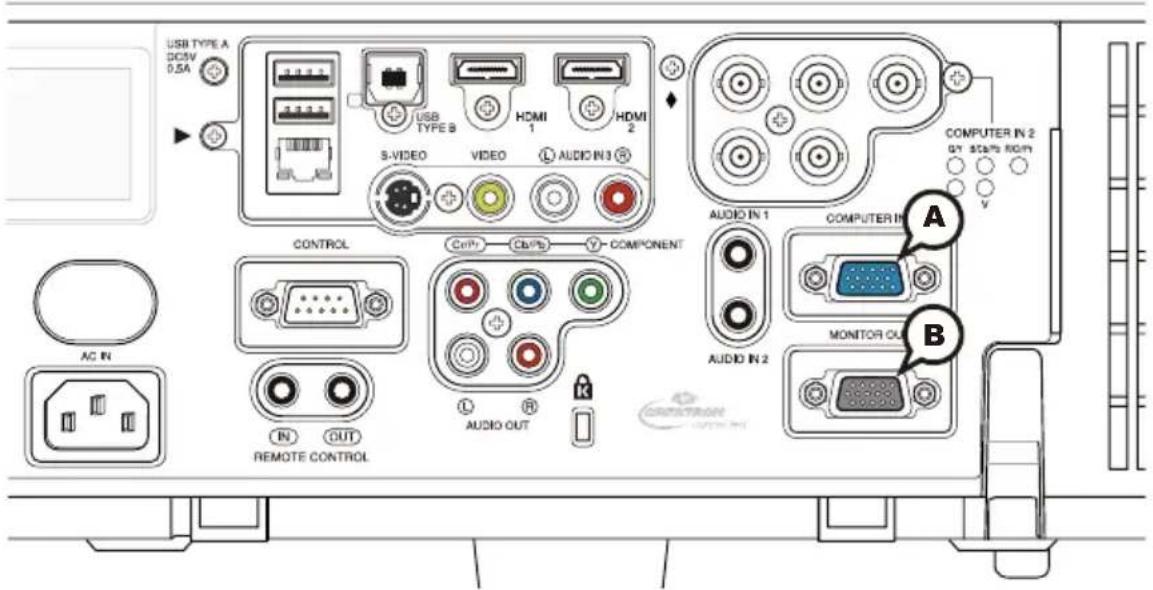

ⒶCOMPUTER IN1, ⒷMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

- System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

Pin Signal Pin Signal
1 Video Red, Cr/Pr 9 (No connection)
2 Video Green, Y 10 Ground
3	Video Blue, Cb/Pb	11	(No connection)
4 (No connection) 12			A: SDA (DDC data) B: (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red, Ground Cr/Pr 14 V. sync.
7 Ground Green, Ground Y		15	A: SCL (DDC clock) B: (No connection)
8 Ground Blue, Ground Cb/Pb

COMPUTER IN2 ©G/Y, ☑B/Cb/Pb, ☑R/Cr/Pr, ☑H, ☑V

BNC jack x5

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

- System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

⑧HDMI 1, ⑪HDMI 2

HDMI ^TM connector

• Audio signal: Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin	Signal Pin Signal Pin Signal
1	T.M.D.S. Data2 +	8	T.M.D.S. Data0 Shield	15	SCL
2 T	M.D.S. Data2 Shield 9 T	M.D.	S. Data0 - 16 SDA
3 T	M.D.S. Data2 - 10 T.M.D.	S.	Clock + 17 DDC/CEC Ground
4	T.M.D.S. Data1 + 11 T.M.	D.S.	Clock Shield	18	+5V Power
5	T.M.D.S. Data1 Shield	12	T.M.D.S. Clock -	19	Hot Plug Detect
6 T	M.D.S. Data1 - 13 CEC
7 T	M.D.S. Data0 +	14	Reserved (N.C. on device)

COMPONENT JY, KCb/Pb, LCr/Pr

RCA jack x3

- Component video signal, Analog:

-Y with composite sync, 1.0±0.1Vp-p, 75Ω terminated

-Cb/Pb, 0.7±0.1Vp-p, 75Ω terminated

-Cr/Pr, 0.7±0.1Vp-p 75Ω terminated

- System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60

MS-VIDEO

Mini DIN 4pin jack

• S-video signal, Analog:

-Brightness signal with composite sync, 1.0±0.1Vp-p, 75Ω terminated

-Color signal, 0.286Vp-p (NTSC, burst), 75Ω terminated

0.300Vp-p (PAL/SECAM, burst) 75Ω terminated

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal

1 C (color signal)

2 Y (brightness signal)

3 Ground

4 Ground

NVIDEO

RCA jack

• Composite video signal, Analog, 1.0 ± 0.1 Vp-p, 75 terminator
  • System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

©AUDIO IN1, ©PAUDIO IN2

AUDIO IN3 QL, R R AUDIO OUT

RCA jack x2 RCA jack x2

• Analog, 500 mVrms, 47kΩ input impedance

• Analog, 500 mVrms, 1kΩ output impedance

UCONTROL

D-sub 9pin plug

* About the details of RS-232C communication, please refer to the next section.

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7RTS
2 RD 5 Ground 8 CTS
3	TD	6	(No connection)	9	(No connection)

VLAN

RJ-45 jack

* About the details of network communication, please refer to the Network Guide.

Pin Signal Pin Signal Pin Signal
1	T X +			4 - 7	-
2 TX-5 -					8	-
3 RX+6 RX-

WUSB TYPE A

USB A type jack x2

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

USB TYPE B

USB B type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

REMOTE CONTROL YIN, ZOUT

To input SCART RGB signal to the projector, use a SCART to RCA cable. Connect the plugs refer to above ex. For more reference, please consult your dealer.

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (19).

Connection

1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfills the specification shown in figure
3. Turn the computer on, and after the computer has started up turn the projector on.
4. Set the COMMUNICATION TYPE to OFF in the COMMUNICATION menu of the OPTION - SERVICE menu.

RS-232C port of the computer

CONTROL port of the projector

Communication settings

1. Protocol

19200bps, 8N1

2. Command format ("h" shows hexadecimal)

Byte Number

0

1

2

3

4

5

8

9

1

0

1

CommandAction

Header Data

Header code

Packet

Data size

CRC flag

Action Type

Setting code

L

H

L

H

L

H

L

H

L

H

L

H

BEh

EFh

03h

06h

00h

(aL)

(aH)

01h

00h

(bL)

(bH)

(cL)

(cH)

(aL)

(aH)

02h

00h

(bL)

(bH)

00h

00h

(aL)

(aH)

04h

00h

(bL)

(bH)

00h

00h

(aL)

(aH)

05h

00h

(bL)

(bH)

00h

00h

(aL)

(aH)

06h

00h

(bL)

(bH)

00h

00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 to 4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (19).

[Action]

Set functional code to byte number 7, 8.

$$ < \text {SET} > = [ 0 1 h, 0 0 h ], < \text {GET} > = [ 0 2 h, 0 0 h ], < \text {INCREMENT} > = [ 0 4 h, 0 0 h ] $$

$$ < \text { DECREMENT } > = [ 0 5 h, 0 0 h ], < \text { EXECUTE } > = [ 0 6 h, 0 0 h ] $$

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number 9 to 12, refer to RS-232C Communication / Network command table (19).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply: 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply: 15h

When the projector cannot understand the received command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply: 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply: 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

• Operation cannot be guaranteed when the projector receives an undefined command or data.
• Provide an interval of at least 40ms between the response code and any other code.
• The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.
• When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (19).

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

1. Turn off the projector and the computer.
2. If you use wired LAN, connect the projector's LAN port to the computer's LAN port with a LAN cable. Use the cable that fulfills the specification shown in figure. If you use wireless LAN, insert the USB wireless adapter into one of the USB TYPE A ports of the projector.
3. Turn the computer on, and after the computer has started up turn the projector on.

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items form a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)	Port open	Click the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
Network Control Port2 (Port: 9715)	Port open	Click the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network Control	Authentication Password	Enter the desired authentication password. ConfirmThis setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
	Re-enter Authentication Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communicaton command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h
Refer to RS-232C communication (12).

(2) NAK reply : 15h

Refer to RS-232C communication (12).

(3) Error reply : 1Ch + 0000h

Refer to RS-232C communication (12).

(4) Data reply : 1Dh + xxxxh

Refer to RS-232C communication (12).

(5) Authentication error reply : 1Fh + 0400h

When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header	Data length	RS-232C command	Check sum	Connection ID
0×02 0×0D	13 bytes 1 byte	1 byte

[Header]

02, Fixed

[Data Length]

RS-232C commands byte length (0×0D, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (11).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

- Provide an interval of at least 40ms between the response code and any other code.

- Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(1) ACK reply: 06h + xxh (xxh : connection ID)
(2) NAK reply: 15h + xxh
(3) Error reply: 1Ch + 0000h + xxh
(4) Data reply: 1Dh + xxxxh + xxh
(5) Authentication error reply: 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm.

When the projector is connected to a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password, and digest the data with the MD5 algorithm, and add it in front of the commands to send.

Following is a sample of authentication process.

Authentication password: password (example)

Random 8 bytes: a572f60c (example)

1) Select a projector and receive the random 8 bytes from the projector.

→ "a572f60c"

2) Bind the random 8 bytes and the authentication password.

→ "a572f60cpassword"

3) Digest this bound with MD5 algorithm.

→ “e3d97429adffa11bce1f7275813d4bde”

4) Add this code in front of the commands and send the data.

→ “e3d97429adffa11bce1f7275813d4bde” + [command].

5) When the sent data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by wired or wireless LAN communication, an external device that is connected with this projector by RS-232C communication can be controlled from the computer as a network terminal. For details, see the 6. Network Bridge function in the Network Guide.

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

1. If you use wired LAN, connect the computer's LAN port and the projector's LAN port with a LAN cable. Use the cable that fulfills the specification shown in figure. If you use wireless LAN, insert the USB wireless adapter into the projector's LAN port.
2. Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
3. Turn the computer on, and after the computer has started up turn the projector on.
4. Set the COMMUNICATION TYPE to NETWORK BRIDGE in the COMMUNICATION menu of the OPTION - SERVICE menu.

Communication settings

For communication setting, use the COMMUNICATION menu in the OPTION - SERVICE menu

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

- Turn off the power and unplug both the projector and other devices before connecting them.

- For details of Transmission method, refer to 6.4 Transmission method in the Network Guide.

RS-232C Communication / Network command table

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
Power	Set	Turn off BE EF 03 06 00 2A D3 01 00 00 60 00 00
		Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00
	Get		BE EF 03 06 00 19 D3 02 00 00 60 00 00
			[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input Source	Set	COMPUTER IN1 BE EF 03 06 00 FE D2 01 00 00 20 00 00
		COMPUTER IN2 BE EF 03 06 00 3E D0 01 00 00 20 04 00
		LAN BE EF 03 06 00 CE D5 01 00 00 20 0B 00
		USB TYPE A BE EF 03 06 00 5E D1 01 00 00 20 06 00
		USB TYPE B BE EF 03 06 00 06 00 FE D7 01 00 00 20 0C 00
		HDMI 1 BE EF 03 06 00 0E D2 01 00 00 20 03 00
		HDMI 2 BE EF 03 06 00 6E D6 01 00 00 20 0D 00
		COMPONENT BE EF 03 06 00 AE D1 01 00 00 20 05 00
		S-VIDEO BE EF 03 06 00 9E D3 01 00 00 20 02 00
		VIDEO BE EF 03 06 00 6E D3 01 00 00 20 01 00
	Get		BE EF 03 06 00 CD D2 02 00 00 20 00 00
Error Status	Get		BE EF 03 06 00 D9 D8 02 00 20 60 00 00
			[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]
FOCUS	Increment		BE EF 03 06 00 6A 93 04 00 00 24 00 00
	Decrement		BE EF 03 06 00 BB 92 05 00 00 24 00 00
ZOOM	Increment		BE EF 03 06 00 96 92 04 00 01 24 00 00
	Decrement		BE EF 03 06 00 47 93 05 00 01 24 00 00
LENS SHIFT - V	Increment		BE EF 03 06 00 D2 92 04 00 02 24 00 00
	Decrement		BE EF 03 06 00 3 93 05 00 02 24 00 00
LENS SHIFT - H	Increment		BE EF 03 06 00 2E 93 04 00 03 24 00 00
	Decrement		BE EF 03 06 00 00 00 92 05 00 00 03 24 00 00
LENS SHIFT CENTERING	Execute BE EF		03 06 00 B8 93 06 00 04 24 00 00
LENS MEMORY INDEX	Set	1	BE EF 03 06 00 4B 92 01 00 07 24 00 00
		2	BE EF 03 06 00 DB 93 01 00 07 24 01 00
		3	BE EF 03 06 00 2B 93 01 00 07 24 02 00
	Get		BE EF 03 06 00 78 92 02 00 07 24 00 00
LENS MEMORY LOAD	Execute BE EF		03 06 00 E8 90 06 00 08 24 00 00
LENS MEMORY SAVE	Execute BE EF		03 06 00 14 91 06 00 09 24 00 00
LENS MEMORY CLEAR	Execute BE EF		03 06 00 50 91 06 00 0A 24 00 00
LENS MEMORY LENS SHIFT - V	Get BE EF 03		06 00 A0	91 02	00 0D	24 00 00
LENS MEMORY LENS SHIFT - H	Get BE EF 03		06 00 E4	91 02	00 0E	24 00 00
LENS MEMORY LENS TYPE	Get BE EF 03		06 00 18	90 02	00 0F	24 00 00
MAGNIFY	Get BE EF 03		06 00 7C	D2 02	00 07	30 00 00
	Increment BE EF		03 06 00	1A D2	04 00 07	30 00 00
	Decrement		BE EF 03 06	00 CB D3	05 00 07	30 00 00
MAGNIFY Position H	Get BE EF 03		06 00 C8	D7 02	00 10	30 00 00	00
	Increment BE EF		03 06 00	AE D7	04 00 10	30 00 00
	Decrement		BE EF	03	06 00	7F D6	05 00	10 30	00 00
MAGNIFY Position V	Get BE EF 03		06 00 34	D6 02	00 11	30 00 00
	Increment BE EF		03 06 00	52 D6	04 00 11	30 00 00
	Decrement		BE EF 03 06	00 83 D7	05 00 11	30 00 00
FREEZE	Set	NORMAL	BE EF 03 06	00 83 D2	01 00 02	30 00 00
		FREEZE	BE EF 03 06	00 13 D3	01 00 02	30 01 00
	Get BE EF 03		06 00 B0	D2 02	00 02	30 00 00	00
SHADE	Set	OFF	BE EF	03	06 00	F3 93	01 00	05 24	00 00
		ON	BE EF 03 06	00 63 92	01 00 05	24 01 00
	Get BE EF 03		06 00 C0	93 02	00 05	24 00 00
* PbyP	Set	OFF	BE EF	03	06 00	3E 26	01 00	10 23	00 00
		ON	BE EF	03	06 00	AE 27	01 00	10 23	01 00
	Get		BE EF	03	06 00	0D 26	02 00	10 23	00 00
* PbyP MAIN AREA	Set	LEFT	BE EF	03	06 00	7A 26	01 00	13 23	00 00
		RIGHT	BE EF	03	06 00	EA 27	01 00	13 23	01 00
	Get		BE EF	03	06 00	49 26	02 00	13 23	00 00
* PbyP RIGHT SOURCE	Set	COMPUTER 1	BE EF	03	06 00	86 27	01 00	12 23	00 00
		COMPUTER 2	BE EF	03	06 00	46 25	01 00	12 23	04 00
		HDMI 1	BE EF	03	06 00	76 27	01 00	12 23	03 00
		HDMI 2	BE EF	03	06 00	16 23	01 00	12 23	0D 00
		COMPONENT	BE EF	03	06 00	D6 24	01 00	12 23	05 00
		S-VIDEO	BE EF	03	06 00	E6 26	01 00	12 23	02 00
		VIDEO	BE EF	03	06 00	16 26	01 00	12 23	01 00
	Get		BE EF	03	06 00	B5 27	02 00	12 23	00 00
* PbyP LEFT SOURCE	Set	COMPUTER 1	BE EF	03	06 00	F2 26	01 00	15 23	00 00
		COMPUTER 2	BE EF	03	06 00	32 24	01 00	15 23	04 00
		HDMI 1	BE EF	03	06 00	02 26	01 00	15 23	03 00
		HDMI 2	BE EF	03	06 00	62 22	01 00	15 23	0D 00
		COMPONENT	BE EF	03	06 00	A2 25	01 00	15 23	05 00
		S-VIDEO	BE EF	03	06 00	92 27	01 00	15 23	02 00
		VIDEO	BE EF	03	06 00	62 27	01 00	15 23	01 00
	Get		BE EF	03	06 00	C1 26	02 00	15 23	00 00
* PbyP SWAP	Execute		BE EF	03	06 00	01 27	06 00	16 23	00 00

*) Only for CP-WU8440 and CP-WU8450.

Names Operation Type Header						CRC	Command Data
							Action Type Setting code
PICTURE MODE	Set	NORMAL BE	EF 03 06	00 23	F6 01 00	BA 30 00	00
		CINEMA	BE EF	03	06 00	B3 F7	01 00	BA 30	01 00
		DYNAMIC	BE EF	03	06 00	E3 F4	01 00	BA 30	04 00
		BOARD(BLACK)	BE EF	03	06 00	E3 EF	01 00	BA 30	20 00
		BOARD(GREEN)	BE EF 03	06 00	73 EE 01	00 BA 30	21 00
		WHITEBOARD	BE EF 03	06 00	00 83 EE	01 00 BA	30 22 00
		DAYTIME	BE EF 03	06 00	00 E3 C7	01 00 BA	30 40 00
		DICOM SIM.	BE EF 03	06 00	00 73 C6	01 00 BA	30 41 00
	Get		BE EF	03	06 00	10 F6	02 00	BA 30	00 00
			[Example return]
			00 00 [NORMAL]			01 00 [CINEMA]		04 00 [DYNAMIC]
			20 00 [BOARD(BLACK)]			21 00 [BOARD(GREEN)]		22 00 [WHITEBOARD]
			40 00 [DAY TIME]			41 00 [DICOM SIM.]		10 00 [Custom]
BRIGHTNESS	Get		BE EF	03	06 00	89 D2	02 00	03 20	00 00
	Increment		BE EF	03	06 00	EF D2	04 00	03 20	00 00
	Decrement		BE EF	03	06 00	3E D3	05 00	03 20	00 00
BRIGHTNESS Reset	Execute BE EF		03 06 00	58 D3	06 00 00	70	00 00
CONTRAST	Get		BE EF	03	06 00	FD D3	02 00	04 20	00 00
	Increment		BE EF	03	06 00	9B D3	04 00	04 20	00 00
	Decrement		BE EF	03	06 00	4A D2	05 00	04 20	00 00
CONTRAST Reset	Execute BE EF		03 06 00	A4 D2	06 00 01	70	00 00
GAMMA	Set	1 DEFAULT	BE EF	03	06 00	07 E9	01 00	A1 30	20 00
		1 CUSTOM	BE EF	03	06 00	07 FD	01 00	A1 30	10 00
		2 DEFAULT	BE EF	03	06 00	97 E8	01 00	A1 30	21 00
		2 CUSTOM	BE EF	03	06 00	97 FC	01 00	A1 30	11 00
		3 DEFAULT	BE EF	03	06 00	67 E8	01 00	A1 30	22 00
		3 CUSTOM	BE EF	03	06 00	67 FC	01 00	A1 30	12 00
		4 DEFAULT	BE EF	03	06 00	F7 E9	01 00	A1 30	23 00
		4 CUSTOM	BE EF	03	06 00	F7 FD	01 00	A1 30	13 00
		5 DEFAULT	BE EF	03	06 00	C7 EB	01 00	A1 30	24 00
		5 CUSTOM	BE EF	03	06 00	C7 FF	01 00	A1 30	14 00
		6 DEFAULT	BE EF	03	06 00	57 EA	01 00	A1 30	25 00
		6 CUSTOM	BE EF	03	06 00	57 FE	01 00	A1 30	15 00
		7 DEFAULT	BE EF	03	06 00	A7 EA	01 00	A1 30	26 00
		7 CUSTOM	BE EF	03	06 00	A7 FE	01 00	A1 30	16 00
	Get		BE EF	03	06 00	F4 F0	02 00	A1 30	00 00
User GAMMA Pattern	Set	Off	BE EF	03	06 00	FB FA	01 00	80 30	00 00
		9 steps gray scale	BE EF	03	06 00	6B FB	01 00	80 30	01 00
		15 steps gray scale	BE EF	03	06 00	9B FB	01 00	80 30	02 00
		Ramp	BE EF	03	06 00	0B FA	01 00	80 30	03 00
	Get		BE EF	03	06 00	C8 FA	02 00	80 30	00 00
User GAMMA Point 1	Get BE EF 03	06 00 08	FE 02	00 90	30	00 00
	Increment BE EF	03 06 00	6E FE	04 00 90	30	00 00
	Decrement BE EF	03 06 00	BF FF	05 00 90	30	00 00
User GAMMA Point 1 Reset	Execute BE EF	03 06 00	58 C2	06 00 50	70	00 00
User GAMMA Point 2	Get BE EF 03	06 00 F4	FF 02	00 91	30	00 00
	Increment BE EF	03 06 00	92 FF	04 00 91	30	00 00
	Decrement BE EF	03 06 00	43 FE	05 00 91	30	00 00
User GAMMA Point 2 Reset	Execute BE EF	03 06 00	A4 C3	06 00 51	70	00 00
User GAMMA Point 3	Get BE EF 03	06 00 B0	FF 02	00 92	30	00 00
	Increment BE EF	03 06 00	D6 FF	04 00 92	30	00 00
	Decrement BE EF	03 06 00	07 FE	05 00 92	30	00 00
User GAMMA Point 3 Reset	Execute BE EF	03 06 00	E0 C3	06 00 52	70	00 00
User GAMMA Point 4	Get BE EF 03	06 00 4C	FE 02	00 93	30	00 00
	Increment	BE EF	03	06 00	2A FE	04 00	93 30	00 00
	Decrement BE EF	03 06 00	FB FF	05 00 93	30	00 00
User GAMMA Point 4 Reset	Execute BE EF	03 06 00	1C C2	06 00 53	70	00 00
User GAMMA Point 5	Get BE EF 03	06 00 38	FF 02	00 94	30	00 00
	Increment BE EF	03 06 00	5E FF	04 00 94	30	00 00
	Decrement BE EF	03 06 00	8F FE	05 00 94	30	00 00
User GAMMA Point 5 Reset	Execute BE EF	03 06 00	68 C3	06 00 54	70	00 00
User GAMMA Point 6	Get BE EF 03	06 00 C4	FE 02	00 95	30	00 00
	Increment BE EF	03 06 00	A2 FE	04 00 95	30	00 00
	Decrement BE EF	03 06 00	73 FF	05 00 95	30	00 00
User GAMMA Point 6 Reset	Execute BE EF	03 06 00	94 C2	06 00 55	70	00 00
User GAMMA Point 7	Get BE EF 03	06 00 80	FE 02	00 96	30	00 00
	Increment BE EF	03 06 00	E6 FE	04 00 96	30	00 00
	Decrement BE EF	03 06 00	37 FF	05 00 96	30	00 00
User GAMMA Point 7 Reset	Execute BE EF	03 06 00	D0 C2	06 00 56	70	00 00
User GAMMA Point 8	Get BE EF 03	06 00 7C	FF 02	00 97	30	00 00
	Increment	BE EF	03	06 00	1A FF	04 00	97 30	00 00
	Decrement BE EF	03 06 00	CB FE	05 00 97	30	00 00
User GAMMA Point 8 Reset	Execute BE EF	03 06 00	2C C3	06 00 57	70	00 00

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
COLOR TEMP	Set	1 HIGH BE EF 03 06 00 0B F5 01 00 B0 30 03 00
		1 CUSTOM BE EF 03 06 00 0B F8 01 00 B0 30 13 00
		2 MID BE EF 03 06 00 9B F4 01 00 B0 30 02 00
		2 CUSTOM BE EF 03 06 00 5B F9 01 00 B0 30 12 00
		3 LOW BE EF 03 06 00 06 00 6B F4 01 00 B0 30 01 00
		3 CUSTOM BE EF 03 06 00 AB F9 01 00 B0 30 11 00
		4 Hi-BRIGHT-1 BE EF 03 06 00 3B F2 01 00 B0 30 08 00
		4 CUSTOM BE EF 03 06 00 FB FF 01 00 B0 30 18 00
		5 Hi-BRIGHT-2 BE EF 03 06 00 AB F3 01 00 B0 30 09 00
		5 CUSTOM BE EF 03 06 00 6B FE 01 00 B0 30 19 00
		6 Hi-BRIGHT-3 BE EF 03 06 00 06 00 5B F3 01 00 B0 30 0A 00
		6 CUSTOM BE EF 03 06 00 06 00 9B FE 01 00 B0 30 1A 00
	Get		BE EF 03 06 00 C8 F5 02 00 B0 30 00 00
COLOR TEMP GAIN R	Get		BE EF 03 06 00 34 F4 02 00 B1 30 00 00
	Increment		BE EF 03 06 00 52 F4 04 00 B1 30 00 00
	Decrement		BE EF 03 06 00 83 F5 05 00 B1 30 00 00
COLOR TEMP GAIN R Reset	Execute BE EF 03 06 00 10 C6 06 00 46 70 00 00
COLOR TEMP GAIN G	Get		BE EF 03 06 00 70 F4 02 00 B2 30 00 00
	Increment		BE EF 03 06 00 16 F4 04 00 B2 30 00 00
	Decrement BE EF 03 06 00 C7 F5 05 00 B2 30 00 00
COLOR TEMP GAIN G Reset	Execute BE EF 03 06 00 EC C7 06 00 47 70 00 00
COLOR TEMP GAIN B	Get		BE EF 03 06 00 8C F5 02 00 B3 30 00 00
	Increment		BE EF 03 06 00 EA F5 04 00 B3 30 00 00
	Decrement BE EF 03 06 00 3B F4 05 00 B3 30 00 00
COLOR TEMP GAIN B Reset	Execute		BE EF 03 06 00 F8 C4 06 00 48 70 00 00
COLOR TEMP OFFSET R	Get		BE EF 03 06 00 04 F5 02 00 B5 30 00 00
	Increment		BE EF 03 06 00 62 F5 04 00 B5 30 00 00
	Decrement BE EF 03 06 00 B3 F4 05 00 B5 30 00 00
COLOR TEMP OFFSET R Reset	Execute BE EF 03 06 00 40 C5 06 00 4A 70 00 00
COLOR TEMP OFFSET G	Get		BE EF 03 06 00 40 F5 02 00 B6 30 00 00
	Increment		BE EF 03 06 00 26 F5 04 00 B6 30 00 00
	Decrement BE EF 03 06 00 F7 F4 05 00 B6 30 00 00
COLOR TEMP OFFSET G Reset	Execute BE EF 03 06 00 BC C4 06 00 4B 70 00 00
COLOR TEMP OFFSET B	Get		BE EF 03 06 00 BC F4 02 00 B7 30 00 00
	Increment		BE EF 03 06 00 DA F4 04 00 B7 30 00 00
	Decrement BE EF 03 06 00 B5 05 00 B7 30 00 00
COLOR TEMP OFFSET B Reset	Execute BE EF 03 06 00 C8 C5 06 00 4C 70 00 00

Names Operation Type Header								CRC	Command Data
									Action Type Setting code
COLOR	Get BE EF 03		06 00 B5	72 02	00 02 2	2	00 00
	Increment BE EF		03 06 00	D3 72	04 00 02	2	22 00 00
	Decrement BE EF		03 06 00	02 73	05 00 02	2	22 00 00
COLOR Reset	Execute BE EF		03 06 00	80 D0	06 00 0A	7	00 00
TINT	Get BE EF 03		06 00 49	73 02	00 03 2	2	00 00
	Increment BE EF		03 06 00	2F 73	04 00 03	2	22 00 00
	Decrement BE EF		03 06 00	FE 7	2 05 00 0	3	22 00 00
TINT Reset	Execute BE EF		03 06 00	7C D1	06 00 0B	7	00 00
SHARPNESS	Get BE EF 03		06 00 F1	72 02	00 01 2	2	00 00
	Increment BE EF		03 06 00	97 72	04 00 01	2	22 00 00
	Decrement BE EF		03 06 00	46 73	05 00 01	2	22 00 00
SHARPNESS Reset	Execute BE EF		03 06 00	C4 D0	06 00 09	7	00 00
ACTIVE IRIS	Set	OFF	BE EF	03 06	00 0B 22	01	00 04	33 00 00
		THEATER	BE EF	03	06 00	CB 2F		01 00	04 33	10 00
		PRESENTATION	BE EF	03	06 00	5B 2E		01 00	04 33	11 00
	Get BE EF 03		06 00 38	22 02	00 04 33	00 00
MY MEMORY Load	Set	1	BE EF	03 06	00 0E D7	01	00 14	20 00 00
		2	BE EF	03 06	00 9E D6	01	00 14	20 01 00
		3	BE EF	03 06	00 6E D6	01	00 14	20 02 00
		4	BE EF	03	06 00	FE D7		01 00	14 20	03 00
MY MEMORY Save	Set	1	BE EF	03	06 00	F2 D6		01 00	15 20	00 00
		2	BE EF	03 06	00 62 D7	01	00 15	20 01 00
		3	BE EF	03 06	00 92 D7	01	00 15	20 02 00
		4	BE EF	03 06	00 02 D6	01	00 15	20 03 00
ASPECT	Set	NORMAL	BE EF	03 06	00 5E DD	01	00 08	20 10 00
		4:3 BE EF	03 06 00	9E D0	01 00 08	20 00 00
		16:9	BE EF	03 06	00 0E D1	01	00 08	20 01 00
		16:10	BE EF	03 06	00 3E D6	01	00 08	20 0A 00
		14:9	BE EF	03 06	00 CE D6	01	00 08	20 09 00
		* NATIVE	BE EF	03	06 00	5E D7		01 00	08 20	08 00
	Get BE EF 03		06 00 AD	D0 02	00 08 2	20 00 00
OVER SCAN	Get BE EF 03		06 00 91	70 02	00 09 2	2	00 00
	Increment BE EF		03 06 00	F7 70	04 00 09	2	22 00 00
	Decrement BE EF		03 06 00	26 71	05 00 09	2	22 00 00
OVER SCAN Reset	Execute BE EF		03 06 00	EC D9	06 00 27	7	00 00
V POSITION	Get BE EF 03		06 00 0D	83 02	00 00 2	1	00 00
	Increment BE EF		03 06 00	6B 83	04 00 00	2	10 00 00
	Decrement BE EF		03 06 00	BA 82	05 00 00	2	10 00 00
V POSITION Reset	Execute BE EF		03 06 00	E0 D2	06 00 02	7	00 00
H POSITION	Get BE EF 03		06 00 F1	82 02	00 01 2	1	00 00
	Increment BE EF		03 06 00	97 82	04 00 01	2	10 00 00
	Decrement BE EF		03 06 00	46 83	05 00 01	2	10 00 00
H POSITION Reset	Execute BE EF		03 06 00	1C D3	06 00 03	7	00 00

*) Supported except for CP-X8150 and CP-X8160.

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
H PHASE	Get BE EF 03		06 00 49	83 02	00 03 21	00 00
	Increment BE EF		03 06 00	2F 83	04 00 03	21 00 00
	Decrement BE EF		03 06 00	FE 82	05 00 03	21 00 00
H SIZE	Get BE EF 03		06 00 B5	82 02	00 02 21	00 00
	Increment BE EF		03 06 00	D3 82	04 00 02	21 00 00
	Decrement BE EF		03 06 00	02 83	05 00 02	21 00 00
H SIZE Reset	Execute BE EF		03 06 00	68 D2	06 00 04	70 00 00
AUTO ADJUST EXECUTE	Execute BE EF		03 06 00	91 D0	06 00 0A	20 00 00
PROGRESSIVE	Set	OFF BE EF	03 06 00	4A 72	01 00 07	22 00 00
		TV	BE EF	03	06 00	DA 73	01 00	07 22	01 00
		FILM BE EF	03 06 00	2A 73	01 00 07	22 02 00
	Get BE EF 03		06 00 79	72 02	00 07 22	00 00
VIDEO NR	Set	LOW BE EF	03 06 00	26 72	01 00 06	22 01 00
		MID	BE EF 03	06 00	D6 72	01 00 06	22 02 00
		HIGH	BE EF 03	06 00	46 73	01 00 06	22 03 00
	Get BE EF 03		06 00 85	73 02	00 06 22	00 00
COLOR SPACE	Set	AUTO	BE EF	03 06	00 0E 72	01 00 04	22 00 00
		RGB BE EF	03 06 00	9E 73	01 00 04	22 01 00
		SMPTE240	BE EF	03 06	00 6E 73	01 00 04	22 02 00
		REC709	BE EF	03	06 00	FE 72	01 00	04 22	03 00
		REC601	BE EF	03 06	00 CE 70	01 00 04	22 04 00
	Get BE EF 03		06 00 3D	72 02	00 04 22	00 00
COMPONENT	Set	COMPONENT BE	EF 03 06	00 4A	D7 01	00 17 20	00 00
		SCART RGB	BE EF	03	06 00	DA D6	01 00	17 20	01 00
	Get BE EF 03		06 00 79	D7 02	00 17 20	00 00
S-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	E6 70	01 00	12 22	0A 00
		NTSC BE EF	03 06 00	86 74	01 00 12	22 04 00
		PAL	BE EF	03	06 00	16 75	01 00	12 22	05 00
		SECAM	BE EF 03	06 00	16 70	01 00 12	22 09 00
		NTSC4.43	BE EF 03	06 00	26 77	01 00 12	22 02 00
		M-PAL	BE EF	03	06 00	86 71	01 00	12 22	08 00
		N-PAL	BE EF	03	06 00	76 74	01 00	12 22	07 00
	Get BE EF 03		06 00 75	76 02	00 12 22	00 00
C-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	A2 70	01 00	11 22	0A 00
		NTSC	BE EF	03	06 00	C2 74	01 00	11 22	04 00
		PAL	BE EF	03	06 00	52 75	01 00	11 22	05 00
		SECAM	BE EF	03	06 00	52 70	01 00	11 22	09 00
		NTSC4.43	BE EF	03	06 00	62 77	01 00	11 22	02 00
		M-PAL	BE EF	03	06 00	C2 71	01 00	11 22	08 00
		N-PAL	BE EF	03	06 00	32 74	01 00	11 22	07 00
	Get BE EF 03		06 00 31	76 02	00 11 22	00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header								CRC	Command Data
									Action Type Setting code
HDMI 1 FORMAT	Set	AUTO BE EF	03 06 00	BA 7	7 01 00	13 22 00	00
		VIDEO BE EF	03 06 00	2A 7	6 01 00	13 22 01	00
		COMPUTER BE	EF 03 06	00 DA	76 01	00 13 22	02 00
	Get BE EF 03		06 00 89	77 02	00 13 22	00 00
HDMI 2 FORMAT	Set	AUTO BE EF	03 06 00	52 75	01 00 1D	22	00 00
		VIDEO BE EF	03 06 00	C2 74	01 00 1D	22	01 00
		COMPUTER BE	EF 03 06	00 32	74 01 00	1D 22	02 00
	Get BE EF 03		06 00 61	75 02	00 1D 22	00 00
HDMI 1 RANGE	Set	AUTO BE EF	03 06 00	86 D	8 01 00	22 20 00	00
		NORMAL	BE EF 03	06 00	16 D9	01 00 22	20 01 00
		ENHANCED	BE EF 03	06 00	E6 D9	01 00 22	20 02 00
	Get BE EF 03		06 00 B5	D8 02	00 22 20	00 00
HDMI 2 RANGE	Set	AUTO BE EF	03 06 00	7A D	9 01 00	23 20 00	00
		NORMAL	BE EF	03	06 00	EA D8	01 00	23 20	01 00
		ENHANCED	BE EF	03	06 00	1A D8	01 00	23 20	02 00
	Get BE EF 03		06 00 49	D9 02	00 23 20	00 00
COMPUTER IN1	Set	AUTO BE EF	03 06 00	CE D	6 01 00	10 20 03	00
		SYNC ON G OFF	BE EF	03	06 00	5E D7	01 00	10 20	02 00
	Get BE EF 03		06 00 0D	D6 02	00 10 20	00 00
COMPUTER IN2	Set	AUTO BE EF	03 06 00	32 D	7 01 00	11 20	03 00
		SYNC ON G OFF	BE EF	03	06 00	A2 D6	01 00	11 20	02 00
	Get		BE EF	03	06 00	F1 D7	02 00	11 20	00 00
FRAME LOCK - COMPUTER IN1	Set	OFF	BE EF	03	06 00	3B C2	01 00	50 30	00 00
		ON	BE EF	03 06	00 AB C3	01 00 50	30 01 00
	Get BE EF 03		06 00 08	C2 02	00 50 30	00 00
FRAME LOCK - COMPUTER IN2	Set	OFF	BE EF	03	06 00	0B C3	01 00	54 30	00 00
		ON	BE EF	03	06 00	9B C2	01 00	54 30	01 00
	Get BE EF 03		06 00 38	C3 02	00 54 30	00 00
FRAME LOCK - HDMI 1	Set	OFF	BE EF	03	06 00	7F C2	01 00	53 30	00 00
		ON	BE EF	03	06 00	EF C3	01 00	53 30	01 00
	Get BE EF 03		06 00 4C	C2 02	00 53 30	00 00
FRAME LOCK - HDMI 2	Set	OFF	BE EF	03	06 00	97 C0	01 00	5D 30	00 00
		ON	BE EF	03	06 00	07 C1	01 00	5D 30	01 00
	Get		BE EF	03	06 00	A4 C0	02 00	5D 30	00 00

Names Operation Type Header						CRC	Command Data
							Action Type Setting code
AUTO KEYSTONE V EXECUTE	Execute BE EF 03 06 00 E5 D1 06 00 0D 20 00 00
KEYSTONE V	Get BE EF 03 06 00 B9 D3 02 00 07 20 00 00
	Increment BE EF 03 06 00 DF D3 04 00 07 20 00 00
	Decrement BE EF 03 06 00 0E D2 05 00 07 20 00 00
KEYSTONE V Reset	Execute BE EF 03 06 00 08 D0 06 00 0C 70 00 00
KEYSTONE H	Get BE EF 03 06 00 E9 D0 02 00 0B 20 00 00
	Increment BE EF 03 06 00 8F D0 04 00 0B 20 00 00
	Decrement BE EF 03 06 00 5E D1 05 00 0B 20 00 00
KEYSTONE H Reset	Execute BE EF 03 06 00 98 D8 06 00 20 70 00 00
PERFECT FIT	Set	Disable	BE EF	03	06 00	FE 88	01 00	20 21	00 00
		Enable	BE EF	03 06	00 6E 89	01 00 20	21 01 00
	Get BE EF 03 06 00 CD 88 02 00 20 21 00 00
PERFECT FIT Left Top - H	Get BE EF 03 06 00 31 89 02 00 21 21 00 00
	Increment BE EF 03 06 00 57 89 04 00 21 21 00 00
	Decrement BE EF 03 06 00 86 88 05 00 21 21 00 00
PERFECT FIT Left Top - V	Get BE EF 03 06 00 75 89 02 00 22 21 00 00
	Increment BE EF 03 06 00 13 89 04 00 22 21 00 00
	Decrement BE EF 03 06 00 C2 88 05 00 22 21 00 00
PERFECT FIT Right Top - H	Get BE EF 03 06 00 89 88 02 00 23 21 00 00
	Increment	BE EF	03	06 00	EF 88	04 00	23 21	00 00
	Decrement BE EF 03 06 00 3E 89 05 00 23 21 00 00
PERFECT FIT Right Top - V	Get	BE EF	03	06 00	FD 89	02 00	24 21	00 00
	Increment BE EF	03 06	00 9B	89 04 00	24 21 00	00
	Decrement	BE EF	03	06 00	4A 88	05 00	24 21	00 00
PERFECT FIT Left Bottom - H	Get BE EF 03 06 00 01 88 02 00 25 21 00 00
	Increment BE EF	03 06	00 67	88 04 00	25 21 00	00
	Decrement BE EF	03 06	00 B6	89 05 00	25 21 00	00
PERFECT FIT Left Bottom - V	Get BE EF 03 06 00 45 88 02 00 26 21 00 00
	Increment BE EF	03 06	00 23	88 04 00	26 21 00	00
	Decrement	BE EF	03	06 00	F2 89	05 00	26 21	00 00
PERFECT FIT Right Bottom - H	Get BE EF 03 06 00 B9 89 02 00 27 21 00 00
	Increment	BE EF	03	06 00	DF 89	04 00	27 21	00 00
	Decrement BE EF 03 06 00 0E 88 05 00 27 21 00 00
PERFECT FIT Right Bottom - V	Get BE EF 03 06 00 AD 8A 02 00 28 21 00 00
	Increment BE EF	03 06	00 CB	8A 04 00	28 21 00	00
	Decrement	BE EF	03	06 00	1A 8B	05 00	28 21	00 00
PERFECT FIT All Corners Reset	Execute BE EF 03 06 00 D5 8A 06 00 29 21 00 00
* PERFECT FIT Left Side Distortion	Get BE EF 03	06 00 31	97 02	00 41 2	1 00 00
	Increment BE EF	03 06 00	57 97	04 00 41	21 00 00
	Decrement BE EF	03 06 00	86 96	05 00 41	21 00 00
* PERFECT FIT Right Side Distortion	Get BE EF 03	06 00 75	97 02	00 42 2	1 00 00
	Increment BE EF	03 06 00	13 97	04 00 42	21 00 00
	Decrement BE EF	03 06 00	C2 96	05 00 42	21 00 00
* PERFECT FIT Distortion Position V	Get BE EF 03	06 00 89	96 02	00 43 2	1 00 00
	Increment BE EF	03 06 00	EF 96	04 00 43	21 00 00
	Decrement BE EF	03 06 00	3E 97	05 00 43	21 00 00
* PERFECT FIT Top Side Distortion	Get BE EF 03	06 00 FD	97 02	00 44 2	1 00 00
	Increment BE EF	03 06 00	9B 97	04 00 44	21 00 00
	Decrement BE EF	03 06 00	4A 96	05 00 44	21 00 00
* PERFECT FIT Bottom Side Distortion	Get BE EF 03	06 00 01	96 02	00 45 2	1 00 00
	Increment BE EF	03 06 00	67 96	04 00 45	21 00 00
	Decrement BE EF	03 06 00	B6 97	05 00 45	21 00 00
* PERFECT FIT Distortion Position H	Get BE EF 03	06 00 45	96 02	00 46 2	1 00 00
	Increment BE EF	03 06 00	23 96	04 00 46	21 00 00
	Decrement BE EF	03 06 00	F2 97	05 00 46	21 00 00
* PERFECT FIT All Sides Reset	Execute BE EF	03 06 00	3D 96	06 00 47	21 00 00
PERFECT FIT Memory Save-1	Execute BE EF	03 06 00	29 95	06 00 48	21 00 00
PERFECT FIT Memory Save-2	Execute BE EF	03 06 00	D5 94	06 00 49	21 00 00
PERFECT FIT Memory Save-3	Execute BE EF	03 06 00	91 94	06 00 4A	21 00 00
PERFECT FIT Memory Load-1	Execute BE EF	03 06 00	6D 95	06 00 4B	21 00 00
PERFECT FIT Memory Load-2	Execute BE EF	03 06 00	19 94	06 00 4C	21 00 00
PERFECT FIT Memory Load-3	Execute BE EF	03 06 00	E5 95	06 00 4D	21 00 00
AUTO ECO MODE	Set	OFF	BE EF	03	06 00	FB 27	01 00	10 33	00 00
		ON	BE EF	03 06	00 6B 26	01 00 10	33 01 00
	Get BE EF 03		27 02	00 10	33 00 00
ECO MODE	Set	NORMAL	BE EF	03 06	00 3B 23	01 00 00	33 00 00
		ECO BE EF	03 06 00	AB 22	21 00 00	03 33 01 00
	Get BE EF 03		06 00 08	23 02	00 00 33	00 00
INSTALLATION	Set	FRONT / DESKTOP	BE EF	03 06	00 C7 D2	01 00 01	30 00 00
		REAR / DESKTOP	BE EF	03 06	00 57 D3	01 00 01	30 01 00
		REAR / CEILING	BE EF	03 06	00 A7 D3	01 00 01	30 02 00
		FRONT / CEILING	BE EF	03 06	00 37 D2	01 00 01	30 03 00
	Get BE EF 03		06 00 F4	D2 02	00 01	30 00 00

*) Only for CP-X8150, CP-X8160, CP-WX8240 and CP-WX8255.

Names Operation Type Header						CRC	Command Data
							Action Type Setting code
STANDBY MODE	Set	NORMAL BE	EF 03 06	00 D6	D2 01 00	01 60 00	00
		SAVING BE	EF 03 06	00 46	D3 01 00	01 60 01	00
	Get BE EF 03		06 00 E5	D2 02	00 01	60 00 00
MONITOR OUT - COMPUTER IN1	Set	COMPUTER IN1	BE EF	03	06 00	3E F4	01 00	B0 20	00 00
		* COMPUTER IN2	BE EF	03 06	00 FE F6	01 00 B0	20 04 00
		OFF	BE EF	03	06 00	CE B5	01 00	B0 20	FF 00
	Get BE EF 03		06 00 0D	F4 02	00 B0	20 00 00
MONITOR OUT - COMPUTER IN2	Set	* COMPUTER IN1	BE EF	03	06 00	0E F5	01 00	B4 20	00 00
		COMPUTER IN2	BE EF	03	06 00	CE F7	01 00	B4 20	04 00
		OFF	BE EF	03	06 00	FE B4	01 00	B4 20	FF 00
	Get BE EF 03		06 00 3D	F5 02	00 B4	20 00 00
MONITOR OUT - LAN	Set	COMPUTER IN1	BE EF	03	06 00	1A F6	01 00	BB 20	00 00
		COMPUTER IN2	BE EF	03	06 00	DA F4	01 00	BB 20	04 00
		OFF	BE EF	03	06 00	EA B7	01 00	BB 20	FF 00
	Get		BE EF	03	06 00	29 F6	02 00	BB 20	00 00
MONITOR OUT-USB TYPE A	Set	COMPUTER IN1	BE EF	03	06 00	B6 F4	01 00	B6 20	00 00
		COMPUTER IN2 BE	EF 03	06 00	76 F6 01	00 B6 20	04 00
		OFF	BE EF	03 06	00 46 B5	01 00 B6	20 FF 00
	Get BE EF 03		06 00 85	F4 02	00 B6	20 00 00
MONITOR OUT - USB TYPE B	Set	COMPUTER IN1	BE EF	03	06 00	6E F7	01 00	BC 20	00 00
		COMPUTER IN2	BE EF	03	06 00	AE F5	01 00	BC 20	04 00
		OFF	BE EF	03	06 00	9E B6	01 00	BC 20	FF 00
	Get		BE EF	03	06 00	5D F7	02 00	BC 20	00 00
MONITOR OUT - HDMI 1	Set	COMPUTER IN1	BE EF	03	06 00	7A F4	01 00	B3 20	00 00
		COMPUTER IN2	BE EF	03	06 00	BA F6	01 00	B3 20	04 00
		OFF	BE EF	03	06 00	8A B5	01 00	B3 20	FF 00
	Get BE EF 03		06 00 49	F4 02	00 B3	20 00 00
MONITOR OUT - HDMI 2	Set	COMPUTER IN1	BE EF	03	06 00	92 F6	01 00	BD 20	00 00
		COMPUTER IN2	BE EF	03	06 00	52 F4	01 00	BD 20	04 00
		OFF	BE EF	03	06 00	62 B7	01 00	BD 20	FF 00
	Get		BE EF	03	06 00	A1 F6	02 00	BD 20	00 00
MONITOR OUT - COMPONENT	Set	COMPUTER IN1	BE EF	03	06 00	F2 F4	01 00	B5 20	00 00
		COMPUTER IN2 BE	EF 03	06 00	32 F6 01	00 B5 20	04 00
		OFF	BE EF	03 06	00 02 B5	01 00 B5	20 FF 00
	Get		BE EF	03	06 00	C1 F4	02 00	B5 20	00 00
MONITOR OUT - S-VIDEO	Set	COMPUTER IN1 BE	EF 03	06 00	86 F5 01	00 B2 20	00 00
		COMPUTER IN2 BE	EF 03	06 00	46 F7 01	00 B2 20	04 00
		OFF	BE EF	03 06	00 76 B4	01 00 B2	20 FF 00
	Get BE EF 03		06 00 B5	F5 02	00 B2	20 00 00
MONITOR OUT - VIDEO	Set	COMPUTER IN1	BE EF	03	06 00	C2 F5	01 00	B1 20	00 00
		COMPUTER IN2 BE	EF 03	06 00	02 F7 01	00 B1 20	04 00
		OFF	BE EF	03 06	00 32 B4	01 00 B1	20 FF 00
	Get BE EF 03		06 00 F1	F5 02	00 B1	20 00 00
MONITOR OUT - STANDBY	Set	COMPUTER IN1	BE EF	03	06 00	2A F7	01 00	BF 20	00 00
		COMPUTER IN2	BE EF	03	06 00	EA F5	01 00	BF 20	04 00
		OFF	BE EF	03	06 00	DA B6	01 00	BF 20	FF 00
	Get		BE EF	03	06 00	19 F7	02 00	BF 20	00 00

*) Only for CP-WU8440 and CP-WU8450.

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
VOLUME - COMPUTER IN1	Get BE EF 03	06 00 CD	CC 02	00 60	20 00 00
	Increment BE EF	03 06 00	AB CC	04 00 60	20 00 00
	Decrement BE EF	03 06 00	7A CD	05 00 60	20 00 00
VOLUME - COMPUTER IN2	Get	BE EF	03	06 00	FD CD	02 00	64 20	00 00
	Increment BE EF	03 06 00	9B CD	04 00 64	20 00 00
	Decrement BE EF	03 06 00	4A CC	05 00 64	20 00 00
VOLUME - LAN	Get BE EF 03	06 00 E9	CE 02	00 6B 20	00
	Increment	BE EF	03	06 00	8F CE	04 00	6B 20	00 00
	Decrement	BE EF	03	06 00	5E CF	05 00	6B 20	00 00
VOLUME - USB TYPE A	Get BE EF 03	06 00 45	CC 02	00 66 20	00
	Increment BE EF	03 06 00	23 CC	04 00 66 20		00 00
	Decrement BE EF	03 06 00	F2 CD	05 00 66 20 00		00
VOLUME - USB TYPE B	Get	BE EF	03	06 00	9D CF	02 00	6C 20	00 00
	Increment	BE EF	03	06 00	FB CF	04 00	6C 20	00 00
	Decrement	BE EF	03	06 00	2A CE	05 00	6C 20	00 00
VOLUME - HDMI 1	Get BE EF 03	06 00 89	CC 02	00 63 20	00
	Increment BE EF	03 06 00	EF CC	04 00 63 20 00		00
	Decrement BE EF	03 06 00	3E CD	05 00 63 20 00		00
VOLUME - HDMI 2	Get	BE EF	03	06 00	61 CE	02 00	6D 20	00 00
	Increment	BE EF	03	06 00	07 CE	04 00	6D 20	00 00
	Decrement	BE EF	03	06 00	D6 CF	05 00	6D 20	00 00
VOLUME - COMPONENT	Get BE EF 03	06 00 01	CC 02	00 65 20	00
	Increment BE EF	03 06 00	67 CC	04 00 65 20		00 00
	Decrement BE EF	03 06 00	B6 CD	05 00 65 20 00		00
VOLUME - S-VIDEO	Get BE EF 03	06 00 75	CD 02	00 62 20	00
	Increment BE EF	03 06 00	13 CD	04 00 62 20		00 00
	Decrement BE EF	03 06 00	C2 CC	05 00 62 20 00		00
VOLUME - VIDEO	Get BE EF 03	06 00 31	CD 02	00 61 20	00
	Increment BE EF	03 06 00	57 CD	04 00 61 20		00 00
	Decrement BE EF	03 06 00	86 CC	05 00 61 20		00 00
VOLUME - STANDBY	Get	BE EF	03	06 00	D9 CF	02 00	6F 20	00 00
	Increment	BE EF	03	06 00	BF CF	04 00	6F 20	00 00
	Decrement BE EF	03 06 00	6E CE	05 00 6F 20 00		00
VOLUME - ALL	Get BE EF 03	06 00 CD	C3 02	00 50 20 00 00
	Increment BE EF	03 06 00	AB C3	04 00 50 20 00 00
	Decrement	BE EF	03	06 00	7A C2	05 00	50 20	00 00
MUTE	Set OFF	BE EF	03	06 00	46 D3	01 00	02 20	00 00
	ON	BE EF	03	06 00	D6 D2	01 00	02 20	01 00
	Get	BE EF	03	06 00	75 D3	02 00	02 20	00 00
SPEAKER	Set ON	BE EF	03	06 00	FE D4	01 00	1C 20	01 00
	OFF	BE EF	03	06 00	6E D5	01 00	1C 20	00 00
	Get	BE EF	03	06 00	5D D5	02 00	1C 20	00 00
AUDIO SOURCE - COMPUTER IN1	Set	AUDIO IN1 BE	EF 03 06	00 6E	DC 01 00	0 30 20 01 00
		AUDIO IN2 BE	EF 03 06	00 9E	DC 01 00	0 30 20 02 00
		AUDIO IN3 BE	EF 03 06	00 0E	DD 01 00	0 30 20 03 00
		OFF BE EF	03 06 00	FE D	D 01 00 30	20 00 00
	Get BE EF 03		06 00 CD	DD 02 00 30	20 00 00
AUDIO SOURCE - COMPUTER IN2	Set	AUDIO IN1 BE	EF 03 06	00 5E	DD 01 00	0 34 20 01 00
		AUDIO IN2 BE	EF 03 06	00 AE	DD 01 00	0 34 20 02 00
		AUDIO IN3 BE	EF 03 06	00 3E	DC 01 00	0 34 20 03 00
		OFF BE EF	03 06 00	CE DC	01 00 34	20 00 00
	Get BE EF 03		06 00 FD	DC 02 00 34	20 00 00
AUDIO SOURCE - LAN	Set	AUDIO IN1 BE	EF 03 06	00 4A	DE 01 00	3B 20	01 00
		AUDIO IN2 BE	EF 03 06	00 BA	DE 01 00	3B 20	02 00
		AUDIO IN3	BE EF	03	06 00	2A DF	01 00	3B 20	03 00
		AUDIO LAN	BE EF	03	06 00	8A D3	01 00	3B 20	11 00
		OFF	BE EF	03	06 00	DA DF	01 00	3B 20	00 00
	Get		BE EF	03	06 00	E9 DF	02 00	3B 20	00 00
AUDIO SOURCE - USB TYPE A	Set	AUDIO IN1 BE	EF 03 06	00 E6	DC 01 00	36 20 01 00
		AUDIO IN2 BE	EF 03 06	00 16	DC 01 00	36 20 02 00
		AUDIO IN3 BE	EF 03 06	00 86	DD 01 00	36 20 03 00
		AUDIO USB TYPE A	BE EF	03 06	00 B6 D0	01 00	36 20 10	00
		OFF BE EF	03 06 00	76 DD	01 00 36	20 00 00
	Get BE EF 03		06 00 45	DD 02	00 36	20 00 00
AUDIO SOURCE - USB TYPE B	Set	AUDIO IN1	BE EF	03	06 00	3E DF	01 00	3C 20	01 00
		AUDIO IN2	BE EF	03	06 00	CE DF	01 00	3C 20	02 00
		AUDIO IN3 BE	EF 03 06	00 5E	DE 01 00	3C 20	03 00
		AUDIO USB TYPE B	BE EF	03	06 00	OE D2	01 00	3C 20	12 00
		OFF BE EF	03 06 00	AE DE	01 00 3C	20	00 00
	Get BE EF 03		06 00 9D	DE 02	00 3C	20 00 00	00
AUDIO SOURCE - HDMI 1	Set	AUDIO IN1 BE	EF 03 06	00 2A	DC 01 00	33 20 01 00
		AUDIO IN2 BE	EF 03 06	00 DA	DC 01 00	33 20 02 00
		AUDIO IN3 BE	EF 03 06	00 4A	DD 01 00	33 20 03 00
		AUDIO HDMI 1	BE EF	03	06 00	7A C4	01 00	33 20	20 00
		OFF BE EF	03 06 00	BA DD	01 00 33	20 00 00
	Get BE EF 03		06 00 89	DD 02	00 33	20 00 00
AUDIO SOURCE - HDMI 2	Set	AUDIO IN1 BE	EF 03 06	00 C2	DE 01 00	3D 20	01 00
		AUDIO IN2	BE EF	03	06 00	32 DE	01 00	3D 20	02 00
		AUDIO IN3	BE EF	03	06 00	A2 DF	01 00	3D 20	03 00
		AUDIO HDMI 2	BE EF	03	06 00	02 C7	01 00	3D 20	21 00
		OFF	BE EF	03	06 00	52 DF	01 00	3D 20	00 00
	Get		BE EF	03	06 00	61 DF	02 00	3D 20	00 00
AUDIO SOURCE - COMPONENT	Set	AUDIO IN1 BE	EF 03 06	00 A2	DC 01 00	35 20 01 00
		AUDIO IN2 BE	EF 03 06	00 52	DC 01 00	35 20 02 00
		AUDIO IN3 BE	EF 03 06	00 C2	DD 01 00	35 20 03 00
		OFF BE EF	03 06 00	32 DD	01 00 35	20 00 00
	Get BE EF 03		06 00 01	DD 02	00 35	20 00 00
AUDIO SOURCE - S-VIDEO	Set	AUDIO IN1 BE	EF 03 06	00 D6	DD 01 00	0 32 20 01 00
		AUDIO IN2 BE	EF 03 06	00 26	DD 01 00	0 32 20 02 00
		AUDIO IN3 BE	EF 03 06	00 B6	DC 01 00	0 32 20 03 00
		OFF BE EF	03 06 00	46 DC	01 00 32	20 00 00
	Get BE EF 03		06 00 75	DC 02	00 32	20 00 00
AUDIO SOURCE - VIDEO	Set	AUDIO IN1 BE	EF 03 06	00 92	DD 01 00	0 31 20 01 00
		AUDIO IN2 BE	EF 03 06	00 62	DD 01 00	0 31 20 02 00
		AUDIO IN3 BE	EF 03 06	00 F2	DC 01 00	0 31 20 03 00
		OFF BE EF	03 06 00	02 DC	01 00 31	20 00 00
	Get BE EF 03		06 00 31	DC 02	00 31	20 00 00
AUDIO SOURCE - AUDIO OUT STANDBY	Set	AUDIO IN1	BE EF	03	06 00	7A DF	01 00	3F 20	01 00
		AUDIO IN2	BE EF	03	06 00	8A DF	01 00	3F 20	02 00
		AUDIO IN3 BE	EF 03 06	00 1A	DE 01 00	3F 20 03 00
		OFF BE EF	03 06 00	EA DE	01 00 3F	20 00 00
	Get BE EF 03		06 00 D9	DE 02	00 3F	20 00 00
LAN SOUND ENABLE	Set	Disable	BE EF	03	06 00	BA F0	01 00	A3 20	00 00
		Enable	BE EF	03	06 00	2A F1	01 00	A3 20	01 00
	Get		BE EF	03	06 00	89 F0	02 00	A3 20	00 00
USB TYPE A SOUND ENABLE	Set	Disable	BE EF	03	06 00	CE F1	01 00	A4 20	00 00
		Enable	BE EF	03	06 00	5E F0	01 00	A4 20	01 00
	Get		BE EF	03	06 00	FD F1	02 00	A4 20	00 00
USB TYPE B SOUND ENABLE	Set	Disable	BE EF	03	06 00	32 F0	01 00	A5 20	00 00
		Enable	BE EF	03	06 00	A2 F1	01 00	A5 20	01 00
	Get		BE EF	03	06 00	01 F0	02 00	A5 20	00 00
HDMI 1 AUDIO	Set	1	BE EF	03 06	00 AE C6	01 00 40	20 01 00
		2	BE EF	03 06	00 5E C6	01 00 40	20 02 00
	Get BE EF 03		06 00 0D	C7 02	00 40	20 00 00
HDMI 2 AUDIO	Set	1	BE EF	03	06 00	52 C7	01 00	41 20	01 00
		2	BE EF	03 06	00 A2 C7	01 00 41	20 02 00
	Get		BE EF	03	06 00	F1 C6	02 00	41 20	00 00
LANGUAGE	Set	ENGLISH	BE EF	03	06 00	F7 D3	01 00	05 30	00 00
		FRANÇAIS	BE EF	03	06 00	67 D2	01 00	05 30	01 00
		DEUTSCH	BE EF	03	06 00	97 D2	01 00	05 30	02 00
		ESPAÑOL	BE EF	03	06 00	07 D3	01 00	05 30	03 00
		ITALIANO	BE EF	03	06 00	37 D1	01 00	05 30	04 00
		NORSK	BE EF	03 06	00 A7 D0	01 00 05	30 05 00
		NEDERLANDS	BE EF	03	06 00	57 D0	01 00	05 30	06 00
		PORTUGUÊS	BE EF	03 06	00 C7 D1	01 00 05	30 07 00
		日本語	BE EF	03	06 00	37 D4	01 00	05 30	08 00
		簡体中文	BE EF	03 06	00 A7 D5	01 00 05	30 09 00
		繁体中文	BE EF	03 06	00 37 DE	01 00 05	30 10 00
		한국어	BE EF	03	06 00	57 D5	01 00	05 30	0A 00
		SVENSKA	BE EF	03	06 00	C7 D4	01 00	05 30	0B 00
		PYCCKINI	BE EF	03	06 00	F7 D6	01 00	05 30	0C 00
		SUOMI	BE EF	03	06 00	67 D7	01 00	05 30	0D 00
		POLSKI	BE EF	03	06 00	97 D7	01 00	05 30	OE 00
		NOTE) Not all of the languages in this table are supported.

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
LANGUAGE	Set	TÜRKÇE BE EF 03 06 00 07 D6 01 00 05 30 0F 00
		DANSK BE EF 03 06 00 A7 DF 01 00 05 30 11 00
		ČESKY	BE EF	03	06 00	57 DF	01 00	05 30	12 00
		MAGYAR BE EF 03 06 00 C7 DE 01 00 05 30 13 00
		ROMÂNÃ	BE EF	03	06 00	F7 DC	01 00	05 30	14 00
		SLOVENSKI BE EF 03 06 00 67 DD 01 00 05 30 15 00
		HRVATSKI	BE EF	03	06 00	97 DD	01 00	05 30	16 00
		ΕΛΛΗΝΙΚΑ	BE EF	03	06 00	07 DC	01 00	05 30	17 00
		LIETUVIŲ	BE EF	03	06 00	F7 D9	01 00	05 30	18 00
		EESTI	BE EF	03 06	00 67 D8	01 00 05	30 19 00
		LATVIEŠU	BE EF	03	06 00	97 D8	01 00	05 30	1A 00
		Inyu	BE EF	03 06	00 07 D9	01 00 05	30 1B 00
		دکب regarding	BE EF	03 06	00 37 DB	01 00 05	30 1C 00
		کسیف	BE EF	03 06	00 A7 DA	01 00 05	30 1D 00
		PORTUGUÊS BRA	BE EF	03	06 00	57 DA	01 00	05 30	1E 00
		BAHASA IND	BE EF	03 06	00 C7 DB	01 00 05	30 1F 00
		TIENG VIET	BE EF	03	06 00	37 CA	01 00	05 30	20 00
	NOTE) Not all of the languages in this table are supported.
	Get		BE EF	03	06 00	C4 D3	02 00	05 30	00 00
MENU POSITION V	Get		BE EF	03	06 00	40 D7	02 00	16 30	00 00
	Increment		BE EF	03	06 00	26 D7	04 00	16 30	00 00
	Decrement		BE EF	03	06 00	F7 D6	05 00	16 30	00 00
MENU POSITION V Reset	Execute BE EF 03 06 00 A8 C7 06 00 44 70 00 00
MENU POSITION H	Get		BE EF	03	06 00	04 D7	02 00	15 30	00 00
	Increment		BE EF	03	06 00	62 D7	04 00	15 30	00 00
	Decrement		BE EF	03	06 00	B3 D6	05 00	15 30	00 00
MENU POSITION H Reset	Execute		BE EF	03	06 00	DC C6	06 00	43 70	00 00
BLANK	Set	MyScreen	BE EF	03	06 00	FB CA	01 00	00 30	20 00
		ORIGINAL	BE EF	03	06 00	FB E2	01 00	00 30	40 00
		BLUE	BE EF	03	06 00	CB D3	01 00	00 30	03 00
		WHITE	BE EF	03	06 00	6B D0	01 00	00 30	05 00
		BLACK	BE EF	03	06 00	9B D0	01 00	00 30	06 00
	Get		BE EF	03	06 00	08 D3	02 00	00 30	00 00
BLANK On/Off	Set	OFF	BE EF	03	06 00	FB D8	01 00	20 30	00 00
		ON	BE EF	03	06 00	6B D9	01 00	20 30	01 00
	Get		BE EF	03	06 00	C8 D8	02 00	20 30	00 00
START UP	Set	MyScreen	BE EF	03	06 00	CB CB	01 00	04 30	20 00
		ORIGINAL	BE EF	03	06 00	0B D2	01 00	04 30	00 00
		OFF	BE EF	03	06 00	9B D3	01 00	04 30	01 00
	Get		BE EF	03	06 00	38 D2	02 00	04 30	00 00
MyScreen Lock	Set	OFF	BE EF	03	06 00	3B EF	01 00	C0 30	00 00
		ON	BE EF	03 06	00 AB EE	01 00 C0	30 01 00
	Get		BE EF	03	06 00	08 EF	02 00	C0 30	00 00
MESSAGE	Set	OFF	BE EF	03	06 00	8F D6	01 00	17 30	00 00
		ON	BE EF	03	06 00	1F D7	01 00	17 30	01 00
	Get		BE EF	03	06 00	BC D6	02 00	17 30	00 00
TEMPLATE	Set	TEST PATTERN BE EF 03 06 00 43 D9 01 00 22 30 00 00
		DOT-LINE 1 BE EF 03 06 00 D8 D8 01 00 22 30 01 00
		DOT-LINE 2 BE EF 03 06 00 23 D8 01 00 22 30 02 00
		DOT-LINE 3 BE EF 03 06 00 B3 D9 01 00 22 30 03 00
		DOT-LINE 4 BE EF 03 06 00 83 DB 01 00 22 30 04 00
		CIRCLE 1 BE EF 03 06 00 13 DA 01 00 22 30 05 00
		CIRCLE 2 BE EF 03 06 00 E3 DA 01 00 22 30 06 00
		MAP 1 BE EF 03 06 00 83 D4 01 00 22 30 10 00
		MAP 2 BE EF 03 06 00 13 D5 01 00 22 30 11 00
		STACK BE EF 03 06 00 83 C0 01 00 22 30 20 00
	Get		BE EF 03 06 00 70 D9 02 00 22 30 00 00
TEMPLATE On/Off	Set	OFF	BE EF	03	06 00	BF D8	01 00	23 30	00 00
		ON	BE EF	03	06 00	2F D9	01 00	23 30	01 00
	Get		BE EF 03 06 00 8C D8 02 00 23 30 00 00
C. C. - DISPLAY	Set	OFF	BE EF	03	06 00	FA 62	01 00	00 37	00 00
		ON	BE EF	03	06 00	6A 63	01 00	00 37	01 00
		AUTO	BE EF	03	06 00	9A 63	01 00	00 37	02 00
	Get		BE EF	03	06 00	C9 62	02 00	00 37	00 00
C. C. - MODE	Set	CAPTIONS	BE EF	03	06 00	06 63	01 00	01 37	00 00
		TEXT	BE EF	03	06 00	96 62	01 00	01 37	01 00
	Get		BE EF	03	06 00	35 63	02 00	01 37	00 00
C. C. - CHANNEL	Set	1	BE EF	03	06 00	D2 62	01 00	02 37	01 00
		2	BE EF	03	06 00	22 62	01 00	02 37	02 00
		3	BE EF	03	06 00	B2 63	01 00	02 37	03 00
		4	BE EF	03	06 00	82 61	01 00	02 37	04 00
	Get		BE EF	03	06 00	71 63	02 00	02 37	00 00
SOURCE SKIP - COMPUTER IN1	Set	NORMAL	BE EF	03	06 00	FE 78	01 00	20 22	00 00
		SKIP	BE EF	03	06 00	6E 79	01 00	20 22	01 00
	Get		BE EF 03 06 00 CD 78 02 00 20 22 00 00
SOURCE SKIP - COMPUTER IN2	Set	NORMAL	BE EF 03 06 00 CE 79 01 00 24 22 00 00
		SKIP	BE EF	03	06 00	5E 78	01 00	24 22	01 00
	Get		BE EF	03	06 00	FD 79	02 00	24 22	00 00
SOURCE SKIP - LAN	Set	NORMAL	BE EF	03	06 00	DA 7A	01 00	2B 22	00 00
		SKIP	BE EF	03	06 00	4A 7B	01 00	2B 22	01 00
	Get		BE EF	03	06 00	E9 7A	02 00	2B 22	00 00
SOURCE SKIP - USB TYPE A	Set	NORMAL	BE EF	03	06 00	76 78	01 00	26 22	00 00
		SKIP	BE EF	03	06 00	E6 79	01 00	26 22	01 00
	Get		BE EF	03	06 00	45 78	02 00	26 22	00 00
SOURCE SKIP - USB TYPE B	Set	NORMAL	BE EF	03	06 00	AE 7B	01 00	2C 22	00 00
		SKIP	BE EF	03	06 00	3E 7A	01 00	2C 22	01 00
	Get		BE EF	03	06 00	9D 7B	02 00	2C 22	00 00
SOURCE SKIP - HDMI 1	Set	NORMAL	BE EF 03 06 00 BA 78 01 00 23 22 00 00
		SKIP	BE EF	03	06 00	2A 79	01 00	23 22	01 00
	Get		BE EF	03	06 00	89 78	02 00	23 22	00 00
SOURCE SKIP - HDMI 2	Set	NORMAL	BE EF	03	06 00	52 7A	01 00	2D 22	00 00
		SKIP	BE EF 03 06 00 C2 7B 01 00
	Get		BE EF	03	06 00	61 7A	02 00	2D 22	00 00
SOURCE SKIP - COMPONENT	Set	NORMAL BE	EF 03 06	00 32	78 01 00	25 22 00	00
		SKIP BE EF	03 06 00	A2 79	01 00 25	22 01 00
	Get BE EF 03		06 00 01	78 02	00 25 22	00 00
SOURCE SKIP - S-VIDEO	Set	NORMAL BE	EF 03 06	00 46	79 01 00	22 22 00	00
		SKIP BE EF	03 06 00	D6 78	01 00 22	22 01 00
	Get BE EF 03		06 00 75	79 02	00 22 22	00 00
SOURCE SKIP - VIDEO	Set	NORMAL BE	EF 03 06	00 02	79 01 00	21 22 00	00
		SKIP BE EF	03 06 00	92 78	01 00 21	22 01 00
	Get BE EF 03		06 00 31	79 02	00 21 22	00 00
AUTO SEARCH	Set	OFF BE EF	03 06 00	B6 D6	01 00 16	20 00 00
		ON BE EF	03 06 00	26 D7	01 00 16	20 01 00
	Get BE EF 03		06 00 85	D6 02	00 16 20	00 00
AUTO KEYSTONE	Set	OFF	BE EF	03	06 00	EA D1	01 00	0F 20	00 00
		ON	BE EF	03	06 00	7A D0	01 00	0F 20	01 00
	Get		BE EF	03	06 00	D9 D1	02 00	0F 20	00 00
DIRECT POWER ON	Set	OFF BE EF	03 06 00	3B 89	01 00 20	31 00 00
		ON BE EF	03 06 00	AB 88	01 00 20	31 01 00
	Get BE EF 03		06 00 08	89 02	00 20 31	00 00
AUTO POWER OFF	Get BE EF 03		06 00 08	86 02	00 10 31	00 00
	Increment		BE EF 03	06 00 6E 86	04 00 10	31 00 00
	Decrement		BE EF	03	06 00	BF 87	05 00	10 31	00 00
SHADE TIMER	Set	1h	BE EF 03	06 00 27 92	01 00 06	24 01 00
		3h	BE EF 03	06 00 47 93	01 00 06	24 03 00
		6h	BE EF 03	06 00 17 90	01 00 06	24 06 00
	Get BE EF 03		06 00 84	93 02	00 06 24	00 00
USB TYPE B	Set	MOUSE	BE EF	03	06 00	FF 23	01 00	50 26	00 00
		USB DISPLAY	BE EF	03	06 00	6F 22	01 00	50 26	01 00
	Get BE EF 03		06 00 CC	23 02	00 50 26	00 00
LAMP TIME Lower Bytes	Get BE EF 03		06 00 C2	FF 02	00 90 10	00 00
LAMP TIME Higher Bytes	Get		BE EF	03	06 00	2A FD	02 00	9E 10	00 00
LAMP TIME Reset	Execute BE EF		03 06 00	58 DC	06 00 30	70 00 00
FILTER TIME Lower Bytes	Get		BE EF	03	06 00	C2 F0	02 00	A0 10	00 00
FILTER TIME Higher Bytes	Get		BE EF	03	06 00	D6 FC	02 00	9F 10	00 00
FILTER TIME Reset	Execute BE EF		03 06 00	98 C6	06 00 40	70 00 00

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
MY BUTTON-1	Set	SLIDESHOW BE	EF 03 06	00 9	A 2B 01	00 00 36	22 00
		MY IMAGE BE	EF 03 06	00 5A	3D 01 00	00 00 36 16	00
		MESSENGER BE	EF 03 06	00 A	A 29 01	00 00 36	25 00
		SHADE BE	EF 03 06	00 5A	26 01 00	00 36 32	00
		INFORMATION	BE EF	03	06 00	FA 3E	01 00	00 36	10 00
		AUTO KEYSTONE V	BE EF	03	06 00	6A 3F	01 00	00 36	11 00
		MY MEMORY	BE EF	03	06 00	9A 3F	01 00	00 36	12 00
		ACTIVE IRIS	BE EF	03	06 00	AA 3D	01 00	00 36	15 00
		PICTURE MODE	BE EF	03 06	00 0A 3E	01 00 00	36 13 00
		FILTER RESET BE	BE EF 03	06 00	3A 3C 01	00 00 36	14 00
		TEMPLATE	BE EF	03	06 00	CA 39	01 00	00 36	1B 00
		MUTE	BE EF	03	06 00	FA 20	01 00	00 36	38 00
		* PbyP SWAP	BE EF	03	06 00	5A 38	01 00	00 36	1A 00
		RESOLUTION	BE EF	03	06 00	9A 3A	01 00	00 36	1E 00
		ECO MODE	BE EF	03 06	00 0A 25	01 00 00	36 37 00
	Get		BE EF	03 06	00 09 33	02 00 00	36 00 00
MY BUTTON-2	Set	SLIDESHOW BE	EF 03 06	00 66	2A 01	00 01 36	22 00
		MY IMAGE BE	EF 03 06	00 A6	3C 01	00 01 36	16 00
		MESSENGER BE	EF 03 06	00 56	28 01	00 01 36	25 00
		SHADE BE	EF 03 06	00 A6	27 01 00	01 36 32	00
		INFORMATION	BE EF	03	06 00	06 3F	01 00	01 36	10 00
		AUTO KEYSTONE V	BE EF	03 06	00 96 3E	01 00 01	36 11 00
		MY MEMORY	BE EF	03 06	00 66 3E	01 00 01	36 12 00
		ACTIVE IRIS	BE EF	03 06	00 56 3C	01 00 01	36 15 00
		PICTURE MODE	BE EF	03	06 00	F6 3F	01 00	01 36	13 00
		FILTER RESET BE	BE EF 03	06 00	C6 3D 01	00 01 36	14 00
		TEMPLATE	BE EF	03	06 00	36 38	01 00	01 36	1B 00
		MUTE	BE EF	03 06	00 06 21	01 00 01	36 38 00
		* PbyP SWAP	BE EF	03	06 00	A6 39	01 00	01 36	1A 00
		RESOLUTION BE	EF 03 06	00 66	3B 01	00 01 36	1E 00
		ECO MODE	BE EF	03 06	00 66 25	01 00 01	36 36 00
	Get		BE EF	03	06 00	F5 32	02 00	01 36	00 00
MY BUTTON-3	Set	SLIDESHOW BE	EF 03 06	00 22	2A 01	00 02 36	22 00
		MY IMAGE BE	EF 03 06	00 E2	3C 01	00 02 36	16 00
		MESSENGER BE	EF 03 06	00 12	28 01	00 02 36	25 00
		SHADE BE	EF 03 06	00 E2	27 01 00	02 36 32	00
		INFORMATION	BE EF	03	06 00	42 3F	01 00	02 36	10 00
		AUTO KEYSTONE V	BE EF	03	06 00	D2 3E	01 00	02 36	11 00
		MY MEMORY	BE EF	03 06	00 22 3E	01 00 02	36 12 00
		ACTIVE IRIS	BE EF	03 06	00 12 3C	01 00 02	36 15 00
		PICTURE MODE	BE EF	03	06 00	B2 3F	01 00	02 36	13 00
		FILTER RESET BE	BE EF 03	06 00	82 3D 01	00 02 36	14 00
		TEMPLATE	BE EF	03	06 00	72 38	01 00	02 36	1B 00
		MUTE	BE EF	03 06	00 42 21	01 00 02	36 38 00
		* PbyP SWAP	BE EF	03	06 00	E2 39	01 00	02 36	1A 00
		RESOLUTION BE	EF 03 06	00 22	3B 01	00 02 36	1E 00
		ECO MODE	BE EF	03 06	00 B2 24	01 00 02	36 37 00
	Get		BE EF	03 06	00 B1 32	02 00 02	36 00 00

*) Only for CP-WU8440 and CP-WU8450.

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
MY BUTTON-4	Set	SLIDESHOW BE	EF 03 06	00 DE	2B 01	00 03 36	22 00
		MY IMAGE BE	EF 03 06	00 1E	3D 01 00	00 03 36 16	00
		MESSENGER BE	EF 03 06	00 EE	29 01	00 03 36	25 00
		SHADE BE E	EF 03 06	00 1E	26 01 00	03 36 32	00
		INFORMATION BE	EF 03 06	00 BE	3E 01	00 03 36	10 00
		AUTO KEYSTONE V	BE EF	03 06	00 2E 3F	01 00 03	36 11 00
		MY MEMORY BE	EF 03 06	00 DE	3F 01	00 03 36	12 00
		ACTIVE IRIS BE	EF 03 06	00 EE	3D 01	00 03 36	15 00
		PICTURE MODE	BE EF	03 06	00 4E 3E	01 00 03	36 13 00
		FILTER RESET BE	EF 03	06 00	7E 3C 01	00 03 36	14 00
		TEMPLATE BE	EF 03 06	00 8E	39 01 00	00 03 36	1B 00
		MUTE	BE EF	03	06 00	BE 20	01 00	03 36	38 00
		* PbyP SWAP	BE EF	03	06 00	1E 38	01 00	03 36	1A 00
		RESOLUTION	BE EF	03	06 00	DE 3A	01 00	03 36	1E 00
		ECO MODE	BE EF	03	06 00	4E 25	01 00	03 36	37 00
	Get		BE EF	03	06 00	4D 33	02 00	03 36	00 00
REMOTE RECEIV. FRONT	Set	Off BE EF	03 06 00	FF 32	01 00 00	26 00 00
		On	BE EF	03	06 00	6F 33	01 00	00 26	01 00
	Get		BE EF	03	06 00	CC 32	02 00	00 26	00 00
REMOTE RECEIV. REAR	Set	Off	BE EF	03	06 00	03 33	01 00	01 26	00 00
		On	BE EF	03	06 00	93 32	01 00	01 26	01 00
	Get		BE EF	03	06 00	30 33	02 00	01 26	00 00
REMOTE ID	Set	ALL	BE EF	03	06 00	9F 30	01 00	08 26	00 00
		1	BE EF	03	06 00	0F 31	01 00	08 26	01 00
		2	BE EF	03	06 00	FF 31	01 00	08 26	02 00
		3	BE EF	03	06 00	6F 30	01 00	08 26	03 00
		4	BE EF	03	06 00	5F 32	01 00	08 26	04 00
	Get		BE EF	03	06 00	AC 30	02 00	08 26	00 00
REMOTE FREQ. NORMAL	Set	OFF	BE EF	03	06 00	FF 3D	01 00	30 26	00 00
		ON	BE EF	03	06 00	6F 3C	01 00	30 26	01 00
	Get		BE EF	03 06	00 CC 3D	02 00 30	26 00 00
REMOTE FREQ. HIGH	Set	OFF	BE EF	03	06 00	03 3C	01 00	31 26	00 00
		ON	BE EF	03	06 00	93 3D	01 00	31 26	01 00
	Get		BE EF	03	06 00	30 3C	02 00	31 26	00 00
MY IMAGE	Set	OFF	BE EF	03	06 00	3A C3	01 00	00 35	00 00
		IMAGE-1	BE EF	03	06 00	AA C2	01 00	00 35	01 00
		IMAGE-2	BE EF	03	06 00	5A C2	01 00	00 35	02 00
		IMAGE-3	BE EF	03	06 00	CA C3	01 00	00 35	03 00
		IMAGE-4	BE EF	03	06 00	FA C1	01 00	00 35	04 00
	Get		BE EF	03	06 00	09 C3	02 00	00 35	00 00
MY IMAGE IMAGE-1 Delete	Execute BE EF		03 06 00	71 C3	06 00	01 35 00	00
MY IMAGE IMAGE-2 Delete	Execute BE EF		03 06 00	35 C3	06 00	02 35 00	00
MY IMAGE IMAGE-3 Delete	Execute		BE EF	03	06 00	C9 C2	06 00	03 35	00 00
MY IMAGE IMAGE-4 Delete	Execute BE EF		03 06 00	BD C3	06 00 04	35	00 00

*) Only for CP-WU8440 and CP-WU8450.

PJLink command

Commands	Control Description Parameter or Response
POWR Power Control	Power Contorol	0 = Standby1 = Power On
POWR ? Power Status inquiry	Power Status inquiry	0 = Standby1 = Power On2 = Cool Down
INPT Input Source selection	Source selection	11 = COMPUTER IN 112 = COMPUTER IN 221 = COMPONENT22 = S-VIDEO23 = VIDEO31 = HDMI 133 = HDMI 241 = USB TYPE A51 = LAN52 = USB TYPE B
INPT ? Input Source inquiry	Source inquiry	11 = COMPUTER IN 112 = COMPUTER IN 221 = COMPONENT22 = S-VIDEO23 = VIDEO31 = HDMI 133 = HDMI 241 = USB TYPE A51 = LAN52 = USB TYPE B
AVMT AV	Mute	10 = BLANK off11 = BLANK on20 = Mute off21 = Mute on30 = AV Mute off31 = AV Mute on
AVMT ? AV	Mute inquiry	10 = BLANK off11 = BLANK on20 = Mute off21 = Mute on30 = AV Mute off31 = AV Mute on

(continued on next page)

Commands	Control Description Parameter or Response
ERST ? Error Status inquiry		1st byte: Refers to Fan error; one of 0 to 22nd byte: Refers to Lamp error; one of 0 to 23rd byte: Refers to Temptrature error; one of 0 to 24th byte: Refers to Cover error; one of 0 to 25th byte: Refers to Filter error; one of 0 to 26th byte: Refers to Other error; one of 0 to 2The meaning of 0 to 2 is as given below0 = Error is not detected;1 = Warning; 2 = Error
LAMP ? Lamp Status inquiry		1st number (digits 1 to 5): Lamp Time2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 12		21 22 23 31 33 41 51 52
NAME ? Projector Name inquiry		Responds with the name set in the itemPROJECTOR NAME of the NETWORK menu
INF1 ?	Manufacturer's Name inquiry	HITACHI
INF2 ? Model Name inquiry		CP-X8150CP-X8160CP-WX8240CP-WX8255CP-SX8350CP-WU8440CP-WU8450
INFO ? Other Information inquiry		Responds with the factory information and so on
CLSS ? Class Information inquiry 1

NOTE • The password used in PJLink™ is the same as the password set in the Web Control. To use PJLink™ without authentication, do not set any password in Web Browser Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

URL: http://pjlink.jbmia.or.jp/ (as of Feb. 2012)

Projector

CP-X8150/CP-X8160/CP-WX8240/

CP-WX8255/CP-SX8350/CP-WU8440/

CP-WU8450

Mechanical assembly diagram showing a valve inserted into a housing (no text or symbols visible)

Diagram of a heat exchanger unit with cooling fins and air gap, showing 9° angle indicator (no text or symbols)

Diagram of a computer monitor with a paper lid, showing front and side views (no text or symbols)

HOOG VOLTAGE

HOGE TEMPERATUUR

HOGE DRUK

(H) × (V) Screen size
①: Projection distance (from the front of the projector unit)
⑥, ⑤: Screen height

Projector bottom
T-1 CP-X8150 with SL-702
(1024 × 768, ±10%)

Screen type	4:3 16:9
	Screen size		Projection distance			Screen height				Screen size		Projection distance				Screen height
	H	V	a	min.	a max.	b		c H V		a	○	○ min.		a max.		b		c
(inch)	m	m in	inch m	inch c	m inch cm	inch m	m m	inch m	inch	cm	inch cm	inch
30	0.6	0.5	0.9	37	1.4	55	51	20	-6	-2	0	7	0.4	1.0	40	1.5	60	50
40	0.8	0.6	1.2	49	1.9	73	69	27	-8	-3	0	9	0.5	1.3	53	2.0	79	66
50	1.0	0.8	1.5	61	2.3	91	86	34	-10	-4	1.1	0.6	1.7	66	2.5	99	83	33
60	1.2	0.9	1.8	73	2.8	109	103	41	-11	-5	1.3	0.7	2.0	79	3.0	119	100	39
70	1.4	1.1	2.1	84	3.2	127	120	47	-13	-5	1.5	0.9	2.3	92	3.5	138	116	46
80	1.6	1.2	2.4	96	3.7	145	137	54	-15	-6	1.8	1.0	2.7	105	4.0	158	133	52
90	1.8	1.4	2.8	108	4.1	163	154	61	-17	-7	2.0	1.1	3.0	118	4.5	177	149	59
100	2.0	1.5	3.1	120	4.6	181	171	68	-19	-8	2.2	1.2	3.3	131	5.0	197	166	65
150	3.0	2.3	4.6	180	6.9	271	257	101	-29	-11	3.3	1.9	5.0	196	7.5	295	249	98
200	4.1	3.0	6.1	239	9.2	361	343	135	-38	-15	4.4	2.5	6.6	261	10.0	393	332	131
250	5.1	3.8	7.6	299	11.5	451	429	169	-48	-19	5.5	3.1	8.3	326	12.5	491	415	163
300	6.1	4.6	9.1	359	13.7	541	514	203	-57	-23	6.6	3.7	9.9	391	15.0	589	498	196
500	10.2	7.6	15.2	597	22.9	901	857	338	-95	-38	11.1	6.2	16.5	650	24.9	982	830	327

T-2 CP-X8160 with ML-703
(1024 × 768, ±10%)

Screen type	4:3 16:9
	Screen size		Projection distance				Screen height				Screen size		Projection distance				Screen height
	H	V	a min.		a max.		b		c H V		a	○	○ min.		a max.		b		c
(inch)	m	m	m	inch	m	inch	cm	inch	cm	inch	m	m	m	inch	m	inch	cm	inch	cm
30	0.6	0.5	0.9	37	1.9	73	46	18	0	0	0.7	0.4	1.0	40	2.0	80	44	17	-6
40	0.8	0.6	1.2	49	2.5	97	61	24	0	0	0.9	0.5	1.4	53	2.7	106	58	23	-8
50	1.0	0.8	1.6	61	3.1	121	76	30	0	0	1.1	0.6	1.7	67	3.4	132	73	29	-10
60	1.2	0.9	1.9	73	3.7	146	91	36	0	0	1.3	0.7	2.0	80	4.0	159	87	34	-12
70	1.4	1.1	2.2	86	4.3	170	107	42	0	0	1.5	0.9	2.4	93	4.7	185	102	40	-15
80	1.6	1.2	2.5	98	4.9	194	122	48	0	0	1.8	1.0	2.7	106	5.4	211	116	46	-17
90	1.8	1.4	2.8	110	5.5	218	137	54	0	0	2.0	1.1	3.0	120	6.0	238	131	51	-19
100	2.0	1.5	3.1	122	6.2	242	152	60	0	0	2.2	1.2	3.4	133	6.7	264	145	57	-21
150	3.0	2.3	4.6	183	9.2	363	229	90	0	0	3.3	1.9	5.1	199	10.0	396	218	86	-31
200	4.1	3.0	6.2	244	12.3	484	305	120	0	0	4.4	2.5	6.7	266	13.4	527	291	114	-42
250	5.1	3.8	7.7	305	15.4	605	381	150	0	0	5.5	3.1	8.4	332	16.7	659	363	143	-52
300	6.1	4.6	9.3	366	18.4	725	457	180	0	0	6.6	3.7	10.1	398	20.1	790	436	172	-62
500	10.2	7.6	15.5	609	30.7	1209	762	300	0	0	11.1	6.2	16.9	664	33.4	1317	726	286	-104

(H) × (V) Screen size
①: Projection distance (from the front of the projector unit)
⑥, ⑤: Screen height

Projector bottom
T-3 CP-WX8240 with SL-702
(1280 × 800, ±10%)

Screen type	16:10 4:3
	Screen size		Projection distance			Screen height				Screen size		Projection distance				Screen height
	H	V	a	min.	a max.	b		c H V		a	○	○ min.		a max.		b		c
(inch)	m	m in	inch m	inch c	m inch	inch m	m m	inch m	inch	cm	inch cm	inch
30	0.6	0	4	1.0	39	1.5	58	50	20	-10	-4	0.6	0.5	1.1	44	1.7	66	57
40	0.9	0.5	1.3	52	2.0	77	67	26 -13	-5	0.8	0.6	1.5	58	2.2	87	76	30	-15
50	1.1	0.7	1.6	64	2.4	96	84	33 -17	-7	1.0	0.8	1.8	73	2.8	109	9	5	38
60	1.3	0.8	2.0	77	2.9	115	101	40	-20	-8	1.2	0.9	2.2	87	3.3	131	114	45
70	1.5	0.9	2.3	89	3.4	135	118	46	-24	-9	1.4	1.1	2.6	101	3.9	152	133	53
80	1.7	1.1	2.6	102	3.9	154	135	53	-27	-11	1.6	1.2	2.9	115	4.4	174	152	60
90	1.9	1.2	2.9	115	4.4	173	151	60	-30	-12	1.8	1.4	3.3	130	5.0	195	171	68
100	2.2	1.3	3.2	127	4.9	192	168	66	-34	-13	2.0	1.5	3.7	144	5.5	217	191	75
150	3.2	2.0	4.8	191	7.3	287	252	99	-50	-20	3.0	2.3	5.5	216	8.3	325	286	113
200	4.3	2.7	6.4	254	9.7	383	337	132	-67	-26	4.1	3.0	7.3	287	11.0	433	381	150
250	5.4	3.4	8.0	317	12.1	478	421	166	-84	-33	5.1	3.8	9.1	359	13.7	541	476	188
300	6.5	4.0	9.7	380	14.6	573	505	199	-101	-40	6.1	4.6	10.9	430	16.5	649	572	225
500	10.8	6.7	16.1	633	24.3	955	841	331	-168	-66	10.2	7.6	18.2	716	27.5	1081	953	375

T-4 CP-WX8255 with ML-703
(1280 × 800, ±10%)

Screen type	16:10 4:3
	Screen size		Projection distance			Screen height				Screen size		Projection distance				Screen height
	H	V	a min.		a max.	b		c H V		a	○	○ min.		a max.	b		c
(inch)	m m	m inch	m inch	cm inch	cm inch	inch m	m m	inch m	inch	cm inch	cm inch	inch
30	0.6	0.4	1.0	39	2.0	78	45	18	-4	-2	0.5	1.1	44	2.2	88	51	20	-5
40	0.9	0.5	1.3	52	2.6	103	60	24	-6	-2	0.8	0.6	1.5	59	3.0	117	68	27
50	1.1	0.7	1.6	65	3.3	129	75	29	-7	-3	1.0	0.8	1.9	73	3.7	146	85	33
60	1.3	0.8	2.0	78	3.9	154	90	35	-9	-4	1.2	0.9	2.2	88	4.4	175	102	40
70	1.5	0.9	2.3	91	4.6	180	105	41	-10	-4	1.4	1.1	2.6	103	5.2	204	119	47
80	1.7	1.1	2.6	104	5.2	206	120	47	-12	-5	1.6	1.2	3.0	117	5.9	233	135	53
90	1.9	1.2	3.0	117	5.9	231	135	53	-13	-5	1.8	1.4	3.4	132	6.6	262	152	60
100	2.2	1.3	3.3	129	6.5	257	150	59	-15	-6	2.0	1.5	3.7	147	7.4	291	169	67
150	3.2	2.0	4.9	194	9.8	385	224	88	-22	-9	3.0	2.3	5.6	220	11.1	436	254	100
200	4.3	2.7	6.6	259	13.0	513	299	118	-30	-12	4.1	3.0	7.4	293	14.7	580	339	133
250	5.4	3.4	8.2	323	16.3	641	374	147	-37	-15	5.1	3.8	9.3	366	18.4	725	423	167
300	6.5	4.0	9.8	388	19.5	769	449	177	-45	-18	6.1	4.6	11.1	439	22.1	870	508	200
500	10.8	6.7	16.4	646	32.5	1281	748	294	-75	-29	10.2	7.6	18.6	731	36.8	1450	847	333

(H) × (V) Screen size
①: Projection distance (from the front of the projector unit)
⑥, ⑤: Screen height

Projector bottom
T-5 CP-SX8350 with SL-702
(1400 × 1050, ±10%)

Screen type	4:3 16:9
	Screen size		Projection distance			Screen height				Screen size		Projection distance				Screen height
	H	V	a	min.	a max.	b		c H V		a	○	○ min.		a max.	b		c
(inch)	m	m in	inch m	inch c	m inch cm	inch m	m m	inch m	inch cm	cm inch cm	inch cm	inch
30	0.6	0.5	0.7	29	1.1	44	41	16	5	2	0.7	0.4	0.8	32	1.2	48	39	15
40	0.8	0.6	1.0	39	1.5	58	55	22	6	2	0.9	0.5	1	1	42	1.6	63	51
50	1.0	0.8	1.2	48	1.8	73	69	27	8	3	1.1	0.6	1	3	53	2.0	79	64
60	1.2	0.9	1.5	58	2.2	87	82	32	9	4	1.3	0.7	1	6	63	2.4	95	77
70	1.4	1.1	1.7	67	2.6	101	96	38	11	4	1.5	0.9	1.9	73	2.8	110	90	35
80	1.6	1.2	2.0	77	2.9	115	110	43	12	5	1.8	1.0	2.1	84	3.2	126	103	41
90	1.8	1.4	2.2	86	3.3	130	123	49	14	5	2.0	1.1	2.4	94	3.6	141	116	46
100	2.0	1.5	2.4	96	3.7	144	137	54	15	6	2.2	1.2	2.6	104	4.0	157	129	51
150	3.0	2.3	3.6	143	5.5	216	206	81	23	9	3.3	1.9	4.0	156	6.0	235	193	76
200	4.1	3.0	4.8	191	7.3	287	274	108	30	12	4.4	2.5	5.3	207	7.9	313	257	101
250	5.1	3.8	6.0	238	9.1	359	343	135	38	15	5.5	3.1	6.6	259	9.9	391	322	127
300	6.1	4.6	7.2	285	10.9	430	411	162	46	18	6.6	3.7	7.9	311	11.9	469	386	152
500	10.2	7.6	12.1	475	18.2	717	686	270	76	30	11.1	6.2	13.1	517	19.8	781	643	253

T-6 CP-WU8440 / CP-WU8450 with ML-703
(1920 × 1200, ±10%)

Screen type	16:10										4:3
	Screen size		Projection distance				Screen height				Screen size		Projection distance				Screen height
	H	V	a min.		a max.		b		c H V		a	○	○ min.		a max.		b		c
(inch)	m	m	m	inch	m	inch	cm	inch	cm	inch	m	m	m	inch	m	inch	cm	inch	cm	inch
30	0.6	0.4	1.0	38	1.9	76	45	18	-4	-2	0.6	0.5	1.1	43	2.2	86	51	20	-5	-2
40	0.9	0.5	1.3	51	2.6	101	60	24	-6	-2	0.8	0.6	1.5	58	2.9	114	68	27	-7	-3
50	1.1	0.7	1.6	64	3.2	126	75	29	-7	-3	1.0	0.8	1.8	72	3.6	143	85	33	-8	-3
60	1.3	0.8	1.9	76	3.8	151	90	35	-9	-4	1.2	0.9	2.2	86	4.3	171	102	40	-10	-4
70	1.5	0.9	2.3	89	4.5	176	105	41	-10	-4	1.4	1.1	2.6	100	5.1	200	119	47	-12	-5
80	1.7	1.1	2.6	101	5.1	202	120	47	-12	-5	1.6	1.2	2.9	115	5.8	228	135	53	-14	-5
90	1.9	1.2	2.9	114	5.8	227	135	53	-13	-5	1.8	1.4	3.3	129	6.5	256	152	60	-15	-6
100	2.2	1.3	3.2	127	6.4	252	150	59	-15	-6	2.0	1.5	3.6	143	7.2	285	169	67	-17	-7
150	3.2	2.0	4.8	190	9.6	377	224	88	-22	-9	3.0	2.3	5.5	215	10.8	427	254	100	-25	-10
200	4.3	2.7	6.4	253	12.8	503	299	118	-30	-12	4.1	3.0	7.3	286	14.5	569	339	133	-34	-13
250	5.4	3.4	8.0	316	16.0	628	374	147	-37	-15	5.1	3.8	9.1	358	18.1	711	423	167	-42	-17
300	6.5	4.0	9.6	379	19.1	754	449	177	-45	-18	6.1	4.6	10.9	429	21.7	853	508	200	-51	-20
500	10.8	6.7	16.1	632	31.9	1256	748	294	-75	-29	10.2	7.6	18.2	715	36.1	1422	847	333	-85	-33

F-1

F-2

F-3
VCR/DVD/Blu-ray Disc™ player

F-4

NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

HITACHI Inspire the Next

Hitachi America, Ltd.

Business Solutions Group

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: [phone]

http://www.hitachi-america.us/projectors

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department

Whitebrook Park, Lower Cookham Road, Maidenhead

Berkshire SL6 8YA UNITED KINGDOM

Tel: [phone]

Email: [e-mail]

Hitachi Europe S.A.S., Digital Media Group

Email: [e-mail]

Hitachi Europe S.A.

Gran Via Carles III, 86 Planta 5 ^a

Denmark Tel: [phone]

http://www.hitachidigitalmedia.com

Hitachi Australia Pty Ltd.

Suite 801, Level 8, 123 Epping Road

North Ryde N.S.W 2113 AUSTRALIA

Tel: [phone]

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street.,

Shatin, N.T. HONG KONG

Tel: [phone]

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan

MALAYSIA

Tel: [phone]

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia (S) Pte. Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: [phone]

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: [phone]

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, 996 Soi Thonglor, Sukhumvit 55 Rd.,

Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: [phone]

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN
