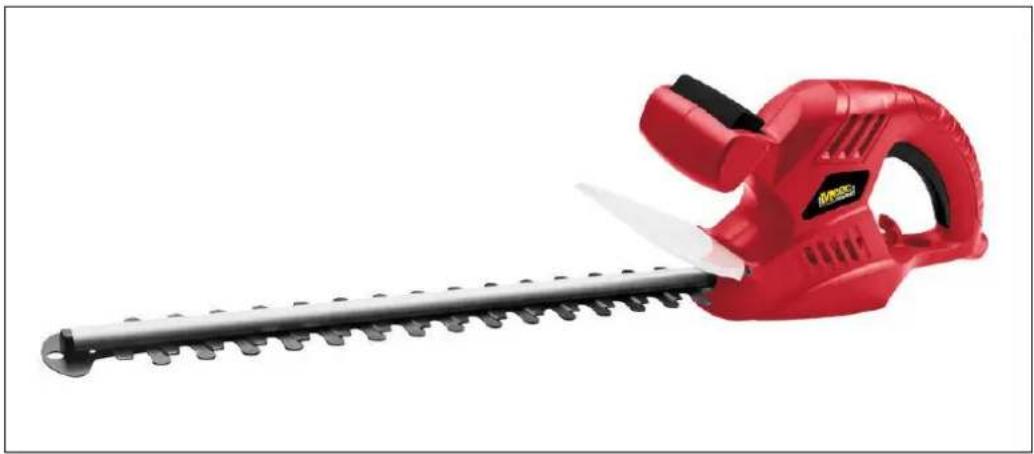

USER MANUAL 721-247 Meec Tools

Operating Instructions for Hedge Trimmer

721-247

Red hairless hedges with a blade, isolated on white background (no text or symbols visible)

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

SAFETY INSTRUCTIONS....20

Symbols 20
Safety 20
General safety instructions 21

TECHNICAL DATA....22

DESCRIPTION 23

OPERATION 23

Use....23

Connection....23

Fitting the hand guard 23

Start 23

Stop....23

Cutting hedges....23

MAINTENANCE 23

SÄKERHETSANVISNINGAR

Read the Operating Instructions carefully before use!

Symbols

Indicates danger, warning or important information.

Read all operating and safety instructions carefully before use.

Always use eye and ear protection when working with the machine.

Do not use in damp or wet areas. Risk of electric shock.

Keep your hands away from the blade. Never touch the blade when starting or operating the machine.

Disconnect the plug from the mains immediately if the cord becomes damaged.

Safety

Important: This machine can cause serious injuries. Read the Operating Instructions carefully and follow the instructions for using, moving, maintaining, starting and stopping the machine. Familiarize yourself with the controls, switches and how to use the machine. Make sure you know how to stop it in an emergency. Improper use can cause serious injuries. Keep these instructions in a safe place for future reference. If the power cord becomes damaged, it must be replaced with an approved cord from your dealer.

• Switch off the machine and disconnect the plug from the power supply before leaving the machine unattended, carrying out maintenance and/or cleaning, oiling blades or unblocking the blades.
• Make sure the safety guard is always fitted when using the trimmer. Never remove any of its components and never use a damaged or incomplete trimmer. Never modify the equipment in any way.
• If using outdoors, only use a mains connection protected by a residual current device. The machine must be connected to an earthed socket.
• If using outdoors, only use an extension cord approved for outdoor use.
• Make a loop in the extension cord and hang on the cable holder.

• Before use, check the trimmer, extension cord and plug. If any components are worn or damaged, they must be replaced by an authorised service centre.

• Disconnect the plug from the mains immediately if the cord becomes damaged.

• Keep the cord away from the work area. The cord should always be behind you.
• Wear appropriate clothing and non-slip shoes. Wear close-fitting clothes that cannot get caught in the equipment but which do not restrict movement. Wear a hair net if you have long hair. Do not wear jewellery, a watch, etc. as these can get caught in moving parts.
• Always wear eye protection or a face mask and protective gloves. Wear ear protection if the sound level exceeds 85 dB(A).
• Do not use the trimmer in the rain or on wet hedges.
• Individuals must not use the machine unless they are familiar with these instructions.
• The user is responsible for the safety of property and third parties in the work area. Be aware of what is happening in the work area. Keep children, onlookers and animals at a safe distance when using the equipment.
• Always be careful when using the equipment. Always hold it firmly with both hands. Keep a firm footing and a proper balance at all times, especially when standing on a ladder.
• Regularly check that all bolted joints are properly tightened. Check the blades regularly. If the blades are damaged, they must be repaired or replaced by an authorised service centre.
  • Look around the work area for potential risks that you might not notice when operating the trimmer.
• Never touch the blades and never carry the trimmer by the blades.
• When not in use, store the trimmer in a dry place out of the reach of children. Always fit the safety cover over the blade when the trimmer is not in use.
• Only use original spare parts and accessories supplied with the trimmer or recommended by the manufacturer.

General safety instructions

WARNING! Always take basic safety precautions when using power tools to safeguard against the risk of fire, electric shock and personal injury.

• Keep the work area clean. Cluttered work areas increase the risk of accidents and injuries.
• Keep the workplace environment safe. Do not expose power tools to rain. Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gases or dust.
• Protect against the risk of electric shock. Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators.
• Do not use near children. Never allow children to use the tool. Do not allow onlookers to touch the tool or the extension cord. Onlookers should be kept away from the work area.
• Put away tools that are not being used. When not in use, store the tool in a dry place out of the reach of children.
• Do not force the tool. The tool does the job better and safer when used at the rate for which it was designed.
• Use the correct tool. Do not force small tools or accessories to perform jobs that require a powerful tool. Use tools only for their intended purpose (e.g. do not use a circular saw to cut tree branches).
• Wear appropriate clothing. Do not wear loose-fitting clothing or jewellery. They can get caught in moving parts. Rubber gloves and non-slip shoes are recommended when working outdoors. Wear a hair net if you have long hair.
• Wear eye protection. Wear a dust mask if the work generates dust.
• Be careful with the power cord. Never carry the tool by the cord. Do not pull the power cord to disconnect the plug from the mains socket. Keep the power cord away from heat, oil and sharp edges.
• Connect dust extraction equipment
• If dust extraction and dust collection equipment is provided, this should be connected and used correctly.
• Secure the workpiece
• Secure the workpiece with a clamp, vice or clips. This is safer than using your hands and means you have both hands free to operate the tool.
• Remove adjuster keys/spanners and other assembling tools
• Remove adjuster keys/spanners and other assembling tools before starting the power tool.
• Do not overreach. Always maintain a firm footing and good balance.

• Maintain the tool in good order. Keep tools sharp and clean for better and safer work. Follow the instructions for lubrication and replacement of accessories. Check the cord regularly. A damaged cord must be replaced by an authorised service centre. Extension cords must be checked regularly and replaced if damaged. Keep the handles clean, dry and free from oil and grease.

• Switch off the tool. Always disconnect the power cord from the mains power before carrying out service work or changing accessories, such as blades, bits or discs.

• Avoid accidental starting. Never carry a power tool with your finger on the switch when it is connected to the mains. Make sure the power switch is in the OFF position before plugging in the cord.
  • Extension cords. If using the tool outdoors, only use an extension cord approved for outdoor use.
• Pay attention to what you are doing. Always be careful when using the equipment. Use your common sense. Do not use the tool if you are tired.
• Check for damaged parts. If a guard or some other part has been damaged, check carefully before using the tool to ensure that it will operate correctly and as intended. Make sure that moving parts are properly adjusted and do not jam and that no parts are incorrectly fitted or damaged. Check for other factors that could affect the operation of the power tool. Guards or other parts that are damaged must be repaired or replaced by an authorised service centre, unless otherwise specified in these instructions. If the switch does not work, it must be replaced by an authorised service centre. Do not use the tool if it cannot be switched on and off using the power switch.
• WARNING! The use of accessories or attachments other than those recommended in these Operating Instructions can result in personal injury.
• Repairs must only be carried out by qualified personnel. This power tool has been manufactured in compliance with current safety standards and requirements. Repairs may only be carried out by qualified personnel using identical spare parts. Improper repairs may pose a risk of injury/death or damage to property.
  • If the power cord becomes damaged, it must be replaced with an approved cord from your dealer.

TECHNICAL DATA

Rated voltage	230 VAC, 50/60 Hz
Output power	500 W
Stroke rate (no load)	1750 spm
Cutting capacity:	16 mm
Cutting length	410 mm
Blade stop	≤ 1 s
Weight	2.4 kg
Measured sound power level, LwA	96 dB(A), K= 3 dB
Guaranteed sound power level, LwA	98 dB(A), K= 3 dB
Sound pressure level, LpA	76 dB(A), K=3 dB
Max. vibration level	3,3 m/s ^2 , K=1,5 m/s

Always wear ear protection!

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

Warning! The actual vibration level when using power tools may differ from the specified maximum value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

DESCRIPTION

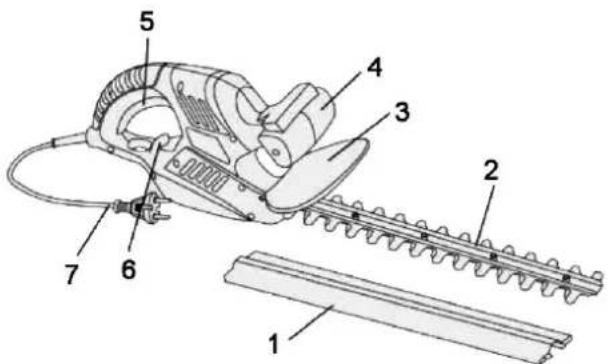

1. Blade cover
2. Blade
3. Hand guard
4. Front handle with on/off switch
5. Rear handle with on/off switch
6. Cable holder
7. Power cord and plug

OPERATION

Use

This hedge trimmer may only be used for cutting hedges and bushes. Any other use, not stated in these Operating Instructions, could damage the trimmer or injure the user and is therefore expressly forbidden.

Connection

The hedge trimmer may only be connected to single-phase AC current. Always check that the mains voltage corresponds with the data specified on the type plate. Connect the plug to a suitable extension cord. Make a loop on the cord, push it through the opening in the rear handle and hook the loop onto the cable holder.

Fitting the hand guard

Push the hand guard over the blade and secure it in place using the screws on each side of the casing.

Start

Press the on/off switch on the rear handle and the on/off switch on the front handle with both hands at the same time.

Stop

Release one of the switches. The blade brake stops the blades immediately within 0.2 seconds. It is perfectly normal to see sparks in the upper ventilation openings and there is nothing wrong with the machine.

Cutting hedges

Before starting, use secateurs to cut off any branches that are thicker than 16 mm. Trim the hedge to a trapezoidal shape. This is the natural shape for growing plants and results in optimal hedge growth.

• Start by trimming the sides upwards from the bottom. Cut the upper part to the shape you want (straight and horizontal, roof-like or rounded).
• The safety blade has laterally rounded, staggered teeth to reduce the risk of injury. The additional shock protection prevents kickback if the blade comes into contact with walls, fences, etc.
• If the blades become jammed or blocked, switch the motor off immediately and pull out the plug. Remove the object jamming the blade. Plug in again.

IMPORTANT!

• Metal obstacles such as fences, etc. can damage the cutting blades.
• The cord should always be behind you. Start trimming the hedge at the point closest to the mains supply socket. Before you start, plan the direction in which you will be working.

MAINTENANCE

NOTE! Always disconnect the power cord from the mains power before carrying out maintenance work.

• Always inspect the machine before starting work.
- Damaged blades must be repaired or replaced by qualified service personnel before the trimmer is used again.

• When you have finished using the trimmer, clean the blade with a soft brush and cloth using lubricating fluid oil. Apply a thin layer of protective oil to the blade.
• Keep the ventilation openings clean.
• Never clean the machine with water. Never rinse the machine with water. Clean the motor casing with a damp cloth. Never use detergents or solvents as these may damage the plastic parts. Dry the motor casing carefully.
• Store the trimmer with the safety cover in place.
• Only use original accessories and spare parts.
