Product Type	Hedge Trimmer
Brand	Meec Tools
Model	000-750
Power Source	Corded Electric
Voltage	120V
Blade Length	20 inches
Cutting Capacity	0.75 inches
Stroke Rate	3000 strokes per minute
Weight	5.5 lbs
Noise Level	95 dB
Vibration Level	2.5 m/s²
Safety Features	Dual switch operation, blade guard, lock-off button
Maintenance	Lubricate blades, clean air vents
Included Accessories	Blade cover, wrench
Warranty	2 years

Frequently Asked Questions - 000-750 Meec Tools

How do I start the hedge trimmer?

Ensure the blade guard is removed, press and hold the lock-off button, then squeeze the trigger switch to start.

What type of oil should I use for the blades?

Use light machine oil or specifically formulated blade oil. Apply a few drops along the blade edge before and after each use.

Can I use an extension cord?

Yes, use a heavy-duty outdoor extension cord rated for the tool's amperage. Keep the cord away from cutting path.

How do I clean the hedge trimmer?

Unplug the trimmer, wipe the housing with a damp cloth, and clean the blades with a brush to remove sap and debris. Do not use solvents.

What is the maximum branch thickness I can cut?

The cutting capacity is 0.75 inches. For thicker branches, use a pruning saw.

Why does the trimmer stop during use?

It may be overheating due to debris or jamming. Unplug, clear the blades, and let it cool for 15 minutes before restarting.

How do I sharpen the blades?

Use a flat file to sharpen each tooth following the original angle. Alternatively, have blades professionally sharpened.

Is the trimmer double insulated?

Yes, it is double insulated for safety. No grounding is required.

What should I do if the blade guard is damaged?

Do not operate the trimmer without a functional blade guard. Replace the guard before next use.

How do I store the hedge trimmer?

Clean the trimmer, attach the blade cover, and store in a dry place. Keep out of reach of children.

USER MANUAL 000-750 Meec Tools

000-750

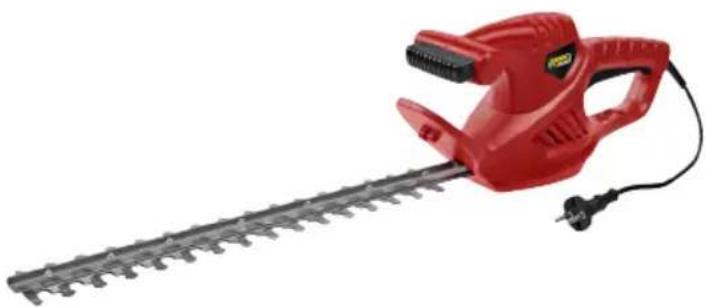

Red electric hedge shaver with metal blades and power cord (no text or symbols visible)

SE Häcksax

Bruksanvisning i original

Operating instructions

(Translation of the original instructions)

Important! Read the user instructions carefully before use.

Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Produenci/ Manufacturer Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor Jula Poland Sp. z o.o., ul.

DATE OF PRODUCTION: 2016-10-13

© Jula AB

1

SÄKERHETSANVISNINGAR

Read the operating instructions carefully before use.

Save them for future reference.

• Failure to follow all the instructions and safety instructions can result in the risk of electric shock, fire and/or serious personal injury.
• Save these instructions and safety instructions for future reference.
• The term "power tool" in all the warnings below refers to your mains-powered (corded) or battery-powered (cordless) power tool.

Work area

• Keep the work area clean and well lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gases or dust. Power tools produce sparks that can ignite dust and fumes.

- Keep children and onlookers at a safe distance when using power tools. You can lose control of the tool if you are distracted.

Electrical safety

• The plug on the power tool must match the power point. Never modify the plug in any way. Never use an adapter with earthed power tools. Unmodified plugs and matching outlets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
• Do not expose power tools to rain or moisture. There is a greater risk of electric shock if water gets into a power tool.
• Be careful with the power cord. Never use the power cord to carry or pull the tool, or to pull out the plug from the mains socket. Keep the power cord away from heat,

EN

oil, sharp edges and moving parts. Damaged or tangled power cords increase the risk of electric shock.

• If using the tool outdoors, only use an extension cord approved for outdoor use. Cords intended for outdoor use reduce the risk of electric shock.
• If it is absolutely necessary to use the power tool in damp conditions, use a residual current device RDC. Using an RCD reduces the risk of electric shock.

Personal safety

- Stay alert. Pay attention to what you are doing, and use your common sense when working with power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury.

- Use personal safety equipment. Wear safety glasses. Depending on the type of tool and how it is used, safety equipment such

as dust masks, non-slip safety shoes, safety helmets and ear protection reduce the risk of personal injury.

• Avoid accidental starting. Make sure the power switch is in the OFF position before inserting the power cord and/or battery or lifting/carrying the tool.
• Carrying a power tool with your finger on the switch, or connecting a tool to the mains when the switch is in the ON position, increases the risk of accidents and injuries.
• Remove adjuster keys/ spanners before switching on the power tool. Spanners or the like that are left in a rotating part of the tool can cause personal injury.
• Do not overreach. Always maintain a firm footing and good balance. This ensures better control over the power tool in unexpected situations.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep your hair, clothing and gloves away

from moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.

- If dust extraction and dust collection equipment is available, this should be connected and used correctly. The use of such devices can reduce the risk of dust-related problems.

Use and care

• Do not force the power tool. Use the correct power tool for the planned work. The tool does the job better and safer when used at the rate for which it was designed.
• Do not use the tool if it cannot be switched on and off with the power switch. Power tools that cannot be controlled with the power switch are dangerous and must be repaired.
• Unplug the power cord and/or remove the battery before making any adjustments, changing accessories or putting the power tool away. These safety precautions

reduce the risk of accidentally starting the tool.

• Store power tools out of the reach of children when not in use. Never allow children, or anyone who is unfamiliar with the power tool and these instructions, to use the tool. Power tools are dangerous if used by inexperienced people.
• Keep the power tool properly maintained. Check that moving parts are properly adjusted and do not jam, and that no parts are incorrectly fitted or damaged. Check for other factors that could affect functionality. If the power tool is damaged, it must be repaired before being used again. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and bits etc., in accordance with these

instructions, taking into account the actual working conditions and the work that is to be done. It can be dangerous to use power tools for purposes other than those they are intended to be used for.

Service

- The power tool must only be serviced by qualified personnel using identical spare parts. This will ensure that the power tool remains safe to use.

Special safety instructions

• Keep your hands and the rest of your body away from the blades. Never attempt to clean the blades when the appliance is running. Do not try to hold material to be trimmed with your hands or your body.
• Check that the power switch is in the OFF position before trying to remove material that has fastened. A moment of inattention can result in serious personal injury.

- Switch off the appliance and wait until it all moving parts have completely stopped before moving it. Hold and carry the appliance with the handles. Transport and store the appliance with supplied guard fitted. Failure to follow all the instructions and safety instructions can result in the risk of electric shock and/or serious personal injury.

• Keep the power cord away from the work area. The power cord can fasten in the branches and be damaged by the blades.
• Hold the appliance by the insulated grips when working where it could come into contact with concealed cables or its own power cord. Contact with a live cable will cause the metal parts on the appliance to also become live – risk of electric shock.
• Use ear protection.

• The appliance must be connected to the mains supply with a residual current device with a maximum tripping current of 30 mA.

• Be careful not to let the bar or the blades come into contact with a fence or plant supports etc. as this could damage the bar and/or the blades.

• Hold the appliance firmly with one hand on the front handle and the other on the rear handle.

Remaining risks

- Even if the appliance is used in accordance with the instructions it is impossible to rule out all risk factors. The following are potential risks that may be incurred as a result of the type and design of the tool.

• Damage to lungs (if an effective face mask is not worn).
• Damage to ears (if effective ear protection is not worn).
• Vibration injuries (if the tool is used for long periods, or is not handled and maintained correctly).

WARNING!

- The appliance produces an electromagnetic field when in use. This field can in some circumstances affect active or passive medical implants. If the user has a medical implant consult a doctor and/or the manufacturer of the medical implant before using the appliance to reduce the risk of serious or fatal personal injury.

Symbols

	Read the operating instructions before use.
	Use ear protection.
	Wear safety glasses.
	Wear safety gloves.
	Do not expose to rain.
	Disconnect immediately from the mains if the power cord is damaged or cut.
	Indicates value for sound power level.
	Approved as per applicable directives.
	Recycle discarded product.

TECHNICAL DATA

Rated voltage 230 V	~ 50 Hz
Output	500 W
Cutting capacity ∅ 16 mm
Bar length 460 mm
Weight 2.2 kg
Sound pressure level, LpA 88.58 dB(A), K=3 dB
Sound power level, LwA 96.54 dB(A), K=3 dB
Vibration
Front handle: 2.718 m/s2, K=1.5 m/s2
Rear handle: 2.164 m/s2, K=1.5 m/s2

Wear ear protection.

Declared total vibration values are measured in accordance with a standard test method, and can be used for comparisons between tools. The value may also be used for a preliminary assessment of exposure.

WARNING!

Vibration levels can deviate from the declared value, depending on how the tool is used. Suitable precautions for users must be based on the actual conditions, taking into account all parts of the operating cycle, such as the time when the tool is switched off and the idling time, in addition to the time when the power switch is pressed.

DESCRIPTION

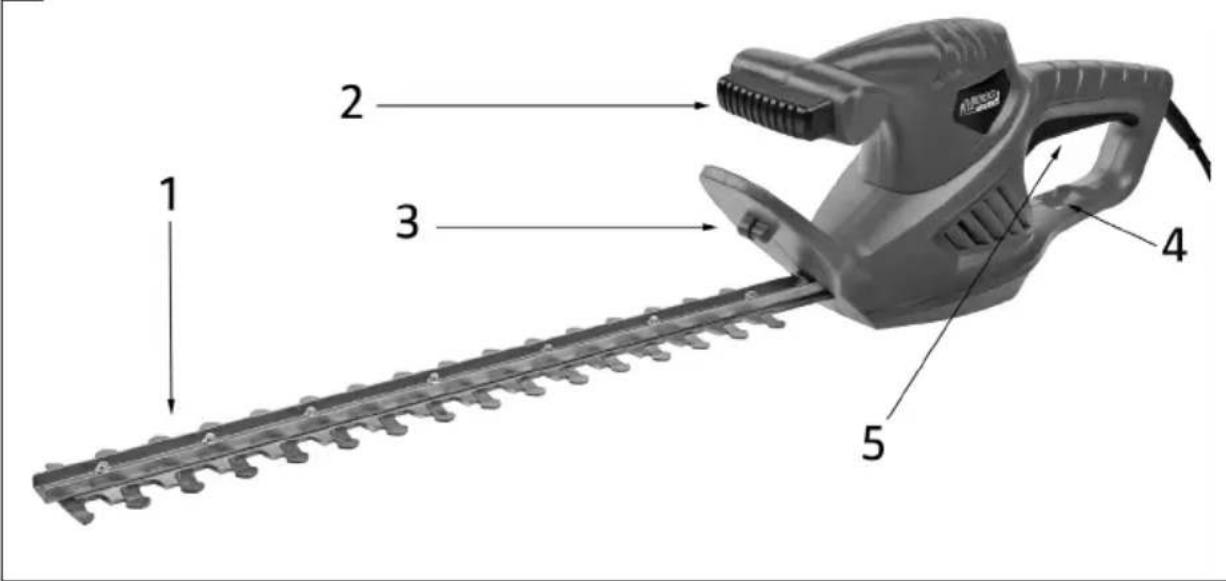

FIG. 1

1. Bar
2. Front handle with power switch
3. Guard
4. Cord retainer
5. Rear handle with power switch

USE

Intended use

• The hedge trimmer must only be used for cutting hedges and bushes. All other use not described in these instructions can result in serious personal injury and/or material damage.
• The hedge trimmer is only intended for household use, not for commercial use.

Connection

1. Check that the mains voltage corresponds to the rated voltage on the type plate.
2. Plug the plug into a suitable extension cord. Make a loop on the cord, push it through the opening in the rear handle and hook the loop onto the cable holder (4).

Starting/stopping

1. Starting: First press the power switch (2) on front handle and then the power switch (5) on the rear handle. The hedge trimmer now starts.
2. Stopping: Release one of the power switches (2) or (5).
3. The bar brake stops the movement of the blades within 1 second. It is perfectly normal to see sparks in the upper

ventilation openings and this does not mean something is wrong.

Cutting hedges

• Cut branches thicker than 16 mm with secateurs first.
• Trim the hedge to a slight trapezoidal shape. This is the natural shape for growing plants This will result in optimal hedge growth.
• Start by trimming the sides from below and up. Cut the upper part to your preferred shape: straight, roof shaped or rounded.
• The outer edges of the blades are rounded and the blades are relatively displaced to reduce the risk of personal injury. The extra kickback protection prevents kickback if the bar comes into contact with walls or fences, etc.
• If the blades get jammed or blocked, switch off the motor immediately and pull out the plug. Clear the bar and plug in the plug again.
• IMPORTANT: Metal objects such as wire fencing can damage the blades.
• The power cord should always be behind you when trimming. Start trimming the hedge by the power point. Plan the direction your are going to work in before starting the trimming.

MAINTENANCE

NOTE:

Always pull out the plug before checking and/or maintenance.

• Always check the condition of the hedge trimmer before using it.
- Damaged blades must be repaired or replaced by an authorised service centre before the trimmer is used again.

EN

• Clean the bar with a soft brush and a cloth with lubricating oil after use. Apply a thin layer of protective oil on the bar.
• Keep the ventilation openings on the hedge trimmer clean.
• Never clean the hedge trimmer with water. Do not rinse the hedge trimmer with water. Clean the motor casing with a damp cloth. Never use detergents or solvents. This can damage the plastic parts on the hedge trimmer. Wipe the motor casing well.
• Store the hedge trimmer with the supplied guard fitted.

CE

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certify that the design and manufacturing of this product

Machinery Directive 2006/42/EC

EN 60745-1:2009+A11, EN 60745-2-15:2009+A1

Electromagnetic Compatibility Directive 2014/30/EU

EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2

EN 61000-3-2:2006+A1+A2, EN 61000+3-3:2013

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

RoHS Directive 2011/65/EU

EN 62321:2009

This product was CE marked in year -16

Name and address of the person authorised to compile the technical file:
