EM 12 POWERED MIXER LES Thank you for purchasing the Yamaha EMX5000-20/EMX5000-12 Powered Mixer. Parts of the EMX5000-20, EMX5000-12 owners manual have been revised. Please refer to the following revisions rather than the corresponding sections of the original owners manual. P.14 H POWER amp section CRETE CR // [nc] @ LIMITER indicator If the output level of signals received at the SPEAKERS jacks (output of the internal power amplifier) reaches maximum, the indicator will light. Caution: Ifthe LIMITER indicator flashes continuous- ly, the internal power amplifier section is being exces- sively overloaded and may malfunction. Reduce the output level at the ST OUT fader (2)) below the level that the indicator flashes only briefly on the highest transient peaks. P.15 H Other indicators and controls &@ Level Meter This LED display shows the level of signals received at the ST OUT jack (input/output panel (0). Note: The SPEAKERS 1 & 2 jacks (rear panel (3) out- put the signals received at the ST OUT jack via the inter- nal power amplifier. Check the output signal level via the LIMITER indicator (@). The LIMITER indicator will light before the Level Meter “8” or “PEAK” LED light. P.18 Rear panel

3) SPEAKERS (speaker output) jacks

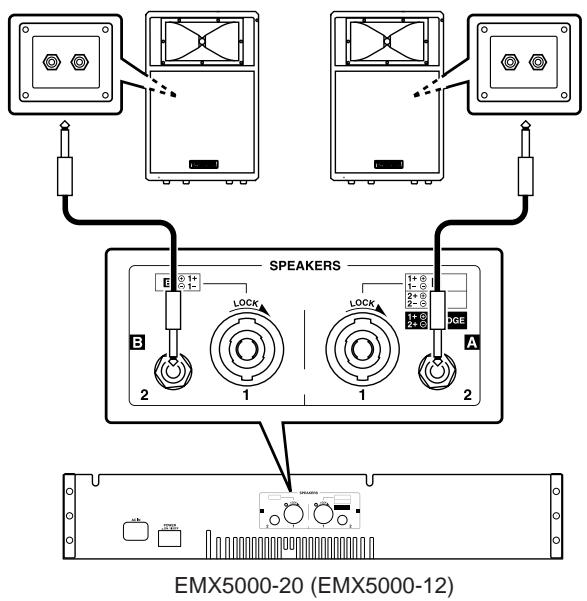

These jacks are used to connect speakers. Jacks 1 are Speakon-type connectors. Use only Neutrik NLAFC plugs for connecting Speakon connectors. CHANNEL

STEREO/PARALLEL BRIDGE

FIX FL TE EL a [es a 2 [= 2 L— CHANNEL Neutrk NL4FC Jacks 2 are 1/4” phone jacks. The setting of the control panel power amp select switch 6 will determine the sig- nal that is output to these jacks, and the number and appropriate impedance of the speakers that can be con- nected. P.33 Block/Level Diagram

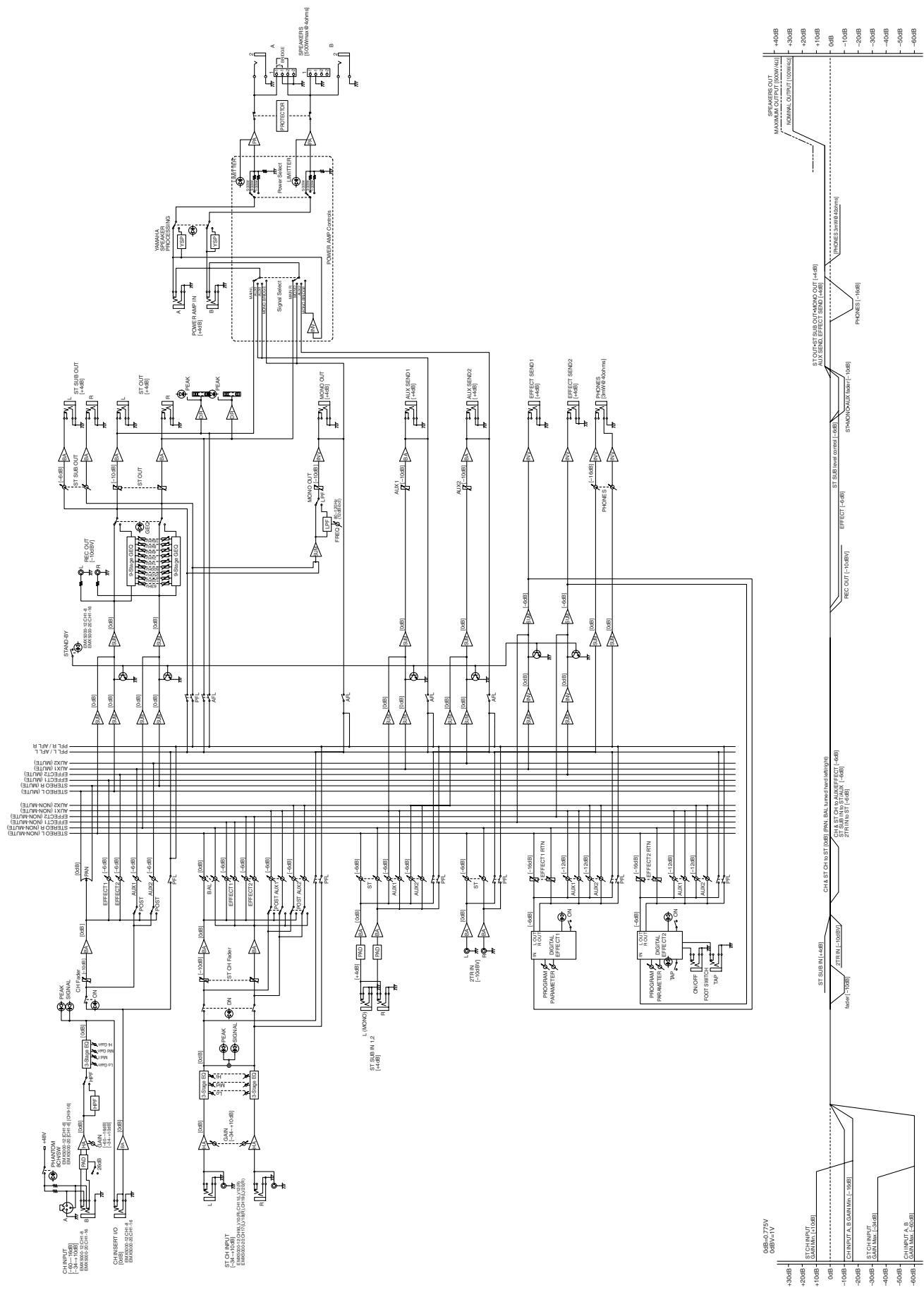

SPEAKERS OUT MAXIMUU OUTPUT [SDQW40) Power Amplifier output section level diagram (bottom right) These plots show the nominal output and maximum output levels of signals received at the SPEAKERS jacks. If the output level is +4dB (Level Meter “0”), the internal power amplifier will deliver 100W into a 4Q load. If the output level is +11dB (LIMITER indicator lights), the internal amplifier will deliver a maximum of 500W into 4Q2.

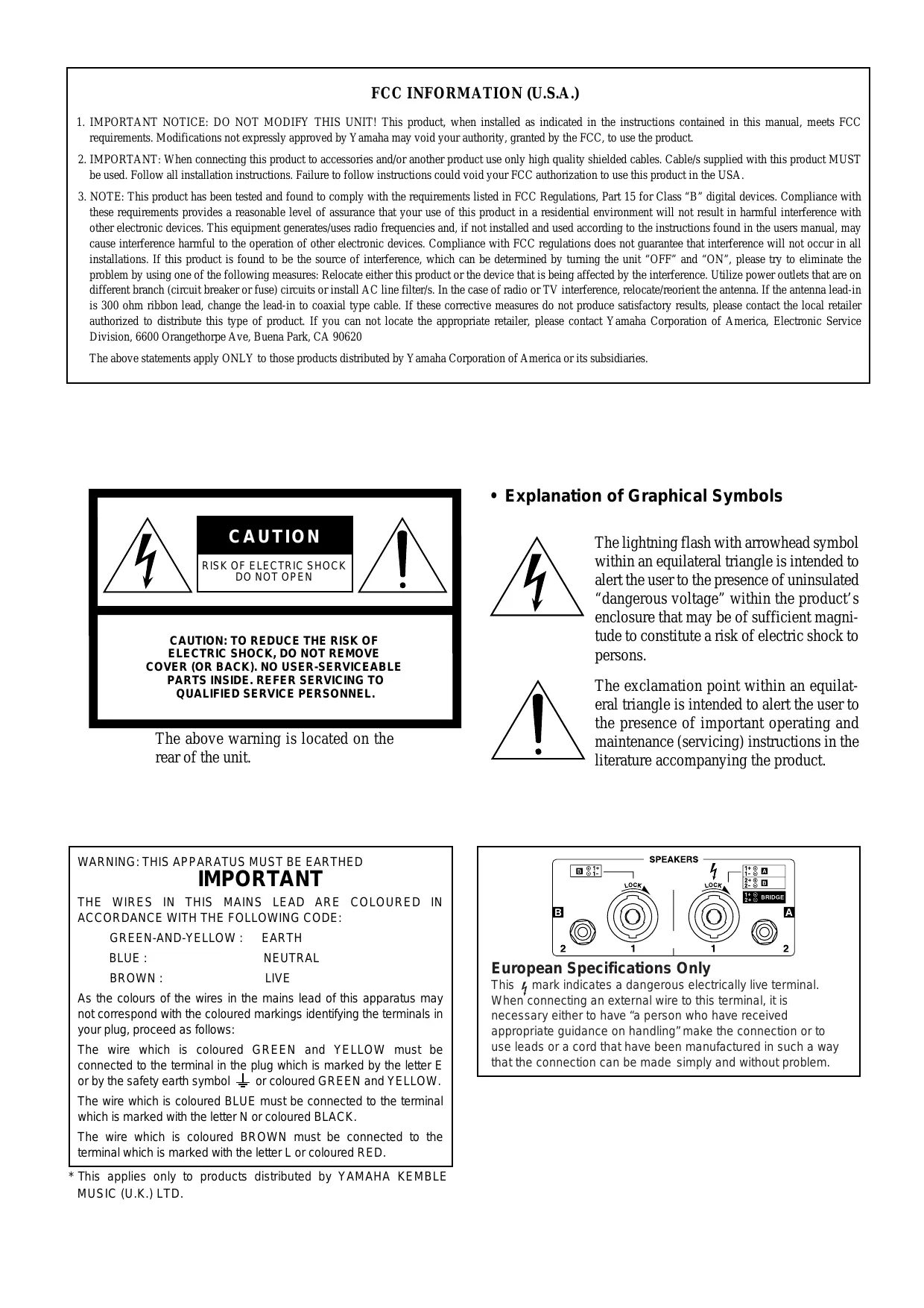

FCC INFORMATION (U.S.A.) 1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides à reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference hammful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by tuming the unit "OFF" and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filterfs. In the case of radio or TV interference, relocate/reorient the antenne. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA 90620 The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries. + Explanation of Graphical Symbols Thelighining flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magni- tude to constitute a risk of electric shock to persons.

QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilat- eral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. The above warning is located on the rear of the unit.

This 4 mark indicates a dangerous electrically live terminal. As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol -L or coloured GREEN and YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L'or coloured RED. When connecting an external wire to this terminal, it is necessary either to have “a person who have received appropriate guidance on handling” make the connection or to use leads or a cord that have been manufactured in such a way thatthe connection can be made simply and without problem *This applies only to products distributed by YAMAHA KEMBLE MUSIC (U.K.) LTD.

Precautions 3 Precautions WARNING Installation Connect this units power cord only to an AC outlet of the type stated in this Owner’s Manual or as marked on the unit. Failure to do so is a fire and electrical shock hazard. Do not allow water to enter this unit or allow the unit to become wet. Fire or electrical shock may result. Do not place a container with liquid or small metal objects on top of this unit. Liquid or metal objects inside this unit are a fire and electrical shock hazard. Do not place heavy objects, including this unit, on top of the power cord. À damaged power cord is a fire and electrical shock hazard. In particular, be careful not to place heavy objects on a power cord covered by a carpet. Use only the included power cord for this unit. Using other types may be a fire and electrical shock hazard. The power to this device is not completely shut off even when the power switch is turned off. Locate the device close to the AC outlet so you can easily reach the power plug. CAUTION Operation Do not scratch, bend, twist, pull, or heat the power cord. A damaged power cord is a fire and electrical shock hazard. Do not remove the units cover. You could receive an electrical shock. If you think internal inspection, maintenance, or repair is necessary, contact your dealer. Do not modify the unit. Doing so is a fire and electrical shock hazard. Iflightning begins to occur, turn off the power switch of the unit as soon as possible, and unplug the power cable plug from the electrical outlet. If there is a possibility of lightning, do not touch the power ill connected. Doing so may be an electrical cable plug if it i shock hazard. +_Ifthe power cord is damaged (iLe., cut or a bare wire exposed), ask your dealer for a replacement. Using the unit with a damaged power cord is a fire and electrical shock hazard. Should this unit be dropped or the cabinet be damaged, turn the power switch off, remove the power plug from the AC outlet, and contact your dealer. If you continue using the unit without heeding this instruction, fire or electrical shock may result. If you notice any abnormality, such as smoke, odor, or noise, or if a foreign object or liquid gets inside the unit, turn it off immediately. Remove the power cord from the AC outlet. Con- sult your dealer for repair. Using the unit in this condition is a fire and electrical shock hazard. Installation +_Keep this unit away from the following locations: - Locations exposed to oil splashes or steam, such as near cooking stoves, humidifiers, etc. = Unstable surfaces, such as a wobbly table or slope. Locations exposed to excessive heat, such as inside a car with all the windows closed, or places that receive direct sunlight. Locations subject to excessive humidity or dust accumula- tion. Hold the power cord plug when disconnecting it from an AC outlet. Never pull the cord. À damaged power cord is a poten- tial fire and electrical shock hazard. Do not touch the power plug with wet hands. Doing so is a potential electrical shock hazard. This unit has ventilation holes at the rear to prevent the internal temperature rising too high. Do not block them. Blocked venti- lation holes are a fire hazard. To relocate the unit, turn the power switch off, remove the power plug from the AC outlet, and remove all connecting cables. Damaged cables may cause fire or electrical shock. Operation + Turn off all musical instruments, audio equipment, and speak- ers when connecting to this unit. Use the correct connecting cables and connect as specified. Always lower the volume control to minimum before turning on the power to this unit. À sudden blast of sound may damage your hearing. Use only speaker cables when connecting speakers to amplifier outputs. Using other types of cables is a fire hazard. If you know you will not use this unit for a long period of time, such as when going on vacation, remove the power plug from the AC outlet. Leaving it connected is a potential fire hazard. Maintenance + Clean the contacts of the phone plug before connecting it to the SPEAKERS jack of this unit. Dirty contacts may generate heat. *_ To prevent electrical shock when cleaning the unit, remove the power plug from the AC outlet. EMX5000-20/EMX5000-12—Owner's Manual

Connector pin assignments Influence on cell phone usage + XLR-type connectors are wired as follows: pin 1: ground, pin + Using a cell phone (mobile telephone) near this unit may induce hot (+), and pin 3: cold (-). noise. If noise occurs, use the telephone away from the unit. +_ Insert TRS phone jacks are wired as follows: sleeve: ground, tip: send and ring return + Do not set all equalizer controls and faders to maximum. Doing so may cause oscillation depending on the condition of such the connected unit and speakers, and may damage the speake +_ The performance of components with moving contacts . switches, rotary controls, faders, and connectors, deteriorates over time. The rate of deterioration depends on the operating environment and is unavoidable. Consult your dealer about * The digital circuits of this unit may induce a slight noise into replacing defective components. nearby radios and TVs. If noise occurs, relocate the affected equipment. EMXS5000-20/EMX5000-12—Owner's Manual

Introduction 5 Introduction Thank you for purchasing the Yamaha EMX5000-20/EMX5000-12 Powered Mixer. In order to take full advantage of the EMX5000-20/EMX5000-12 and enjoy long, trouble-free performance, please read this owner’s manual carefully, and keep it in a safe place for future reference. Features + The EMX5000-20/EMX5000-12 provides versatile inputs, such as two stereo input channels and two ste- reo sub inputs, as well as 16 (EMX5000-20), 8 (EMX5000-12) monaural input channels compatible with mic/line signals. The mixer also has ample power, with a maximum output of 500 W+500 W (1000 W with bridge connection), and is suitable for a wide range of applications from installed systems to small- scale PA systems. A two-channel power amp is built-in, The signals out- put to speakers can be selected as stereo (ST L-R), AUX+monaural (AUX 1- MONO), two AUX (AUX1- AUX2) or monaural (bridge connection). In addition to the speaker output jacks, two stereo output channels for line-level signals, two AUX output channels, two effect outputs, and one monaural out- put are provided. You can easily expand the system by adding a power amplifier or powered speakers. The EMX5000-20/EMX5000-12 also has a PHONES jack, which is very useful for checking the sound. You can monitor only a specific channel or bus signal through the headphones. + Each amp contains a limiter circuit to prevent distor- tion due to excessive input levels. À maximum output select switch lets you switch the maximum output of the amp between three levels. This lets you adjust the maximum output of the inter- nal power amp as appropriate for the size of the room or the input capacity of the speakers. Two multi-effect units are built-in, each providing six- teen types of effect equivalent in quality to the acclaimed Yamaha SPX series of multi-effect units. The effects can be used to add reverb or ambience to vocals or instruments. The sixteen types (provided by each of the two effect units) include TAP DELAY, which lets you easily adjust the delay time. The EMX5000-20/EMX5000-12 has implemented “EEEngine” Yamaha* epochal amp drive technology to create an unrivaled high-efficiency drive. The EEEngine’s energy-saver/low-heat-generation design has reduced power consumption to 50% or less, and reduced heat generation to 35% or less (in field applications, compared to Yamaha* previous models), and has lead to a reduction in energy cost and to less-restrictive installation requirements related to heat generation. Contents Introduction. Features . EMX5000-20/EMX5000-12 Quick Guide Front and rear panel. Control panel … Input/output panel. Rear panel... Installation/Connections 19 Installation Connection Connecting input/output equipment. Basic operation ... Connecting microphones and instruments Using the digital effect Example setups… ee sus 24 As à conference/entertainment hall sound SYSTEM ne As à band PA... Using a subwoofer. Troubleshooting Specifications … . General specifications Input specifications … . Output specifications Dimensions . Installing an optional rack n mount kit Block/Level Diagram................................. EMX5000-20/EMX5000-12—Owner's Manual

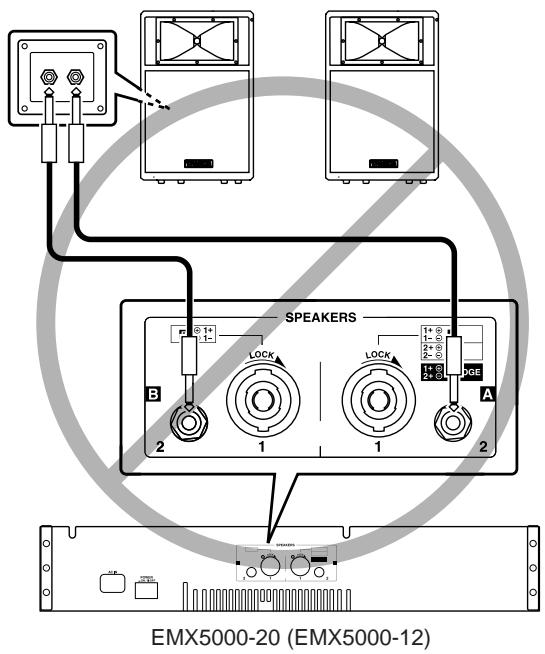

6 EMX5000-20/EMX5000-12 Quick Guide E M X5000-20/ Never connect the speakers in the manner shown below. Otherwise, the EMX5000-20/EMX5000- E M X5000- 1 2 12’ built-in power amplifier will be damaged. Quick Guide The following steps (1-5) explain the basic con- nection and operation of the EMX5000-20/ EMX5000-12. Also, please read “Front and Rear Panel” and “Basic Operation” following this Quick Guide section to learn more about using the EMX5000- 20/EMX5000-12. SPEAKERS SUILME Connection Connecting speakers f = nl Using speaker cables, connect each speaker to the M 00%! pl SPEAKERS A jack and to the B jack in the 1 fl SPEAKERS jack section on the rear panel of the EMX5000-20 (EMX 5000-12) EMX5000-20/EMX5000-12. Setting the power amplifier mode Set the power amp select switch (located on the right corner on the panel) to ST L-R. Oumrer|O Ds —

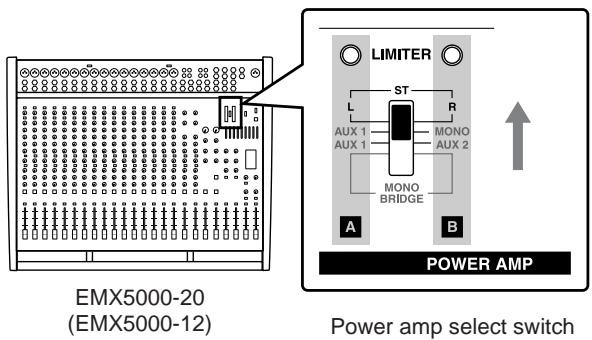

ENT HEAR RE EMX5000-20 (EMX5000-12) Power amp select switch on) x en x l O4 à MATE i j + This quick guide explains how to connect one main speaker each to left and right for stereo operation. If EMX5000-20 (EMX 5000-12) the power amp select switch is set to the ST L-R position as shown here, the stereo R signal will be output from the SPEAKERS A jacks, and the stereo L signal from the SPEAKERS B jacks. Refer to pages 14, 19, 20 for other connections and power amp select switch settings. In the example shown by the above diagram, two main speakers are connected (one each to left and right) in stereo. For other connection examples, refer to pages 20-21. You may connect to either of the two jacks on the speakers. Be sure to use a cable designed for speaker connec- tion. Speakers with a Speakon connector can also be con- nected using a Speakon cable. In this case, use the SPEAKERS 1 jacks to output the signal from the EMX5000-20/EMX5000-12. + When connecting a Speakon connector to the EMX5000-20/EMX5000-12, be sure to turn the plug to the right to lock the connection after inserting the plug. EMXS5000-20/EMX5000-12—Owner's Manual

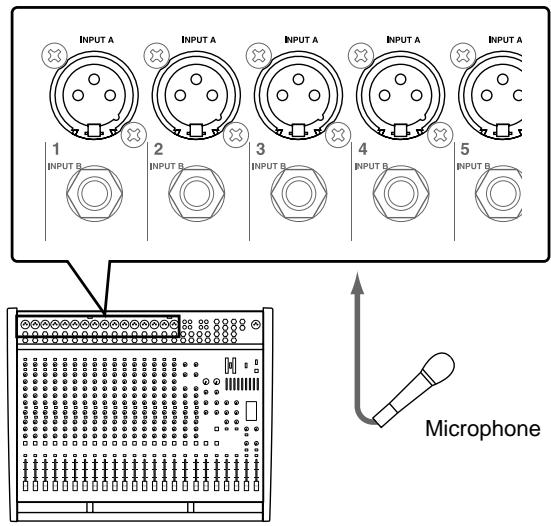

EMX5000-20/EMX5000-12 Quick Guide 7 Connecting a microphone Make sure that the power is turned off to the EMX5000-20/EMX5000-12. Connect mics to channels 1-16 (EMX5000-20) or 1-8 (EMX5000-12), using the INPUT A jacks if the mic has an XLR plug, or the INPUT B jacks if the mic has a phone plug. Connecting a CD player, MD player, and/or cassette deck Connect a CD player or MD player to the 2TR IN jacks. Refer to the operation manual of the corre- sponding device for more information on the input and output of the device. Microphone EMX5000-20 (EMX5000-12) Using a condenser microphone Turn on the PHANTOM switch (located in the upper center corner on the panel). + The PHANTOM switch supplies phantom power to all channel inputs at once (EMX5000-20: 1-8 and 9- 16, EMX5000-12: 1-8), so mics other than con- denser mics must be connected to the INPUT B jacks. PHANTOM switch +48V(CH 1-8)

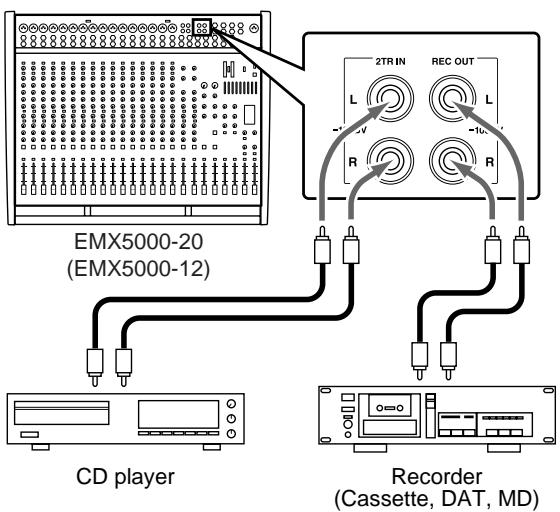

EMX5000-20 (EMX5000-12) + Do not connect or disconnect a condenser micro- phone while the power to the unit is on and the PHANTOM switch has been turned on. EMX5000-20 (EMX5000-12) = E = CD player Recorder (Cassette, DAT, MD) + To connect a second player, use the LINE jack. + Connect a recorder to the REC OUT jacks. Connecting an electric acoustic guitar or electric bass Connect electric/acoustic guitars or electric basses via an effect processor or direct box to the INPUT B jack. EMX5000-20 (EMX5000-12) Electric-acoustic Electric guitar bass + You cannot use the INPUT A jack and the INPUT B jack for the same channel at the same time. If a microphone has already been connected to the INPUT B jack of a channel, you cannot connect the effect unit to the INPUT A jack of the channel. EMX5000-20/EMX5000-12—Owner's Manual

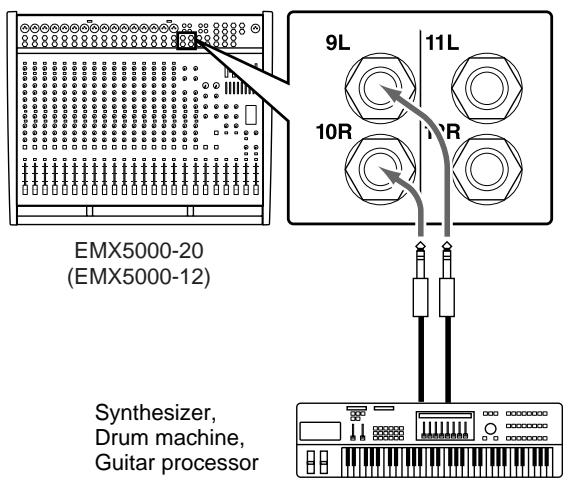

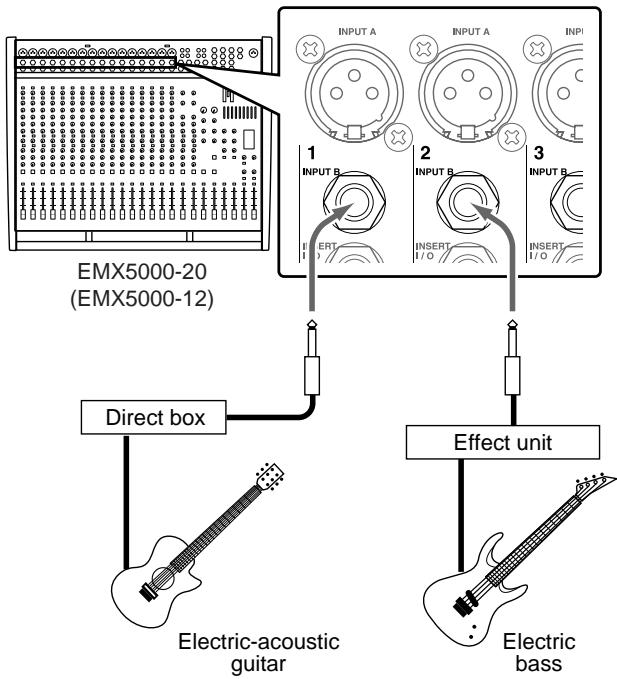

8 EMX5000-20/EMX5000-12 Quick Guide Connecting an electronic musical instrument To the EMX5000-20/EMX5000-12’s LINE or ST SUB IN jacks, you can connect an electronic musical instrument such as a synthesizer, drum machine, signal processor connected to an elec- tric guitar, etc. Refer to the diagram below to make a stereo connection from the output jacks (such as L/MONO and R) of an electronic musi- cal instrument to the LINE or ST SUB IN jacks in stereo. EMX5000-20 (EMX5000-12) Synthesizer, = Drum machine, ae Guitar processor (48 MAMAN SUA14 Power on 1 Turn on the power to all external devices con- nected to the EMX5000-20/EMX5000-12. 2 Make sure that the ST OUT fader of the EMX5000-20/EMX5000-12 is lowered, and then press the POWER switch of the EMX5000-20/ EMX5000-12 to turn it on. lsosscduecseeede x à 1588 el

EMX5000-20 = (EMX5000-12) È + Be sure to follow the power up sequence specified above to prevent the speakers from being damaged. + To correct the low range, turn on the YAMAHA SPEAKER PROCESSING switch in the upper right corner of the panel. Sound output Set the ST OUT fader and the input channel fad- ers to the “—” position, and while playing the instrument (or singing into the mic) connected to the channel you want to check, raise the GAIN control of the channel so that the PEAK indicator of that channel lights occasionally. + Do not press the 26dB PAD switch if sound is input from the microphone. Otherwise, press the 26dB PAD switch on. sssseesee nn fu el EMX5000-20 (EMX5000-12) à > @ rx @ rx @ rx @r <Oan © Osan Osau | Os mC) en) va) enf Set the ST OUT fader to the “0” position, and raise the faders of the input channels to adjust the volume. + Please be aware that if the PEAK indicator of the ST level meter is continuously lit for an extended time, the internal amp or the connected speakers may be damaged. loscccsbecssoees

EMX5000-20 (EMX5000-12) EMXS5000-20/EMX5000-12—Owner's Manual

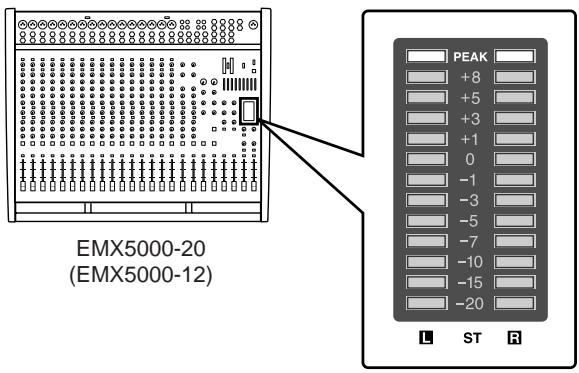

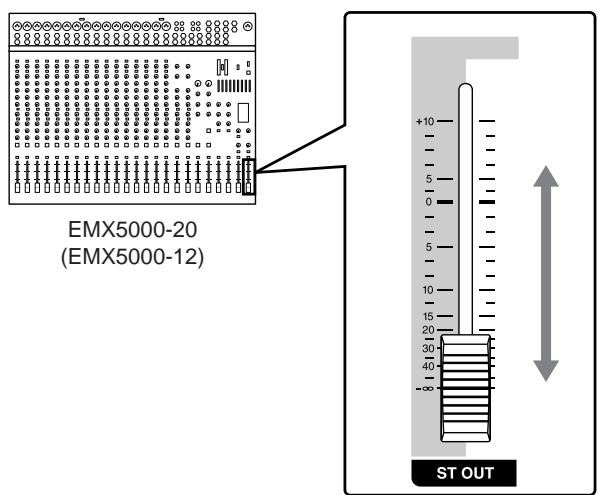

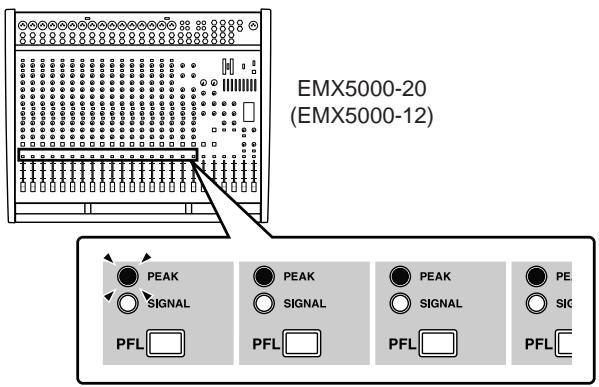

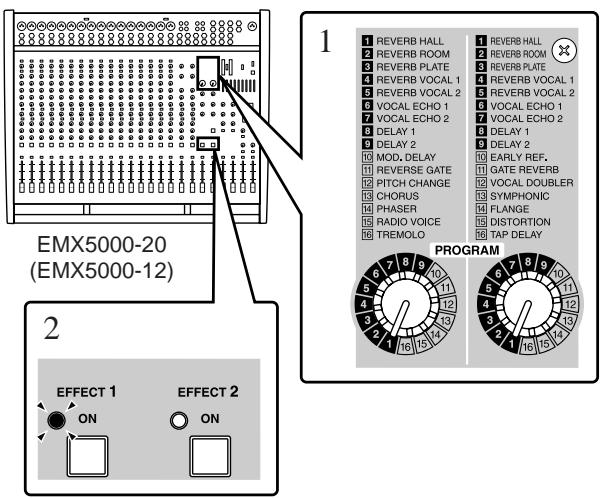

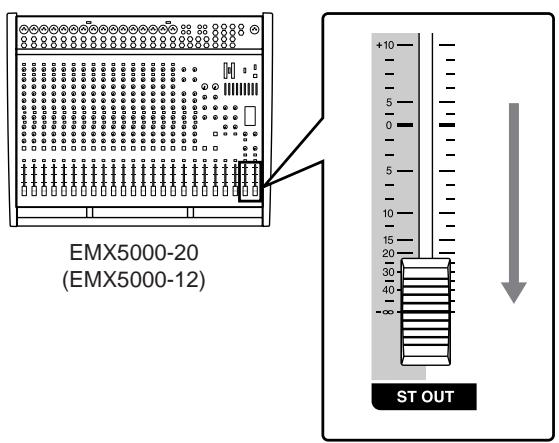

EMX5000-20/EMX5000-12 Quick Guide 9 Use the ST OUT fader to adjust the volume of the speakers. [ecscesseesecece: Ines EMX5000-20 (EMX5000-12) QUAI Applying built-in effects 1 Use the PROGRAM selector to select the type of effect that you want to apply. 2 Turn on the ON switch in the EFFECT section. The ON switch indicator lights up. Te DELA

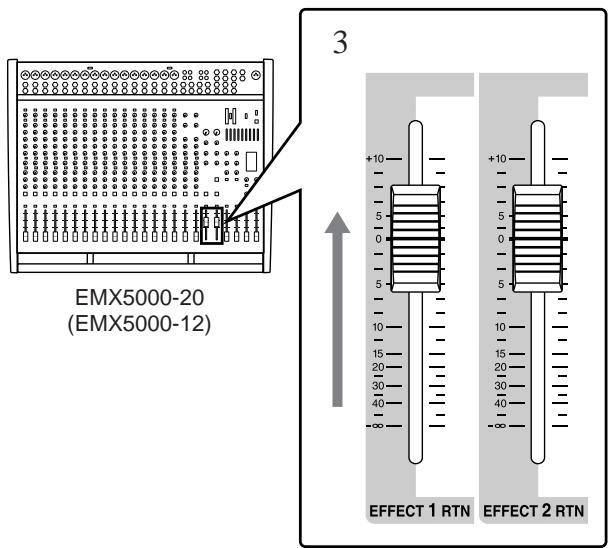

(EMX5000-12) 3 Set the EFFECT RTN fader to the “0” position.

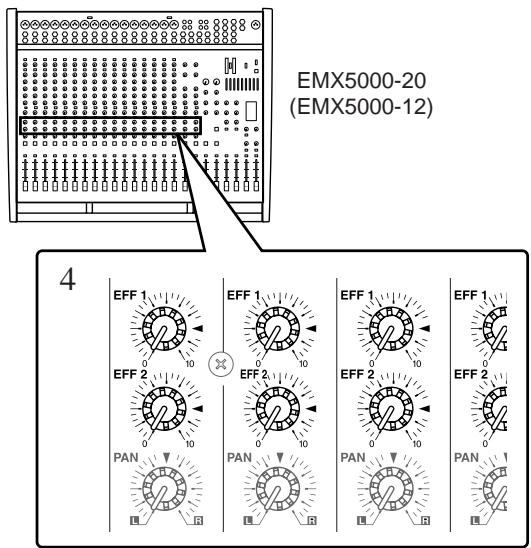

4 If you want to use effect channel 1, adjust the effect depth by turning the EFF1 control of the channel to which you want to apply the effect. EMX5000-20 (EMX5000-12) SET Power off 1 Press the POWER switch of the EMX5000-20/ EMX5000-12 to turn off the power to the unit. 2 Turn off the power to all connected devices. + Be sure to follow the power off sequence specified above to prevent the speakers from being dam- aged. + In preparation for the next time you will use the EMX5000-20/EMX5000-12, we recommend that you set the faders of the EMX5000-20/EMX5000- 12 to the “—-” position. EMX5000-20/EMX5000-12—Owner's Manual

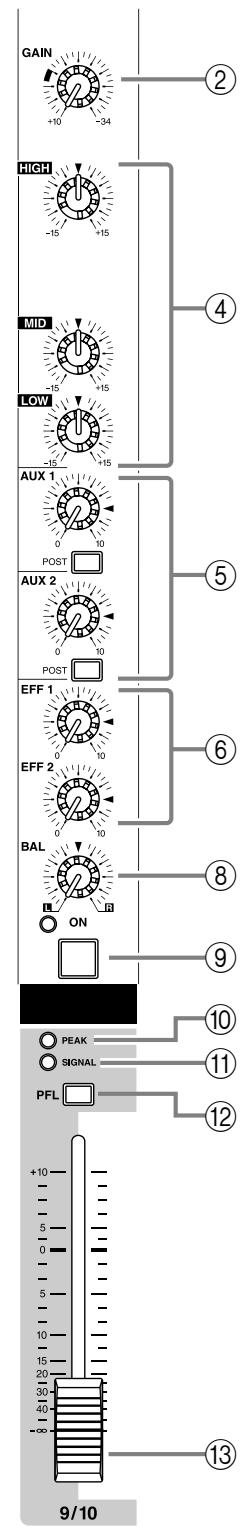

10 Front and rear panel Front and rear panel Control panel Æ Channel control section In this section, you can adjust equalization (fre- quency response), volume level, effect and AUX output levels for the input signal of each channel. @ 26 dB pad switch This switch attenuates the input signal by 26 dB. Attenuation is on when the switch is pressed inward. @) GAIN control Use this knob to adjust the sensitivity according to the input signal level, so that the input level is appropriate. For the best balance of S/N ratio and dynamic range, adjust this knob so that the peak indicator @ lights occasionally.

• When the knob is at the“ &” position, the input sensitivity will be +4 dB. @ /80 (High pass filter) switch This is an on/off switch for the high-pass filter. The high-pass filter is on when the switch is pressed inward, and the frequency region below 80 Hz will be attenuated at 18 dB/octave. @) Equalizer controls (HIGH, MID, LOW) This is a 3-band equalizer that adjusts the high frequency range, mid frequency range, and low frequency range of each channel. When the HIGH and LOW knobs are in the “W” position, the high and low ranges will have a flat response. Turning a knob toward the right will boost the corresponding frequency range, and turning it toward the left will cut it. For the mid range, use the upper MID knob to specify the center frequency of the range, and use the lower knob to set the amount of boost or cut that will occur. The frequency response is flat when the lower knob is set to the “W” position. Turning the lower knob toward the right will boost the corresponding frequency range, and turning the knob toward the left will cut it. The base frequency (or center frequency), range of boost or cut, and equalizer type of each band are as follows: HIGH: 10kHz, +15 dB, shelving type MID: 250Hz-5kHz, +15 dB, peaking type LOW: 100Hz, +15 dB, shelving type EMXS5000-20/EMX5000-12—Owner's Manual

AUX1, AUX2 controls / POST switches These knobs adjust the level at which the input signal will be sent to the AUXI and 2 buses. Nominal level is when the knob is set to the “-@” position. The position from which the signal is sent can be set by the POST switch to either pre- fader (before the channel fader (3) or post-fader (after the channel fader 43). When the switch is pressed inward, post-fader is selected. The signal will be output from the AUXI and 2 buses to the AUX SEND 1 and 2 jacks of the input/output section, and can be sent to external monitor amps or powered speakers. EFF 1, 2 controls (EFFECT) For each channel, these control the amount of signal that is sent to the EFFECT 1, 2 buses. The signal of the EFFECT 1, 2 buses is sent to the EFFECT SEND 1,2 jack (input/output panel @)). Itis also sent to the built-in effect when the ON switch @ in the digital effect section is turned on. Note: The amount of signal that is sent to the EFFECT 1, 2 bus from each channel will be af- fected not only by the setting ofthe EFFECT 1, 2 control, but also by the setting of the channel fader ( (post-fader send). PAN (panpot) control (EMX5000-20: Channels 1-16, EMX5000-12: Channels 1-8) The PAN knobs set the stereo position of the sig- nal that is sent to the STEREO bus. The signal is located in the center when the knob is positioned at“W} at right at R, and at left at L. BAL (balance) control (EMXS5000-20: Channels 17/18-19/20, EMX5000-12: Channels 9/10-11/12) The BAL knobs set the balance between the left and right channels, and assign the signals received at inputs 17/18-19/20, 9/10-11/12 to the STEREO bus. ON switch, indicator This is an on/off switch for the input signal of each channel. The indicator will light if this switch is turned on. PEAK indicator The indicator will light 3 dB before clipping, warning that clipping level is near. SIGNAL indicator This indicator will light if a signal is being input to the corresponding channel. @ PFL (pre-fader listen) switch Channels for which this switch is on will send a signal from a post-EQ pre-fader location to the PHONES jack (input/output panel ()). Use this when you wish to use the headphones to monitor only a specific channel. Note: Ifthis switch is turned on, you can mon- itor a channel even if the channel fader is low- ered, or if the ON switch is off. This will not affect the signals that are sent to the STEREO bus, AUX 1 and 2 buses, and EFFECT bus. 4 Channel fader This controls the output level of the input chan- nel signal. PHANTOM indicator This will light when the PHANTOM switch (input/output panel ()) is on.

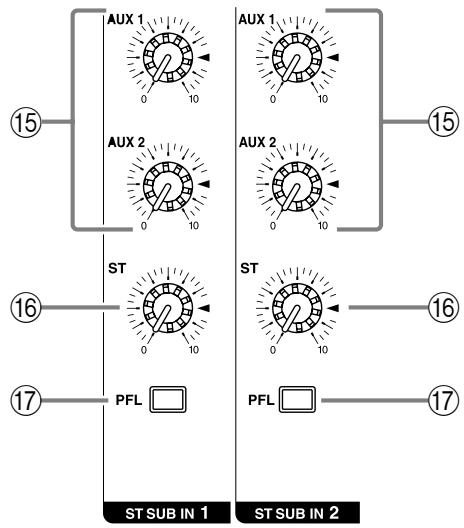

EÆ Stereo sub input section In this section, you can adjust the input level of external equipment connected to the ST SUB IN 1,2 jacks on the input/output panel. srsusin 1 À sTsus in 2 € AUX 1, 2 controls This knob adjusts the amount of the signal sent from the ST SUB IN 1 and 2 jacks (input/output panel (®)) to the AUX 1, 2 buses. ST (stereo) control The ST knob adjusts the amount of stereo signal sent from the ST SUB IN 1 and 2 jacks to the STEREO bus. EMX5000-20/EMX5000-12—Owner's Manual

12 Front and rear panel 4 PFL (pre-fader listen) switch When this switch is turned on, the signal at the point before the ST control knob (6 is sent to the PHONES jack (input/output panel 4). Note: The ST control setting does not affect the level ofthe signal sent to the PFL/AFL buses (pre-fader send). Æ Master control section In this section, you can adjust the final level of the outputs. higisigæiéiiellelelli

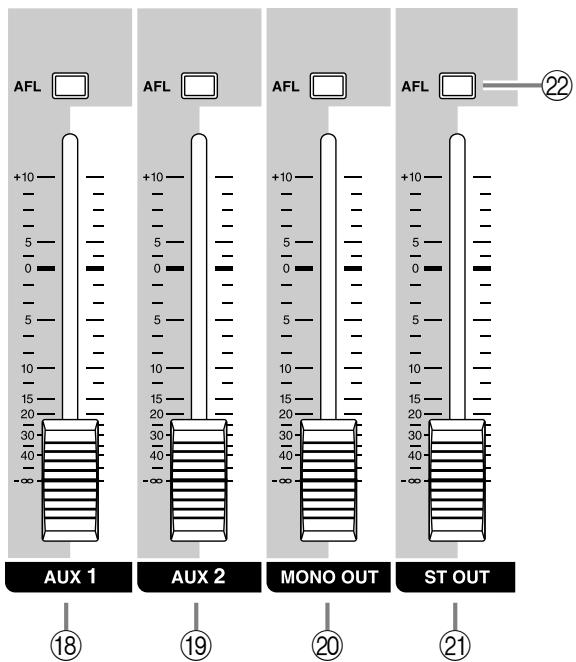

€ AUX 1 fader The AUX 1 fader adjusts the final level of the sig- nal sent from the AUX 1 bus to the AUX SEND 1 jack (input/output panel (@)). If the Power amp select switch @ is set to AUX 1-MONO, using this fader enables you to adjust the level of the signal sent from the SPEAKERS A 1/2 jacks to the speakers. €) AUX 2 fader The AUX 2 fader adjusts the final level of the sig- nal output from the AUX 2 bus to the AUX SEND 2 jack (input/output panel (8)). If the Power amp select switch @ is set to AUX 1- AUX 2, using this fader enables you to adjust the level of the signal sent from the SPEAKERS B 1/2 jacks to the speakers. @ MONO OUT fader The MONO OUT fader adjusts the final level of the monaural signal output from the STEREO bus to the MONO OUT jack (input/output panel

If the Power amp select switch 6 is set to AUX 1- MONO, this fader also adjusts the level of the sig- nal sent from the SPEAKERS B 1/2 jacks to the speakers. If the Power amp select switch @ is set to MONO BRIDGE, this fader adjusts the level of the signal sent from the SPEAKERS A 1 jacks to the speaker. ST OUT fader The ST OUT fader adjusts the final level of the signal sent from the STEREO bus to the ST OUT jacks (input/output panel 4). If the Power amp select switch 65 is set to ST L-R, this fader also adjusts the level of the signal sent to the SPEAK- ERS jacks (rear panel @)). Note: The setting of this fader does not affect the signal output from the STEREO bus to the ST SUB OUT jacks. AFL (after fader listen) switch When this switch is on, the output signal that passes through the corresponding fader is sent to the PHONES jack (input/output panel ). Use these switches when you wish to monitor a par- ticular output signal through the headphones. 2TR IN section In this section, you can adjust the input level of a cassette deck or a CD player that is connected to the 2TR IN jacks (input/output panel @)). 2TRIN ST (stereo) control This knob adjusts the level of the signal sent from the 2TR IN jacks to the STEREO bus. PFL (pre-fader listen) switch When this switch is on, the signal input from the 2TR IN jacks is routed at the point before the ST control @) to the PHONES jack (input/output panel d)). EMXS5000-20/EMX5000-12—Owner's Manual

Control panel 13 H Digital effect section This section enables you to turn the built-in two- channel digital effects on/off and select the effect type.

@) PROGRAM selector This knob selects the effect type for the internal digital effect. @) PARAMETER control This knob adjusts the time parameter of the internal digital effect. @) AUX 1/2 control This knob adjusts the level of the return signal that is sent from the built-in digital effect to the AUX 1/2 buses. TAP switch, indicator Only if the PROGRAM selector has selected TAP DELAY as the internal effect type, you can press this switch to set the desired delay time. Press the TAP switch several times, and the inter- val between the last two presses will be set as the delay time. The specified time will be remem- bered even if the power is turned off. The LED beside the switch will blink in synchro- nization with the delay time only when the effect type is TAP DELAY. @ EFFECT 1/2 ON switch This switch turns the internal digital effect on/ off. PFL (Pre-fader listen) switch When this switch is on, the signal from before the EFFECT 1/2 RTN faders 6) will be sent to the PHONES jack (input/output panel (4)). @) EFFECT 1/2 RTN fader This fader adjusts the level of the return signal that is sent from the built-in digital effect to the STEREO bus. EMX5000-20/EMX5000-12—Owner's Manual

14 Front and rear panel E Graphic equalizer section This section enables you to adjust the tone of the STEREO bus signal.

ST GRAPHIC EQUALIZER

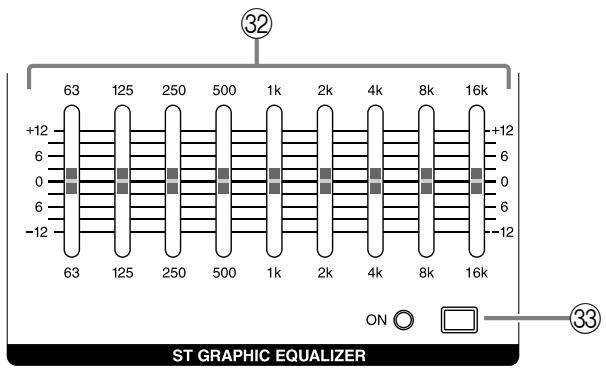

@) Graphic equalizer This is a 9-band graphic equalizer that allows you to adjust the frequency response of the STEREO bus signal, providing a maximum of +12 dB of cut/boost for each frequency band. This graphic equalizer affects both the STEREO bus signal that is output to the speakers and the line level signal that is output from the ST OUT jacks (input/output panel 4), and MONO OUT jack (input/output panel (). & ON switch This switch turns the graphic equalizer on/off. H Power amp section This section allows you to select the signals that will be sent to the built-in two-channel power amplifier. s00w. LL 7 Lis

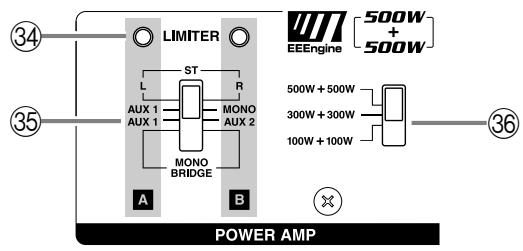

POWER AMP @ LIMITER indicator This indicator lights up when the level of the sig- nal output from the power amp section reaches the maximum and the limiter is activated. Adjust the ST OUT @) and appropriate fader so that the indicator lights up for only a short while when the signal reaches the maximum level. Note: The indicator lights up or flashes for a longer duration ifthe power amp section is sig- nificantly overloaded, which could result in malfunction. Avoid such a situation. & Power amp select switch Select one of the following three settings to spec- ify the signals to be routed to the corresponding jacks according to the speaker connection at the SPEAKERS jacks (3) on the rear panel. *STL-R The STEREO bus signals are output from the SPEAKERS A 1/2 jacks and the SPEAKERS B 1/2 jacks. The final level of these signals is adjusted by the master ST OUT fader.

• AUX 1-MONO The AUX 1 bus signals are output from the SPEAKERS A 1/2 jacks, and a monaural signal that is a mix of the STEREO bus signals is output from the SPEAKERS B 1/2 jacks. The final level of these signals is adjusted by the master AUX 1 fader and the MONO OUT fader.

• AUX 1-AUX 2 The AUX 1, 2 buses signals are output from the SPEAKERS A 1/2 jacks and the SPEAKERS B 1/2 jacks. + MONO BRIDGE The monaural signal that is a mix of the STEREO bus is output from the SPEAKERS A 1 jack. The final level of this signal is adjusted by the master MONO OUT fader. Set the switch to this position when you connect only one speaker to play a loud sound. @) Maximum output select switch This switch lets you change the maximum output level of the two internal power amps between three levels. Set this as appropriate for the size of the room or the input capacity of the speakers. + 500W + 500W The two internal amps will produce a maximum of 500W + 500W/4Q. + 300W + 300W The two internal amps will produce a maximum of 300W + 300W/4Q. + 100W + 100W The two internal amps will produce a maximum of 100W + 100W/4Q. EMXS5000-20/EMX5000-12—Owner's Manual

Control panel 15 EH POWER indicator @) POWER indicator This indicator will light up when the power of the EMX5000-20/EMX5000-12 is turned on.

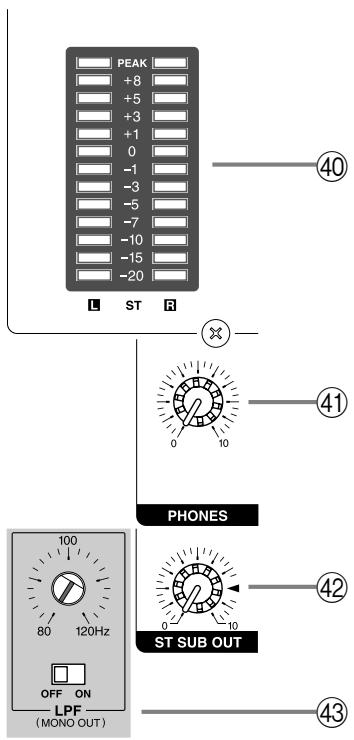

@) ON/OFF switch This switch enables you to compensate the low range of the speakers. The low range balance when this switch is on varies depending on the speakers. First, check the low range balance by auditioning the resultant sound, then set this switch to on or off. EH STAND-BY ON/OFF switch This switch mutes (silences) the input signals from channels 1-16 (EMX5000-20) or channels 1-8 (EMX5000-12). The indicator will blink when this switch is on. o[1-—+ Æ Other indicators and controls Peak level indicator This indicator allows you to monitor the level of the signal output from the ST OUT jacks. The “0” indicator lights up when the output level reaches +4 dB. PHONES control This knob adjusts the level of the signal moni- tored via the PHONES jack (input/output panel

@) ST SUB OUT control This knob adjusts the final level of the signal sent from the STEREO bus to the ST SUB OUT jacks (input/output panel @). Note: The setting ofthis control does not affect signals that are sent from the STEREO bus to the ST SUB OUT jacks and the SPEAKERS jacks. LPF control, ON/OFF switch This switch applies a low-pass filter to the signal that is output from the PFL/AFL bus to the MONO OUT jack. The frequency is indicated by the position of the slit in the control trimmer that is set into the panel above the switch. To adjust the frequency, use a slotted screwdriver to turn the control to the desired position. This will out- put the region below the frequency (80-120 Hz) you specify by the control knob. Use this when you are using a sub-woofer. EMX5000-20/EMX5000-12—Owner's Manual

16 Front and rear panel Input/output panel

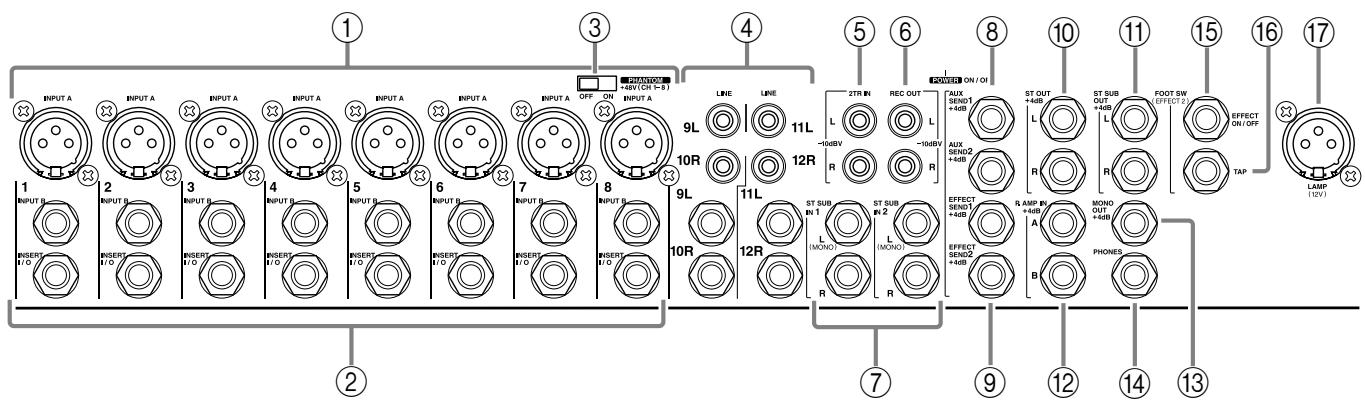

@ Channel input jacks (INPUT A, INPUT B)

EMX5000-20: 1-16, EMX5000-12: 1-8

By using the GAIN control (control panel (2)) you can connect any of the jacks to a wide range of sources, from mics to line-level devices (including synthesizers and rhythm machines). The INPUT A jacks can provide +48V phantom power, allowing you to use condenser micro- phones. The nominal input level is from —16 dB to -60 dB when the 26 dB pad switch (control panel (1) is off, or from +10 dB to -34 dB when it is on. Both INPUT A and B are balanced. They are compatible with microphones of output impedance 50-600Q or line level devices of

Pin connections for the jacks are as follows: INPUT A jacks INPUT B jacks {XLR type) {TRS phone jacks) * Pin 1: ground Sleeve: ground Pin 2:hot(+ Tip: hot (+ Pin 3: cold (-) Ring: cold (-)

• You can also connect a normal unbalanced phone plug. Note: Itis not possible to simultaneously use both the INPUT A and B inputs of a given channel. For each channel, use only one ofthe inputs as appropriate for the input source. Phantom power is switched on/off simulta- neously for channels 1-8 and 9-16 (EMX5000- 20), 1-8 (EMX5000-12). For this reason, devic- es (in particular, unbalanced devices) other than condenser microphones must be connect- ed to the INPUT B input jacks of channels or channel 17/18-19/20 (EMX5000-20), 9/10-11/ 12 (EMX5000-12) input jacks if the PHAN- TOM +48V switch (control panel (8) is on. @) INSERT 1/0 (insert) jacks These are TRS phone jacks that enable you to insert an external effect processor, such as a com- pressor/limiter, between the equalizer and fader of input channels. These connections require a special “Y” cable, such as shown in the following diagram. The nominal input/output levels are 0 dB. to the input jack of the external processor to the INSERT 1/0 jack

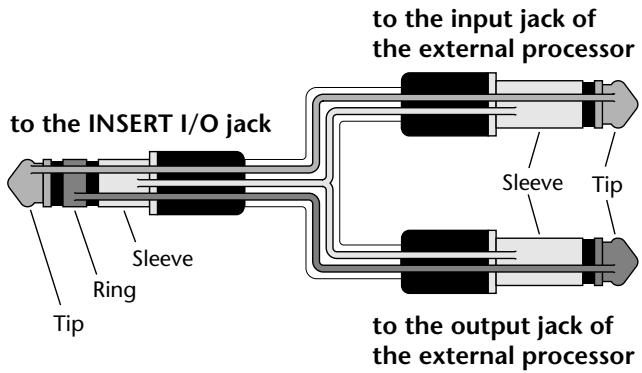

Tip to the output jack of the external processor EMXS5000-20/EMX5000-12—Owner's Manual

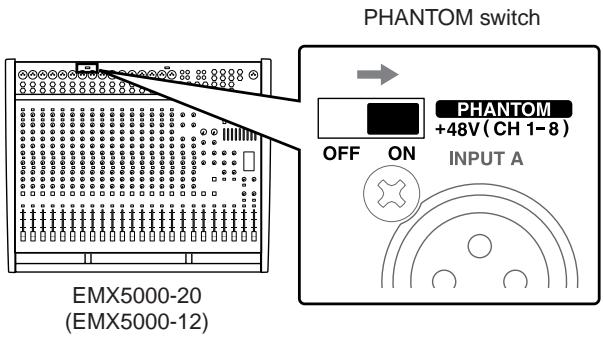

Input/output panel 17 @) PHANTOM switch This is an on/off switch for the phantom power supplied to the INPUT A jacks of channels 1-8 and 9-16 (on the EMX5000-20) or channels 1-8 (on the EMX5000-12). When this switch is on, the indicator in the upper part of the control panel will light. (@) LINE (stereo) input jacks EMXS5000-20: 17/18-19/20,

EMXS5000-12: 9/10-11/12

These are the input jacks for channels 17/18-19/ 20, 9/10-11/12 and are used to connect to the ste- reo output jacks of electronic instruments, cas- sette decks, or CD players. You can connect either phone plugs or RCA phono plugs, as appropriate for the type of jack on the device you are connecting. The nominal input level is from —34 dB to +10 dB. @ 2TRIN jacks These are phono jacks that allow the signal from an external device, such as a cassette deck and CD player, to be added to the STEREO bus. The nominal input level is -10 dBV. @) REC OUT jacks These phono jacks are used to connect to the inputs of a recording device, such as a cassette deck, to record the signal from the STEREO bus. The nominal output level is —-10 dBV. Note: The setting of the graphic equalizer or ST OUT fader on the control panel does not af- fect the signals output from these jacks. Adjust the recording level on the recording device. @ ST SUB IN 1 (stereo sub 1) jacks ST SUB IN 2 (stereo sub 2) jacks These phone jacks are used to connect stereo out- puts of a sub mixer or external effect processor. The signal input here can be routed to the AUX 1 bus, AUX 2 bus, and STEREO bus. The nominal input level is +4 dB. Note: Use only the L jack to connect a monau- ral output device. AUX SEND 1 jack, AUX SEND 2 jack These phone jacks output the line-level signals of the AUX 1/2 buses. Connect stage-monitoring amplifiers or powered speakers here. Use the AUX 1 fader (control panel () and the AUX 2 fader (control panel 4) respectively to adjust the final level of the signals output from these jacks. The nominal output level is +4 dB.

EFFECT SEND 1 jack, EFFECT SEND 2 jack The input of an external effect unit such as a delay or echo can be connected to this jack. The signal adjusted by the EFF 1, 2 control of each channel will be sent to the EFFECT 1, 2 bus, and output from this jack. The nominal output level is +4 dB. ST OUT jacks These phone jacks output the line level signal of the STEREO bus. The final output level from these jacks is adjusted by the ST OUT fader (con- trol panel @)). The nominal output level is +4 dB. ST SUB OUT jacks These phone jacks output the line-level signals of the STEREO bus. Connect an external mixer or additional PA system to these jacks. Use the ST SUB OUT control (control panel @) to adjust the final output level at the ST SUB OUT jacks. The nominal output level is +4 dB. P.AMP IN A, B (power amp input) jacks These phone jacks are used to input line-level ste- reo signals to the two-channel built-in power amplifier. Connect an external mixer output here. The nominal input level is +4 dB. Note: If you insert a plug into this jack, the cor- responding channel of the power amplifier will be isolated, and no signals will be sent from the mixer section. MONO OUT jack This phone jack mixes the STEREO bus signals and output a monaural signal. Connect an addi- tional PA system here. Use the MONO OUT fader (control panel @) to adjust the final level of the signal output from this jack. The nominal output level is +4 dB. PHONES jack This is a stereo phone type output jack, and is used to monitor the channels selected by the PFL switches on the front panel and the buses selected by the AFL switches. The nominal output is 3mW when headphones are connected. FOOT SW EFFECT 2 ON/OFF jack A separately sold Yamaha FC5 foot switch can be connected to this jack so you can use your foot to switch the built-in digital EFFECT 2 on/off. EMX5000-20/EMX5000-12—Owner's Manual
