USER MANUAL HDBT120 Projecta

Tray Fitting Instructions to suit Auxiliary battery for TOYOTA LANDCRUISER 200 DS SERIES

Years: September 2016 onwards

Models: 1VD-FTV 4.5 Litre V8 Turbo Diesel

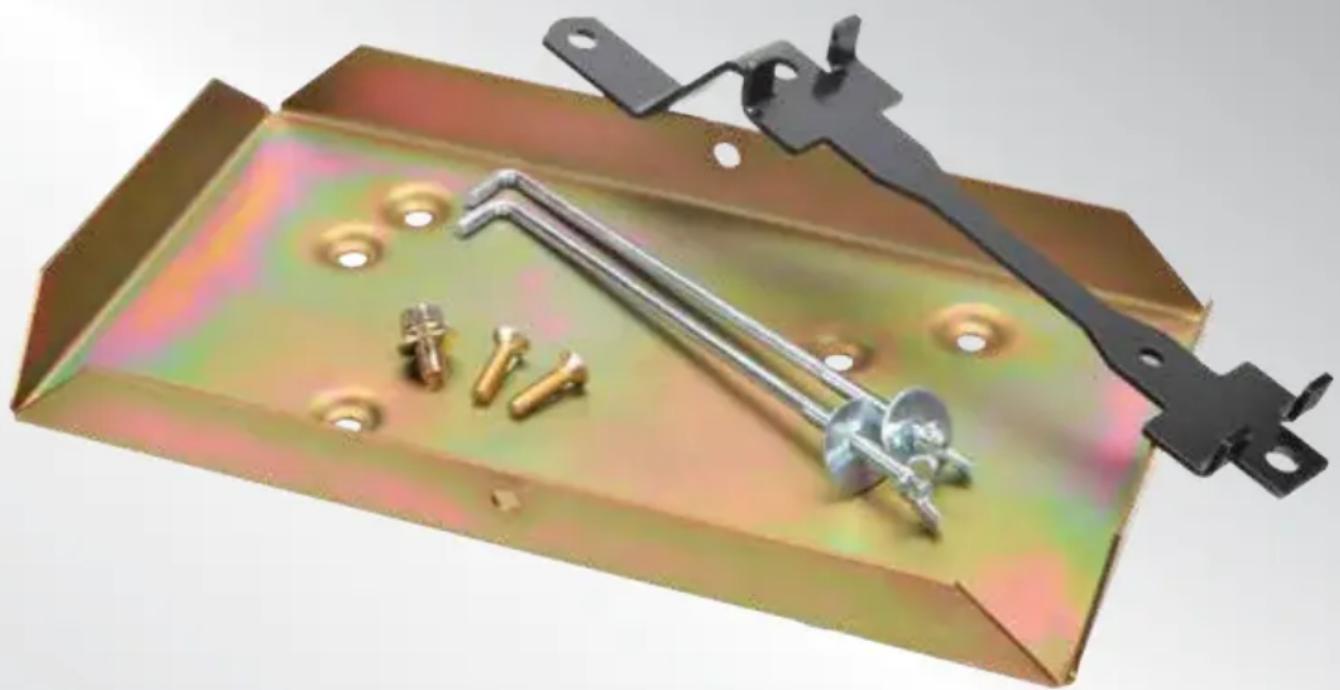

Metal bracket with metal fastener and multiple screws, no visible text or symbols

Exterior view of a silver SUV (no visible text or symbols)

IMPORTANT SAFETY INFORMATION

Please read this instruction thoroughly before fitting the tray.

This product is recommend to be fitted by a workshop or qualified mechanical person.

WARNINGS

• Before installation, make sure that the vehicle is stationary and the wheels chocked.
• Be careful when laying wires, not to cause any electrical shorts or wire breakage.
• After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
• Ensure original parts and pipes have sufficient clearance from the tray and battery. Push them away from the tray if required.

SPECIFICATIONS

Max Battery Size (mm) L300x W174 x H220

Max Battery Weight 28Kg

Recommended batteries Exide LCS27-97and Century NS70TMF

Approximate fitting time 30 minutes

Recommended Dual P/No: IDC25, DBC150, VSR200Battery System

Tray Location Engine Bay, Drivers Side Front

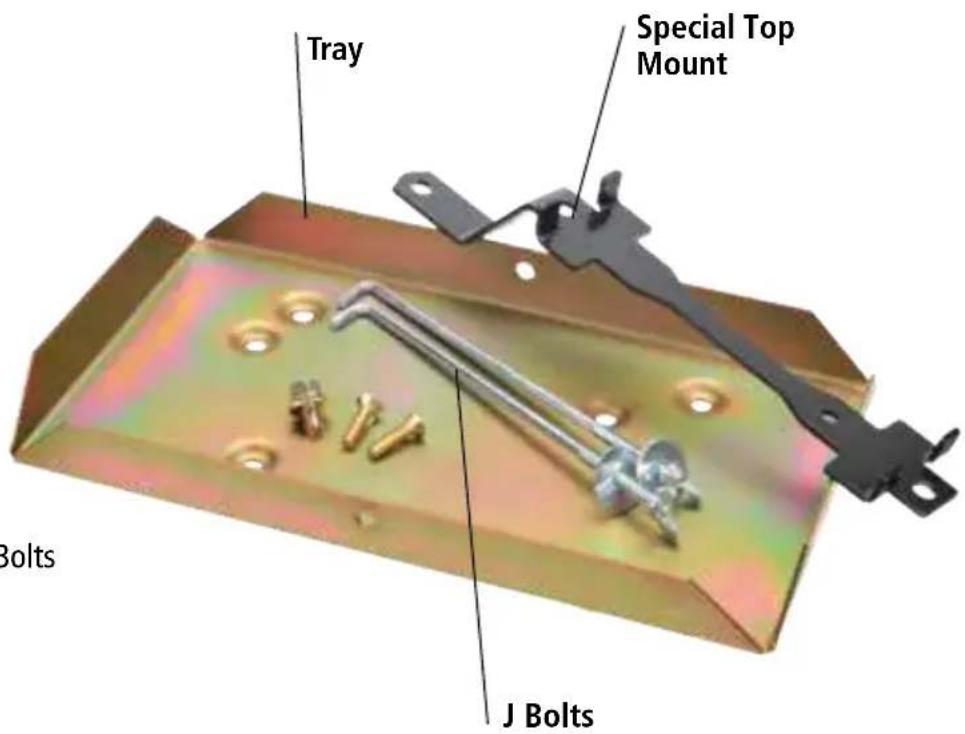

KIT INCLUDES

Hardware

2 x M6 Countersunk Bolts

1 x M8 Bolt
2 x J Bolts

FITTING INSTRUCTIONS

1. Make sure that the vehicle is stationary, the engine is switched off and cool Disconnect the negative terminal from the main battery.

2. Locate the tray behind the driver's side headlight.

3. Locate the two captive nuts with the two holes in the tray and secure with the 2 x M6 countersunk bolts.

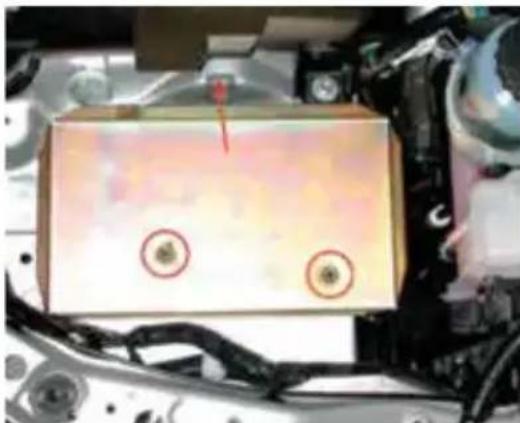

Close-up of a vehicle engine bay with two red-circled sensors on the side (no visible text or symbols)

1. Remove the radiator cover panel, replace after battery secured.

2. Fit Auxiliary battery.

3. Place the Special Top Mount to secure the battery with the J Bolts and bolt the front of the Special Top Mount to the radiator support panels using the M8 Bolt to the captive nut on the panel.

4. Use the factory J bolt mount near the air cleaner in place of the hole in the tray.

Close-up of a car engine bay with two circular components and a red arrow pointing to a section (no visible text or symbols)

1. Replace radiator cover panel.

2. Reconnect the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray does not hit the bonnet.

For assistance throughout the installation procedure please call our customer service representatives on 1800 113 443.
