Brand	ACER
Model	ASPIRE E1-451G
Category	Laptop
Product Type	Multimedia notebook
Processor	AMD A8-4500M (quad-core, 1.9 GHz, turbo up to 2.8 GHz)
RAM	4 GB DDR3 (expandable up to 8 GB)
Storage	500 GB SATA hard drive (5400 rpm)
Display	15.6 inches, LED, resolution 1366 x 768 pixels
Graphics Card	AMD Radeon HD 8670M (2 GB DDR3 dedicated)
Optical Drive	DVD±RW Super Multi Dual Layer
Connectivity	Wi-Fi 802.11 b/g/n, Ethernet 10/100/1000, Bluetooth 4.0
Ports	2 USB 3.0 ports, 1 USB 2.0 port, HDMI, VGA, headphone/microphone jack, SD card reader
Webcam	1.3 megapixel webcam with built-in microphone
Battery	6-cell Lithium-ion, 4400 mAh, battery life up to 4 hours
Power Supply	65 W AC adapter, input 100-240 V
Operating System	Windows 8.1 (64-bit) pre-installed
Dimensions (W x D x H)	381.6 x 253 x 25.4 mm
Weight	2.4 kg
Operating Temperature	5°C to 35°C
Operating Humidity	20% to 80% (non-condensing)
Maintenance and Cleaning	Clean with a soft dry cloth. Do not use solvents. Turn off and unplug before cleaning.
Security	Kensington lock slot for security. Do not block vents. Avoid exposure to water.
Spare Parts and Repairability	Removable battery and hard drive. Accessible RAM. Contact an authorized center for other repairs.
Product Registration	Recommended at www.acer.com to access service and updates.

Frequently Asked Questions - ASPIRE E1-451G ACER

How to turn the computer on and off?

Press the power button located at the top left of the keyboard to turn on. To turn off, use the normal procedure via the Start menu or hold the button for 4 seconds if necessary.

What to do if the screen remains black?

Check that the computer is powered on (power light). Try pressing a key or moving the mouse. If nothing happens, hold the power button for 10 seconds to force shutdown, then turn on again.

How to use the special keys (Fn)?

Hold down the Fn key and press the desired function key (F1-F12). For example, Fn+F3 toggles Airplane mode, Fn+F5 switches display, Fn+F7 toggles touchpad.

How to connect an external monitor?

Connect the VGA or HDMI cable from the external monitor to the corresponding port on the computer. Press Fn+F5 to toggle between internal, external, or both displays.

The battery does not hold a charge, what to do?

Check that the AC adapter is properly connected and the charge light is orange. If the battery is old, it may need replacement. Contact an authorized Acer service center.

How to clean the computer?

Turn off and unplug the device. Use a soft dry cloth to wipe the screen and casing. Never use chemicals or liquids. For the keyboard, use compressed air.

Where to find drivers and updates?

Visit www.acer.com, select your country, then Support/Downloads. Enter the model ASPIRE E1-451G to get drivers and utilities.

How to reset the computer to factory settings?

In Windows, go to Settings > Update & Security > Recovery and choose 'Reset this PC'. Follow the instructions. Back up your data beforehand.

What to do if the fan is very noisy?

Ensure ventilation openings are not blocked. Clean dust with compressed air. If noise persists, the fan may be defective; contact a repair technician.

How to physically secure the computer?

Use the Kensington lock slot located on the right side. Wrap a security lock around a fixed object and insert it into the slot to lock the computer.

USER MANUAL ASPIRE E1-451G ACER

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

• Faster service from our trained representatives. Membership in the Acer community: receive promotions and participate in customer surveys. The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

© 11/2012. All Rights Reserved.

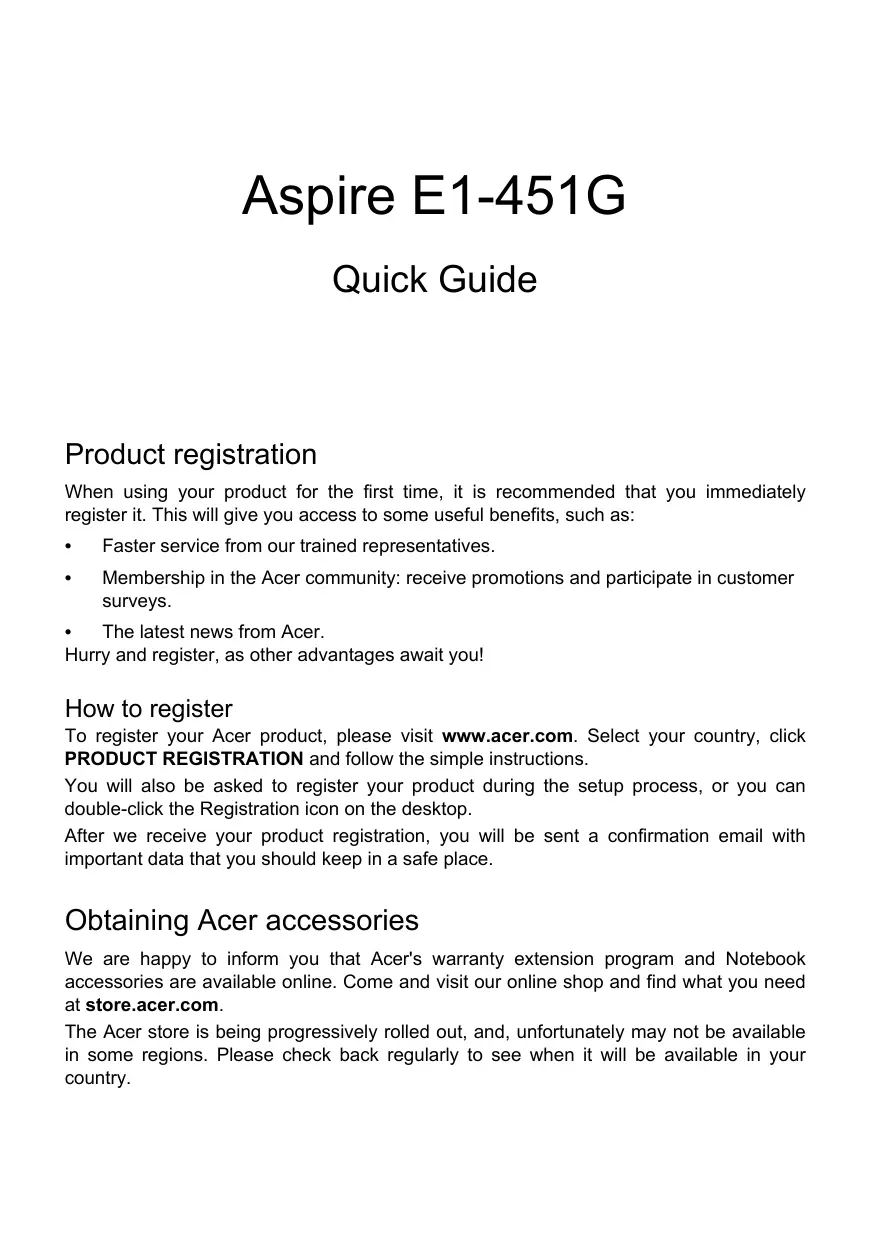

Aspire E1-451G

Quick Guide

This revision: 1 November 2012

Model number:

Serial number:

Date of purchase:

Place of purchase:

ENVIRONMENT

Temperature:

• Operating: 5°C to 35°C Non-operating: -20°C to 65°C

Humidity (non-condensing):

• Operating: 20% to 80% Non-operating: 20% to 80%

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Setup Poster helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the User's Manual. The User's Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type 'User' from Start. 2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer computer.

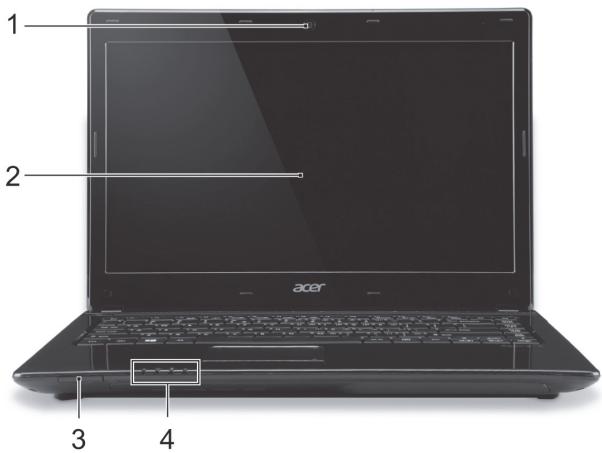

Screen view

#	Icon	Item	Description
1		Webcam	Web camera for video communication.A light next to the webcam indicates that the webcam is active.
2		Screen	Displays computer output.
3	SD	SD card reader	Accepts one Secure Digital (SD or SDHC) card.Note: Push to remove/install the card.
4	Power indicator		Indicates the computer's power status.
	Battery indicator		Indicates the computer's battery status.Charging: The light is amber when the battery is charging.Fully charged: The light is blue when in AC mode.
	HDD indicator		Indicates when the hard disk drive is active.
	Communication indicator		Indicates the computer's wireless connectivity device status.

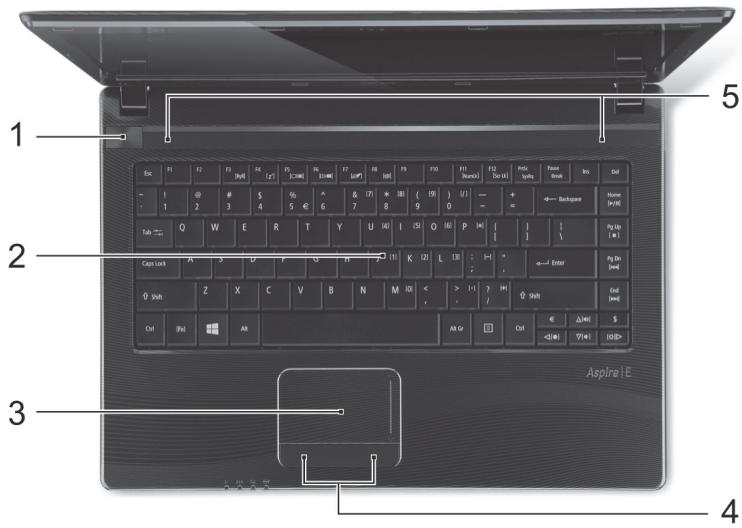

Keyboard view

#	Icon	Item	Description
1		Power button	Turns the computer on and off.
2		Keyboard	For entering data into your computer. See "Using the keyboard" on page 8.
3		Touchpad	Touch-sensitive pointing device which functions like a computer mouse.
4		Click buttons (left and right)	The left and right side of the button function as left and right selection buttons.
5		Speakers	Deliver stereo audio output.

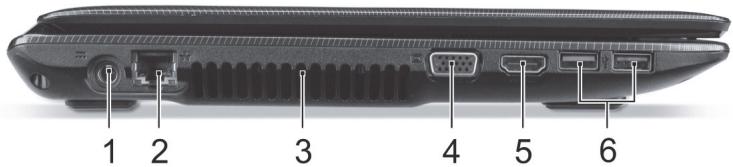

Left view

#	Icon	Item	Description
1		DC-in jack	Connects to an AC adapter.
2		Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.
3		Ventilation and cooling fan	Allows the computer to stay cool. Do not cover or obstruct the openings.
4		External display (VGA) port	Connects to a display device (e.g., external monitor, LCD projector).
5	HDMI	HDMI port	Supports high-definition digital video connections.
6		USB ports	Connects to USB devices. If a port is black it is USB 2.0 compatible, if it is blue it is also USB 3.0 compatible (see below).
		Information on USB 3.0 - Compatible with USB 3.0 and earlier devices. - For optimal performance, use USB 3.0-certified devices. - Defined by the USB 3.0 specification (SuperSpeed USB).

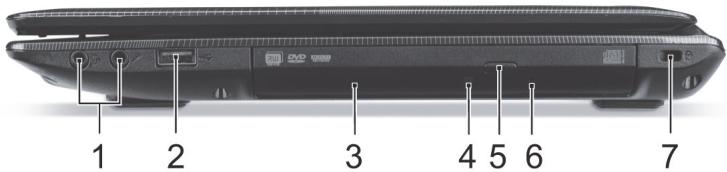

Right view

#	Icon	Item	Description
1		Headset/speaker jack	Connects to audio devices (e.g., speakers, headphones) or a headset with microphone.
		Microphone jack	Accepts inputs from external microphones.
2	+	USB port	Connects to USB devices.
3		Optical drive	Internal optical drive; accepts CDs or DVDs.
4		Optical disk access indicator	Lights up when the optical drive is active.
5		Optical drive eject button	Ejects the optical disk from the drive.
6		Emergency eject hole	Ejects the optical drive tray when the computer is turned off. Carefully insert a straightened paper clip to eject the optical drive tray.
7	K	Kensington lock slot	Connects to a Kensington-compatible computer security lock. Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Keyless models are also available.

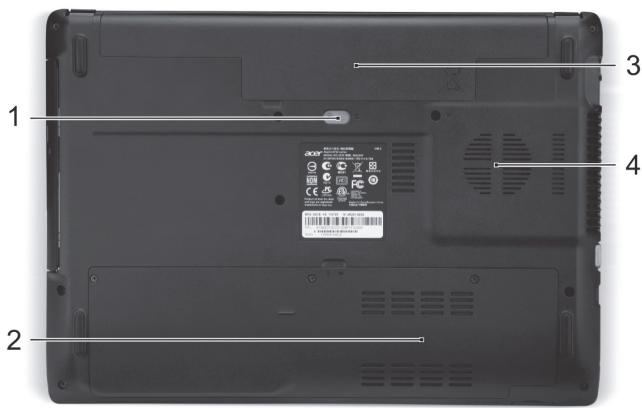

Base view

#	Icon	Item	Description
1		Battery release latch	Releases the battery for removal. Insert a suitable tool and slide to release.
2		Memory compartment	Houses the computer's main memory.
		Hard disk bay	Houses the computer's hard disk.
3		Battery bay	Houses the computer's battery pack.
4		Ventilation and cooling fan	Allows the computer to stay cool. Do not cover or obstruct the openings.

Using the keyboard

Your computer has a compact keyboard with an embedded numeric keypad.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the Fn key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
+Fn> + <F3>	( )	Airplane mode	Turns on / off the computer's network devices.(Network devices vary by configuration.)
<Fn> + <F4>	Z2	Sleep	Puts the computer in Sleep mode.
<Fn> + <F5>	☐ ☐	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
<Fn> + <F6>	( )	Display off	Turns the display screen backlight off to save power. Press any key to return.
<Fn> + <F7>	∅	Touchpad toggle	Turns the built-in touchpad on and off.
<Fn> + <F8>	鸣	Speaker toggle	Turns the speakers on and off.
<Fn> + <F11>	NumLk	Number Lock	Turns the embedded numeric keypad on or off.
<Fn> + <F12>	Scr Lk	Scroll Lock	Turns Scroll Lock on or off.
<Fn> + <þ>		Brightness up	Increases the screen brightness.
<Fn> + <△>		Brightness down	Decreases the screen brightness.
<Fn> + <△>		Volume up	Increases the sound volume.
<Fn> + <þ>		Volume down	Decreases the sound volume.
<Fn> + <Home>	/II	Play/Pause	Play or pause a selected media file.
<Fn> + <Pg Up>	■	Stop	Stop playing the selected media file.
<Fn> + <Pg Dn>	|▲	Previous	Return to the previous media file.
<Fn> + <End>	▶■	Next	Jump to the next media file.

Aspire E1-451G

Quick Guide

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	CNC 54-4512
Modelo: Delphi D40 (AM5)	CNC 54-5681

[Bluetooth]

Modelo: BCM92046	CNC 16-6735
Modelo: BCM92070MD_REF	CNC 16-7165
Modelo: T77H056	CNC 16-7788
Modelo: AR5BBU12	CNC 16-7946

[Bluetooth+802.11bgn]

Modelo: BCM943225HMB

CNC C-7497

[802.11AGN]

Modelo: 512AN_MMW	CNC C-6399
Modelo: 533AN_MMW	CNC C-6385
Modelo: 512AN_HMW	CNC C-7612
Modelo: 533AN_HMW	CNC C-7618
Modelo: 622ANHMW	CNC C-7682
Modelo: 633ANHMW	CNC C-7681

[802.11BGN]

Modelo: AR5B95	CNC C-7152
Modelo: AR5B93	CNC C-7151
Modelo: 112BNHMW	CNC C-7470
Modelo: 112BNMMW	CNC C-7471
Modelo: RTL8192SE	CNC C-7495
Modelo: BCM943225HM	CNC C-7395
Modelo: AR5B97	CNC C-7781
Modelo: BCM94313HMG2L	CNC C-7881

[802.11BG]

Modelo: BCM94312HMG

CNC 16-6180

[3G]

Modelo: UNDP-1	CNC 17-6334
Modelo: Gobi2000	CNC 17-7291

[Brazil] Additional notice of Anatel regulation

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	COFETEL: TTDCORD06-536
Modelo: Delphi_D40 (AM5)	COFETEL: TTDAGDE07-056

[Bluetooth]

Modelo: BCM92046	COFETEL: RCPFOBC08-0472
Modelo: BCM92070MD_REF	COFETEL: RCPBRBC09-0213
Modelo: T77H056	COFETEL: RCPATT709-1049
Modelo: AR5BBU12	COFETEL: RCPATAR10-0064

[Bluetooth+802.11BGN]

Modelo: BCM943225HMB

COFETEL: RCPBRBC09-0574

[802.11AGN]

Modelo: 512AN_HMW	COFETEL:RCPIN5108-0260
Modelo: 512AN_MMW	COFETEL:RCPIN5108-0260-A3
Modelo: 533AN_HMW	COFETEL:RCPIN5108-0260-A2
Modelo: 533AN_MMW	COFETEL:RCPIN5108-0260-A1
Modelo: 622ANHMW	COFETEL:RCPIN6209-1009
Modelo: 633ANHMW	COFETEL:RCPIN6309-1010

[802.11BGN]

Modelo: AR5B95	COFETEL:RCPATAR09-0168
Modelo: AR5B93	COFETEL: RCPATAR09-0167
Modelo: 112BNHMW	COFETEL: RCPIN1109-0613-A1
Modelo: 112BNMMW	COFETEL: RCPIN1109-0613
Modelo: RTL8192SE	COFETEL: RCPRERT09-0751
Modelo: BCM943225HM	COFETEL: RCPBRBC09-0464
Modelo: AR5B97	COFETEL: RCPATAR09-1103
Modelo: BCM94313HMG2L	COFETEL: RCPBRBC09-1196

[802.11BG]

Modelo: BCM94312HMG

COFETEL: RCPBRBC08-0015

[3G]

Modelo: UNDP-1	COFETEL:RTIQUUN08-0253
Modelo: Gobi2000	COFETEL:RTIQUGO09-0555
Modelo: EM770W	COFETEL:RTIHUEM10-0096

[WiMax]

Modelo: 622ANXHMW

COFETEL: RCPIN6210-0219

Aspire E1-451G

Quick Guide

Product registration

• Standby: 20% to 80%
• Hibernation: 20% to 80%

Battery: 20% to 80%

Thank you for choosing an Acer notebook to meet your mobile computing needs.

Your guides

We have developed guides to help you use your Acer notebook:

Initial setup of the computer can be performed by the user.

This quick guide introduces you to the main features and functions of your new computer.

To learn more about how to use your computer to increase your productivity, see the User's Guide.

The User's Guide contains useful information about your new computer. It describes basic topics such as working with the keyboard, sound, etc.

This guide contains detailed information about system functions, recovery and data, expansion options, and troubleshooting. In addition, it contains warranty information, as well as safety precautions and rules when working with your notebook.

To open it, do the following:

1. On the Start screen, click "User".
2. Click the User's Guide.

Getting to know your Acer notebook

Now that you have completed the setup as shown in the installation poster, let's get to know your new Acer notebook better.

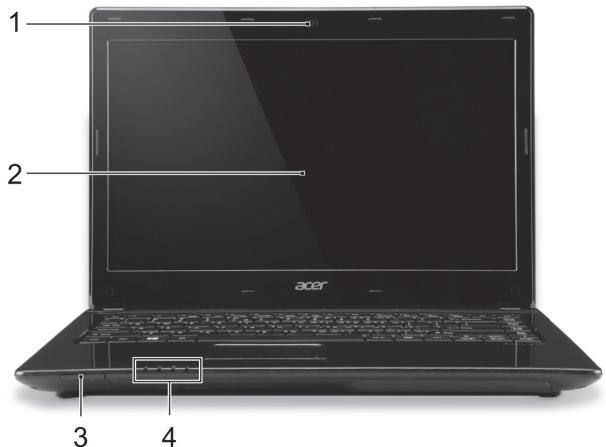

Screen view

#	Знayок	Злелем ent	Описане
1		Вeб-амера	Вeб-амера дая видаocвяз.Сeeчение унDUКAMOPа ряdom cеб-амероу означаem ee akmUEhoeсомянue.
2		Зкран	БыBOTДиЗБбразжения, ФорМИрУЕмОКOMПьЮТерОМ.
3	SD	УстюйстBOСЧтbingаня кapт SD	Можно Вставить одну kapту SecureDigital (SD по SDHC).ПрUMechанue: Надаиме, чмбуuЗелочь/ьсmaевшь kapту.
#	Знayок	Злелемпт	Описане
4		Инд Ин	Отоображает сointягни рintань КOMпьютepа.
		Ин Ин	Отоображает сointягни ak кOMпьютepа. Зapяда: орum желtbim в зр зр 3apяdku ak k Пог с 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak k 3apяdku ak l

Keyboard view

• Working: from 20% to 80% for storage: from 20% to 80%

Trademarks

Before using your new computer, please read the following instructions:

First, set up the computer with the initial settings.

This manual provides the basic functions and possibilities of your new computer.

For more information, your computer can help you be more productive, so read the user's manual.

The user's manual contains useful information for your new computer. It covers basic topics such as using the keyboard, mouse, etc.

It also contains information on topics such as system tools, data installation, and troubleshooting. In addition, it contains warranty information, as well as basic regulations and safety instructions related to your laptop.

To open it, follow these steps:

1. Click on "User's Manual" from the Start menu.
2. Click on the user's manual.

To open it:
