Frequently Asked Questions - TRAVELMATE 5740Z ACER

How to turn the computer on and off?

To turn on, press the power switch located above the keyboard. To turn off, click Start then Shut Down. You can also use the key combination Fn+F4 to put it to sleep.

How to use the special function keys (Fn)?

Hold down the Fn key and press the desired function key. For example, Fn+F3 activates/deactivates communications, Fn+F6 turns off the backlight to save power.

How to connect an external monitor?

Connect the monitor to the VGA or HDMI port on the left side. Use the combination Fn+F5 to switch between internal, external, or both screens.

How to use the memory card reader?

Insert the memory card (SD, MMC, MS, MS PRO, xD) into the slot on the front edge. Push gently until it clicks. To remove, push again. Only one card can be used at a time.

How to eject a disc from the optical drive?

Press the eject button on the right side. If the computer is off, insert a paperclip into the emergency eject hole next to the button.

What to do if the computer does not turn on?

Check that the battery is charged or plug in the AC adapter. Ensure the power indicator is lit. If the problem persists, contact technical support.

How to save battery power?

Reduce screen brightness with Fn+F6 or the brightness keys. Use sleep mode with Fn+F4. Disable unused wireless devices with Fn+F3.

How to clean the screen?

Use a soft, dry cloth (microfiber). Never apply liquid directly. For stubborn stains, lightly dampen the cloth with water.

Where to find the complete user guide?

The AcerSystem user guide is preloaded on the computer. Access it via Start > All Programs > AcerSystem > AcerSystem User Guide. It requires Adobe Reader.

How to use the touchpad?

The touchpad responds to touch: move your finger to move the cursor. Use the left and right buttons below to click. You can enable/disable it with Fn+F7.

USER MANUAL TRAVELMATE 5740Z ACER

TravelMate 5740/5740Z/5340 Series

Quick Guide

TravelMate 5740/5740Z/5340 Series Notebook PC

Model number:

Serial number:

Date of purchase:

Place of purchase:

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the setup poster helps you get started with setting up your computer.

The TravelMate Series Generic User Guide contains useful information applying to all models in the TravelMate product series. It covers basic topics such as using the keyboard and audio, etc. Please understand that due to its nature, the AcerSystem User Guide mentioned below will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models".

This Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it:

1 Click on Start > All Programs > AcerSystem. 2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your Acer notebook tour

After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new Acer notebook.

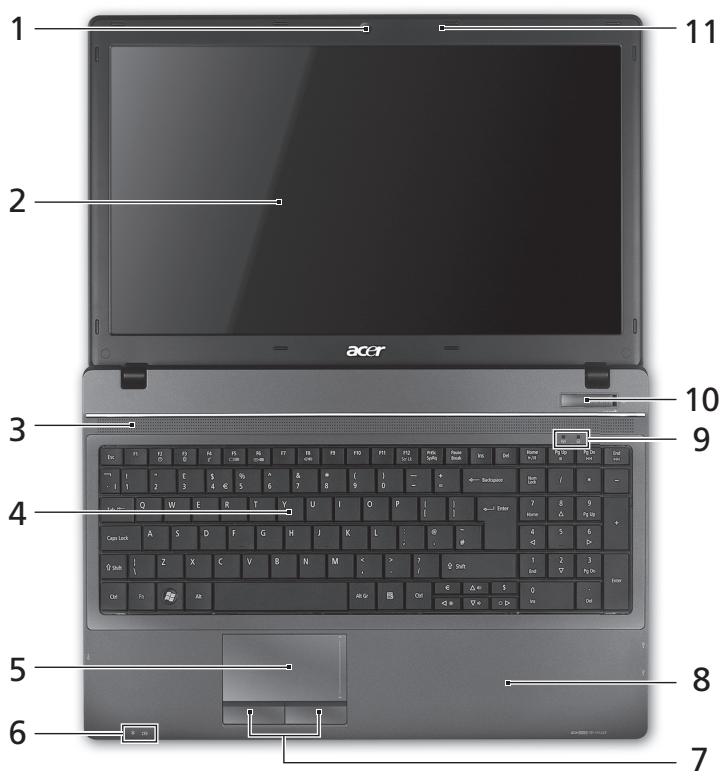

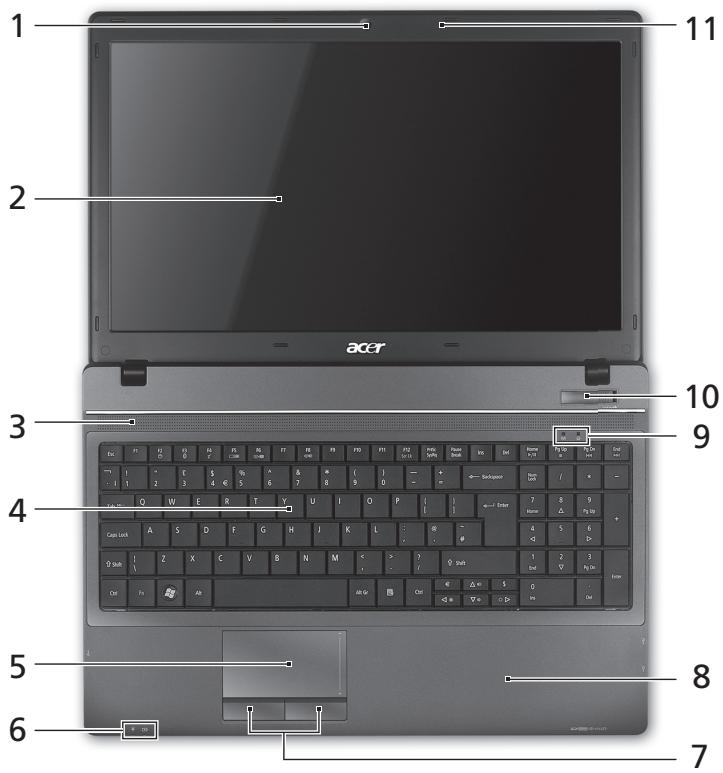

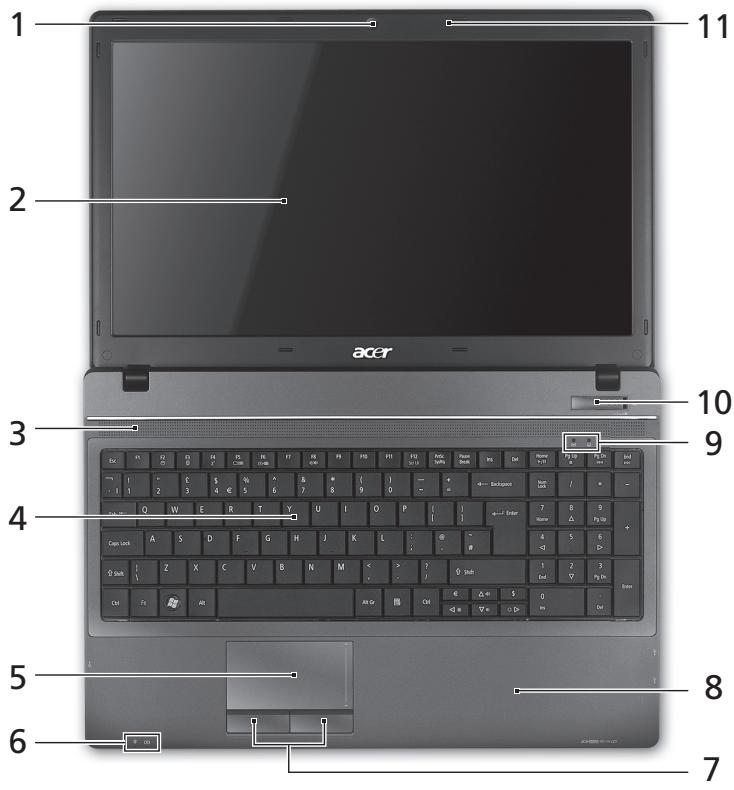

Top view

#	Icon	Item	Description
1		Acer Crystal Eye webcam	Web camera for video communication (only for certain models).
2		Display screen	Also called Liquid-Crystal Display (LCD), displays computer output (Configuration may vary by models).
3		Speakers	Front left and front right speakers deliver stereo audio output.
4		Keyboard	For entering data into your computer.
5		Touchpad	Touch-sensitive pointing device which functions like a computer mouse.
6		Power indicator1	Indicates the computer's power status.
		Battery indicator1	Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode.
7		Click buttons (left and right)	The left and right buttons function like the left and right mouse buttons.
8		Palmrest	Comfortable support area for your hands when you use the computer.
9		HDD	Indicates when the hard disk drive is active.
		Communication indicator	Indicates the computer's wireless connectivity device status.
10		Power switch	Turns the computer on and off.
11		Microphone	Internal microphone for sound recording.

1. The front panel indicators are visible even when the computer cover is closed.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the Fn key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
+Fn> + <F3>	( )	Communication	Enables / disables the computer's communication devices. (Communication devices may vary by configuration.)
<Fn> + <F4>	Z	Sleep	Puts the computer in Sleep mode.
<Fn> + <F5>	☐|☐	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
<Fn> + <F6>	+	Display off	Turns the display screen backlight off to save power. Press any key to return.
<Fn> + <F7>	∅	Touchpad toggle	Turns the touchpad on and off.
<Fn> + <F8>	鸣	Speaker toggle	Turns the speakers on and off.
<Fn> + <△>		Volume up	Increases the sound volume.
<Fn> + <▽>		Volume down	Decreases the sound volume.
<Fn> + <▷>		Brightness up	Increases the screen brightness.
<Fn> + <◁>		Brightness down	Decreases the screen brightness.

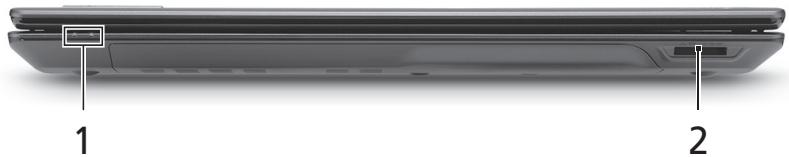

Closed front view

#	Icon	Item	Description
1		Power indicator1	Indicates the computer's power status.
		Battery indicator1	Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode.
2	MULTIMEDICARD xD PRO	Multi-in-1 card reader	Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick (MS), Memory Stick PRO (MS PRO), xD-Picture Card (xD). Note: Push to remove/install the card. Only one card can operate at any given time.

Rear view

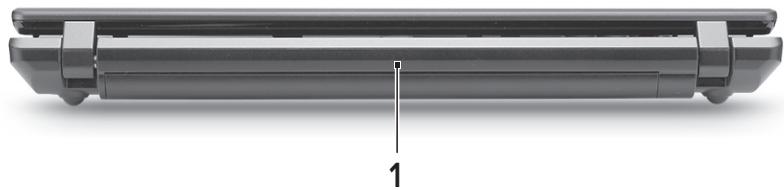

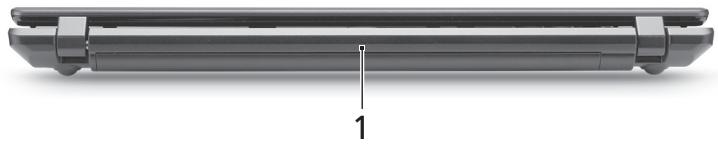

#	Icon	Item	Description
1		Battery	Provides power for the computer to be used while unplugged.

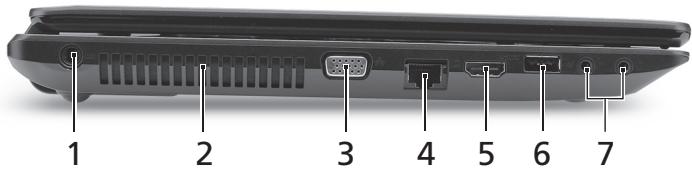

Left view

#	Icon	Item	Description
1		DC-in jack	Connects to an AC adapter.
2		Ventilation slots	Enable the computer to stay cool, even after prolonged use.
3		External display (VGA) port	Connects to a display device (e.g., external monitor, LCD projector).
4		Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.
5	HOMI	HDMI port	Supports high-definition digital video connections.
6		USB 2.0 port	Connects to USB 2.0 devices (e.g., USB mouse, USB camera).
7		Microphone-in jack	Accepts inputs from external microphones.
		Headphones/speaker/ line-out jack	Connects to audio line-out devices (e.g., speakers, headphones).

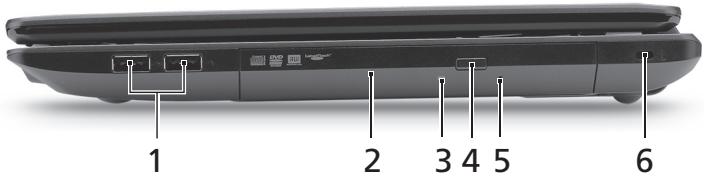

Right view

#	Icon	Item	Description
1	+	USB 2.0 port	Connects to USB 2.0 devices (e.g., USB mouse, USB camera).
2		Optical drive	Internal optical drive; accepts CDs or DVDs.
3		Optical disk access indicator	Lights up when the optical drive is active.
4		Optical drive eject button	Ejects the optical disk from the drive.
5		Emergency eject hole	Ejects the optical drive tray when the computer is turned off. Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.
6	K	Kensington lock slot	Connects to a Kensington-compatible computer security lock. Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

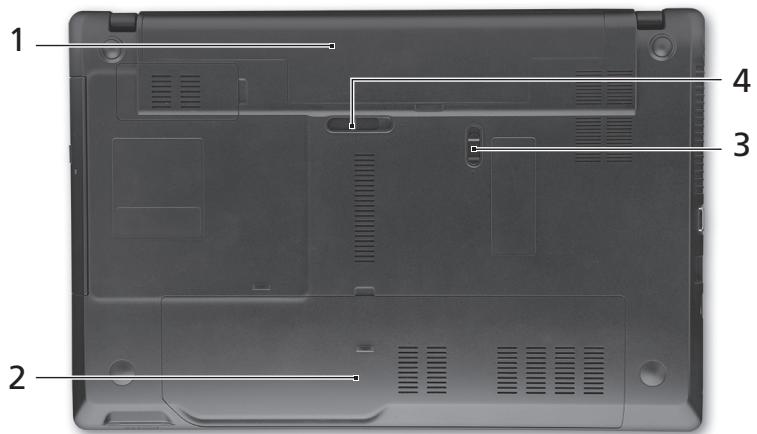

Base view

#	Icon	Item	Description
1		Battery bay	Houses the computer's battery pack.
2		Hard disk bay	Houses the computer's hard disk (secured with screws).
		Memory compartment	Houses the computer's main memory.
3		Battery lock	Locks the battery in position.
4		Battery release latch	Releases the battery for removal.
Environment		• Temperature: • Operating: 5 °C to 35 °C • Non-operating: -20 °C to 65 °C • Humidity (non-condensing): • Operating: 20% to 80% • Non-operating: 20% to 80%
