TRAVELMATE 4750G - Laptop ACER - Free user manual and instructions

Product type	Laptop
Brand	Acer
Model	TravelMate 4750G
Dimensions (W x D x H)	Approximately 34.2 x 24.5 x 3.42 cm
Weight	Approximately 2.5 kg
Screen type	LED LCD 15.6 inches
Processor	Intel Core i5 (generation varies by model)
RAM Memory	4 GB or 8 GB DDR3 (expandable)
Hard drive	500 GB or more SATA
Power supply	19 V AC adapter, integrated lithium-ion battery
Connectivity	Gigabit Ethernet, Wi-Fi, Bluetooth (depending on model)
Ports	3x USB 2.0, HDMI, VGA, headphone/microphone jack, card reader
Main features	Integrated webcam, stereo speakers, touchpad, DVD±RW optical drive
Security	Kensington lock slot
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid liquids.
Spare parts and repairability	Battery, hard drive, RAM accessible from underneath; replaceable optical drive
Operating environment	Temperature: 5°C to 35°C (operating), humidity: 20% to 80%

Frequently Asked Questions - TRAVELMATE 4750G ACER

How to turn the computer on and off?

Press the power button located at the top left of the keyboard. To turn off, use the Start menu > Shut down.

How to use the touchpad?

The touchpad works like a mouse: move your finger to point, press the left and right buttons to click. You can enable/disable it with Fn+F7.

How to adjust screen brightness?

Use the Fn+▷ (increase) and Fn+◁ (decrease) keys. Sun icons are present on the arrow keys.

How to connect an external monitor?

Connect the VGA or HDMI cable to the corresponding port, then press Fn+F5 to switch between internal display, external, or both.

How to use the HDMI port?

The HDMI port allows you to connect the computer to a TV or projector to display high-definition video. Simply plug in the HDMI cable.

How to replace the battery?

Turn off the computer, unplug the adapter. Turn the device over, slide the battery lock then release the latch to remove the battery. Insert the new battery and lock it.

How to clean the screen and keyboard?

Use a soft, dry cloth for the screen. For the keyboard, you can use compressed air or a slightly damp cloth (not too wet). Avoid any liquid.

How to reset the computer to factory settings?

Go to Start > All Programs > Acer > Acer eRecovery Management. Follow the instructions to restore factory settings. Back up your data beforehand.

How to add RAM memory?

Turn off the computer, remove the battery. Open the memory compartment on the back. Insert a compatible DDR3 module aligning the notch. Close it and reinsert the battery.

What to do if the computer does not turn on?

Check that the AC adapter is plugged in and the power light is on. Try removing the battery and starting on AC power. If nothing happens, contact Acer support.

USER MANUAL TRAVELMATE 4750G ACER

TravelMate Notebook Series

Quick Guide

Acer recommends...

Productivity Software

Work Great with Microsoft Office 2010 - Express your ideas, solve problems and simplify everyday projects with Office 2010.

Photo editing - Easily edit and print your photos with Windows Live Photo Gallery. Then share them on Facebook, YouTube or Windows Live.

Search & Decide with Bing -- Find and organize the answers you need using Bing, so you can make faster, more informed decisions.

Model number:

Serial number:

Date of purchase:

Place of purchase:

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the setup poster helps you get started with setting up your computer.

The TravelMate Generic User Guide contains useful information applying to all models in the TravelMate product series. It covers basic topics such as using the keyboard and audio, etc. Please understand that due to its nature, the Generic User Guide will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the TravelMate Generic User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1. Click on Start > All Programs > Documentation. 2. Click on TravelMate Generic User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on TravelMate Generic User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

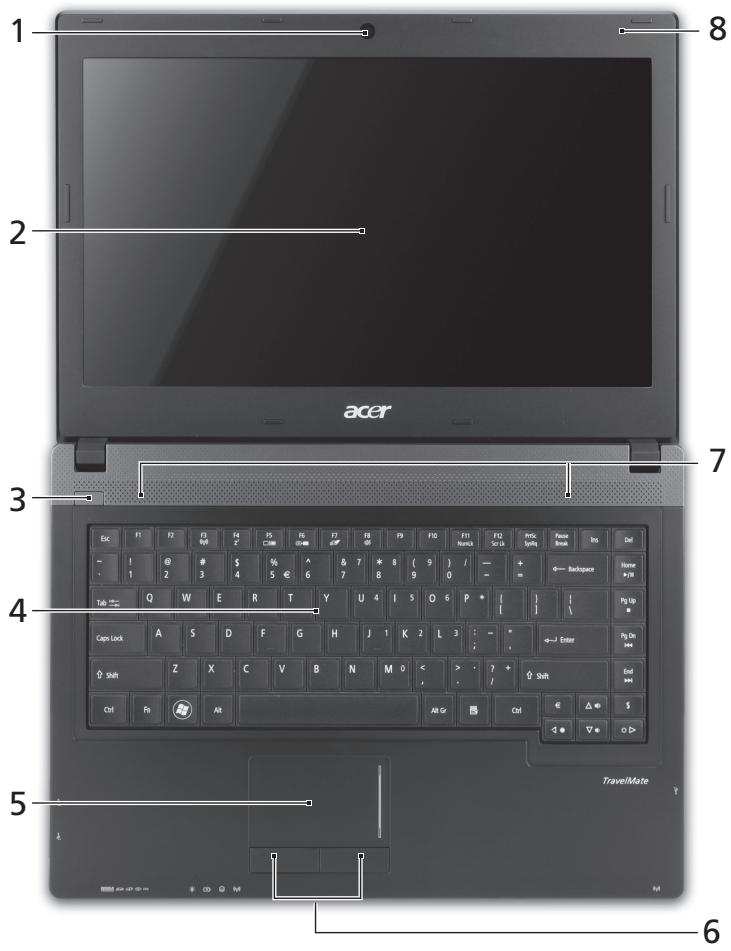

Top view

#	Icon	Item	Description
1		Integrated webcam	Web camera for video communication.
2		Display screen	Also called Liquid-Crystal Display (LCD), displays computer output (configuration may vary by model).
3	○	Power button / indicator	Turns the computer on and off. Indicates the computer's power status.
4		Keyboard	For entering data into your computer.
5		Touchpad	Touch-sensitive pointing device which functions like a computer mouse.
6		Click buttons (left and right)	The left and right buttons function like the left and right mouse buttons.
7		Speakers	Deliver stereo audio output.
8		Microphone	Internal microphone for sound recording.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
+Fn> + <F3>	(###)	Communication	Enables/disables the computer's communication devices.
<Fn> + <F4>	Z²	Sleep	Puts the computer in Sleep mode.
<Fn> + <F5>	□□	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
<Fn> + <F6>	□□□	Screen blank	Turns the display screen backlight off to save power. Press any key to return.
<Fn> + <F7>	∅	Touchpad toggle	Turns the internal touchpad on and off.
<Fn> + <F8>	呦	Speaker toggle	Turns the speakers on and off.
<Fn> + <F9>		Brightness up	Increases the screen brightness.
+Fn> + <▲>		Brightness down	Decreases the screen brightness.
+Fn> + <△>		Volume up	Increases the sound volume.
+Fn> + <▼>		Volume down	Decreases the sound volume.
+Fn> + <Home>	/II	Play/Pause	Play or pause a selected media file.
+Fn> + <Pg Up>		Stop	Stop playing the selected media file.
+Fn> + <Pg Dn>		Previous	Return to the previous media file.
+Fn> + <End>		Next	Jump to the next media file.

Closed front view

#	Icon	Item	Description
1	MULTI-MEDICARDPRO	Multi-in-1 card reader	Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick PRO (MS PRO), xD-Picture Card (xD). Note: Push to remove/install the card. Only one card can operate at any time.
2		Power indicator	Indicates the computer's power status.
		Battery indicator	Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode.
		HDD indicator	Indicates when the hard disk drive is active.
		Communication indicator	Indicates the computer's wireless connectivity device status.
3		Communication switch	Enables/disables the computer's communication devices.

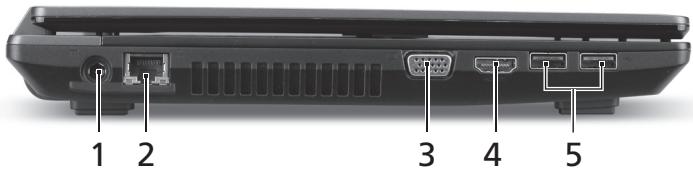

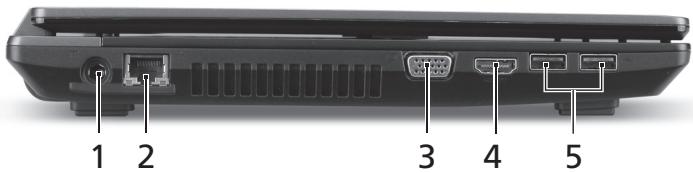

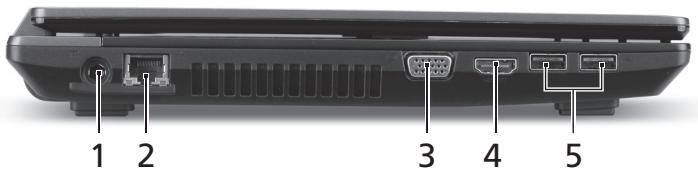

Left view

#	Icon	Item	Description
1		DC-in jack	Connects to an AC adapter.
2		Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.
3		External display(VGA) port	Connects to a display device (e.g.,external monitor, LCD projector).
4	HDMI	HDMI port	Supports high-definition digital video connections.
5		USB 2.0 ports	Connect to USB 2.0 devices (e.g., USB mouse, USB camera).

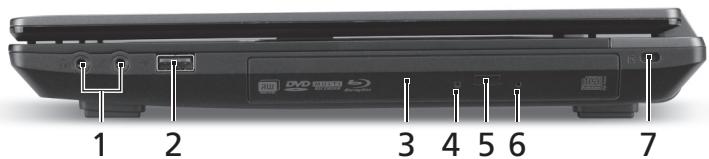

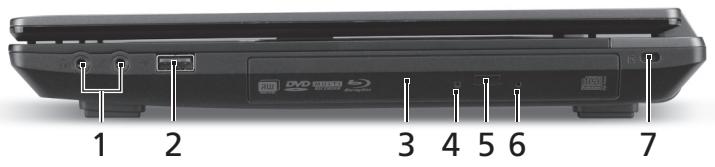

Right view

#	Icon	Item	Description
1		Microphone jack	Accepts inputs from external microphones.
		Headphones/speaker jack	Connects to audio devices (e.g., speakers, headphones).
2		USB 2.0 port	Connects to USB 2.0 devices (e.g., USB mouse, USB camera).
3		Optical drive	Internal optical drive; accepts CDs or DVDs.
4		Optical disk access indicator	Lights up when the optical drive is active.
5		Optical drive eject button	Ejects the optical disk from the drive.
6		Emergency eject hole	Ejects the optical drive tray when the computer is turned off. Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.
7		Kensington lock slot	Connects to a Kensington-compatible computer security lock. Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

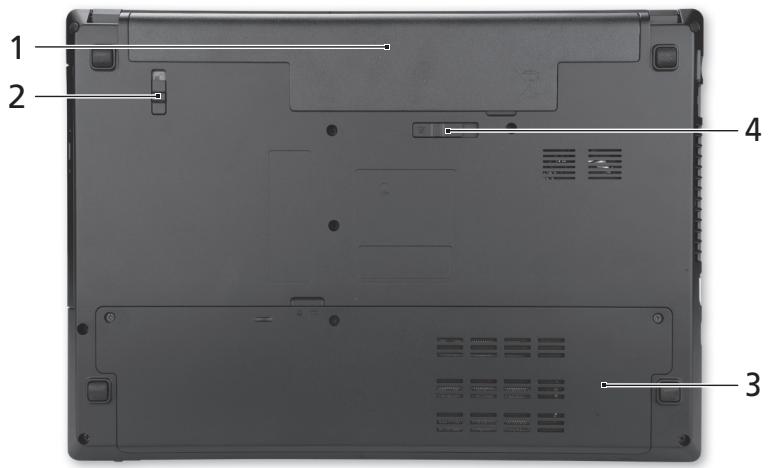

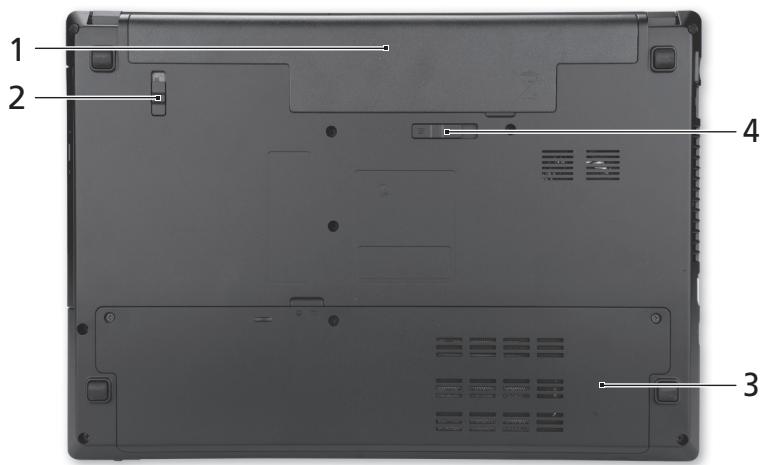

Base view

#	Icon	Item	Description
1		Battery bay	Houses the computer's battery pack.
2		Battery lock	Locks the battery in position.
3		Hard disk bay	Houses the computer's hard disk (secured with screws).
		Memory compartment	Houses the computer's main memory.
4		Battery release latch	Releases the battery for removal.

Environment

Temperature:

• Operating: 5°C to 35°C Non-operating: -20°C to 65°C
• Humidity (non-condensing):
• Operating: 20% to 80%. Non-operating: 20% to 80%

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	CNC 54-4512
Modelo: Delphi D40 (AM5)	CNC 54-5681

[Bluetooth]

Modelo: BCM92046	CNC 16-6735
Modelo: BCM92070MD_REF	CNC 16-7165
Modelo: T77H056	CNC 16-7788
Modelo: AR5BBU12	CNC 16-7946

[Bluetooth+802.11bgn]

Modelo: BCM943225HMB

CNC C-7497

[802.11AGN]

Modelo: 512AN_MMW	CNC C-6399
Modelo: 533AN_MMW	CNC C-6385
Modelo: 512AN_HMW	CNC C-7612
Modelo: 533AN_HMW	CNC C-7618
Modelo: 622ANHMW	CNC C-7682
Modelo: 633ANHMW	CNC C-7681

[802.11BGN]

Modelo: AR5B95	CNC C-7152
Modelo: AR5B93	CNC C-7151
Modelo: 112BNHMW	CNC C-7470
Modelo: 112BNMMW	CNC C-7471
Modelo: RTL8192SE	CNC C-7495
Modelo: BCM943225HM	CNC C-7395
Modelo: AR5B97	CNC C-7781
Modelo: BCM94313HMG2L	CNC C-7881

[802.11BG]

Modelo: BCM94312HMG

CNC 16-6180

[3G]

Modelo: UNDP-1	CNC 17-6334
Modelo: Gobi2000	CNC 17-7291

[Brazil] Additional Anatel regulation notice

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	COFETEL: TTDCORD06-536
Modelo: Delphi_D40 (AM5)	COFETEL: TTDAGDE07-056

[Bluetooth]

Modelo: BCM92046	COFETEL: RCPFOBC08-0472
Modelo: BCM92070MD_REF	COFETEL: RCPBRBC09-0213
Modelo: T77H056	COFETEL: RCPATT709-1049
Modelo: AR5BBU12	COFETEL: RCPATAR10-0064

[Bluetooth+802.11BGN]

Modelo: BCM943225HMB

COFETEL: RCPBRBC09-0574

[802.11AGN]

Modelo: 512AN_HMW	COFETEL:RCPIN5108-0260
Modelo: 512AN_MMW	COFETEL:RCPIN5108-0260-A3
Modelo: 533AN_HMW	COFETEL:RCPIN5108-0260-A2
Modelo: 533AN_MMW	COFETEL:RCPIN5108-0260-A1
Modelo: 622ANHMW	COFETEL:RCPIN6209-1009
Modelo: 633ANHMW	COFETEL:RCPIN6309-1010

[802.11BGN]

Modelo: AR5B95	COFETEL:RCPATAR09-0168
Modelo: AR5B93	COFETEL: RCPATAR09-0167
Modelo: 112BNHMW	COFETEL: RCPIN1109-0613-A1
Modelo: 112BNMMW	COFETEL: RCPIN1109-0613
Modelo: RTL8192SE	COFETEL: RCPRERT09-0751
Modelo: BCM943225HM	COFETEL: RCPBRBC09-0464
Modelo: AR5B97	COFETEL: RCPATAR09-1103
Modelo: BCM94313HMG2L	COFETEL: RCPBRBC09-1196

[802.11BG]

Modelo: BCM94312HMG

COFETEL: RCPBRBC08-0015

[3G]

Modelo: UNDP-1	COFETEL:RTIQUUN08-0253
Modelo: Gobi2000	COFETEL:RTIQUGO09-0555
Modelo: EM770W	COFETEL:RTIHUEM10-0096

[WiMax]

Modelo: 622ANXHMW

COFETEL: RCPIN6210-0219

TravelMate Series Portal

Quick Guide

TravelMate Notebook Series

Quick Guide

TravelMate Notebook Series

Quick Guide

Operating with the lid closed

Humidity (without condensation):

• Operating: 20% to 80%
• Non-operating: 20% to 80%

TravelMate Notebook Series

Quick Guide

TravelMate Notebook Guide

Quick Guide

Model number:

Serial number:

Date of purchase:

Place of purchase:

Brief instructions

Warning: Do not open the lid while the device is turned off.
