| Appliance type | Cylinder vacuum cleaner, dual-mode (bag and bagless) |
| Series | Bosch GL20 |
| Power supply | 220-240 V, 50/60 Hz |
| Power consumption | 650 W |
| Energy efficiency class | B |
| Annual energy consumption | 34 kWh/year |
| Noise level | 80 dB(A) |
| Action radius | 8 m (cable with auto-rewind) |
| Collection modes | Dust bag OR bagless (interchangeable dust container) |
| Original dust bag | PowerProtect Dustbag - 4 bags + 1 micro-hygiene filter (ref. 00575069) |
| Main floor tool | Dual-position universal floor tool, suitable for carpets and hard floors |
| Tube | Telescopic with sliding switch for length adjustment |
| Filtration | Washable motor protection filter + exhaust filter |
| Enhanced filtration (optional) | EPA filter BBZ156HF (recommended for allergy sufferers, replace once a year) |
| Suction control | Continuous, via rotary on/off knob (3 ranges: low, medium, high) |
| Dust bag change indicator | Yes (bag mode only) |
| Included accessories | Adjustable floor tool, flexible hose, telescopic tube, multi-purpose nozzle |
| Optional accessories | Hard-floor tool BBZ123HD, drill dust nozzle (captures drilling dust) |
| Storage system | Parking aid on the side (short breaks) and underside (upright storage) |
| Colour (BGN2B112) | Blue |
| Certifications | EU regulation 665/2013 (energy label), WEEE directive 2012/19/EU |
Frequently Asked Questions - BGN2B112, BGN2A213 - GL20 BOSCH
User questions about BGN2B112, BGN2A213 - GL20 BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual BGN2B112, BGN2A213 - GL20 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BGN2B112, BGN2A213 - GL20 by BOSCH.
USER MANUAL BGN2B112, BGN2A213 - GL20 BOSCH


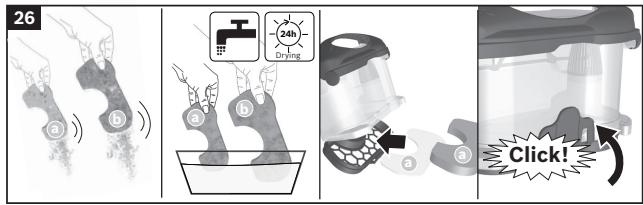

26 a b 240° Drying a a Click!


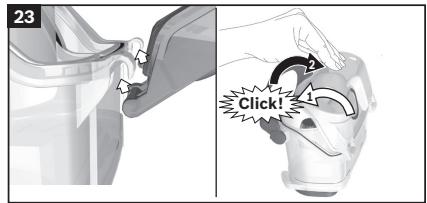

23 Click!


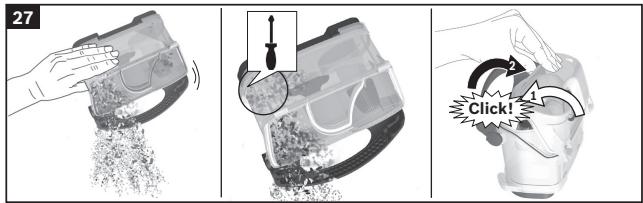

27 Click!


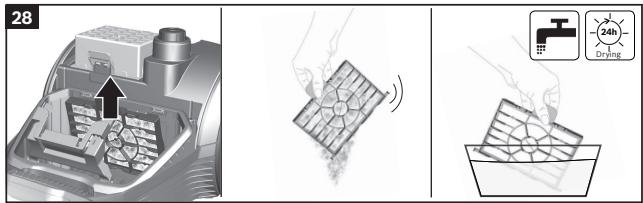

28 24h Drying


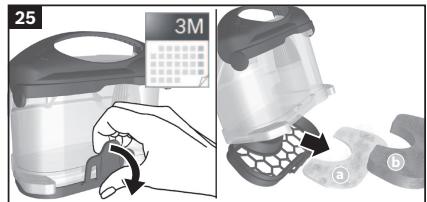

25 3M a b


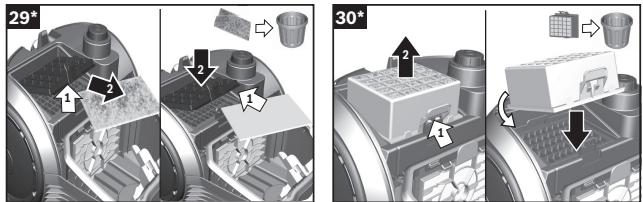

29* 1 2 3 30*
BGB1.../BGL1.../BGN1...
BOSCH
de Gebrauchsanleitung
en Instruction manual
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
da Brugsanvisning
no Bruksanvisning
sv Bruksanvisning
fi Käyttöohje
es Instrucciones de uso
pt Instruções de serviço
el Οδηγίες χρήσης
tr Kullanım kılavuzu
pl Instrukcja obsługi


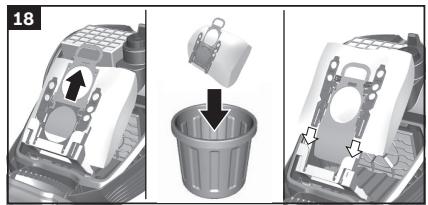

18
Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.
Intended use
This appliance is designed for the household or for similar, non-industrial applications. Household-like environments include staff areas in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities. This appliance is intended for use up to a maximum height of 2000 metres above sea level.
In order to prevent injuries and damage, the vacuum cleaner must not be used for:
■ Vacuum-cleaning persons or animals
■ Vacuuming up:
- hazardous, sharp-edged, hot or glowing substances.
- damp or liquid substances.
– highly flammable or explosive substances and gases. - ash, soot from tiled stoves and central heating systems.
- toner dust from printers and copiers.
Spare parts, accessories, dust bags
Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.
Please note
- Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.
Safety information
This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.
■The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.
■ Children must never play with the appliance.
■ Cleaning and user maintenance must never be carried out by children without supervision.
■ Plastic bags and films must be kept out of the reach of children before disposal.
=>Risk of suffocation.
Proper use
■ Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.
=> This may damage the vacuum cleaner.
■ Always keep the vacuum cleaner away from your head when using nozzles and tubes.
=> This could cause injury!
■ When vacuuming stairs, the appliance must always be positioned below the user.
■ Do not use the power cord or the hose to carry or transport the vacuum cleaner.
For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified person.
■ If using the appliance for longer than 30 minutes, pull out the power cord completely.
■ When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
■ Do not pull the power cord over sharp edges or allow it to become trapped.
■ When the cable is being automatically rewound, ensure that the mains plug is not thrown towards persons, body parts, animals or objects.
=> Use the mains plug to guide the power cord.
■ Pull out the mains plug before carrying out any work on the vacuum cleaner.
■ Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from the weather, moisture and sources of heat.
■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites.
=>Vacuuming up building rubble could damage the appliance.
■ When not in use, switch off the appliance and pull out the mains plug.
At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.
Please note
- The mains socket must be protected by at least a 16 amp circuit breaker.
If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.
To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.
Disposal information
Packaging
The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.
■ Old appliance
Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled.
For current disposal methods, please enquire at a retailer or your local council.
■ Disposal of filters and dust bags
Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.
Notes on the energy label
This vacuum cleaner is a general purpose vacuum cleaner.
These appliances can be operated with either a dust bag or a dust box in the dust compartment. The stated values refer to the appliance when used with a dust bag. To achieve the best possible energy efficiency on carpet and hard floor, please use the interchangeable universal nozzle.
These calculations are based on the delegated regulation (EU) no. 665/2013 established by the commission on 3rd May 2013 as a supplement to Directive 2010/30/EU.
All of the procedures in these instructions that are not described in more precise detail were listed based on DIN EN 60312-1:2014.
fr
وال Clubs phenomena.
Congratulations on your purchase of a Bosch vacuum cleaner from the GL20 series.
This instruction manual describes various GL20 models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, to achieve the best possible vacuuming results.

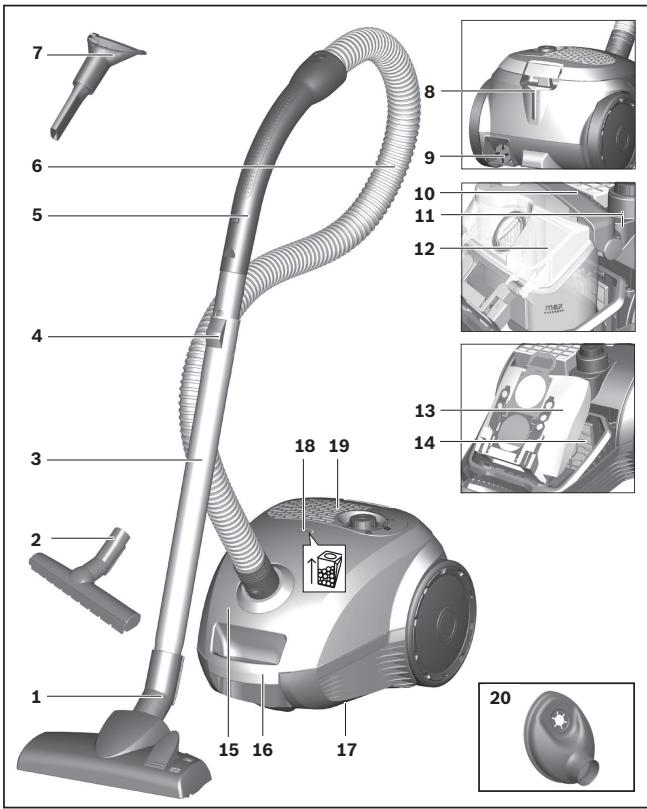

Your vacuum cleaner
1 Adjustable floor tool*
2 Hard-floor tool*
3 Telescopic tube*
4 Sliding switch*
5 Handle*
6 Flexible hose
7 Multi-purpose nozzle
8 Parking aid
9 Power cord
10 Exhaust filter
13 Dust bag
15 Dust bag compartment lid
16 Carrying handles
18 Dust bag change indicator*
19 Exhaust grille
20 Drill dust nozzle*
11 On/Off button with electronic suction regulator*
12 Dust container* for using the vacuum cleaner without dust bags or an alternative dust bag*
14 Motor protection filter, washable
17 Storage aid (on the underside of the appliance)
Replacement parts and special accessories
A Replacement filter package
Type PowerProtect Dustbag
No.: 00575069
Contents:
- 4 dust bags with fasteners
- 1 micro-hygiene filter
PLEASE NOTE
We therefore recommend that you only use our original dust bags.
Your appliance is a highly efficient vacuum cleaner that achieves excellent cleaning results when used with high-quality dust bags. Only by using high-quality dust bags (such as Bosch original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label. The use of inferior-quality dust bags (e.g. paper bags) can have a negative effect on the service life and performance of your appliance. Using unsuitable or inferior-quality dust bags can also damage your vacuum cleaner. Such damage is not covered by our guarantee.
You can find more information about this at www.bosch-home.com/dust-bag. You can order our original vacuum cleaner bags here.
B EPA filter BBZ156HF
Additional filter for cleaner exhaust air.
Recommended for allergy sufferers. Replace once a year.
C Hard-floor tool BBZ123HD
For vacuuming hard floors
(parquet, tiles, terracotta, etc.)
Before using for the first time
Figure 1
- Push the handle onto the flexible hose and lock it in place.
Initial use
Figure 2
a) Push the flexible hose connecting piece into the air intake opening in the lid until it locks in place.
b) To remove the flexible hose, press the two locking catches together and pull out the hose.
Figure 3
- Push the handle into the suction/telescopic tube.
- To remove it, turn the handle slightly and pull it out of the tube.
Figure 4
- Push the suction/telescopic tube into the connecting piece of the floor tool.
- To release the connection, turn the tube slightly and pull it out of the floor tool.
Figure 5
- Unlock the telescopic tube by moving the sliding switch in the direction of the arrow and adjust it to the desired length.
Figure 6
- Holding the power cord by the plug, pull it out to the required length and insert the plug into the mains socket.
Figure 7
- To switch the vacuum cleaner on or off, press the On/Off button in the direction of the arrow.
Controlling the suction level
Figure 8
Set the suction level by turning the On/Off button in the direction of the arrow.
The suction level can be infinitely adjusted to the level required by turning the control knob in the direction of the arrow.
■ Low power range => For vacuuming delicate materials, e.g. delicate upholstery, curtains, etc.
■ Medium power range => For daily vacuuming of lightly soiled floors.
■ High power range =>
For vacuuming durable floor coverings, hard floors and heavily soiled floors.
Vacuuming
Figure 9
Adjusting the floor tool:
■ Rugs and carpets
■ Hard floors
=>
=>
Please note:
Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). You must therefore check the underside of the floor tool at regular intervals.
Worn undersides of floor tools may have sharp edges that can damage delicate hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

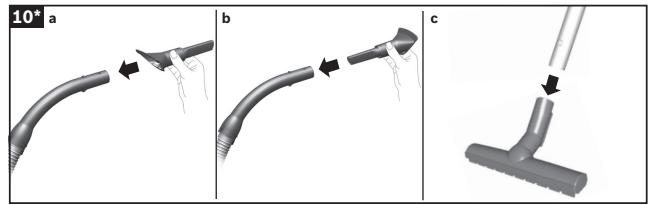

Figure 10\* Vacuuming with accessories
Attach the nozzles to the suction pipe or handle as required:
a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
c) Hard-floor tool For vacuuming hard floor coverings (tiles, parquet, etc.)

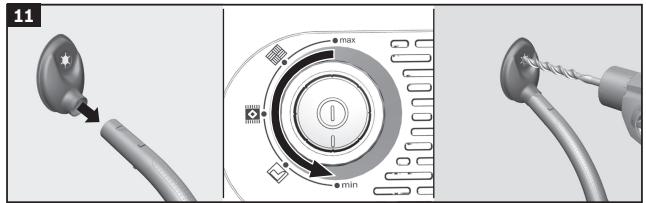

Drill dust nozzle
Fig. 11\*
- Fasten the drill dust nozzle onto the handle and position it on the wall so that the drill hole opening on the nozzle is placed directly over where the hole is to be drilled.
- Set the appliance to the lowest power level and then switch it on.
* Depending on model
- The drill dust nozzle is held in the required position by suction. Depending on the condition of the wall to be drilled, you may need to adjust to a higher power setting to ensure that the drill dust nozzle remains in place. During drilling, the fine dust is automatically vacuumed up.
Figure 12
You can use the parking aid on the side of the appliance if you wish to stop vacuuming for a short time. After switching off the appliance, slide the hook on the floor tool into the recess on the side of the appliance.
Figure 13
When vacuuming on stairs for example, the appliance can also be carried by the handle.
After using the appliance
Figure 14
- Pull out the mains plug.
- Briefly pull on the power cord and then release it (the power cord retracts automatically).
Figure 15
To store/transport the appliance, you can use the storage aid on the underside of the appliance. Stand the appliance up on its end. Slide the hook on the floor tool into the recess on the underside of the appliance.
You have purchased a floor vacuum cleaner which can vacuum up any type of dry dirt using the dust container or dust bag.
We recommend that you use:
- The dust bag principally for everyday household cleaning.
- The dust container for DIY-related cleaning in particular, e.g. to vacuum up wood shavings, etc.
Using dust bags
Replacing the dust bag
Figure 16
- If the dust bag change indicator in the lid is filled completely when the floor tool is lifted from the floor with the highest suction level selected, the dust bag must be changed, even though it may not yet be full. Even if the dust bag is not full, it may still need changing, due to the type of dust which has been vacuumed.
First check that the nozzle, suction pipe and flexible hose are not blocked, as this would also lead to the dust bag change indicator being triggered.
Figure 17
- Unlock the lid by releasing the locking lever in the direction of the arrow.
Figure 18
a) Close the dust bag by pulling on the locking tab and then remove it.
b) Insert a new dust bag by pushing it fully into the holder.
! Please note: The lid will only close if a dust bag has been inserted.
Using the dust container
If necessary, a dust container can be used in place of a dust bag.
! Please note: The dust bag change indicator only works in conjunction with a dust bag.

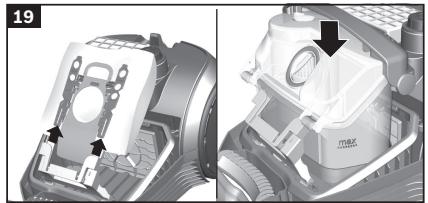

Figure 19
- Open the dust bag compartment lid.
- Remove the dust bag and insert the dust container.
- Close the appliance lid.
Figure 20
Set the power setting to maximum for best results when vacuuming. We recommend that you reduce the setting only when vacuuming very delicate materials.
Emptying the dust container
In order to achieve the best possible vacuuming results, the dust container should be emptied after every use or, at the latest, when dust at one point in the container has reached the max marking.
When emptying the dust container, always check the soiling level of the foam filter in the bottom of the container.
When it is visibly soiled, clean the filter as described from figure 25 onwards.
Figure 21
- Open the dust bag compartment lid by moving the locking lever in the direction of the arrow.
Figure 22
- Remove the dust container from the appliance.
Figure 23
- Fold the carrying handle backwards, away from the air intake opening.
- Remove the cover from the container and put it to one side.
- Empty the container.
- Hook the cover into the container and the close it.
- Fold up the carrying handle and lock it in place on the cover.

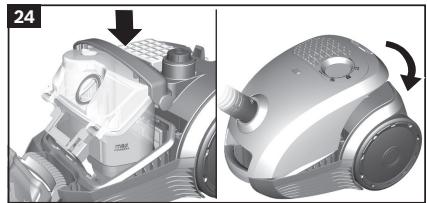

Figure 24
- Reinsert the dust container into the appliance and close the dust bag compartment lid.
Please note: The inside of the dust container - may become scratched with use and start to look opaque. This does not, however, affect the performance of the vacuum cleaner in any way, i.e. it will continue to function as normal.
* Depending on model
Cleaning the filter fleece (a) and the foam filter (b) in the dust container
The filter must be cleaned:
■ After any malfunctions, i.e. after a blockage is cleared
■ If there is visible dirt on the filter
■ At least every three months
Figure 25
- Unlock the locking tab on the rear side of the container and open the base plate on the bottom of the container.
- Remove both filters (a + b) from the base plate.
Figure 26
- Wash out both filters (a + b) and leave them to dry for at least 24 hours.
- After cleaning them, insert both filters into the base plate.
- Close the base plate and push in the locking tab until you hear it click into place.
Note: When inserting the filters, you must follow
the correct sequence. The foam filter (b) must lie on top of the filter fleece (a).
Malfunctions
Removing a blockage in the dust container
Figure 27
• Empty the container. Figure 21
- Loosen the blockage, e.g. with a screwdriver, and tap or suck it out.
If sucking out, a dust bag must be inserted in the appliance. Figure 19
Fit the container cover, fold up the carrying handle and lock it in place on the cover.
Note: After any malfunctions, you must clean the
filters on the dust container (figure 25 + figure 26).
Filter care
Cleaning the motor protection filter
The motor protection filter should be cleaned regularly by tapping out the dirt and rinsing.
Figure 28
- Open the dust bag compartment lid. Figure 21
- Remove the motor protection filter in the direction of the arrow.
- Clean the motor protection filter by tapping out the dirt.
- If it is very dirty, the motor protection filter should be rinsed.
Then allow the filter to dry for at least 24 hours.
- After cleaning, insert the motor protection filter into the appliance and close the dust bag compartment lid.
Replacing the micro-hygiene filter
This should be replaced with every replacement filter pack
Figure 29\*
- Open the dust bag compartment lid. Figure 21
- Release the filter holder by moving the locking lever in the direction of the arrow.
- Remove the micro-hygiene filter. Insert a new micro-hygiene filter into the appliance.
- Insert the filter holder into the appliance and lock it in place.
Replacing the EPA filter
If your appliance is fitted with a EPA filter, it must be replaced every year.
Figure 30\*
- Open the dust bag compartment lid. Figure 21
- Unlock the EPA filter by moving the locking lever in the direction of the arrow and remove the filter from the appliance.
- Insert the new EPA filter. When doing so, first slide the rear part of the filter into the intended recess and then push it into the front, over the locking lever until it audibly locks in place.
After vacuuming fine dust particles, clean the motor protection filter and, if necessary, replace the micro-hygiene filter or EPA filter.
Care
Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner.
The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.
Do not use a scourer, glass-cleaning agent or
- multi-purpose cleaning products. Never immerse the vacuum cleaner in water.
The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.
Subject to technical modifications.
fr
AE United Arab Emirates,
Jebel Ali Free Zone – Dubai
Tel.: 04 881 4401
mailto:service.uae@bshg.com
www.bosch-home.com/ae
AL Republika e Shqiperise, Albania
ELEKTRO-SERVIS sh.p.k
Rr. Shkelqim Fusha, Selite,
Pallati "Matrix Konstruksion",
Kati 0 dhe +1
1023 Tirane
Tel.: 4 2278 130, -131
Fax: 4 2278 130
mailto:info@elektro-servis.com
EXPERT SERVIS
Rruga e Kavajes,
Kulla B Nr 223/1 Kati I
1023 Tirane
Tel.: 4 480 6061
Tel.: 4 227 4941
Fax: 4 227 0448
Cel: +355 069 60 45555
mailto:info@expert-servis.al
HEATHERTON, Victoria 3202
Tel.: 1300 368 339
mailto:bshau-as@bshg.com
www.bosch-home.com.au
BA Bosna i Hercegovina, Bosnia-Herzegovina
"HIGH" d.o.o.
Gradačačka 29b
71000 Sarajevo
Tel.: 061 10 09 05
Fax: 033 21 35 13
mailto:bosch_siemens_sarajevo@
yahoo.com
European Trade Center Building,
5th floor
1784 Sofia
Tel.: 0700 208 17
Fax: 02 878 79 72
mailto:informacia.servis-bg@
bshg.com
www.bosch.home.bg
Old Wolverton Road Wolverton
Milton Keynes MK12 5PT
To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call
*Calls are charged at the basic rate, please check with your telephone service provider for exact charges
GR Greece, Ελλάς
BSH Ikiakes Siskeves A.B.E.
Central Branch Service
17 km E.O. Athinon-Lamias & Potamou 20
14564 Kifisia
Unit 1 & 2, 3rd Floor
North Block, Skyway House
3 Sham Mong Road
Tai Kok Tsui, Kowloon
Hong Kong
Tel.: 2565 6151
Fax: 2565 6681
mailto:bosch.hk.service@bshg.com
www.bosch-home.cn
HR Hrvatska, Croatia
BSH kućni uređaji d.o.o.
Kneza Branimira 22
10000 Zagreb
Tel:. 01 552 08 88
Fax: 01 640 36 03
mailto:informacije.servis-hr@
bshg.com
www.bosch-home.com/hr
www.bosch-home.com/hu
IE Republic of Ireland
BSH Home Appliances Ltd.
Unit F4, Ballymount Drive
Ballymount Industrial Estate
Walkinstown
Dublin 12
Service Requests,
Spares and Accessories
Tel.: 01450 2655*
Fax: 01450 2520
www.bosch-home.co.uk
*0.03 € per minute at peak.
Off peak 0.0088 € per minute
IL Israel, בַרָה
C/S/B/ Home Appliance Ltd.
1, Hamasger St.
North Industrial Park
Lod, 7129801
Tel.: 08 9777 222
Fax: 08 9777 245
mailto:csb-serv@csb-ltd.co.il
www.bosch-home.co.il
IN India, Bhārat, भारत
BSH Household Appliances
Mfg. Pvt. Ltd.
Arena House, 2nd Floor, Main Bldg,
Plot No. 103, Road No. 12, MIDC,
Andheri East
Mumbai 400 093
Toll Free 1800 266 1880
www.bosch-home.com/in
IS Iceland
Smith & Norland hf.
Noatuni 4
105 Reykjavik
Tel.: 0520 3000
Fax: 0520 3011
www.sminor.is
IT Italia, Italy
www.bosch-home.com/it
IP Turebekov Yerzhan
Nurmanovich
Jangeldina str. 15
Shimkent 160018
Tel.: 0252 31 00 06
mailto:evrika_kz@mail.ru
LB Lebanon, لبنان
Teheni, Hana & Co.
Boulevard Dora 4043 Beyrouth
P.O. Box 90449
Jdeideh 1202 2040
Tel.: 01 255 211
mailto:Info@Teheni-Hana.com
LT Lietuva, Lithuania
Senuku prekybos centras UAB
Jonavos g. 62
44192 Kaunas
Tel.: 0372 12146
Fax: 0372 12165
www.senukai.lt
LU Luxembourg
General Serviss Limited
Bullu street 70c
1067 Riga
Tel.: 07 42 41 37
mailto:bt@olimpeks.lv
Elkor Serviss
Brivibas gatve 201
1039 Riga
Tel.: 067 0705 20; -36
mailto:domoservice@elkor.lv
www.servisacentrs.lv
MD Moldova
S.R.L. "Rialto-Studio"
ул. Щусева 98
2012 Кишинев
тел./факс: 022 23 81 80
mailto:bosch-md@mail.ru
ME Crna Gora, Montenegro
Elektronika komerc
UI. Slobode 17
84000 Bijelo Polje
Tel./Fax: 050 432 575
Mobil: 069 324 812
mailto:ekobosch.servis@
t-com.me
Unit F 2, 4 Orbit Drive
Mairangi Bay
Auckland 0632
Tel.: 09 477 0492
Fax: 09 477 2647
mailto:bshnz-cs@bshg.com
www.bosch-home.co.nz
PL Polska, Poland
SA Kingdom Saudi Arabia,
and Airconditioning Co. Ltd.
BOSCH Service centre,
Kilo 5 Old Makkah Road
(Next to Toyota), Jamiah Dist.
P.O.Box 7997
Jeddah 21472
Tel.: 800 244 0043
mailto:kunnumalsp@alj.com
www.aljelectronics.com.sa
SE Sverige, Sweden
BSH Home Appliances AB
Landsvägen 32
169 29 Solna
Tel.: 0771 11 22 77 local rate
mailto:Bosch-Service-SE@
bshg.com
www.bosch-home.se
SG Singapore, 新加坡
BSH Home Appliances Pte. Ltd.
TECHPLACE I and
Mo Kio Avenue 10
Block 4012 #01-01
569628 Singapore
Tel.: 6751 5000
Fax: 6751 5005
mailto:bshsgp.service@bshg.com
www.bosch-home.com.sg
SI Slovenija, Slovenia
BSH Hišni aparati d.o.o.
Litostrojska 48
1000 Ljubljana
Tel.: 01 583 07 00
Fax: 01 583 08 89
www.bosch-home.com/tr
11F., No.80, Zhouzi St., Neihu Dist.
Taipei City 11493
Tel.: 0800 368 888
Fax: 02 2627 9788
mailto:bshtzn-service@bshg.com
gama-electronics.com
XS Srbija, Serbia
BSH Kućni aparati d.o.o.
15th Road Randjespark
Private Bag X36, Randjespark
1685 Midrand – Johannesburg
Tel.: 086 002 6724
Fax:0866171780
mailto:applianceserviceza@
bshg.com
www.bosch-home.com/za
de
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
fr
pt
GB Conditions of guarantee
For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.
FR Conditions de garantie
Bandrol ve Seri No. :
BOSCH
[Non-Text]
DİKKAT
bosch-infoteam@bshg.com
