BHS3 100 - Hair styling tool IMETEC - Free user manual and instructions

Product Type	Hair Styling Tool (Straightener & Curler)
Model	BHS3 100
Brand	Imetec
Dimensions (approx.)	30 cm (L) x 4 cm (W) x 4 cm (H)
Weight (approx.)	0.35 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	45 W
Heating Technology	Ceramic coated plates
Temperature Range	120°C - 200°C (adjustable)
Heat-up Time	Approximately 60 seconds
Auto Shut-off	Yes, after 60 minutes of inactivity
Swivel Cord	Yes, 360° swivel cord (2 m)
Display	LED temperature display
Safety Lock	Yes, travel lock
Maintenance & Cleaning	Unplug, allow to cool, wipe with damp cloth; do not use abrasive cleaners
Spare Parts Availability	Replacement plates and cords available from Imetec service centers
Repairability	Repairable by qualified technicians; contact Imetec support
Warranty	2 years limited warranty
Intended Use	For household use only; not for professional or commercial use

Frequently Asked Questions - BHS3 100 IMETEC

How do I adjust the temperature on the Imetec BHS3 100?

Press the temperature control buttons (+/-) on the handle to adjust the heat between 120°C and 200°C. The LED display shows the current setting.

How long does it take to heat up?

The device reaches the selected temperature in approximately 60 seconds.

Does the hair styler have an auto shut-off feature?

Yes, it automatically shuts off after 60 minutes of inactivity for safety.

Can I use this device on wet hair?

No, it is designed for use on dry hair only. Using on wet hair can cause damage or electric shock.

How do I clean the plates?

Unplug the device and let it cool completely. Wipe the plates with a damp cloth. Do not use harsh chemicals or abrasive materials.

What is the voltage requirement?

The device operates on 100-240V AC, 50/60Hz, making it suitable for worldwide use with the appropriate plug adapter.

Is the cord swivel?

Yes, it features a 360° swivel cord that prevents tangling during styling.

Can I replace the plates if they get damaged?

Yes, replacement plates are available through Imetec service centers. Contact customer support for assistance.

How should I store the BHS3 100?

Allow it to cool, engage the travel lock if available, and store in a dry place away from direct sunlight. Do not wrap the cord tightly around the device.

What should I do if the device stops working?

First, check the power cord and outlet. If it still doesn't work, contact Imetec customer service or a qualified technician. Do not attempt to repair it yourself.

USER MANUAL BHS3 100 IMETEC

Operating instructions

Οδηγίες χρήσης

Használati utasítás

Diagram showing a mechanical device with crosshair and magnified detail (no text or symbols)

DATI TECNICI / TECHNICAL DATA / TEXNIKA STOIXEIA / MÜSZAKI ADATOK / DADOS TÉCNICOS / TECHNICKÉ ÚDAJE / TEXНИЧЕСКИЕ ДАННЫЕ / DANE TECHNICZNE / TECHNICKÉ ÚDAJE / TEXНИКАЛЫК ДЕРЕКТЕР

IMETEC

TYPE N6601 100-240 V 50-60 Hz

CE

EAC

TENACTA GROUP S.p.A.

Via Piemonte 5 IT 24052 Azzano S. P.

www.imetec.com

This product is developed and manufactured by Kiss Nail Products, Inc. and is covered by Chinese Pat. No. ZI201420106459.5 (invention patent issued) and patent pending in the United States (U.S. Appl. No. 14/151,559) and elsewhere.

Black-and-white portrait of a woman with long hair holding a curling iron, no visible text or symbols

Black-and-white portrait of a woman holding a hairdryer (no visible text or symbols)

Close-up of a person using a hair curling iron on their head, no visible text or symbols

Black-and-white portrait of a woman with long hair holding a curling iron (no text or symbols visible)

MANUALE DI ISTRUZIONI PER L'USO DELLO STYLER PER CAPELLI

Dear customer, IMETEC thanks you for having purchased this product.

ATTENTION! Instructions and warnings for safe use. Before using this appliance, carefully read the instructions and in particular the safety warnings, which must be complied with. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation.

NOTE: should certain parts of this booklet be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.

CONTENTS

Safety instructions.	5	Cleaning.	8
Key to symbols.	6	Disposal.	8
Main instructions.	6	Assistance and warranty.	8
Useful advice.	7	Illustrative guide.	V
Use.	7	Technical data.	V

SAFETY INSTRUCTIONS

• After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorised service centre.
• Do not let children play with the packaging! Keep the plastic bag out of the reach of children - risk of suffocation!
• Before connecting the appliance, make sure that the voltage data (8) specified on the identification technical data correspond to those of the available mains voltage. The identification technical data are found on the appliance(8).
• This appliance must be used only for the purpose for which it was designed, namely as a hair stylist for home use. Any other use is considered not compliant and therefore dangerous.
• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA (ideal 10 mA) is advisable

in the electrical circuit supplying the bathroom. Ask your installer for advice.

ATTENTION: Do not use this appliance near bathtubs, showers, basins or other vessels containing water. Never place the appliance in water.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do NOT use the appliance with wet hands, damp feet or barefoot.
Do NOT pull the power cable or the appliance itself to remove the plug from the socket.
Do NOT expose the appliance to humidity or weather conditions (rain, sun, etc.).

• Always disconnect the appliance from the mains supply before cleaning or performing maintenance and when the appliance is not in use.
• If the appliance is faulty or malfunctions, switch it off and do not tamper with it. Any repairs must only be carried out by an authorised technical service centre.
• If the power cable is damaged it must be replaced by an authorised technical service centre, so as to prevent all risks.
• The device must only be used on human hair. Do not use the device on animals or on wigs made of synthetic material.

DO NOT spray hairspray while the appliance is switched on. There is a risk of fire.

SYMBOLS

Warning

General prohibition

Class II appliance

GENERAL INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES [Fig. Z]

Look at Figure [Z] in the illustration section to verify the content of the package. All the figures are found on the inside pages of the cover.

1. Cold tip
2. Rotation button (right-left)
3. Barrel
4. Operation button (0-190°C-220°C)
5. Automatic Rotating Curl Support 3A. Automatic Rotating Curl Insert
6. Revolving power cord

7. Technical data

8. Operating LED

USEFUL TIPS

A quick understanding of how to use the product will allow you to establish the exact application time to achieve the desired effect on your hair.

• Ensure your hair is dry, clean and without any trace of hairspray, hair mousse or gel.
• Comb your hair ensuring there are no knots.
• Ensure you have removed any object from the face area to prevent accidental entanglements while making the curls (such as earrings, necklaces etc.)
• When using the appliance, while it is heating or cooling, place it on a smooth and heat resistant surface.
• While styling your hair, be careful not to bring the product too close to sensitive parts of the face, ears, neck or skin.
• Let the appliance cool down completely when finished using before putting it away.

ATTENTION! If the product remains entangled in your hair, press the button in the opposite rotation direction and extract it downwards. The hair will disentangle thanks to this motion.

ATTENTION! The product's cylinder will turn very hot within few seconds after switching on and must not therefore be put in contact with the skin or eyes after switching on. After having finished using the product, make sure it has completely cooled down before putting it away. Never wrap the power cable around the appliance

USE

PREPARING YOUR HAIR

• Wash hair as normal and comb to remove knots.
• Dry your hair and comb from the roots to the ends.

STYLING SUGGESTIONS

The combination of styling time, temperature and size of the lock of hair makes it possible to achieve different results of curly styling. This will be all the more clearly sculpted the smaller the lock and the higher the temperature.

For an even more clearly marked effect keep the lock in for even longer than indicated by the beep. If you wish a softer effect work with bigger locks of hair at a lower temperature. For a delicate effect extract the lock of hair before the beep.

In any case, the experience gradually gained in using the appliance will help you establish the styling time for your type of hair in order to achieve the desired effect. The product makes it possible to select the winding direction according to the desired curl direction.

To maintain the result obtained do not brush or comb your hair before it has cooled.

INSTRUCTIONS FOR USE

1. Connect the plug to the mains.

2. Set the desired temperature level by means of the operation button (6):

3. 190^ C to obtain soft waves

4. 220^ to obtain more clearly defined wavy hair

5. The LED indicator (4) will turn red and it will beep on powering on. The LED indicator (4) will turn blue and it will beep again when the stylist has reached the selected temperature.

6. Position the product parallel to the lock of hair or slightly tilted. (Image 1). Do not position the product horizontally.

7. Take a lock of hair between your fingers as wide as you wish, move it close to the barrel (2) and insert it between the barrel (2) and the internal support (3A) (Image 1).
8. Press the rotation button in the desired direction: the Automatic Rotating Curl support (3) rotates and winds the lock of hair around the barrel (2) (Image 2)

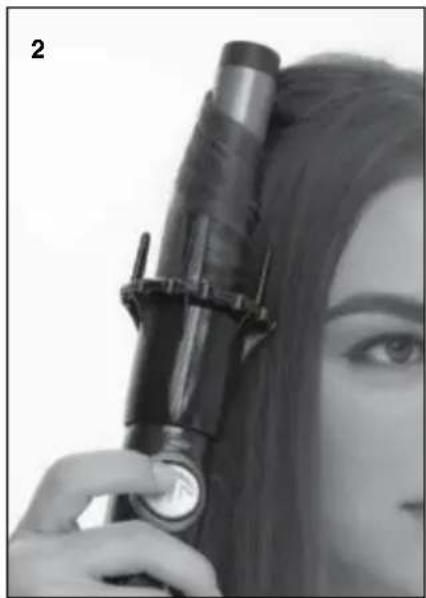

9. Hold the button down until the lock is completely wound around the barrel (Image 2A) and in any case longer than 3 seconds to allow the styling time buzzer to operate properly.
10. Hold the appliance in position and wait for the buzzer; extract the appliance downwards while holding it vertical. Do not tilt it diagonally (Image 3).
11. Repeat these steps on various locks of hair until achieving the desired styling. Once the hair styling operation is completed, switch off the appliance from the operation button (6) and disconnect it from the power socket.
12. For cooling, place the appliance in a dry and safe place on a heat-resistant surface. Keep out of the reach of children.

Notes:

- Steam may be emitted while the appliance is used; this is excess humidity in the hair that evaporates.

• Do not wind the cord around the appliance as this might cause it to wear prematurely and break. Handle the cord with care avoiding to bend it or pull it especially when it is plugged in the socket.
• The appliance is equipped with self-switch-off function after not being used for 60 minutes. To reactivate the product switch it off and on again with the operation button (6).

CLEANING

This product does not require maintenance. It does not need to be lubricated. Maintain the outer surfaces clean and free from dust, dirt and hairspray. Should the appliance need to be cleaned, unplug it from the socket and rub the outer part with a damp cloth. If the cord twists, rotate it in the opposite direction prior to use.

WARNING: Should any product malfunction occur, do not attempt repairing it by yourself as it does not feature any parts that may be operated by the consumer.

Make sure all cleaned parts are completely dry before reusing the appliance.

DISPOSAL

The user must therefore take the appliance to an appropriate recycling centre for electrical and electronic equipment.

Alternatively, instead of handling the disposal, the appliance can be handed over to the retailer when a new, equivalent appliance is purchased.

Retailers of electronic products having a sales area of at least 400 m2 can also be handed electronic products that are to be disposed of measuring less than 25 cm, free of charge and with no obligation to buy. Appropriate separate collection for the subsequent procedure for the decommissioned appliance for recycling, which includes treatment and environmentally friendly disposal helps prevent adverse effects on the environment and health and promotes reusing and/or recycling materials that the appliance consists of.

ASSISTANCE AND WARRANTY

The appliance is guaranteed for a period of 2 years from the date of purchase. Evidence shall be constituted by the date indicated on the receipt/invoice (provided it is legible), unless the buyer can prove that the delivery occurred later.

In the case of a defective product existing prior to the date of delivery, IMETEC guarantees to repair or replace the appliance at no cost, unless one of the two solutions is disproportionate to the other. The buyer has the obligation to notify an IMETEC Service Centre of the non-conformity within two months after discovering the defect.

The warranty does not cover any part that may be defective due to:

a. Damage from transport or accidental drops,
b. Incorrect installation or inadequate electrical system,
c. Repairs or alterations made by unauthorised personnel,
d. Poor or incorrect maintenance and cleaning,
e. Product and/or product parts subject to wear and/or consumables,
f. Failure to comply with the appliance's operating instructions negligent or careless use,

The list above is purely indicative and not exhaustive and in any case, this warranty shall not cover all circumstances that cannot be attributed to manufacturing defects of the appliance. The warranty also does not cover any case of improper use of the appliance and professional use.

IMETEC declines all responsibility for any damage that may directly or indirectly be caused to persons, property and pets as a result of failure to comply with all the instructions provided in the Instructions and Warnings Manual regarding appliance installation, use and maintenance.

This is without prejudice to any contractual warranty claims against the seller.

Methods of support

Appliance repairs must be carried out by an IMETEC Service Centre. If the faulty appliance is under warranty, it must be sent to the Service Centre together with a fiscal document that attests the date of sale or delivery.
