Product Type	Ventilation Fan
Model	BVX120WH (White, Humidity/Timer)
Diameter	120 mm
Dimensions (WxHxD)	Approximately 120 x 120 x 100 mm
Weight	Approximately 1.2 kg
Power Supply	220-240 V, 50 Hz, Single Phase
Power Consumption	20 W
Air Flow Rate	120 m³/h
Speed (RPM)	2100 rpm
Noise Level	Not specified (typically around 35-40 dB(A))
Mounting Options	Wall, Ceiling, Window
Installation Height	Minimum 2.3 m from floor
Protection Class	Class II (Double Insulation, No Ground Required)
IP Rating	Not specified (use appropriate cable fittings)
Timer Function	Adjustable 1 to 25 minutes (default ~3 min)
Humidity Sensor	Adjustable 40% to 90% RH
Control	Bipolar switch (supply voltage)
Max Ambient Temperature	40°C
Maintenance	Clean with damp cloth; no gasoline, benzene, or chemicals
Safety Features	Double insulation, no earth wire, bipolar switch required
Accessories Included	Mounting kit; outer cap not supplied
Certifications	Complies with national standards

Frequently Asked Questions - BVX120WH GORENJE

How do I install the Gorenje BVX120WH fan?

The fan can be mounted on a wall, ceiling, or window. Ensure the power supply is disconnected before installation. Use the provided mounting equipment and follow the instructions in the manual. The exhaust must be vented outside or into the building's ventilation system.

What are the electrical requirements for this fan?

The fan operates on 220-240 V, 50 Hz single phase. It has double insulation (Class II) so no earth wire is needed. Connect via a bipolar switch with a minimum gap of 3 mm in all poles. Use cables with a cross-section of at least 1 mm².

How do I set the timer on the BVX120WH?

The timer is adjustable from 1 to 25 minutes. The default delay is about 3 minutes. Refer to the wiring diagram for proper connection to the T terminal. The exact adjustment method is described in the manual.

How does the humidity sensor work?

The humidity sensor activates the fan when relative humidity exceeds a preset level (adjustable from 40% to 90%). It also has a timer to delay shut-off after humidity drops. This model (BVX120WH) includes both humidity sensor and timer.

Can I use this fan in a bathroom?

Yes, the fan is suitable for bathrooms due to its humidity sensor. Ensure it is installed at least 2.3 m from the floor and far enough from showers to avoid direct water contact. The fan is not waterproof; do not spray water directly.

How do I clean the fan?

Turn off the fan and disconnect power before cleaning. Use a damp cloth. Do not use gasoline, benzene, or harsh chemicals. Avoid getting water on electrical components like the switch or motor. Do not immerse parts in water above 60°C.

What is the maximum room temperature for operation?

The maximum permitted ambient temperature is 40°C. Do not use the fan in very hot environments.

Does the fan require an earth connection?

No, the fan has double insulation (Class II) and does not require an earth wire. However, it must be connected via a bipolar switch with a 3 mm contact gap.

What should I do if the fan does not start?

Check that the power supply is connected via the bipolar switch and that the switch is on. Verify the voltage matches the nameplate. If it still does not work, turn off the power and contact a qualified electrician or the service centre.

Can I use an external motion sensor with this fan?

Yes, the optional BV MSS motion sensor module can be used to turn on the fan when movement is detected. It has adjustable sensitivity from 1 to 5 meters and a timer delay.

USER MANUAL BVX120WH GORENJE

FAN – INSTRUCTIONS FOR INSTALLATION AND USE

GB

VENTILATOR - UPUTE ZA MONTAZU I UPORABU

HR BIH

VENTILATOR - UPUTSTVO ZA MONTAZU I UPOTREBU

SRB MK

Three white air purifiers with circular cutouts and a metallic square cover, displayed against a white background (no text or symbols visible)

Preberite ta navodila

Illustration of a hand installing or adjusting a wall-mounted component, with arrows indicating assembly direction (no text or symbols present)

MONTAŽA NA STEKLENO OKNO

Technical line drawing of a ceiling structure with airflow indicators (no text or symbols)

ELEKTRIČNA PRIKLJUČITEV

Before using the device for the first time, please read these instructions carefully and save them for future use.

FAN

INSTRUCTIONS FOR INSTALLATION AND USE

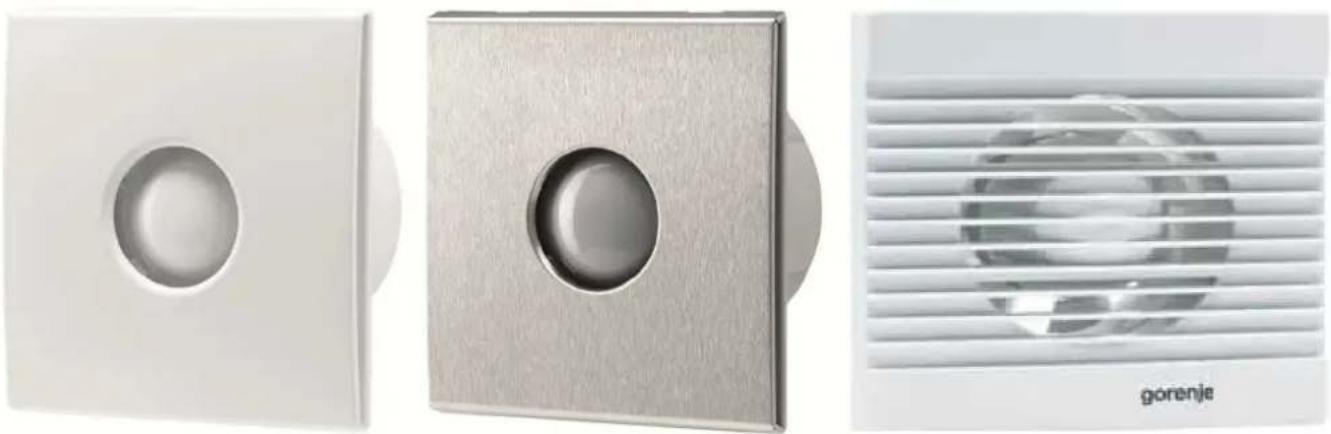

Three white air purifiers with circular cutouts and a metallic square cover, displayed against a white background (no text or symbols visible)

Please read these instructions

They contain many useful tips on the proper use and maintenance of the fan.

SAFETY WARNINGS

1. Remove the packaging and make sure the device is undamaged. In case of doubt, consult the service centre.

Keep the packaging out of the reach of children and persons with disabilities.

1. The device may only be used for applications specified in these instructions.

2. INSTALLATION

The device can be mounted on the ceiling, wall or window. Use the attached mounting equipment. The fan's exhaust must be vented out of the room or into the building's ventilation system.

Installation must be carried out by qualified personnel.

1. ELECTRICAL CONNECTION

The fan motor must be connected to a single phase power supply as indicated on the nameplate. Connectors for the switch are located on the fan housing. To ensure adequate IP protection, use appropriate fittings for electrical cables. The fan must be securely mounted and connected with electric cables with minimum cross-section of 1 mm^2 . The fan does not need an earth wire, as it is specified as a device with double insulation (class 2).

The device must be connected to the power supply by a qualified electrician.

Connect the cable to the fan via a bipolar switch which must have a minimum spacing of 3 mm in all poles.

The device must be connected in accordance with national standards. Do not touch the device with moist or wet hands!

Do not touch the device while barefoot! Before cleaning or maintenance, turn off the mains power supply by means of the bipolar switch or disconnect the plug.

1. In the event of a breakdown or malfunction, switch off the device and do not tamper with it. If repairs are needed, please contact the service centre. Always insist on genuine spare parts

2. When the device is not in use, disconnect it from the mains power supply.

3. The maximum permitted temperature of the room where the device is installed is 40^ C.

4. The device should not be used unattended by children, disabled persons or persons with reduced capabilities.

Children should always be supervised to ensure they do not play with the device.

1. Do not use near flammable materials or their vapours (gasoline, alcohol, insecticides).

2. Prevent the inflow of flue gas in the room in the case of installed devices with an open combustion chamber

3. Do not modify the device.

4. Do not expose the device to weather conditions (rain, sun, etc.).

5. Inspect the device regularly. In the event of identified defects, stop using the device.

6. In the event of a fall or strong impact, the device must be checked by qualified personnel.

7. The room where the fan is installed must have an adequate supply of air to ensure efficient operation.

8. Do not cover the humidity sensor or motion sensor

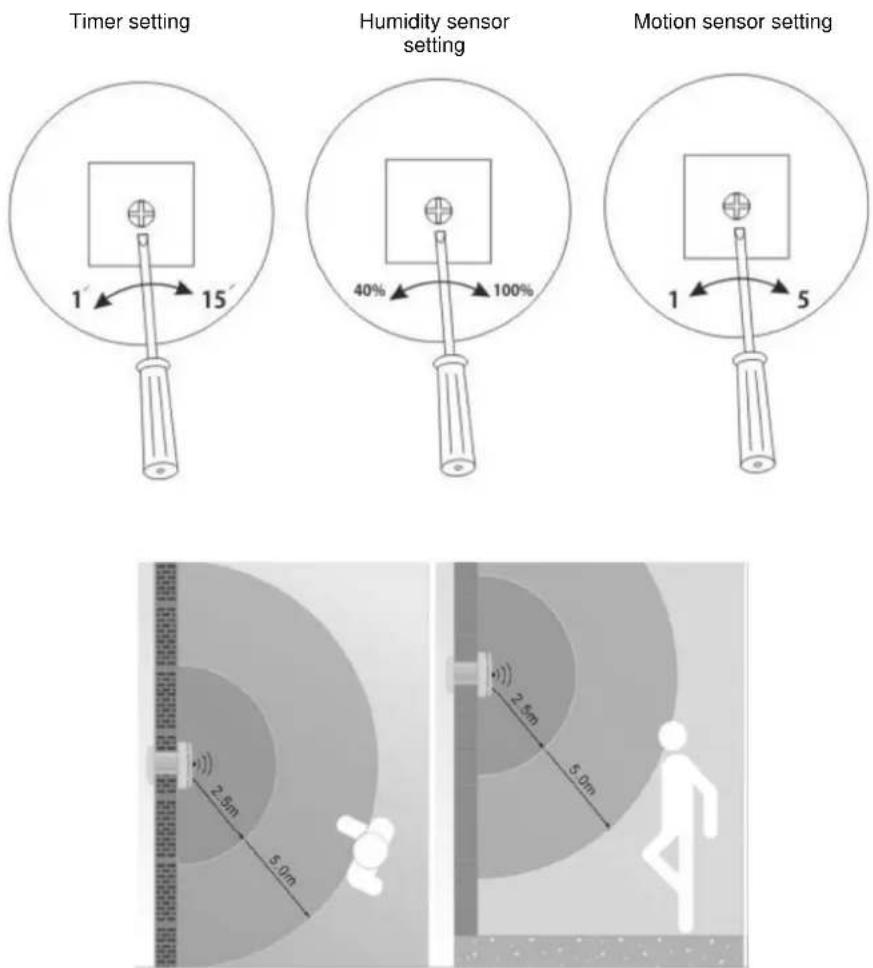

MODELS

- Standard models

This model is turned on/off via a supply voltage switch.

Models: V-100, V-200, V-300, BVN ____ W, BVX ____ W, ...

• Model with timer (T - timer)

This model is equipped with a timer which allows the operation of the fan after turning off the switch. The default delay time is about 3 minutes. The timer can be set in the range from 1 to 25 minutes.

Models: BVX ____ WT

• Model with humidity sensor (H - humidity)

This model is equipped with a humidity sensor that is activated when the relative humidity in the room exceeds the pre-set value. Possible adjustment is between 40% and 90%. This model is also equipped with a timer which allows power off delay ranging from 1 to 25 minutes.

Models: BVX WH.

- Module with a motion sensor to turn on the fan

The module is equipped with an infrared sensor which turns on the fan in case of detecting a person in the room. Sensitivity of person detection can be set between 1 and 5 m. This module is equipped with a timer which allows power off delay ranging from 1 to 25 minutes.

Model: BV MSS.

PLACEMENT AND MOUNTING

1. Mount the fan as high as possible in the room. The minimum height is 2.3 m from the ground.
2. Mount the fan opposite the main source of air that needs to be exchanged, at least 30 mm from the edge of the wall and ceiling.
3. Mount the fan as close as possible to the source of vapour or odour, but far enough away that cannot be touched by a person in the shower or bath.
4. If the fan is installed in a room with gas heating, electric heater, etc., the installer must ensure that there is sufficient replacement air to prevent the fan from sucking the air back through the cap (the cap can be supplied as additional equipment).
5. Observe the national building laws.

WARNING: Before installation, the power supply must be disconnected.

NOTE: The electrical connection should be carried out by a qualified electrician.

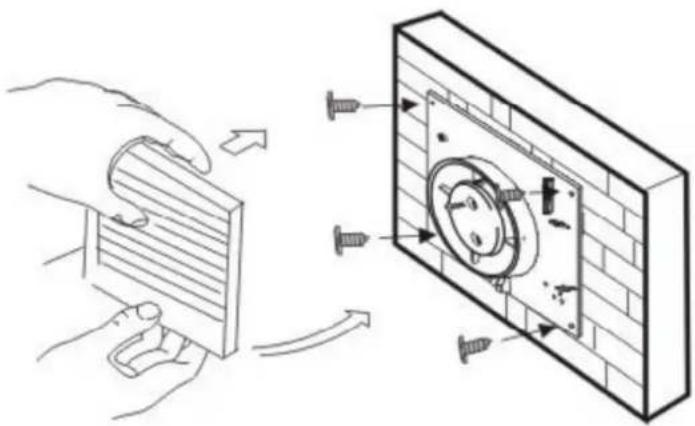

MOUNTING ON A WALL

1. Before connecting to power supply, make sure that the voltage corresponds to the value indicated on the nameplate.
2. Make sure that there are no water installations or electrical installations in the wall, and then prepare a hole of appropriate size. The channel should be slightly inclined towards the outer wall, thus enabling the discharge of any potential rainwater. Make a hole and wait for it to set before carrying out the connection.
3. Remove the front fan cover. Place the fan on the wall and mark four points for mounting and the cable gland. Drill the holes.
4. Connect the cable to the fan via a bipolar switch which must have a minimum spacing of 3 mm in all poles.
5. Pull the cable through the cable gland and fix the fan to the wall.
6. Replace the front cover and the outer cap (the outer cap is not included).

Illustration of a hand installing a wall-mounted component next to a brick wall-mounted device with screw fasteners (no text or symbols)

1. Before connecting to power supply, make sure that the voltage corresponds to the value indicated on the nameplate.
2. Check that there are no obstacles in the window, such as window frames, joints. Provide sufficient space for the housing.
3. Remove the front fan cover. Place the fan on the glass, mark and cut out the necessary opening.
4. Connect the cable to the fan via a bipolar switch which must have a minimum spacing of 3 mm in all poles.
5. Pull the cable through the cable gland and fix the fan to the wall.
6. Use the appropriate adhesive for fixing the fan housing to the glass surface.
7. Replace the front cover of the fan.

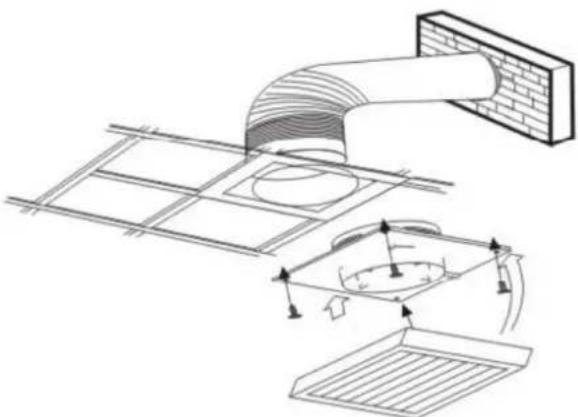

MOUNTING ON THE CEILING

1. Before connecting to power supply, make sure that the voltage corresponds to the value indicated on the nameplate.
2. Select the appropriate location for the fan and cut out an appropriate opening.
3. Remove the front fan cover. Place the fan on the ceiling and mark four points for mounting and the cable gland. Drill the holes.
4. Connect the cable to the fan via a bipolar switch which must have a minimum spacing of 3 mm in all poles.
5. Pull the cable through the cable gland and fix the fan to the ceiling.
6. Replace the front cover
7. The fan's exhaust must be vented out of the building through the ventilation pipes. Install the outer cap (not supplied).

Technical line drawing of a ceiling structure with ventilation duct and grating (no text or symbols)

ELECTRICAL CONNECTION

1. Fans have double insulation and do not require grounding
2. In the fans mounted on partition walls, make sure that there are no gases returning into the room from heating appliances or any other appliances.
3. L - connect the phase wire

N - connect the neutral wire

T - connect the voltage for the light or for the switch (fan with a timer or fan with humidity sensor)

Electrical wiring diagrams

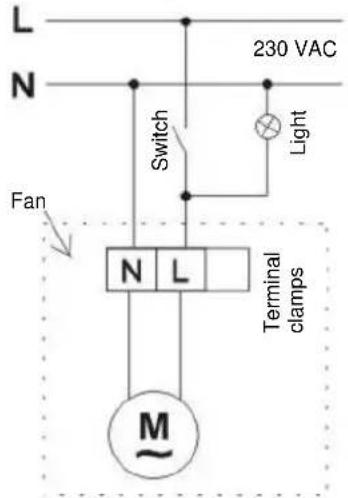

With light:

Standard wiring diagram

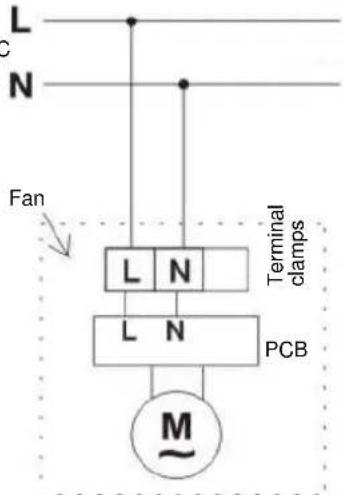

Wiring diagram with timer / humidity sensor

Wiring diagram with motion sensor

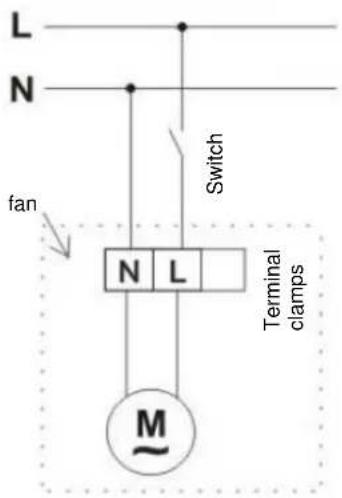

Without light:

Standard wiring diagram

Wiring diagram with timer / humidity sensor

MAINTENANCE

1. Before cleaning, turn off the fan.
2. Do not use gasoline, benzene or any other chemicals.
3. Make sure that water does not come into contact with electrical components such as switch or motor.
4. Do not immerse blades or other parts made of synthetic resins, in water of more than 60^ C.
5. Do not expose the fan to high temperatures and direct sunlight.

FEATURES

MODEL	VOLTAGE (V/Hz)	SPEED (rot./min.)	AIR FLOW (m3/h)	POWER (W)	SIZE (mm)
Air flow 100 2	20-240/50 2450	100 15 100
Air flow 200 2	20-240/50 2250	195 20 120
Air flow 300 2	20-240/50 1450	320 25 150
Diameter 100 White	220-240/50 2300 70 15 100
Diameter 100 White with timer	220-240/50 2300 70 15 100
Diameter 120 White with humidity / timer sensor	220-240/50 2100 120 20 120
Diameter 150 Stainless steel with humidity / timer sensor	220-240/50 1600 210 25 150
BV MSS* 220-240/50 /		/	/	/

*Optional movement sensor for switching on Gorenje fans

HR, BIH

BVN ____ W, BVX ____ W, BVX ____ WT, BVX ____ ST, BVX ____ WH, BVX ____ SH, BV MSS

Prije prve uporabe klimatskog uređaja pozorno pročitajte ove upute i sačuvajte ih za buduću uporabu.

VENTILATOR

UPUTE ZA MONTAŽU I UPORABU

Three-panel image showing a white air vent, a metallic square button, and a white ventilation grille (no text or symbols visible)

Illustration of a hand installing or adjusting a wall-mounted component, with arrows indicating assembly direction (no text or symbols present)

MONTAŽA NA ZIDNI PROZOR

1. Prije priključenja na dovod električne energije provjerite odgovara li napon vrijednosti koja je navedena na natpisnoj pločici.

2. Provjerite kako na prozoru ne bi bilo smetnji, poput prozorskih okvirova ili spojeva. Osiguraite dovolino prostora za kućište.

3. Skinite prednji poklopac ventilatora. Postavite ventilator na staklo, označite potreban izrez i izrežite potreban otvor.

4. Priključite kabel na ventilator preko dvopolnoga prekidača koji mora imati minimalni razmak od 3 mm na svim polovima.

5. Povucite kabel kroz kabelski uvodni element i pričvrstite ventilator na zid.

6. Koristite primiereno liepilo za fiksiranje kućišta ventilatora uz staklo.

7. Vratite natrag prednji poklopac ventilatora.

MONTAŽA NA STROP

1. Prije priključenja na dovod električne energije provjerite odgovara li napon vrijednosti koja je navedena na natpisnoj pločici.

2. Izaberite odgovarajuću lokaciju za ventilator te izrežite primieren otvor.

3. Skinite prednji poklopac ventilatora. Postavite ventilator na strop i označite četiri točke za pričvršćenje i kabelski uvodni element. Zatim izbušite rupe.

4. Priključite kabel na ventilator preko dvopolnoga prekidača koji mora imati minimalni razmak od 3 mm na svim polovima.

5. Povucite kabel kroz kabelski uvodni element i pričvrstite ventilator na strop.

6. Vratite natrag prednji poklopac.

7. Ispuh ventilatora treba biti sproveden izvan objekta preko ventilacijskih cijevi. Postavite vanjski zatvarač (nije priložen).

Technical line drawing of a ceiling structure with airflow indicators (no text or symbols)

ELEKTRIČNA INSTALACIJA

1. Ventilatori imaju dvostruku izolaciju i nije potrebno uzemljenje.

2. Za ventilatore koji su postavljeni na pregradne zidove valja paziti kako ne bi došlo do vraćanja plinova u prostoriju iz uređaja aparata za grijanje ili drugih aparata.

3. L - priključite na fazni vodič.

N - priključite na nulti vodič.

T - priključite na napon za svjetlo ili napon za prekidač (ventilator s tajmerom ili ventilator sa senzorom vlage).

UPUTSTVO ZA MONTAŽU I UPOTREBU

White square wall-mounted air vent with a circular recess (no text or symbols)

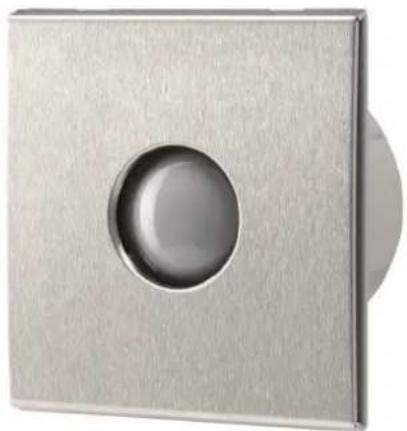

Close-up of a metallic square button with a circular hole, no text or symbols visible.

BEZBEDNOSNA UPUTSTVA

Illustration of a hand using a tool to adjust a wall-mounted component, with no visible text or symbols.

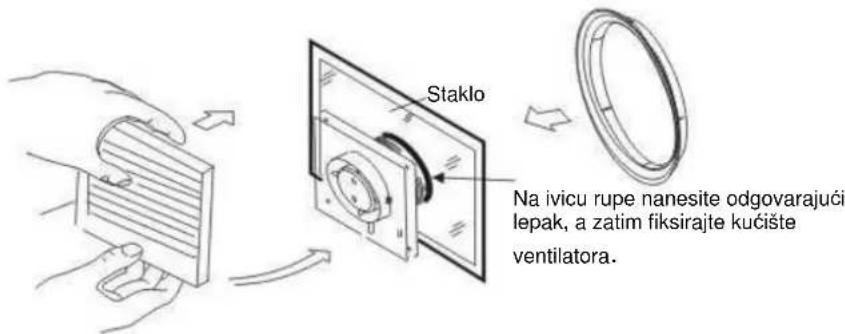

MONTAŽA NA STAKLENI PROZOR

1. Pre priključka na električnu energiju proverite da li napetost odgovara vrednosti koja je navedena na natpisnoi pločici.

2. Proverite da na prozoru nema prepreka kao što su prozorski okviri, spojevi. Obezbedite dovolino prostora za kućište.

3. Odstranite prednji poklopac ventilatora. Postavite ventilator na staklo, označite potreban izrez i izrežite potrebni otvor.

4. Kabl priključite na ventilator preko dvopolnog prekidača koji mora da ima minimalni razmak od 3 mm na svim polovima.

5. Povucite kabl kroz kablovsku uvodnicu i pričvrstite ventilator za zid.

6. Upotrebite odgovarajući lepak za fiksiranje kućišta ventilatora na staklo.

7. Vratite nazad prednji poklopac ventilatora.

MONTAŽA NA PLAFON

1. Pre priključka na električnu energiju proverite da li napetost odgovara vrednosti koja je navedena na natpisnoj pločici.

2. Izaberite odgovarajuću lokaciju za ventilator i izrežite odgovarajuću rupu.

3. Odstranite prednji poklopac ventilatora. Postavite ventilator na plafon i označite četiri tačke za pričvršćivanje i kablovsku uvodnicu. Zatim izbušite rupe.

4. Kabl priključite na ventilator preko dvopolnog prekidača koji mora imati minimalni razmak od 3 mm na svim polovima.

5. Povucite kabl kroz kablovsku uvodnicu i pričvrstite ventilator za plafon.

6. Vratite nazad prednji poklopac ventilatora.

7. Ispuh ventilatora potrebno je izvesti van objekta uz pomoć ventilacionih cevi. Namestite spoljašnji zatvarač (nije priložen).

Technical line drawing of a ceiling structure with ductwork and ventilation system (no text or symbols)

ELEKTRIČNI PRIKLJUČAK

1. Ventilatori imaju duplu izolaciju i nije im potrebno uzemljenje.

2. Kod ventilatora, montiranih na pregradnim zidovima, treba paziti da ne dođe do vraćanja gasova u prostor iz uređaja aparata za grejanje ili drugih aparata.

3. L - priključite na fazni provodnik.

N - priključite na nulti provodnik.

T - priključite na napetost za svetlo ili napetost za prekidač (ventilator sa časovnikom ili ventilator sa senzorom vlage).

Električne instalacione sheme

Sa svetlom:

Bez svetla:

ODRŽAVANJE

1. Pre čišćenja ventilator isključite.
2. Za čiščenje ne koristite benzin, benzol ili bilo koje druge hemikalije.
3. Pazite da voda ne dođe u kontakt sa električnim delovima, kao što je prekidač ili motor.
4. Ne potapajte lopatice ili druge delove, izrađene iz veštačkih smola, u vodu koja ima više od 60°C.
5. Ventilator ne izlažite visokim temperaturama i direktnoj sunčevoj svetlosti.

SVOJSTVA

MODEL	NAPON(V/Hz)	BRZINA(okr./min.)	PROTOKVAZDUHA ( m^3/h )	SNAGA(W)	VELIČINA(mm)
Protok 100 220-240/50 2450	100 15 100
Protok 200 220-240/50 2250	195 20 120
Protok 300 220-240/50 1450	320 25 150
Diameter 100Bijela	220-240/50 2300 70 15 100
Diameter 100Bijela satimerom	220-240/50 2300 70 15 100
Diameter 120Bijela sasenzorom vlage /tajmerom	220-240/50 2100 120 20 120
Diameter 150Metalni sasenzorom vlage /tajmerom	220-240/50 1600 210 25 150
BV MSS* 220-240/50 / / /	/

*Opcioni senzor kretanja za uključivanje ventilatora Gorenje

Українська

BVN ____ W, BVX ____ W, BVX ____ WT, BVX ____ ST, BVX ____ WH, BVX ____ SH, BV MSS

Three-panel image showing a white air vent, a metallic square button with a circular opening, and a white ventilation grille (no text or symbols visible)

Illustration of a hand installing or adjusting a wall-mounted component, showing mechanical assembly and mounting details (no text or symbols present)

Technical diagram of a ventilation system with airflow path and component layout (no text or labels)

Three-panel image showing a white air vent, a metallic square button with a circular opening, and a white ventilation grille (no text or symbols visible)

Illustration of a hand using a tool to adjust a wall-mounted component, with no visible text or symbols.

Technical line drawing of a ceiling structure with ventilation duct and fan components (no text or symbols)

Three-panel image showing a white air vent, a metallic square button with a circular opening, and a white ventilation grille (no text or symbols visible)

MONTAREA PE FEREASTRĂ

Technical line drawing of a ceiling duct assembly with ventilation grilles and fan base (no text or symbols)

CONEXIUNEA ELECTRICĂ

White square wall-mounted air vent with a circular recess (no text or symbols)

Close-up of a metallic square button with a circular hole, no text or symbols visible.

Prečítajte si prosím tieto pokyny

Illustration of a hand installing or adjusting a wall-mounted component next to a brick wall-mounted device (no text or symbols present)

MONTÁŽ NA OKNO

Technical line drawing of a ceiling structure with ventilation duct and grating (no text or symbols)

ELEKTRICKÉ PRIPOJENIE

Bez svetla:

Štandardná schéma zapojenia
