Product type	Immersion blender
Brand	MOULINEX
Model	HB 7001
Number of speeds	2 (slow and fast)
Mixing bowl capacity	0.8 L
Mini-chopper capacity	Up to 150 g of meat, 125 g of nuts
Included accessories	Mixing foot, whisk, mini-chopper, mixing bowl, wall mount
Material of mixing foot	Plastic or metal depending on model
Main functions	Blending, whisking, chopping
Power supply	Alternating current (check voltage on label)
Maintenance and cleaning	Clean with soapy water; some parts (mixing foot, whisk, mixing bowl, knife, mini-chopper bowl) are dishwasher safe
Safety	Accessory ejection button, automatic stop when unplugged, very sharp blades
Spare parts and repairability	Repair exclusively by an approved repairer; do not disassemble yourself
Use	Household only
Weight (estimated)	Approximately 1.5 kg
Dimensions (estimated)	Height: 40 cm, width: 8 cm (mixing foot)

Frequently Asked Questions - HB 7001 MOULINEX

How to assemble the mixing foot?

Insert the mixing foot (E) onto the motor unit (A) until it clicks into place.

Can you blend hot preparations?

Yes, but remove the heat source and let cool slightly. Do not blend above 80°C.

How to clean the motor unit?

Never immerse the motor unit in water. Clean it with a damp sponge.

Which accessories are dishwasher safe?

The mixing foot (blade facing up), the whisk (whisk facing up), the graduated mixing bowl, the knife and the mini-chopper bowl are dishwasher safe.

How to use the mini-chopper?

Place the knife (I2) on the central axis of the bowl (I3), add the food, then the lid (I1) and the motor unit. Plug in and press a speed.

What if the appliance does not start?

Check that the voltage matches and that the appliance is properly plugged in. If the problem persists, contact an approved repairer.

Can you chop ice or coffee?

No, the appliance is not designed for hard foods such as ice cubes, coffee, sugar, cereals or chocolate.

What is the maximum capacity of the mixing bowl?

The graduated mixing bowl has a capacity of 0.8 L but only fill it to 2/3 to avoid overflowing.

How to detach the accessories?

Unplug the appliance, then press the ejection button (D) to release the accessory.

Can I use the blender for dairy preparations?

Yes, the blender is ideal for milkshakes, cocktails, sauces and soups. Rinse quickly after use.

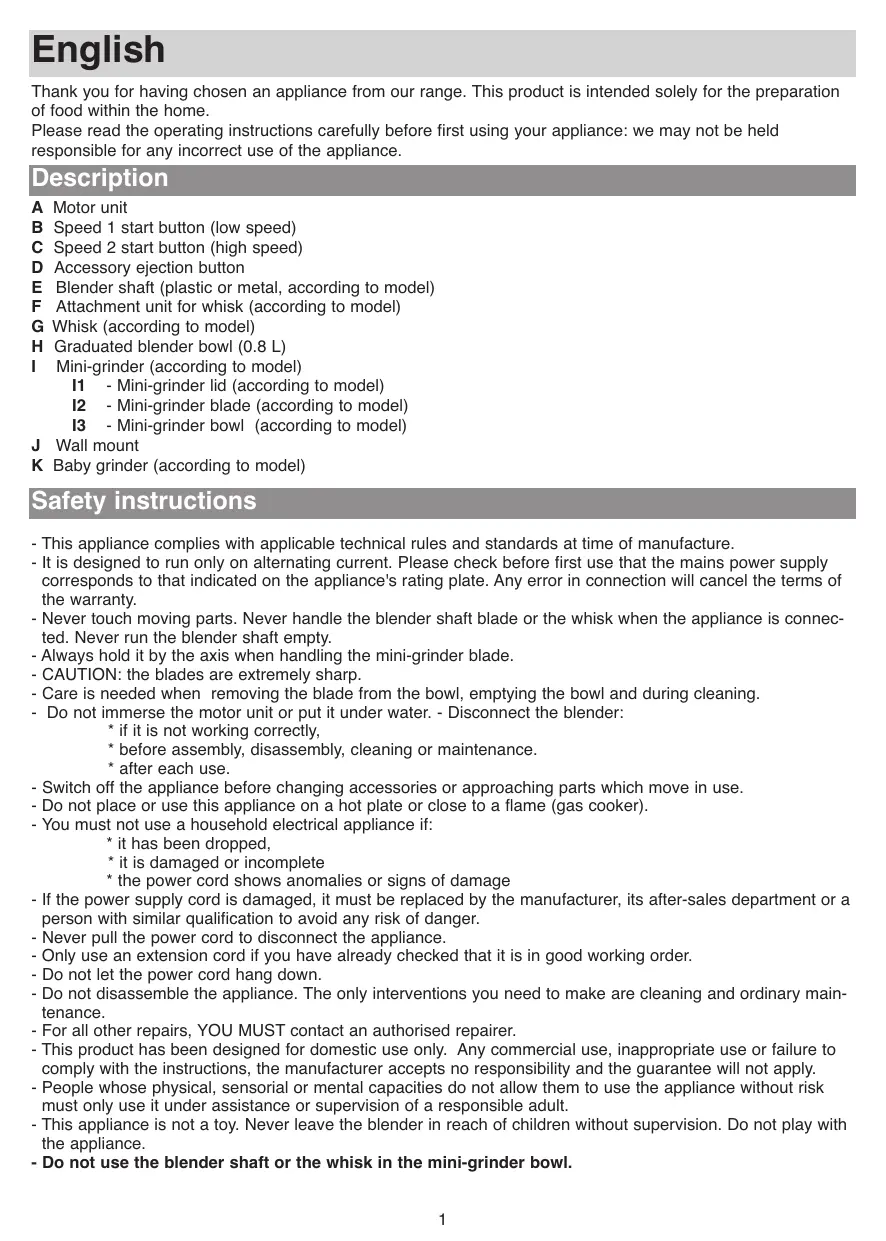

USER MANUAL HB 7001 MOULINEX

Thank you for having chosen an appliance from our range. This product is intended solely for the preparation of food within the home.

Please read the operating instructions carefully before first using your appliance: we may not be held responsible for any incorrect use of the appliance.

Description

A Motor unit
B Speed 1 start button (low speed)
C Speed 2 start button (high speed)
D Accessory ejection button
E Blender shaft (plastic or metal, according to model)
F Attachment unit for whisk (according to model)
G Whisk (according to model)
H Graduated blender bowl (0.8 L)

I Mini-grinder (according to model)

11 - Mini-grinder lid (according to model)
12 - Mini-grinder blade (according to model)
13 - Mini-grinder bowl (according to model)

J Wall mount
K Baby grinder (according to model)

Safety instructions

• This appliance complies with applicable technical rules and standards at time of manufacture.
• It is designed to run only on alternating current. Please check before first use that the mains power supply corresponds to that indicated on the appliance's rating plate. Any error in connection will cancel the terms of the warranty.
• Never touch moving parts. Never handle the blender shaft blade or the whisk when the appliance is connected. Never run the blender shaft empty.
• Always hold it by the axis when handling the mini-grinder blade.
• CAUTION: the blades are extremely sharp.
• Care is needed when removing the blade from the bowl, emptying the bowl and during cleaning.

• Do not immerse the motor unit or put it under water. - Disconnect the blender:

• if it is not working correctly,

• before assembly, disassembly, cleaning or maintenance.
  * after each use.

• Switch off the appliance before changing accessories or approaching parts which move in use.

• Do not place or use this appliance on a hot plate or close to a flame (gas cooker).

• You must not use a household electrical appliance if:

• it has been dropped,

• it is damaged or incomplete

• the power cord shows anomalies or signs of damage

• If the power supply cord is damaged, it must be replaced by the manufacturer, its after-sales department or a person with similar qualification to avoid any risk of danger.

• Never pull the power cord to disconnect the appliance.
• Only use an extension cord if you have already checked that it is in good working order.
• Do not let the power cord hang down.
• Do not disassemble the appliance. The only interventions you need to make are cleaning and ordinary maintenance.
• For all other repairs, YOU MUST contact an authorised repairer.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• People whose physical, sensorial or mental capacities do not allow them to use the appliance without risk must only use it under assistance or supervision of a responsible adult.
• This appliance is not a toy. Never leave the blender in reach of children without supervision. Do not play with the appliance.
• Do not use the blender shaft or the whisk in the mini-grinder bowl.

Using the blender shaft:

Insert the shaft (E) onto the motor unit (A) until you hear the "click" that tells you it has locked. Your blender is ideal to prepare sauces, soups, cocktails, milk-shakes, mayonnaises, pancake mixes, waffle mixes and baby food preparations.

To avoid splashing, first put the blender shaft into your preparation, plug in the appliance and then press button (B) or (C). Make a rotating and up and down movement to obtain even blending of the food. After use, switch the appliance off then press the ejection button (D) to disassemble the blender shaft accessory.

Using the whisk:

Fit the whisk (G) into the attachment unit (F), then slot the assembly onto the motor unit (A) until you hear the "click" that tells you it has locked. You can use the whisk to make light preparations (pancake mix, stiff egg white, chantilly cream, etc.). Switch the appliance on then press button (B) or (C). Unplug the appliance before pressing the ejection button (D) to disassemble the whisk accessory.

Using the mini-grinder:

Before using the mini-grinder:

1 First remove the protection from the blade (I2) then fit it carefully in the bowl (I3) on the central axis. Remember to replace the protection once you have finished your preparation.
2 Put the food into the bowl.
3 Place the lid (I1) and then the motor unit (A) on the lid (I1).
4 Switch the appliance on then press speed (B) or (C). Use the mini-grinder to chop parsley, condiments, meat (150g) , hazelnuts (125g) breadcrumbs, baby food, etc. The bowl (I3) should be 2/3 full at most.

Using the microwave oven:

You can use the grinder bowl to heat up liquid preparations (soups, etc) in the microwave oven providing you do not add fat and that the metallic axis of the bowl is covered by the preparation.

Practical hints

You should never fill the bowl you use to blend or whip more than 2/3 full to avoid spillage.
- The preparation must at least cover the lower part of the blender shaft for the mix to be successful.
- Remove bone and gristle from meat before putting it in the bowl.
- Remove the cooking utensil from the source of heat to blend hot preparations. Leave cooked food to cool for a while before putting them in the bowl.
- Do not blend food and liquids at a temperature higher than 80^ (175°F).
- For fibrous foods (leeks, celery, asparagus, etc.) clean the blender shaft regularly during use while following the safety instructions for disassembly and cleaning.
- For fruit-based preparations, first cut up the fruit and remove pips and stones.
- Do not use the appliance with hard food like coffee beans, ice cubes, sugar, cereals and chocolate.
- Do not use the blender shaft or the whisk in the mini-grinder bowl.

Recipes

Mayonnaise: blender shaft, 10 seconds at speed 2	Pour 1 egg yolk, 1 tablespoon mustard, 1 tablespoon vinegar, salt and pepper into the graduated blender bowl (H) and start to blend them gradually pour in 1/4 litre of oil while moving the blender up and downwards.
Vegetable soup:Blender shaft, 30 seconds at speed 2	Boil 500g potatoes, 400g carrots, 1 leek, salt and peeper in 1.8 litres of water. Blend the ingredients.
Pancake mix: whisk, 60 seconds at speed 1	200g flour, pinch of salt, 1/2 litre milk, 40 g melted butter, 3 eggs.
Chantilly cream: whisk, 2 minutes at speed 2	200 g chilled liquid creme fraiche, 40g icing sugar.
Mini-grinder Proceed by pulses until you obtain the desired result. Speed 2	Almonds (125 g) 15 s Rusks (40 g) 10 s Parsley (30 g) 5 s Cooked ham (150 g) 8 s Onions cut into quarters (200 g) 6 s
Baby grinder speed 2	Using this accessory, you can grind 45 g of (belly) pork in 3 seconds.

Cleaning

• CAUTION: the blades are extremely sharp.
• Always disconnect the appliance before cleaning it.
• Do not put the appliance, power supply cord or plug into water or any other liquid.
• Never put the motor unit (A), the attachment unit for the whisk (F) or the mini-grinder lid (I1) in the dishwasher.
• Never immerse them in water or put them under the tap. Clean with a moist sponge.
• You can clean the blender shaft (E) (blade facing upwards), whisk (G) (whisk side facing upwards), graduated mixing (H), blade (I2) and the mini-grinder bowl (I1) in the dishwasher.
• We advise you to clean the blender shaft immediately after each use. If the plastic parts become discoloured by food like carrots, rub them with a cloth soaked in cooking oil and then clean as usual.

Storage

Use the wall mount (J) to always have your blender ready to hand.

To secure your wall mount, drill two attachment points horizontal to each other with a gap of 30mm then place the mount the right way up on the attachment screws.

Electrical or electronic product at end of service life

Environment protection first !

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

HELPLINE: If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice: 0845 602 1454 - UK [phone] - Ireland
