AT 7111 - Food Processor MOULINEX - Free user manual and instructions

Product type	Food processor
Brand	Moulinex
Model	AT 7111
Power supply	220-240 V, 50 Hz (AC)
Bowl capacity	0.5 L (max for liquid preparations)
Bowl material	Plastic
Blade material	Stainless steel
Main functions	Chopping, blending, milkshake*, mouloukhia knife* (* depending on model)
Speeds	Slow (A1) and Turbo (A2)
Included accessories	Bowl (F), chopping knife (E), sealing cup (C), bowl shaft (G); optional accessories: mouloukhia knife (H), milkshake accessory (D), storage base (I), protective lid (J)
Safety	Double safety: cannot start without sealing cup; mandatory hold-down button
Motor unit maintenance	Clean with a damp cloth, never immerse
Accessory cleaning	Bowl, cup, and accessories (except motor unit) are dishwasher safe (top rack, ECO or light soil program)
Cord storage	Wrap around the body and lock in the notch
Knife storage	In the storage base (I) with lid (J)
Usage	Household use only
Compliance	Complies with applicable technical rules and standards

Frequently Asked Questions - AT 7111 MOULINEX

How to chop onions with the AT 7111 food processor?

Place the chopping knife (E) on the bowl shaft, add the onions cut into pieces (max 200 g), and put the sealing cup. Operate in pulses at slow speed (A1). If pieces remain stuck, dislodge them with a spatula and give a few more pulses.

Can I blend hot liquids?

No, blending hot liquids is not recommended. Use the appliance only with room temperature or cold ingredients, and do not exceed the maximum level (0.5 L) for liquid preparations.

How to clean the motor unit?

Unplug the appliance. Clean the motor unit (B) with a damp cloth and dry it thoroughly. Never immerse it in water or any liquid.

Can I put the bowl in the dishwasher?

Yes, the bowl (F), sealing cup (C), and all accessories (knives, milkshake accessory) are dishwasher safe on the top rack, using the "ECO" or "LIGHT SOIL" program.

How to make mayonnaise with the food processor?

Use Turbo speed (A2). Put in the bowl with the knife: 2 egg yolks, 1 tablespoon mustard, 2 tablespoons water, 1 tablespoon vinegar, salt and pepper. Add only 2 tablespoons of oil. Blend for 15 seconds, then add the remaining oil (200 ml) in 3 batches, blending for 10 seconds each time.

What to do if the appliance does not start?

Check that the sealing cup (C) is correctly placed and that the bowl (F) is properly positioned on the motor unit (B). The appliance has double safety: it only works if these parts are in place. Also ensure the appliance is plugged in and the voltage matches that indicated on the rating plate.

How to use the milkshake accessory?

Clip the milkshake accessory (D) onto the chopping knife shaft (E). Place the assembly on the bowl shaft, pour in the ingredients (max 0.5 L) and the sealing cup. Attach the motor unit, plug in, and press the start button (A1 or A2). After use, remove the milkshake accessory to return to chopping/blending functions.

Are the blades interchangeable?

Yes, depending on the model, you have the chopping knife (E) and possibly the serrated mouloukhia knife (H). Both fit on the bowl shaft (G) and are used in the same way. Refer to your instruction manual to know which knife is supplied with your appliance.

Can I use the appliance for hot preparations?

No, the appliance is designed for cold or room temperature ingredients. Do not pour boiling liquids into the bowl and do not place the appliance on a heat source. Use it only for cold or lukewarm preparations.

How to store the knives safely?

Store the knives (E and H) in the designated slots in the storage base (I) (depending on model). Place the protective lid (J) on top to avoid accidental contact with sharp blades. Keep out of reach of children.

USER MANUAL AT 7111 MOULINEX

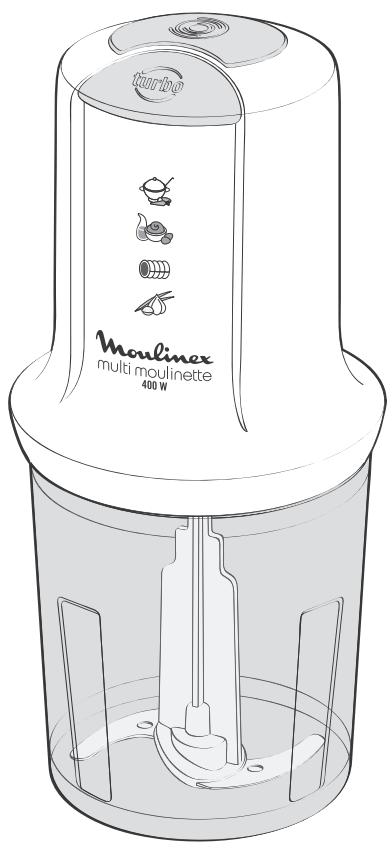

moulinet multi moulinette

turbo moulinex multi moulinette 400 W

J H

Technical line drawing of a mechanical component with no visible text or symbols

1 3 2 1 MAX

2 4 5

3 1

4 2 3 4 -- MAX

5 5 6

Diagram of a mechanical assembly with a central component and connecting wires (no text or symbols)

Accessoire milk-shake (D\*)

Crème chantilly :

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

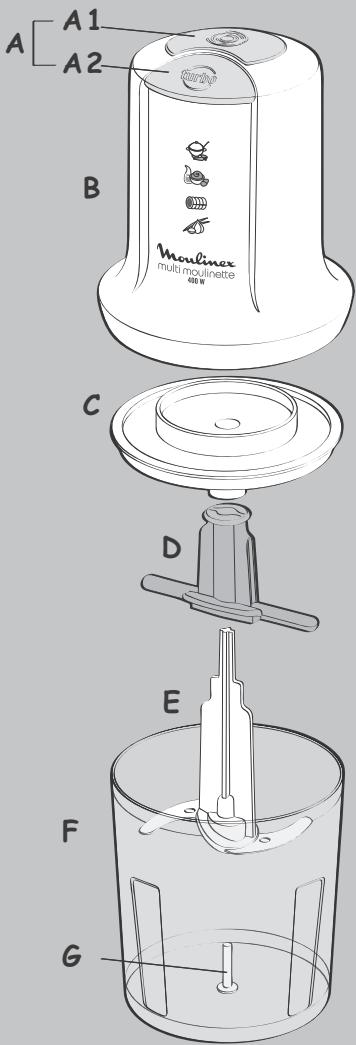

A1 Low speed
A2 Turbo
B. Motor unit
C. Seal lid
D. Milkshake accessory *

E. Chopping blade
F. Bowl
G. Bowl spindle

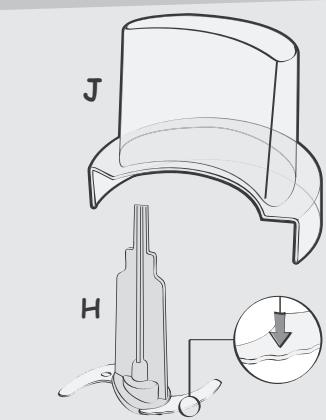

H. Serrated mouloukhia blade *
I. Storage base *
J. Lid *

* according to model

SAFETY INSTRUCTIONS

• Read the instructions for use carefully before using your appliance for the first time: the manufacturer shall accept no liability in the event of any use that does not comply with the instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should not be allowed to play with the appliance.
• This appliance complies with applicable standards and regulations.
• It is designed to work with alternating current only. We would ask you, before using it for the first time, to check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance. Any error in connection will cancel the terms of your guarantee.
• Do not operate the appliance when empty or with the accessories in the bowl.
• Do not place or use this appliance on a hotplate or near to a naked flame (gas cooker).
• The appliance must only be used on a flat, stable, heat-resistant worksurface, away from water splashes. Do not turn the appliance over.
• Do not remove the seal lid until the blade has come to a complete stop.
• Unplug the appliance:

- before assembly and disassembly,

- if it fails during operation,

- before cleaning or maintenance, - after use.

• Never unplug the appliance by pulling on the power cord.
• Only use an extension after having checked that it is perfect working order.
• Household appliances must not be used:

- if dropped,

- if the blade is damaged or incomplete.

• Always unplug the appliance if you are to leave it unattended and before fitting the blade (E or H*). Never leave your appliance unattended whilst in operation.
• If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or any person with similar qualifications, in order to avoid all danger.
• Store the power cord out of the reach of children.
• The power cord must not be placed near or come into contact with the hot parts of the appliance, sources of heat or sharp corners.
• Do not immerse the appliance, power cord or plug in water or any other liquid.
• This product has been designed for domestic use only. In the event of any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• For your own safety, use only Moulinex accessories and spare parts designed for your appliance.

- Before using for the first time, wash the accessories (C, D*, E, F & H*) in soapy water. Rinse and dry carefully. Warning: the blades are very sharp, handle cutting accessories (E & H*) with caution when using or cleaning your appliance.

Chopping and Blending (blade E)

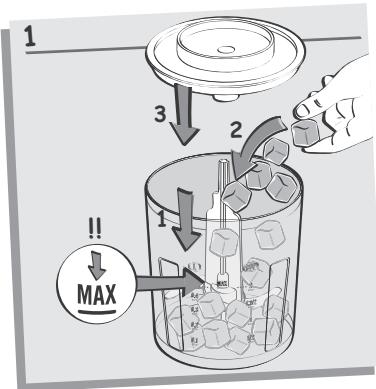

- Place the blade (E) on the bowl spindle (G) (fig. 1). Pour the ingredients without exceeding the maximum level. Put the seal lid on (C) (fig. 1).

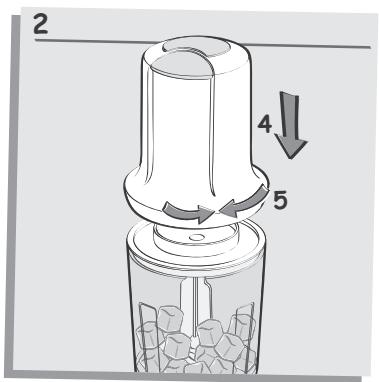

• Place the motor unit (B) on the top by turning slightly to correctly position it on the bowl (F) (fig. 2).
• Plug in the appliance and press the On/Off button (A), while holding onto the motor unit (A). You may select either a low speed (A1) or a higher speed (A2 Turbo).
• At the end of preparation, release the On/Off button (A1 or A2 Turbo), unplug the appliance and wait until the blade has come to a complete stop (E).
• Remove the motor unit (B), seal lid (C) and blade (E) to empty the mixture.

Recommendations for use :

Ingredients	Max. quantity	Recommendation	Max. time	Starting up recommended
Parsley	30 g	Remove stems	10 s	A1 ou A2
Mint	30 g	Remove stems	By pulsing	A1 ou A2
Onions, shallots	200 g	Cutting into pieces	By pulsing	A1
Garlic	150 g	-	5 s	A1
Continental toast	20 g	Quartering	15 s	A1 or A2
Almonds, nuts, hazelnuts	100 g	Remove shells	15 s	A2
Swiss cheese	100 g	Dicing	15 s	A2
Boiled egg	3	Halving	10 s	A2
Boiled ham	200 g	Cutting into pieces	10 s	A2
Beef steak	200 g	Remove bones and cartilage	10 s	A2
Light pastry or soup	0,5 L	-	30 s	A1 or A2
Prunes, dried apricots	130 g	Remove stones	10 s	A2
Stewed fruit	300 g	-	15 s	A1

Useful tips for best results:

Pulsing produces better results. Remove any food stuck to the sides of the bowl (ham, onions etc.) using the spatula. Spread around the bowl and pulse again 2 or three times.

The bowl measuring scale takes into account volumes measured with the blade in place, and is provided for information purposes only.

Mouloukhia/Parsley blade H (\* according to model)

• Place the blade (H) on the bowl spindle (G) (fig. 1), add the mouloukhia or parsley leaves without exceeding the maximum level and put the seal lid on (C) (fig. 1).
• Follow the instructions given for the chopper/blender blade (E) up to switching the appliance on.

Milkshake accessory D (\* according to model)

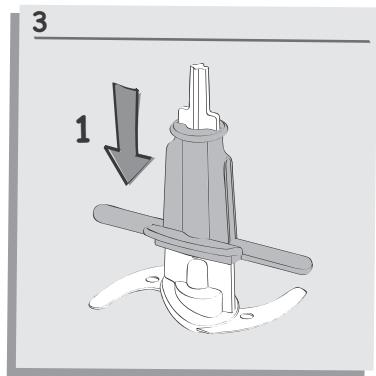

• Take the milkshake accessory (D) and lock it onto the blade spindle (E) (fig. 3).
- Place the blade (E) and milkshake accessory (D) on the bowl spindle (G) (fig. 4), pour in the ingredients without exceeding the maximum level and put on the seal lid (C) (fig. 4).
- Place the motor unit (B) on the top by turning slightly to correctly position it on the bowl (F) (fig. 5).

• Plug in the appliance and press the On/Off button (A), while holding onto the motor unit (A). You may select either a low speed (A1) or a higher speed (A2 Turbo).
• At the end of preparation, release the On/Off button (A1 or A2 Turbo), unplug the appliance and wait until the blade has come to a complete stop (D + E).
• Remove the motor unit (B), seal lid (C) and blade (D + E) to empty the mixture.
• Remember to remove the milkshake accessory (D) to chop and blend.

Warning:

Your appliance has a dual safety system: the appliance will not operate if the seal lid is not in place (C). Check that the bowl (F) and the motor unit (B) are placed correctly, otherwise your appliance will not operate.

Important:

For liquid preparations, do not exceed the maximum level (0.5L) indicated on the bowl (F).

RECIPES

Chopping blade (E)

Mayonnaise:

2 egg yolks - 1 tbsp mustard - 2 tbsps water - 1 tbsp vinegar - 200 ml oil - salt, pepper.

Speed Turbo (A2)

It is important for all the ingredients to be at the same temperature before starting preparation.

Add all ingredients and 2 tbsps oil only to the bowl (F) fitted with the blade (E or H ^* ). Pre-mix by pressing for 15 seconds. Add the oil in three phases while pressing for 10 seconds each time.

Recipe idea: Mayonnaise without mustard.

Follow the steps above by replacing the mustard and the water with 2 tbsps lemon juice.

Pancake mix (makes up to 0.5 L):

Add 100 g plain flour, 2 eggs, 1/4 litre of milk, 1 tbsp oil and a pinch of salt to the bowl (F) fitted with the chopping blade (E or H ^* ).

Blend for approximately 15 to 20 seconds to obtain a smooth paste.

Waffle mix

(makes up to 0.5 L for 15 waffles):

Mix 5 g baker's yeast with a little warm water. Pour into the bowl (F) fitted with the chopping blade (E or H ^* ): 130 g plain flour, 2 eggs, 200 ml milk, 60 g softened butter and 1 tbsp vanilla sugar. Mix for approximately 15 to 20 seconds to obtain a smooth paste. Leave to rest 1 hour.

Basil pesto (serves 4):

20 g pine nuts

2 garlic cloves

1 sprig of basil (50 g)

1 tbsp hazelnut powder

75 g olive oil

40 g parmesan (ground), Salt.

Grill the pine nuts in a pan without oil and set aside. Finely chop the basil leaves on slow speed (A1), while pulsing. Remove any food stuck on the sides of the bowl and mix again. Add the pine nuts, hazelnut powder, the garlic cut in half, salt and oil into the chopper. Chop for 20 seconds on Turbo (A2) speed. Finally, add the ground parmesan and mix for a further 10 seconds on Turbo (A2) speed to obtain a fine texture.

Cacik (serves 4):

1 cucumber
2 garlic cloves
Fresh mint
100 ml olive oil
1 yoghurt
Salt and pepper.

Cut the cucumber in two lengthways. Remove the seeds and dice the cucumber. Salt the cucumber cubes and leave to drain for 15 minutes. Chop the garlic and mint. Add the yoghurt and olive oil. Mix to obtain a thick texture. Season with salt and pepper. In a bowl, add the pieces of cucumber to the mixture. Refrigerate and serve cold.

Hummus bi tahini (chick pea puree with sesame, serves 4)

100 g dried chick peas
1 small tsp salt
50 ml tahini
50 ml lemon juice
50ml chick pea cooking liquid
1 garlic clove.

To decorate the plate: Trickle of olive oil, fresh parsley, paprika or Cayenne pepper Soak the chick peas in water in a cool place for around 12 hours. Rinse then place in a pan and cover with water. Bring to the boil and ook on a low heat for 1 hour. Add the salt and continue to cook for approximately 30 minutes, until tender. Drain. Set aside a small amount of cooking liquid. Remove the skin from the chick peas. Mix the chick peas with the other ingredients to obtain a thick cream. Adjust seasoning and consistency where required. Chop the parsley for the decoration.

Fine herb butter:

100 g butter 100 g chives, parsley, chervil, tarragon, watercress in equal portions.

Speed Turbo (A2):

Chop the herbs. Add the soft butter cut into cubes. Blend to obtain a smooth mixture.

Variants:

Anchovy butter: 100 g butter, 100 g anchovy fillets in oil, 1 tbsp lemon juice. Roquefort butter or butter with other blue cheeses: 100 g roquefort and 100 g butter.

See recipe booklet provided.

Milkshake accessory (D\*)

Whipped cream:

In the bowl (F) fitted with the blade (E) and the milkshake accessory (D), pour 20 cl UHT single cream (30 % fat minimum), 20 g caster sugar or 20 g icing sugar and 1 sachet vanilla sugar. Mix continuously for approximately 30 seconds.

Tips for excellent whipped cream with firm tips

• Use cold single cream straight out of the fridge.
• Do not mix for more than 40 seconds to avoid it turning into butter.

Milkshake with ice cream:

100 g ice cream (flavours: vanilla, strawberry, pistachio etc.), 200 ml milk. Mix the ice cream while pulsing then add the milk and mix again for 20 seconds.

Banana milkshake:

200 milk, 100 g bananas, 4 small ice cubes. Mix the ice with the banana then add the milk and mix again for 40 seconds. Variants: you may also use apples, pears, strawberries or raspberries etc.

Iced coffee:

3 tsps instant coffee, 5 tsps caster sugar, 4 small ice cubes, 150 ml milk.

Mix the ice by pulsing, then add the instant coffee, sugar and milk. Mix again for 30 seconds.

Cordial milkshake:

50 ml strawberry cordial, 150 ml milk, 4 small ice cubes.

Mix the ice by pulsing, then add the milk and cordial. Mix again for 20 seconds.

Variants: you may also use mint, grenadine, passion fruit cordial etc.

CLEANING

• Always unplug the appliance before cleaning the motor unit (B).
- Never immerse or rinse the motor unit (B), in water. Clean the motor unit with a damp cloth and dry carefully.
- Handle the blades (E or H*) with care as they are very sharp.
- Do not leave the blade (E or H*) to soak with the dishes in the sink.
- For easy cleaning of the bowl (F) after use, pour 1 glass of water and a few drops of washing up liquid into the bowl, switch the mixer on for 5 to 10 seconds, with the blade in place (E or H*) then rinse under the tap.
- Should any of the plastic parts become stained from food such as carrots, rub

with a cloth impregnated with cooking oil; then clean as usual.

- The bowl (F), seal lid (C) and other accessories (D*, E and H*) are dishwasher safe and can be washed on the top shelf on the "ECONOMY" or "QUICK WASH" programme.

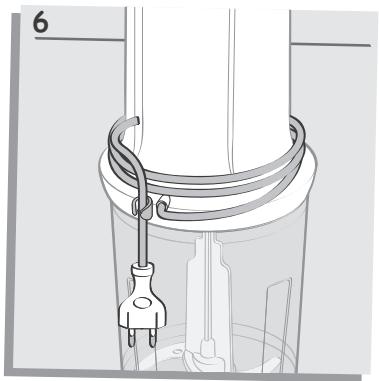

Power cord storage: Wrap the cord around the appliance and place it under the notch to block it (fig. 6).

Blade storage (E or H ^* ): Store the blades (E & H) in the appropriate place in the storage base (I). Put the lid back on (J).

END OF LIFE ELECTRICAL AND ELECTRONIC PRODUCTS

Your appliance is expected to last for many years.

However, when the time comes to replace it, do not throw it in the bin or in a dump, but take it to the recycling centre in your town (or to a waste reception centre where applicable).

Environmental protection first!

Your appliance contains a lot of recoverable or recyclable material

Leave it at a local civic waste collection point so that it can be recycled.

If you have any queries please contact our customer relations team first for expert help and advice:

HELPLINE:

0845 602 1454 - UK

[phone] - ROI

Or consult our website - www.moulinex.co.uk
