USER MANUAL EASY MAX ABM11A MOULINEX

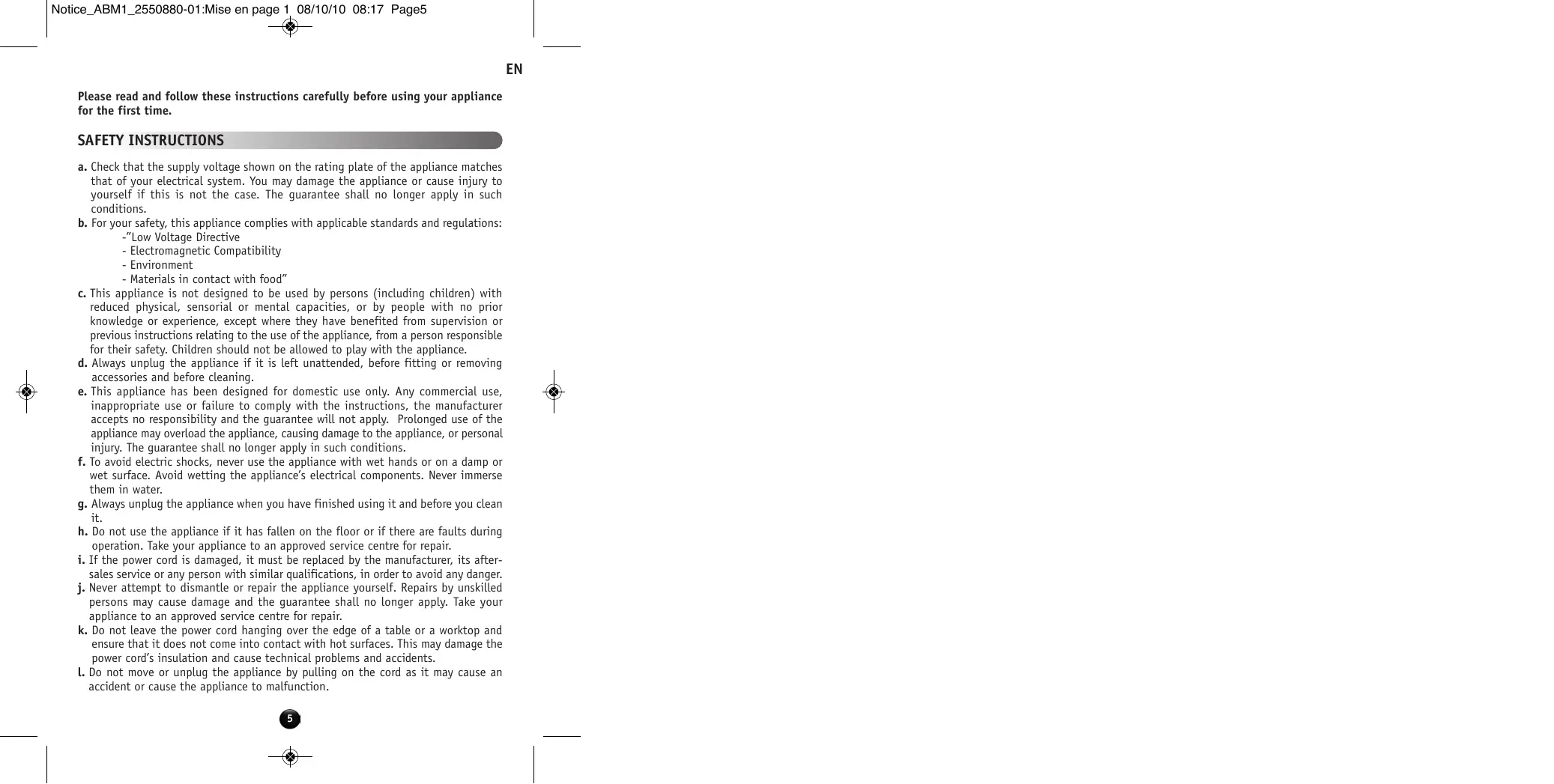

Please read and follow these instructions carefully before using your appliance for the first time. SAFETY INSTRUCTIONS a. Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. You may damage the appliance or cause injury to yourself if this is not the case. The guarantee shall no longer apply in such conditions. b. For your safety, this appliance complies with applicable standards and regulations: -”Low Voltage Directive - Electromagnetic Compatibility - Environment - Materials in contact with food” c. This appliance is not designed to be used by persons (including children) with reduced physical, sensorial or mental capacities, or by people with no prior knowledge or experience, except where they have benefited from supervision or previous instructions relating to the use of the appliance, from a person responsible for their safety. Children should not be allowed to play with the appliance. d. Always unplug the appliance if it is left unattended, before fitting or removing accessories and before cleaning. e. This appliance has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. Prolonged use of the appliance may overload the appliance, causing damage to the appliance, or personal injury. The guarantee shall no longer apply in such conditions. f. To avoid electric shocks, never use the appliance with wet hands or on a damp or wet surface. Avoid wetting the appliance’s electrical components. Never immerse them in water. g. Always unplug the appliance when you have finished using it and before you clean it. h. Do not use the appliance if it has fallen on the floor or if there are faults during operation. Take your appliance to an approved service centre for repair. i. If the power cord is damaged, it must be replaced by the manufacturer, its aftersales service or any person with similar qualifications, in order to avoid any danger. j. Never attempt to dismantle or repair the appliance yourself. Repairs by unskilled persons may cause damage and the guarantee shall no longer apply. Take your appliance to an approved service centre for repair. k. Do not leave the power cord hanging over the edge of a table or a worktop and ensure that it does not come into contact with hot surfaces. This may damage the power cord’s insulation and cause technical problems and accidents. l. Do not move or unplug the appliance by pulling on the cord as it may cause an accident or cause the appliance to malfunction.

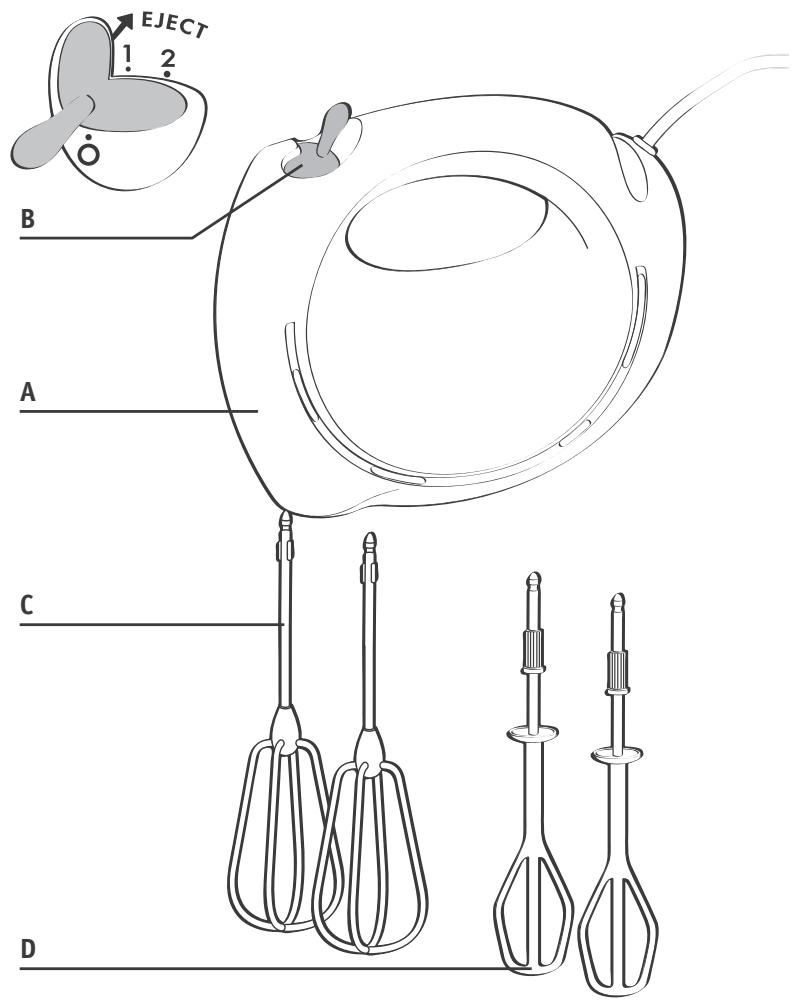

m.The use of non-original elements and accessories may lead to personal injury, damage to the appliance or faulty operation, and the guarantee will no longer apply. n. To avoid electric shocks, ensure that your fingers do not come into contact with the plug pins when you plug in or unplug the appliance. o. Do not leave the appliance switched on or plugged in while unattended, even for a few moments, especially where children are present. p. Do not plug any other appliances into the same plug socket using adapters. Electric overload is likely to damage the appliance or cause an accident. Only use an extension after having checked that it is perfect working order. DESCRIPTION A - Body of the appliance B - Speed selector and eject button C - 1 set of metal whisks D - 1 set of plastic whisks

BEFORE FIRST USE

- Before using your appliance for the first time, clean the accessories in soapy water. - Rinse and dry them carefully. - Use your hand mixer to make light preparations: mayonnaise, whisked egg whites, sauces, cake dough, pancake batter, etc. - Do not use it for more than 1 minute for heavier preparations. - The plastic whisks (D) are especially recommended for preparations in non-stick containers and for a more silent operation.

BEFORE USING FOR THE FIRST TIME

1. Check that the speed selector (B) is set at “0”.

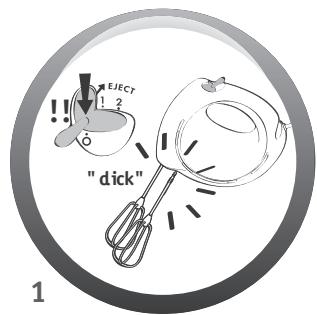

2. Insert the whisks (C or D) into the holes and lock. The whisks must be inserted as

shown in Figure 1. Both the whisks must be of the same length. The “click” indicates that the accessories are correctly in place.

3. Use identical pairs of accessories.

4. A deep bowl should be used for mixing.

5. Turn on the appliance selecting the speed using the control (B).

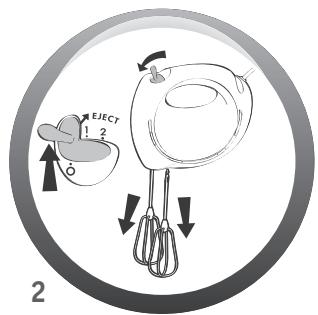

6. With the appliance switched off on position 0, push the eject button (B) forwards

to eject the whisks (Fig. 2). PRACTICAL TIPS Use speed 1 to start a preparation and to avoid splashing. To continue, use speed 2. RECIPES Creamy French dressing Use the metal whisks for this recipe. 250 ml rapeseed oil- 250 ml olive oil- 3 large tbsp mild mustard 4 tbsp vinegar balsamic vinegar- 6 tbsp vinegar raspberry vinegar- Salt and pepper Put all ingredients in a bowl.- Mix at the maximum speed for 1minute. Whisked Egg whites Use the metal whisks for this recipe. 6 egg whites 1 pinch of salt Put the ingredients in a clean, dry bowl. Mix at the maximum speed until stiff peaks form, but for not more than 3 minutes. Pound cake Use the metal whisks for this recipe. 3 large eggs (or about 150 g weight) 150 g of plain flour- 150 g of caster sugar- 150 g of melted butter- 1 sachet of vanilla sugar (optional)- 1 tsp of baking powder- 2 pinches of salt Melt the butter (in a bowl for 30 sec in the microwave oven on low power). Put all ingredients in a bowl. Mix at the maximum speed until you get a well blended and smooth mixture, but not for more than 5 minutes. CLEANING - Unplug the appliance. - Clean the whisks immediately after use to prevent any remaining egg or oil mixture sticking or drying. - You can wash the whisks (C) and (D) in the dishwasher. - Clean the body of the appliance (A) using a damp sponge only and dry carefully. - Never immerse the body of the appliance in water (Fig. 3). Never wash it in the dishwasher.

END-OF-LIFE ELECTRIC OR ELECTRONIC PRODUCTS

Think of the environment! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point or at an approved service centre. If you have any further problems or queries please contact our Customer Relations Team first for expert help and advice: Helpline: 0845 602 1454 – UK (01) 577 4003 – ROI. Or consult our web site: www.moulinex.co.uk
