Product Type	Oil-filled radiator heater
Brand	Nevir
Model	NVR-9500RA7
Power Source	Single-phase AC
Voltage	220-240 V
Power Consumption (Max)	2500 W
Heating Type	Oil-filled radiator with radiant fins
Number of Power Settings	3 (Low, Medium, High)
Thermostat	Adjustable thermostat with auto shut-off
Overheat Protection	Yes
Assembly Required	Yes (castor mounting)
Castors	Yes, for mobility
Cord Storage	Yes, wrap around bobbin
Handle	Yes, for carrying
Minimum Room Size	5 m²
Usage Restrictions	Not for bathrooms, showers, or swimming pools
Maintenance	Wipe with soft damp cloth; do not immerse
Disposal	WEEE compliant - do not dispose with household waste

Frequently Asked Questions - NVR-9500RA7 NEVIR

How do I assemble the heater?

Place the heater upside down on a scratch-free surface. Attach the U-shaped bolt to the flange between the first and second fins, then mount the castor plate and secure with wing nuts. Do not overtighten. Repeat for the rear castors between the last two fins.

How do I set the desired temperature?

Turn the thermostat knob clockwise to MAX. Select power level with switches: I for low, II for medium, both for high. When room reaches desired temperature, slowly turn thermostat knob counterclockwise until the pilot light goes off. The thermostat will maintain the set temperature automatically.

Can I use this heater in a bathroom?

No, do not use this heater in the immediate surroundings of a bath, shower, or swimming pool. It is not designed for wet or humid areas.

What should I do if the heater does not turn on?

Check that the plug is firmly inserted into a grounded socket. Ensure the power switches are set to ON and the thermostat is not set too low. If still not working, check for tripped circuit breaker. If problems persist, contact a qualified service agent.

How do I clean the heater?

Always unplug and allow to cool completely. Wipe the exterior with a soft, damp (not wet) cloth. Do not use detergents, abrasives, or immerse in water. Never allow moisture inside the heater.

Is it safe to leave the heater unattended?

Never leave the heater unattended while in use. Always turn it OFF and unplug when not in use. Keep children, pets, and flammable materials at least 1 meter away.

What does the thermostat do?

The thermostat automatically controls the room temperature. When the room cools below the set point, the heater switches on again. This maintains a constant temperature and saves energy.

How should I store the heater when not in use?

Allow the heater to cool completely. Wind the cord around the cord storage bobbin. Store in a clean, dry place. Do not place heavy objects on top.

Can I use an extension cord?

Avoid using an extension cord as it may overheat and cause a fire risk. Plug the heater directly into a wall outlet. If absolutely necessary, use a heavy-duty cord rated for the heater's power.

What should I do if the supply cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazards. Do not attempt to repair it yourself.

USER MANUAL NVR-9500RA7 NEVIR

Three silver industrial air purifiers with cooling fans and wheels, displayed side by side (no visible text or labels)

When using an electrical appliance, basic safety precautions should always be observed, including the following:

WARNING: To reduce the risk of fire, electrical shock, or injury to person:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. The product is for household use only.
4. Connect the appliance to single phase AC supply of the voltage specified on the rating plate.
5. In order to avoid overheating, do not cover the heater.
6. Never leave the heater unattended while it is in use. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.
7. Extreme caution is necessary when any heater is used by or near children, invalids or elderly person and whenever the heater is left operating and unattended.

8. The heater must not be located immediately below an electrical socket-outlet.

9. Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.

10. Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.
11. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.
12. Avoid the use of an extension cord as this may overheat and cause a risk of fire.
13. Use the heater in a well-ventilated area. Do not insert or allow objects to enter any ventilation or exhaust opening. To prevent a possible fire, do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. Use the heater on flat, dry surfaces only.
14. Do not place this heater near flammable materials, surfaces or substances, as there may be a risk of fire. Keep the above flammable materials, surfaces or substances at least 1m from the front of the product and keep them away from the sides and rear.
15. Do not use the heater in any areas where petrol, paint or other flammable liquids are stored e.g. Garages or workshops as a hot, arcing or sparking parts inside the heater.

16. Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into bathtub or other water container.

17. This heater is hot when in use. To avoid burns and personal injury, do not let bare skin touch hot surfaces. If provided, use handles when moving the product.

18. Be sure that no other appliances are in use on the same electrical circuit as your product as an overload can occur.
19. This heater is filled with a precise quantity of special oil.
20. Repair requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage.
21. Regulations concerning the disposal of oil when scrapping the appliance have to be followed.
22. The heater should not be used in a room, of which the floor area is less than 5 M^2 .
23. The cord shouldn't be placed nearby the hot surface of the appliance.

SPECIFICATIONS

1. Power switch

2. Thermostat knob

3. Handle

4. Radiant fins

5. Castor

6. Cord storage

Technical data:

Model	I	II	III
YL-B07-7	600W	900W	1500W
YL-B07-9	1000W	1000W	2000W
YL-B07-11	1000W	1500W	2500W

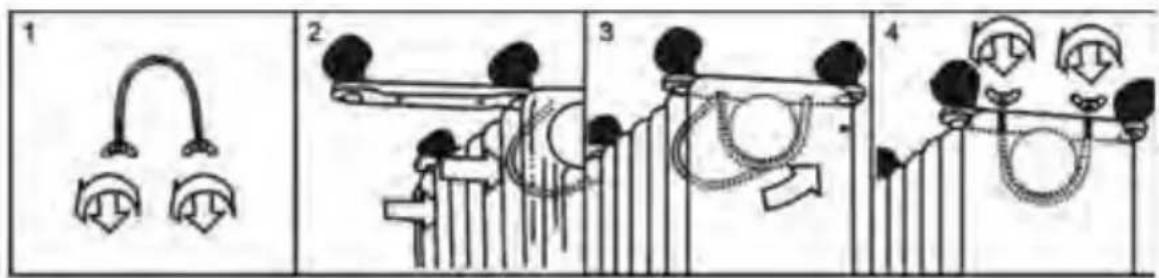

ASSEMBLY INSTRUCTIONS

The heater is packaged with the feet unattached. You must attach them before operating the heater.

WARNING: Do not operate without feet attached. Do operate the heater only in upright position (feet on the bottom, controls on the top), any other position could create a hazardous situation.

1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.

2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-facing flange between first and second fins (near the front cover).

3. To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the castor mounting plate.

4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.

Note: do not over tighten, which may cause the damage of radiator flange.

5、Screw off spherical nut from the castor, align the shaft to the hole of the castor mounting plate, insert in, and screw on the spherical nut.

6、Repeat 2, 3, 4 and 5 on the rear of radiator for mounting of the rear castors.

Note: the rear castors must be mounted between the end two fins.

Three-panel diagram showing a mechanical device with rotating wheels and a curved component, labeled 2, 3, and 4 (no text or symbols present)

INSTRUCTIONS FOR USE

1. Before using the heater, make sure that it is on a flat and stable surface, damage may occur if it is placed on an incline or decline.

2. Set all the controls to OFF position and insert the plug into a socket-outlet with well grounded. Be sure that plug fits firmly.

3. Rotate the thermostat knob clockwise to MAX position and switch the heater on as follow: the switch I for low heat, the switch II for medium heat and both switches on for high heat.

4. When your room reaches the desired temperature, now slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch it self on automatically until the set temperature has been reached again. In this way the room temperature remains constant with the most economical use of electricity.

5. If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or counter clockwise to lower it.

6. This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.

7. To completely shut the heater off, turn all the controls to OFF, and remove plug from the socket-outlet.

MAINTENANCE

1. Always remove the plug from the socket-outlet and allow the radiator to cool down before clean it.
2. Wipe radiator with a soft damp (not wet) cloth.

WARNING:

Do not immerse the heater in water.

Do not use any cleaning chemicals such as detergents and abrasives.

Do not allow the interior to get wet as this could create a hazard.

1. To store away the heater, wind the cable round bobbin and store the heater in a clean dry place.
2. In case of malfunction or doubt, do not try to repair the radiator yourself, it may result in a fire hazard or electric shock.

Correct Disposal of this product

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

In order to fulfill ruling UNE EN-60335, we indicate that if the flexible wire is damaged, it can only be substituted by a technical service recognized by NEVIR, S.A., as per special tooling is required
