Product Type	Fan Heater
Brand	Nevir
Model	NVR-9504 FH
Heating Power	2000 W
Heating Settings	2 power levels (1000 W / 2000 W) + fan only
Thermostat	Adjustable thermostat
Type of Control	Rotary knobs
Dimensions (W x H x D)	22 x 26 x 12 cm
Weight	1.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Oscillation	Yes, 70°
Noise Level	≤ 45 dB(A)
Material	ABS plastic
Color	White / Black
Cleaning	Wipe with a soft dry cloth; do not use abrasives
Maintenance	Check and clean air intake grille regularly
Filter	Washable dust filter
Spare Parts Availability	Contact authorized service center
Repairability Index	Score 7.0 / 10 (based on user rating)
Certifications	CE, RoHS

Frequently Asked Questions - NVR-9504 FH NEVIR

How do I clean the Nevir NVR-9504 FH heater?

First, unplug the heater and let it cool completely. Wipe the exterior with a soft, dry cloth. To clean the filter, remove the grille and rinse the filter with water; let it dry fully before reinstalling.

What does the tip-over switch do?

The tip-over switch automatically turns off the heater if it is knocked over, preventing fire hazards. Once the heater is upright again, it will reset automatically.

How do I set the desired temperature?

Turn the thermostat knob clockwise to increase the target temperature. The heater will cycle on and off to maintain that temperature. The fan will continue to run until the knob is turned to minimum.

Why is the heater not producing heat?

Check that the power cord is plugged in and the main switch is on. Ensure the thermostat is set higher than room temperature. If the overheat protection has triggered, unplug the heater, wait 10 minutes, and plug it back in.

Can I use the heater in a bathroom?

No, this heater is not IP-rated for splash water. It should be used in dry indoor areas only, away from water sources.

Does the heater oscillate?

Yes, the NVR-9504 FH has an oscillation function that distributes heat over a wider area. To activate, press the oscillation button or switch.

How many power levels are there?

There are two heat settings: Low (1000 W) and High (2000 W), plus a fan-only mode for summer use.

What is the noise level of this heater?

The heater operates at a sound level of approximately 45 dB(A), similar to a quiet conversation or a refrigerator.

Where can I find spare parts or service?

Contact Nevir's authorized service centers or check the manufacturer's website for spare parts. Use only original parts.

Is the heater safe to leave unattended?

While the heater has safety features like overheat protection and tip-over switch, it is not recommended to leave it unattended. Always follow the manual's safety instructions.

USER MANUAL NVR-9504 FH NEVIR

White portable heater with black ventilation grille and control knobs (no visible text or symbols)

White electric heating fan with visible heat sink and ventilation grille (no text or symbols)

COMO OPERAR

Thanks for purchasing our A series of Fan Heater. Each unit has been manufactured to ensure safely and reliability before first use. Read the instructions carefully and keep them for further reference.

IMPORTANT SAFEGUARDS

When using any electrical appliance basic precautions should be followed. Please read the following instructions as they are for your benefit and safety:

1. Make sure the power supply used corresponds to the rating label.

2. Never obstruct or block any openings of the heater.

3. Use the heater only on a flat surface.

4. Always disconnect the appliance from the main power supply when not in use and when cleaning.

5. Do not leave the heater "ON" unattended.

6. Never cover the heater as this may lead to risk of fire.

7. Keep the appliance a distance of at least 90 cm from any combustible material such as furniture, curtains, bedding, clothes or papers.

8. Do not use this heater in the immediate surrounding of a bath, a shower or a swimming pool.

9. Do not immerse the heater in water or allow for water to come into contact with the plug or control device.

10. Keep this heater clean. Do not allow objects to enter the ventilation opening as this may cause electric shock, fire of damage to the heater.

11. Close supervision is required when any appliance is used near or by children.

12. Never allow the cord to touch wet or hot surfaces, become twisted or be within the reach of children.

13. Do not use in outdoors.

14. Do not place on or near a hot gas electric burner.

15. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person must replace it in order to avoid a hazard.

16. Do not use the appliance for other than its intended use as described in this instruction book.

17. Do not place the heater immediately below a socket outlet.

18. This appliance is intended for household use only.

19. Do not leave the heater on overnight.

20. While cleaning, make sure not to use a wet cloth or use water on any part of the unit, as this may cause a short circuit or electrical shock.

21. Do not use this unit in any area where water is present.

22. Make sure the power cord is placed at the back, away from the front panel of the heater.

23. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

24. Children should be supervised to ensure that they do not play with the appliance.

25. Caution: Do not cover anything on your heater when in use.

26. The fan-heater must not be placed near a socket, and the following hint: This fan-heater must not be used near

a bath, shower or swimming-pool

1. This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

NOTE: If the unit overheats, this heater is fitted with a safety feature for overheating device which will switch the device off automatically (if the air vent is blocked or if the fan function is not blowing air) if this should happen, all you need to do is this:

Disconnect the plug from the electrical socket for a few minutes. Ensure the heater is not covered and nothing is obstructing any of the vents. Plug the heater back into the electrical socket and switch the heater back ON.

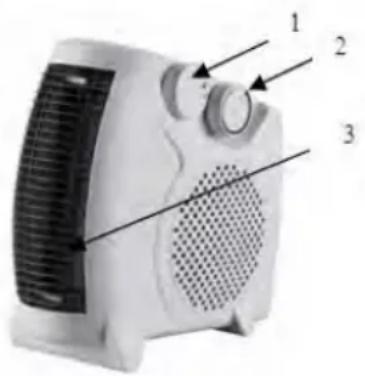

KEY/ PARTS LOCATION

1. Fan fuction regulator
2. Heater function regulator
3. Nether air grid

HOW TO OPERATE

1. Remove the unit from the box and take off any protective wrapping.

2. Place the heater on a smooth level surface and at least 30cm away from any obstacles.

3. Plug your fan heater into the power supply. Make sure your power supply corresponds to the power indicated on the rating label.

4. Heat temperature setting can be regulated using the switch located on the left bottom part of the heater. The other switch located in the right bottom part of the heater is used to regulate de fan speed. To activate this function do the following:

* Fan-for a lower power air circulator; Turn the dial on the right clockwise, once for the fan start functioning.

* Turn it twice for the Medium fan speed.

* Turn the switch once more for High speed setting.

OVERHEATING SAFETY DEVICE

Your heater is fitted with a safety device that switches off the heater in the event of overheating.

If the heater stops working, turn the heater off and inspect blockage of inlet or outlet. Wait at least 5 minutes so the protection system resets before attempting to restart the heater.

If the heater fails to operate, the safety device switches the heater off again, return the heater to your nearest service center for examination or repair.

CLEANING YOUR FAN HEATER

1. Always disconnect the appliance from the main supply before cleaning.

2. Clean the outside of the heater by wiping with damp cloth and guff with a dry cloth.

3. Do not use Benzine or any other detergents/solvents or chemical agents to clean the heater.

SERVICE

Hints before returning the appliance:

Is your household socket working properly?

Are all required switches in the "ON" position?

Ensure that the plug is firmly in the socket and switched on.

Ensure the heater if standing on an even surface.

NOTE: If the power supply cord or plug is damaged, a technical service center or an official agent must replace it.

If service becomes necessary with the warranty period, the appliance should be returned to an approved service center. Servicing outside the warranty period is still available, however it will be chargeable.

Correct Disposal of this product

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

In order to fulfill ruling UNE EN-60335, we indicate that if the flexible wire is damaged, it can only be substituted by a technical service recognized by NEVIR, S.A., as per special tooling is required
