Product Type	Range Hood
Brand	Jocel
Model	JCEAWSP55D
Width	55 cm
Depth	Approx. 50 cm
Height	Approx. 30-40 cm
Weight	Approx. 12 kg
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Max Airflow	Approx. 600 m³/h
Noise Level	≤ 65 dB(A)
Number of Speeds	3
Control Type	Electronic push buttons
Lighting	LED, 2 x 1.5 W
Filter Type	Aluminum grease filter, washable
Carbon Filter	Optional (for recirculation mode)
Exhaust Diameter	150 mm
Installation Type	Wall-mounted or under cabinet
Venting Mode	Ducted or recirculation (with charcoal filter)
Material	Stainless steel
Energy Class	A+
Annual Energy Consumption	Approx. 50 kWh/year
Maintenance	Clean grease filter monthly; replace charcoal filter every 3-6 months
Safety Features	Auto-off timer, thermal overload protection
Included Accessories	Grease filter, installation kit, user manual

Frequently Asked Questions - JCEAWSP55D Jocel

How do I install the Jocel JCEAWSP55D range hood?

Installation must be done by a qualified professional. Ensure the hood is mounted at least 65 cm above the cooking surface. Connect the duct to a 150 mm exhaust outlet. For recirculation mode, install a charcoal filter.

How do I clean the grease filter?

Remove the aluminum grease filter and wash it with warm soapy water or in the dishwasher at low temperature. Dry it thoroughly before reinstalling. Clean at least once a month.

How do I replace the charcoal filter?

Charcoal filters are used in recirculation mode. They cannot be washed and must be replaced every 3-6 months depending on usage. Slide out the old filter and insert a new one.

Why is the hood not working?

Check if the power cord is plugged in and the circuit breaker is on. Ensure the motor has not overheated (wait 15 minutes to reset). If the problem persists, contact customer support.

How do I change the LED lights?

The LED lights are built-in and should be replaced by a qualified technician. Do not attempt to replace them yourself as it may damage the unit.

What is the maximum airflow?

The maximum airflow is approximately 600 m³/h on the highest speed setting. Actual performance depends on duct length and installation.

Can I use the hood without ducting?

Yes, you can use it in recirculation mode by installing charcoal filters. The air is filtered and recirculated back into the kitchen.

How do I reset the filter indicator?

After cleaning or replacing filters, press and hold the speed button for 3-5 seconds until the indicator light turns off. Refer to the manual for specific steps.

What safety features does the hood have?

The hood has an auto-off timer and thermal overload protection. If the motor overheats, it will automatically shut off and restart after cooling.

Where can I find spare parts?

Spare parts such as grease filters, charcoal filters, and LED modules can be purchased from authorized Jocel dealers or online. Use the user manual part numbers for ordering.

USER MANUAL JCEAWSP55D Jocel

Exterior view of a modern stainless steel industrial chimney (no signage or text visible on the structure itself)

JCEAWSP55D

Read the Instruction Manual carefully.

1. GERAL

Line drawing of a kitchen range hood with labeled components (no text or symbols)

Imagem 8

Imagem 9

Imagem 10

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Imagen 7

7. MANTENIMIENTO

Line drawing of a kitchen range hood with labeled components (no text or symbols)

Imagen 8

Imagen 9

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.

The appliance has been designed as a exhausting version (external exhaust) or as a filter version (internal air recycle) cooker hood.

2. SAFETY PRECAUTION

Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.

Provide adequate ventilation in the environment for a safe operation of the cooker hood.

Follow the local laws applicable for external air evacuation.

4. WARNING

In certain circumstances electrical appliances may be a danger hazard.

- Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Do not touch the light bulbs when/after appliance use.

- Do not check the status of the filters while the cooker hood is operating

- Flame cooking is prohibited underneath the cooker hood

- Avoid free flame, as it is damaging for the filters and fire hazard

- Constantly check food frying to avoid that the overheated oil may become a fire hazard

- Your cooker hood is for domestic use only, not suitable for barbecue, roast shop and other commercial use.

- Any installation work must be carried out by a qualified electrician or competent person.

- The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order.

- Before cleaning, always ensure that you have switched your cooker hood off.

- Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.

- No fire for drying your cooker hood.

• If there is any fault with your cooker hood, please call the Technical Service for servicing.

- If the power cord is damaged, it must be replaced by the manufacturer or a qualified service engineer in order to avoid a hazard.

- Please keep the room draughty when your cooker hood and gas hob are working.

- Do not exhaust the gas from cooker hood through the same heated flue which is for the gas from gas hob and other kitchen appliances.

- Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home.

- In order to get the most out of your cooker hood, please read the instruction manual before installing & using, and keep it in a safe place.

- Contact your local government for information regarding the collection systems available

• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
  • Children should be supervised to ensure that they do not play with the appliance.
• Regulations concerning the discharge of air have to be fulfilled.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room.

4. INSTALLATION INSTRUCTIONS

1. The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Pic 1.
2. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney.
3. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely as well as fixing the extensible pipe. Afterwards, install the extensible pipe and chimney on the cooker hood. See Pic 3.
4. Put the cooker hood on the hook. See Pic 4.
5. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw. After adjusting the position, fix the body with safety screw. See Pic 5.

Note: The two safety vents are positioned on the back casing, with diameter of 6mm

Pic.1

Note:

● Any installation work must be carried out by a qualified electrician or competent person.
- Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, and hot wind tube.
- The angle of the bend of the ventilation pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.
● After the installation, make sure that the hood is placed an elevation of 3-5 degrees above the level — avoid collecting the grease at on end. See Pic. 6:

6. OPERATION

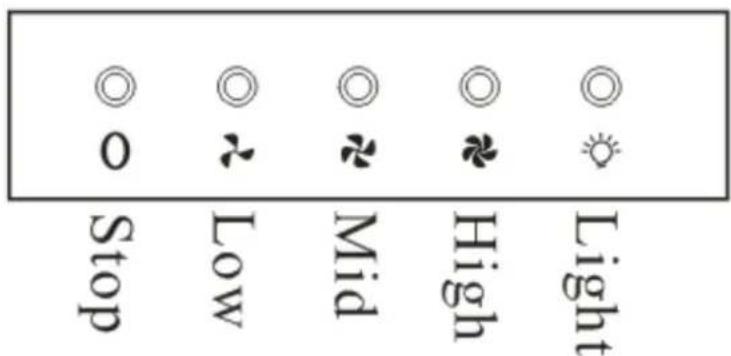

How to use the control panel(mechanical push button), see Pic. 7:

a. Press the button "Stop", the motor is stopped then.
b. Press the button "Low", the motor is running at low speed.
c. Press the button "Mid", the motor is running at medium speed.
d. Press the button "High", the motor is running at high speed.

e. Press the button "Light", both lights are switched on. Press the button again; the lights are switched off then.

Pic.7

7. MAINTENANCE

7.1 It is recommended to operate the appliance prior to cooking.
7.2 It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapors and odors.
7.3 The proper function of the cooker hood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter.
7.4 The anti-grease filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.
7.5 The cooker hood must regularly cleaned on both the inside and outside with hot water plus non corrosive detergent (AT LEAST ONCE A MONTH) To protect the main body from corrosion over a long period of time

Attention! Please do not use abrasive detergent or alcohol as it will damage the body.

Attention! Keep the motor and other spare parts free from water, as this will cause damage to the appliance.

Attention! Before cleaning the appliance please remember to cut off the power.

7.6 Changing and cleaning the anti-grease filters

-Removing the filters as the instruction in Pic. 8;

-You can clean the filter as below measure:

1. Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid damaging it.
2. It can be put into a dishwasher with detergent, set the temperature at around 60 degrees.

Note: Please do not use abrasive detergents for it will damage the hood;

Note: Make sure that the hood is shut off before cleaning;

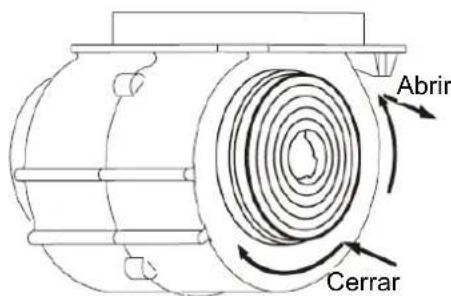

7.7 Installing the carbon filter (not supplied), see Pic. 9;

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. Activated carbon filter cannot be washed or recycled. The installation procedure of activated carbon filter is as below.

1. Remove the al filters see Pic.8
2. The carbon filters (pic.9) are located at either end of the motor. Turn the charcoal filters anti-clockwise until they are unscrewed.
3. Apply reverse procedure to install the charcoal filter

Note: When the activated carbon filter attached, the suction power will be lowered.

Line drawing of a kitchen range hood with ventilation grilles and numbered components (no text or symbols)

Pic8

Pic. 9

7.8 Changing the light bulb

1. Take the protection off and then take the broken light bulb off, See Pic. 10
2. Fix the new light bulb, and put the protection on.

Attention: Before changing the bulb, ensure that the appliance is not live

Pic 10

8. Trouble shooting

Symptom	Solution
The cooker hood does not start.	Check that the hood is connected to the electricity supply.Check that the fan speed control is set properly.
The cooker hood is not working Effectively.	The fan speed is not set high enough.The grease filter is dirty.The kitchen is not ventilated well enough.If the hood is set for recirculation, check that the carbon filters have not expired.If the hood is set for extraction, check that the ducting and outlets are not blocked.
The cooker hood has switched off during operation.	The safety cut-out device has been tripped.Turn off the hob and then wait for the device to reset.Note that if you have installed your cooker hood too low, this will happen.If it happens frequently, it will be damaged.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be dispose with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

We declare on our own responsibility that the machine indicated below

Product COOKER HOOD

Brand JOCEL

Model JCEAWS-P55D

Complies with the following European directives and standards implementation

Low Voltage

2006/95/CE

EN 60335-1:2002+A1:2004+A11:2004+

A2:2006+A12:2006+A13:2008+A14:2010

+A12:20011

EN 60335-2-31:2003+A1:2006+A2:2009

EN 62233:2008

Electromagnetic Compatibility

2004/108/CE

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 55015:2006+A1:2007+A2:2009

EN 61547:2009

EN 61000-3-2:2006+A1:2009+A2:2009

EN61000-3-3:2008

Country of Origin: R.P.C.
