USER MANUAL ISBW519 iLive

Important Safety Instructions

- Read these instructions.

- Keep these instructions

+. Heed all Warnings

• Follow all instructions

• Unless otherwise noted, do not use this apparatus near water.

- Clean only with a dry cloth.

- Do not block any ventilation opening. Install in accordance with the

manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus. - Only use attachments/accessories specified by the manufacturer.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart'apparatus combination to avoid injury from tip-over.

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings and Precautions

• CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
  • WARNING: Shock hazard - Do Not Open.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • WARNING: Do not ingest battery, chemical burn hazard.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov This product meets and complies with all Federal regulations.

Overview

Features

• IPX4 water resistant
• Bluetooth 5.0 wireless - range 60 ft.
  • Voice prompts announce speaker functions
• 8" speaker driver - output 10W
  • LED color changing lights
• Digital FM radio
  • 2 microphone inputs (1/4 in.)
  • Aux In (3.5mm audio input)
• Micro SD memory card port - supports MP3 file format, up to 64GB
  • USB port for mobile device charging (5V 2A)
  • Built-in rechargeable battery
  • Battery life: approx. 3 hrs playtime

Includes

• AC/DC USB power adapter (included) for internal battery recharge
- USB Cable
- User's Guide

Control Panel

1. DC Power Input/Battery Charge LED: Use the input to charge the internal battery and power the speaker. Charging LED will flash when charging, and will turn solid when the battery is fully charged.
2. USB Power Port: Charge mobile devices such as smartphones and tablets.
3. Micro-SD Memory Card Port
4. Aux In (3.5mm Audio Input)
5. Microphone Jacks: When in use, the microphones will always be heard, regardless of the source input.
6. Microphone Volume
7. Speaker Volume

8. Echo Adjustment: Use to adjust the echo effect of a connected microphone.

9. Ⓗ/M: Press and hold to power the speaker ON or OFF. Press to change audio source between Bluetooth, Line In, and FM.

10. EQ/Lights: Press to adjust between equalizer settings: EQ 1-Normal, EQ 2-Bass, EQ 3-Rock. Press and hold to turn off LED lights.
11. ✉: Press and hold to begin pairing to a Bluetooth device (BLUETOOTH).
12. <>: Short press to skip audio tracks (BLUETOOTH/USB) or radio presets (FM). Long press to scan for the next available FM radio station (FM).
13. ▶: Press to play or pause tracks (BLUETOOTH, USB). Press and hold to scan and save radio stations (FM).

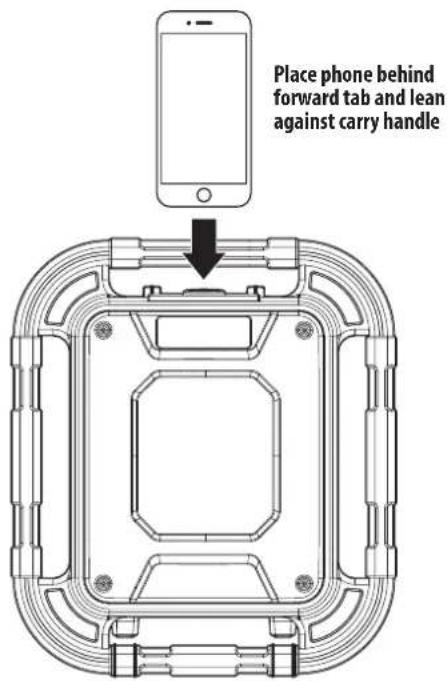

Place phone behind forward tab and lean against carry handle

13 - MIC VOL + - + - - ECHO VOL + 6 7 8 8 Ø/M EQ LIGHTS iLIVE 10 29

Water Resistance Level IPX4

• Suitable for indoor and outdoor use in the presence of incidental or light exposure to splashing water, rain, or snow.
• It is not recommend to submerge this speaker in water for any amount of time.

IMPORTANT: To ensure your speaker is prepared for use in a wet environment, disconnect and remove any power cables, and tightly close the charging port water cap. If the water cap is not properly closed, water resistance will be compromised and could result in damage to the speaker or personal injury.

Charging the Battery

To power the unit or charge the internal battery, plug the AC/DC power adapter into the Micro-USB DC Power Input on the speaker and a standard power outlet. Battery life is approximately 3 hours.

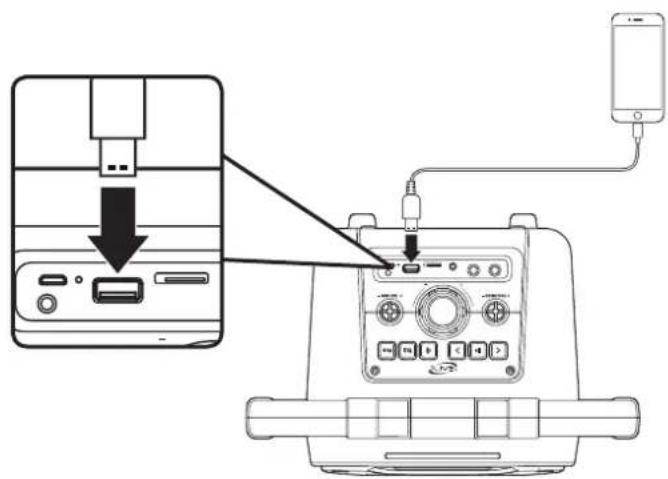

To charge mobile devices, use an appropriate USB charging cable (not included) to connect the USB charging port on the unit and the device you wish to charge.

Diagram showing connection between a device with labeled ports and cable, including a zoomed-in cable and connected to a power outlet.

Diagram showing device connection with labeled ports and a device via cable, including a device with internal components and a mobile phone connected to the right.

WARNING: DO NOT CHARGE THE SPEAKER OR A MOBILE DEVICE WHILE IT IS NEAR WATER OR IF IT MAY GET WET. ALLOW AMPLE TIME TO DRY AFTER BEING SPLASHED.

Bluetooth Wireless

Pairing & Playing Audio

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the steps listed here.

1. Press the Ⓗ/Mbutton to select Bluetooth Mode. The display will read "blue" and a voice will announce "Bluetooth Mode".
2. Press and hold *to begin pairing. The display will begin quickly flashing and a voice will announce "Bluetooth is connecting." Remain within 3 feet of the unit.
3. Using the controls on your Bluetooth device, scan for and select ISBW519 in your Bluetooth settings to pair. Refer to the user's manual for your specific device for instructions on pairing and connecting Bluetooth devices.
4. When successfully paired, the display will turn solid, a voice will announce "Bluetooth connected."
5. Use the controls on the connected device to select and begin playing audio. Audio played through the connected Bluetooth device will now be heard through the speaker. Use the controls on the speaker or the connected device to play, pause, and adjust volume.

FM Radio

Radio Tuning and Saving Station Presets

An FM receiver is built into the speaker. Adjust the position of the speaker to improve FM radio reception.

1. Press the Ⓗ/M button to switch to FM Radio Mode. The display will show an FM radio frequency and a voice will announce "FM radio."
2. Press and hold ▶ to automatically scan and save FM stations as presets. Saved radio stations will be assigned a "Pxx" number.
3. Press <> to cycle through presets. Press and hold <> to change manually search through FM frequencies.

Micro-SD Memory Card

• Load a Micro-SD Card into the Micro-SD card slot port. The speaker will automatically detect the memory card and switch to SD Card Mode and start playing.
• Press ▶to pause or play media.
• Press <> to change tracks forward or back. Press and hold <> to change 10 tracks forward or back.

Aux In

Requires a 3.5mm audio cable (not included). Note: Equalizer settings are not usable in Aux In Mode.

1. Press Ⓗ/M to switch to Aux In Mode, the display will show "Aux" and a voice will announce "Line in".
2. Connect a 3.5mm audio cable to the Aux In on the unit and the audio output/headphone jack on an audio device.
3. Use the controls on the connected device to select and play audio.

Microphone

Requires a microphone with a 1/4 in. audio cable or 1/4 in. adapter (not included).

1. Connect a microphone to one of the Microphone Inputs on the unit. The speaker will play audio from the microphone as long as it is connected.
2. Use the controls on the speaker to adjust microphone volume and effects.

Customer Support

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

For Warranty Information and the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

Customer Service: 1-888-999-4215 | Email Support: [e-mail] | Email Parts: [e-mail]

Copyright © 2019 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
