USER MANUAL WH-SXC09H3E8 PANASONIC

Air-to-Water Heatpump

Front view of a Panasonic air conditioner unit with control panel and buttons (no visible text or symbols)

Model No.

Indoor Unit

WH-SDC09H3E8

WH-SDC12H9E8

WH-SDC16H9E8

WH-SXC09H3E8

WH-SXC12H9E8

WH-SXC16H9E8

Outdoor Unit

WH-UD09HE8

WH-UD12HE8

WH-UD16HE8

WH-UX09HE8

WH-UX12HE8

WH-UX16HE8

Quick Menu Guide

Air-to-Water Heatpump

Please read the Operating Instructions thoroughly before using the Quick Menu.

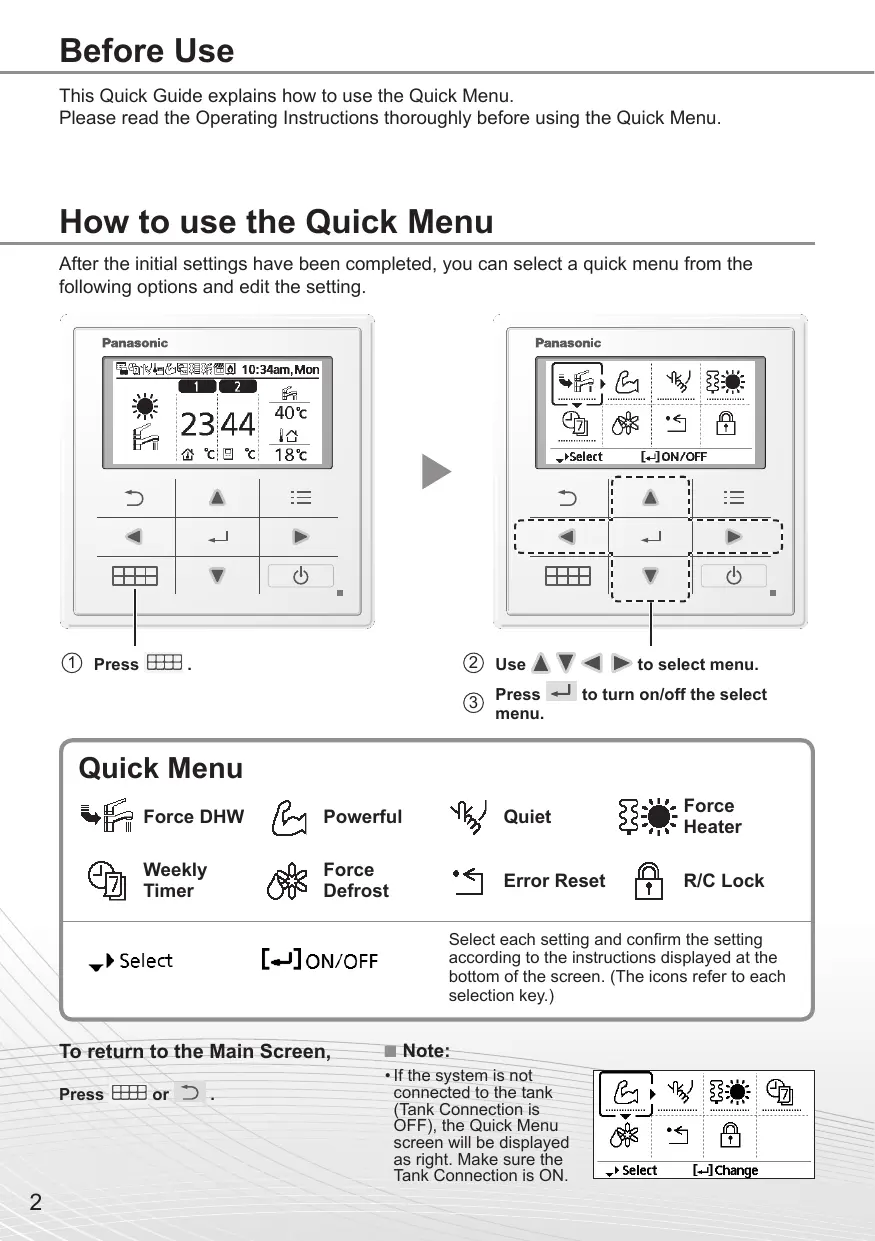

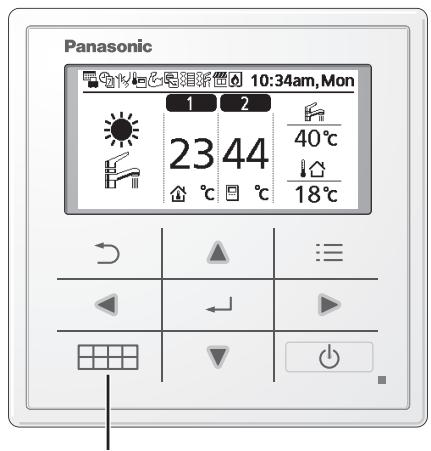

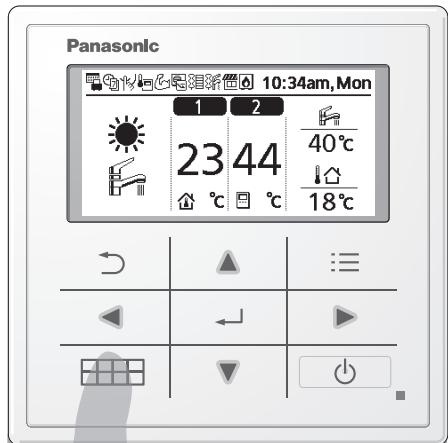

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

Select each setting and confirm the setting according to the instructions displayed at the bottom of the screen. (The icons refer to each selection key.)

To return to the Main Screen,

Press or ↻.

Note:

- If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

- Operation icon indicate with “............” = OFF

- Operation icon indicate with “——” = ON

Pure mechanical diagram showing a pipe with a downward arrow and a bracket (no text or symbols)

Force DHW

Select this icon to turn the Tank DHW on or off.

Press ← to confirm your selection.

- Force DHW is turned off.

- Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press ← to confirm your selection.

(The powerful operation starts approximately 1 minute after ← is pressed.)

Note:

- Powerful is disabled when operation is turned OFF.

Abstract pixelated line drawing with no text or symbols

Quiet

Select this icon to operate quietly.

Press ← to confirm your selection.

(The quiet operation starts approximately 1 minute after ← is pressed.)

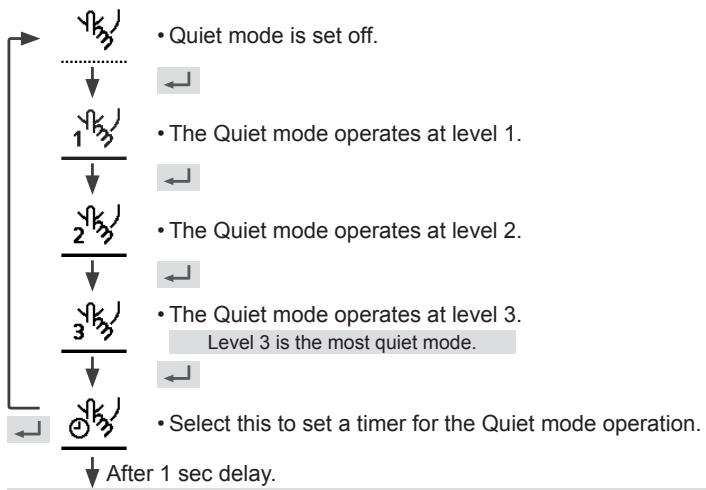

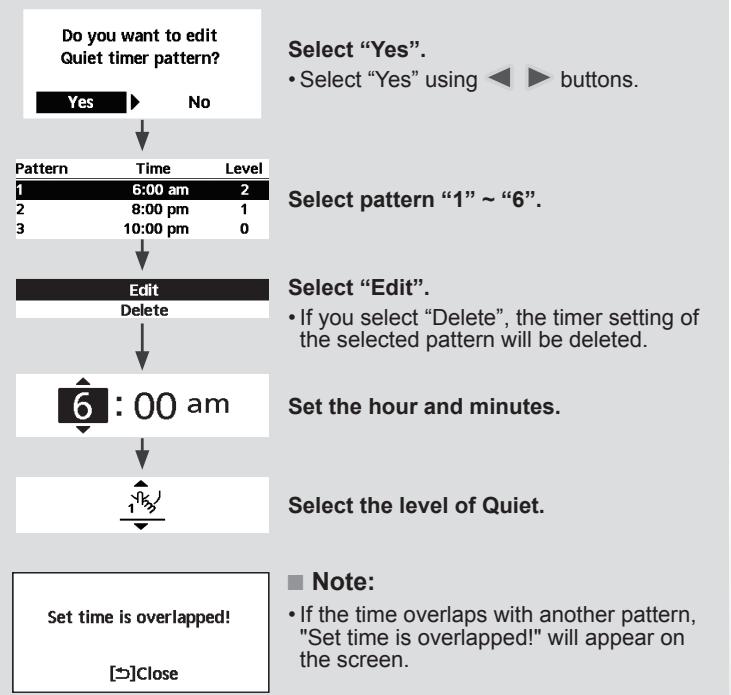


Simple icon showing a tree and sun, no text or symbols present

Force Heater

Select to force the Heater on.

Press ← to confirm your selection.

(The Force Heater mode starts approximately 1 minute after ← is pressed.)

Note:

- Force Heater is disabled whenever operation is already on and ‘Disabled due to operation ON!’ will be displayed.

Disabled due to

operation ON!

[→]Close

Simple icon showing a clock and two overlapping documents (no text or symbols)

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press ← to confirm your selection.


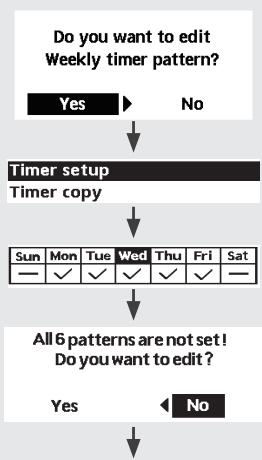


Select "Yes".

- If you select "No", the screen will return to the Main Screen.

- Timer setup: Select Timer setup to edit the Weekly Timer.

- Timer copy: Select to copy a timer setting.

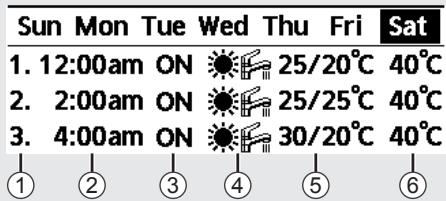

[Example of a Timer setup]

Select the day(s) which you wish to edit using ▲▼ buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern “1” \~ “6”.
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.
④ Select the operation mode.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Force Defrost

Select to defrost the frozen pipes.

Press ← to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[→] Close

Error Reset

Select to restore the previous settings when error has occurred.

Press ← to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[→] Close

- Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

Simple icon of a padlock inside a rounded square frame (no text or symbols)

R/C Lock

Select to lock the Remote Controller.

Press ← to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

Yes

No

Select "Yes".

(The Main Screen will be locked.)

- If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen) Press ↩, ← and ▶ continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

1. Password is reset to 0000
2. Remote control is unlocked

(The screen will be off after 3 seconds.)
