USER MANUAL ER-GP21 PANASONIC

Operating Instructions

Rechargeable Professional Hair Clipper

Model No. ER-GP21/ER-GP22

3D rendered image of a hairbrush with no visible text or symbols

English	3	Dansk	77	Česky	149
Deutsch	17	Português	89	Slovensky	161
Français	29	Norsk	101	Magyar	173
Italiano	41	Svenska	113	Română	185
Nederlands	53	Suomi	125
Español	65	Polski	137

Panasonic

Operating Instructions

Rechargeable Professional Hair Clipper

Model No. ER-GP21/ER-GP22

Contents

Safety precautions......6

Intended use 9

Parts identification ......9

Charging the clipper....10

Using the clipper ...... 10

Care....11

Troubleshooting 13

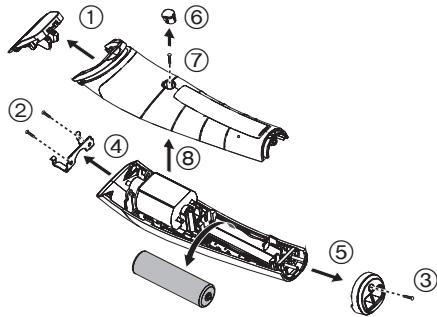

Removing the built-in rechargeable battery....13

Specifications 14

Caution for AC Mains Lead......14

Warning

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use anything other than the supplied AC adaptor.
• Keep the appliance dry.

- The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

▶ Power supply

Do not connect or disconnect the power plug to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not immerse appliance and AC adaptor in water or wash it with water.

Do not place the appliance and AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is

damaged or if the power plug fits loosely in a household outlet.

Do not damage or modify, or forcefully bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the power plug.

- Failure to do so may cause fire or electric shock.

Always unplug the power plug from a household outlet when cleaning.

- Failure to do so may cause electric shock or injury.

WARNING

Regularly clean the power plug and the charging plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the power plug and wipe with a dry cloth.

▶ In case of an abnormality or malfunction

Immediately stop using and remove the power plug if there is an abnormality or malfunction.

- Failure to do so may cause fire, electric shock, or injury.

- The main unit or AC adaptor is deformed or abnormally hot.

- The main unit or AC adaptor smells of burning.

- There is abnormal sound during use or charging of the main unit or AC adaptor.

- Immediately request inspection or repair at an authorized service centre.

▶ This product

This product has a built-in rechargeable battery. Do not throw into flame or heat.

- Doing so may cause fluid leak, overheating, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change, etc.).

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

▶ Preventing accidents

Do not store within the reach of children or infants. Do not let them use it.

- Putting the blade, and/or oil container in the mouth may cause accidents and injury.

If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician.

If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.

- Failure to do so may result in physical problems.

CAUTION

▶ Protecting the skin

Do not press the blade against the skin.

Do not use the clipper for any purpose other than hair trimming.

Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes).

- Doing so may cause injury to ears or uneven skin.

Check that the blades are not damaged or deformed before use.

- Failure to do so may cause skin injury.

CAUTION

▶ Note the following precautions

Do not allow metal objects or trash to adhere to the power plug or the charging plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not drop or subject to shock.

- Doing so may cause injury.

Do not wrap the cord around the AC adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.

Disconnect the power plug from the household outlet when not using.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the power plug by holding onto the power plug instead of the cord.

- Failure to do so may cause electric shock or injury.

▶ Disposal of the rechargeable battery

DANGER

The rechargeable battery is exclusively for use with this clipper. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

- Do not throw into fire or apply heat.

- Do not solder, disassemble, or modify the battery.

- Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

- Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

- Never peel off the tube.

- Doing so may cause fluid leak, overheating, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

WARNING

If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands.

- The battery fluid may cause blindness if it comes in contact with your eyes.

Do not rub your eyes. Wash immediately with clean water and consult a physician.

- The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

• This clipper is designed for professional use to trim hair. It can be operated on rechargeable battery.
• Before and after each use, apply oil at the marked places. (See page 12.)

Failure to apply the oil may cause the following problems.

• The clipper has become blunt.
• Shorter operating time.
• Louder sound.
• Do not use thinner, benzine, alcohol or other chemicals. Doing so may cause failure, cracking or discoloration of the main body.

Clean the main body only with a soft cloth slightly dampened with tap water or soapy tap water.

• You should not allow permanent wave lotion, hair dyeing or hair spray to come into contact with the main body or the blades.
  Doing so may result in cracking or corrosion.
• Before using an attachment, check that it has been installed correctly. Failure to do so may cause hair to be cut too short.

Parts identification

A

Diagram of a hairbrush with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Main body

① Power switch [O/I]
② Charge indicator lamp (→)
③ Appliance socket

B Blade

④ Mounting hook
⑤ Cleaning lever
⑥ Moving blade
⑦ Stationary blade

© Design blade ER-GP22

⑧ Mounting hook
⑨ Cleaning lever
⑩ Moving blade
⑪ Stationary blade

D 3 mm comb attachment
E 6 mm comb attachment
F AC adaptor (RE9-77) (The shape of the power plug differs depending on the area.)

⑫ Charging plug
⑬ Comb attachment shelves
⑭ Cord
⑮ Power plug

Accessories

G Cleaning brush
H Oil

Charging the clipper

- Make sure that the clipper is turned off.

1 Place the clipper on the AC adaptor.

2 Insert the power plug into a household outlet.

• Charging is completed after approx. 8 hours.
• Check the charge indicator lamp (→) glows.

1 2

3 Disconnect the power plug after charging is completed.

(for safety and to reduce energy usage)

- The charge indicator lamp (→) continues to glow after charging is complete. There is no indication to show that “charging is complete”.

Notes

• If there is crackling noise on radios or other devices while charging, charge the clipper using a different household outlet.
• When the appliance is not used for 6 months or more, the battery will weaken (leak battery fluid, etc.). Fully charge the battery once every 6 months.
• When charging the clipper for the first time or when it has not been in use for more than 6 months, the lamp on the main body may not glow for a few minutes, or the operating time may shorten. Please charge it for more than 16 hours in such cases.
• Recommended ambient temperature for charging is 0 – 35 °C. Battery performance may decrease outside of the recommended temperature.

• 1 full charge will provide approximately 40 minutes of continuous operation.

• You can charge the battery before it is completely discharged. However, it is recommended to charge when the battery is completely discharged. The battery life depends strongly on factors such as how it is used and stored.

Using the clipper

• Make sure that the clipper is turned off.
• The appliance may not operate in an ambient temperature approximately 0 °C or lower.

1 Select the trimming heights indicated on the insides and sides of the attachments.
2 Slide the power switch on the main body to the “|” position to turn on the clipper.

Removing and mounting the comb attachments

Mounting the attachment

(Example: in the case of 3 mm) Slide the attachment until it clicks.

3mm click 3mm

Removing the attachment

Remove the attachment by pressing with your thumb.

Illustration of a hand performing a finger manipulation or massage technique (no text or symbols present)

▶ Using the design blade ER-GP22

The design blade enables to produce the illustrated hair design.

Care

Removing and mounting the blade

- Make sure that the clipper is turned off.

Removing the blade

Hold the clipper with the switch facing upward and push the blade with your thumb while catching the blade in your other hand.

Illustration of a hand holding a tool with arrows indicating motion, showing a circular view of a finger and a knife (no text or symbols)

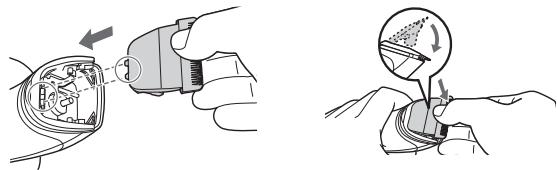

Mounting the blade

Fit the mounting hook into the blade mounting on the clipper and push in until it clicks.

Illustration showing two hands performing a tool manipulation operation: one with a tool inserted into a device, the other with a tool moving a circular arrow (no text or symbols present)

Cleaning

• Clean the clipper and the blade after each use. (If not cleaned, the motion will become poor and the sharpness will worsen.)

• Make sure that the clipper is turned off.

• Brush off any hairs from the clipper and from around the blade.

• Brush off the hairs from the blade edge.
• Brush the hairs out from between the stationary blade and the moving blade while pressing down on the cleaning lever (a) to raise the moving blade.

Line drawing of hands holding a small electronic component with a tool, no text or symbols present

Illustration of hands inserting a component into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a tool interacting with it

Lubrication

- Apply the oil to the clipper before and after each use.

Apply a drop of the oil to each indicated point.

Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds.

Failure to apply the oil may cause the following problems due to rust, wear or burn out.

• The clipper has become blunt.
• Shorter operating time.
• Louder sound.

Diagram showing a hand using a tool to adjust or install a mechanical component, with two views of the component being highlighted.

Lubricating the design blade

ER-GP22

Lubricate the design blade as illustrated.

Diagram illustrating engine tool application with labeled parts and directional arrows indicating process steps

▶ Replacement parts

Replacement part is available at your dealer or Service Centre

Replacement parts for ER-GP21/ER-GP22	Blade	WER9352
	Design blade	WER-9P10

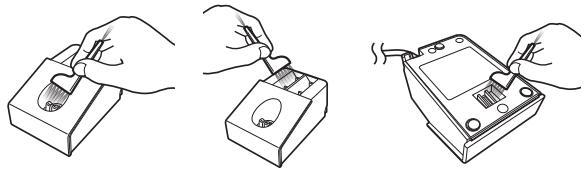

Cleaning the AC adaptor

Use the cleaning brush to clean hair trimmings and dust in the charging plug, the comb attachment shelves or in the hole on the bottom surface.

Three-step line drawings showing hands using a tool to adjust a battery and switch (no text or symbols present)

Storing comb attachments

You can store your comb attachments in the comb attachment shelves.

Line drawing of a hand using tweezers to cut a component into a container (no text or symbols)

Troubleshooting

Problem

The clipper has become blunt.

Operating time is short.

Clipper stopped functioning.

The clipper cannot be charged.

Makes a loud sound.

Action

Until problems are solved, please follow each procedure as follows;

1. Charge the clipper. (See page 10.)
2. Clean the blade and apply oil. (See pages 11 and 12.)
3. Replace the blade. (See page 11.)
4. Have the battery replaced by an authorized service centre.

▶ Push the main body into the charging stand or appliance plug all the way.
Charge within the recommended
▶ charging temperature of 0 °C to 35 °C.
▶ Apply oil. (See page 12.)
▶ Have the battery replaced by an authorized service centre.

If the problems still cannot be solved, contact the store where you purchased the appliance or a service centre authorised by Panasonic for repair.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing the clipper.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing the clipper, and must not be used to repair it. If you dismantle the clipper yourself, it may cause malfunction.

• Remove the clipper from the AC adaptor.
• Slide the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑧ and lift the battery, and then remove it.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Exploded view diagram of a mechanical assembly with numbered parts and directional arrows indicating assembly steps.

For environmental protection and recycling of materials

This clipper contains a Nickel-Metal Hydride battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the AC adaptor.
Motor voltage	1.2 V---
Charging time	Approx. 8 hours

Caution for AC Mains Lead

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 3-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📍 or the BSI mark 🍼 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover, if attached.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

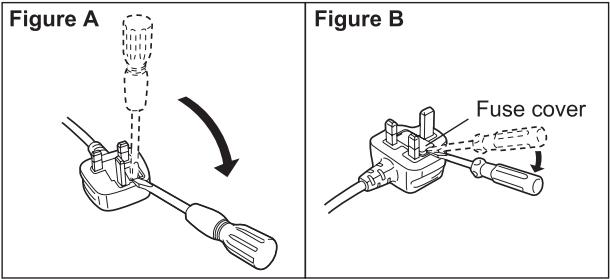

1. Open the fuse cover with a screwdriver.

Figure A Figure B Fuse cover

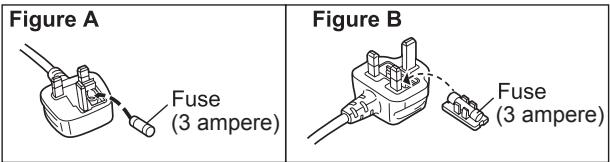

1. Replace the fuse and close or attach the fuse cover.

Figure A Fuse (3 ampere) Figure B Fuse (3 ampere)

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Bedienungsanleitung

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view of the plug's cable connection.

G

H

A Haarschneider

Illustration of a hand performing a finger massage or pressure technique on a palm (no text or symbols)

Illustration of a hand holding a tool, showing a circular inset with a hand holding a pen and a pencil (no text or symbols present)

Illustration showing a hand inserting a plug into a cable with a magnified view of the plug being inserted (no text or symbols present)

Reinigung

Line drawing of hands holding a mechanical component with a tool inserted (no text or symbols)

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands connecting a cable to a connector with labeled component 'a', likely illustrating a cable or cable assembly process.

Einfettung

Diagram showing engine oil injection process with labeled components and directional arrows indicating flow

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

▶ Ersatzteile

Three-step line drawings showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to apply a small object into a rectangular base (no text or symbols)

Fehlersuche

Problem

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

▶ Prévention des accidents

Diagram of a hairdryer with labeled parts including handle, jaw, and eyelid

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Corps principal

Illustration of a hand performing a finger manipulation or massage technique (no text or symbols present)

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Installation de la lame

Illustration showing a hand holding a device with a magnified view of the internal components (no text or symbols present)

Nettoyage

Line drawing of a hand holding a mechanical component with a tool, no text or symbols present

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands using a tool to adjust or install a component, with labeled parts 'a' and 'D'

Lubrification

Diagram showing engine components with arrows indicating assembly or repair steps, including a hand holding a tool and a magnified inset of the engine's internal structure.

Lubrification de la lame de style ER-GP22

Diagram illustrating mechanical assembly steps with magnified views of components and tool application

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to cut a circular object into a rectangular base (no text or symbols)

Dépannage

Problème

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of each step.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Corpo principale

© Lama design ER-GP22

Illustration of a hand holding a finger with a magnified inset showing the finger area (no text or symbols)

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Illustration showing a hand inserting a cable into a device, and a close-up of the cable being inserted (no text or symbols present)

Pulizia

Line drawing of hands holding a small electronic component with a tool, no text or symbols present

Illustration of hands inserting a component into a device (no text or symbols visible)

Diagram showing hands using a tool to adjust or install electronic components with labeled parts (a) and (b)

Lubrificazione

Diagram showing a hand using a tool to adjust or install a mechanical component, with two views of the component being highlighted.

Diagram illustrating engine tool application steps with magnified views of mechanical components

▶ Parti di ricambio

Three-step line drawings showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to apply a small object into a base (no text or symbols)

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

Specifications....64

Waarschuwing

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Hoofdbehuizing

① Stroomschakelaar [O/ I ]
② Laad indicator (=▶)
③ Stroomaansluiting

B Mesje

④ Bevestigingshaak
⑤ Reinigingshendel
⑥ Bewegend mesje
⑦ Stationair mesje

© Ontwerpmesje ER-GP22

⑧ Bevestigingshaak
⑨ Reinigingshendel
⑩ Bewegend mesje
⑪ Stationair mesje

Illustration of a hand holding a wrist with a finger pointing to the wrist area (no text or symbols present)

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Het mesje monteren

Illustration showing a hand inserting a plug into a cable with a magnified view of the plug being inserted (no text or symbols present)

Reiniging

Line drawing of a hand holding an electronic component with a tool, no text or symbols present

Illustration of hands inserting a component into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Smering

Diagram showing a hand using a tool to insert or install a mechanical component, with magnified insets highlighting the components.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

▶ Vervangende onderdelen

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to apply a small object onto a base (no text or symbols)

Problemen oplossen

Probleem

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the terminal connection.

G

H

A Cuerpo principal

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool, with a magnified inset showing the tool being cut (no text or symbols present)

Illustration showing two-step automotive assembly process: tool insertion and disassembly (no text or symbols)

Limpieza

Line drawing of a hand holding an electronic component with a tool, no text or symbols present

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Lubricación

Diagram showing engine oil injection process with labeled components and directional arrows indicating flow direction

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Three-step line drawings showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to press or adjust a component (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and directional arrows indicating assembly steps.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Apparatets krop

① Afbryderkontakt [O/I]
② Opladningsindikatorlampe

© Specialblad ER-GP22

Illustration of a hand performing a finger manipulation or massage technique (no text or symbols present)

▶ Brug af specialbladet ER-GP22

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Montering af bladet

Illustration of a hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a hand holding a small object with a circular diagram showing a gear or mechanical component (no text or symbols)

Rensning

Line drawing of a hand holding a small mechanical component with a tool, no text or symbols present

Illustration of hands inserting a component into a device (no text or symbols visible)

Diagram showing hands using a tool to adjust or install a component, with labeled parts 'a' and 'D'

Smøring

Diagram showing a hand using a tool to adjust or install a mechanical component, with magnified insets highlighting the components.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

▶ Reservedele

Reservedele kan købes hos din forhandler eller servicecenter

Reservedele til ER-GP21/ER-GP22	Blad	WER9352
	Specialblad	WER-9P10

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to cut or apply a component (no text or symbols)

Fejlfinding

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of each step.

Diagram of a hairdryer with labeled parts including handle, jaw, and eyelid

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Corpo principal

Illustration of a hand holding a finger with a magnified inset showing the finger area (no text or symbols)

Illustration of a hand holding a tool, with a magnified inset showing the tool tip and blade (no text or symbols)

Montagem da lâmina

Illustration of a hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a hand holding a small object with a circular diagram above showing a gear or mechanical component (no text or symbols)

Limpeza

Line drawing of a hand holding a small mechanical component with a tool, no text or symbols present

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands using a tool to adjust or install a component, with labeled parts 'a' and 'D'

Lubrificação

Diagram showing a hand using a tool to insert components into a car body, with magnified views highlighting the engine and spring assembly.

Diagram illustrating engine tool application steps with magnified views of mechanical components

Three-step line drawings showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to press or adjust a component (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of each step.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug terminal.

G

H

A Hoveddeksel

① Strømbryter [O/ I ]
② Ladelampe (→)
③ Pluggmottak

B Blad

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Montere bladet

Illustration of a hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a hand holding a small object with a circular diagram above showing a gear or mechanical component (no text or symbols)

Rengjøring

Line drawing of a hand holding an electronic component with a tool, no text or symbols present

Illustration of hands inserting a component into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Smøring

Diagram showing engine tool installation with labeled parts and magnified views of internal components

Smøre designbladet ER-GP22

Smør designbladet som vist på tegningen.

Diagram illustrating engine component assembly with magnified views of internal components and a tool applying material to a final component.

▶ Reservedeler

Reservedeler fås hos forhandleren eller et serviceverksted

Reservedeler for ER-GP21/ER-GP22	Blad	WER9352
	Designblad	WER-9P10

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to cut or apply a component (no text or symbols)

Problemløsning

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram of a hairdryer with labeled parts including handle, jaw, and eyelid

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view of the plug's cable connection.

G

H

A Huvuddel

① Strömbrytare [O/I]
② Laddningsindikeringslampa

③ Kontakt

B Skärblad

Illustration of a hand holding a finger with a magnified inset showing the finger area (no text or symbols)

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Att sätta på bladet

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Illustration of a hand holding a small object with a circular diagram showing a gear or mechanical component (no text or symbols)

Rengöring

Line drawing of a hand holding a small electronic component with a tool, no text or symbols present

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Smörjning

Diagram showing a hand using a tool to adjust or install a mechanical component, with two views of the component being highlighted.

Smörja designskärbladet ER-GP22

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

▶ Utbytbara delar

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to cut or apply a component (no text or symbols)

Felsökning

Problem

Klipparen är slö.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of each step.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Runko

Illustration of a hand performing a finger manipulation or massage technique (no text or symbols present)

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Illustration of a hand holding a small object with a circular diagram above showing a gear or mechanical component (no text or symbols)

Puhdistaminen

Line drawing of a hand holding an electronic component with a tool, no text or symbols present

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Voitelu

Diagram showing engine component assembly with magnified views of internal components and a tool tip, likely illustrating engine assembly or inspection.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

▶ Varaosat

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using a tool to cut or apply a component, no text or symbols present

Vianetsintä

Ongelma

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled parts and a close-up inset showing the plug's internal structure.

G

H

A Korpus

Illustration of a hand performing a finger manipulation or massage technique (no text or symbols present)

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Mocowanie ostrza

Illustration showing a hand inserting a plug into a cable with a magnified view of the plug being inserted (no text or symbols present)

Czyszczenie

Line drawing of a hand holding an electronic component with a tool, no text or symbols present

Illustration of hands inserting a component into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Smarowanie

Diagram showing a hand using a tool to adjust or install a mechanical component, with two magnified insets highlighting the components.

Diagram illustrating engine tool application steps with magnified views of mechanical components

▶ Części zamienne

Three-step line drawings showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to press or adjust a component (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and directional arrows indicating assembly steps.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Hlavní část

Illustration of a hand performing a finger manipulation or massage technique (no text or symbols present)

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Připevnění čepele

Illustration of a hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a hand holding a small object with a circular diagram above showing a gear or mechanical component (no text or symbols)

Čištění

Line drawing of a hand holding an open mechanical component with a tool, no text or symbols present

1. Z okraje čepele vykartáčujte vlasy.

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Mazání

Diagram showing car engine components with magnified views of internal parts, likely illustrating engine assembly or repair.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

▶ Náhradní díly

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using a tool to cut or apply a component, no text or symbols present

Řešení potíží

Problém

Exploded view diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Hlavná čast'

Illustration of a hand holding a finger with a magnified inset showing the finger area (no text or symbols)

▶ Používanie tvarovacej čepele ER-GP22

Illustration of a hand holding a tool, with a magnified inset showing a hand holding a tool (no text or symbols present)

Nasadzovanie čepele

Illustration showing a hand inserting a plug into a cable with a magnified view of the plug being inserted (no text or symbols present)

Čistenie

Line drawing of hands holding a mechanical component with a tool, no text or symbols present

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Mazanie

Diagram showing a hand using a tool to adjust or install a mechanical component, with two views of the component being highlighted.

Mazanie tvarovacej čepele ER-GP22

Diagram illustrating engine tool application with labeled parts and directional arrows indicating process steps

▶ Náhradné diely

Three-step line drawing showing hands using a tool to adjust a battery and switch (no text or symbols present)

Line drawing of a hand using tweezers to press or apply small objects into a container (no text or symbols)

Riešenie problémov

Problém

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of each step.

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Készüléktest

Illustration of a hand holding a finger with a magnified inset showing the finger area (no text or symbols)

Illustration of a hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a hand holding a small object with a circular diagram showing a gear or mechanical component (no text or symbols)

Tisztítás

Line drawing of a hand holding an open mechanical component with a tool inserted (no text or symbols)

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands holding a connector with labeled parts and a cable, likely illustrating a cable or cable assembly process.

Kenés

Diagram showing car engine components with magnified views of internal parts, likely illustrating engine assembly or repair.

Diagram illustrating engine tool application with labeled parts and directional arrows indicating process steps

▶ Cserealkatrészek

Three-step line drawings showing hands using a tool to adjust a component, with no visible text or symbols.

Line drawing of a hand using tweezers to press or apply a small object into a container (no text or symbols)

Hibaelhárítás

Probléma

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

68,5 mm × 46,0 mm × 97,0 mm

Tömeg: 260 g

Diagram of a hairdryer with labeled parts including handle, jaw, and jaw base

B

©

D

E

F

Diagram of an electrical plug with labeled components and a close-up view showing the plug's internal structure.

G

H

A Corpul principal

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols)

▶ Folosirea lamei de design ER-GP22

Illustration of a hand holding a tool with an arrow indicating force or movement, showing a circular motion view (no text or symbols)

Montarea lamei

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Illustration of a hand holding a small object with a circular diagram above showing a gear or mechanical component (no text or symbols)

Curățare

Line drawing of hands holding a mechanical component with a tool, no text or symbols present

Illustration of hands inserting a connector into a device (no text or symbols visible)

Diagram showing hands using a tool to adjust or install a component, with labeled parts 'a' and 'D'

Lubrifiere

Diagram showing engine oil injection process with labeled components and directional arrows indicating flow direction

Ungeti lama de design ER-GP22

Ungeti lama de design conform imaginii.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

▶ Piese de schimb

Three-step line drawings showing hands using a tool to adjust a battery and switch (no text or symbols present)

Depozitarea pieptenilor

Line drawing of a hand using tweezers to apply a small object onto a base (no text or symbols)

Depanare

Problema

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

© Panasonic Corporation 2015
