Product Type	Portable Bluetooth Speaker
Model	316
Brand	Sven
Dimensions (W x H x D)	Approx. 220 x 100 x 120 mm
Weight	Approx. 0.8 kg
Power Supply	Built-in rechargeable battery (DC 5V via USB)
Battery Life	Up to 8 hours (varies with volume)
Bluetooth Version	Bluetooth 5.0
Wireless Range	Up to 10 meters
Output Power	10W (RMS)
Frequency Response	100 Hz - 20 kHz
Driver Unit	2 x 52mm full-range drivers
Audio Input	Bluetooth, AUX (3.5mm), MicroSD card, USB flash drive
Controls	Power, Volume +/-, Play/Pause, Mode, Previous/Next
Hands-free Calling	Built-in microphone, answer/end calls
Material	Plastic with metal grille
Cleaning	Wipe with a soft, dry cloth. Avoid moisture.
Safety	Do not disassemble. Avoid extreme temperatures.
Spare Parts / Repairability	Contact Sven service center. Battery replacement possible.
General Information	User manual available in PDF on notice-facile.com

Frequently Asked Questions - 316 Sven

How do I pair my speaker via Bluetooth?

Turn on the speaker and activate Bluetooth on your device. Search for Sven 316 in the Bluetooth list and select to pair. If prompted, enter PIN 0000.

Can I connect multiple devices at once?

No, the speaker supports connection to only one device at a time. Disconnect the current device to pair a new one.

How do I charge the speaker?

Connect the included USB cable to the speaker's charging port and to a USB power adapter (5V/1A). The LED indicator turns red while charging and turns off when fully charged.

What is the battery life?

The battery lasts up to 8 hours at moderate volume. Actual duration depends on volume level and audio content.

Can I use the speaker while it is charging?

Yes, the speaker can be used while charging via USB. However, charging time may be longer.

How do I reset the speaker?

If the speaker becomes unresponsive, press and hold the Power button for 10 seconds until the LED flashes. Then release and turn it on again.

What audio sources are supported?

The speaker supports Bluetooth, AUX (3.5mm cable), MicroSD card (up to 32GB), and USB flash drive (up to 32GB). It plays MP3, WMA, WAV formats.

Why is there no sound?

Check that the speaker is powered on and volume is up. Ensure your source device is playing audio and connected. If using Bluetooth, try re-pairing or resetting the speaker.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use water, chemicals, or abrasive cleaners. Keep the charging port and openings clean.

Where can I find the user manual?

The user manual is available for free download in PDF format on notice-facile.com. Search for 'Sven 316'.

USER MANUAL 316 Sven

Two black SVEN audio speakers with rounded heads and sound waves, displayed against a white background (no text or symbols on the devices themselves)

Two black SVEN audio speakers with rounded heads and sound waves, shown against a white background (no text or symbols on the devices themselves)

Two black SVEN audio speakers with rounded heads and sound waves, shown against a white background (no text or symbols on the devices themselves)

Congratulations on your purchase of the Sven speaker system!

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 5

ENG 10

1. BUYER RECOMMENDATIONS ...... 11
2. PACKAGE CONTENTS.... 12
3. SAFETY PRECAUTIONS 12
4. TECHNICAL DESCRIPTION 12
5. PREPARATION AND OPERATION 13
6. TROUBLESHOOTING.... 14
7. TECHNICAL SPECIFICATIONS ...... 14

1. BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Check up the package contents and availability of the warranty card. Make sure the warranty card has a shop stamp, a legible signature or the seller's stamp and purchase date, and the goods number corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy of numbers you forfeit the right for warranty repairs.
• Do not switch on the speaker system immediately after you bring it into a room from environment with negative temperature! After unpacking, the speaker system should be kept in conditions of room temperature for at least 4 hours.
• Before installing and using the speaker system, read this Manual carefully and keep it for future reference.

2. PACKAGE CONTENTS

• Speaker System — 1 pc
  • Operation Manual — 1 pc
• Warranty card — 1 pc

3. SAFETY PRECAUTIONS

• Do not open the MSS and do not perform repairs by yourself. Service and repairs should be performed only by qualified specialists at authorized service centers. The list of authorized service centers is on www.sven.fi.
• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power amplifier or the ground, for it causes damage to the power amplifier output stage.
• Make sure that foreign objects do not get inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose it to direct sunlight.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
• If the MSS does not operate, unplug it and address your dealer.

4. TECHNICAL DESCRIPTION

SVEN 316 2.0 USB Multimedia Speaker System (MSS) is designed to play music and sound games, movies, etc. The MSS has a built-in amplifier, an audio cable and a signal cable enabling to connect it to virtually any audio source (a PC, laptop, MP3 or CD player, etc.). The MSS is powered via a PC or laptop USB port or a 5V DC power supply by means of the integrated USB cable. The speaker with an audio input and a control panel is named “the active speaker”.

MSS special features

• Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound sources
• USB-powered (via PC/laptop USB port or 5V DC power supply)
• Compact design
  • Volume control
• Glossy black surface
• Power LED
• Plastic speaker cabinets

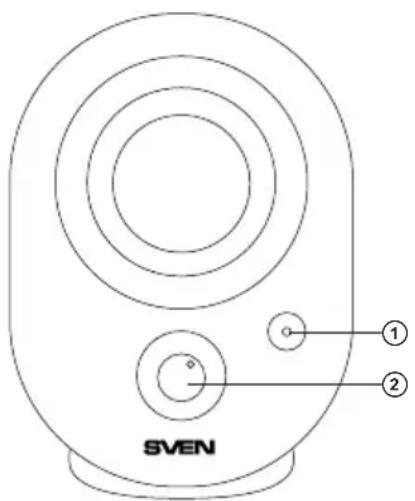

Control panel

① Power LED

② Volume control knob

Fig. 1. Control panel

5. PREPARATION AND OPERATION

Speaker placement

• Place the speakers symmetrically to the listener at least one meter away.
• Place MSS far away from monitors and TV sets, as insignificant image distortion in these supersensitive devices is possible.

MSS Connecting

SVEN 316 USB Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC sound card, etc. (see connection diagram, Fig. 2).

• Before connecting, make sure that the MSS is unplugged. Insert the 3.5 mini-jack signal cable built into the active speaker into the sound source audio output (see Fig. 2).
• Set the master volume level to its minimum by turning the volume control knob ② counterclockwise until it stops.
• Plug the USB cable to the USB port of your PC or laptop, or your 5V DC power supply. The power LED ① will illuminate. Turn on your audio source.
• Adjust the master volume level with the volume control knob ②. To increase the volume, turn the knob clockwise; to reduce the volume, turn it counterclockwise.

Notes:

• After using the MSS, mind to unplug it.
• To enhance sound quality, use the Line Out port of your soundcard.

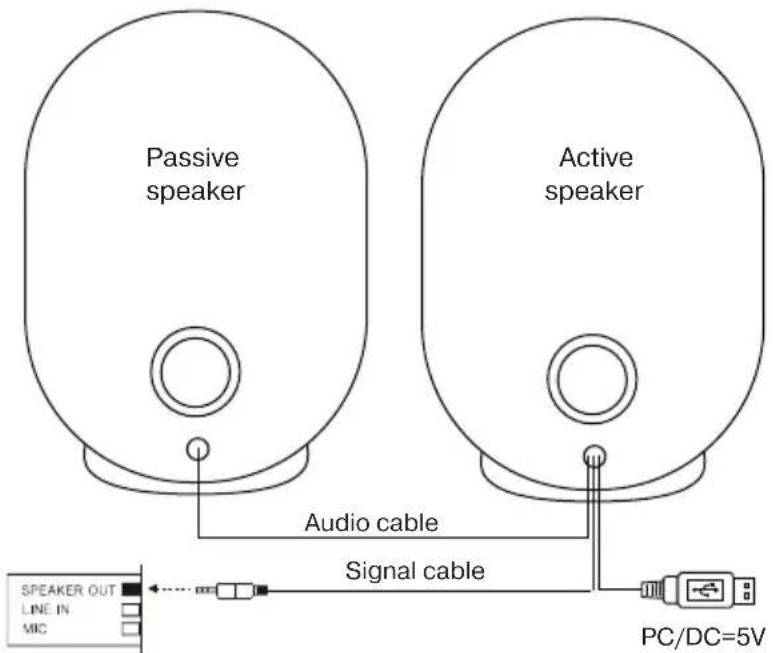

Fig. 2. Connection diagram

1. TROUBLESHOOTING

Problem	Cause	Solution
The MSS does not turn on.	The MSS isn’t connected to a mains outlet.	Check the connection.
	The power switch is off.	Turn on the switch.
No sound or there is too quiet sound of speakers.	Volume level is set at its minimum value.	Adjust the volume control knob.
	Improperly connected audio source.	Connect audio sources correctly.
Distortion of sound.	Large amplitude of the input signal.	Turn down the source volume and the MSS volume.

If none of the above methods can solve the problem, please seek professional advice at your nearest service center. Never attempt to repair the product yourself.

1. TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Output power (RMS), W	4 (2 × 2)
Frequency range, Hz	100 – 20,000
Speaker diameter, mm	Full-range ∅ 44
Power supply, V	USB/DC 5
Dimensions (one speaker) (W × H × D), mm	87 × 125 × 87
Weight, kg	0.4

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

Two black audio/video headsets with visible sound waves and speaker labels (no text-heavy elements)

Модель: SVEN-316

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.

SVEN 316
