USER MANUAL PS-77 Sven

Black octagonal device with white outline and 'SVEN' logo on front (no additional text or symbols)

Black octagonal device with white outline and 'SVEN' logo on front (no additional text or symbols)

Black octagonal foam device with white outline and 'SVEN' logo on front (no additional text or symbols)

Congratulations on your purchase of the SVEN speaker system!

COPYRIGHT

© 2018. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

CONTENTS

RUS 2

UKR 7

ENG 13

UNPACKING

• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equipment.

APPLICATION

SVEN PS-77 portable multimedia speaker system with Bluetooth and FM-radio is designed for operation with PC, notebooks and other mobile devices by means of data transfer via Bluetooth protocol. They can be also used in internet telephony, during video conferences, in multimedia applications, in interactive games. FM-tuner and the player with micro SD-cards are included.

PACKAGE CONTENTS

• Speaker system - 1 pc
• Mini-jack to mini-jack signal cable - 1 pc
• USB to microUSB power cable - 1 pc
• Carabine - 1 pc
• User's Manual - 1 pc
  • Warranty card - 1 pc

SPECIAL FEATURES

• Bluetooth wireless signal transmission
  • Built-in player for audio files from micro SD card
  • Built-in FM tuner
  • Wired connection
• Waterproof (IPx5)

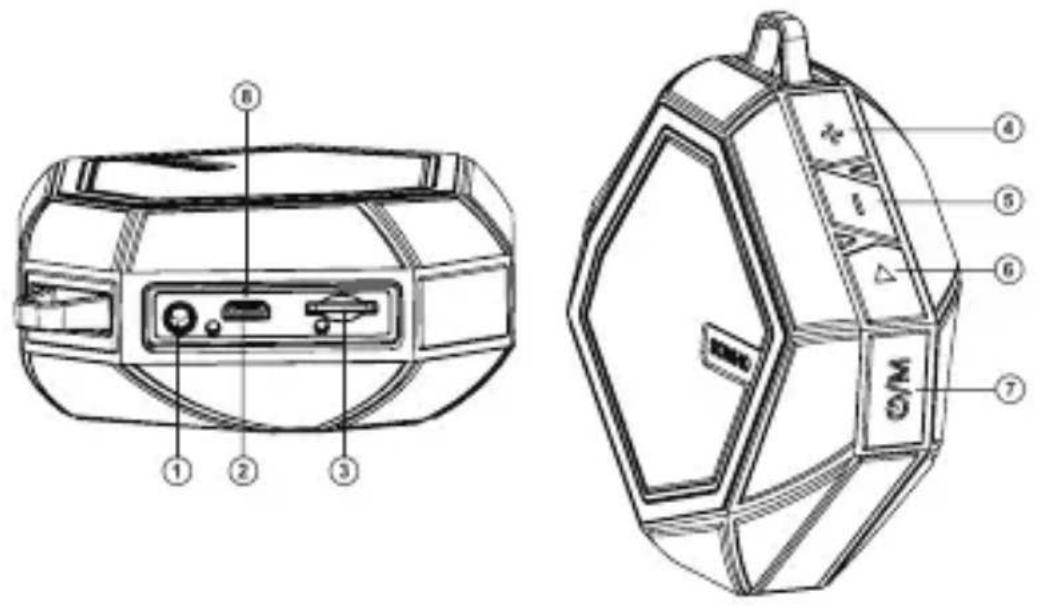

Speaker system description

① Signal source wired connection jack
② MicroUSB jack for connecting speakers to the charger, the USB port of laptop / PC
③ TF Card slot

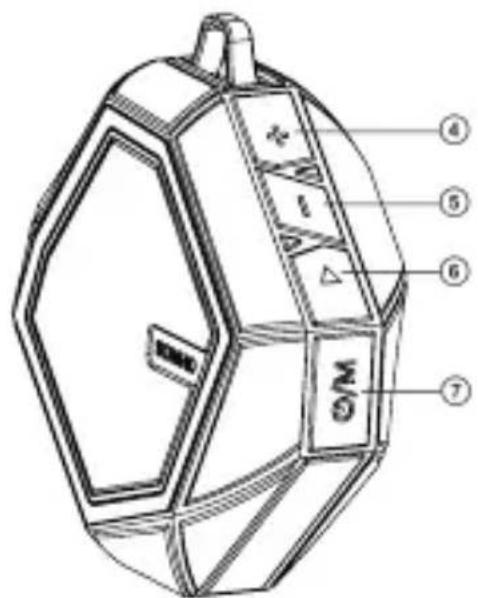

④ Volume level up button (long pressing);
Next track (in Player, AUX and Bluetooth mode);
Next station (in Radio mode)
⑤ Volume level down button (long pressing);
Previous track (in Player and Bluetooth mode);
Previous station (in Radio mode)
⑥ Play/Pause button (in Player and Bluetooth mode);
Start/Stop auto scan (long pressing in Radio mode);
Mute (short pressing in Radio mode);
Answer an incoming call. Press again to reset the incoming call
⑦ Switching modes button: Bluetooth/Radio / Player/ AUX (short pressing);
POWER button (long pressing)
⑧ Operation mode indicator

Fig. 1. Speaker system description

Attention! The built-in battery must be charged completely prior to the application.

Speaker system battery charging

• Connect speaker system to a USB port of PC or USB charger using microUSB to USB cable (included). During battery charging the indicator is red. Indicator lights green when the battery is charged.
• The battery is used in the speaker system as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.

OPERATION MODES

Bluetooth mode

• Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible devices. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer.
• Turn on the speakers in Bluetooth mode.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). «SVEN PS-77» massage will be displayed on the screen which is to be connected to*.
• When connection is successful, there will be a short beep and the indication of the search mode on speaker system is over**.

Radio mode

To improve the reception quality of the radio signal, connect the cable microUSB - USB (included) to the input microUSB.

- Turn on the speaker system – press button ⑦ several times until speaker system does not go to radio mode. Long press of a button ⑥ activates auto search mode. After scanning completion, the first scanned radio station will start to operate automatically. With buttons ④ and ⑤ select a desired radio station.


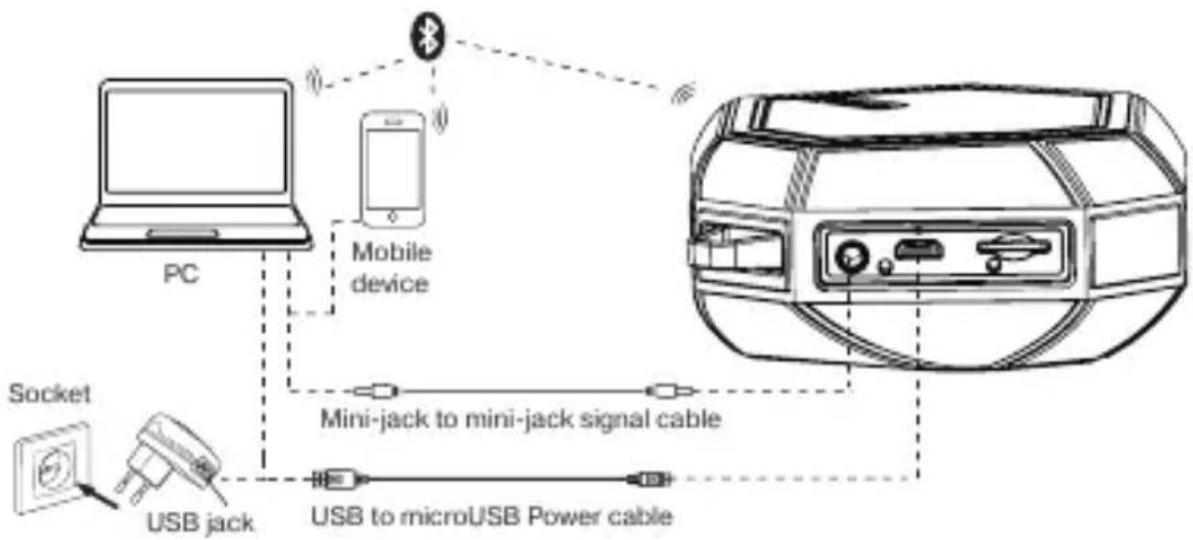

Fig. 2. Connection diagram

Player mode

Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not recommended to use the micro SD Ultra Speed.

- The system will enter the Player mode automatically when a carrier micro SD is connected to corresponding ports. Use button ⑥ to switch between Play / Pause modes. You can control tracks by using buttons ⑤ (previous track) and ④ (next track).

The use in the wired mode (AUX)

- To connect the speakers to an additional signal source use a AUX connector and 3.5 mm mini-jack signal cable (not included).

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Frequency range, Hz	speaker: 120 – 20,000; microphone: 50 – 16,000
Output power (RMS), W:	5
Membrane, mm	∅ 45
Radius of Bluetooth operation, m	up to 10
Battery capacity, mA / h	600
Power supply, V	USB/DC5
Weight, g	210
Dimensions, mm	86 × 86 × 41

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

Octagonal-shaped object with a white hexagonal outline and 'SPAY' text inside (no other symbols or text)

Модель: PS-77

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, No 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
