USER MANUAL PS-400 Sven
Portable Speaker System with Bluetooth and FM-radio
USER MANUAL


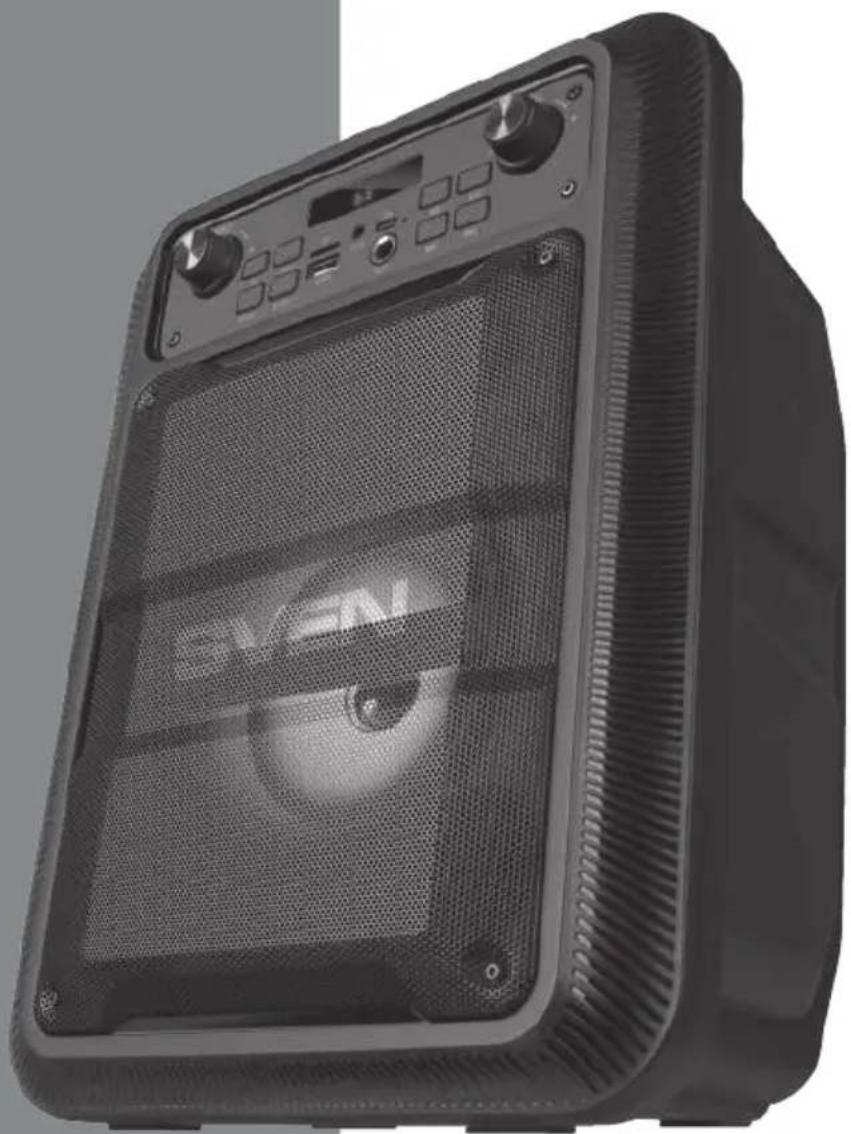

Black electronic device with mesh grille and control knobs, no visible text or symbols on bodyPS-400
www.sven.fi
SVEN®
Portable Speaker System with Bluetooth and FM-radio
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2021. SVEN PTE. LTD. Version 1.0 (24.09.2021).
This Manual and information contained in it are copyrighted. All rights reserved.
CONTENTS
ENG 2
RUS....6
UKR....11
BUYER RECOMMENDATIONS
- Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
- Shipping and transportation equipment is permitted only in the original container.
- Does not require special conditions for realization.
- Dispose of in accordance with regulations for the disposal of household and computer equipment.
- The date of manufacture of the product is indicated on the box.
APPLICATION
SVEN PS-400 portable multimedia speaker system with Bluetooth and FM-radio is designed for operation with PC, notebooks and other mobile devices by means of data transfer via Bluetooth protocol. It can be also used in internet telephony, during video conferences, in multimedia applications, in interactive games, for speech recognition and foreign language teaching. Microphone input with echo function, FM-tuner and the player with USB-flash and micro SD-cards are included.
PACKAGE CONTENTS
- Speaker system - 1 pc
- 3.5 mm mini-jack to 3.5 mm mini-jack signal cable - 1 pc
- USB to micro USB power cable – 1 pc
- User Manual - 1 pc
- Warranty card - 1 pc
SPECIAL FEATURES
- Wired/wireless audio signal transmission (Bluetooth)
• Effective multi-colored lighting - Wireless connection of two speakers to one source
• Built-in player for audio files from USB-flash and micro SD card - Built-in equalizer
- Microphone input with echo function
• Built-in FM tuner - LED display
User Manual
PS-400

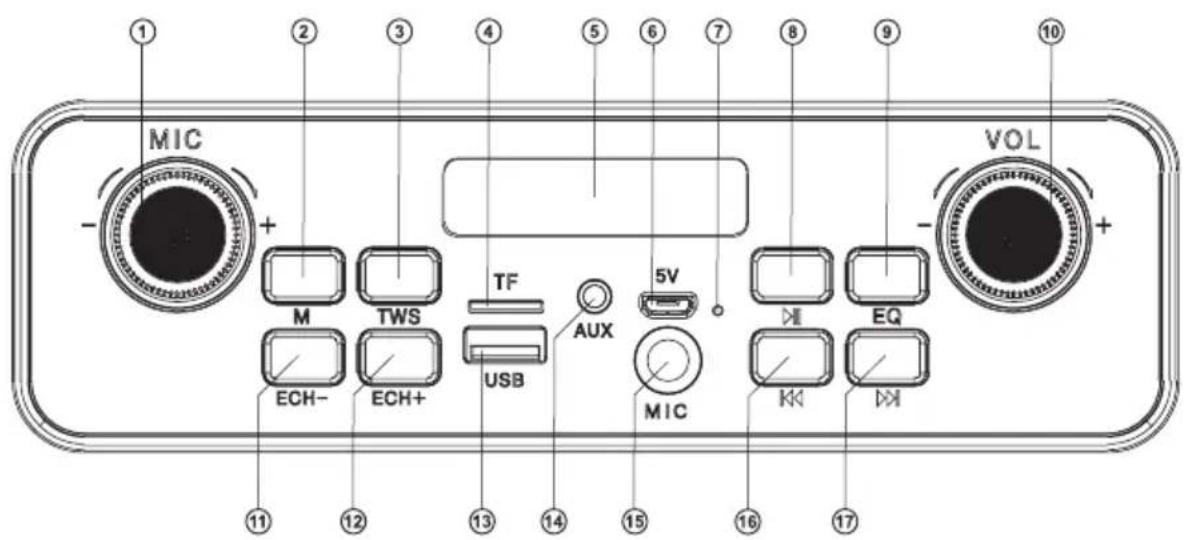

Speaker system description
① MIC +/-: microphone volume control knob
② M: switching modes button: Bluetooth/Radio/Player/LINE IN
③ TWS: connecting an additional speaker (short pressing in Bluetooth mode)
④ TF: micro SD card slot
⑤ Display
⑥ 5V: micro USB jack for charger connecting, the USB port of laptop/PC
⑦ Indicator
⑧ ▶: previous track (short pressing in Player and Bluetooth mode); Navigation on the track (long pressing in Player mode);
Previous track/station (in Radio mode);
Disconnect from device (long pressing in Bluetooth mode);
Repeat mode selection button (long pressing in Player mode):
ONE - repeats the current track;
RND - play tracks in the random order;
ALL – plays all tracks in the sequential order;
FOD - playing tracks inside a folder
⑨ EQ: EQ mode switch button (short pressing);
Turning on/off the backlight (long pressing)
⑩ VOL +/-: volume control knob, power button
⑪ ECH-: microphone echo adjustment knob
⑫ ECH+: microphone echo adjustment knob
⑬ USB: USB-flash card slot
⑭ AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
⑮ MIC: 6.3 mm jack microphone jack
⑯: previous track (short pressing in Player and Bluetooth mode);
Navigation on the track (long pressing in Player mode); Previous track/station (in Radio mode)
⑰: next track (short pressing in Player and Bluetooth mode);
Navigation on the track (long pressing in Player mode); Next track/station (in Radio mode)
Fig.1.
Attention! The built-in battery must be charged completely prior to the application.
Speaker system battery charging
- Connect speaker system to a USB port of PC or USB charger using micro USB to USB cable (included). During battery charging the indicator ⑦ is red. Indicator ⑦ goes out when the battery is charged.
- The battery is used in the speaker system as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.
OPERATION MODES
Bluetooth mode
- Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible
devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer. - Turn on the speaker system Bluetooth mode – press button M ② several times until display shows «bt» inscription.
- It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). «SVEN PS-400» massage will be displayed on the screen which is to be connected to*.
- When connection is successful, there will be a short beep and the indication of the search mode on speaker system is over**.
Radio mode
Attention! To improve the reception quality of the radio signal, connect the 3.5 mm mini-jack cable (included) to the AUX input ⑭ or USB-microUSB cable (included) to 5V input ⑥ .
- Turn on the speaker system – press button M ② several times until the display shows the station frequency. Long-term pressing button ⑧ activates auto search mode. After scanning completion, the first scanned radio station will start to operate automatically. With buttons ⑯ and ⑰ select a desired radio station.
Player mode
Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB.
It is not recommended to use the micro SD Ultra Speed.
- The system will enter the Player mode automatically when a carrier (USB flash or SD card) is connected to corresponding ports. Use button ⑧ to switch between Play/Pause modes. You can control tracks by using buttons ⑯ (previous track) and ⑰ (next track).
The use in the wired mode (LINE IN)
- Speaker system can be used as an external device for amplifying any audio source with a 3.5 mm output mini-jack. Connect a cable mini USB, plug 3.5 mini-jack to the audio input AUX ⑭. Turn the speakers to the LINE IN mode – press the M button ② several times until «LINE» appears on the display.
User Manual
PS-400
Connecting an additional speaker
For «SVEN PS-400» you can connect an additional speaker (Bluetooth mode only):
- Turn both speakers into Bluetooth mode.
- Connect the signal source to one of the speakers via Bluetooth (the second column should be in search mode).
- On another speaker press button TWS.


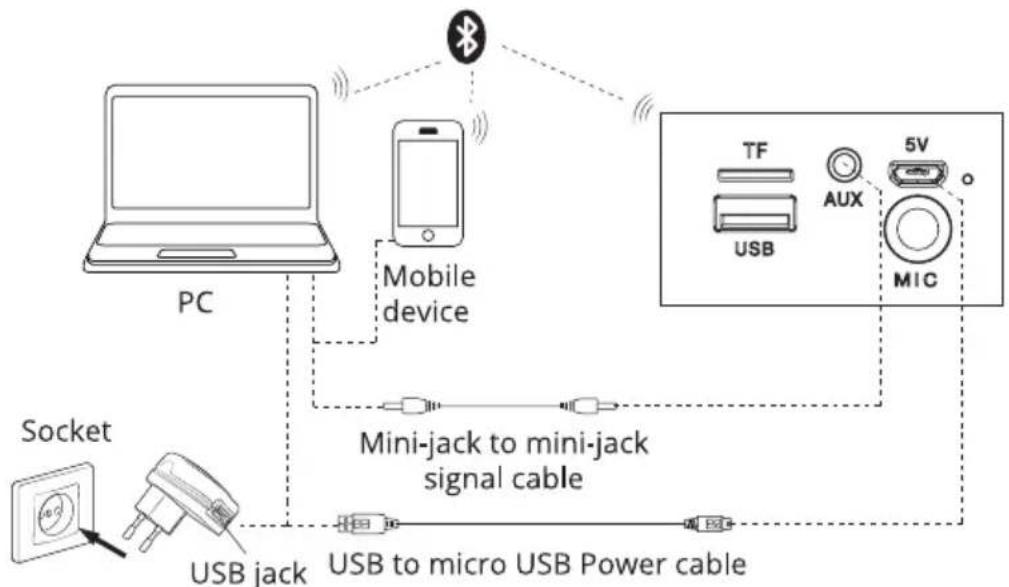

Fig. 2. Connection diagram
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit Value | |
| Frequency response, Hz 100 – 20 000 | |
| Output power (RMS), W 12 | |
| Speaker diameter, mm ∅ 108 | |
| Battery capacity, mA*h 1 200 | |
| Rated current consumption, A 0.20 | |
| Power supply USB/== 5V | |
| Weight, g 1 400 | |
| Dimensions, mm 252 × 330 × 177 |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.
Technical support is on www.sven.fi.
SVEN®
Portable Speaker System with Bluetooth and FM-radio
SVEN®
Model: PS-400
Importer: Tiralana OY, Office 102, Kotolahden- tie 15, 48310 Kotka, Finland.
Модель: PS-400
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
