Product Type	Portable Bluetooth Speaker
Brand	Sven
Model	PS-192
Dimensions	200 x 100 x 80 mm
Weight	0.5 kg
Power Output	10W RMS
Frequency Response	80 Hz - 20 kHz
Signal-to-Noise Ratio	≥ 80 dB
Battery Capacity	2000 mAh
Bluetooth Version	5.0
Bluetooth Range	10 m
Inputs	AUX 3.5 mm, USB (for media)
Card Slot	microSD up to 32 GB
Controls	Power, Volume +/-, Play/Pause, Next/Previous, Mode
Charging Port	Micro USB
Water Resistance	IPX5
Included Accessories	USB charging cable, AUX cable, manual
Maintenance	Clean with a soft dry cloth; avoid liquids
Safety	Do not disassemble; keep away from water and heat
Repairability	Contact service center; no user-serviceable parts

Frequently Asked Questions - PS-192 Sven

How do I pair the speaker with my phone via Bluetooth?

Turn on the speaker by pressing and holding the power button. The indicator will flash blue. On your phone, enable Bluetooth and select 'Sven PS-192' from the list. If prompted, enter 0000 as the PIN.

What should I do if there is no sound from the speaker?

Check that the speaker is powered on and the volume is turned up. Ensure your device is connected via Bluetooth or AUX cable. Try re-pairing or using a different source.

How long does the battery last on a full charge?

The built-in 2000 mAh battery provides up to 6 hours of playback at moderate volume. Actual battery life may vary depending on volume level and audio content.

How do I charge the speaker?

Connect the included Micro USB cable to the charging port on the speaker and the other end to a USB power adapter (5V/1A). The indicator will turn red while charging and turn off when fully charged.

Can I play music from a microSD card?

Yes, insert a microSD card (up to 32 GB) into the card slot. The speaker will automatically switch to SD card mode and play MP3 files. Use the Next/Previous buttons to navigate tracks.

Is the speaker waterproof?

The speaker has an IPX5 rating, meaning it is splash-proof. It can withstand light rain or splashes, but should not be submerged in water.

How do I switch between Bluetooth, AUX, and microSD modes?

Press the Mode button repeatedly to cycle through the available modes: Bluetooth, AUX, and microSD. The corresponding indicator will show which mode is active.

Can I connect two speakers together for stereo sound?

No, the Sven PS-192 does not support True Wireless Stereo pairing. It is a single mono speaker.

What should I do if the speaker does not turn on?

Ensure the battery is charged. Connect the charger and wait a few minutes before trying to power on. If still not working, try a different USB cable or adapter. If the problem persists, contact support.

How do I clean and maintain the speaker?

Use a soft, dry cloth to wipe the exterior. Avoid using any liquids or chemicals. Store the speaker in a dry place at room temperature.

USER MANUAL PS-192 Sven

Exterior view of a modern rectangular electronic device with textured surface and 'SVEN' logo on front (no other text or symbols visible)

PS-192

PS-195

www.sven.fi

Puc. 1.

SVEN®

Мал. 1.

Congratulations on your purchase of the SVEN speaker system!

COPYRIGHT

© 2020. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS....2

UKR 7

ENG 12

BUYER RECOMMENDATIONS

- Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once. - Check up the package contents and availability of the warranty card. Make sure the warranty card has a shop stamp, a legible signature or the seller's stamp and purchase date, and the goods number corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy of numbers you forfeit the right for warranty repairs.

- Before installing and using the speaker system, read this Manual carefully and keep it for future reference.

- Shipping and transportation equipment is permitted only in the original container.

- Does not require special conditions for realization.

- Dispose of in accordance with regulations for the disposal of household and computer equipment.

APPLICATION

SVEN PS-192, PS-195 portable multimedia speaker systems with Bluetooth and FM-radio is designed for operation with PC, notebooks and other mobile devices by means of data transfer via Bluetooth protocol. It can be also used in Internet telephony, during video conferences, in multimedia applications, in interactive games, for speech recognition and foreign language teaching. FM-tuner and the player with USB-flash and micro SD-cards are included.

PACKAGE CONTENTS

• Speaker system — 1 pc
• 3.5 mm mini-jack to 3.5 mm mini-jack signal cable — 1 pc
• USB to micro USB power cable — 1 pc
• User Manual — 1 pc
• Warranty card — 1 pc

Technical support is on www.sven.fi.

SPECIAL FEATURES

• Bluetooth wireless signal transmission
• Fast Bluetooth connection via NFC
• Wireless connection of two speakers to one source
  • Built-in audio files player from USB-flash and microSD card storage devices
  • Built-in FM tuner

- Wired connection

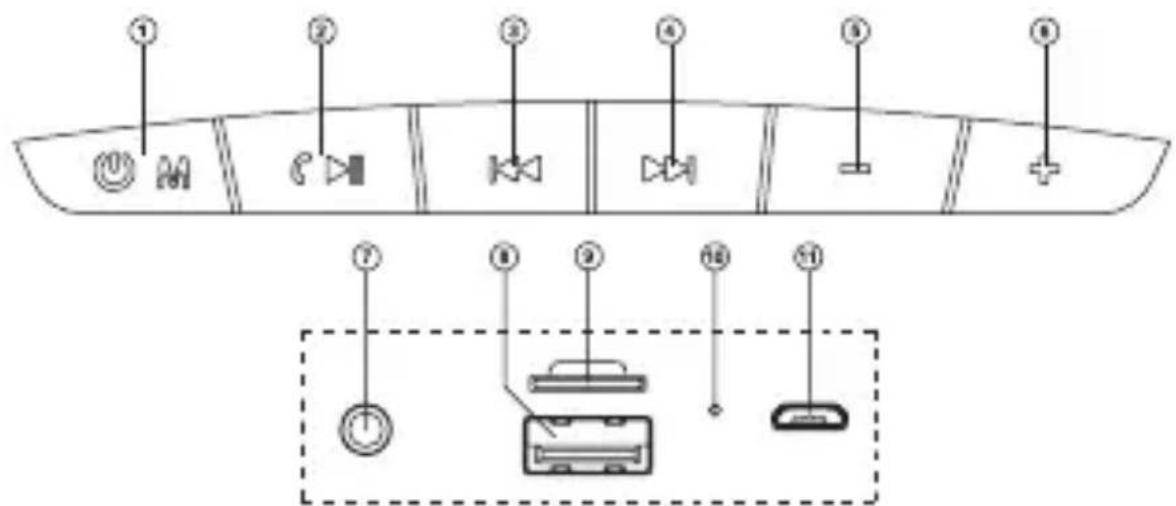

Speaker system description

① Switch mode button: Bluetooth/FM/Player/LINE (short pressing);
POWER button (long pressing)

② Play/Pause (short pressing in Player and Bluetooth mode);

Mute (short pressing in Radio and LINE mode);

Disconnecting from the sound source (long pressing in Bluetooth mode);

Automatic scan of radio stations (long pressing in Radio mode);

Connecting an additional speaker (long pressing)

③: Next track (in Player and Bluetooth mode); Next station (in Radio mode)

④ DCK: Next track (in Player and Bluetooth mode); Next station (in Radio mode)

⑤ : Volume decrease

⑥ : Volume increase

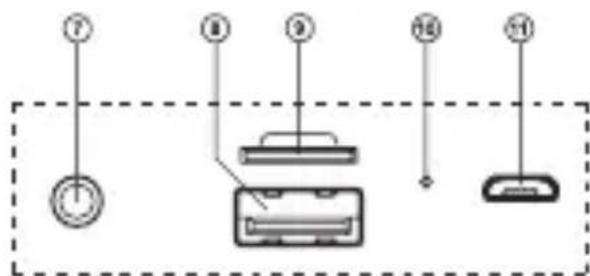

⑦ 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)

⑧ USB flash connector

⑨ Micro SD card slot

⑩ Indicator

⑪ Micro USB jack for connecting speakers to the charger, the USB port of laptop/PC

Attention! The built-in battery must be charged completely prior to the application. Speaker system battery charging

- Connect speaker system to a USB port of PC or USB charger using micro USB to USB cable (included). When charging, the indicator ⑩ lights up in red. Indicator ⑩ goes out if the battery is charged.

- The battery is used in the speaker system as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.

Fig. 1.

OPERATION MODES

Bluetooth mode

• Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer.
• Turn on the speakers in Bluetooth mode – press the button ① repeatedly until the indicator ⑩ blinks blue short.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (telephone, notebook, smartphone, etc.). «SVEN PS-192/195» massage will be displayed on the screen which is to be connected to*.
• When connection is successful, there will be a short beep and the indication of the search mode on speaker system is over**.

Connecting to the speaker via Bluetooth using NFC

Attention! To connect the speaker to a smartphone, the smartphone must be equipped with an NFC chip. It must be enabled in the wireless settings.

• Turn on the speakers in Bluetooth mode – press the button ① repeatedly until the indicator ⑩ blinks blue short.
• Hold the phone close to the NFC mark on the top panel and wait for a short beep to confirm a successful speaker connection.

Note. You need to allow connections on the phone (depending on the phone's operating system).

Radio mode

To improve radio reception, connect USB-microUSB cable (included) to the input ⑪ or signal cable to the input ⑦.

- Turn on the speaker system – press button ① several times until, the radio mode will turn on. Long-term pressing button ② activates auto search mode. After scanning completion, the first scanned radio station will start to operate automatically. With buttons ③ and ④ select a desired radio station.

MP3 player mode

Attention! The file system of a micro SD or USB flash carrier is FAT32. Maximum volume is 32 GB. It is not recommended to use the micro SD Ultra Speed.

- Insert the USB flash or micro SD carrier into appropriate slot. If the speaker system is in turned on position, the playback will start automatically. Playback/Pause modes are switched over with the help of the button ②. Tracks can be controlled by buttons ③ (previous track) and ④ (next track).

Connecting an additional speaker

It is poddible to connect an additional speaker to the model «SVEN PS-192/195» (Bluetooth mode only):

Attention! Before connecting an additional speaker, disconnect both speaker from signal source.


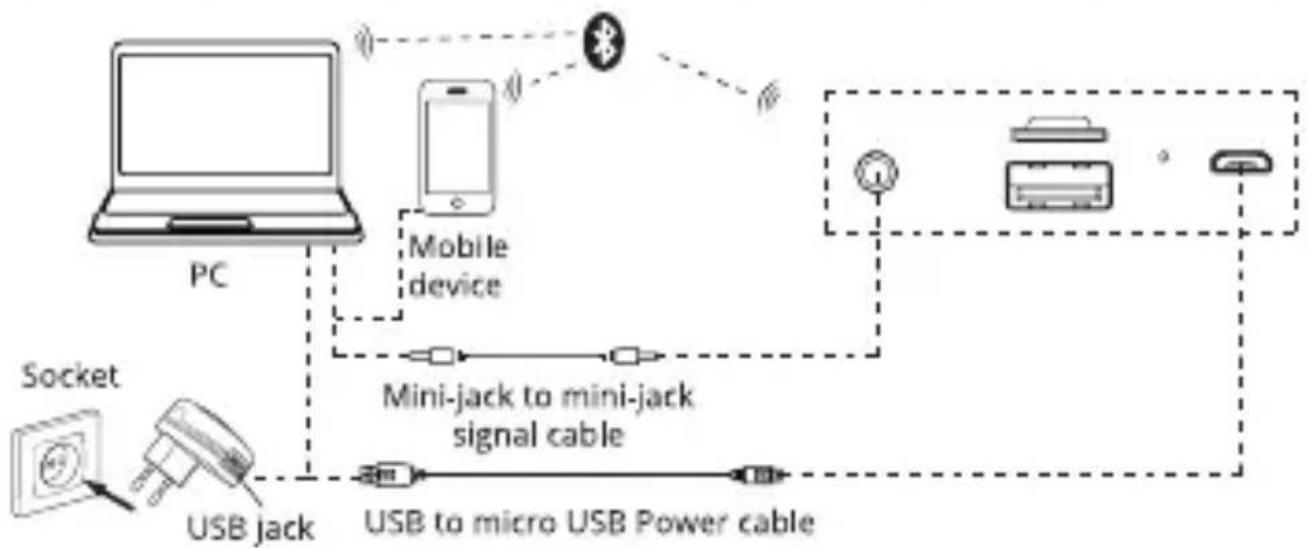

Fig. 2. Connection diagram

• Turn on both speakers (long press button ①) and select Bluetooth mode. On both speakers indicator ⑩ will flash white flashes.
• On one of the speakers, press and hold the button ② until a beep sounds, then release it. The speakers will connect with each other.

Note. At the subsequent inclusion of both speakers, they will be connected automatically.

The use in the wired mode (AUX)

- Speaker system can be used as an external device for amplifying any audio source with a 3.5 mm output mini-jack. To do this, connect a cable 3.5 mini-jack – 3.5 mini-jack to the audio output AUX ⑦.

TECHNICAL SPECIFICATIONS

Parameter, measurement unit Value
Frequency range, Hz 100-20000
Output power (RMS), W 16 (2 × 8)
Membrane, mm ∅ 45
Radius of operation Bluetooth, m up to 10
Battery capacity, mA*h 2400
Power supply USB /	—5 V
Weight, g 850
Dimensions, mm 238 × 76 × 84

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.

Модели: PS-192, PS-195

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.

EACCE

PS-192 PS-195
