USER MANUAL EY-3743 PANASONIC

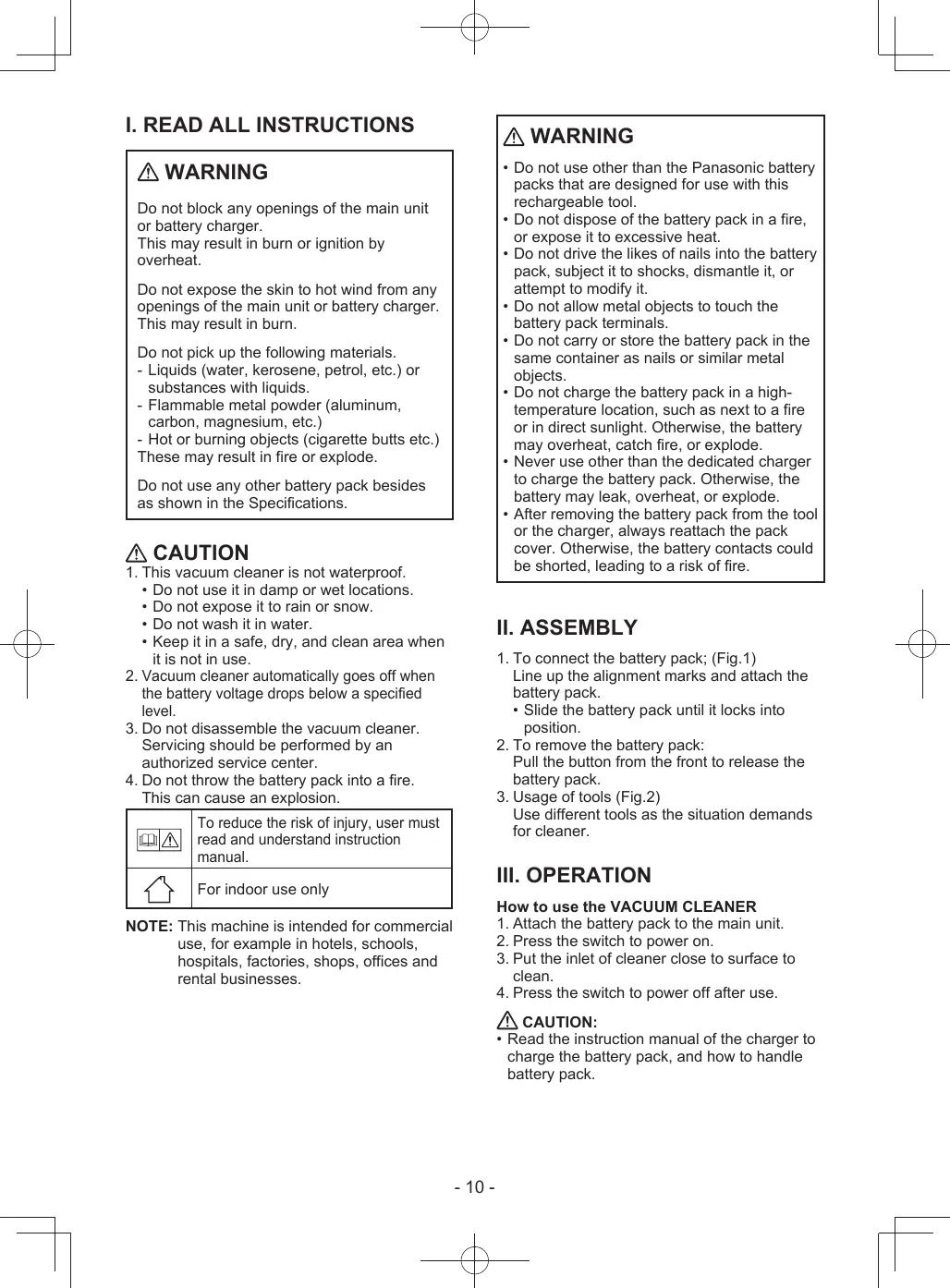

CAUTION Please read the instruction manual before using the machine, and save this manual for future use.

• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is only to be used with the power supply unit (battery pack) provided with the appliance.
• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

WARNING

Operators shall be adequately instructed on the use of these machines.

This machines is not suitable for picking up hazardous dust.

This machines is for dry use only.

CAUTION

This machine is for indoor use only.

This machine shall be stored indoor only.

NOTE: Battery pack and charger are not included in this kit.

Do not block any openings of the main unit or battery charger. This may result in burn or ignition by overheat.

Do not expose the skin to hot wind from any openings of the main unit or battery charger. This may result in burn.

Do not pick up the following materials.

• Liquids (water, kerosene, petrol, etc.) or substances with liquids.
• Flammable metal powder (aluminum, carbon, magnesium, etc.)
• Hot or burning objects (cigarette butts etc.)
  These may result in fire or explode.

Do not use any other battery pack besides as shown in the Specifications.

CAUTION

1. This vacuum cleaner is not waterproof.

2. Do not use it in damp or wet locations.

3. Do not expose it to rain or snow.
4. Do not wash it in water.

5. Keep it in a safe, dry, and clean area when it is not in use.

6. Vacuum cleaner automatically goes off when the battery voltage drops below a specified level.

7. Do not disassemble the vacuum cleaner. Servicing should be performed by an authorized service center.
8. Do not throw the battery pack into a fire. This can cause an explosion.

To reduce the risk of injury, user must read and understand instruction manual.

For indoor use only

NOTE: This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

WARNING

• Do not use other than the Panasonic battery packs that are designed for use with this rechargeable tool.
• Do not dispose of the battery pack in a fire, or expose it to excessive heat.
• Do not drive the likes of nails into the battery pack, subject it to shocks, dismantle it, or attempt to modify it.
• Do not allow metal objects to touch the battery pack terminals.
• Do not carry or store the battery pack in the same container as nails or similar metal objects.
• Do not charge the battery pack in a high-temperature location, such as next to a fire or in direct sunlight. Otherwise, the battery may overheat, catch fire, or explode.
• Never use other than the dedicated charger to charge the battery pack. Otherwise, the battery may leak, overheat, or explode.
• After removing the battery pack from the tool or the charger, always reattach the pack cover. Otherwise, the battery contacts could be shorted, leading to a risk of fire.

II. ASSEMBLY

1. To connect the battery pack; (Fig.1) Line up the alignment marks and attach the battery pack.

2. Slide the battery pack until it locks into position.

3. To remove the battery pack: Pull the button from the front to release the battery pack.

4. Usage of tools (Fig.2) Use different tools as the situation demands for cleaner.

III. OPERATION

How to use the VACUUM CLEANER

1. Attach the battery pack to the main unit.
2. Press the switch to power on.
3. Put the inlet of cleaner close to surface to clean.
4. Press the switch to power off after use.

CAUTION:

• Read the instruction manual of the charger to charge the battery pack, and how to handle battery pack.

IV. MAINTENANCE

• To make any adjustments, changing accessory, or storing the vacuum cleaner, remove battery pack from the vacuum cleaner.
• To clean the vacuum cleaner, wipe with a dry, soft cloth.

How to empty dust cup (Fig.4)

1. Switch off the vacuum cleaner.
2. Remove the dust cup from the main unit while pushing the button for attaching or removing dust cup. (a)
3. Pull out the dust filter from the dust cup by holding a tab. (b)
4. Empty the dust cup. (c)
5. Attach filters into the dust cup.
6. Fit the tab for fixing dust cup into the groove of main unit, and attach the dust cup to the main unit until it clicks. (d)

V. ACCESSORIES

Battery Pack

See the Specification.

Battery Charger

• For inquiries please contact an authorized dealer.

NOTE: Battery pack and charger are not included in this kit.

[Battery Pack]

For Appropriate Use of Battery Pack

• For optimum battery life, store the Li-ion battery pack following use without charging it.
• When charging the battery pack, confirm that the terminals on the battery charger are free of foreign substances such as dust and water etc. Clean the terminals before charging the battery pack if any foreign substances are found on the terminals.

The life of the battery pack terminals may be affected by foreign substances such as dust and water etc. during operation.

• When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause sparks, burns or a fire.

• When operating the battery pack, make sure the work place is well ventilated.

Battery Pack Life

The rechargeable batteries have a limited life. If the operation time becomes extremely short after recharging, replace the battery pack with a new one.

Battery Recycling

NOTE:

For environmental protection and recycling of materials, be sure that it is disposed of at an officially assigned location, if there is one in your country.

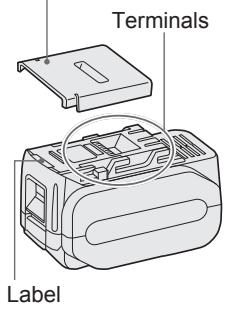

Recommendations for use

Pack cover

Be sure to use the Pack cover

• When the battery pack is not being used, store the battery in a way that foreign substances such as dust and water etc. do not contaminate the terminals. Be sure to attach the battery pack cover to protect the battery terminals.
• When charging the battery pack, confirm that the terminals on the battery charger are free of foreign substances such as dust and water etc. Clean the terminals before charging the battery pack if any foreign substances are found on the terminals.

The life of the battery pack terminals may be affected by foreign substances such as dust and water etc. during operation.

CAUTION: To protect the motor or battery, be sure to note the following when carrying out operation.

• If the battery becomes hot, the protection function will be activated and the battery will stop operating.

For safe use

• The battery pack is designed to be installed by proceeding two steps for safety. Make sure the battery pack is installed properly to the main unit before use.
• Connect the battery pack into the body of the tool until the red or yellow label disappears.

[Battery Charger] Charging

CAUTION:

• If the temperature of the battery pack falls approximately below -10^ ( 14^ ), charging will automatically stop to prevent degradation of the battery.
• The ambient temperature range is between 0^ (32^) and 40^ (104^) . If the battery pack is used when the battery temperature is below 0^ (32^) , the tool may fail to function properly.
• When charging a cool battery pack (below 0^ ( 32^ )) in a warm place, leave the battery pack at the place and wait for more than one hour to warm up the battery to the level of the ambient temperature.
  Cool down the charger when charging more than two battery packs consecutively.
• Do not insert your fingers into contact hole, when holding charger or any other occasions.

To prevent the risk of fire or damage to the battery charger.

• Do not use power source from an engine generator.
• Do not cover vent holes on the charger and the battery pack.
• Unplug the charger when not in use.

NOTE:

Your battery pack is not fully charged at the time of purchase. Be sure to charge the battery before use.

How to charge

1. Plug the charger into the AC outlet.

NOTE:

Sparks may be produced when the plug is inserted into the AC power supply, but this is not a problem in terms of safety.

1. Connect the battery pack firmly into the charger.

2. During charging, the charging lamp will be illuminated. When charging is completed, an internal electronic switch will automatically be triggered to prevent overcharging.

3. Charging will not start if the battery pack is warm (for example, immediately after heavy-duty operation). The orange standby lamp will be flashing until the battery cools down. Charging will then begin automatically.

4. The charge lamp (green) will flash slowly once the battery is approximately 80% charged.

5. When charging is completed, the charging lamp in green color will turn off.

6. If the temperature of the battery pack is 0^ or less, charging takes longer to fully charge the battery pack than the standard charging time. Even when the battery is fully charged, it will have approximately 50% of the power of a fully charged battery at normal operating temperature.

7. Consult an authorized dealer if the charging lamp (green) does not turn off.
8. If a fully charged battery pack is connected into the charger again, the charging lamp lights up. After several minutes, the charging lamp in green color will turn off.

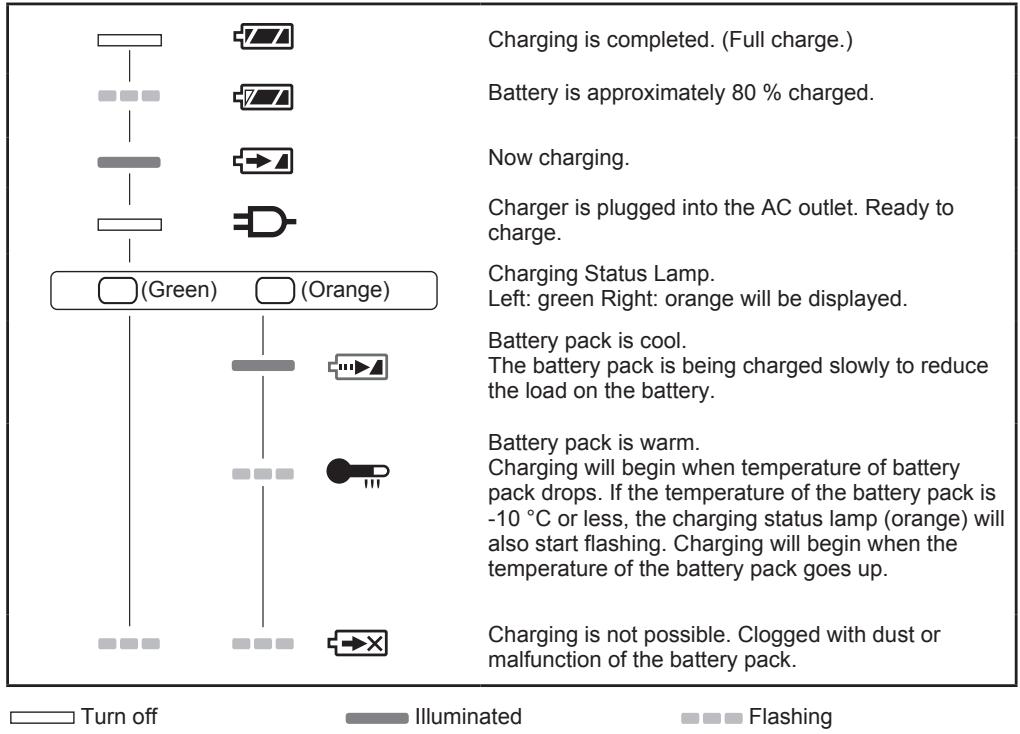

LAMP INDICATIONS

VI. SPECIFICATIONS

Model no.	EY3743
Capacity with a dust cup	180 ml
Voltage	DC 14.4 V
Size	366 mm × 143 mm × 107 mm (14-11/16" ×5-1/4" × 4-3/32")
Weight	950 g (main unit only)
Battery packs	Li-ion battery pack
	EY9L41	EY9L42	EY9L44	EY9L45
Battery voltage	DC 14.4 V
	3.6 V × 4 cells		3.6 V × 8 cells
Noise, Vibration	See the included sheet

NOTE: This chart may include models that are not available in your area.

Please refer to the latest general catalogue.

For the dealer name and address, please see the included warranty card.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

ONLY FOR U. K.

ELECTRICAL PLUG INFORMATION

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amp and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET. If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol 1一

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse and fuse cover if it is removable.

This apparatus was produced to BS800.

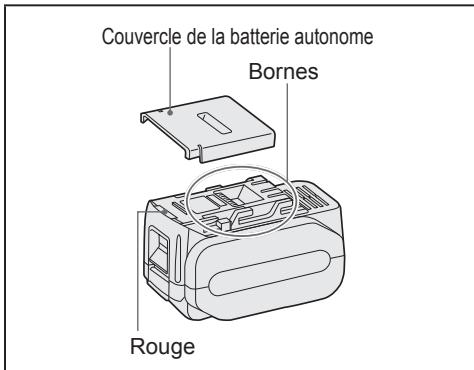

Recommendations concerning I'utilisation

Panasonic Testing Center

Winsbergring 15,

22525 Hamburg,

Germany

Panasonic Corporation

1006,Kadoma,Osaka 571-8501,Japan

http://panasonic.net
