Product type	Electric hair clipper (beard trimmer)
Brand	PANASONIC
Model	ER-GB40
Dimensions (L x W x H)	7.0 cm × 11.6 cm × 8.8 cm
Weight	245 g
Power supply	Rechargeable Ni-MH 1.2 V DC battery; AC adapter RE7-69 (RE7-74 for United Kingdom)
Charging time	Approximately 8 h (230 V~) or 10 h (240 V~)
Operating time	Approximately 50 minutes
Usage	Wet and dry (waterproof, usable in the shower)
Adjustable cutting length	1 mm to 10 mm (by dial, 19 positions)
Blade type	Fixed blade and removable steel blade
Included accessories	Comb attachment (cutting comb), oil, cleaning brush, AC adapter
Functions	Dry or wet cutting, mustache styling, sideburns, stubble
Maintenance	Rinse under running water, clean with brush, regular blade oiling
Safety	Automatic shut-off in case of overheating; turn off before changing the comb attachment
Repairability	Replaceable blade; battery not user-replaceable (removal for disposal)
General information	For household use; do not use on animals

Frequently Asked Questions - ER-GB40 PANASONIC

Can I use the trimmer in the shower?

Yes, the ER-GB40 trimmer is waterproof and can be used in the shower or bath. It can also be rinsed under running water.

How do I adjust the cutting length?

After attaching the comb, turn the dial to select the desired length, from 1 mm to 10 mm (19 positions). The trimmer must be turned off during adjustment.

What is the battery life?

A full charge provides approximately 50 minutes of use. The battery lifespan is about 3 years depending on usage frequency.

How do I clean the trimmer?

Remove the comb and blade. Rinse under running water or use the provided brush to remove hair. Apply oil to the blades after each cleaning for optimal cutting.

Can I use the trimmer while charging?

No, the trimmer cannot be used while charging. It must be disconnected from the AC adapter to operate.

What should I do if the trimmer does not start?

Check that the battery is charged, the ambient temperature is between 0 °C and 35 °C, and that the blades are not blocked. If the problem persists, contact an authorized service center.

How do I replace the blade?

Remove the worn blade by pushing it outward. Insert the new blade until it clicks. The blade lifespan is about 3 years (usage of 5 minutes, 10 times per month).

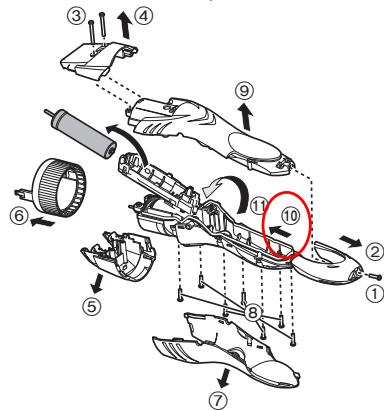

How do I remove the battery for disposal?

Follow the steps in the manual: remove the trimmer from the adapter, then disassemble the housing as instructed. Caution: do not short-circuit the battery. Take it to an appropriate collection point.

Can I use the trimmer without the comb?

Yes, without the comb, the trimmer cuts hair to about 0.5 mm. Ideal for close shaving under water or for outlining.

What oil should I use for the trimmer?

Use the oil provided with the device. If exhausted, a light trimmer oil (not specified) is suitable. Apply one drop to the indicated points before and after each use.

USER MANUAL ER-GB40 PANASONIC

Operating Instructions

(Household) Rechargeable Beard/Hair Trimmer

Model No. ER-GB40

English	2	Dansk	50	Česky	98
Deutsch	10	Português	58	Slovensky	106
Français	18	Norsk	66	Magyar	114
Italiano	26	Svenska	74	Română	123
Nederlands	34	Suomi	82	Türkçe	131
Español	42	Polski	90

Before operating this unit, please read these instructions completely and save them for future use.

Line drawing of a pair of hairless brushes with no text or symbols

Thank you for choosing a Panasonic trimmer. Please read all instructions before use.

Important

This trimmer has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

▶ Before use

This WET/DRY trimmer can be used for wet trimming or for dry trimming. You can use this watertight trimmer in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

▶ Using the trimmer

• Check that the blades are not damaged or deformed before use.
• Terminate usage when there is an abnormality or failure.
• Turn off the appliance before changing the trimming length or removing the comb attachment.
• Before and after each use, apply oil at the places marked with arrows. (See page 8.)
• The appliance should not be used on animals.
• Do not press the blade against the skin.
• Do not use the trimmer for any purpose other than trimming.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

▶ Charging the trimmer

• Never use the AC adaptor in the bathroom or shower room.
• Use the dedicated AC adaptor (RE7-69) (RE7-74 for the United Kingdom) only. Do not use the dedicated AC adaptor to charge other appliances.
• Charge the appliance in a location where it will not be exposed to direct sunlight or other heat sources, at temperatures of 0^ to 35^ .
• Plug in the AC adaptor into a household outlet where there is no moisture and handle it with dry hands.
• The trimmer may become warm during use and charging. However, this is not a malfunction.
• Hold the plug when disconnecting it from the household outlet. If you tug on the power cord, you may damage it.
• Do not use the trimmer if the power cord or the AC adaptor is worn, or if the plug does not fit snugly in the outlet.
• Do not damage or deform the power cord. Do not place heavy objects on the power cord or trap it between objects.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

▶ Cleaning the trimmer

Warning

Disconnect the plug from the household outlet before cleaning to prevent electric shock.

- The housing should not be taken apart as this can affect the watertight construction of the appliance.

• If you clean the trimmer with water, do not use salt water or hot water. Do not soak the trimmer in water for a long period of time.
• Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals.
• Do not wash the AC adaptor with water.
• Clean the power plug regularly to remove any dust or dirt.

▶ Storing the trimmer

• Store the trimmer in a place with low humidity after use.
• Do not store the trimmer where it will be exposed to direct sunlight or other heat sources.
• Remove the trimmer from the AC adaptor when storing it.
• Do not bend the power cord or wrap it around the AC adaptor.
• Store the AC adaptor in a dry area where it is protected from damage.
• Keep the oil away from children.

Parts identification

A

Diagram of a car's front view with numbered parts and a red circle highlighting the top section.

Line drawing of a backpack with a labeled part (⑤), no text or symbols present

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Main body

① Trimming height indicator
② Dial (Height adjustment control)
③ Side terminals
④ Power switch
⑤ Water inlet

B Blade block

⑥ Cleaning lever
⑦ Moving blade
⑧ Stationary blade
⑨ Mounting hook

C Comb attachment (1 mm to 10 mm)
D AC adaptor (RE7-69) (RE7-74 for the United Kingdom)
⑩ Charging terminals
⑪ Charge indicator lamp
⑫ Power cord

E Oil

F Cleaning brush

Charge

Charging the trimmer

Perform the following steps to charge the trimmer if it seems to lose the speed.

1 Turn off the trimmer and insert it in the AC adaptor until it clicks as illustrated.

1 2

• The trimmer will not charge unless the side terminals are in contact with the charging terminals.
• Wipe off any water droplets on the side terminals.
• If you charge the trimmer with power switch turned on, it will start working when you remove from the AC adaptor.

2 Put the plug into a household outlet.

The charge indicator lamp glows red.

• Charging time differs depending on the rated voltage. (See page 9.)
• When charging the trimmer for the first time or when it has not been in use for more than 6 months, the charge indicator lamp may not glow for a few minutes, or the operating time may shorten. Please charge it for more than 18 hours in such cases.

3 Disconnect the plug after charging is completed.

• To keep charging the battery will not affect battery performance.
• Recommended ambient temperature for charging is 0 - 35 °C. The battery may not charge properly or not at all under extreme low or high temperatures.
• The charge indicator lamp glows and stays on until the plug is disconnected from a household outlet.

4

- A full charge supplies enough power for approximately 50 minutes of use.

You cannot operate the trimmer while charging.

Use

Using the comb attachment

Make sure that the trimmer is turned off.

1 Turn the dial to the "1" position.

2 Mount the comb attachment to the main body until it clicks.

3 Turn the dial to move the comb attachment to the desired trimming length (between 1 mm and 10 mm).

Trimming length (mm)(estimate)	1	1.5	2	2.5	3	3.5	4	4.5	5	5.5
Indicator	1	1.5	2	2.5	3	3.5	4	4.5	5	5.5

Trimming length (mm)(estimate)	6	6.5	7	7.5	8	8.5	9	9.5	10
Indicator	6	6.5	7	7.5	8	8.5	9	9.5	10

- Actual hair length will be a little longer than the height you set.

Use

Using the trimmer

Make sure there is no damage to the blade.

We recommend using the trimmer in an ambient temperature range of 0 - 35 °C. If used outside this range, the appliance may stop operating.

Dry trimming

▶ Trimming with the comb attachment

Do not use with shaving creams applied or when the beard is wet.

1 Press the power switch to turn off the trimmer.
2 Mount the attachment and adjust the dial. (See page 4.)
3 Press the power switch to turn on the trimmer.

Illustration of a hand using a hairbrush to press down a small object (no text or symbols present)

4 Hold the trimmer with the power switch facing downward, and cut the beard by moving the trimmer back against the flow of the beard.

- Hair trimmings may collect inside the attachment when a large volume of beard is cut, so discard hair trimmings after each use.

Line drawing of a person applying a cigarette to their mouth (no text or symbols)

▶ Trimming without the comb attachment

Shaping your moustache

■ Above the lips

Place the trimmer at a right angle to your skin with the power switch facing upwards and trim around your moustache.

Illustration of a person applying oral pressure to their mouth (no text or symbols)

To round out the shape, trim around your moustache by holding the main body sideways.

Line drawing of a person applying lip product to their mouth (no text or symbols)

■ Trimming the edge of beard

Cut your beard gradually with the power switch facing your skin, taking care not to cut too much.

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Shaping your sideburns

Place the trimmer at a right angle to your skin and cut your sideburns.

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Shaping the hair around your ears

Trim the hair around your ears by holding the main body sideways.

Side profile illustration of a person applying earphones to the ear (no text or symbols)

Cutting your vellus hair

Cut your vellus hair slowly, moving upward from the bottom with the power switch facing your skin.

Illustration of a person applying a facial massage to the ear with a hand holding a tool (no text or symbols)

- Trimming your beard or moustache without an attachment will trim hair length to approx. 0.5 mm.

Wet trimming

▶ Trimming without the comb attachment

Cut your beard or vellus hair with water or face-wash cleanser on your face.

Wet trimming will decrease the friction, allowing a smooth touch. Wet trimming is recommended to trim a fuller beard to a length of 0.5 mm without an attachment.

1 Remove the comb attachment.
2 Apply water, soap, etc., to your face.

3 Press the power switch to turn on the trimmer.

Line drawing of a hand holding a handheld device with a black arrow pointing to the button (no text or symbols present)

4 Cut your beard slowly, moving upward from the bottom with the power switch facing your skin.

Illustration of a person applying a toothbrush to their ear (no text or symbols present)

Notes

• Do not use any shaving creams as these may cause a decrease in cutting performance due to scoring of the blades.
• Make sure to rinse the main body with water and apply the oil to the blades after wet trimming.

Clean

Cleaning the trimmer

It is recommended to clean at every use.

1. Remove the trimmer from the AC adaptor.

To remove light dirt

1. Remove the comb attachment and turn the trimmer on.
2. Run water down the water inlet at the back of the main body, rinse thoroughly for approximately 20 seconds, and then turn the trimmer off.

- Rinse with water and shake up and down several times to remove the water.

For heavy dirt

1. Remove the comb attachment and blade.
2. Clean the trimmer and the blade with running water.

Illustration of a hand holding a pipe with a small object inside, emitting steam or smoke (no text or symbols)

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

- Rinse with water and shake up and down several times to remove the water.

1. Wipe off the water with a towel and let it dry naturally.
2. It will dry faster with the blade removed.
3. Apply the oil to the blade after drying.
4. Attach the comb attachment and blade to the trimmer.

4

Cleaning with the brush

1. Remove the trimmer from the AC adaptor.
2. Make sure that the trimmer is turned off.
3. Remove the comb attachment.
4. Hold the main body, place your thumb against the blades and then push them away from the main body.
5. Brush off any hair trimmings from the main body and from around the blade.

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

English

1. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever to raise the moving blade.

Line drawing of hands pouring liquid from a small container into a bottle (no text or symbols)

1. Apply the oil to the blade.
2. Attach the comb attachment and blade to the trimmer.

Illustration of two hands using a tool to adjust or install a small component (no text or symbols visible)

Lubrication

Apply the oil to the trimmer before and after each use. Apply a drop of the oil to the points indicated by the arrows.

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a tool tip.

Remounting the blade

Fit the mounting hook into the blade mounting on the trimmer and then push in until you hear a click.

Illustration of a hand holding a pen with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Blade life

Blade life varies according to the frequency and length of use of the trimmer.

For example, the blade life is approximately 3 years when using the trimmer for 5 minutes 10 times a month. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

▶ Battery life

Battery life will vary according to the frequency and length of use. If the battery is charged once every 2 weeks, the service life will be approximately 3 years.

- It is recommended that the trimmer be recharged at least every 6 months even when not in regular use because the charge will drain from the battery and its service life may be shortened.

8

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the trimmer. Please make sure that the battery is disposed of at an officially designated location if there is one. Do not dismantle or replace the battery so that you can use the trimmer again. This could cause fire or an electric shock.

Please contact an authorised service center.

• Remove the trimmer from the AC adaptor when removing the battery.
• Perform steps ① to ⑪ and lift the battery, and then remove it.
• Please take care not to short-circuit the battery.

Exploded view diagram of a mechanical assembly with numbered parts and highlighted section 10

For environmental protection and recycling of materials

This trimmer contains a Nickel-Metal Hydride battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the AC adaptor.
Motor voltage	1.2 V---
Charging time	RE7-69	230 V~	Approx. 8 hours
	RE7-74 for the United Kingdom	240 V~	Approx. 8 hours
		230 V~	Approx. 10 hours
Airborne Acoustical Noise	53 (dB (A) re 1 pW)

This product is intended for household use only.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent

any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Technical diagram of a hairdryer with numbered parts and highlighted section

Line drawing of a backpack with a label pointing to the front portion (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Hauptgehäuse

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Illustration of a person applying a toothpaste to their mouth (no text or symbols)

Deutsch

Illustration of a person applying oral pressure to their mouth (no text or symbols)

■ Die Bartkanten trimmen

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with a ear (no text or symbols visible)

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Illustration of a person applying a toothbrush to their ear (no text or symbols present)

Illustration of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols present)

Illustration of a person applying a toothpaste to their face (no text or symbols present)

Hinweise

Two-step illustration showing hand cleaning a pipe with water droplets (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands using a tool to generate particles or debris (no text or symbols)

Illustration of two hands using a tool to adjust or install a small mechanical component (no text or symbols visible)

Einfettung

Technical diagram showing mechanical assembly with magnified views of internal components and a hand holding a tool.

Illustration of a hand holding a pen with a magnified inset showing a hand holding a small object (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Technical diagram of a hairpin with numbered parts and highlighted section

Line drawing of a backpack with a label pointing to the front portion (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Corps principal

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Illustration of a person applying a cigarette to their face (no text or symbols present)

▶ Tailler sans le sabot

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Illustration of a person applying a tooth or jaw to their mouth (no text or symbols)

Illustration of a person using a handheld device to apply facial care (no text or symbols present)

Modeler vos favoris

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Illustration of a person applying a toothbrush to their ear (no text or symbols present)

Illustration of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols present)

Illustration of a person using a handheld tool to apply facial massage (no text or symbols present)

Remarques

Illustration of hands using a tool to interact with a pipe, showing fluid flow (no text or symbols)

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Français

Line drawing of hands pouring liquid from a small container into a bottle (no text or symbols)

Illustration of two hands using a tool to adjust or install a small mechanical component (no text or symbols visible)

Lubrification

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a tool tip.

Remonter la lame

Illustration of a hand holding a pen with a magnified inset showing a hand holding a small object (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Diagram of a car's front view with numbered parts and a highlighted circular area, likely indicating a specific component or location.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Corpo principale

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a toothpaste to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a tooth or lip to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with a ear (no text or symbols visible)

Modellare le basette

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Illustration of a person using a tool to apply facial massage or pressure technique (no text or symbols present)

Illustration of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols present)

Illustration of a person using a handheld tool to apply facial massage (no text or symbols present)

Note

Two-step illustration showing hand cleaning a pipe with water droplets (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands pouring liquid from a small container into a bottle (no text or symbols)

Illustration of two hands holding a small mechanical component (no text or symbols visible)

Lubrificazione

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a tool tip.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Durata della lama

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Diagram of a device with numbered parts and a highlighted red circle, likely indicating a component or feature.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Hoofdbehuizing

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a cigarette to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Illustration of a person receiving neck massage from a finger (no text or symbols)

Nederlands

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person using a handheld tool to apply facial massage (no text or symbols present)

Opmerkingen

Two-step illustration showing hand cleaning a pipe with water droplets (no text or symbols)

Illustration of a hand holding a pen, with arrows indicating movement or force direction (no text or symbols present)

Nederlands

Line drawing of hands pouring liquid from a small container into a bottle (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Nederlands

Smering

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a tool tip.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and highlighted section 10

Technical diagram of a device with numbered parts and a highlighted section, likely for assembly or labeling.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Cuerpo principal

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a toothpaste to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person's face with a finger pointing to the nose area (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Español

Illustration of a person's head with a hand holding a pen, showing facial features (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols)

Illustration of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols present)

Illustration of a person applying a toothbrush to their face (no text or symbols)

Notas

Illustration of hands using a tool to interact with a pipe, showing fluid flow (no text or symbols)

Illustration of a hand using a tool to lift or lift a vertical pipe, with splashes indicating water (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands pouring liquid from a small container into a bottle (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Español

Lubricación

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a tool tip.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Diagram of a device with numbered parts and a highlighted circular area, likely indicating a component or feature.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Apparatets krop

Illustration of a hand using a hairbrush to press down a button (no text or symbols present)

Illustration of a person applying a nasal swab or applicator to their mouth (no text or symbols present)

▶ Trimning uden kamaggregatet

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Illustration of a person applying lip product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Sådan former du dine bakkenbarter

Placer trimmeren i en ret vinkel på din hud og klip dine bakkenbarter til.

Illustration of a person's head with a hand holding a tool, showing a finger pointing to the ear area (no text or symbols present)

Dansk

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols)

Noter

For at fjerne let snavs

Two-step illustration showing hand cleaning a pipe with water droplets (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands using a tool to extract or sample material from a small container (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

1. Påfør olie på bladet.

2. Fastgør kamaggregatet og bladet på trimmeren.

Dansk

Smøring

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a tool tip.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Bladets levetid

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Diagram of a handheld device with numbered parts and highlighted section, likely for assembly or labeling purposes.

Line drawing of a backpack with a label pointing to the front portion (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Corpo principal

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Illustration of a person applying a cigarette to their face (no text or symbols present)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a tooth or nail to the mouth (no text or symbols)

Illustration of a person using a handheld device to apply facial contour or pressure technique (no text or symbols present)

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Aparar o cabelo à volta das orelhas

Illustration of a person applying a toothbrush to their face, showing the brush and arrow (no text or symbols)

Illustration of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols present)

Illustration of a person applying a toothbrush to their ear (no text or symbols present)

Notas

Line drawing of a hand holding a pipe with water droplets, no text or symbols present

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands pouring liquid from a small container into a bottle (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Lubrificação

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a tool tip.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components and highlighted section 10

Diagram of a car's top view with numbered parts and highlighted section, likely for assembly or labeling purposes.

Line drawing of a backpack with a label pointing to the front portion (no text or symbols present)

B

Technical diagram of a mechanical device with numbered parts for identification

©

D

Technical diagram of a mechanical component with numbered parts labeled 10, 11, and 12

E

F

A Hoveddeksel

Line drawing of a hand holding a hairbrush with a black arrow pointing to the brush tip (no text or symbols)

Line drawing of a person applying a nasal swab or applicator to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Forme kinnskjegget

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Norsk

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person using a handheld tool to apply facial massage (no text or symbols present)

Merk

Illustration of hands using a tool to cut a pipe with visible cracks and dust (no text or symbols)

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

Illustration of a hand holding a small object with arrows indicating direction (no text or symbols)

Illustration of hands pouring liquid from a bottle into a container (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Smøring

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a hand holding a tool.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Bladets levetid

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Technical diagram of a device with numbered parts and a highlighted section, likely for assembly or labeling purposes.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Huvuddel

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a cigarette to their mouth (no text or symbols)

▶ Trimning utan kamtillbehöret

Forma mustaschen

■ På överläppen

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Forma polisongerna

Illustration of a person's head with a hand holding a tool, showing a finger pointing to the ear area (no text or symbols present)

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person using a handheld tool to apply facial massage (no text or symbols present)

Obs

Illustration of a hand holding a pipe with water droplets, no text or symbols present

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Svenska

Line drawing of hands using a tool to extract or sample material from a small container (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Smörjning

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a hand using a tool.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Bladets livslängd

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Technical diagram of a device with numbered parts and highlighted section, likely for assembly or labeling purposes.

Line drawing of a backpack with a label pointing to the front portion (no text or symbols present)

D

⑩ ⑪ ⑫

A Rungo

Technical diagram of a mechanical device with numbered components for identification

©

E

F

© Kampaosa (1–10 mm)

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a cigarette to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Side profile illustration of a person applying earphones to the ear (no text or symbols)

Illustration of a person applying facial massage to the ear with a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols present)

Huomautukset

Illustration of hands using a tool to remove or clean material from a pipe (no text or symbols)

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

Illustration of a hand holding a tool with arrows indicating motion or force (no text or symbols present)

Sioni

Line drawing of hands using a tool to extract or sample material from a small container (no text or symbols)

Illustration of two hands holding a small mechanical component (no text or symbols visible)

Voitelu

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a hand holding a tool.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Terän käyttöikä

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Technical diagram of a handheld device with numbered parts and highlighted section

Line drawing of a backpack with a label pointing to the front portion (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Korpus

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a nasal swab or applicator to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Kształtowanie baków

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a facial massage to the ear with a brush (no text or symbols)

Uwagi

Illustration of a hand holding a pipe with a small object inside, emitting steam or smoke (no text or symbols)

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Polski

Line drawing of hands pouring liquid from a container into a bottle (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Smarowanie

Technical diagram showing mechanical assembly with magnified views of internal components and a tool tip, likely illustrating a turning or disassembly process.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Trwałość ostrza

Exploded view diagram of a mechanical assembly with numbered parts and highlighted section 10

Diagram of a car's front view with numbered parts and a highlighted circular area indicating a specific component.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Hlavní část

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a cigarette to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Tvarování kotlet

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols present)

Poznámky

Two-step illustration showing hand cleaning a pipe with water droplets (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands using a tool to apply particles from a small container (no text or symbols)

Illustration of two hands using a tool to adjust or install a small component (no text or symbols visible)

Mazání

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a hand using a tool.

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Životnost čepele

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Technical diagram of a device with numbered parts and a highlighted circular component, likely for assembly or labeling.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Hlavná časť

Line drawing of a hand using a hairbrush to press down a button (no text or symbols present)

Illustration of a person applying a toothpaste to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Úprava bokombrád

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Slovensky

Illustration of a person applying a facial massage to the ear with a hand holding the product (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols)

Poznámky

Two-step illustration showing hand cleaning a pipe with water droplets (no text or symbols)

- Opláchnite vodou a zvyšnú vodu vytraste.

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands using a tool to extract material from a container (no text or symbols)

Illustration of two hands using a tool to adjust or install a small component (no text or symbols visible)

Technical diagram showing mechanical assembly with magnified views of internal components and a tool tip, likely illustrating a turning or disassembly process.

Nainštalovanie čepele

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Životnost' čepelí

Exploded view diagram of a mechanical assembly with numbered parts and highlighted section 10

Diagram of a hairdryer with numbered parts and highlighted section, likely for assembly or labeling purposes.

Line drawing of a backpack with a labeled part (⑤), no text or symbols present

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Törzs

Illustration of a hand using a hairbrush to press down a small object (no text or symbols present)

Line drawing of a person applying a cigarette to their mouth (no text or symbols)

Illustration of a person applying oral care to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Illustration of a person's head with a hand holding a tool, showing a finger pointing to the ear area (no text or symbols present)

Magyar

Illustration of a person applying a toothpaste to their ear (no text or symbols present)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols)

Megjegyzés

Illustration of hands using a tool to clean or exhaust a pipe, with no visible text or symbols

Illustration of a hand holding a tool with liquid droplets, no text or symbols present

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Illustration of hands using a tool to generate particles or debris (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Magyar

Magyar

Kenés

Technical diagram illustrating mechanical assembly steps with magnified views of internal components and a hand holding a tool.

Illustration of a hand holding a pen with a magnified inset showing a hand holding a small object (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Technical diagram of a device with numbered parts and highlighted regions, likely for assembly or labeling purposes.

Line drawing of a backpack with a labeled component (no text or symbols present)

B

Technical diagram of a mechanical device with numbered components for identification

©

D

⑩ ⑪ ⑫

E

F

A Corpul principal

Illustration of a hand using a hairbrush to press down a button (no text or symbols present)

Line drawing of a person applying a cigarette to their mouth (no text or symbols)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Illustration of a person applying lip product to their mouth (no text or symbols)

■ Tunsul marginii bărbii

Illustration of a person using a handheld device to apply a nasal swab (no text or symbols visible)

Illustration of a person's head with a hand holding a tool, showing a finger pointing to the ear area (no text or symbols present)

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a toothpaste to their face (no text or symbols present)

Observații

Line drawing of hands using a tool to clean or exhaust a pipe (no text or symbols)

Illustration of a hand holding a tool with droplets, no text or symbols present

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Line drawing of hands pouring liquid from a container into a bottle (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols present

Lubrifiere

Technical diagram illustrating mechanical assembly steps with magnified views of tool paths and thread specification

Reinstalarea lamei

Illustration of a hand holding a pen with a magnified inset showing a hand holding a small object (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10

Illustration of a hand using a hairbrush to press down a button (no text or symbols present)

Illustration of a person applying a nasal swab or applicator to their mouth (no text or symbols present)

Illustration of a person applying oral pressure to their mouth (no text or symbols)

Line drawing of a person applying a toothed product to their mouth (no text or symbols)

Illustration of a person using a handheld device to interact with their neck (no text or symbols visible)

Illustration of a person's head with a hand holding a tool, showing facial features (no text or symbols)

Illustration of a person applying facial massage to the ear with a hand holding a tool (no text or symbols)

Line drawing of a hand holding a handheld device with a black arrow pointing to the tip (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols)

Notlar

Illustration of a hand using a tool to lift or lift a vertical rod, with motion lines indicating movement (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols present)

Illustration of hands pouring liquid from a bottle into a container (no text or symbols)

Illustration of two hands using a tool to adjust or install a small mechanical component (no text or symbols visible)

Yağlama

Technical diagram showing mechanical assembly with magnified views of internal components and a tool tip, likely illustrating a turning or disassembly process.

Biçağı tekrar takma

Illustration of a hand holding a pen, with a magnified inset showing a hand holding a small object (no text or symbols present)

▶ Biçak ömrü

Exploded view diagram of a mechanical assembly with numbered parts and highlighted component 10
