Product Type	Component car speaker kit (separate channel)
Brand	Focal
Model	IS 165TOY
Woofer diameter	165 mm (6.5 inches)
Tweeter diameter	25 mm (1 inch) aluminum dome
Mounting depth	50 mm (woofer)
RMS power handling	80 W
Peak power	160 W
Sensitivity (1W/1m)	90 dB
Impedance	4 ohms
Frequency response	50 Hz – 20 kHz
Cone material	Fiberglass
Surround material	Butyl rubber
Magnet type	Ferrite
Connector type	Spade terminals
Vehicle compatibility	Specially designed for Toyota vehicles
Delivery contents	2 woofers, 2 tweeters, 2 passive crossovers, grilles, screws, cables
Total weight (pair)	1.5 kg
Operating temperature	-20 °C to +70 °C
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Respect polarities and amplifier power. Securely fasten the speakers.
Spare parts and repairability	Low availability of individual spare parts. Consult a Focal authorized installer.

Frequently Asked Questions - IS 165TOY FOCAL

What is the recommended amplifier power for the IS 165TOY?

An RMS power of 50 to 80 W per channel is ideal for these speakers. Be careful not to exceed 160 W peak.

Are the Focal IS 165TOY suitable for my Toyota?

Yes, this model is specifically designed for Toyota vehicles. It comes with the necessary adapters for direct installation in most models.

What is the impedance of these speakers?

The impedance is 4 ohms, compatible with most amplifiers and car stereos.

How to install the tweeter?

The tweeter can be surface-mounted or flush-mounted depending on the chosen location. Use the supplied brackets and respect the polarity.

Do I need to use a passive crossover?

Yes, the kit includes passive crossovers to install between the amplifier and the speakers to separate frequencies.

What is the mounting depth of the woofer?

The mounting depth is approximately 50 mm. Check that the space in your door is sufficient.

Are these speakers waterproof?

No, they are not designed to be exposed to water. Avoid any contact with moisture.

Can I use them with a factory car stereo?

Yes, but for optimal performance, it is recommended to use an external amplifier.

How to maintain the speakers?

Clean them with a soft, dry cloth. Avoid chemical products that could damage the cone.

What to do if a speaker does not work?

Check the connections and polarity. If the problem persists, test with another source. Contact a Focal authorized installer for any repairs.

USER MANUAL IS 165TOY FOCAL

Technical line drawing of two mechanical components with mounting brackets and a separate inset showing internal features (no text or symbols)

English page 3

Français page 6

Thank you for choosing integration component kits and for sharing our passion for the “Spirit of Sound”. Designed using the latest technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user’s manual and keep it carefully for future reference. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Short listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation, check first how much space is available to fit the speakers into the vehicle (Cf plans on the packaging), then proceed with the cutting. In the case of assembly in original location, check that there is enough space between the speaker and the protection grille.

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product..

IS 165TOY plug&plaY InTegraTIOn

User manual

IS 165TOY installation

• The components of this dedicated kit are compatible with this vehicle's original connectors and fixings.
• Take extreme care when installing, particularly when removing rivets from the speaker and when reassembling.
• Only the use of appropriate quality tools can guarantee optimal installation.
• Connectors are fragile electronic components. Handle with care.
• Follow these instructions correctly to ensure the proper functioning of the IS 165TOY kit.
• Before restarting your system, check your car radio settings (which differ according to the vehicle's model, version and engine).

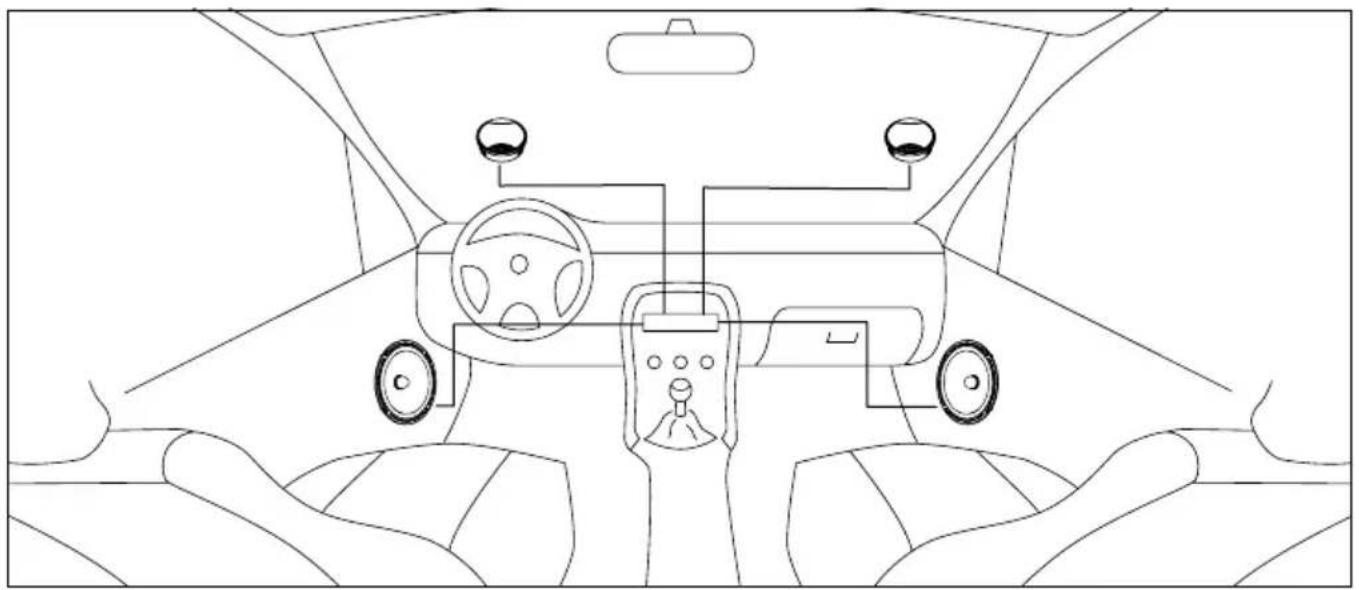

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

WARNING

• Before beginning the installation, disconnect the negative terminal of the battery (fig 1.) to avoid any risk of injury, fire, material damage, or airbag deployment during you disconnect the plug under the seat.
• Do not leave the ignition key in the slot and do not involve nor the stop / start button or key on during intervention.

In order to obtain the best results and safety installation (mentioned above), we highly recommend you have your product installed by your local Focal dealer.

Illustration of a hand using a tool to lift a battery into a container with a minus symbol (no text or labels)

IS 165TOY plug&plaY InTegraTION

User manual

IS 165TOY kit

• 2x Plug&Play woofers (basket and connector same than TOYOTA® standard)
• 2x Tweeters: Compact size with TOYOTA® OEM connector. This tweeter needs an adaptation by glueing into factory housing (Pillar, plastic grille behind mirror or dashboard)
• This kit was developed for an installation in TOYOTA® group cars using this same standard of 2-way component systems

Close-up of a mechanical tool tip with a metallic head and circular base, no visible text or symbols

Drill out the original rivets (x3 per woofer) from the factory speaker

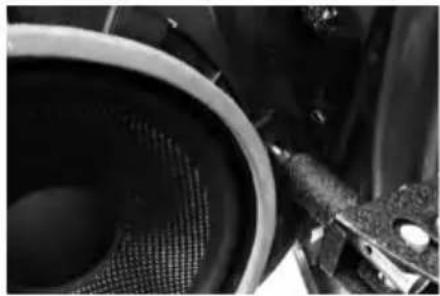

Close-up of a speaker grille and mechanical clamping device (no visible text or symbols)

Assemble the Focal speaker using the rivets provided with the kit IS 165TOY

Close-up of a mechanical component with visible internal structure and a bright light source (no text or symbols)

TOYOTA® factory woofer connector

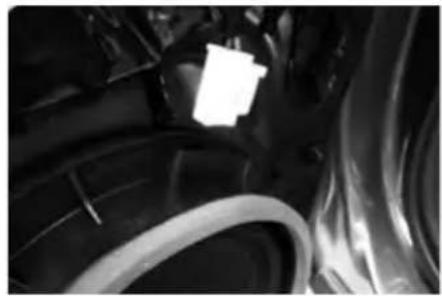

Close-up of a mechanical component with a white rectangular block attached, no visible text or symbols

TOYOTA® factory connector plugged in the IS 165TOY speaker

Close-up of a hand holding a small electronic component (no visible text or symbols)

TOYOTA® factory tweeter connector

Close-up of hands holding a small white electronic component connected to a black strip (no visible text or symbols)

TOYOTA® factory connector plugged in the IS 165TOY tweeter

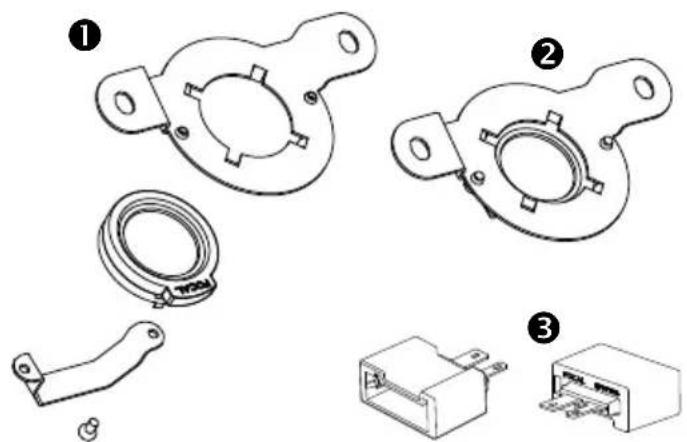

Technical line drawings of mechanical components including a clamp, coiled cable, bracket, and electrical connector (no text or symbols)

① Accessories for IS 165TOY tweeter (this accessory was developed for tweeter assembly in dashboard location: example in Prius).
② Accessory + IS 165TOY tweeter assembled ready to be attached in location.
3 Connector for tweeter (this accessory is plugged to the IS 165TOY tweeter wire)

Connector and attachment can be different according to country, model, years of vehicle...In case of doubt please contact the nearest Focal dealer.

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

AVERTISSEMENT

Close-up of a mechanical tool with a spiral tip inserted into a circular component (no visible text or symbols)

Close-up of a speaker grille and mechanical clamping device (no visible text or symbols)

Close-up of a car wheel rim and tire, no visible text or symbols

Close-up of a mechanical component with a white rectangular block and dark textured surface (no visible text or symbols)

Close-up of a hand holding a small white object against a dark background (no visible text or symbols)

Close-up of hands holding a small electronic component with a white square on a dark surface (no visible text or symbols)

Technical line drawings of mechanical components including flanges, coiled tubing, and electrical connectors (no text or symbols)
