Product Type	2-way Coaxial Car Speaker
Brand	Focal
Model	EC 165K
Speaker Size	6.5 inches (165 mm)
Woofer Cone Material	Polyglass
Tweeter Type	Aluminum/Mylar inverted dome
Power Handling RMS	80 Watts
Peak Power Handling	160 Watts
Impedance	4 Ohms
Sensitivity	91 dB (2.83V/1m)
Frequency Response	60 Hz - 21 kHz
Mounting Depth	48 mm (1.9 in)
Cutout Diameter	140 mm (5.5 in)
Weight	1.2 kg (2.65 lbs) per speaker
Grille Included	Yes
Installation Hardware	Screws, wire connectors, adapters included
Recommended Amplifier Power	30-120 Watts RMS per channel
Cleaning Instructions	Wipe gently with dry cloth; avoid liquid cleaners
Safety Features	Protective grille, thermal protection (built-in)
Spare Parts Availability	Serviceable through Focal authorized dealers
Repairability	Replacement parts available for non-destructive repairs
Warranty	1 year (check local distributor)

Frequently Asked Questions - EC 165K FOCAL

What is the Focal EC 165K speaker size?

The Focal EC 165K is a 6.5-inch (165 mm) coaxial car speaker.

What is the power handling of the EC 165K?

It handles 80 Watts RMS and 160 Watts peak.

What is the impedance of the Focal EC 165K?

The impedance is 4 Ohms.

Does the EC 165K come with a grille?

Yes, grilles are included with the speakers.

What is the mounting depth required?

The required mounting depth is 48 mm (1.9 inches).

Can I use the EC 165K with a factory radio?

Yes, but for best performance, we recommend an external amplifier providing 30-120 Watts RMS per channel.

What is the frequency response?

Frequency response is 60 Hz - 21 kHz.

How do I clean the speakers?

Clean gently with a dry, soft cloth. Do not use liquids or abrasive cleaners.

Where can I find spare parts?

Spare parts are available through Focal authorized dealers and service centers.

Is the EC 165K compatible with my car?

It fits most cars with 6.5-inch speaker cutouts. Check cutout diameter (140 mm) and depth before purchase.

USER MANUAL EC 165K FOCAL

Technical line drawing of a mechanical or electrical enclosure with no visible text, numbers, or symbols

Technical line drawings of three different electronic components with mounting pins and connectors (no text or symbols visible)

ES 165K2, ES 165KX2

Technical line drawing of a TPOCAL industrial control unit (no text or symbols on the device itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawings of three electronic device modules with no visible text or symbols

Line drawing of a Focal industrial control unit with visible ports and wiring (no text or symbols beyond branding)

1
Réglage du woofer
("Pass haut ou "Full")
Woofer high pass / full adjustment

Full 12 dB

Technical diagram of an electronic device rear panel with labeled components and indicators

N

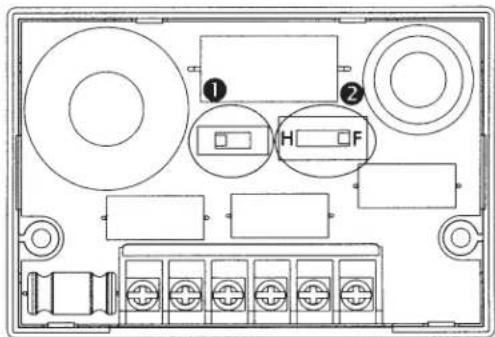

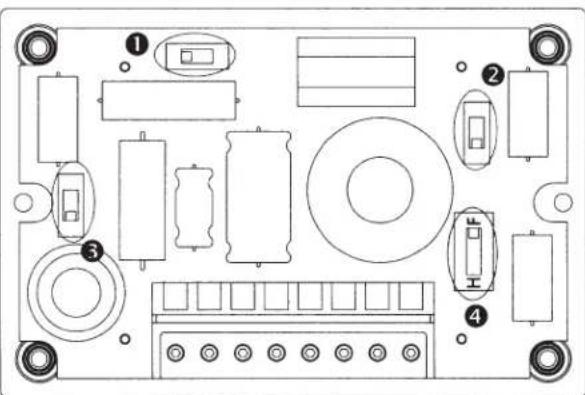

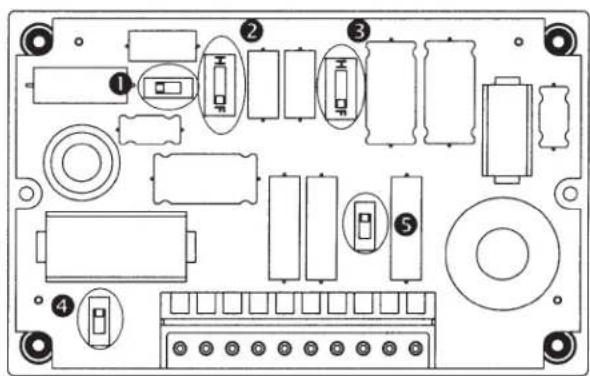

Réglage des switch du filtre / Crossover settings - ES 130K, ES 165K

12 dB 6 dB

1
Pente de coupure du Woofer
Woofer low pass slope

Technical diagram of an electronic device casing with labeled components and indicators

2

Simple line drawing of a right angle with two labeled angles (1 and 2) and an arrow, no text or symbols present.

② Pente de coupure du Woofer
Woofer low pass slope

12 dB 6 dB

Technical diagram of an electronic device with labeled components and numbered parts

3

Pente de coupure du Woofer Woofer low pass slope

+3 0 -3 dB

P

② Pente de coupure du Woofer Woofer low pass slope

Diagram showing a right triangle with labeled angles 1 and 2 on a Cartesian coordinate system

Technical diagram of an electronic device with labeled components including buttons, relays, and a display panel.

12 dB 6 dB

+3 dB 0 -3 dB

Diagram showing a 3D coordinate system with labeled axes and two marked angles 1 and 2.

2

Réglage du niveau tweeter Tweeter level adjustment

+3 dB 0 -3 dB

3
Réglage du passe haut médium Midrange high pass adjustment

Technical diagram of an electronic device rear panel with labeled components and indicator lights

1 = 500 Hz 2 = 400 Hz 3 = 300 Hz

12 dB 6 dB

+3 dB 0 dB -3 dB

Technical line drawing of a speaker component with concentric rings and base (no text or symbols)

S
。

Register your product online at www.focal.com/garantie and get your certificate of guaranty.

Warning

Listening for a prolonged period at a high volume level over 110 dB may result in hearing loss. Exposure, even brief, to sound at over 130 dB may result in irreparable hearing loss.

Important recommendations

First of all, check the space available for the loudspeakers (see the plans on the packaging) and then start cutting. If the loudspeakers are to be mounted in their original place, check whether there is enough space between the loudspeaker and the protective grating.

• Keep the loudspeakers away from metal chips and dust.
• Clean carefully prior to mounting the loudspeakers.

Warranty conditions

If you encounter problems, contact your Focal distributor first. For all Focal equipment, the warranty applicable to France covers a 2-year period as of the purchase date and is non-transmissible in case of resale. In the event of faulty equipment, it should be sent, at your own expense, in its original packaging to your distributor, who will then check the equipment and determine the nature of the problem. If it is under warranty, the equipment will be returned to you or replaced "postage paid". Otherwise, a quote for repair will be sent to you. The warranty does not cover damage arising from improper use or incorrect connection (e.g. burned voice coils...)

Environmental information

Your Focal-JMlab product has been designed and manufactured using high quality materials and components, which can be recycled and reused. This symbol signifies that the electrical and electronic devices, at the end of their life, should be disposed of separately from household waste. Please take this device to the local collection point or to a recycling centre. You will thus contribute to environmental conservation.

2-channel connection Kit (Fig A)

- ES 100K, ES 130K, ES 165K

2-channel connection Kit (Fig B)

- ES 165K2, ES 165KX2

These filters have been designed for use in "bi amplification".

For "conventional" use, with the help of 2 short wires, connect the "input" terminals (IN W+ to IN T+ & IN W- to IN T-) (Fig C & E)

2-channel Kit connections in the case of bi amplification / BI AMP using (4-channel amp): (Fig F)

- ES 165K2, ES 165KX2

3-channel connection Kit

- ES 165KX3

3-channel Kit connections in the case of bi amplification (Fig K)

- ES 165KX3

These filters have been designed for use in "bi amplification".

For "conventional" use, with the help of 2 short wires, connect the "input" terminals (IN W+ to IN T+ & IN W- to IN T-) (Fig H & J)

Mounting of the filter

- ES 100K, ES 130K, ES 165K,

- ES 165KX, ES165KX2, ES 165KX3

The filters should be mounted (using the screws provided or with the help of double sided tape), preferably in a dry and ventilated area.

To open the casing, unclip the cover (ES100/130/165K models) or unscrew the 4 screws (ES165K2/165KX2/165KX3 models) (Fig D & I): Warning: for this filter model please keep the 4 aluminium spacers.

Note: If access to the filters is difficult, please implement the cabling and adjustments prior to final mounting.

Installation of the tweeter (ES100K/130K/165K/165K2 kits)

There are three mounting options

1 - Mounting on the inclined pod: choose the desired tilt according to the selected place. (Fig L1) Make a hole for the cables and screws, mount the stand with the help of the screws included in the kit, thread the 2 wires and then mount the tweeter in its housing (adjusted mounting). These tasks can be performed when the grating is assembled.

Warning: To remove the tweeter from this accessory, please act on the edge and, using a fine-blade tool as a lever, remove the tweeter/plastic collar/grille assembly.

2 - Mounting in the original place: Remove the grating, disassemble the plastic collar exerting pressure in order to remove this spare part from the tweeter body, remount the dome protective washer. (Fig L2) The dome of the tweeter should not enter into contact with a surface or a spare part of the vehicle: Respect the mounting of this important protective washer; this is required for all mountings without a grating in original places.

3 - Flush mounting: cut out a 40 mm in diameter hole. "Tight" adjustment (Fig L3)

Note: To mount the plastic collar, please respect the guide that ensures sound assembly of the 2 parts.

Installation of the tweeter (Kits ES165KX2 and 165KX3)

There are two mounting options:

1 - Mounting on the inclined pod: choose the desired tilt according to the selected place. (Fig M1) Mount the stand using the screws provided, thread the wires and then mount the tweeter in its housing [adjusted mounting]. Reinstall the grille.
2 - Flush mounting: cut out a 51 mm in diameter hole: "Tight" adjustment. (Fig M2) The serrated steel washer (provided) maintains the pressure of the tweeter after it has been mounted in its housing.

Coaxial kit EC165 K (Fig S)

This coaxial kit is equipped with an integrated tweeter crossover (6 db/oct); please observe the general recommendations for installation.

Warning: The tweeter post is not adjustable or rotative: it has been designed to be as compact as possible and thus compatible with as many spaces as possible.

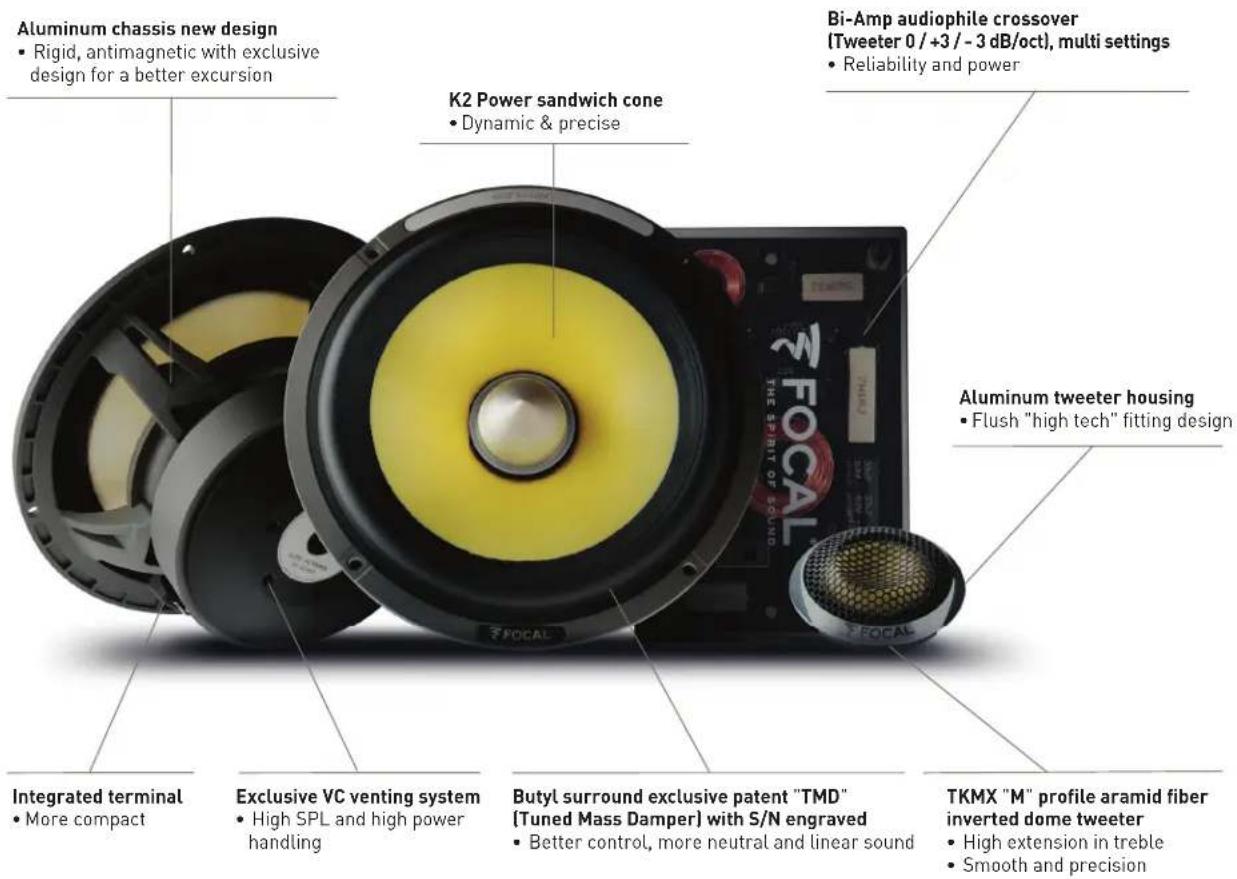

Aluminum chassis new design • Rigid, antimagnetic with exclusive design for a better excursion K2 Power sandwich cone • Dynamic & precise Bi-Amp audiophile crossover (Tweeter 0 / +3 / - 3 dB/oct), multi settings • Reliability and power Aluminum tweeter housing • Flush "high tech" fitting design Integrated terminal • More compact Exclusive VC venting system • High SPL and high power handling Butyl surround exclusive patent "TMD" (Tuned Mass Damper) with S/N engraved • Better control, more neutral and linear sound TKMX "M" profile aramid fiber inverted dome tweeter • High extension in treble • Smooth and precision

WHAT MAKES THE DIFFERENCE

• Inverted dome "M"-shaped tweeter
• 1^9/18 (40mm) VC diameter
  • High power handling
• Bi-Amp crossover
  • Phase plug for better dispersion
  • Aluminum and mesh grille

TECHNICAL CHARACTERISTICS

2-way component kit

Diameter: 6" [165mm]

Voice coil diameter: 1 ^3/1 " (40mm)

Voice coil height: 0 ^2/3 " (16.5mm)

Motor: Magnet

Tweeter: TKMX ("M" profile aramid fiber inverted dome)
Cone: Composite K2 Power "W" sandwich cone
Surround: Tuned Mass Damper (TMD®)
Separated crossover: 6-12/12-18dB (3kHz)
Tweeter Adjustable level: +3; 0; -3dB/oct

Max. power: 240W

Nom. power: 120W RMS

Sensitivity (2.83V/1m): 92.5dB

Frequency response: 55Hz-22kHz

Impedance: 2 Ω

Accessories: Supplied grilles

K2 POWER ES 165 KX2

Woofer 6 ^1/2

Close-up of a Tropic speaker with yellow sound waves and black base (no visible text or symbols)

• K2 Power sandwich cone
• "TMD" surround (patented technology)
• 2 Ω
• 19/16" (40mm) VC diameter

FREQUENCY RESPONSE/IMPEDANCE

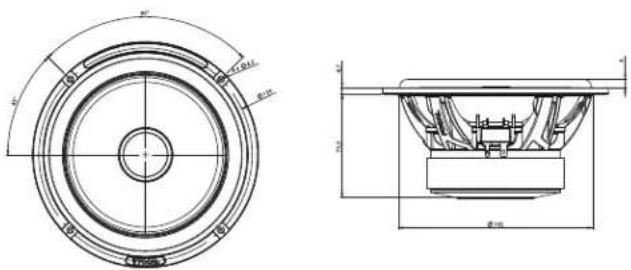

MECHANICAL DRAWING

Technical drawing of a speaker component with cross-sectional and top views, including dimension annotations in millimeters.

SPECIFICATIONS

Nominal power 120W
Maximum power 240W
Sensitivity (2,83V/1m) 92.5dB
Cone Kevlar sandwich
Nom. impedance 2Ω
Surround Butyl
DC resistance 1.8Ω
VC diameter 40mm 1		3754**
Former	Kapton
Layers	2
Wire	CCAW
Magnet (d x h)	100x22mm	3^15/15 × 10^55/44
Net weight	1700g	3.7lbs

PARAMETERS

Rdc	1.8 Ω
Fs	55Hz
Mms	15.3g
Cms	0.54mm/N
Vas	14l
Qts	0.55
Qes	0.61
Qms	5.2
Bxl	4 N/A
Sd	128.6cm2
SPL	89.5dB
Xmax	5.3 mm

K2 POWER

EC 165 K

2-way coaxial kit

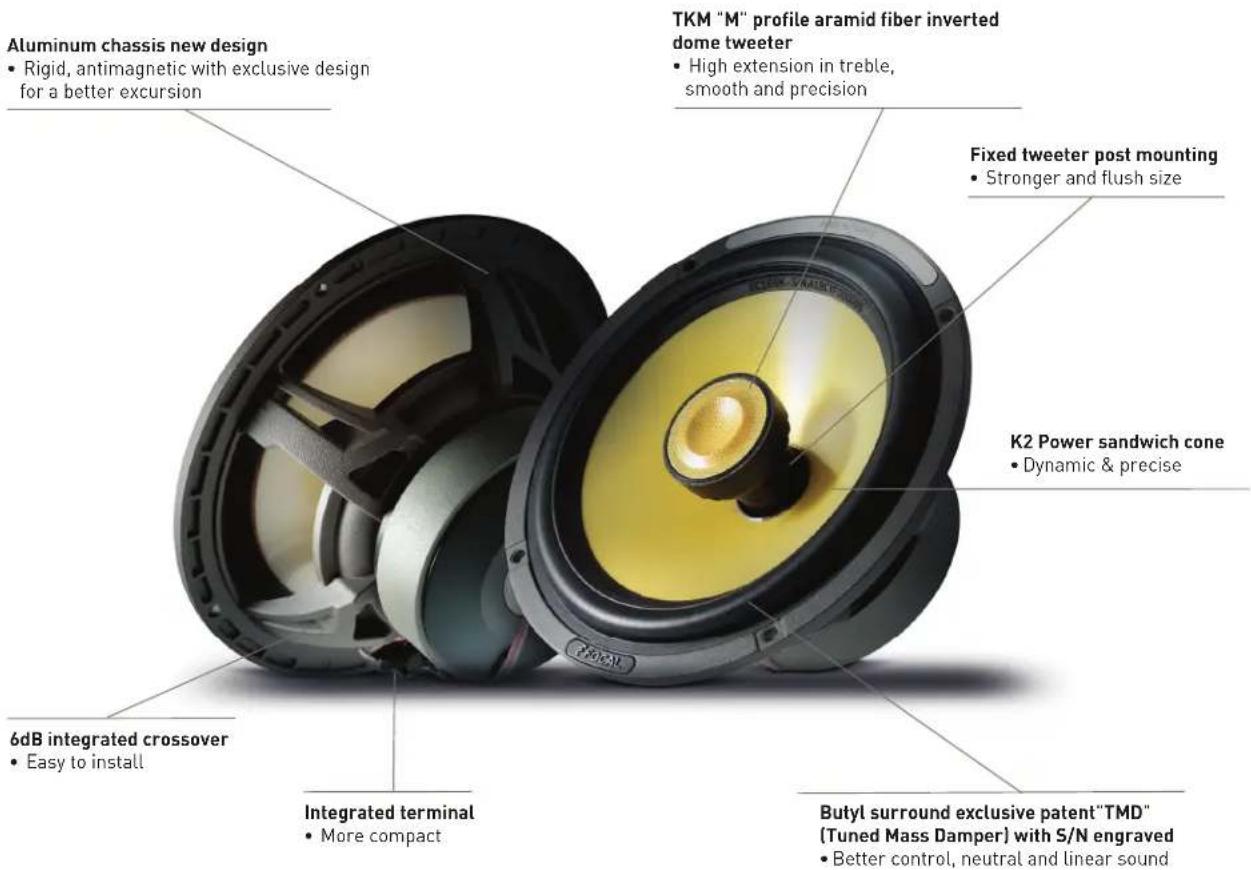

Aluminum chassis new design • Rigid, antimagnetic with exclusive design for a better excursion TKM "M" profile aramid fiber inverted dome tweeter • High extension in treble, smooth and precision Fixed tweeter post mounting • Stronger and flush size K2 Power sandwich cone • Dynamic & precise 6dB integrated crossover • Easy to install Integrated terminal • More compact Butyl surround exclusive patent"TMD" (Tuned Mass Damper) with S/N engraved • Better control, neutral and linear sound

WHAT MAKES THE DIFFERENCE

• Inverted dome "M"-shaped tweeter
  • Reinforced tweeter post
• Flush tweeter (compact)

TECHNICAL CHARACTERISTICS

2-way coaxial kit

Diameter: 6" (165mm)

Voice coil diameter: 1" (25mm)

Voice coil height: 0 9/16" (15mm)

Motor: Magnet

Tweeter: TKM ("M" profile aramid fiber

inverted dome)

Cone: Composite K2 Power "W" sandwich cone

Surround: Tuned Mass Damper (TMD ^3 )

Max. power: 160W

Nom. power: 80W RMS

Sensitivity (2.83V/1m): 93dB

Frequency response: 60Hz - 22kHz

Impedance: 40

Accessories: Supplied grilles

Elite

"HAUTE COUTURE" SOUND

FOCAL®

THE SPIRIT OF SOUND

K2 POWER

EC 165 K

Woofer 6 ^1/2

Close-up of a black speaker with yellow acoustic foam and power supply bracket (no text or symbols visible)

• K2 Power sandwich cone
• "TMD" surround (patented technology)
- Aluminum basket

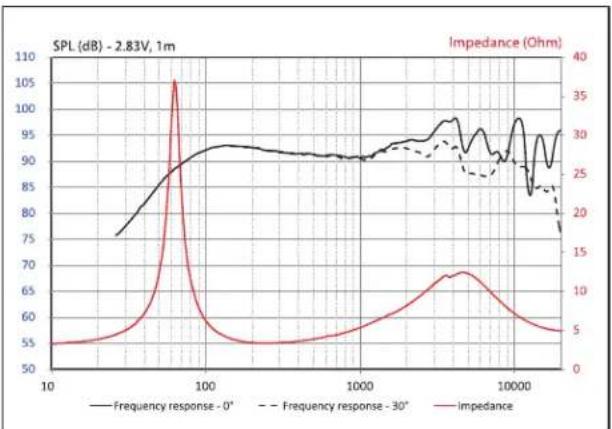

FREQUENCY RESPONSE/IMPEDANCE

MECHANICAL DRAWING

d d d+0.5 d=0.5 C12000

a b c d e f g h i j k l m n o p q r s t u v w x y z

SPECIFICATIONS

Nominal power	80W
Maximum power	160W
Sensitivity (2,83V/1m)	93dB
Cone	Kevlar sandwich
Nom. impedance	4Ω
Surround	Butyl
DC resistance	3Ω
VC diameter	25mm	1"
Former	Kapton
Layers	2
Wire	CCAW
Net weight	1100g	2.43lbs

PARAMETERS

Rdc	3Ω
Fs	65Hz
Mms	13.9g
Cms	0.43mm/N
Vas	10l
Qts	0.55
Qes	0.6
Qms	7
Bxl	5.3 N/A
Sd	128.7cm ^2
SPL	90dB
Xmax	4.5mm
